Horizon Fitness CT7.1 User manual

TREADMILL OWNER’S MANUAL
MANUEL D’UTILISATION DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE DU TAPIS ROULANT avant de se servir du présent MANUEL D’UTILISATION.
Lea la GUÍA DE LA CAMINADORA antes de usar este MANUAL DEL PROPIETARIO.
T102
T103
CT7.1
T101
GS950T

2
3 ENGLISH
30 FRANÇAIS
58 ESPAÑOL

3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located near the on/off power
switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.
SERIAL NUMBER:
MODEL NAME: HORIZON TREADMILL
WARNING

4

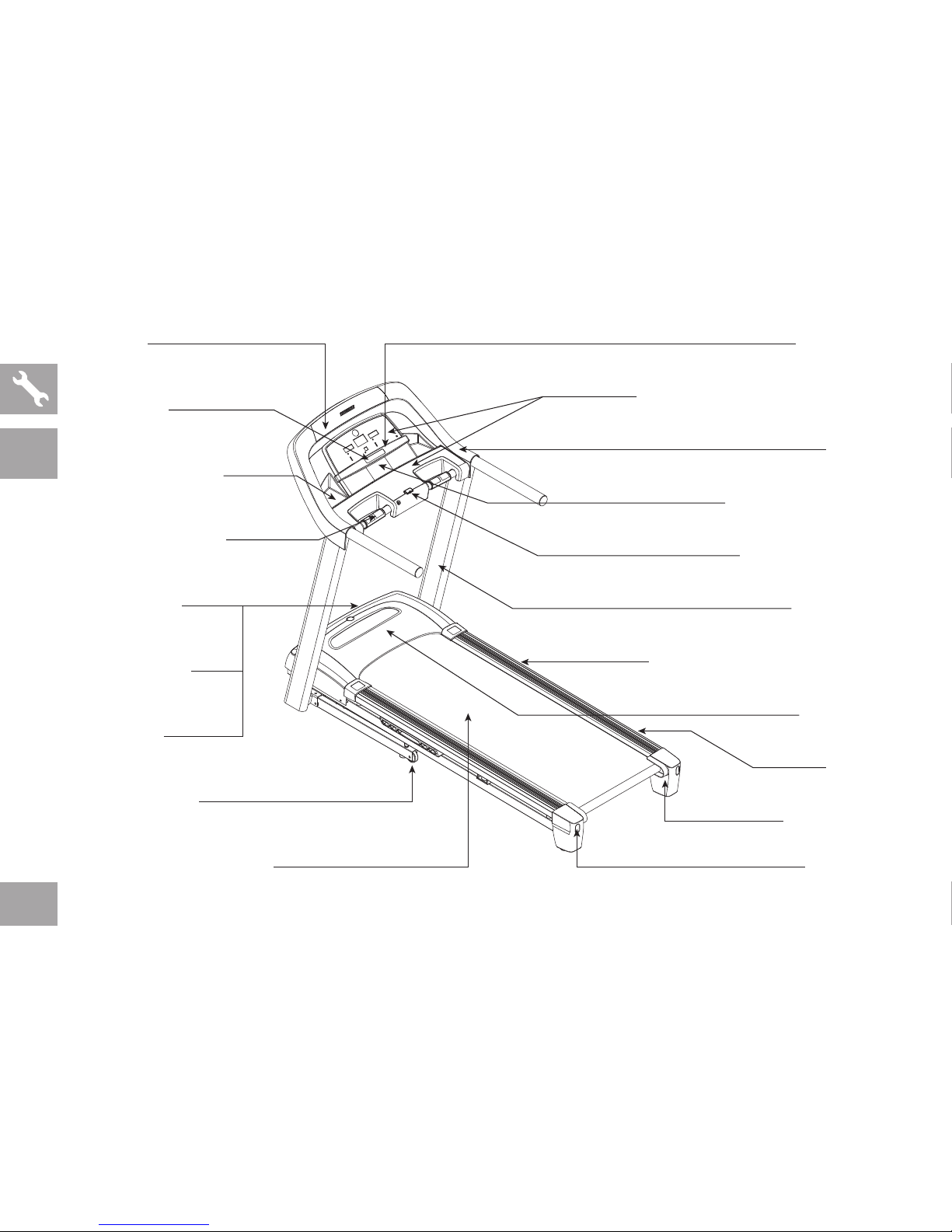

SPEAKERS
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
CONSOLE FAN
(T101 ONLY)
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
POWER CORD
READING RACK
CONSOLE
IPOD/MP3 PLAYER POCKET
TOUCH PAD PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
ADJUSTMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
T101
GS950T

5
SPEAKERS
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
CONSOLE FAN
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
POWER CORD
READING RACK
CONSOLE
IPOD/MP3 PLAYER POCKET
TOUCH PAD PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
ADJUSTMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
T102
T103
CT7.1

6
TOOLS INCLUDED:
F6 mm T-Wrench
F5 mm L-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F3 Hardware Bags
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F3 iPod®Dock Inserts (T103 only)
F1 iPod®Dock Rubber Plug (T103 only)
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled.
Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY
ALL
MODELS

7
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward until the foot
latch locks. Remove all contents from
underneath the running deck.
B Open hardware bag 1.
C With the running deck in the raised
position, attach the left console mast
to the base frame using 4 bolts (a),
4 spring washers (b) and 4 flat
washers (c).
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 1 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
LEFT
CONSOLE
MAST
BASE FRAME
RUNNING DECK
FOOT LATCH
ALL
MODELS

8
ASSEMBLY STEP 2
A Open hardware bag 2.
B Pull lead wire through right console
mast. After pulling the lead wire through the
mast, the top of the console cable should
be located at the top of the mast. Detach and
discard the lead wire.
C With the running deck in the raised
position, attach the right console
mast to the base frame using 4 bolts
(a), 4 spring washers (b) and 4 flat
washers (c).
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
RIGHT CONSOLE MAST
CONSOLE CABLE
LEAD WIRE
BASE FRAME
RUNNING DECK
ALL
MODELS

9

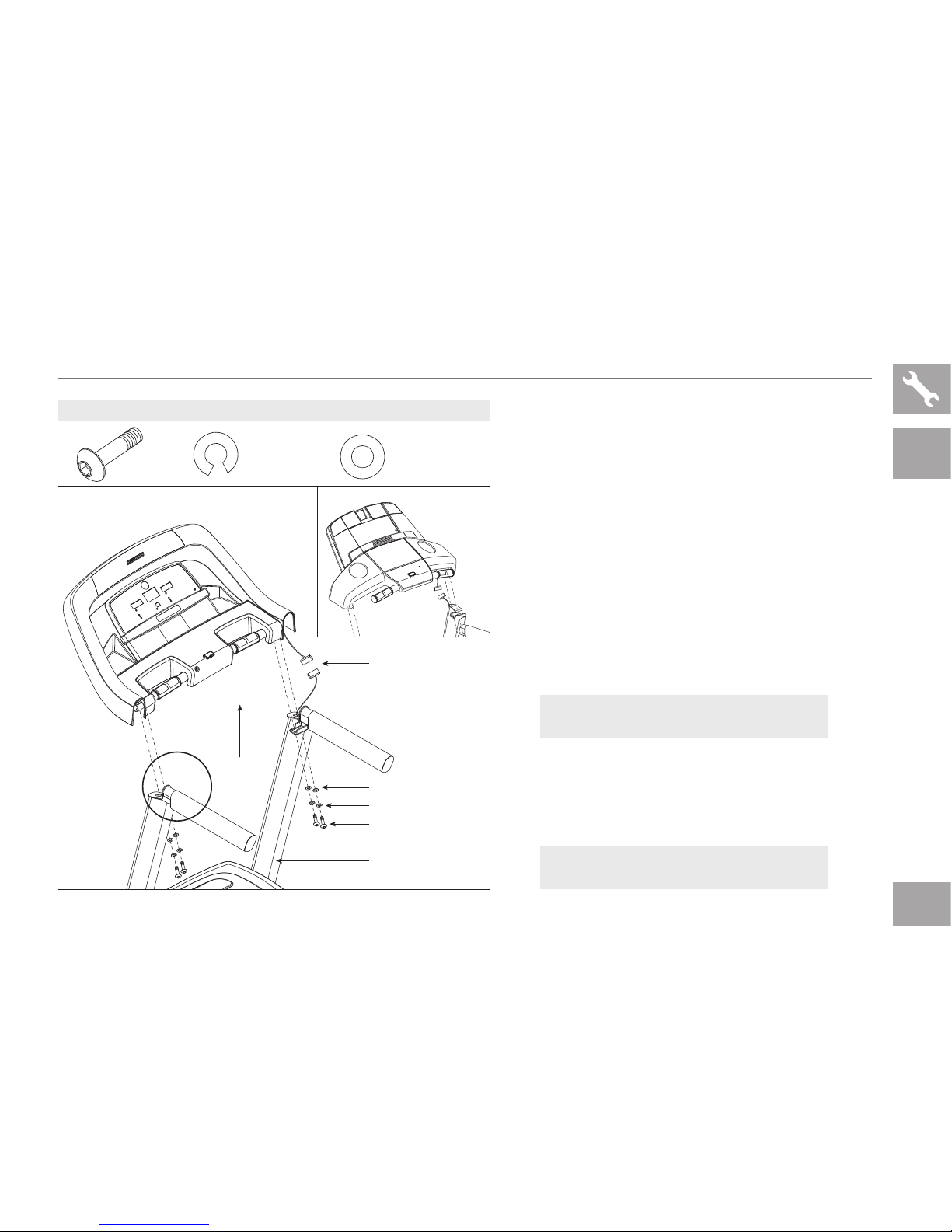

ASSEMBLY STEP 3
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
BOLT (D)
45 mm
Qty: 4
HARDWARE BAG 3 CONTENTS :
BOLTS (D)
CONSOLE MAST
CONSOLE CABLES
CONSOLE
ASSEMBLE
LEFT SIDE
FIRST SPRING WASHERS (B)
FLAT WASHERS (C)
A Disengage the deck lock latch with your
foot to lower the running deck.
B Open hardware bag 3.
C Gently place the console on top of the
console masts. Attach the left side first
using 2 bolts (d), 2 spring washers (b)
and 2 flat washers (c).
D Connect the console cables, carefully
tucking wires in masts to avoid damage.
E Attach the right side of the console
using 2 bolts (d), 2 spring washers
(b) and 2 flat washers (c).
NOTE: Be careful not to pinch any wires
while assembling the masts.
YOU ARE FINISHED!
CT7.1,
T102, T103
CONSOLE
GS950T, T101 CONSOLE
ALL
MODELS

10

11
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

12
1 % 10 % 9 % 8 % 7 % 6 % 5 % 4 % 3 % 2 % 1 MPH 10 MPH 9 MPH 8 MPH 7 MPH 6 MPH 5 MPH 4 MPH 3 MPH 2 MPH
SEL ECT
TARG ET
SEL ECT
WOR KOU T
HO LD T O RE S ET
GO
CO O L
DO W N STOP
TIME
C A L O R I E S
time
distance
calories
INCLINE
SPEED
TA R G E T S
DISTANCE
H E A R T R AT E
manual
intervals
weight loss
W O R K O U T S
INC L I NE SPEED
MP3 READY
EN T ER
DISPLAY
FAN
GR
A Q LCBUK
HDMI JN F E OV
S
T T
PP
T101

13

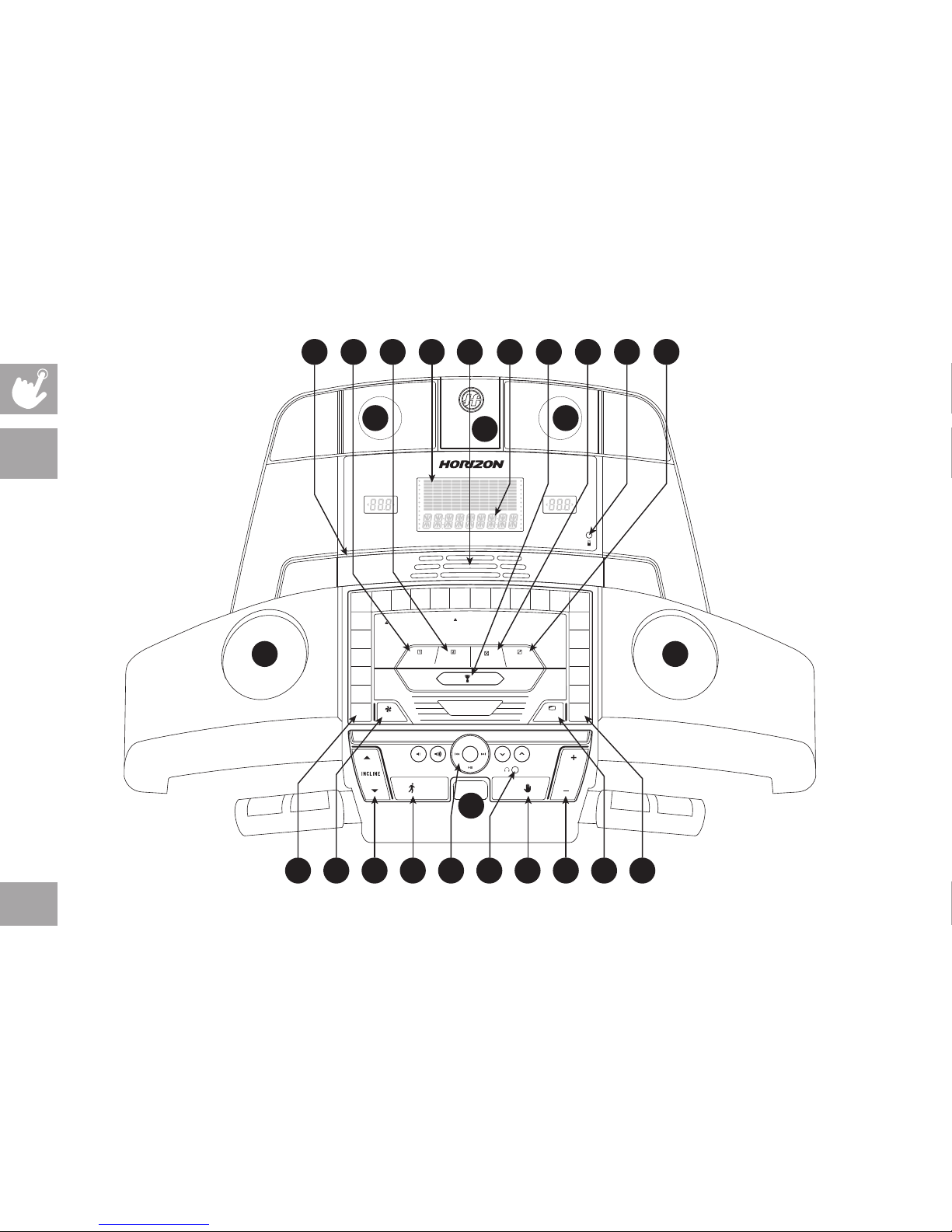

T101 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TARGET LED INDICATORS: indicate what target (if any) is set for the current program.
C) WORKOUT LED INDICATORS: indicate what workout is set for the current program.
D) SELECT TARGET: press to select your desired target.
E) SELECT WORKOUT: press to select your desired workout.
F) GO: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) COOL DOWN: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your
heart to readjust to decreased demand.
I) INCLINE / KEYS: used to adjust incline in small increments (0.5% Increments).
J) SPEED + / - KEYS: used to adjust speed in small increments (0.1 Mph increments).
K) INCLINE QUICK KEYS: used to reach desired incline more quickly.
L) SPEED QUICK KEYS: used to reach desired speed more quickly.
M) ENTER AND / KEYS: used to adjust target and workout settings. Press ENTER to change display feedback during workout.
N) FAN KEY: press to turn fan on and off.
O) FAN: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
Q) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYER POCKET: used to store your MP3 player.
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
T101

14
incline
1% 10 % 9% 8% 7% 6% 5% 4% 3% 2% 1MPH 10 MP H 9MPH 8MPH 7MPH 6MPH 5MPH 4MPH 3MPH 2MPH
speed
HOL D TO RES ET
go
cool
down
displ ay
selec t
wor kout
selec t
targe t
enter
MP3
READY
WARN IN G !
Attach safety key clip to clothing before starting. Toavoid
injury, stand on the side rails before starting treadmill.
Read and follow all instructions before operating. Keep
children away from this equipment. Remove safety key
when not in use and store out of
reach of children.
CA UT ION !
Consult a physician before using this equipment.
Stop exercising if you feel pain, faint, dizzy or
short of breath. For Consumer Use only.
stop
T I M E
C A L O R I E S
tim e
distance
calories INCLINE
SPEED
T A R G E T S
D I S T A N C E
H E A R T R A T E
manual
intervals
weight loss
W O R K O U T S
GP
A O LCBSK
HDMI JF ET
Q
R R
NN
GS950T

15

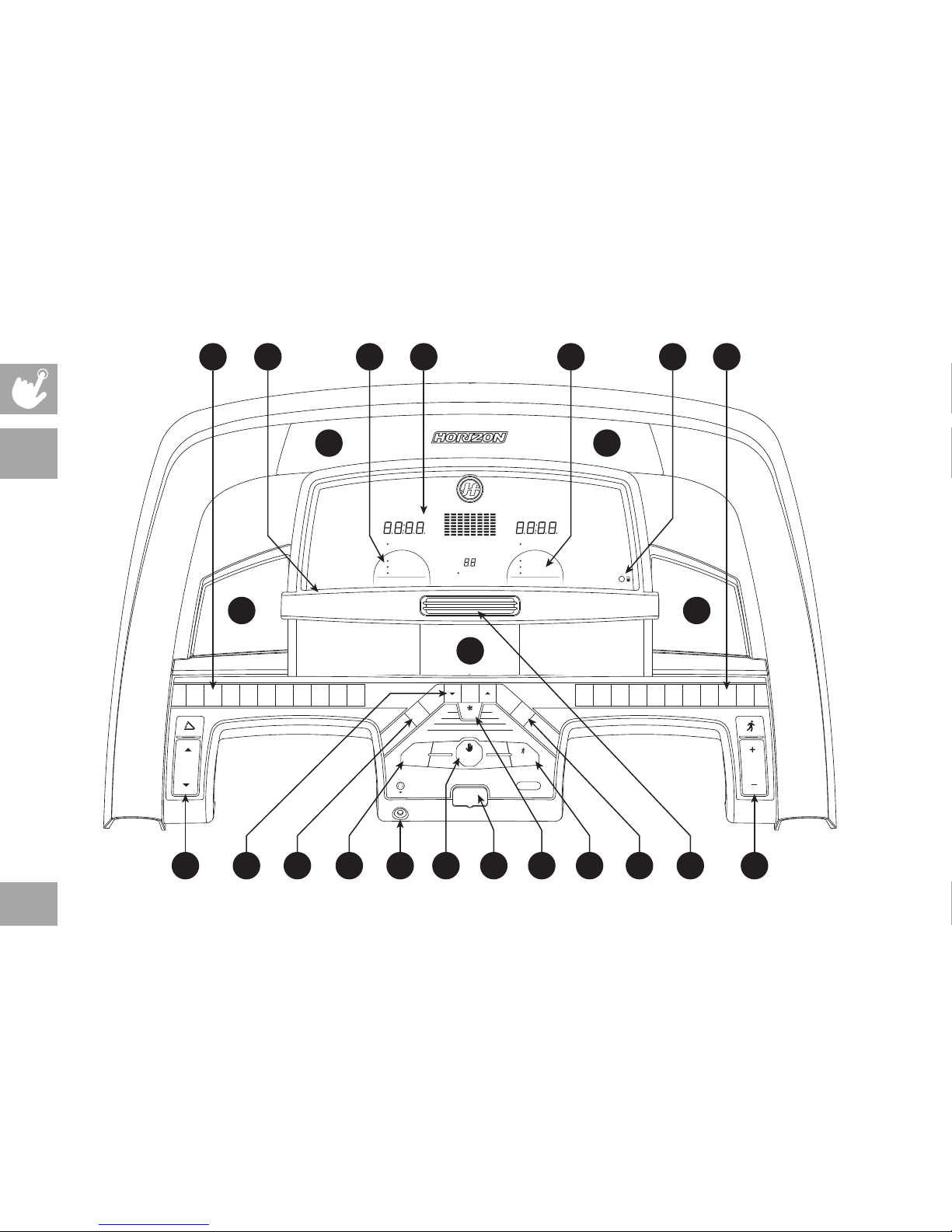

GS950T CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TARGET LED INDICATORS: indicate what target (if any) is set for the current program.
C) WORKOUT LED INDICATORS: indicate what workout is set for the current program.
D) SELECT TARGET: press to select your desired target.
E) SELECT WORKOUT: press to select your desired workout.
F) GO: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) COOL DOWN: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your
heart to readjust to decreased demand.
I) INCLINE / KEYS: used to adjust incline in small increments (0.5% Increments).
J) SPEED + / - KEYS: used to adjust speed in small increments (0.1 Mph increments).
K) INCLINE QUICK KEYS: used to reach desired incline more quickly.
L) SPEED QUICK KEYS: used to reach desired speed more quickly.
M) ENTER AND / KEYS: used to adjust target and workout settings. Press ENTER to change display feedback during workout.
N) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
O) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
P) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
Q) MP3 PLAYER POCKET: used to store your MP3 player.
R) WATER BOTTLE POCKETS: holds personal workout equipment.
S) READING RACK: holds reading material.
T) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
GS950T

16
START
SPE E D
STO P
1 %
2 %
5 %
6 %
7 %
4 %
3 %
6 MPH
7 MPH
1 MPH
2 MPH
5 MPH
4 MPH
3 MPH
10 %
11 %
12 %
9 %
8 %
10 MPH
9 MPH
8 MPH
11 MPH
12 MPH
CURRENT WORKOUT
GOAL CENTER
PR ES S TO S ET O R VI E W GO AL
SELECT
TARGET
SELECT
WORKOUT ENTER FAN
CHANGE
DISPLAYS
TIME DISTANCE
CALORIES PULSE
INCLINE SPEED
AD BO E M Q NCU
F L R I KG
P P
HJ
S
T T
V
T102
CT7.1

17
T102, CT7.1 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) ALPHANUMERIC DISPLAY: displays goal and program information.
C) SELECT TARGET: press to select your desired target.
D) SELECT WORKOUT: press to select your desired workout.
E) GOAL CENTER™: press to set or view your goal.
F) START: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) INCLINE / KEYS: used to adjust incline in small increments (0.5% increments).
I) SPEED + / - KEYS: used to adjust speed in small increments (0.1 MPH increments).
J) INCLINE QUICK KEYS: used to reach desired incline more quickly.
K) SPEED QUICK KEYS: used to reach desired speed more quickly.
L) CHANGE DISPLAY: press to change display feedback during workout.
M) ENTER: used to confirm target and workout settings.
N) FAN KEY: press to turn fan on and off.
O) FAN: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
Q) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYER POCKET: used to store your MP3 player.
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
T102
CT7.1

18
T103
SPE E D
START STOP
iPo d®
Bac k
Se lec t
Con tro ls
1 %
2 %
5 %
6 %
7 %
4 %
3 %
6 MPH
7 MPH
1 MPH
2 MPH
5 MPH
4 MPH
3 MPH
10 %
11 %
12 %
9 %
8 %
10 MPH
9 MPH
8 MPH
11 MPH
12 MPH
CURRENT WORKOUT
SELECT
TARGET
SELECT
WORKOUT ENTER
GOAL CENTER
PR ES S TO S ET O R VI E W GO AL
CUSTOM
1 or 2
CHANGE
DISPLAYS
FAN
T103
WARNING!
Attach safetykey clip to clothing before starting. To avoid injury,stand on the side rails before starting treadmill. Read
and follow all instructions beforeoperating. Keep children away from this equipment. Remove safety keywhen not in
use and store out of reachof children.
CAUTION!
Consult a physician beforeusing this equipment. Stop exercising if you
feel pain, faint, dizzy or short of breath.For Consumer Use only.
INCLINE SPEED
CALORIES
TIME DISTANCE
HEART
RATE
AD BO E M Q WCU
F X R I L KG
P P
HNJ
S
T T
V

19
T103 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) ALPHANUMERIC DISPLAY: displays goal and program information.
C) SELECT TARGET: press to select your desired target.
D) SELECT WORKOUT: press to select your desired workout.
E) GOAL CENTER™: press to set or view your goal.
F) START: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) INCLINE / KEYS: used to adjust incline in small increments (0.5% increments).
I) SPEED + / - KEYS: used to adjust speed in small increments (0.1 MPH increments).
J) INCLINE QUICK KEYS: used to reach desired incline more quickly.
K) SPEED QUICK KEYS: used to reach desired speed more quickly.
L) CHANGE DISPLAY: press to change display feedback during workout.
M) ENTER: used to confirm target and workout settings.
N) FAN KEY: press to turn fan on and off.
O) FAN: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
Q) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) IPOD®DOCKING STATION: used to dock and charge your iPod (not included).
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
W) CUSTOM 1 OR 2 KEY: press to select Custom 1 or Custom 2 program.
X) IPOD®CONTROLS: press to adjust your attached iPod audio settings. See page 23 for more info.
T103

20

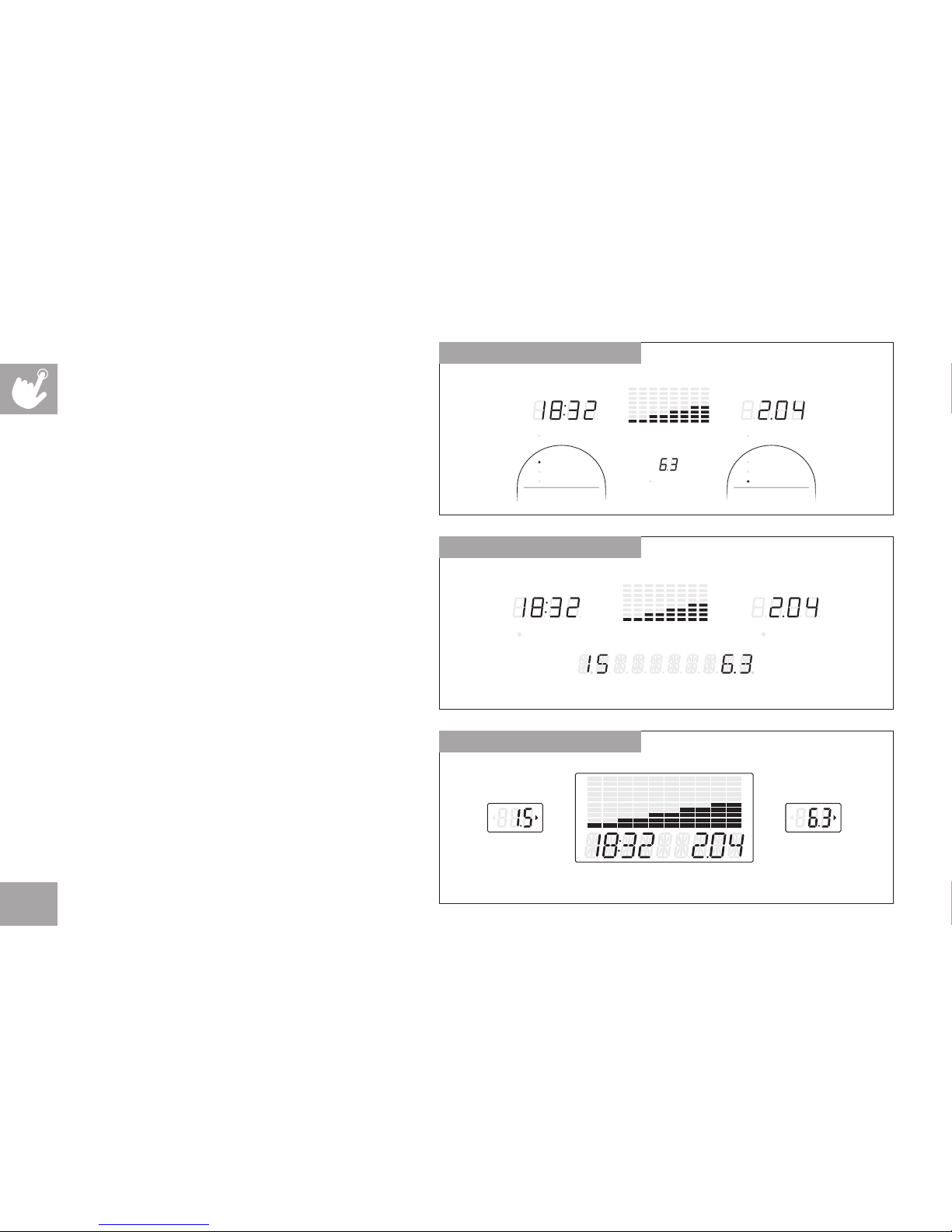

DISPLAY WINDOWS
• TIME: Shown as minutes : seconds. View the time
remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance
traveled or distance remaining during your workout.
• SPEED: Shown as MPH. Indicates how fast your
walking or running surface is moving.
• INCLINE: Shown as percent. Indicates the incline of
your walking or running surface.
• CALORIES: Total calories burned or calories
remaining left to burn during your workout.
• HEART RATE: Shown as BPM (beats per minute).
Used to monitor your heart rate (displayed when
contact is made with both pulse grips).
• PROGRAM PROFILES: Represents the profile of
the program being used (speed during speed based
programs and incline during incline based programs).
• TARGETS:
T101, GS950T: LED lights up next to currently
selected target. If no LED is lit, no target is activated.
T102, T103, CT7.1: target will be displayed in the
alphanumeric window on the bottom of the display.
• WORKOUTS:
T101, GS950T: LED lights up next to currently selected
workout.
T102, T103, CT7.1: workout will be displayed in the
alphanumeric window on the bottom of the display.
TIME
C A L O R I E S
time
distance
calories
INCLINE
SPEED
TA R G E T S
DISTANCE
H E A R T R AT E
manual
intervals
weight loss
W O R K O U TS
T101, GS950T DISPLAYS
TIME DISTANCE
CALORIES PULSE
INCLINE SPEED
T102, CT7.1 DISPLAYS
INCLINE SPEED
CALORIES
TIME DISTANCE
HEART
RATE
T103 DISPLAYS
