TREADMILL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE D’UTILISATION DU TAPIS ROULANT avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.
8

2
3 ENGLISH
32 FRANÇAIS
62 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before
using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed on the back
panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failureto comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION. Failure
tocomply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only;
never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking
offparts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
orimmersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failureto comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service
atechnician.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first
time use. Failure to do so may cause premature electronic failure.
WARNING

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and
ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly.
Never operate any product if it appears damaged, or has been immersed in water.
Contact Customer Tech Support for replacement or repair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product.
If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure
thatthe product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit.
Thistreadmill should be used with a minimum 15-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill
could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode sticker near
the on/off power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING

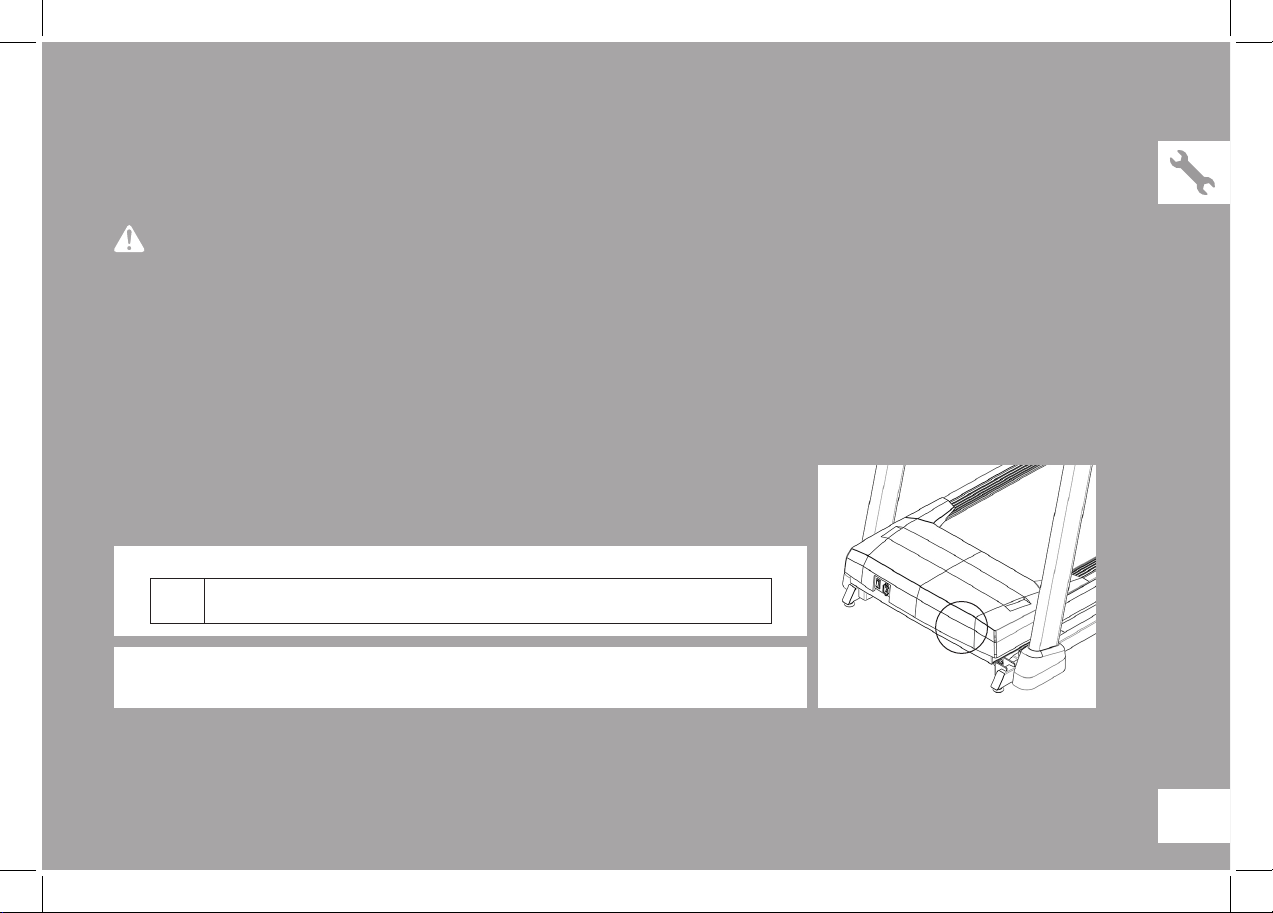

SERIAL NUMBER LOCATION
MODEL NAME: HORIZON 7.8AT TREADMILL

8
SPEAKERS
CONSOLE FAN
WATER BOTTLE HOLDER
PULSE RATE GRIPS
ON/OFF SWITCH
POWER CORD
RUNNING BELT/RUNNING DECK
TRANSPORT WHEEL
MAST COVERS
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
TABLET/READING RACK
CONTROL PANEL AND DISPLAY WINDOWS
CONSOLE
SAFETY KEY PLACEMENT
CROSS SUPPORT BAR
CONSOLE MAST
FOOT LATCH (UNDERNEATH DECK)
MOTOR COVER
STORAGE TRAY
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS

9
TOOLS INCLUDED:
F8 mm T-Wrench
F6 mm L-Wrench
F5 mm L-Wrench
PARTS INCLUDED:
F1 Main Frame
F1 Console Assembly
F2 Console Masts
F2 Mast Covers
F2 Pulse Rate Grips
F1 Cross Support Bar
F1 Storage Tray
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F1 Power Cord
If you have questions or if there
are any missing parts, contact
Customer Tech Support. Contact
information is located on the
back panel of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from
packaging until specified to do so in the assembly instructions. You may remove the
plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this unit.
Never open box when it is on its side. Once the banding straps have been removed, do not
lift or transport this unit unless it is fully assembled and in the upright folded position, with
the lock latch secure. Unpack and assemble the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never
grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially
threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such
as lithium bike grease is recommended.
PRE ASSEMBLY

10
B
D
C
4
4
7
2
A1 3
C
D
B
A
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the running deck
upward from the rear to remove all contents from
underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Insert UPRIGHT GUIDE BOLT (A) into MAIN FRAME
BRACKET (1) and fully tighten.
D Attach LEAD WIRE to bottom end of CONSOLE
CABLE (2). Pull LEAD WIRE through RIGHT
CONSOLE MAST (4). After pulling the lead wire
through the mast, the top of the CONSOLE CABLE (2)
should be located at the ATTACHMENT BRACKET (7).
E Attach RIGHT CONSOLE MAST (4) to MAIN
FRAME(3) using 4 BOLTS (B), 4 FLAT WASHERS (C)
AND 4SPRING WASHERS (D). Feed the extra console
cable back into the upright mast.
F Repeat STEP E on the LEFT SIDE.
M8X1.25PX11L 2A UPRIGHT GUIDE BOLT
A
NOTE: Do not fully tighten the following bolts until the
end of STEP 4.
B
C
D
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX80L 8B MAST BOLT
8.2X15.4X2.0T
8C
SPRING WASHER
8.4X15.5X1.6T
8
D
FLAT WASHER
NOTE: Be careful not to pinch the console cable
while attaching the right console mast.

11
H
G
F
4
4
2
6
7

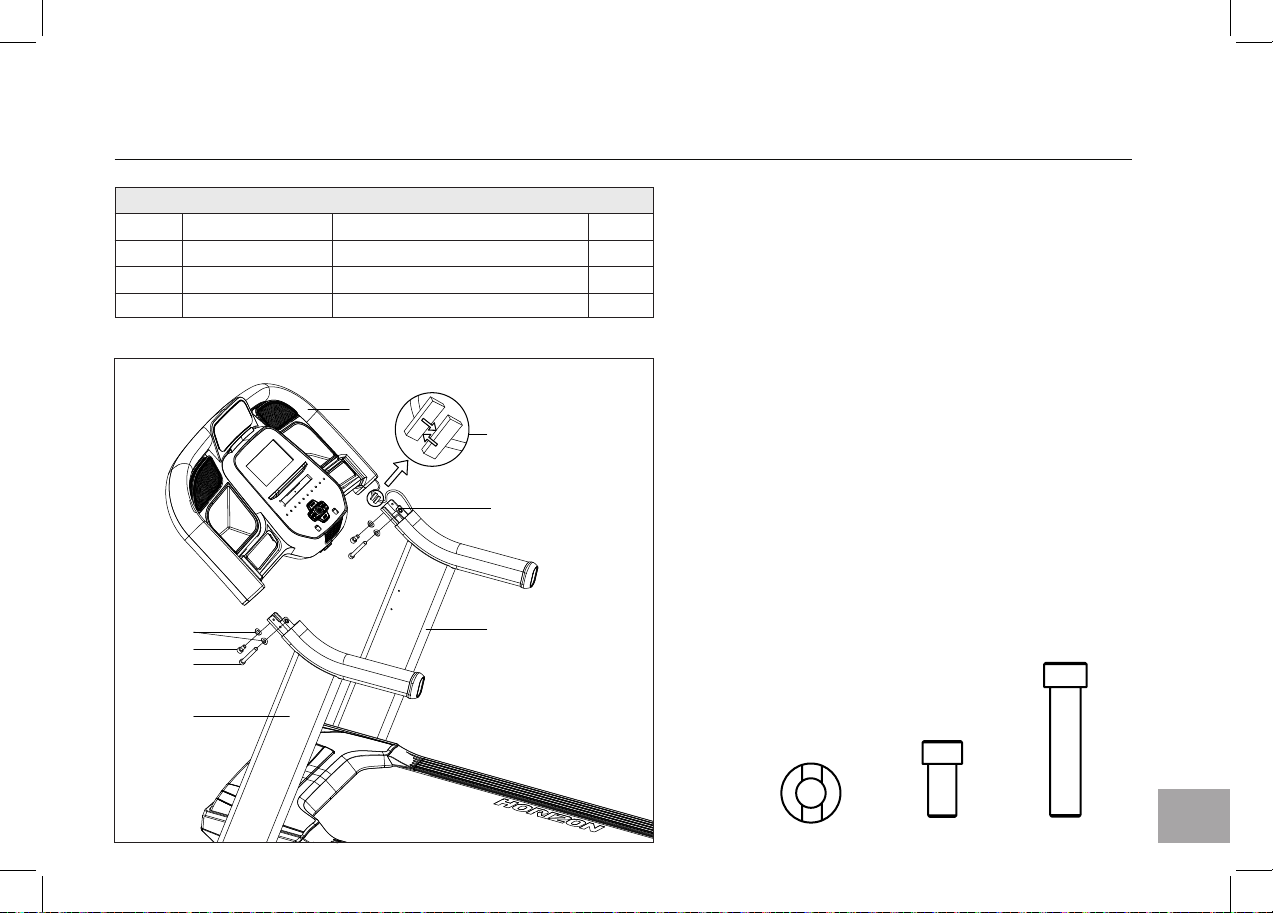

ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Have someone help hold the console while attaching
the CONSOLE CABLE (2). Use the lead wire to
carefully pull the CONSOLE CABLE (2) out of the
RIGHT CONSOLE MAST (4). Attach the CONSOLE
CABLE (2) from the CONSOLE (6) to the CONSOLE
CABLE (2) from the top of the RIGHT UPRIGHT MAST
(4). Detach and discard the lead wire.
C Carefullyslidethe CONSOLE(6) ontothe ATTACHMENT
BRACKETS (7) being careful not to pinch the
CONSOLE CABLE (2). Align the holes on the bottom
side of the CONSOLE (6) with the holes on the
ATTACHMENT BRACKETS (7).
D AttachtheCONSOLE(6)totheATTACHMENTBRACKETS
(7) by first placing ARC WASHERS (F) onto BOLTS (G)
AND (H) as illustrated. Insert SHORT BOLTS (G) into
the top hole of the ATTACHMENT BRACKET (7) and
LONG BOLTS (H) into the bottom hole.
E Repeat STEP D for the opposite side.
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
8.2x18x1.5T
M8x1.25Px15L
M8x1.25Px70L
4
2
2
F
G
H
ARC WASHER
LONG BOLT
SHORT BOLT
HGF

12
9L
6
9R
I
J
K
8

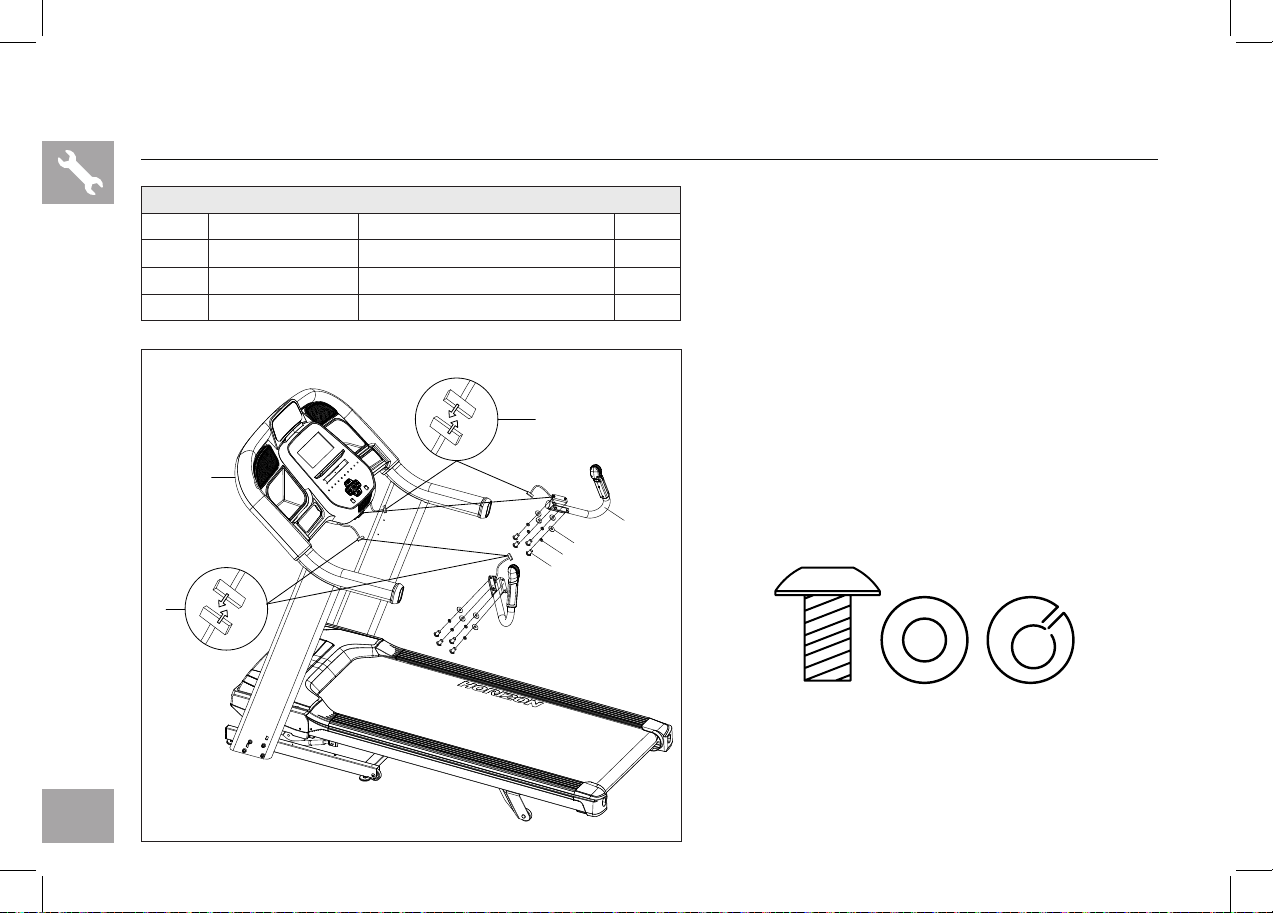

ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B Attach RIGHT SIDE PULSE RATE GRIP (8)
tothe underside of the CONSOLE (6) using
4 BOLTS (I), 4 SPRING WASHERS (J) and
4 FLAT WASHERS (K).
C ConnecttheRIGHTCONSOLECABLES(9R)andcarefully
tuck in wires to avoid damage.
D Repeat STEP B on the LEFT SIDE.
E Connect the LEFT CONSOLE CABLES (9L) andcarefully
tuck wires to avoid damage.
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M8X1.25X15L 8I BOLT
8.2X15.4X2.0T 8J SPRING WASHER
8.4X15.5X1.6T 8K FLAT WASHER
I J K

13
A Open HARDWARE FOR STEP 4.
B Attach CROSS SUPPOR BAR (5) using holes on UPRIGHT
MASTS (4) with 4 BOLTS (E).
C AttachSTORAGETRAY(10) totheCROSSSUPPORTBAR
(5) using holes on CROSS SUPPORT BAR (5) with
remaining 2 BOLTS (E).
ASSEMBLY STEP 4
M6X1.0PX12L 6E BOLT
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
E
4
5
E
E
10
4
NOTE: Fully tighten all bolts from PREVIOUS STEPS

14
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE
section in the TREADMILL GUIDE.
L
L
4
4
11
3
11

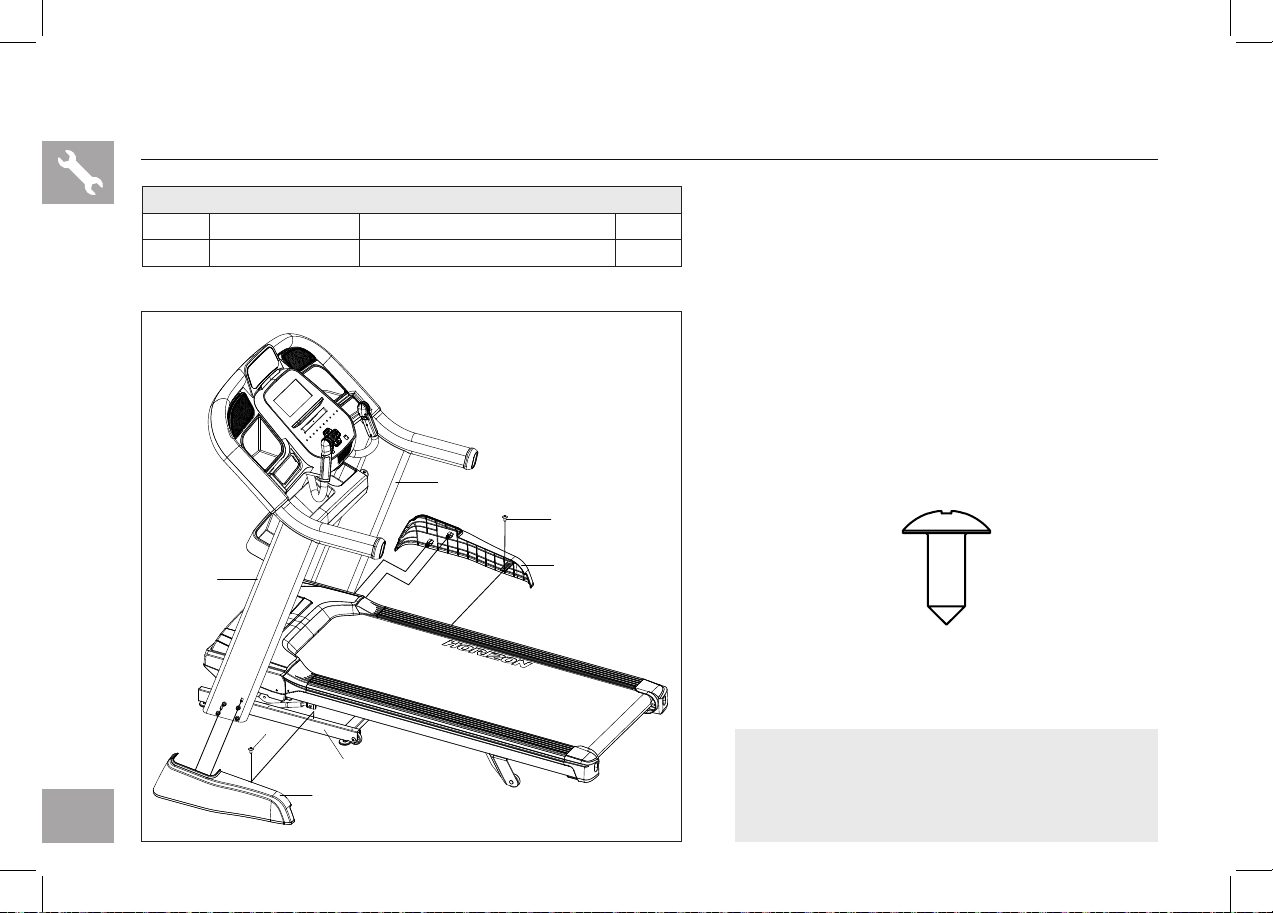

ASSEMBLY STEP 5
M4X1.0PX15L 2L SCREW
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
A Open HARDWARE FOR STEP 5.
B Slide RIGHT SIDE MAST COVER (11)
onto the RIGHT SIDE MAST (4) by aliging tabs on
RIGHT SIDE MAST COVER (11) with slots on RIGHT
SIDE MAST (4).
C Attach RIGHT SIDE MAST COVER (11) to the BASE
FRAME (3) using 1 SCREW (L).
D Repeat STEPS B & C on the LEFT SIDE.
L

15

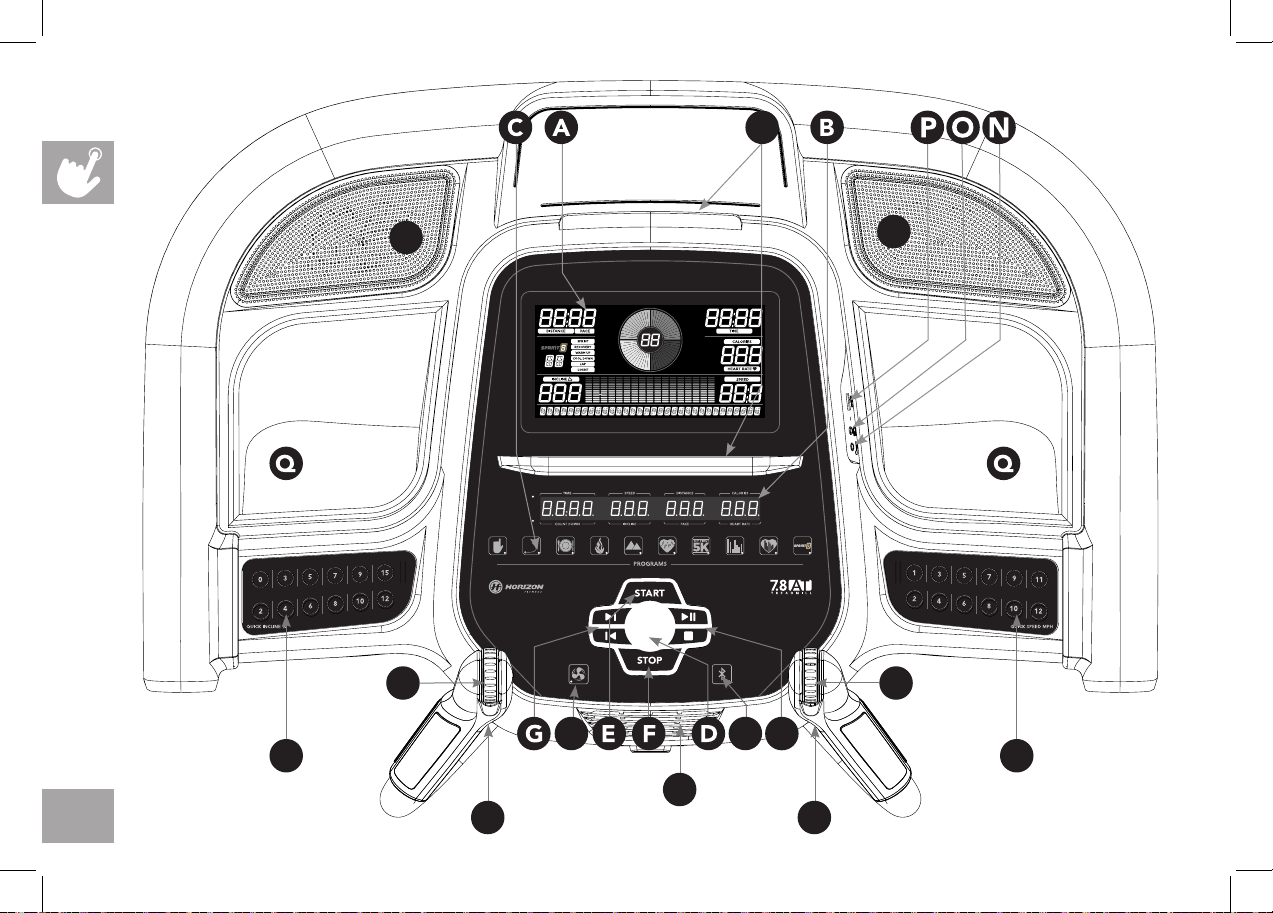

TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

16
K
TU
I J
R
MM
L
V V
HS

17
CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LCD DISPLAY WINDOW: See detailed description on page 18.
B) LED DISPLAY: Time/Count Down, Speed/Incline, Distance/Pace, Calories/Heart Rate.
C) WORKOUT LED INDICATORS: indicates what workout is set for the current program.
D) SELECT TARGET/WORKOUT KNOB: rotate/press to select your desired workout/target
E) START: press to begin exercising, start your workout, or resume exercising after pause.
F) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
G) MEDIA SKIP KEYS: used to skip to previous or next audio track.
H) MEDIA RUN/PAUSE/STOP KEYS: top button used to pause/play media, bottom button stops media.
I) INCLINE QUICK KEYS: used to reach desired incline more quickly.
J) SPEED QUICK KEYS: used to reach desired speed more quickly.
K) FAN KEY: press to turn fan on and off.
L) FAN:personal workout fan.
M) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
N) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
O) AUDIO OUT / HEADPHONE JACK:plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out throughthe speakers.
P) USB INPUT: 1A/5V USB output power.
Q) WATER BOTTLE POCKETS: holds personal workout equipment.
R) TABLET/READING RACKS: holds tablet or reading material.
S) BLUETOOTH INDICTOR LIGHT: displays when machine is paired with a Bluetooth compatible device.
T) SPEED SCROLL WHEEL: used to adjust speed in small increments (.1 MPH).
U) INCLINE SCROLL WHEEL: used to adjust incline in small increments (.5%).
V) INTERVAL KEYS: these are programmable keys. When an user is selected, they can be programmed to a desired speed
and incline setting.

18
DISPLAY WINDOW
• SECOND TIMER: The timer counts up to 60 seconds in all programs except Sprint 8. In Sprint 8, the timer will count up or
down depending upon the segment of the program you are in.
• SPRINT 8 NOTIFICATION CENTER: This area will light up during the Sprint 8 Program to keep you informed about what
segment you are currently in, and how many sprints you have completed.
• TIMER DIAL: Each segment represents 1 second in all programs except Sprint 8. In Sprint 8, the legnth of the time for each
segment varies depending upon the program segment you are in.
• BRICKYARD: This area shows the workout speed profile during setup and the current workout speed when a program is
running.
• TEXT NOTIFICATION AREA: This area will show text prompts during setup and workouts.
SPRINT 8 NOTIFICATION CENTER
BRICKYARD
TEXT NOTIFICATION AREA
TIMER DIAL
SECOND TIMER

19
GETTING STARTED
1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON. (The ON/OFF switch is next to the power cord.)
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become detached
during operation.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:
A) QUICK START UP
Simply press the START key to begin working out.
Time, distance, and calories will all count up from zero. OR...
B) SELECT A WORKOUT OR TARGET
1) Select your USER by turning the workout knob and then pressing when your desired USER is displayed.
2) Select your WEIGHT by turning the workout knob and then pressing when your desired WEIGHT is displayed.
3) Select your PROGRAM by turning the workout knob and then pressing when your desired PROGRAM is displayed.
4) Adjust the SETTING by turning the workout knob and then pressing when your desired SETTING is displayed.
5) Press START to begin.

20
HOW TO PROGRAM AND USE CUSTOM INTERVAL BUTTONS
The programmable interval buttons located on the pulse rate grips are designed to help you customize this machine to match whatever
workout you like to do the most.1
The LEFT and RIGHT INTERVAL BUTTONS are programmable for speed and incline.
To program the INTERVAL button, you must select a user, start the machine, set the desired speed and incline, press and hold the
desired INTERVAL button for three seconds until the treadmill beeps. Now the INTERVAL button is programmed to your settings. After
programming the INTERVAL button, it will remember the setting for that user until reprogrammed.
Now when the INTERVAL button is pressed, the treadmill speed and incline will change to the settings you programmed for that button.
The most common type of workout these keys will help with is interval training. We suggest programming one of the INTERVAL buttons to
your high intensity segments and the other to your recovery segments.
Another common use is to set one INTERVAL button to your warm up and cool down settings and the other to your desired workout
settings.
These buttons should allow you to customize the settings of your treadmill to quickly fit the type of workout you enjoy most.

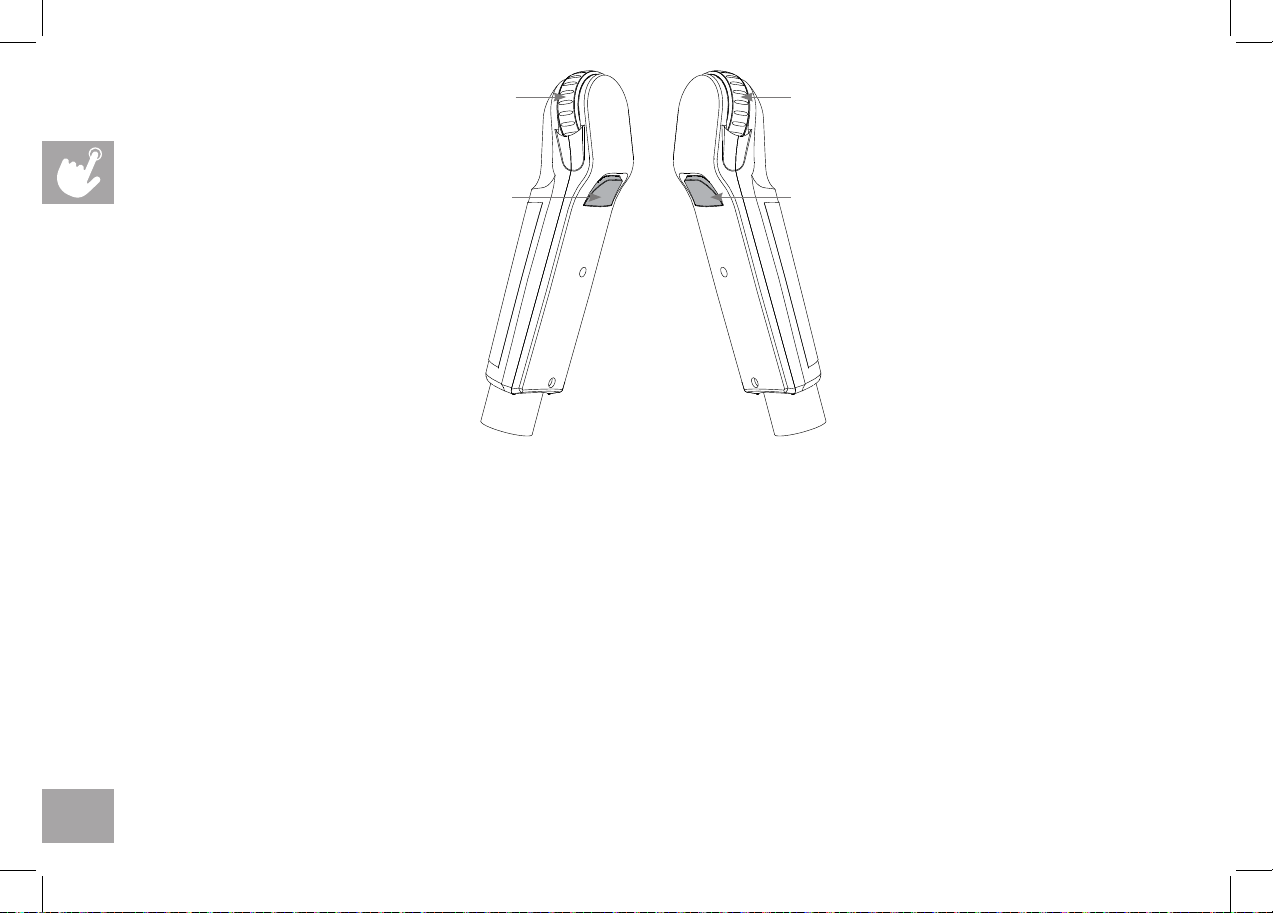

INTERVAL BUTTON 1 INTERVAL BUTTON 2
SPEED SCROLL WHEEL
Roll forward/backward to increase/decrease speed
INCLINE SCROLL WHEEL
Roll forward/backward to increase/decrease incline.
