Huck ALCOA 2620 User manual

December 3, 2015
HK1012
Makers of Huck®, Marson®, Recoil®
Brand Fasteners, Tools & Accessories
INSTRUCTION MANUAL
2620
A2620
2620-PT
A2620-PT
HYDRAULIC INSTALLATION TOOLS

2
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings

3
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
CONTENTS

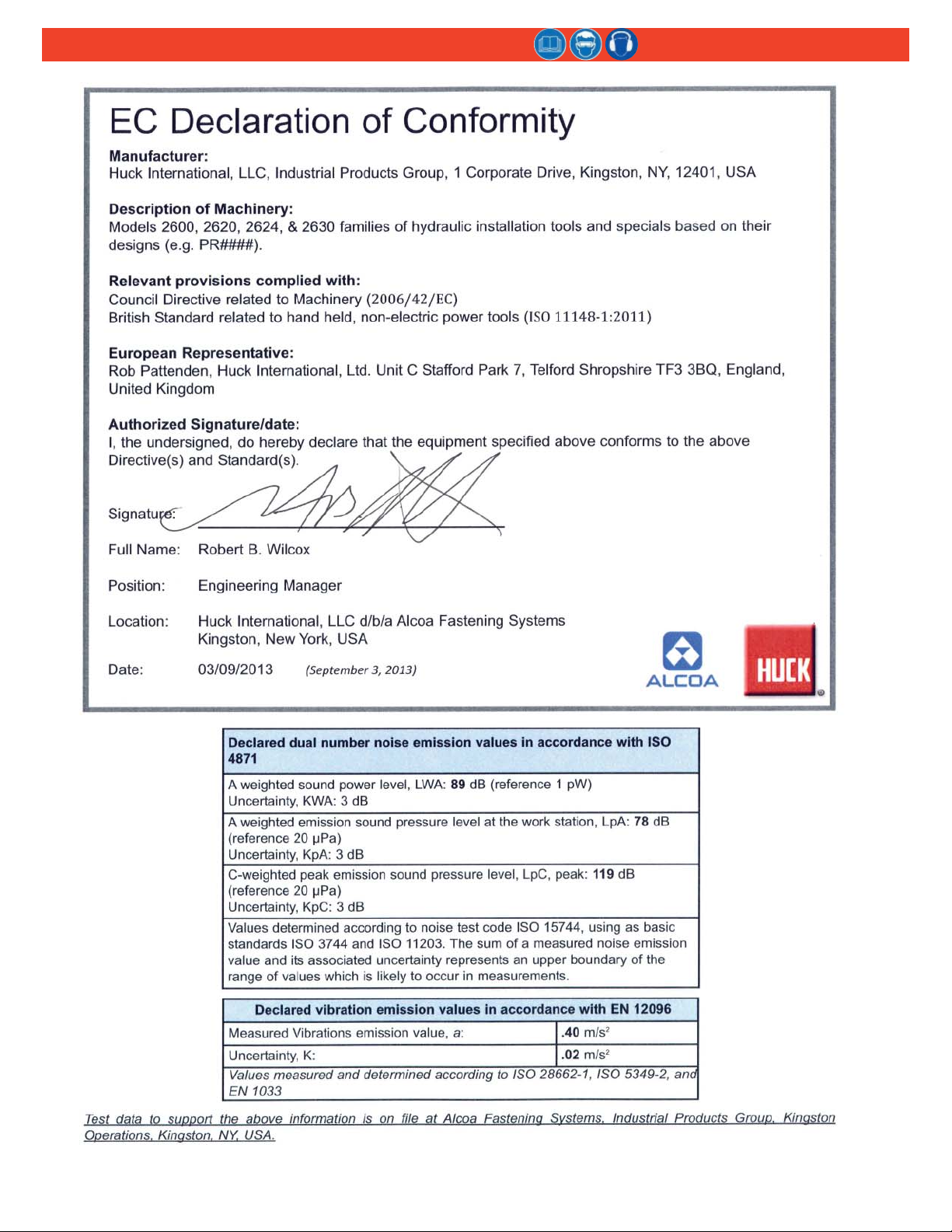

EC DeclaraƟon of Conformity. . . . . . . . . . . . . . . . . . . . . . 2
Safety InstrucƟons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
SpecificaƟons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
Principle of OperaƟon. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PreparaƟon for Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
OperaƟng InstrucƟons . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–12
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–15
Assembly Drawings Standard Models . . . . . . . . . . . . . . 16
Assembly Drawings PT Models . . . . . . . . . . . . . . . . . . . 17
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Hose Assembly Drawing - Electric Trigger Models . . . . 19

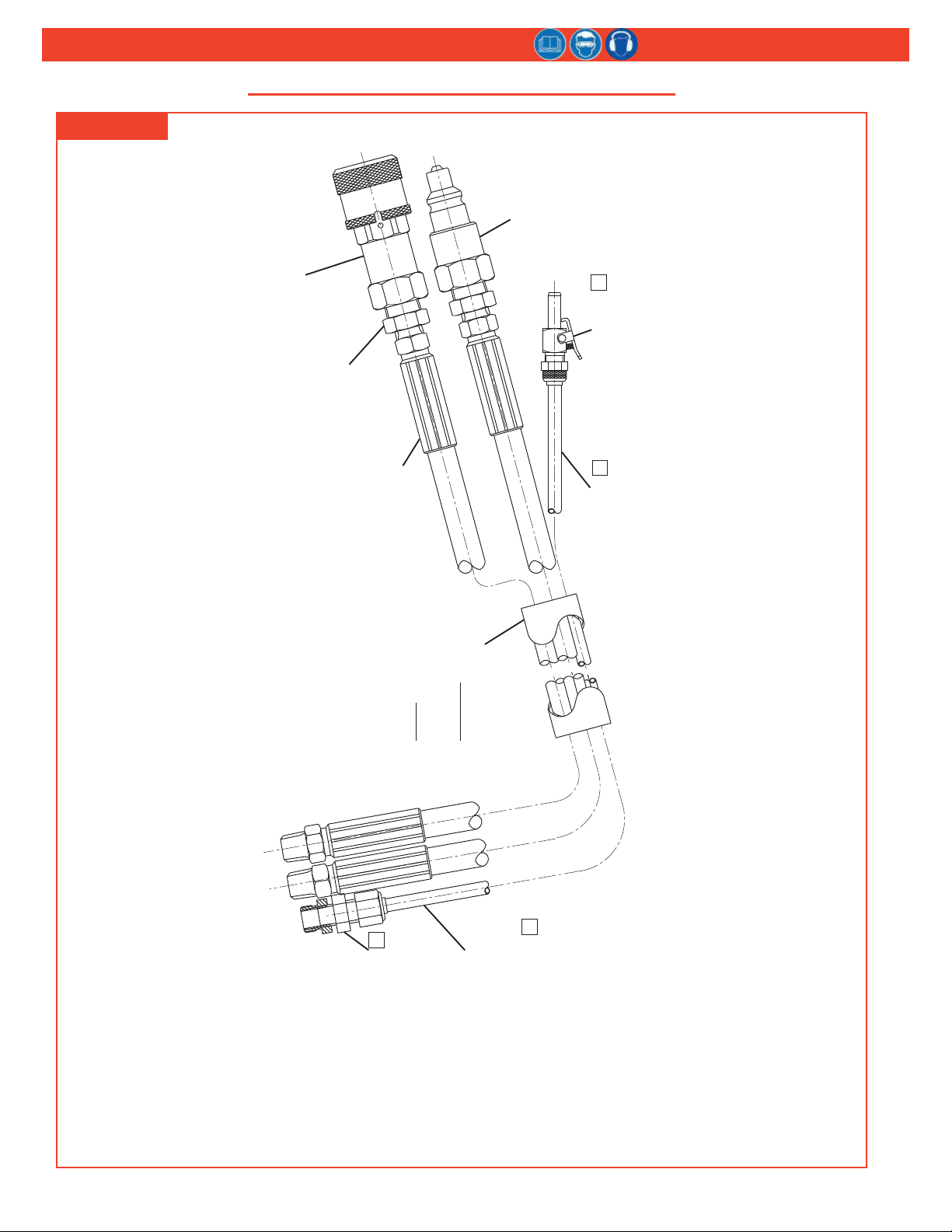

Hose Assembly Drawing - Air Trigger Models. . . . . . . . 20
TroubleshooƟng . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Hydraulic Couplings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Kits & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SƟcker LocaƟons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
I. GENERAL SAFETY RULES:
1. A half-hour long hands-on training session with qualified
personnel is recommended before using Huck equipment.
2. Huck equipment must be maintained in a safe working
condition at all times. Tools and hoses should be inspected
at the beginning of each shift/day for damage or wear. Any
repair should be done by a qualified repairman trained on
Huck procedures.
3. For multiple hazards, read and understand the safety
instructions before installing, operating, repairing,
maintaining, changing accessories on, or working near the
assembly power tool. Failure to do so can result in serious
bodily injury.
4. Only qualified and trained operators should install, adjust
or use the assembly power tool.
5. Do not modify this assembly power tool. This can reduce
effectiveness of safety measures and increase operator risk.
6. Do not discard safety instructions; give them to the
operator.
7. Do not use assembly power tool if it has been damaged.
8. Tools shall be inspected periodically to verify all ratings
and markings required, and listed in the manual, are legibly
marked on the tool. The employer/operator shall contact
the manufacturer to obtain replacement marking labels
when necessary. Refer to assembly drawing and parts list
for replacement.
9. Tool is only to be used as stated in this manual. Any other
use is prohibited.
10. ReadMSDSSpecificationsbeforeservicingthetool.MSDS
specifications are available from the product manufacturer
or your Huck representative.
11. Only genuine Huck parts shall be used for replacements or
spares. Use of any other parts can result in tooling damage
or personal injury.
12. Never remove any safety guards or pintail deflectors.
13. Never install a fastener in free air. Personal injury from
fastener ejecting may occur.
14. Where applicable, always clear spent pintail out of nose
assembly before installing the next fastener.
15. Check clearance between trigger and work piece to ensure
there is no pinch point when tool is activated. Remote
triggers are available for hydraulic tooling if pinch point
is unavoidable.
16. Do not abuse tool by dropping or using it as a hammer.
Never use hydraulic or air lines as a handle or to bend or pry
the tool. Reasonable care of installation tools by operators
is an important factor in maintaining tool efficiency,
eliminating downtime, and preventing an accident which
may cause severe personal injury.
17. Never place hands between nose assembly and work piece.
Keep hands clear from front of tool.
18. Tools with ejector rods should never be cycled without
nose assembly installed.
19. When two piece lock bolts are being used always make
sure the collar orientation is correct. See fastener data sheet
for correct positioning.
II. PROJECTILE HAZARDS:
1. Risk of whipping compressed air hose if tool is pneudraulic
or pneumatic.
2. Disconnect the assembly power tool from energy source
when changing inserted tools or accessories.
3. Be aware that failure of the workpiece, accessories, or the
inserted tool itself can generate high velocity projectiles.
4. Always wear impact resistant eye protection during tool
operation. The grade of protection required should be
assessed for each use.
5. The risk of others should also be assessed at this time.
6. Ensure that the workpiece is securely fixed.
7. Check that the means of protection from ejection of
fastener or pintail is in place and operative.
8. There is possibility of forcible ejection of pintails or spent
mandrels from front of tool.
III. OPERATING HAZARDS:
1. Use of tool can expose the operator’s hands to hazards
including: crushing, impacts, cuts, abrasions and heat.
Wear suitable gloves to protect hands.
2. Operators and maintenance personnel shall be physically
able to handle the bulk, weight and power of the tool.
3. Hold the tool correctly and be ready to counteract normal
or sudden movements with both hands available.
4. Maintain a balanced body position and secure footing.
5. Release trigger or stop start device in case of interruption
of energy supply.
6. Use only fluids and lubricants recommended by the
manufacturer.
7. Avoid unsuitable postures, as it is likely for these not
to allow counteracting of normal or unexpected tool
movement.
8. If the assembly power tool is fixed to a suspension device,
make sure that fixation is secure.
9. Beware of the risk of crushing or pinching if nose
equipment is not fitted.
Continued on next page...
SAFETY INSTRUCTIONS
GLOSSARY OF TERMS AND SYMBOLS:
- Product complies with requirements set forth by the
relevant European directives.
- READ MANUAL prior to using this equipment.
- EYE PROTECTION IS REQUIRED while using this
equipment.
- HEARING PROTECTION IS REQUIRED while using this
equipment.
Notes: are reminders of required procedures.
Bold, Italic type and underlining: emphasizes a specific instruction.
WARNINGS: Must be understood to avoid
severe personal injury.
CAUTIONS: show conditions that will
damage equipment and or structure.

5
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
IV. REPETITIVE MOTION HAZARDS:
1. When using assembly power tool, the operator can
experience discomfort in the hands, arms, shoulders, neck
or other parts of the body.
2. When using tool, the operator should adopt a comfortable
posture while maintaining a secure footing and avoid
awkward or off balanced postures.
3. The operator should change posture during extended tasks
to help avoid discomfort and fatigue.
4. If the operator experiences symptoms such as persistent
or recurring discomfort, pain, throbbing, aching, tingling,
numbness, burning sensations or stiffness, these warnings
should not be ignored. The operator should tell the
employer and consult a qualified health professional.
V. ACCESSORIES HAZARDS:
1. Disconnect tool from energy supply before changing
inserted tool or accessory.
2. Use only sizes and types of accessories and consumables
that are recommended. Do not use other types or sizes of
accessories or consumables.
VI. WORKPLACE HAZARDS:
1. Be aware of slippery surfaces caused by use of the tool
and of trip hazards caused by the air line or hydraulic hose.
2. Proceed with caution while in unfamiliar surroundings;
there could be hidden hazards such as electricity or other
utility lines.
3. The assembly power tool is not intended for use in
potentially explosive environments.
4. Tool is not insulated against contact with electrical power.
5. Ensure there are no electrical cables, gas pipes, etc., which
can cause a hazard if damaged by use of the tool.
VII. NOISE HAZARDS:
1. Exposure to high noise levels can cause permanent,
disabling hearing loss and other problems such as tinnitus,
therefore risk assessment and the implementation of
proper controls is essential.
2. Appropriate controls to reduce the risk may include
actions such as damping materials to prevent workpiece
from ‘ringing’.
3. Use hearing protection in accordance with employer’s
instructions and as required by occupational health and
safety regulations.
4. Operate and maintain tool as recommended in the
instruction handbook to prevent an unnecessary increase
in the noise level.
5. Select, maintain and replace the consumable / inserted
tool as recommended to prevent an unnecessary increase
in noise.
6. If the power tool has a silencer, always ensure that it is in
place and in good working order when the tool is being
operated.
VIII. VIBRATION HAZARDS:
1. Exposure to vibration can cause disabling damage to the
nerves and blood supply to the hands and arms.
2. Wear warm clothing when working in cold conditions and
keep hands warm and dry.
3. If numbness, tingling, pain or whitening of the skin in the
fingers or hands, stop using the tool, tell your employer
and consult a physician.
4. Support the weight of the tool in a stand, tensioner, or
balancer in order to have a lighter grip on the tool.
IX. HYDRAULIC TOOL SAFETY INSTRUCTIONS:
1. Carry out a daily check for damaged or worn hoses or
hydraulic connections and replace if necessary.
2. Wipe clean all couplers before connecting. Failure to do
so can result in damage to the quick couplers and cause
overheating.
3. Ensure that couplings are clean and correctly engaged
before operation.
4. Use only clean oil and filling equipment.
5. Power units require a free flow of air for cooling purposes
and should therefore be positioned in a well ventilated area
free from hazardous fumes.
6. Do not inspect or clean the tool while the hydraulic power
source is connected. Accidental engagement of the tool
can cause serious injury.
SAFETY INSTRUCTIONS (continued)
WARNING: Do not exceed the maximum
PULL or RETURN settings on tool.
WARNING: Be sure all hose connections
are tight. All tool hoses must be connected.

6
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings

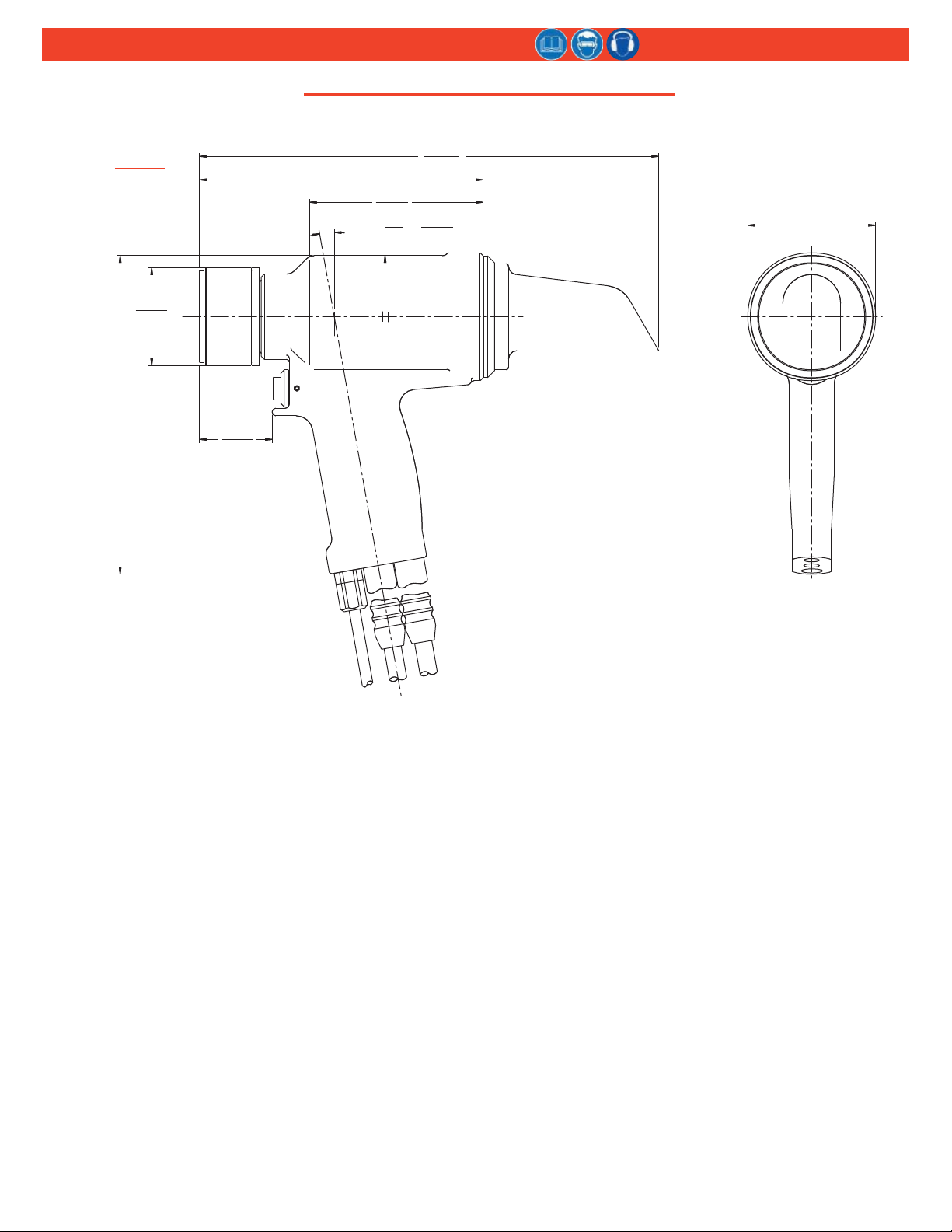

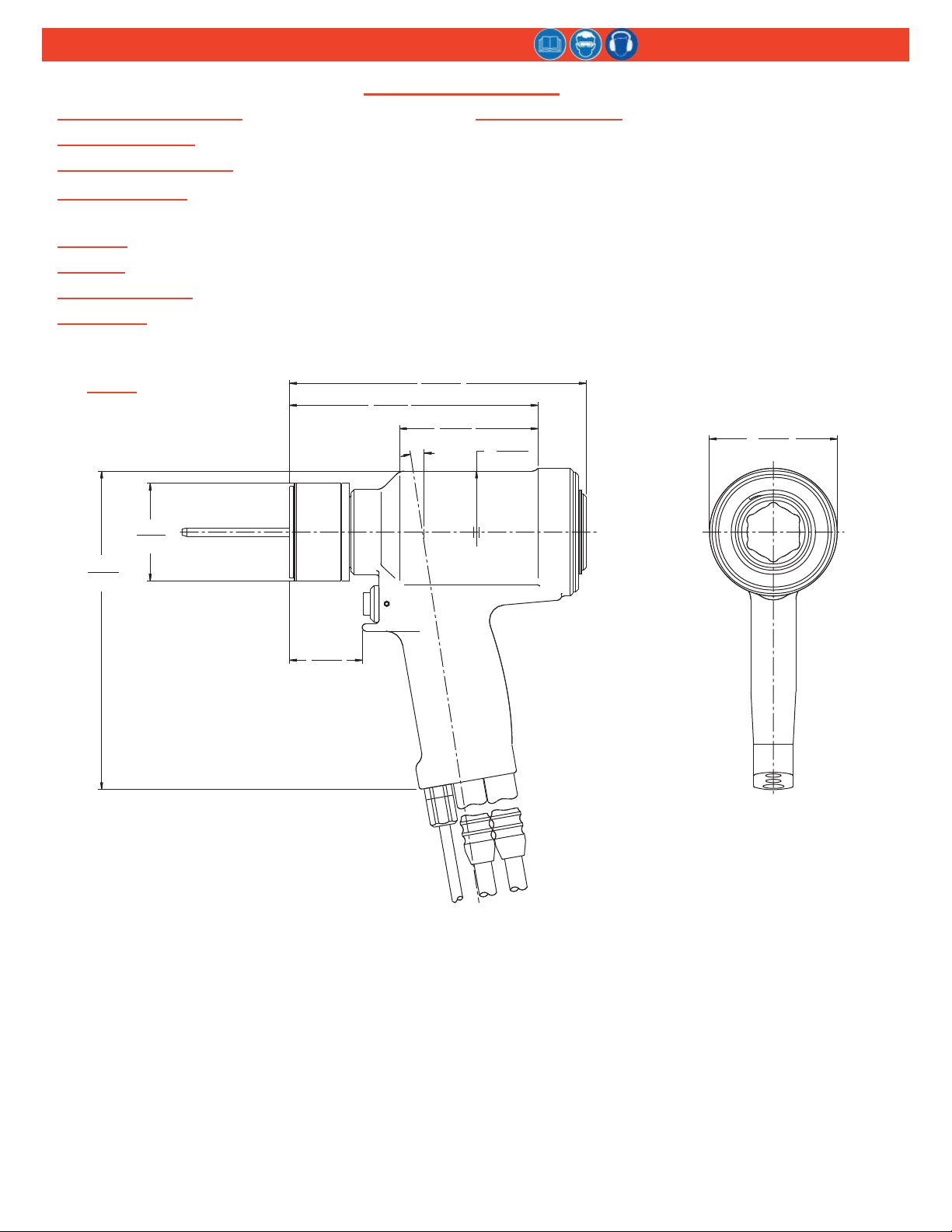

SPECIFICATIONS
MAX OPERATING TEMP: 125° F (51.7° C)
MAX FLOW RATE: 2 gpm (7.5 l/m)
MAX PULL PRESSURE: 7400 psi (510 bar)
PULL CAPACITY: 17,745 lbs @ 6500 psi
(78.93 kN @ 448 bar)
STROKE: 1.437 inches (3.65 cm)
WEIGHT: 9.87 lbs (4.48 kg)
POWER SOURCE: Huck POWERIG®Hydraulic Unit
HOSE KITS: Use only genuine HUCK Hose Kits rated
@ 10,000 psi (689.5 bar) working pressure.
HYDRAULIC FLUID: Hydraulic fluid shall meet
DEXRON®III, DEXRON VI, MERCON®, Allison C-4
or equivalent Automatic Transmission Fluid (ATF)
specifications. Fire-resistant fluid may be used if it
is an ester-based fluid such as Quintolubric®HFD or
equivalent. Water-based fluid shall NOT be used as
serious damage to equipment will occur.
DEXRON is a registered trademark of General Motors Corp.
MERCON is a registered trademark of Ford Motor Corp.
Quintolubric is a registered trademark of Quaker Chemical Corp.
2.8
(7.2)
1.3
(3.4)
3.0
(7.7)
6.5
(16.6)
5.4
(13.9)
2.1
(5.4)
7.0
(17.8)
1.6
(4.1)
Ø
Ø
R
10°
INCHES
(cm)
MODELS
2620 & A2620

7
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
SPECIFICATIONS (CONTINUED)
2.8
(7.2)
10.1
(25.8)
1.3
(3.4)
3.8
(9.7)
6.2
(15.9)
2.1
(5.4)
7.0
(17.8)
1.6
(4.1)
R
10° Ø
Ø
MODELS
2620-PT & A2620-PT
INCHES
(cm)

8
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
PINTAIL EJECTOR
PULL PISTON
TRIGGER SWITCH
DUMP VALVE
HYDRAULIC HOSES
RETURN PRESSURE
PULL PRESSURE
RETURN PRESSURE
PULL PRESSURE
D
Pressurized Oil
Retur Oil
Piston Travel Piston Travel
PRINCIPLE OF OPERATION
PULL PRESSURE
PULL Cycle (FIGURE 1A)
When the Trigger Switch is pressed, a solenoid-
operated valve in the POWERIG®directs pressurized
hydraulic fluid through the PULL hose to the front side
of the Piston; fluid on the RETURN side flows back
to the tank (Figure 1A). The piston and nose assembly
collet move rearward, installing the fastener.
When the piston reaches the end of the PULL stroke,
it uncovers flats on the rear side of the Dump Valve.
These flats provide a passage for the hydraulic fluid
from the PULL side to the RETURN side of the piston,
“unloading” or “dumping” the pressurized fluid back to
the tank POWERIG (Figure 1A).
RETURN PRESSURE
RETURN Cycle (FIGURE 1B)
When the trigger is released, the solenoid is
de-energized and the valve directs pressurized fluid to
the rear side of the piston; fluid on the PULL side flows
back to the POWERIG tank (Figure 1B). The piston and
collet to move forward, and the tool and nose assembly
are pushed off the swaged (installed) fastener. When
the piston reaches the end of the RETURN stroke,
pressure builds up causing the POWERIG to shut off,
completing the cycle.
FIGURE 1AFIGURE 1B

9
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
PREPARATION FOR USE
POWER SOURCE CONNECTIONS
Use a Huck POWERIG®Hydraulic Unit, or equivalent,
that has been suitably prepared for operation.
NOTE: Review all WARNINGs on this page.
1. Turn OFF the POWERIG and disconnect its power
supply. Connect the tool hoses to the POWERIG.
2. Connect tool’s control switch electrical cord to the
POWERIG.
3. Connect the POWERIG to the power supply. Turn
ON the POWERIG. Press and hold the tool trigger
for 30 seconds; then press the trigger a few times
to cycle the tool and circulate the hydraulic fluid.
Observe the action of the tool and check for leaks.
Turn OFF the POWERIG.
4. Disconnect the tool’s control switch electrical cord
from the POWERIG. Disconnect the POWERIG
from its power supply. Select the correct nose
assembly for the fastener to be installed (see
Nose Assembly Selection Chart). Attach the nose
assembly.
5. Re-connect the POWERIG to the power supply.
Reconnect the tool’s trigger control system to the
POWERIG. Check the operation of nose assembly;
install fasteners in a test plate of correct thickness
with proper size holes. Inspect installed fasteners.
If fasteners do not pass inspection, see TROUBLESHOOTING
to investigate possible causes.
Threadmate is a registered trademark of Parker Intangibles, LLC.
Loctite is a registered trademark of Henkel Corporation, U.S.A.
Slic-tite is a registered trademark of LA-CO Industries, Inc.
PO
WE
R
SO
UR
CE
C
ON
NE
CT
IO
NS
CAUTION: Keep disconnected hoses,
couplers, and hydraulic fluid away from
dirty surfaces and free of foreign matter.
Contaminated fluid can cause tool and
POWERIG valve failures.
1
T
ur
n
OF
F
th
e
PO
WE
RI
G
an
d
di
sc
on
ne
ct
i
ts
p
ow
er
CAUTION: Apply Parker Threadmate®,
Loctite®567, or Slic-Tite®to male pipe
threads (per manufacturer’s instructions) to
prevent leaks and to ease assembly.
WARNINGS:
- Read entire manual before using tool.
- A 30-minute training session with
qualified personnel is recommended
before using Huck equipment.
- When operating Huck equipment,
always wear approved eye and hearing
protection.
- Be sure there is adequate clearance for
the operator’s hands before proceeding.
- Connect the tool’s hydraulic hoses to
the POWERIG®Hydraulic Unit before
connecting the tool’s switch control cord
to it. If not connected in this order, severe
personal injury may occur.
WARNING: Huck recommends that a Huck
POWERIG®be used to power Huck tools.
(Only use the POWERIG as indicated in
its instruction manual.) Hydraulic power
units that deliver high PULL and RETURN
pressures—but which are NOT equipped
with RELIEF VALVES—are specifically NOT
RECOMMENDED and may be dangerous.
Set the PULL and RETURN pressures
as specified in SPECIFICATIONS. Failure to
properly set these pressures could result in
serious personal injury.
Use Huck Pressure Gauge (P/N T-124883CE)
as indicated in its instruction manual.
Improper pressure settings may result in
severe personal injury.
WARNING: Connect the tool’s hydraulic
hoses to the POWERIG before connecting
tool’s trigger control system to the
POWERIG. If not connected in this order,
severe personal injury may occur.

10
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
OPERATING INSTRUCTIONS
Review all CAUTIONs and WARNINGs prior to
installing fasteners. If the tool malfunctions, consult the
TROUBLESHOOTING section before attempting any repairs.
GENERAL
- Operators should receive training from qualified
personnel.
- Do not bend tool to free if stuck.
- Tool should only be used to install fasteners. Never
use as a jack/spreader or hammer.
- Reasonable care of tools by operators is an important
factor in maintaining efficiency and reducing
downtime.
TO INSTALL A HUCKBOLT® FASTENER:
1. Place a fastener in the workpiece and place the
collar over the fastener.
NOTE: If the collar has one tapered end, that end
must be out toward tool; not next to the sheet.
2. Hold the fastener in the hole and push the nose
assembly onto the fastener protruding through the
collar until the nose assembly anvil touches the
collar. Hold the tool at a right-angle (90 degrees) to
the work.
3. Move hands away from fastener and structure.
Keep hands away from the front of the tool during
operation; the tool anvil advances forward.
4. Press and hold the trigger until the collar is swaged
and the pintail breaks. Release the trigger; the tool
will perform its RETURN stroke.
The pressure is re-directed; the piston moves forward;
and the tool is pushed off the fastener and ready for the
next installation cycle.
CAUTIONS:
- To avoid structural and tooI damage, be
sure there is sufficient clearance for the
nose assembly at full stroke.
- Do not abuse the tool by dropping it,
using it as a hammer, or otherwise
causing unnecessary wear and tear.
- Do not connect tool’s hoses to each other
or use hoses as a handle for carrying.
R i ll CAUTION d WARNING i t
WARNINGS:
- Wear approved eye and hearing
protection.
- Ensure adequate clearance for operator’s
hands before installing fasteners.
- Be sure that pintail deflector is attached
to the tool and directed away from all
personnel.
- Do not pull on a pin without placing a
fastener/collar in a workpiece. Make sure
that the collar chamfer is out, toward the
tool. Pins eject with great velocity when
pintails break off or teeth/grooves strip,
which could cause serious injury.
1 Place a fastener in the workpiece and place the
CAUTION: Remove the excess gap from
between the sheets to ensure that enough
of the pintail emerges from the collar
for ALL chuck jaw teeth to engage with
the pintail. If ALL teeth do not engage
properly, chuck jaws will be stripped and/
or damaged.
NOTE: “Gap” is the space between
sheets. Gap is “excessive” if not enough
pintail sticks through the collar for the
nose assembly jaws to grip.

11
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
The operating efficiency of your tool is directly related
to performance of the entire system, including the
tool and nose assembly, hydraulic hoses, control
trigger assembly, and the POWERIG®Hydraulic Unit.
Therefore, an effective preventive maintenance program
includes scheduled inspections of the system to detect
and correct minor troubles.
NOTE: Where a part number (P/N) is given, Huck
sells that part.
SYSTEM INSPECTION
- Inspect the tool daily. Check hoses, fittings, and
couplings for leaks and damage. Clear air-lines of dirt
and water.
- Service the tool in a clean, well-lighted area. Take
special care to prevent contamination of pneumatic
and hydraulic systems.
- Carefully handle all parts and components. Before
reassembly, examine them for damage and wear;
replace when necessary. Replace O-rings and
Back-up rings when the tool is disassembled for any
reason.
- Have available all necessary hand tools (standard and
special); a half-inch brass drift and wood block; an
arbor press; and a soft-jaw vise. Unsuitable hand tools
could cause tool damage. See KITS & ACCESSORIES.
- Follow the disassembly and assembly procedures in
this manual. If Huck recommended procedures are
not followed, the tool could be damaged.
- Disassemble and assemble tool components in a
straight line. Do NOT bend, twist, or apply undue
force.
- Apply continuous steady pressure to disassemble a
component. An arbor press provides steady pressure
to press a component into or out of an assembly.
- Never force a component if it is misaligned. Reverse
the procedure to correct misalignment and start over.
FLUID MAINTENANCE
See SPECIFICATIONS for fluid type. For fluid maintenance,
refer to NAS 1638 class 9, ISO CODE 18/15, or SAE
level 6. Dispose of fluid in accordance with local
environmental regulations. Recycle steel, aluminum, and
plastic parts in accordance with local lawful and safe
practices.
STANDARD SEALANTS, LUBRICANTS
- Apply Parker Threadmate®, Loctite®567, or Slic-Tite®
to male pipe threads per manufacturer’s instructions (to
ease assembly and to prevent leaks).
- Smear LUBRIPLATE®130-AA or SUPER-O-LUBE®
on rings and mating parts to ease assembly and to
prevent damaging rings on rough and sharp surfaces.
PREVENTIVE MAINTENANCE
Huck recommends that you:
- Inspect the tool and nose daily for damage and wear.
Inspect the tool before each use for leaks.
- Verify that hoses, fittings, and trigger connections are
secure and free of leaks.
- Inspect hydraulic hoses for signs of damage. Replace
if necessary.
- Inspect the tool, hoses, and POWERIG during
operation to detect abnormal heating, leaks, or
vibration.
For supplementary information, see TROUBLESHOOTING,
the DISASSEMBLY and ASSEMBLY procedures, and the
ASSEMBLY DRAWINGS in this manual.
POWERIG MAINTENANCE
Maintenance instructions and repair procedures are in
the appropriate POWERIG Instruction Manual.
TOOL MAINTENANCE
Whenever disassembled, and at regular intervals,
depending on use, replace all O-rings and Back-up
rings. Tool-specific Spare Parts Service Kits (P/N
2620KIT or 2620-PTKIT) should be kept on hand.
Inspect cylinder bore, piston, piston rod, and unloading
valve for scored surfaces, excessive wear, and damage;
replace as necessary.
MAINTENANCE
The operating efficiency of your tool is directly related
CAUTIONS:
- Consult the Material Safety Data Sheet
(MSDS) before servicing tool.
- Keep foreign matter out of the hydraulic
system. Keep separated parts away from
dirty work surfaces.
- Dirt and debris in hydraulic fluid causes
valve failures in tool and POWERIG®.
- Check the Assembly Drawings in this
manual for the proper direction of the
flats on the dump valve.
Inspect
the
tool daily Check hoses fittings and
CAUTION: Always replace all seals, wipers,
O-rings, and Back-up rings when the tool is
disassembled for any reason.
continued...
CAUTION: Do NOT use Teflon®tape on pipe
threads. Tape can shred and break free into
fluid lines, resulting in malfunctions.

12
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
MAINTENANCE (CONTINUED)
NOSE ASSEMBLY MAINTENANCE
Clean nose assemblies daily in mineral spirits to
clear jaws and rinse metal chips and dirt. For a more
thorough cleaning, disassemble the nose assembly. Use
a pointed “pick” to remove imbedded particles from the
pull grooves of the jaws.
Clean all parts of any assembly with UNITIZEDTM Jaws
in mineral spirits or isopropyl alcohol only; do not let
jaws come in contact with other solvents. Do not let
jaws soak; dry them immediately after cleaning. Huck
recommends drying other parts before re-assembling.
For additional information, see the appropriate Nose
Assembly Data Sheet.
SPARE PARTS SERVICE KITS
Spare Parts Service Kits contain perishable parts
(O-rings, Back-up rings, and other standard items) for
your tool (see KITS & ACCESSORIES). For convenience,
and as experience indicates, keep extra kits and tool
parts on hand. As an alternative, you can obtain O-rings
and Back-up rings from any regular retailer of these
items.
Threadmate is a registered trademark of Parker Intangibles LLC.
Slic-tite is a registered trademark of LA-CO Industries, Inc.
Loctite is a registered trademark of Henkel Corporation, U.S.A.
SUPER-O-LUBE is a registered trademark of Parker Hannifin Corp.
LUBRIPLATE is a registered trademark of Fiske Brothers Refining
Co.
Teflon is a registered trademark of E. I. du Pont de Nemours and
Company.
CAUTION: Damaged jaw teeth, or debris
packed between teeth, will result in fastener
not being installed or being improperly
installed.

13
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
DISASSEMBLY
This procedure is for complete disassembly of the
tool. Disassemble only those components necessary
to replace damaged rings and worn or damaged
components. Always replace seals, wipers, and rings of
disassembled components. Always use a soft-jaw vise
to avoid damaging the tool.
For component identification, see Figures 2–5, 8–13,
and PARTS LIST.
TO DISASSEMBLE THE TOOL:
1. Disconnect the electrical or air connector from the
POWERIG, and then uncouple the hydraulic hoses.
2. Remove the nose assembly from the tool.
3. Unscrew both couplers (nipple & body) from the
hoses; drain the hoses into a container.
4. Push rearward on the piston until the remaining fluid
has drained into the container. Discard the fluid.
NOTE: Do NOT remove the hydraulic hoses from
the tool unless replacing them. To access the
hose fittings, slide back the plastic shrouds.
NOTE: Complete step 5 only if the switch, wire,
or connector is to be repaired.
5. Models 2620 & 2620-PT: Remove the retaining nut
and locking ferrule from the strain relief. Loosen
the setscrew and remove the switch. Loosen and
remove the two wires from the switch. Remove
the cord from the tool. Disassemble the Electrical
Connector (P/N 110686). (Figures 8, 9, & 12)
Models A2620 & A2620-PT: Unscrew and remove
the air switch. Remove the retaining nut and locking
ferrule from the air fitting. Remove the plastic tubing
and unscrew the remaining part of the fitting from
the handle. (Figures 10, 11, & 13)
6. Standard Models: Remove the retaining ring, cover
plate, and locking disk. (Figures 8 & 10)
Model 2620-PT: Remove the deflector, screws,
barbed retainer, and locking disk. (Figures 9 & 11)
7. Insert a hex key in the end cap. (Figure 2) Use a
wrench to unscrew the end cap from the cylinder.
8. Standard Models: Remove the O-ring and Back-up
ring. (Figures 8 & 10)
Model 2620-PT: Remove the O-ring, Back-up ring,
retaining ring, washer, Polyseal, and wiper seal.
9. Remove the dump valve from rear of the cylinder.
10. Slide the Spacer (P/N 123112-6) over the threaded
end of the piston. Screw the Piston Assembly Tool
(P/N 123111-6) onto the piston. Press the front
gland and piston assemblies out the rear of the
cylinder. (Figure 3)
11. Remove the Piston Assembly Tool and the spacer.
(Figure 3)
12. Slide the Front Gland Assembly off the piston and
remove the wiper, wiper housing, Back-up ring,
O-ring, and Polyseal. (Figures 8–11)
13. Remove the GLYD Ring from the piston. (Figure 5)
14. Standard Models: Hold the piston in a soft-jaw vise
and remove the Ejector Gland Assembly with the
Hex Key (P/N 122048). (Figures 4, 8 & 10)
15. Standard Models: Remove from gland, ejector rod,
washer, O-rings, wiper, Quad-ring, and Back-up
ring. (Figures 4, 8 & 10)
The tool has been properly disassembled. Store all
re-usable parts (screws and disassembled components)
in a clean, dry area.
TO
TO
TO
D
D
D
IS
IS
IS
AS
AS
AS
SE
SE
SE
MB
MB
MB
LE
LE
LE
T
T
T
HE
HE
HE
T
T
T
OO
OO
OO
L
L
L:
WARNING: Disconnect the tool control
trigger system from the POWERIG®before
disconnecting the hydraulic hoses from it.
If not disconnected in this order, serious
personal injury may occur.
128046 End Cap
(2620, 2620-15, A2620)
126981 Hex Key
FIGURE 2
Press
123111-6 Piston
Assembly Tool
Piston
123112-6 Spacer
FIGURE 3
Piston122048 Ejector Gland Hex Key
(2620, 2620-15, A2620)
FIGURE 4

14
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
This section details the re-assembly of the tool. For
component identification, see Figures 2, 4–13, and
PARTS LIST.
BEFORE RE-ASSEMBLING THE TOOL:
- Inspect components for scoring, excessive wear, and
damage; replace as necessary. Clean components in
mineral spirits or other solvent compatible with O-ring
seals. Clean O-ring grooves.
- Replace all O-rings, Quad-rings, and Back-up rings.
See Assembly Drawings for guidance on positioning
these rings. Take care not to damage rings. Use the
rings that are supplied in Spare Parts Service Kit
2620KIT. Smear LUBRIPLATE®130-AA or SUPER-O-
LUBE®on rings and mating parts to ease assembly.
- Apply Parker Threadmate®, Loctite®567, or Slic-Tite®
to male pipe threads (per manufacturer’s instructions)
to prevent leaks and ease assembly.
TO RE-ASSEMBLE THE TOOL:
1. Standard Models Only: Install the Back-up Ring,
Quad-ring, wiper, O-rings, washer, and Ejector Rod
into the Ejector Gland. (Figures 8 & 10)
2. Standard Models Only: Hold the piston in a soft-
jaw vise and install the assembled Ejector Gland.
Use Hex Key (P/N 122048) to tighten. (Figures 4, 8,
& 10)
3. Thread the Piston Assembly Tool (P/N 123111-6)
onto the piston. (Figure 5)
NOTE: Do NOT install Spacer 123112-6.
4. Install the GLYD Ring onto the piston.
5. Install the Polyseal, O-ring, Back-up Ring, wiper
housing, and wiper into the Front Gland.
6. Lubricate the Piston Assembly Tool and the piston;
then slide the assembled gland over the Piston
Assembly Tool onto the piston.
7. Thread the GLYD Ring Insertion Tool (P/N 121694-
2620) into the back of the cylinder. (Figure 6)
8. Use a press to carefully push piston and front gland
assembly into the back of the cylinder. (Figure 6)
ASSEMBLY
WARNING: Do not omit any seals during
servicing or re-assembly; leaks will result
and serious personal injury can occur.
- Inspect components for scoring, excessive wear, and
CAUTION: When re-assembling the tool,
always replace damaged and defective
parts, and all seals, wipers, and rings of
sub-assemblies.
507412 O-ring 501127 Back-up Ring
505894
Wiper Seal
125763 End Cap
506160
Polyseal
122762 Spacer
506159 Retaining Ring
EŽƚĞŽƌŝĞŶƚĂƟŽŶ
of Polyseal
FIGURE 7
Front Gland
Assembly
123111-6 Piston
Assembly Tool
EŽƚĞŽƌŝĞŶƚĂƟŽŶŽĨWŽůLJƐĞĂů
507412 O-ring
501127 Back-up Ring
507407 Wiper Seal
125610 Wiper Housing
125609 Front Gland
507408 Polyseal
Piston Assembly *
125613 (2620, 2620-15, A2620)
125762 (2620-PT, 2620-15-PT, A2620-PT)
122769-1 GLYD Ring Assembly
* Piston Assemblies include Piston and
FIGURE 5
Press
Piston, Front
Gland, and Piston
Assembly Tool (123111-6)
121694-2620 GLYD
ZŝŶŐ/ŶƐĞƌƟŽŶdŽŽů
FIGURE 6
continued...
CAUTION: Do NOT use Teflon®tape on pipe
threads. Tape can shred and break free into
fluid lines, resulting in malfunctions.

15
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
9. Remove the Piston Assembly Tool and the GLYD
Ring Insertion Tool from the back of the cylinder.
(Figure 6)
10. From the rear of the cylinder, install the dump valve
with four flats facing rear of the tool. (Figures 8–11)
11. Standard Models Only: Install the O-ring and Back-
up ring on the End Cap. (Figures 8 & 10)
Model 2620-PT: Install Back-up Ring, O-ring, wiper,
Polyseal, washer, and retaining ring into the End
Cap. (Figures 7, 9, & 11)
12. Insert the hex key into the end cap. Use a wrench to
thread the end cap into the back of the cylinder and
tighten. (Figure 2)
13. Standard Models Only: Install the locking disk,
cover plate, and retaining ring. (Figures 8 & 10)
Model 2620-PT: Install the locking disk, barbed
retainer, screws, and deflector. (Figures 9 & 11)
14. If removed, reinstall the electrical/air connector.
NOTE: If the switch or wire were removed,
replace as follows:
Models 2620 & 2620-PT: Slide the retaining nut
and ferrule onto the electrical wire. Feed the wire
through the handle and pull out through the trigger
switch hole. Attach the wires to the switch and push
the assembly back into the handle. Tighten the
screw to hold the trigger switch in place. Slide the
ferrule into the strain relief housing, then thread and
tighten the retaining nut (Figure 12).
Models A2620 & A2620-PT: Install the fitting into
the handle. Slide the retaining nut and ferrule over
the plastic tubing. Slide the tubing into the fitting and
tighten the retaining nut. Screw in the air trigger and
tighten (Figure 13).
15. If removed, install one hydraulic hose in the handle
port “P” and one in port “R”.
16. Screw the coupling nipple (P/N 110438) onto the
PULL pressure hose (from port Pof tool). Screw
the coupling body onto the RETURN pressure hose
(from port Rof tool). (Figures 12 & 13)
The tool is now assembled and ready for use.
ASSEMBLY (CONTINUED)
WARNING: Connect the tool’s hydraulic
hoses to the POWERIG®before connecting
the (air or electric) trigger assembly to
it. If not connected in this order, serious
personal injury could occur.
CAUTION: Do NOT use Teflon®tape on pipe
threads. Tape can shred and break free into
fluid lines, resulting in malfunctions.

16
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
ASSEMBLY DRAWINGS STANDARD MODELS
37
37
21
20
19
18
89
15
13
12
11
1098765
432
1
16 17
29
22
23
24
25
28
24
27
26
22 EJECTOR
GLAND ASSEMBLY
FIGURE 8
23
24
25
28
24
27
26
22 EJECTOR
GLAND ASSEMBLY
21
20
19
18
89
15
13
12
11
1098765
432
1
16 17
29
22
FIGURE 9
A2620
2620 &
2620-15

17
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
ASSEMBLY DRAWINGS PT MODELS
37
37
21
20
19 36 35
34
18
33
32
3130
8
9
15
14
131211
10
9
8
7
65
4321
FIGURE 10
21
20
19 36 35
34
18
33
32
3130
8
9
15
14
131211
10
9
8
7
65
4321
FIGURE 11
A2620-PT
2620-PT &
2620-PT-15

18
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
The numerical references in the Item column are to the parts labels in Figures 8–11.
PARTS LIST
*Piston 125612 is not sold individually. It is included in Piston Assembly (P/N 125613), which
also contains GLYD Ring Assembly (P/N 122769-1).
** Piston 125761 is not sold individually. It is included in Piston Assembly (P/N 125762), which
also contains GLYD Ring Assembly (P/N 122769-1).
ITEM DESCRIPTION QTY. 2620 &
2620-15 A2620 2620-PT & 2620-PT-15 A2620-PT
1 Split Ring 1 102147 102147 102147 102147
2 Retaining Ring 1 501514 501514 501514 501514
3 Retaining Sleeve 1 102148 102148 102148 102148
4 Piston 1 125612*125612*125761** 125761**
5 Cylinder Assembly 1 126152 126152 126152 126152
6 Wiper Seal 1 507407 507407 507407 507407
7 Wiper Housing 1 125610 125610 125610 125610
8 Back-up Ring 2 501127 501127 501127 501127
9 O-ring 2 507412 507412 507412 507412
10 Polyseal 1 507408 507408 507408 507408
11 Front Gland 1 125609 125609 125609 125609
12 HUCK Sticker 1 590517 590517 590517 590517
13 GLYD Ring Assembly 1 122769-1 122769-1 122769-1 122769-1
14 CE & WARNING Sticker 1 590512-5 590424-7400 590512-5 590424-7400
15 End Cap 1 125614 125614 125763 125763
16 Cover Plate 1 125617 125617 ------------ ------------
17 Retaining Ring 1 507406 507406 ------------ ------------
18 Locking Disc 1 122764 122764 122764 122764
19 Dump Valve 1 125616 125616 125616 125616
20 Strain Relief or Air Fitting 1 505344 503902 505344 503902
21 Trigger Switch Assembly 1 120361 119345-1 120361 119345-1
22 Ejector Gland Assembly 1 120653 120653 ------------ ------------
23 Ejector Washer 1 120652 120652 ------------ ------------
24 O-ring 2 500779 500779 ------------ ------------
25 Gland 1 122047 122047 ------------ ------------
26 Rod Wiper 1 122742 122742 ------------ ------------
27 Back-up Ring 1 501080 501080 ------------ ------------
28 Quad-Ring 1 501411 501411 ------------ ------------
29 Pintail Ejector 1 122705 122705 ------------ ------------
30 Barbed Retainer 1 ------------ ------------ 125765 125765
31 Screws 3 ------------ ------------ 500060 500060
32 Pintail Deflector 1 ------------ ------------ 122766 122766
33 Wiper Seal 1 ------------ ------------ 505894 505894
34 Polyseal 1 ------------ ------------ 506160 506160
35 Spacer 1 ------------ ------------ 122762 122762
36 Retaining Ring 1 ------------ ------------ 506159 506159
37 Set Screw 1 501731 501731 501731 501731

19
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
ASSEMBLY DRAWING ELECTRIC TRIGGER
505839 Cable Tie
110439 Female Connector
502298 Reducing Bushing (2)
Hose Assembly (2)
(see Table)
Control Cord
(see Table)
110438 Male Connector
110686 Male
Cord Connector
FIGURE 12
HOSE ASSEMBLY FOR
ELECTRIC TRIGGER MODELS

20
2620 Series Hydraulic Installation Tools (HK1012) Alcoa Fastening Systems & Rings
ASSEMBLY DRAWING AIR TRIGGER
A2620-PT 120770 Hose Sleeve A2620 120770-2 Hose Sleeve
503902
Air Tube
Connector
112143-DASH
Air Hose
110439 Female Connector
502298 Reducing Bushing (2)
126107-2 Hose (2)
110438 Male Connector
113021 ŝƌ&ŝƫŶŐ
1
11
119440-3
Air Trigger & Hose Assembly
(includes 119345 Air Trigger
Assembly and items )
1
FIGURE 13
HOSE ASSEMBLY FOR
AIR TRIGGER MODELS
