HunterDouglas Silhouette Parts list manual

LiteRise®
UltraGlide®
EasyRise™
Installation •Operation •Care
Silhouette®and Nantucket™
Window Shadings
EasyRise, UltraGlide, and LiteRise Operating Systems
5107650000F 4/18

CONTENTS
Getting Started:
Product View ............................................................................ 1
Tools and Fasteners Needed ...................................................... 2
Installation:
Installation Overview ................................................................. 3
Mount the Installation Brackets — Inside Mount......................... 4
Mount the Installation Brackets — Outside Mount ...................... 6
Mount the Installation Brackets — EndMount ............................ 8
Install the Shading .................................................................... 9
Attach the Universal Cord Tensioner (UCT) for EasyRise™Only ...... 9
Final Adjustments.................................................................... 10
Operation:
Operate the Shading ............................................................... 13
Troubleshooting ...................................................................... 16
Care:

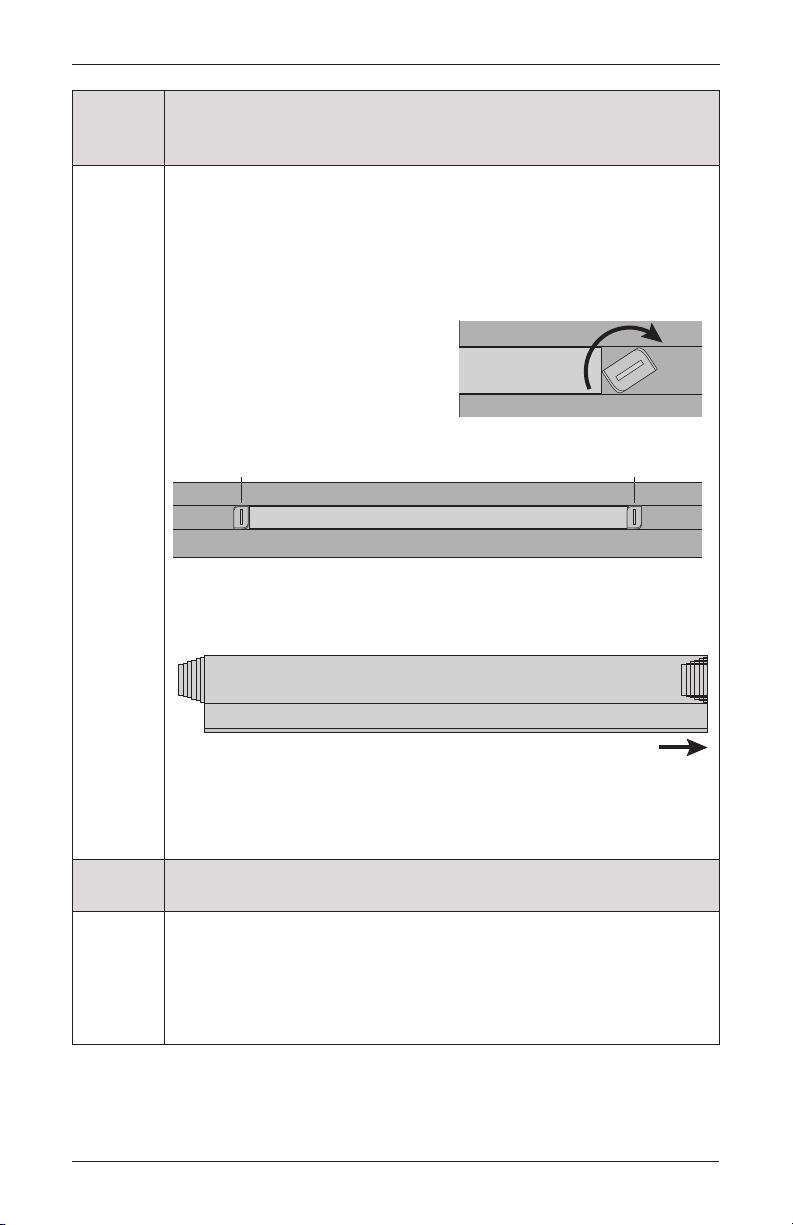

Removing the Shading (If Necessary)........................................ 20
Cleaning Procedures ............................................................... 20
Child Safety:
Warning ................................................................................. 22
Cord Loop Shadings................................................................ 22
Warranty.....................................................................Back Cover
Questions?
Call Hunter Douglas Consumer Support at 1-800-265-8000.
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas
or their respective owners.

GETTING STARTED
1
Product View
Back/Dust
Cover
(Optional)
Headrail
Headrail
End Cap
Cord Loop
and
Tensioner
Magnetic
Hold-Down
Brackets
(Optional)
Limit Stops
Installation Brackets
EasyRise
™
LiteRise
®
Handle
Tassel
UltraGlide
®
Two-On-One Headrail Shading

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Silhouette®or Nantucket™window shadings.
With proper installation, operation, and care, your new shadings will provide years of beauty
andperformance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. If your shading has a protective plastic cover on the fabric-covered headrail,
keep the plastic in place until the shading is installed.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers ■Level (laser level is recommended)
■Measuring tape and pencil ■Pliers
■Power drill,
3
/ 32 " drill bit,
and
1
/ 4 " hex driver
■Scissors (heavy-duty)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Speed Nuts and Screws (Provided). Extension brackets come with screws and speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with Each
Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

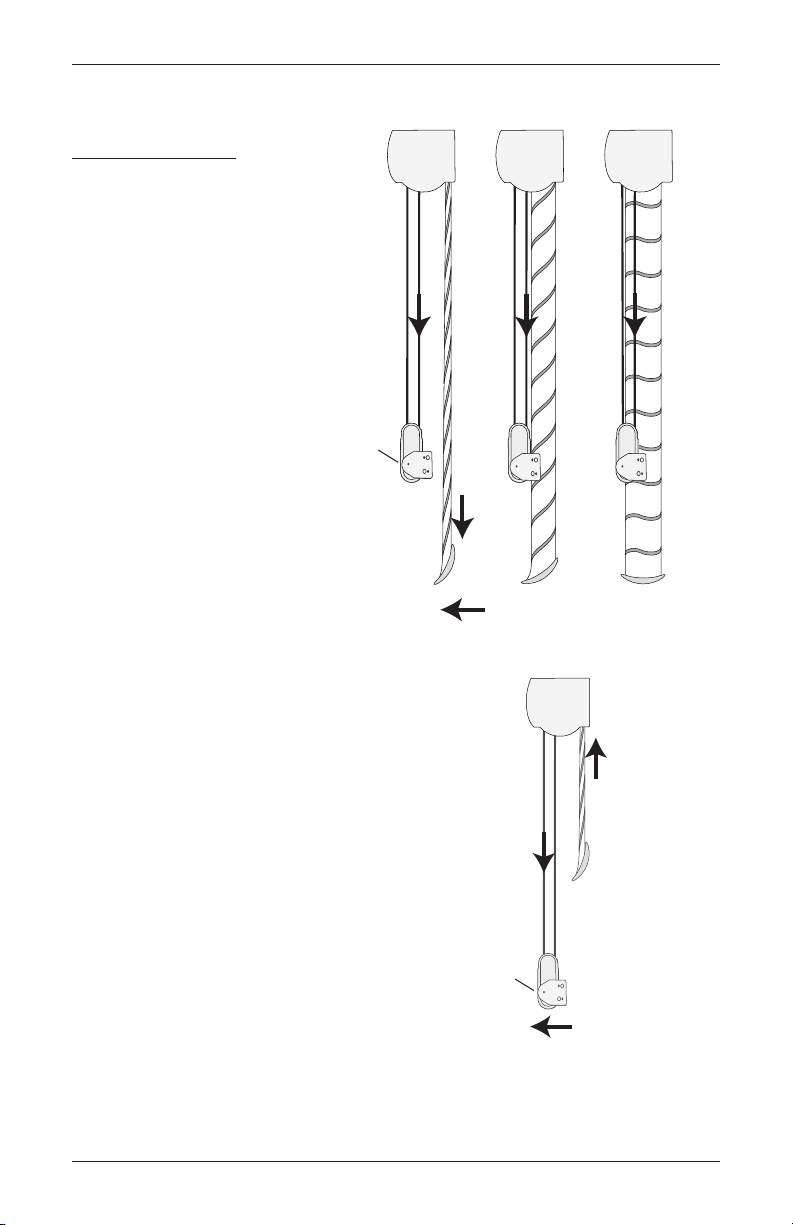

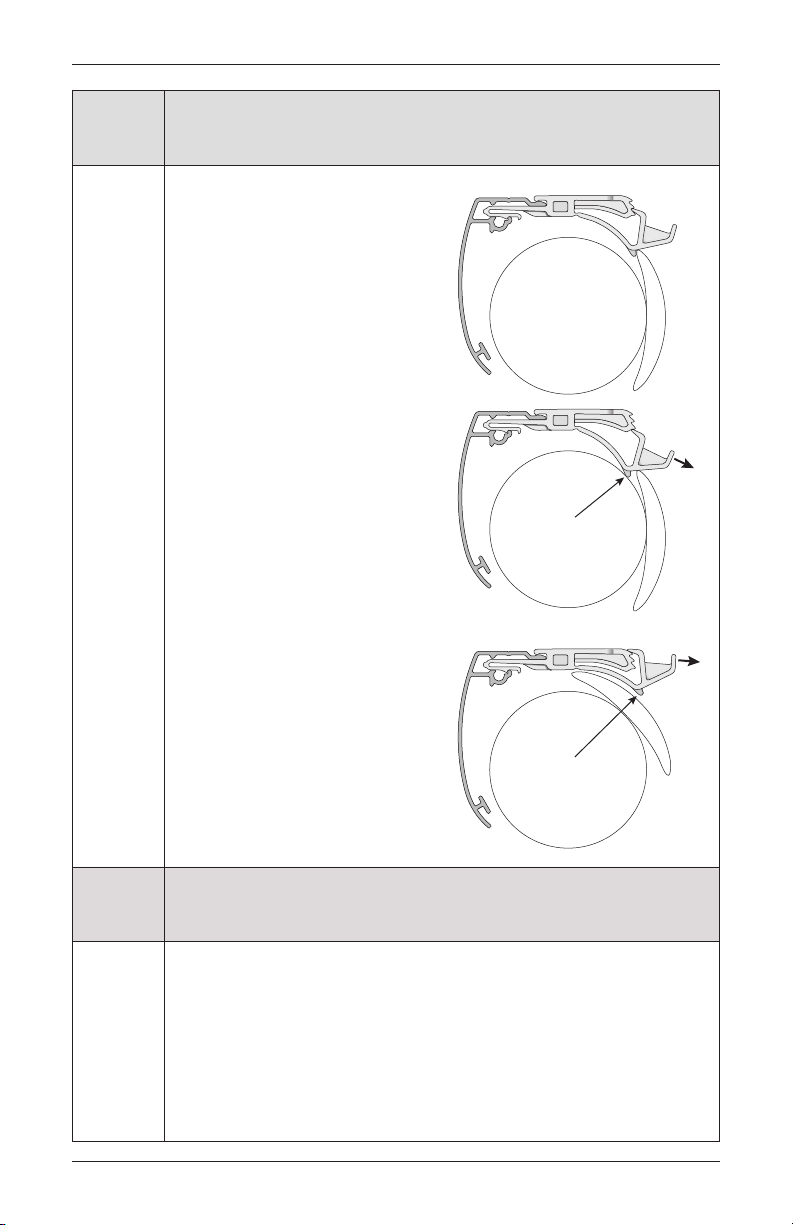

Importance of Limit Stops on Silhouette and Nantucket Window Shadings
Limit stops serve as the upper travel limit for the bottom rail, preventing it from rotating
around the fabric roll. Limit stops are located 6" from the ends of the headrail or are
centred on shadings less than 36" wide.
When a shading is made, the limit stops are adjusted according to the size of the fabric
roll. Occasionally, this adjustment changes during shipping or installation. If this happens,
problems can be fixed by readjusting the limit stops. See page 17 in the Troubleshooting
section if shading operation is difficult or if the bottom rail rotates around the fabric roll.
Shown below are the four possible positions of limit stops for large to small fabric rolls.
Large Fabric Roll Small Fabric Roll

INSTALLATION
3

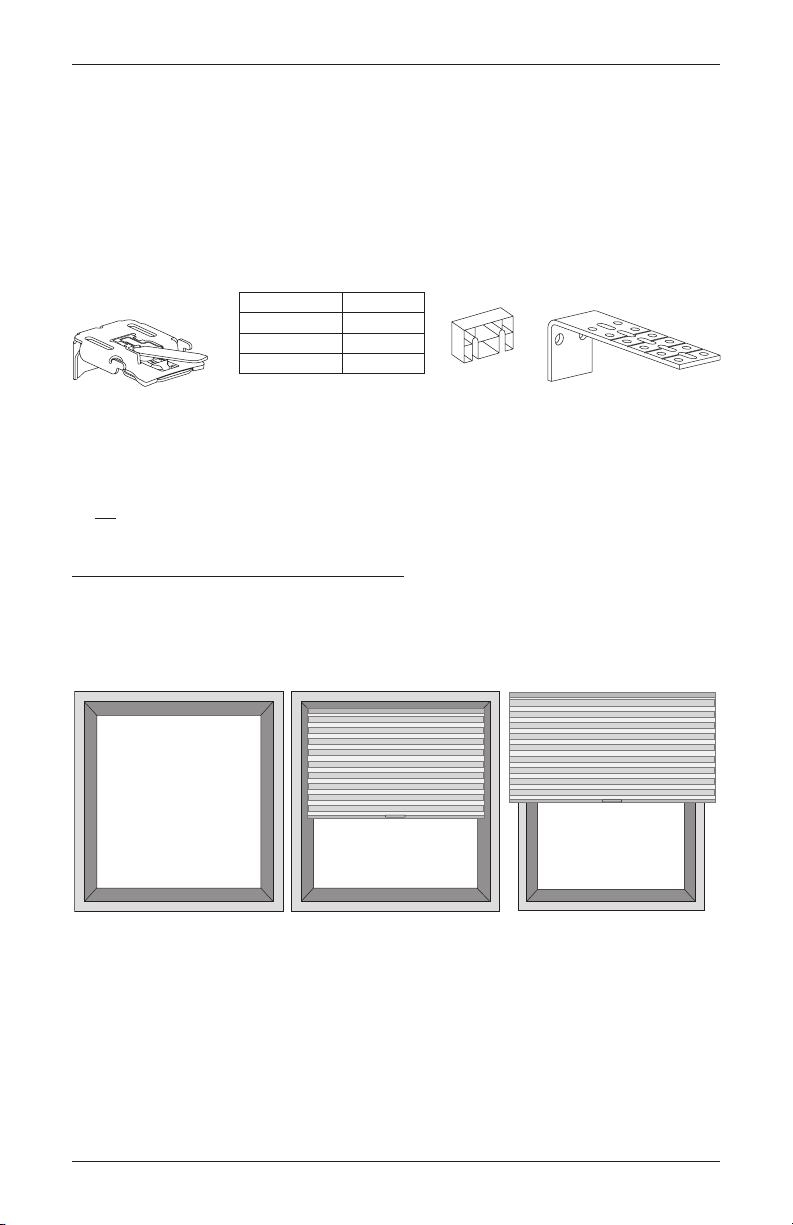

Installation Overview
■Your order will include the correct number of installation brackets for your shading width, as
shown in the table below.
■Shading orders may also include spacer blocks or extension brackets, if they were specified
for added clearance.
➤Extension brackets are used for end mount shadings, as well.
■Two-On-One Headrail Shadings. The appropriate number of brackets are provided for
each panel.
NOTE: UltraGlide®shadings come with a shipping clip installed to keep the tassel cord in place.
Do not remove the clip until the headrail is installed.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page 4
➤Outside Mount — Page 6
➤End Mount — Page 8
Installation Bracket For Added Clearance
Shading Width Brackets
2
3
4Extension
Bracket
1
/ 2 " Spacer
Block
14" to 48"
48
1
/ 8 " to 96"
96
1
/ 8 " to 120"
Outside Mount
Shading mounts
outside window
opening.
Inside Mount
Shading fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
4

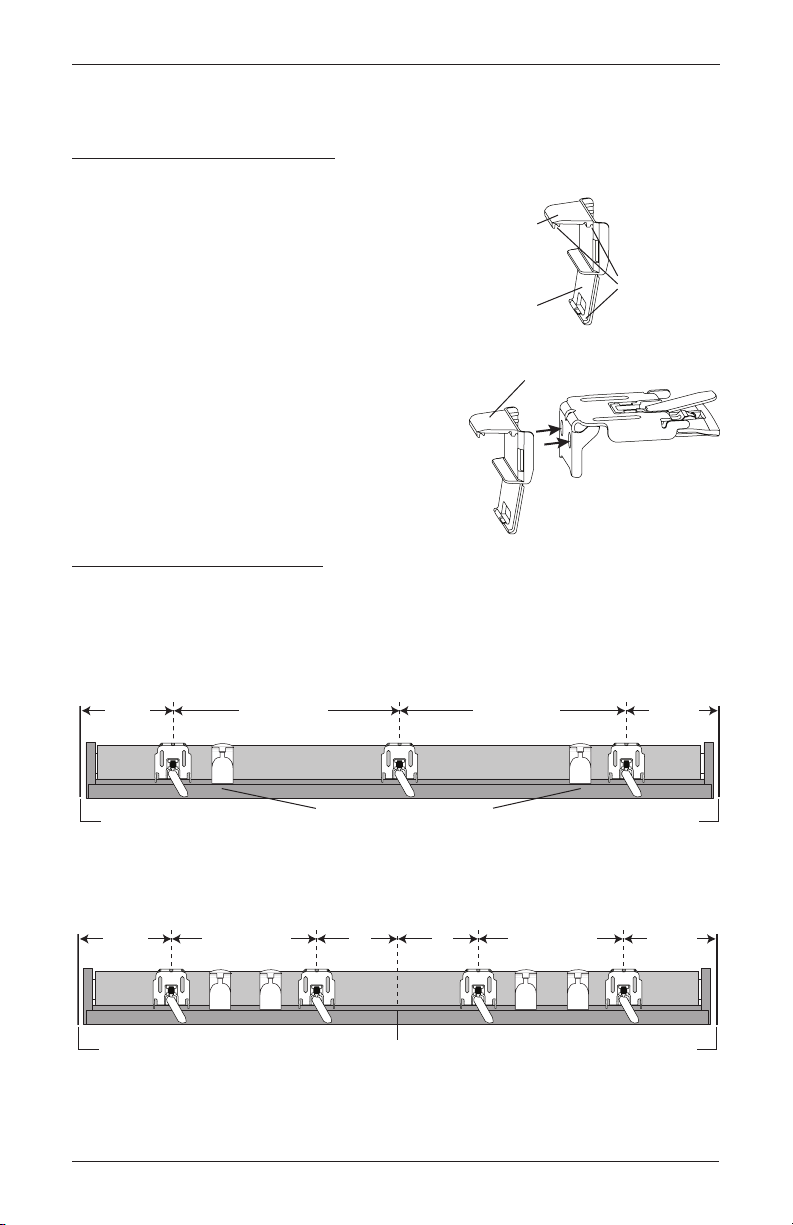

Mount the Installation Brackets — Inside Mount
Prepare the Installation Brackets
The purpose of the back cover bracket is to
provide an attachment for the optional back cover.
■If using the optional back cover:
➤Remove the top tab on the back cover
bracket.
➤Snap the back cover bracket into the metal
installation bracket.
➤Place the back cover into the slots on the
top and bottom of the bracket.
Mount the Installation Brackets
■Mark 2" to 3" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.

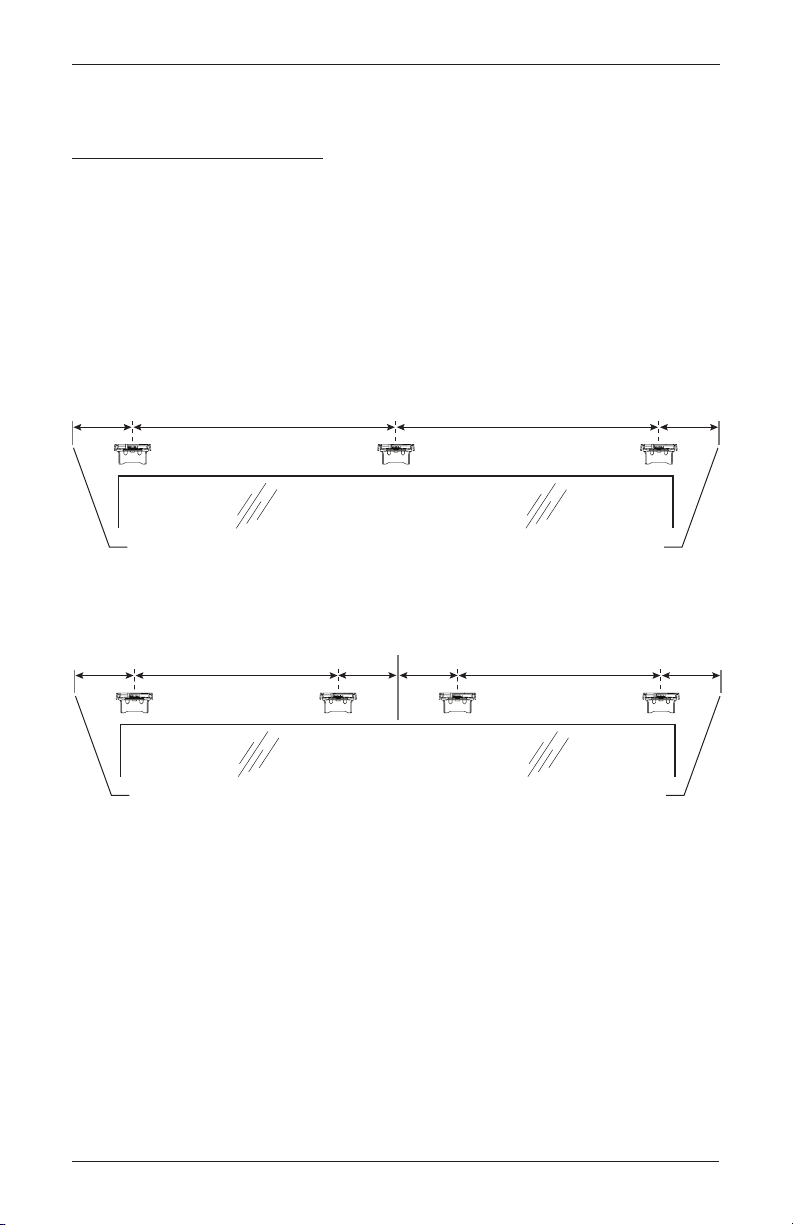

■Two-On-One Headrail Shadings. Place the installation brackets as shown in the
illustration below.
Limit stops should be equal
distance from the ends of headrail.
Space Evenly Space Evenly
2" to 3" 2" to 3"
Jamb Jamb
Space Evenly2" to 3" 2" to 3"
Jamb Jamb
Space Evenly
Panel Split
3" 3"
Remove Top Tab
Back Cover Bracket
Top Tab
Bottom
Tab
Back Cover
Slots

INSTALLATION
5

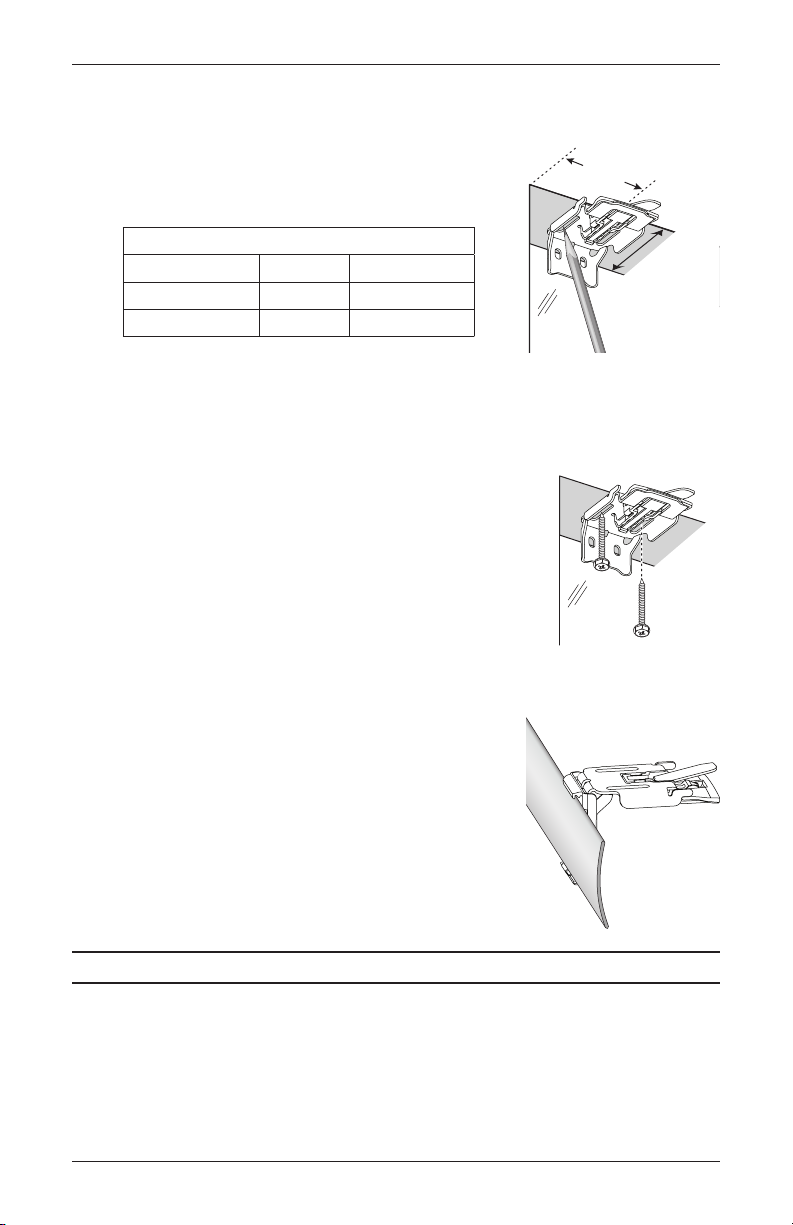

■Decide whether the front or back set of installation bracket holes works best in your
application. Mark the location of the screw holes.
➤The depth required for fully recessed mounting will vary
depending on the type of headrail and vane size. Refer to
the chart below for depth requirements.
■Use a level to check that the mounting surface is level. Shim (not provided) the brackets, if
necessary.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check to
ensure the lever can be moved easily side to side. If not,
loosen the screws
in one-eighth turn increments until the
lever can be moved easily.
IMPORTANT: The front edges of the installation brackets must be level and aligned to each
other.
■If using the optional back cover: Install the cover into the
back cover brackets. If necessary, trim the back cover to the
desired width.
Proceed to “Install the Shading” on page 9.
Depth Chart for Bracket Placement
Headrail Type Minimum Fully Recessed
Classic 1" 3
5
/ 16 "
Quartette®4" 1" 3
13
/ 16 "
Note: Add
1
/ 4 " to the minimum depth dimensions if the
optional back cover is used for inside mounts.
2" to 3"
Casement
Depth
Casement
Depth
Back
Cover

INSTALLATION
6
Mount the Installation Brackets — Outside Mount
Mount the Installation Brackets
■Centre the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 2" to 3" from each end of the headrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Two-On-One Headrail Shadings. Place the installation brackets as shown in the
illustration below.
Window Opening
Space Evenly Space Evenly
2" to 3" 2" to 3"
Headrail End Mark Headrail End Mark
Window Opening
Space Evenly
Panel Split
Space Evenly
2" to 3" 3" 3" 2" to 3"
Headrail End Mark Headrail End Mark

INSTALLATION
7
■Centre the installation brackets or extension brackets on your marks and mark where to drill
the screw holes.
➤A minimum 1" flat vertical surface isrequired for the installation brackets. Extension
brackets require 1
1
/ 4 ".
➤The tops of the installation brackets or extension brackets should be at the desired
height. The brackets should be level and aligned.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets on curved molding.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation or extension
brackets using the screws provided.
IMPORTANT: The tops of the
installation brackets or extension
brackets must be level with their
front edges aligned.
■If using spacer blocks, attach the spacer block(s) and
installation bracket to a flat vertical mounting surface
with #6screws long enough for asecure installation.
IMPORTANT: Do not add more than 1
1
/ 2 " of clearance
using spacer blocks.
IMPORTANT: The tops of the installation brackets
must be level with the front edges aligned.
1"
Extension
Bracket
1
1
/ 4 "
1
1
/
2
"
Maximum
Spacer
Blocks
Longer
Screw

INSTALLATION
8

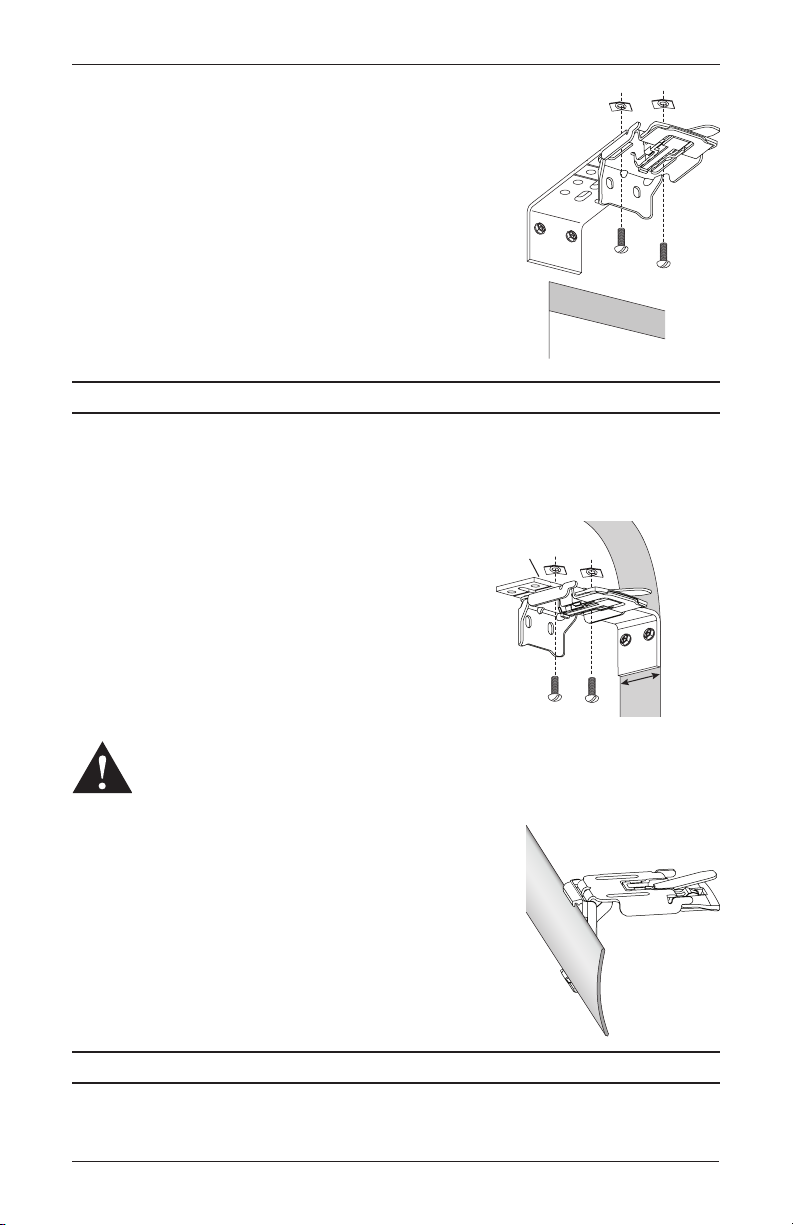

■If using extension brackets, attach an installation bracket
to the underside of each extension bracket using thespeed
nuts and screws provided.
Proceed to “Install the Shading” on page 9.
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in
an arched window opening.
■Mount the extension brackets on a flat vertical surface
at least 1
1
/ 4 " wide.
➤Add
1
/ 4 " to the minimum depth if using the optional
back cover.
■Attach the installation brackets to the extension brackets
using the provided screws and speed nuts.
WARNING: To end mount shadings into a surface other than a secure wall stud, use
medium to heavy-duty wall anchors (not provided) matched to the wall thickness.
Failure to mount the brackets securely may result in injury or property damage.
■If using the optional back cover: Install the cover into the
back cover brackets. If necessary, trim the back cover to the
desired width.
Proceed to “Install the Shading” on page 9.
Screws
Speed Nuts
Extension
Bracket
1
1
/ 4 "
Minimum
Depth
Back
Cover

INSTALLATION
9

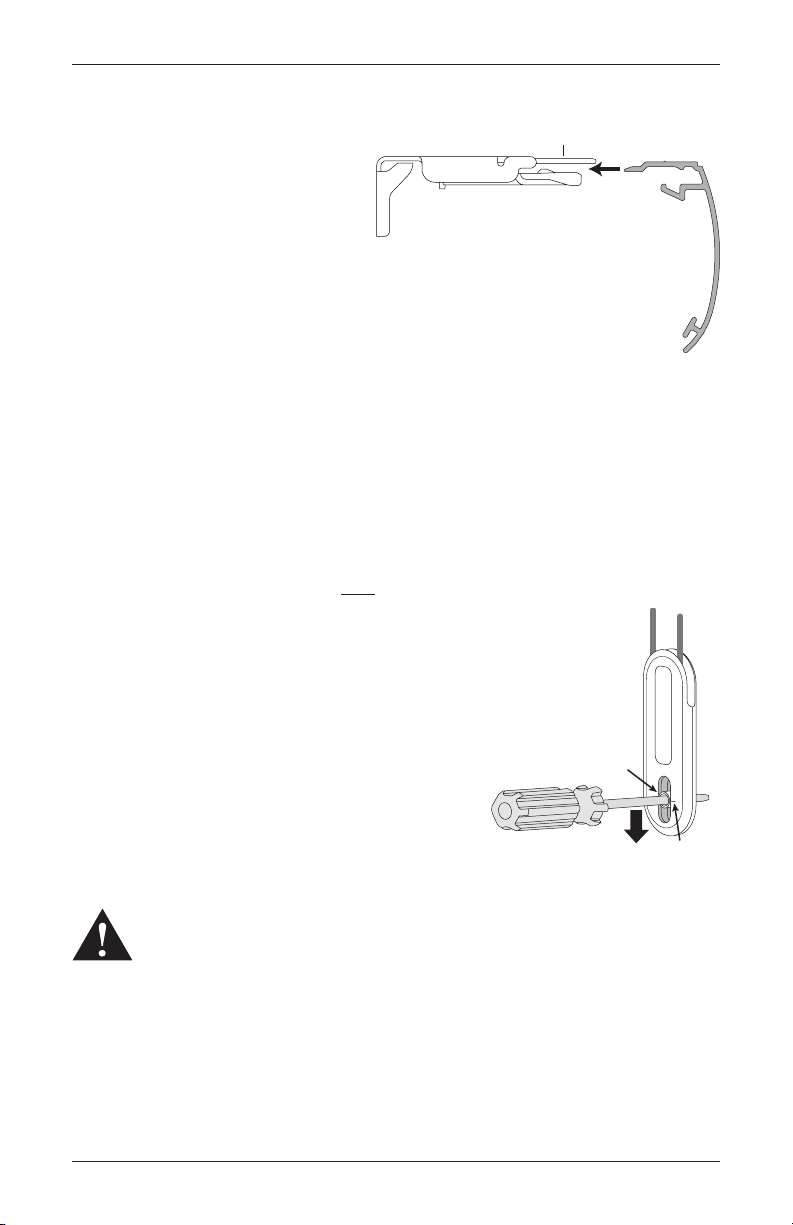

Install the Shading
■Peel back the protective covering from
the top of the fabric-covered headrail.
Leave the rest of the protective
covering on the front of the headrail.
■Position the shading so that the front
faces you.
■Slide the headrail into the installation
brackets so the edge of the headrail
is between the lever and the bracket,
asshown.
■Firmly push the headrail into each bracket until it clicks and the lever snaps to the right side
of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket to ensure it is installedsecurely.
■Completely remove the protective covering from the fabric-covered headrail.
Attach the Universal Cord Tensioner (UCT) for EasyRise™Only
IMPORTANT: Before you proceed, you must first slide the cord tensioner to the bottom of the
cordloop.
■Insert a small screwdriver, punch, or awl through the
screw hole at the bottom of the cord tensioner.
■Move the screw hole down to the indicator line to
release the safety mechanism.
■Slide the cord tensioner down to the bottom of the
cordloop.
■Attach the cord tensioner according to the
instructions provided with the Universal Cord
Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioner be properly secured to the
wall or window frame to reduce children’s access to the cord loop. Young
children can strangle in cord loops. They can also wrap cords around their
necks and strangle.
CAUTION: The shading will not operate properly unless the cord tensioner
is secured. A Universal Cord Tensioner Installation Kit has been included
with your shading. Follow the instructions in the kit to correctly secure the
cordtensioner.
Headrail
Installation
Bracket
Lever
Slide the Headrail
Between the Lever
and the Bracket
Screw
Hole
Indicator
Line

INSTALLATION
10
Final Adjustments
Adjust the Cord Length for UltraGlide®System Only
Adjusting the tassel to eye level will decrease the amount of pulls needed to raise and lower
theshading. This will also enhance child safety.
To Shorten the Tassel Cord
■Grasp both parts of the tassel (the coloured cover and
the frosted body).
■Squeeze the tassel cover with your thumb and forefinger
(at the “s” of the HunterDouglas logo).
■Separate and slide the tassel cover from the
tassel body.
■Pull out the knotted end of the tasselcord.
■Retie the cord at the desired shorter length, using a
double knot.
■Trim the tassel cord.
■Pull the trimmed knot up inside the tassel.
■Squeeze the sides of the tassel cover together while sliding it back onto the tassel body.
IMPORTANT: After reassembling, be sure there are no gaps between the two components.
Check that they do not pull apart easily. The tassel cover should be securely seated into the
tassel body.
Tassel
Cover
Tassel
Cord
Tassel
Body

INSTALLATION
11
Attach the Magnetic Hold-Down Brackets (Optional)
■Lower the shading, keeping the vanes closed.
■Place the magnetic hold-down bracket onto the bottom rail just inside
the end cap, oriented as shown.
■Hold the bracket while opening and closing the vanes. (It may be
necessary to have someone assist you.) Adjust the bracket to the best
overall position.
■Mark the screw location using the mounting options shown below.
➤The screw should be placed in the middle of the channel. This will
allow for adjustment.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket height by loosening the screw
and sliding the bracket up or down.
Hold-Down
Bracket
Bottom
Rail
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust the
bracket
up or down
using the
channel.

INSTALLATION
12

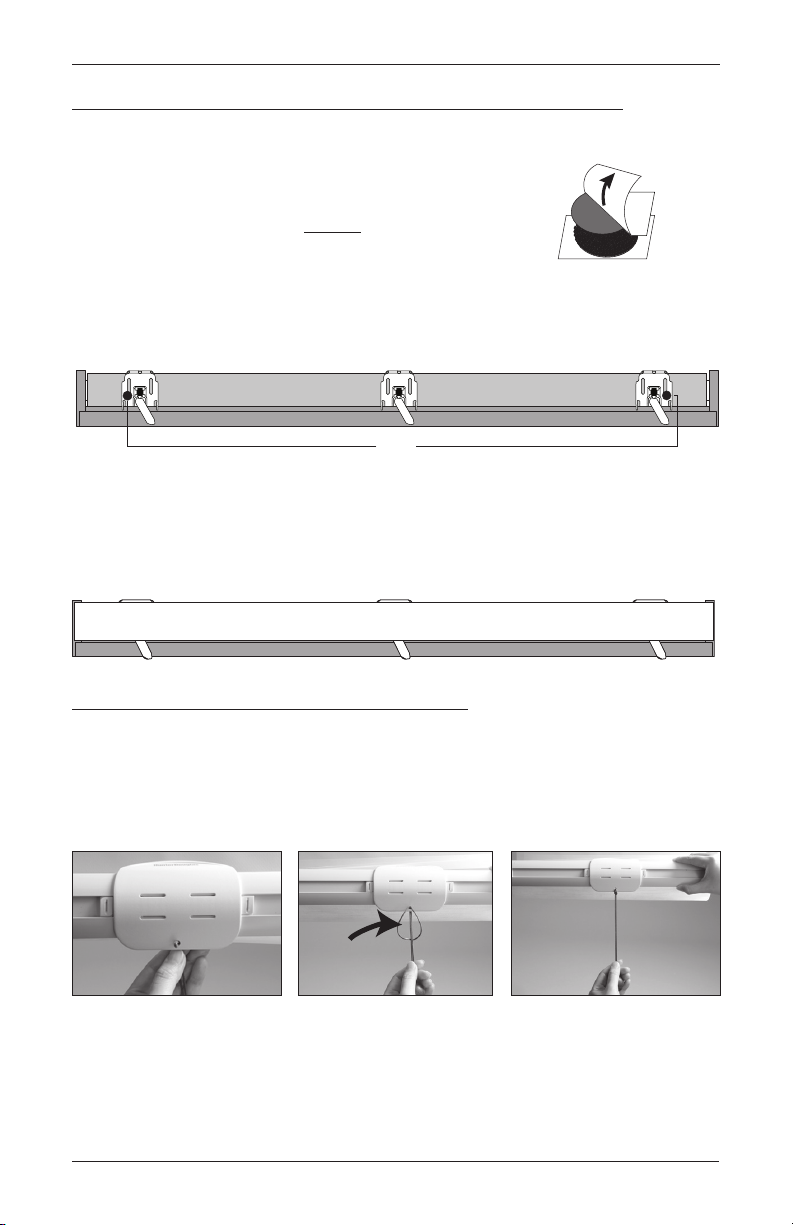

Attach the Dust Cover (Optional for Outside Mounts and End Mounts)
The dust cover is used to protect the top of the headrail from exposure on outside mounted
shadings.
■Cut the dust cover to desired width.
■Remove the paper backing on one side of the hook and loop
fastener dots.
■Apply the dots to the installation brackets on each end of
theshading.
■Remove the remaining paper backing from the dots.
■Centre the dust cover over the top of the shading, above the dots.
■Press the dust cover down onto the dots.
Install the Pull Tassel (Optional for LiteRise®Only)
■Rotate the bottom rail so that you can see the underside of thehandle.
■Push the pull cord loop through the hole at the back of thehandle.
■Thread the pull tassel through theloop.
■Pull the tassel to secure.
Remove
Paper
Backing
Overhead View
No Dust Cover
Dots
Dust Cover Installed

OPERATION
13
Operate the Shading
EasyRise™Shadings
To Lower the Shading and
Openthe Vanes
■Pull the rear cord of the
cord loop down to lower
the shading.
■With the shading fully
lowered, continue to pull the
rear cord to tilt the bottom
rail and open the vanes.
■If the cord tensioner moves
up the cord, you have not
secured it to the wall or
window frame. You must do
so for the shading to operate
properly.
To Close the Vanes and Raise theShading
■Pull the front cord of the cord loop down to close
the vanes and raise the shading.
■If the cord tensioner moves up the cord, you
have not secured it to the wall or window frame.
You must do so for the shading to operate
properly.
IMPORTANT: If the shading raises or lowers
unevenly, the fabric rubs against one end of
the headrail, or the bottom rail is uneven when
fully raised, the bottom rail weight needs to be
adjusted. See “Adjusting the Bottom Rail Weight”
on page 18.
Front Side of Shading
To Lower and Open the Vanes of the Shading
Cord
Tensioner
and Bracket
Front Side of Shading
To Close Vanes and Raise the Shading
Cord
Tensioner
and Bracket

OPERATION
14
UltraGlide®Shadings
To Lower the Shading and Open the Vanes
■Pull the cord toward the centre of the
shading. Listen for a “click” and then
release the cord.
■The vanes automatically open once
the shading is completely lowered.
■The shading can be stopped at any
point while lowering by slightly
tugging the cord straight down.
To Tilt the Vanes and Raise the Shading
■Pull the cord straight down with long strokes.
➤Pull the cord with shorter strokes to
tilt the vanes.
■With each stroke the vanes close or the
shading partially raises.
■Allow the cord to retract completely into
the headrail after each downward stroke.
■Use multiple strokes until the shading
reaches the desired position.
■The shading can be stopped at any point
while raising.
Lower
and Open
Vanes by
Pulling to
Center
Tilt
V
anes and
Raise by
Pulling
Straight
Down

OPERATION
15
LiteRise®Shadings
To Lower
■Slowly and steadily pull down on the
bottom rail handle to lower.
To Open
■With your thumb on the front of the
handle and fingers on the back, gently
pull the back of handle down and away
from the shading to open the vanes.
➤Use the handle to tilt the vanes to the
desired open/closed position.
To Raise
■Push down on the front of the handle to
close the vanes. Then slowly and steadily
push up on the handle to raise.

OPERATION
16
Troubleshooting
Problem The shading will not snap into the installation brackets.
Solution Check that the installation brackets are aligned andlevel.
Check that the locking tab on the installation bracket slides over the headrail.
Problem The shading is hard to raise or lower, or will not raise or lower.
Solution Shadings cannot be forced into tight inside mount window openings. If an inside
mount, make sure there is clearance between the ends of the shading and the
window casement.
For LiteRise®only: If the vanes are open, be sure to close the vanes first by
pressing down on the front of the handle. If necessary, pull the shading away
from the window to fully close. Once the vanes are closed you can raise the
shading.
For EasyRise™only: Check that the universal cord tensioner is mounted
correctly.
■Pull down on the spring to relieve tension and pull the universal cord
tensioner to the bottom of the cord loop. Properly mount the cord tensioner.
See the Universal Cord Tensioner Installation Instructions included with
yourshading.
Check that the installation brackets are level. Shim (not provided) to level, if
necessary.
Problem EasyRise shadings only: The universal cord tensioner has climbed to the
headrail.
Solution Pull down on the spring to relieve tension and pull the universal cord tensioner
to the bottom of the cord loop. Properly mount the cord tensioner. See the
Universal Cord Tensioner Installation Instructions included with your shading.
Problem EasyRise shadings only: The universal cord tensioner grabs onto the cord
upon operation.
Solution Check that the universal cord tensioner is mounted properly. Reinstall, if
necessary.

OPERATION
17
Problem The shading is hard to raise or lower, or the bottom rail does not stop at the
top limit.
Solution Check the adjustment position of
both limit stops. The top illustration
shows the correct adjustment. The
limit stop catches the bottom rail,
and the bottom of the limit stop is
slightly above or barely touching the
fabric roll.
In the second illustration, the limit
stop adjustment is too tight. The
fabric may not drop freely and could
even be damaged when the shading
is raised. To correct this, the limit
stop should be adjusted one step up.
Simply pull back on the rear of the
limit stop to adjust its position.
In the bottom illustration, the
adjustment is too loose. The bottom
rail can slip under the limit stop.
If the bottom rail rotates through
the headrail, it must be backed out
before adjusting the limit stop.
IMPORTANT: Both limit stops must
be adjusted to the same position or
else skewing may occur.
Problem The shading raises or lowers unevenly or the bottom rail is uneven when
fully raised.
Solution Check that the window is square by measuring the diagonals.
Check that the installation brackets are level. Shim (not provided) to level,
ifnecessary.
Adjust the bottom rail weight (not applicable for LiteRise®shadings). See next page.
For LiteRise®only: Keep the bottom rail level while raising the shading.
Side-to-side movement while raising may cause the fabric to skew.
Pull Back
to Adjust
Fabric Roll
Bottom
Rail
Limit StopHeadrail
Pull Back
to Adjust
Too Tight —
Adjust One Step Up
Too Loose —
Adjust One Step Down

OPERATION
18
Problem The shading raises or lowers unevenly, the fabric rubs against one end of
the headrail, or the bottom rail is uneven when fullyraised.
Solution Check that the window is square by measuring the diagonals.
Check that the installation brackets are level. Shim (not provided) to level,
if necessary.
Adjust the bottom rail weight. See below.
Adjusting the Bottom Rail Weight
■Release the weight clips by inserting
a flat blade screwdriver into the
weight clip and turning clockwise.
■Move the weight in 1" increments toward the side where the fabric is
gathering.
■Secure the weight clips in position by turning them counterclockwise after
making the adjustment.
■Test and, if necessary, adjust again.
Problem Vanes do not align on side-by-side shadings.
Solution Vane alignment is only guaranteed within
1
/ 4 " when shadings are ordered at
the same time, at the same height, with the same colour and fabric, and when
specified on the order form.
Check that the windows are square and the sameheight.
Weight
Bottom Rail
Weight
Clip
Weight
Clip
Fabric Roll
Gathered
Fabric
Move Weight
