Silhouette®Duolite®Window Shadings
UltraGlide, SoftTouch, and PowerView Motorization
Operating Systems
Installation •Operation •Care

CONTENTS
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.
Getting Started:
Product Views...............................................................................................1
Tools and Fasteners Needed ..........................................................................2
Installation:
Installation Overview .....................................................................................3
STEP 1: Mount the Installation Brackets.........................................................3
Mount the Installation Brackets — Inside Mount .........................................4
Mount the Installation Brackets — Outside Mount ......................................6
STEP 2: PowerView®and SoftTouch™Only — Connect the Power Cable..........8
STEP 3: Install the Shading ...........................................................................9
Install the Optional Back Cover (If Applicable) ..............................................9
Mount the Headrail.................................................................................... 9
Attach the Optional Dust Cover (If Applicable)............................................10
STEP 4: Connect the Power Source, If Applicable..........................................11
SoftTouch Only — Unpack the Wand and Attach to Activation Arm.................12
Operation:

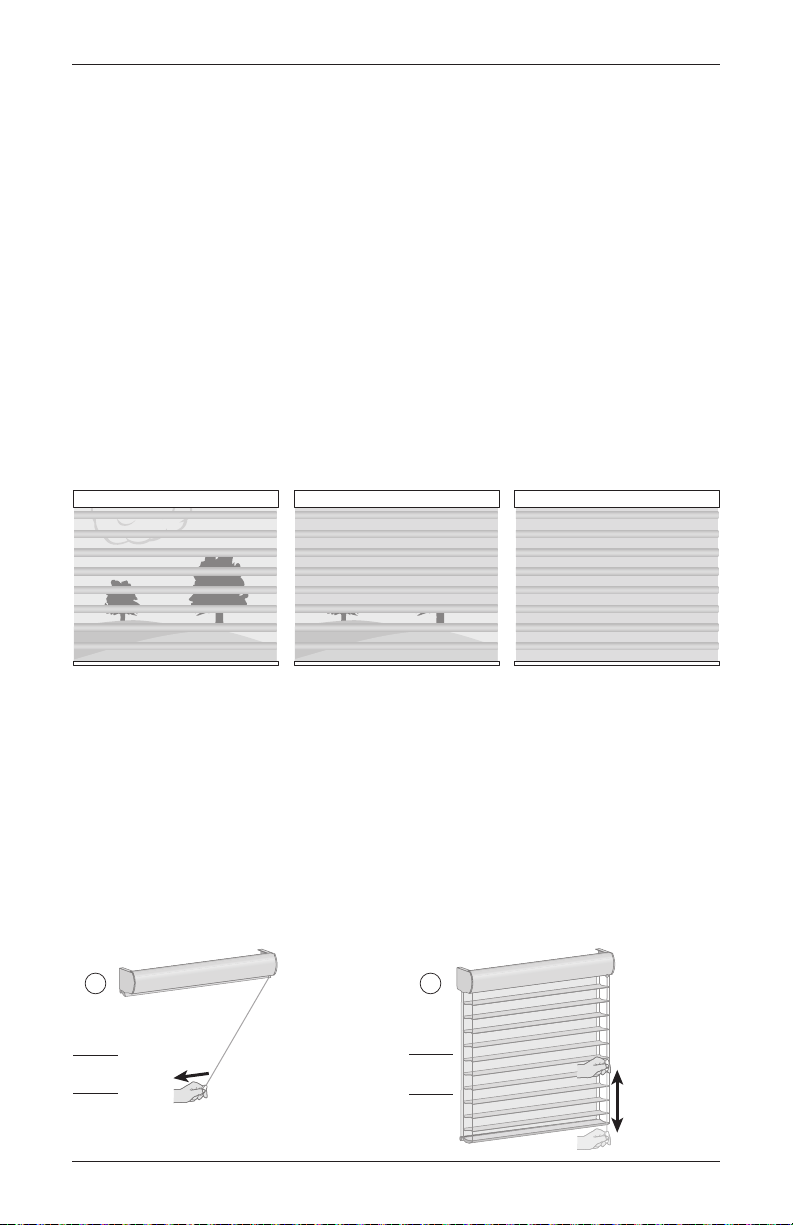

Operate the Shading ...................................................................................13
UltraGlide®..............................................................................................13
SoftTouch Motorization ............................................................................14

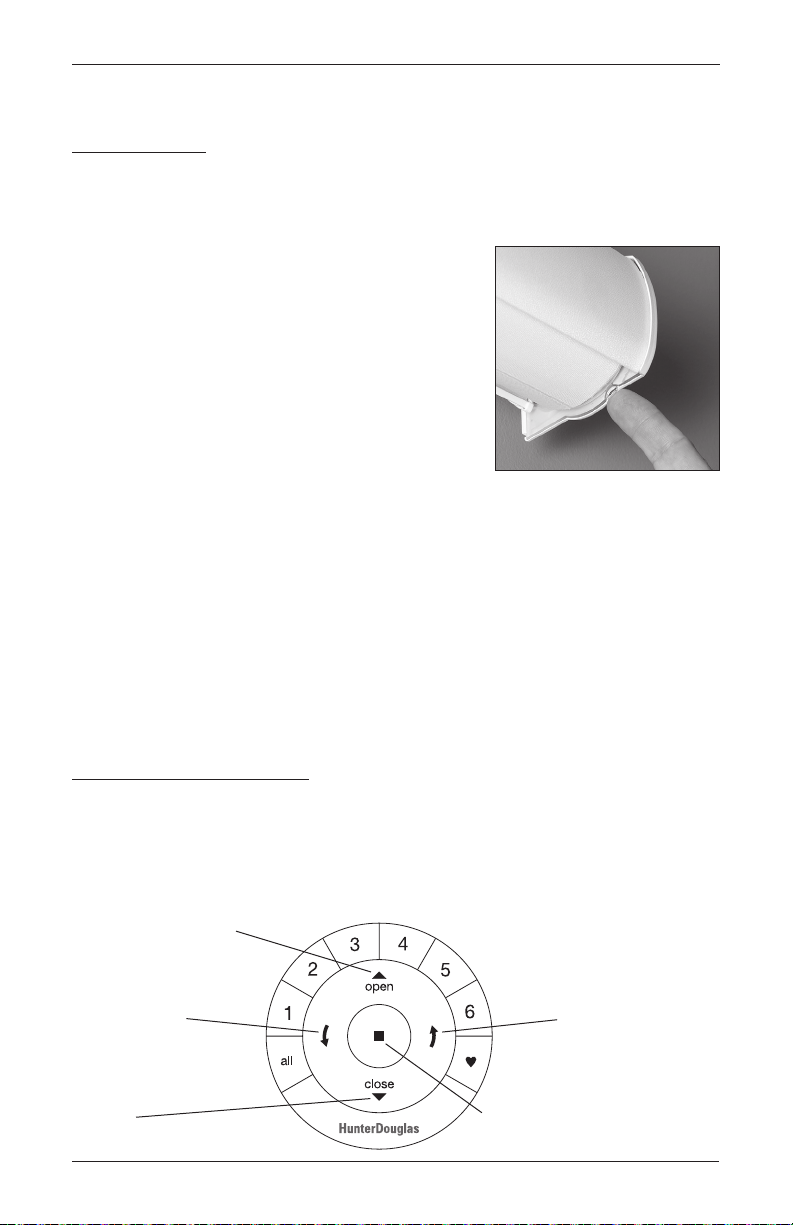

PowerView Motorization...........................................................................16
Troubleshooting ..........................................................................................20
Care:
Removing the Shading.................................................................................28
Cleaning Procedures ...................................................................................28
Child Safety:
Warning .....................................................................................................30
PowerView Declarations.........................................................................31
Warranty........................................................................................ Back Cover

GETTING STARTED
1

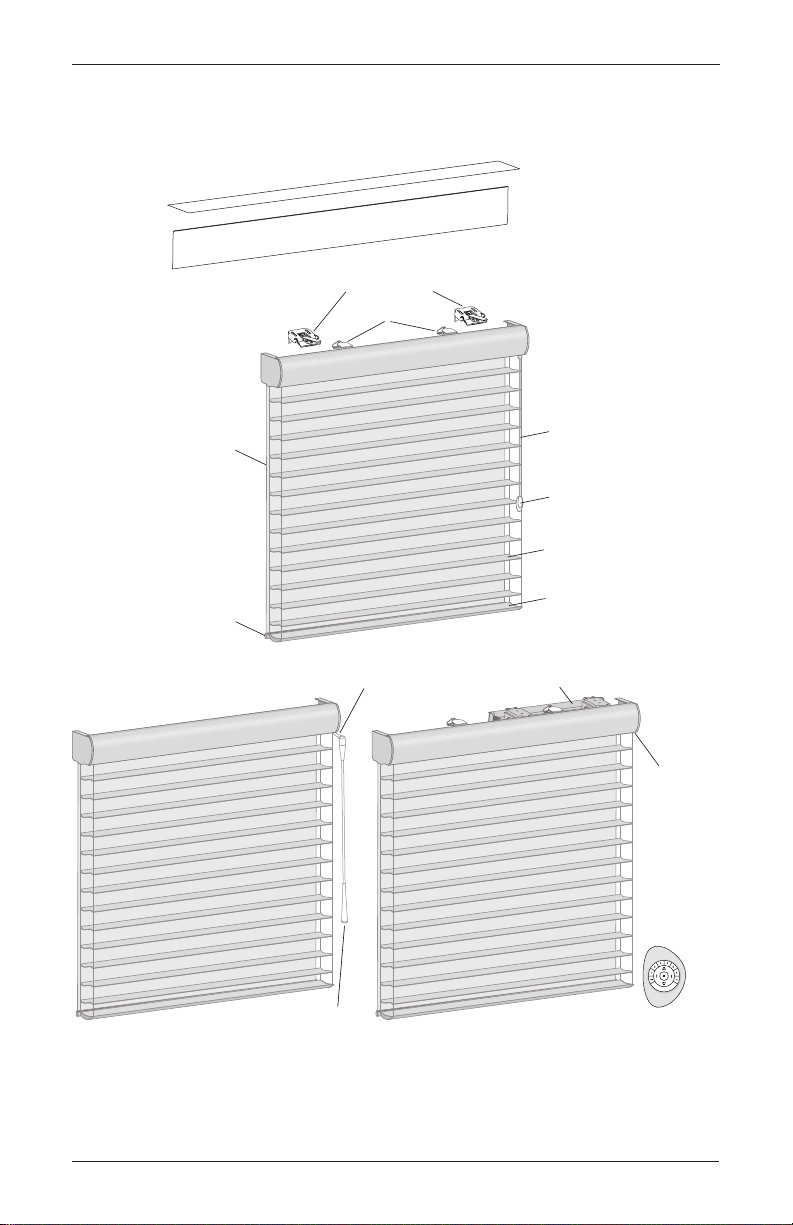

Product Views
Optional Dust Cover
(For Outside Mount)
Optional Back Cover
(For Inside Mount)
Installation Brackets
Limit Stops
Tassel
Cord
UltraGlide®
Headrail
Roller Shade
Bottom Rail
Rear
Roller Shade
Front Shading
Shading
Bottom Rail
Tassel
Programming
Button
Battery Wand
PowerView®
Motorization
Remote
SoftTouch™
Motorization
Activation Arm
Wand

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Silhouette®Window Shadings. With proper installation,
operation, and care, your new shadings will provide years of beauty andperformance.
Please thoroughly review this instruction booklet before beginning the installation. If your
shading has a protective plastic cover on the fabric-covered headrail, keep the plastic in place
until the shading is installed.
Tools and Fasteners Needed
 Flat blade and Phillips screwdrivers  Level (laser level is recommended)
 Measuring tape and pencil  Pliers
 Power drill,
3
/ 32 " drill bit,
and
1
/ 4 " hex driver
 Scissors (heavy-duty)

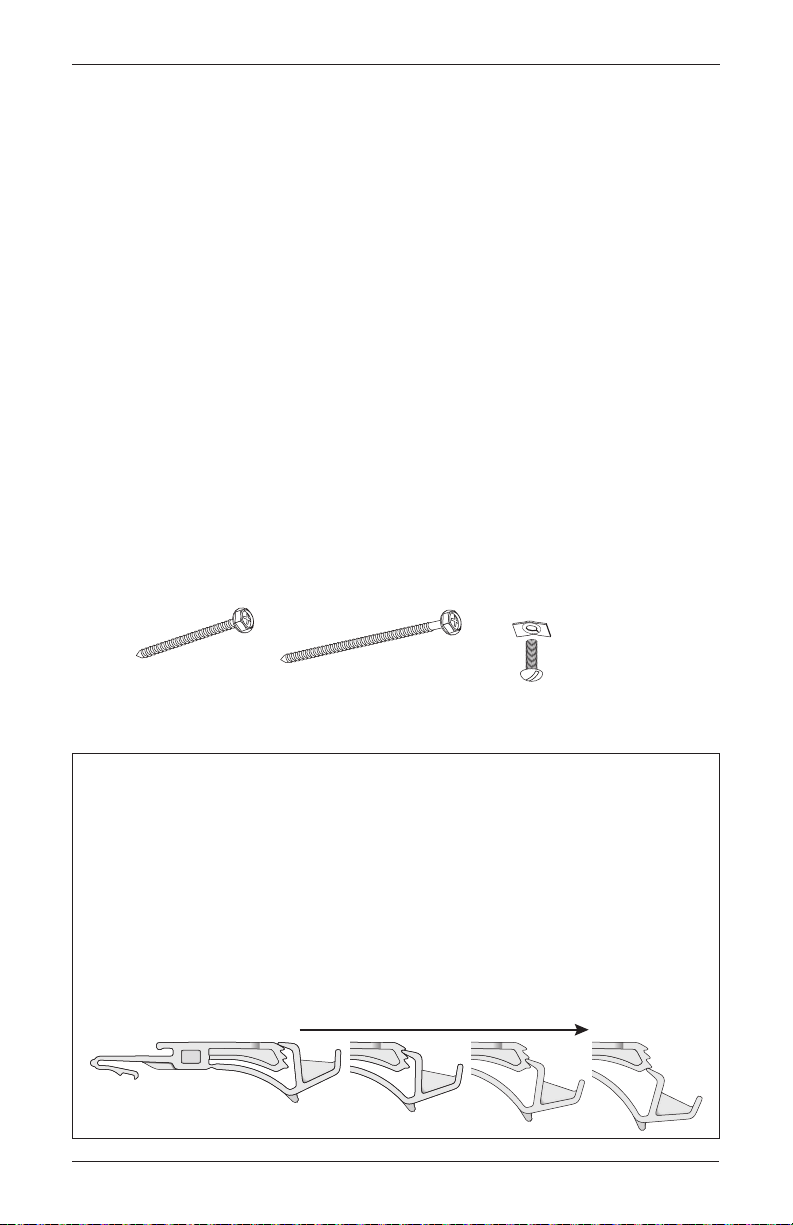

In addition, you will need fasteners designed to work with your specific mounting surface(s).
 #6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
 Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
 Speed Nuts and Screws (Provided). Extension brackets come with screws and speed nuts.
 Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
Importance of Limit Stops on Silhouette Window Shadings
Limit stops serve as the upper travel limit for the bottom rail, preventing it from rotating
around the fabric roll. Limit stops are located 6" from the ends of the headrail or are
centered on shadings less than 36" wide.
When a shading is made, the limit stops are adjusted according to the size of the fabric
roll. Occasionally, this adjustment changes during shipping or installation. If this happens,
problems can be fixed by readjusting the limit stops. See page 22 in the Troubleshooting
section if shading operation is difficult or if the bottom rail rotates around the fabric roll.
Shown below are the four possible positions of limit stops for large to small fabric rolls.
Large Fabric Roll Small Fabric Roll

INSTALLATION
3
Installation Overview
To install your shading, you will need to perform the following four steps:
STEP 1: Mount the Installation Brackets
STEP 2: PowerView®and SoftTouch™Only: Connect the Power Cable
STEP 3: Install the Shading
STEP 4: Connect the Power Source, If Applicable

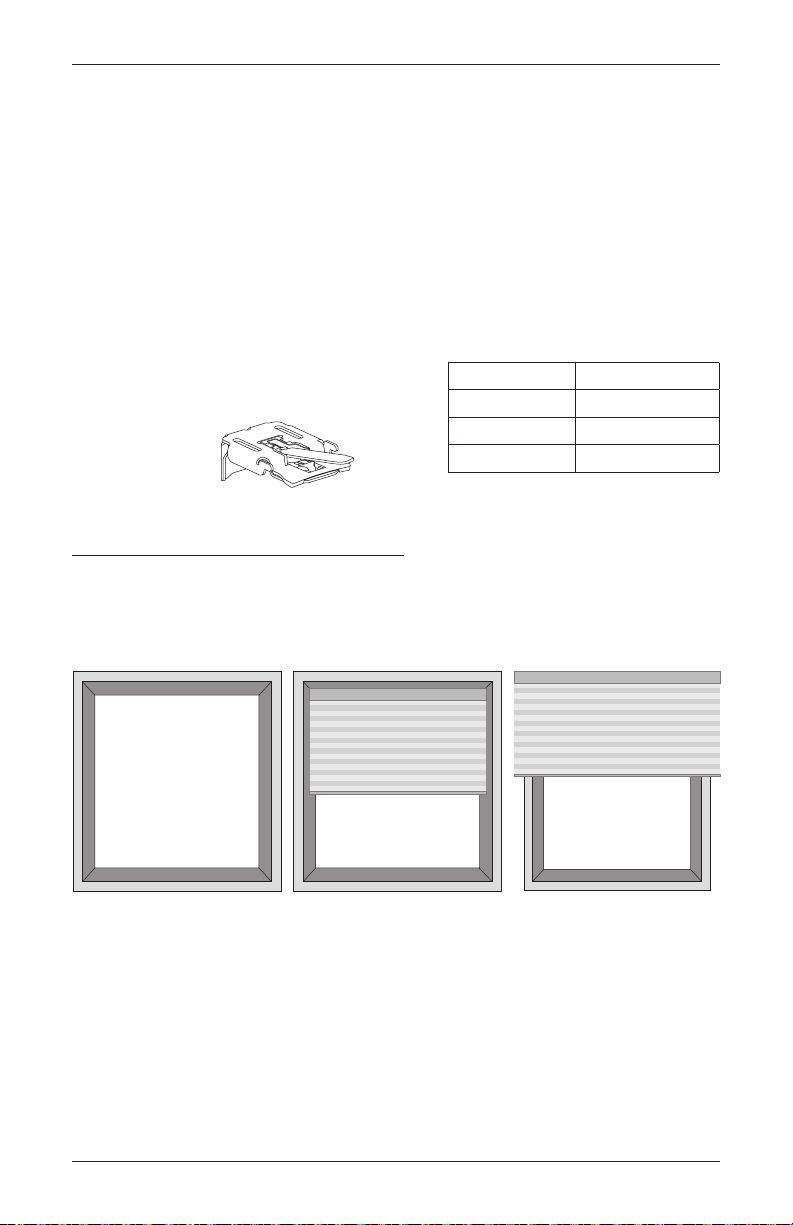

STEP 1: Mount the Installation Brackets
 The number of installation brackets required
varies with shading width, as shown in thetable.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
 Refer to the appropriate page below based on your order:
 Inside Mount — Page 4
 Outside Mount — Page 6
Outside Mount
Shading mounts
outside window
opening.
Inside Mount
Shading fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Width Brackets Required
14" – 48" 2
48
1
/ 8 " – 96" 3
96
1
/ 8 " – 120" 4
Installation
Bracket

INSTALLATION
4

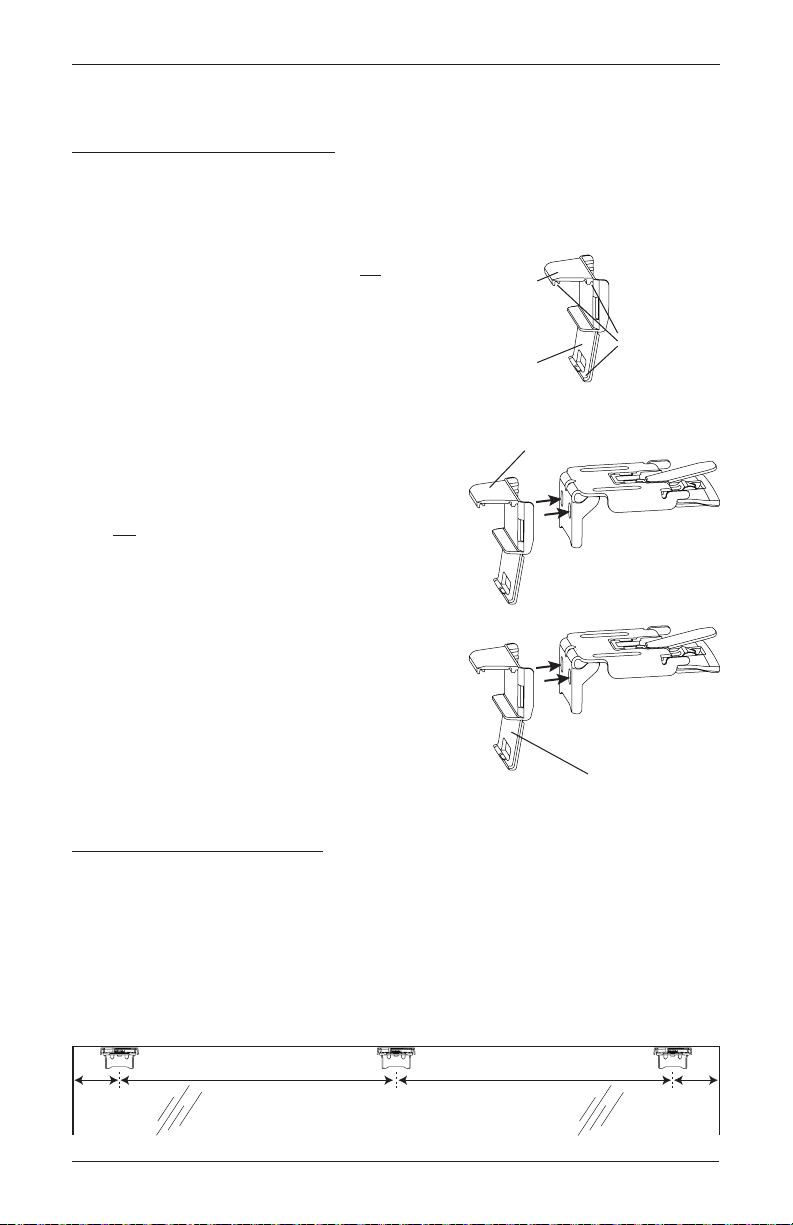

Mount the Installation Brackets — Inside Mount
Prepare the Installation Brackets
The purpose of the back cover bracket is to provide an attachment for the optional back cover.
The top tab ensures that there is clearance for the battery wand.
 If using the optional back cover:
NOTE: If you have a battery wand, do not
remove the top tab on the back cover bracket.
 If you have a satellite battery pack or an
18V DC power supply, remove the top tab
on the back cover bracket.
 Snap the back cover bracket into the metal
installation bracket.
 Place the back cover into the slots on the
top and bottom of the bracket.
 If not using the optional back cover:
 If you have a battery wand, remove the
bottom tab from the back cover bracket.
 Snap the back cover bracket into the metal
installation bracket. This ensures adequate
space for the battery wand.
 If you have a satellite battery pack or an
18V DC power supply, it is not necessary
to use the back cover bracket.
Mount the Installation Brackets
 Mark 2" from each jamb for bracket location.
 If more than two installation brackets came with your order, space additional bracket(s)
between the two end brackets and mark their location. Mount into wood whenever
possible.
 For PowerView®shadings with battery wand, allow a minimum of 17" between bracket
centerlines for the battery wand.
Remove top tab if using a satellite
batter
y pack or an 18V DC power supply.
Back Cover Bracket
Remove bottom tab if using a
battery wand and no back cover.
Top Tab
Bottom
Tab
Back Cover
Slots
Window Opening
2" 2"

INSTALLATION
5
 Review the minimum depth requirements in the table below.
 Center the installation brackets on your marks and mark the location of the screwholes.
 Allow sufficient rear clearance when positioning the
brackets. With no back cover, the bottom tab provides the
necessary clearance (
1
/ 4 ") for all systems except PowerView
and SoftTouch with a battery wand, which requires
7
/ 8 " rear
clearance. (Rear clearance is the distance between the back
of the installation bracket and the glass or frame.)
Add an extra
1
/ 4 " of rear clearance if the optional back
cover is used.
 Use a level to check that the mounting surface is level. Shim
(not provided) the brackets, if necessary.
 Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
CAUTION: Use drywall anchors when mounting into drywall.
 Attach the installation brackets using the screws provided.
NOTE: Do not overtighten the screws. Check to ensure the lever
can be moved easily side to side. If the lever is not moving easily,
loosen the screws in one-eighth turn increments until it can be
moved easily.
IMPORTANT: The front edges of the installation brackets must
be level and aligned to each other.
UltraGlide®Shading: Proceed to “STEP 3: Install the Shading” on page 9.
PowerView and SoftTouch Shadings: Proceed to “STEP 2: PowerView and SoftTouch Only —
Connect the Power Cable” on page 8.
Lever
Operating System Type Minimum Mounting Depth Fully Recessed Depth
No Back Cover With Back Cover No Back Cover With Back Cover
PowerView®and SoftTouch™with
Battery Wand 1
3
/ 4 " 2" 4
5
/ 16 " 4
9
/ 16 "
UltraGlide®1" 1
1
/ 4 " 3
13
/ 16 " 4
1
/ 16 "

INSTALLATION
6

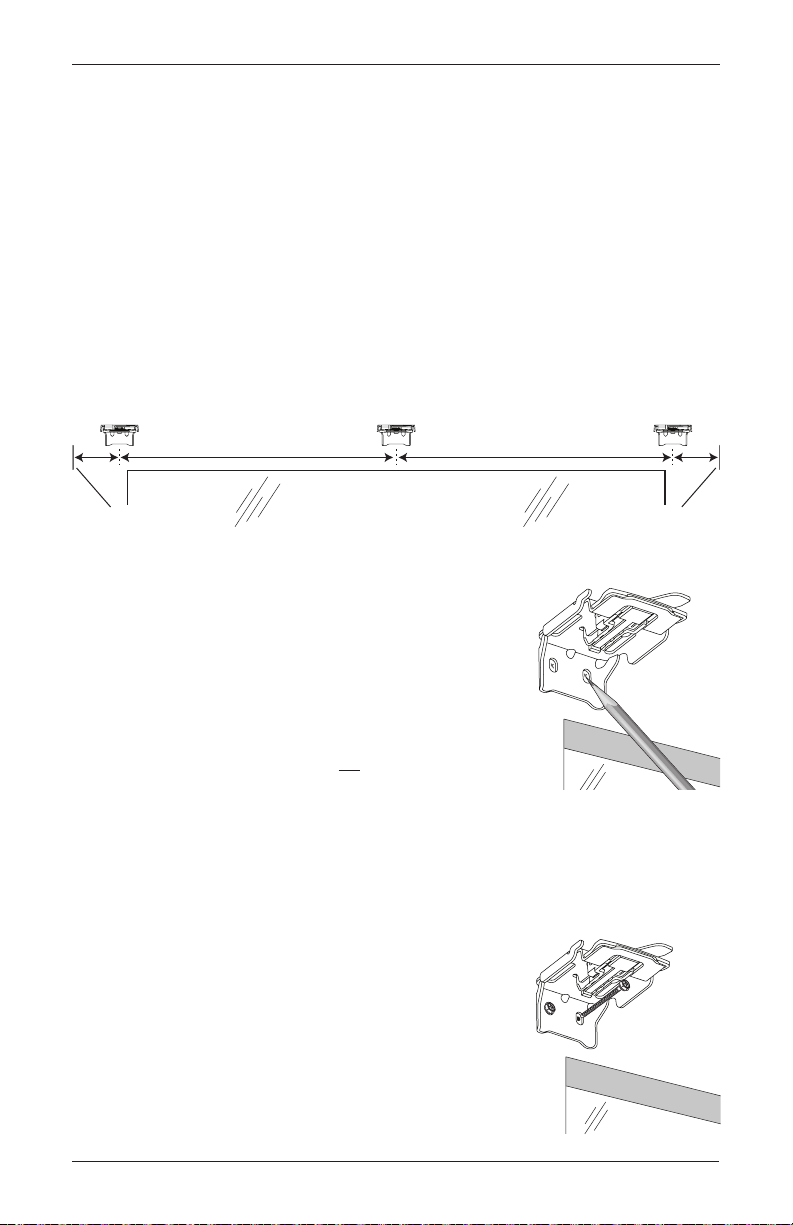

Mount the Installation Brackets — Outside Mount
 Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
 Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
 Mark 2" from each of the headrail end marks for bracket location.
 If more than two installation brackets came with your order, space additional bracket(s)
between the two end brackets and mark their location. Mount into wood whenever
possible.
 For PowerView®and SoftTouch™shadings with battery wand, allow a minimum of 17"
between bracket centerlines for the battery wand.
 Center the installation brackets on your marks and mark the location of the screw holes.
 A minimum 1" flat vertical height is required to mount the
installation brackets.
 Position the top of the installation brackets at the desired
height of the shading. The brackets must be level and
aligned.
CAUTION: The rear of the blocks/brackets must be flush
against a flat mounting surface. Do not mount brackets
oncurved molding.
IMPORTANT: Additional clearance is required for PowerView and SoftTouch shadings with a
battery wand. See “Additional Clearance with Spacer Blocks” on page 7.
 Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
CAUTION: Use drywall anchors when mounting into drywall.
 If no additional clearance is required, attach the installation
brackets directly to the mounting surface using the screws
provided.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
Window Opening
2" 2"
Headrail End Mark Headrail End Mark

INSTALLATION
7
Additional Clearance with Spacer Blocks
NOTE: A minimum of
3
/ 4 " additional clearance is required for PowerView®and SoftTouch™
shadings with a battery wand.
 If using
1
/ 4 " or
1
/ 2 " spacer blocks, attach the spacer
block(s) and installation bracket to a flat vertical
mounting surface with #6screws long enough for
asecure installation.
IMPORTANT: The solid side of the spacer blocks
must face toward the mounting surface.
Additional Clearance with Extension Brackets
 If using extension brackets, attach each extension bracket
to the mounting surface using the screws provided.
 Attach an installation bracket to the underside of each
extension bracket using the provided screws and speed
nuts.
NOTE: The maximum amount of added clearance using
extension brackets is 3".
UltraGlide®Shading: Proceed to “STEP 3: Install the Shading” on page 9.
PowerView and SoftTouch Shadings: Proceed to “STEP 2: PowerView and SoftTouch Only —
Connect the Power Cable” on page 8.
Spacer
Blocks
Longer
Screws
1
1
/ 2 " Maximum
Added Clearance
Extension
Bracket
Speed Nuts
Screws

INSTALLATION
8
STEP 2: PowerView®and SoftTouch™Only — Connect the Power Cable
For an optional satellite battery pack, 18V DC power supply, 18V DC power supply with daisy-
chain connections, C-size satellite battery wand, or large DC power supply, the power source will
be connected after the shading is installed.

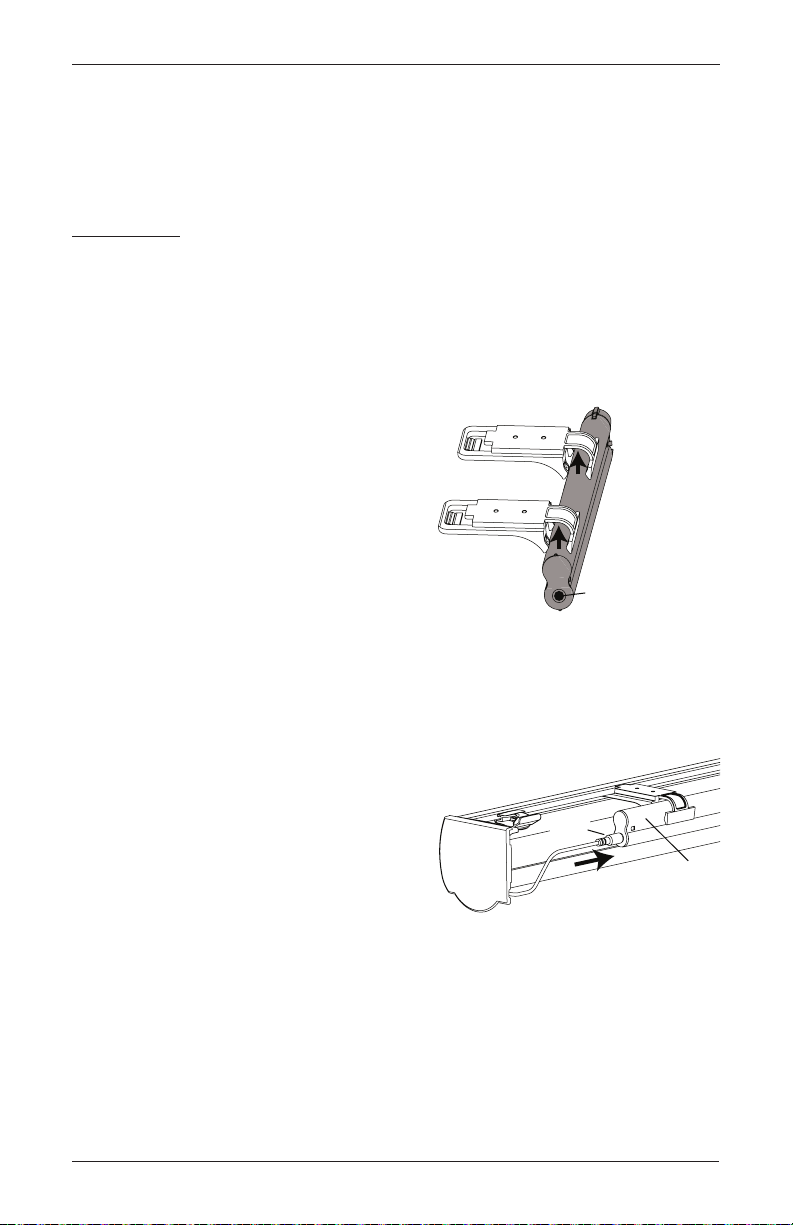

Battery Wand
Install the Battery Wand Clips
 Attach the battery wand clips to the headrail.
IMPORTANT: Position the clips close to the power cable.
Mount the Battery Wand into the Battery Wand Clips
 Position the battery wand with its socket toward
the motor end of the shading.
 Push the battery wand straight up into the
battery wand clips until it snaps into place.
Check to make sure the battery wand is secure.
CAUTION: Be sure the cables do not
become pinched by the battery wand clips
during installation. Damage or overheating of
components could result.
Plug the Power Cable into the Battery Wand
NOTE: When power is connected to the motor, a green LED inside the programming button
housing will flash to indicate the shading is ready for operation.
 From the back of the shading headrail, connect
the power cable (from the motor side) into the
socket on the battery wand.
Place the socket
toward the motor end.
Battery
Wand
Power
Cable

INSTALLATION
9

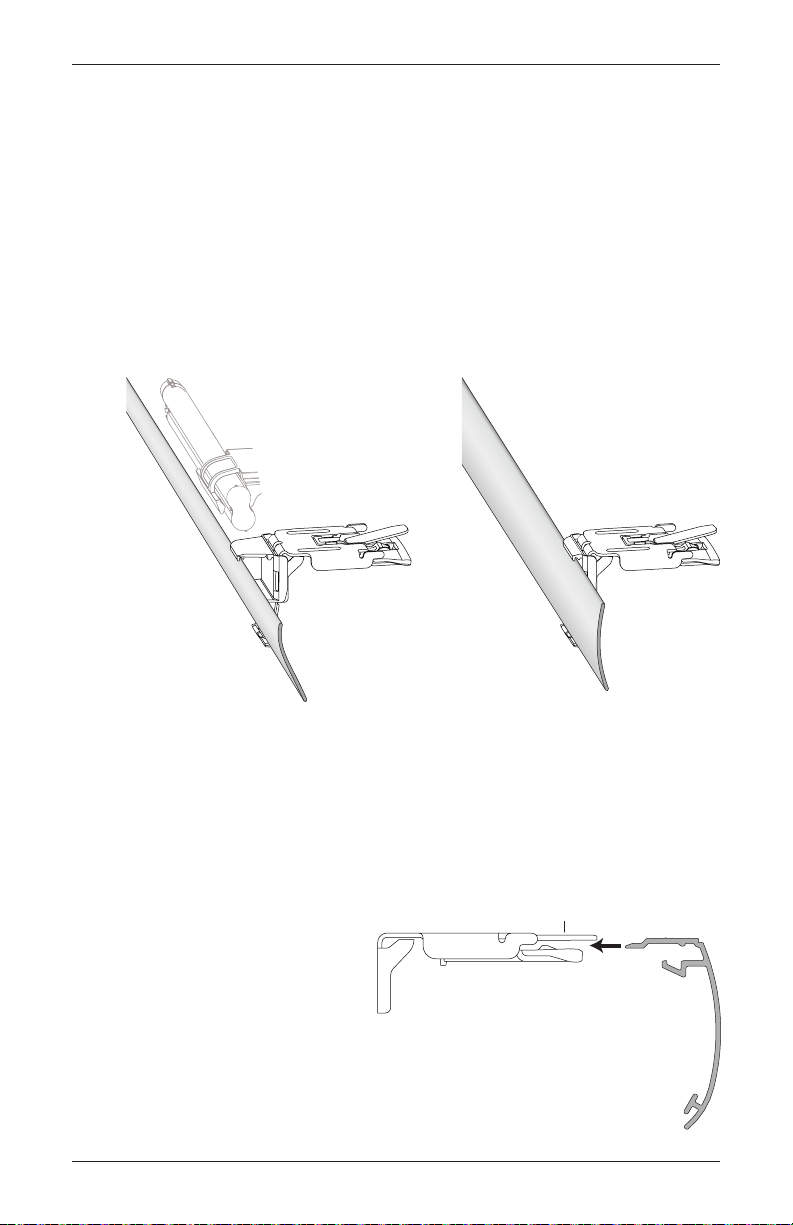

STEP 3: Install the Shading
Install the Optional Back Cover (If Applicable)
The optional back cover is used on inside mounts only.
 Install the back cover into the back cover brackets on the rear of the installation brackets, as
shown.
 On shadings with battery wand(s), the top of the back cover fits onto the top tab of the
back cover bracket.
 On all other shadings, the top tab has been removed and installs closer to the installation
bracket.
Mount the Headrail
 Peel back the protective covering from the top of the Palette®fabric-covered headrail. Leave
the rest of the protective covering on the front of the headrail.
 Position the shading so that the front faces you.
 Slide the headrail into the installation brackets so the edge of the headrail is between the
lever and the bracket, as shown.
 Firmly push the headrail into each
bracket until it clicks and the lever
snaps to the right side of the bracket.
IMPORTANT: Carefully pull on the
headrail at each bracket to ensure it
is installed securely.
 Completely remove the protective
covering from the Palette fabric-covered headrail.
Headrail
Installation
Bracket
Lever
Slide the Headrail
Between the Lever
and the Bracket
Back
Cover
Back
Cover

INSTALLATION
10

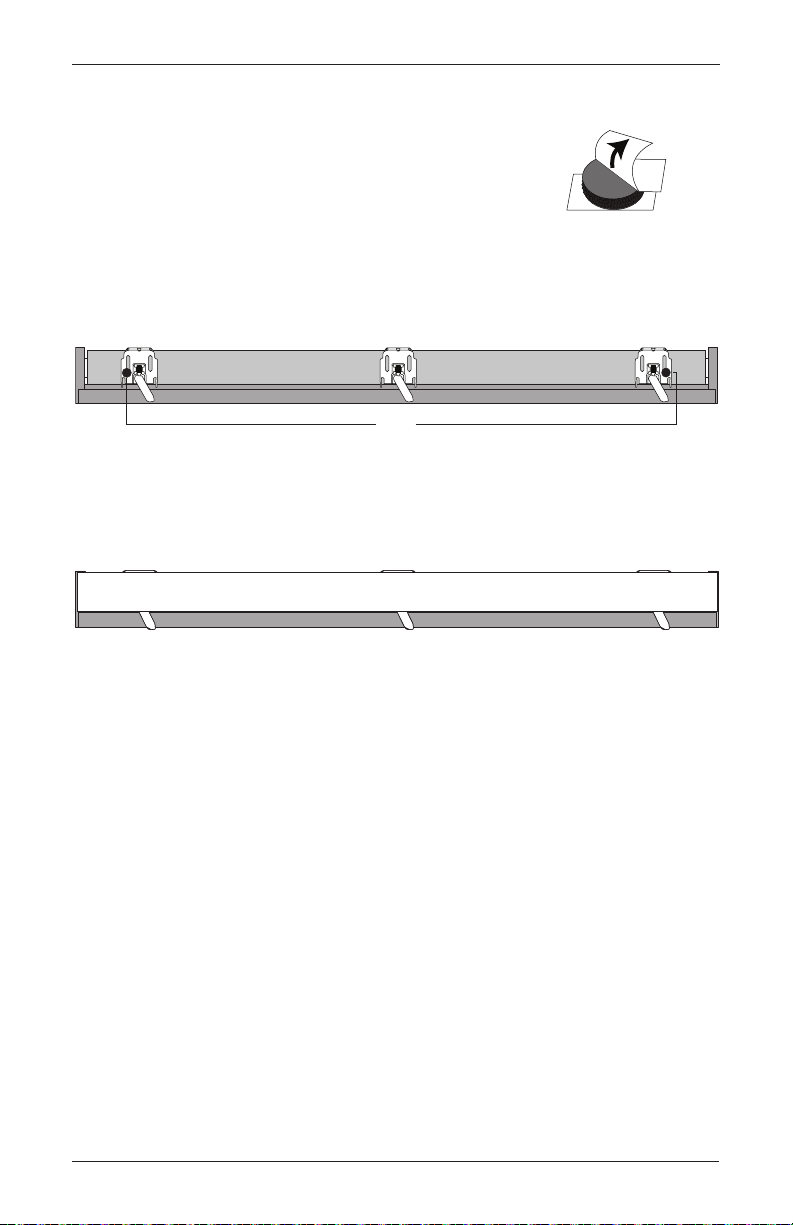

Attach the Optional Dust Cover (If Applicable)
The dust cover can be used with outside mounts to protect the top
of the headrail from exposure.
 Cut the dust cover to desired width.
 Remove the paper backing on one side of the hook and loop
fastener dots.
 Apply the dots to the installation brackets on each end of theshading.
 Remove the remaining paper backing from the dots.
 Center the dust cover over the top of the shading, above the dots, and press the dust cover
down onto the dots.
Remove
Paper
Backing
Overhead View
No Dust Cover
Dots
Dust Cover Installed

INSTALLATION
11
STEP 4: Connect the Power Source, If Applicable
 If you have attached the battery wand in step 2, proceed to “SoftTouch™Only — Unpack the
Wand and Attach to Activation Arm” on page 12 or “Operate the Shading” on page 13.
NOTE: When power is connected to the motor, a green LED inside the programming button
housing will flash to indicate the shading is ready for operation.
 Refer to the appropriate page based on your order.
 For an optional satellite battery pack, see below.
 For an optional 18V DC power supply, see page 12.
 For an optional C-size satellite battery wand or large DC power supply, see the
instructions that came with the unit.

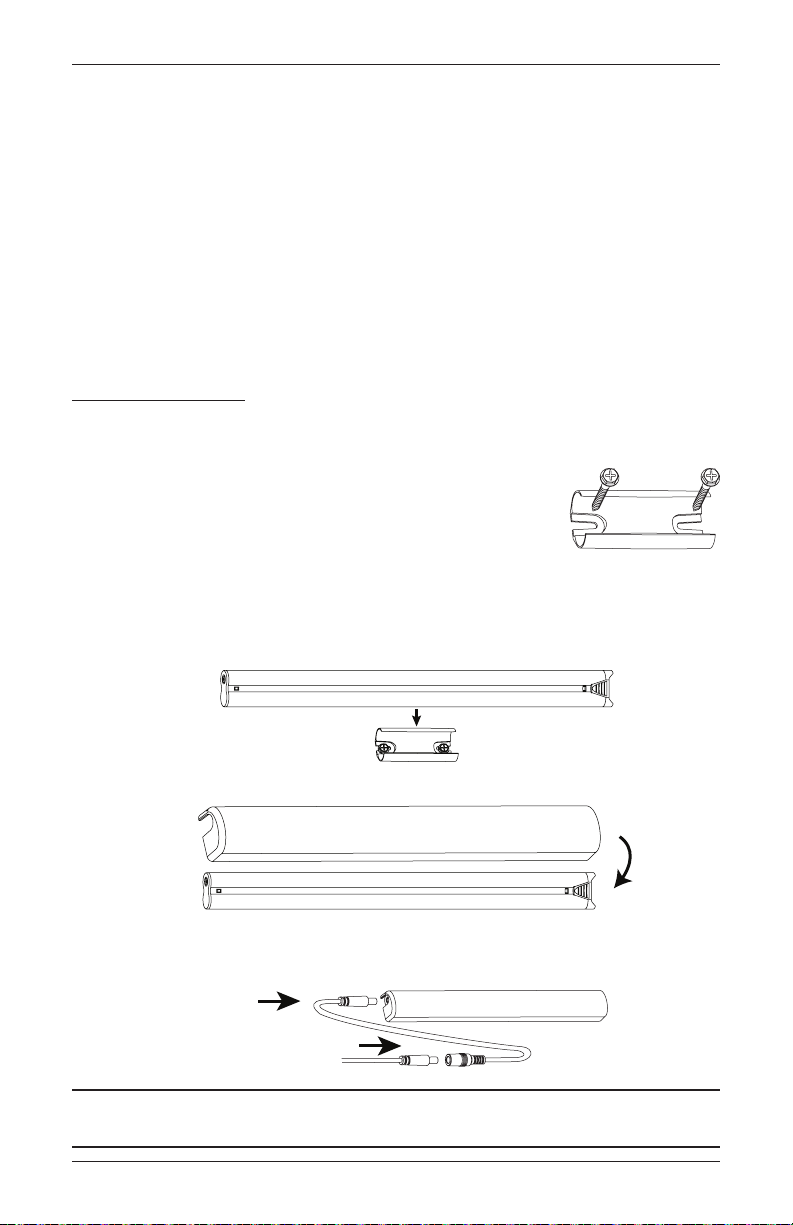

Satellite Battery Pack
Mount the Satellite Battery Pack
 Decide where you want to attach the wall mount bracket for the
satellite battery pack. It may be installed in any orientation.
 Mark the screw holes and drill them using a
3
/ 32 " drill bit.
 Remove the backing from the double-sided tape on the wall
mount bracket. Press the bracket into place.
 Attach the brackets using the screws provided.
 Position the battery wand so the power cable can easily be connected to the socket and
snap the wand into the bracket.
 Install the cover with the slot aligned to the socket in the battery wand.
 Plug the power cable from the shading into an extension cable.
 Plug the other end of the extension cable into the socket in the battery wand.
Proceed to “SoftTouch Only — Unpack the Wand and Attach to Activation Arm” on page 12
or “Operate the Shading” on page 13.
Wall Mount Bracket
Socket
Battery Wand Cover
Slot
Socket
Battery Wand Cover
Extension
Cable
Po
wer Cable from Shading

INSTALLATION
12

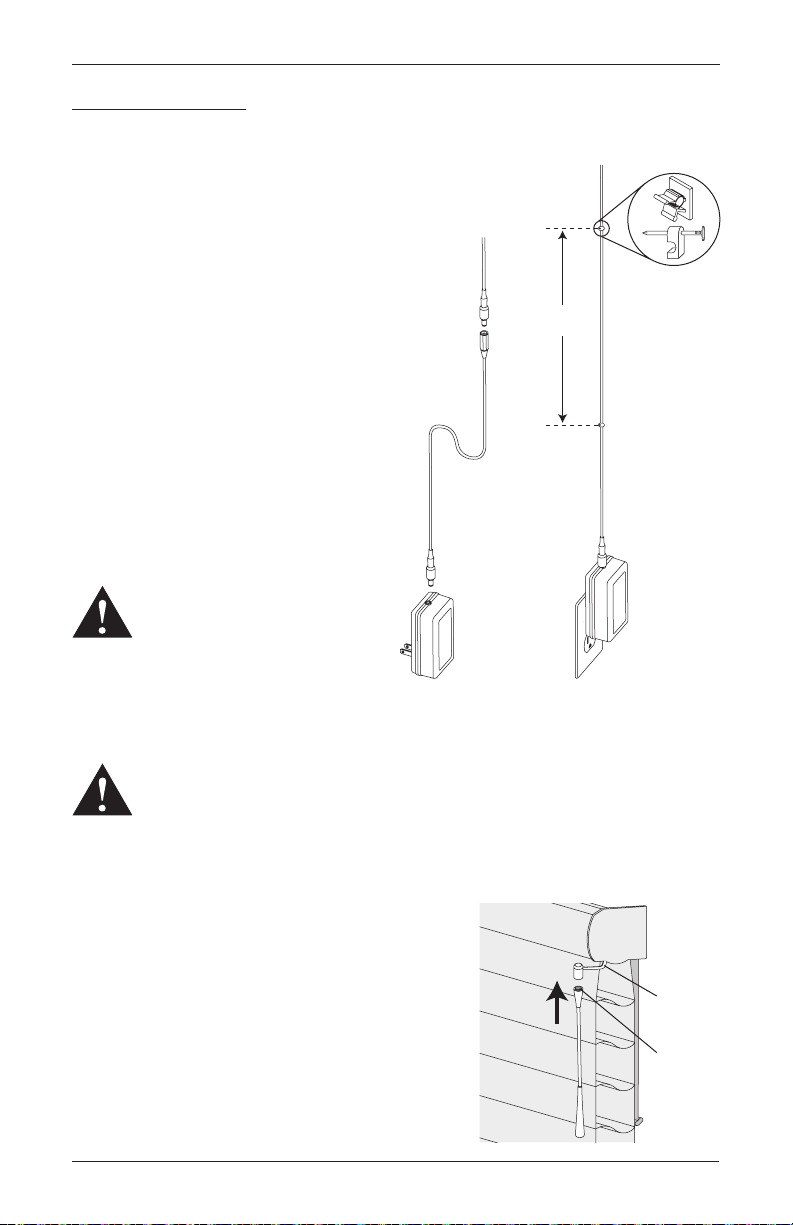

18V DC Power Supply
Connect the Power Supply
 Plug the power cable from the shading
into the extension cable.
 Plug the other end of the extension
cable into the 18V DC power supply.
 Plug the 18V DC power supply into a
standard wall outlet. The power supply
may be oriented with the cable at the
top or bottom.
 Secure the extension cable using wire
retainers (not supplied). If hiding the
cable behind the shading, make sure
it does not impede the operation of the
shading.
 Space the wire retainers approximately
15" apart along the extension cable, as
shown at far right.
WARNING: Keep cords and
small parts out of the reach of
children. They can wrap cords
around their necks and
STRANGLE.They can also
put small parts in their mouths
and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur if the 18V DC power
supply and cables are not properly installed.
SoftTouch™Only — Unpack the Wand and Attach to Activation Arm
 Attach the top of the wand (magnet side) to the
activation arm.
Power Cable
from Shading
Extension
Cable
18V DC
Power
Supply
15"
Maximum
Wire Retainers
Magnet
Activation
Arm

OPERATION
13
Operate the Shading
A single control is used to operate both the front window shading and the rear roller shade.
Operation is sequential. The front shading must be lowered and the vanes opened before the
rear roller shade can be lowered. Conversely, the rear roller shade must be raised before the
vanes on the front shading can be closed and the front shading raised.
CAUTION: When raising the front shading or rear shade for the first time, observe how the
fabric rolls up into the headrail. It should roll up evenly. If the bottom rail is not level or the fabric
starts to rub against either window jamb, immediately press the programming button to stop the
front shading or rear shade. See “Adjust the Bottom Rail Weight of the Front Shading” on
page 22.
 For operation instructions, refer to the appropriate page based on your operating system.
 For the UltraGlide®system, see below.
 For the SoftTouch™Motorization system, see page 14.
 For the PowerView®Motorization system, see page 16.
Shown below are a few examples of possible front shading and rear shade positions.
UltraGlide®
 When the cord is pulled toward the center of the shading and “clicks,” the front shading
lowers, the vanes open and the rear shade lowers.
 Movement of the front shading, vanes, and rear shade may be stopped at any time by
slightly tugging the cord straight down.
 The rear shade must be raised completely before the front shading vanes can be closed or
the front shading can be raised.
Pull the cord
to the center,
listen for the
“click,” and
release the
cord.
To stop while
lowering, slightly
tug the cord
straight down.
1
Lower
Front
Shading
Open
Vanes
Lower
Rear
Shade
2
Raise
Rear
Shade
Close
Vanes
Raise
Front
Shading
Pull the cord
down in long
even strokes.
Allow the cord
to retract
between
strokes.
Front shading lowered with vanes
open, rear roller shade partly raised.
Vanes must remain open.
Front shading lowered with vanes
open,
rear roller shade raised.
Va
nes may only be operated in
this position.
Front shading lowered with vanes
open, rear roller shade lowered.
Vanes must remain open.

OPERATION
14
SoftTouch™Motorization
Each push up and release of the wand, or pull down and release of the wand, will initiate one of
three shading movements, in sequential order. See Basic Operation below.
Basic Operation
To Open the Shading
 Push the wand up and release, to sequentially move the front shading/
vanes/back panel in the up/open direction. With the shading in the fully
lowered position, vanes fully open, and the rear shade fully lowered:
1. Push up and release. The rear shade moves to the fully raised
position.
2. Push up and release. The vanes close.
3. Push up and release. The front shading moves to the fully raised position.
To Close the Shading
 Pull the wand down and release, to sequentially move the front
shading/vanes/rear shade in the down/closed direction. With the
shading in the fully raised position:
1. Pull down and release. The front shading moves to the fully lowered
position with vanes closed.
2. Pull down and release. The vanes open.
3. Pull down and release. The rear shade moves to the fully lowered position.
To Stop the Shading
 While the shading is in motion, pull down (or push up) the wand and release to stop shading
or vane movement anywhere along its travel.

OPERATION
15

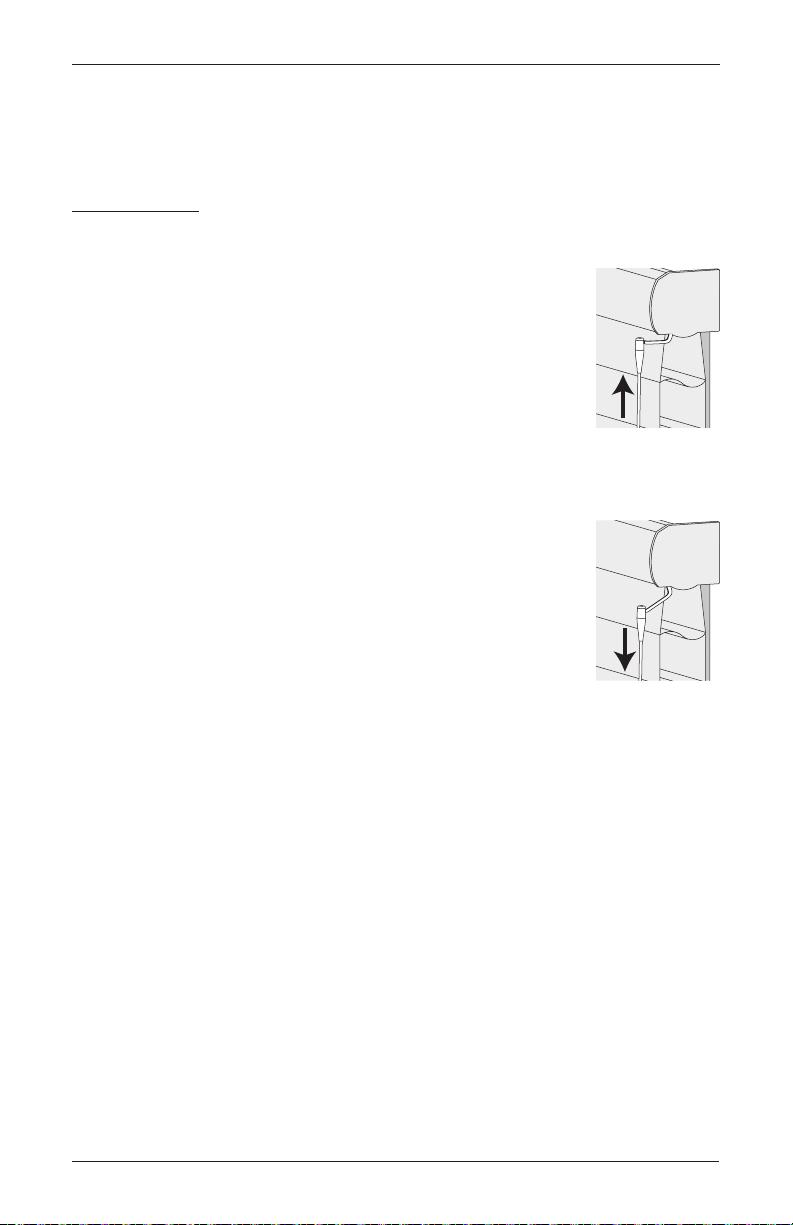

To Operate the Rear Shade
NOTE: The front shading must be fully lowered and the vanes fully open.
 To lower the rear shade, pull the wand down and release.
 To raise the rear shade, push the wand up and release.
To Operate the Vanes
NOTE: The front shading must be fully lowered and the rear shade fully raised.
 To move the vanes to the fully open position, pull the wand down and release.
 To move the vanes to the fully closed position, push the wand up and release.
Set and Go to a Favorite Position
NOTE: The default favorite position is the rear shade fully raised and the front shading at 50%
open with the vanes closed.
Set a Favorite
With the rear shade fully raised and the front shading vanes closed:
 Put the shading in motion. With the shading still in motion, as it reaches the desired
Favorite position, push the wand up (or pull the wand down) and hold for approximately 4
seconds.
 The shading will beep and the front shading moves slightly twice (down, up) to indicate a
new Favorite position is set.
Go to Favorite
 With the shading stationary, or moving — in a single motion, quickly push the wand up and
pull the wand down and release. The shading will move to the Favorite position.
NOTE: Quickly pulling the wand down and pushing the wand up will also work.

OPERATION
16
PowerView®Motorization
Test the Shading
Use the programming button to test the shade and ensure that the motor and power source are
working correctly. Each press of the programming button will initiate one of six shade
movements, in sequential order.
 With the shading in the fully raised position, press and
release the programming button. The front shading
moves to the fully lowered position with vanes closed. If
the shading does not operate, see “Troubleshooting” on
page 20.
 Press and release the programming button a second
time. The vanes open.
 Press and release the programming button a third time.
The rear shade moves to the fully lowered position.
 Press and release the programming button a fourth time.
The rear shade moves to the fully raised position.
 Press and release the programming button a fifth time. The vanes close.
 Press and release the programming button a sixth time. The front shading moves to the fully
raised position.
CAUTION: When raising the rear shade and front shading for the first time, observe how
the fabric rolls up into the headrail. It should roll up evenly. If the bottom rail is not level or
the fabric starts to rub against either window jamb, immediately press the programming
button to stop movement. See “Adjust the Bottom Rail Weight of the Front Shading” on
page 22.
Using the PowerView Remote
Refer to the illustration below to familiarize yourself with the controls on the remote. Activate the
remote by pulling both plastic tabs from the back battery compartment.
IMPORTANT: If you have more than one remote, see “Adding Additional Remote(s) to the
PowerView®Shade Network” in the PowerView Motorization Remote Control Guide.
Group 1
Group 2
OPEN
(Raises rear shade, closes vanes,
and raises front shading)
CLOSE
(Lowers front shading, opens vanes,
and lowers rear shade)
Group 3 Group 4
Group 5
Group 6
Favorite
(Set to a front shading’s position;
vanes closed, rear shade fully raised)
LEFT ARROW
(Raises rear shade, lowers
front shading, and closes vanes)
RIGHT ARROW
(Raises rear shade, lowers
front shading,
and opens vanes)
STOP
(All shade movement stops)
(Press and hold for programming mode)

OPERATION
17
Joining a Shading to a Group
IMPORTANT: The shading will not operate using the remote until it has been joined to a group.
1. Press and hold STOP on the remote until the indicator lights blink (approximately
6 seconds). The remote is now in program mode.
2. Press the desired group number (1 – 6) on the remote. The backlit group number will flash to
show it is selected.
3. While pressing the programming button on the shading, press OPEN on the remote.
The green light flashes once and either the front shading or rear shade will move slightly
twice (up, down, or down, up) to indicate the shading has joined the group. Release the
programming button.
4. Press and hold STOP on the remote until the indicator lights stop blinking (approximately
6 seconds).
Basic Operation
 To wake up the remote, simply pick it up or press STOP. The last group(s) selected will be
highlighted and active.
 Press “all” or groups 1 – 6 to select specific shading(s) to move. Selected group button(s)
will light to show they are selected.
 Multiple group buttons may be selected at a time.
 To deselect a group, press the group button again. The backlight for that group button
will go out.
 Press CLOSE to lower the front shading, open the vanes, and lower the rear shade.
 Press OPEN to raise the rear shade, close the vanes, and raise the front shading.
 Press STOP to stop shading or vane movement anywhere along its travel.
 Press the right arrow to open the vanes; the rear shade is fully raised and the front
shading is fully lowered.
 Press the left arrow to close the vanes; the rear shade is fully raised and the front shading
is fully lowered.
 While the front shading or rear shade is in motion, press the opposite of shading motion
(OPEN or CLOSE) to reverse direction and move to fully open or fully closed.
 Press FAVORITE to send selected shading(s) to your preset “favorite” position. Refer to the
PowerView®Motorization Remote Control Guide for instructions to set a favorite position.
The default favorite position is the rear shade fully raised and the front shading at 50% open
with the vanes closed.

OPERATION
18
Change the Closed Vane Adjustment Position
The closed vane adjustment position is set for each shading at the factory and normally does
not require readjustment. Use the following instructions to reset the position for shadings that
may need additional adjustment. The objective is to get the longest drop of the shading with the
vanes fully closed.
There is a one minute time limit while the shading is in fine adjustment mode. The shading must
be moved at least once during each minute to prevent the mode from timing out.
1. On the remote, press the group number of the shading (1–6), then press the left arrow to
fully lower the front shading and close the vanes (the rear shade is fully raised).
2. While pressing the programming button on the shading, press the left arrow on the remote,
then release the programming button on the shading. The programming button light will turn
on solid red to indicate the shading is in fine adjustment mode.
NOTE: If the shading moves, or the programming button flashes green, repeat steps 1
and 2.
3. Use OPEN, STOP, and CLOSE on the remote to lower the shading or raise the
shading as far as possible without opening the vanes. The shading will move in slow speed
while in fine adjustment mode.
NOTE: In the vanes closed position, the bottom rail will be slightly raised from the window
sill, which is normal.
4. Set the new adjustment position. Press and hold STOP on the remote for approximately
6 seconds, until the indicator lights on the remote start blinking.
5. Save the new adjustment position and exit fine adjustment mode. While pressing the
programming button on the shading, press the left arrow on the remote, then release the
programming button. The red light turns off, the green light flashes twice, and the shading
moves slightly twice to confirm that the new setting was accepted.
6. Exit program mode on the remote. Press and hold STOP on the remote until the indicator
lights on the remote stop blinking (approximately 6 seconds), or let the remote time out
(approximately 20 seconds).
7. Test the shading to confirm the new adjustment position.
