Installation •Operation •Care
Designer Screen Patio Shade
Cable Guide System
with Beaded Cord Loop

CONTENTS
GETTING STARTED
Tools and Fasteners Needed ...................................................................... 2
Mounting Types and Window Terminology................................................ 2
Mount the Standard Installation Brackets — Inside Mount ..................... 3
Mount the Standard Installation Brackets — Outside Mount ................... 4
Mount the Cassette Installation Brackets — Inside Mount...................... 5
Mount the Cassette Installation Brackets — Outside Mount.................... 6
INSTALLATION
Install the Cables........................................................................................ 7
Install the Shade......................................................................................... 7
Install the End Caps and Cables................................................................. 9
Attach the Cable Hold-Down Brackets .................................................... 10
Attach the Universal Cord Tensioner (UCT) ............................................. 11
OPERATION

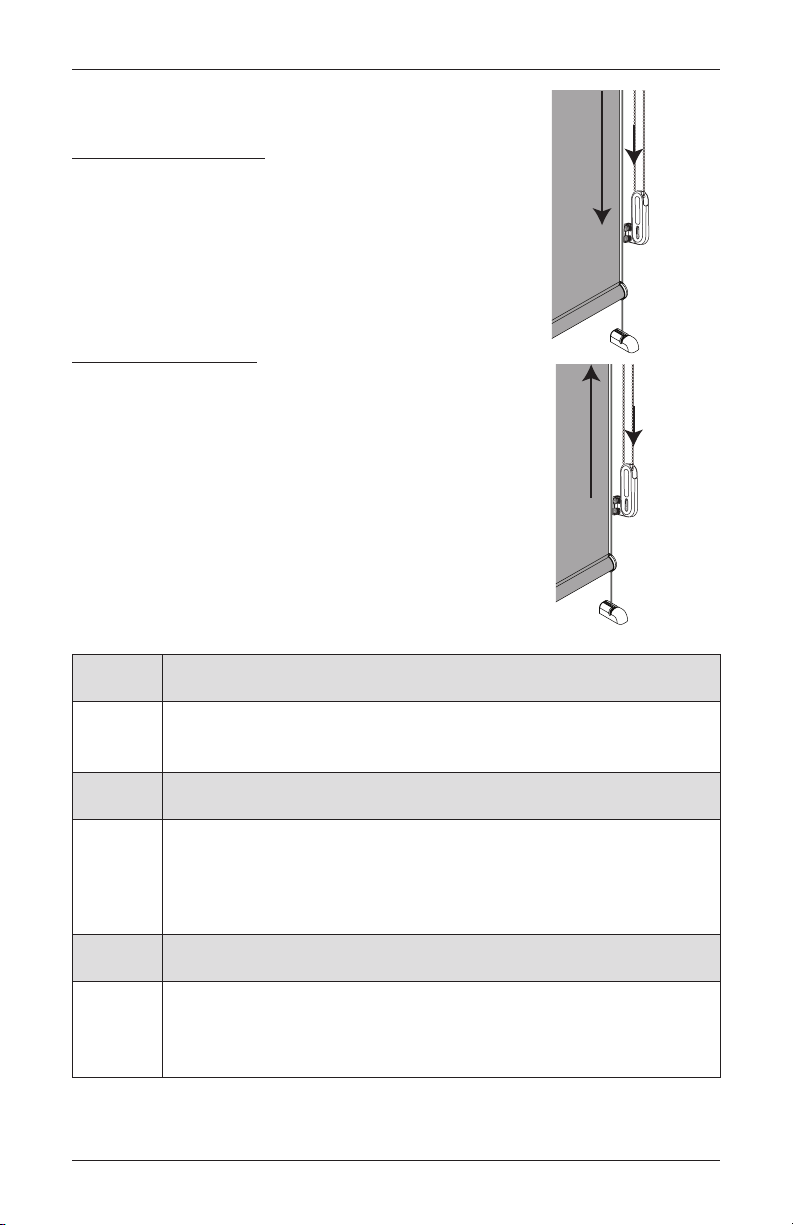

Operate the Shade.................................................................................... 12
Troubleshooting ........................................................................................ 12
CARE
Removing the Shade (Only If Necessary) ................................................. 14
Cleaning Procedures................................................................................. 15
CHILD SAFETY
Cord Loop Shades..................................................................................... 16
PATIO SHADES
WARNING: Wind forces can cause the shade to move unpredictably and
could pose a risk of injury or property damage. To reduce such risk, the
shade should be rolled up when air movement is present and especially
when unattended.
© 2017 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.
Questions?
Call the Hunter Douglas Consumer Support at 1-888-501-8364.

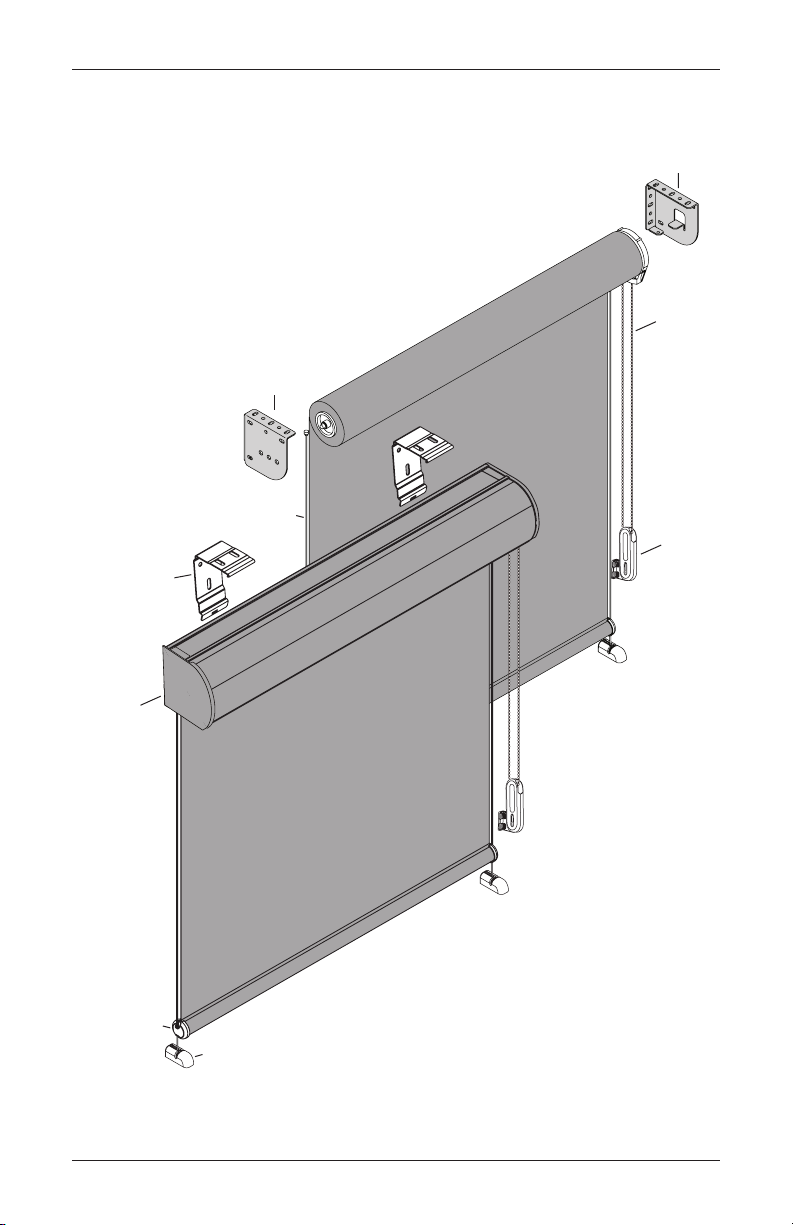

PRODUCT VIEW
1
Cord
T
ensioner
and
Bracket
Hold-Down
Bracket
Beaded
Cord
Loop
Clutch-Side
Installation
Bracket
Idler-Side
Installation
Bracket
Cable
End Cap
Patio Cassette Shade with Cable Guide System
Standard Patio
Shade with Cable
Guide System
Cassette
Bracket
Cassette
and Cassette
End Plates

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Designer Screen Patio Shades with Cable Guide
System. With proper installation, operation, and care, your new shades will provide years of
beauty and performance. Please thoroughly review this instruction booklet before beginning
the installation.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation.
Tools and Fasteners Needed
■ #1 Flat blade and #2 Phillips screwdriver
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Power drill,
1
/ 8 " drill bit and a
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #8 Hex Head Screws (Provided). Three 11∕4" screws are
provided per installation bracket. Two 11∕4" per hold-down bracket.
■ Do not mount into drywall, only mount into studs.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process will
follow easily. To prepare for this important first step, review the mounting types and basic
window terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside Mount for Standard Shades — page 3
➤ Outside Mount for Standard Shades — page 4
➤ Inside Mount for Cassette Shades — page 5
➤ Outside Mount for Cassette Shades — page 6
#8 x 1¼"
Hex Head Screw
(Provided)
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
3

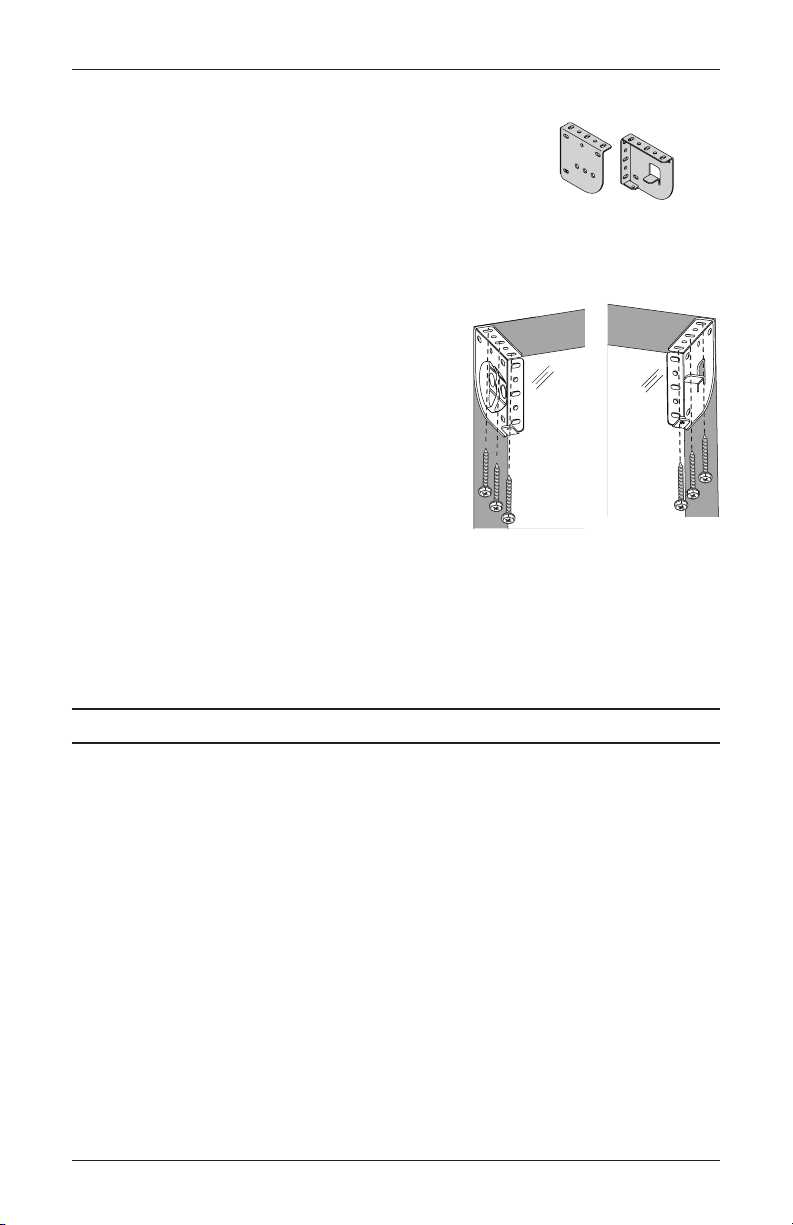

Mount the Standard Installation Brackets — Inside Mount
Installation Brackets. The installation brackets are supplied
in pairs. One bracket is used on the clutch side with the beaded
cord loop and the other bracket is used with the idler side of
the shade.
The installation brackets are always mounted so that the inner surfaces face each other,
as shown. The brackets must be mounted so the shade is level wheninstalled.
■ Place the idler-side bracket against the jamb
of the window opening. Mark the screw holes.
➤ The minimum depth required for mounting is 2".
The fully recessed depth is 3½".
■ Place the clutch-side bracket against the jamb of the
window opening. Mark the screw holes.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to eachother.
■ Use a 1∕8" drill bit to drill the screw holes.
IMPORTANT: Do not mount into drywall, only mount into wood.
■ Check that the mounting surface is level. Shim the brackets, if necessary. Shims are not
provided.
■ Attach the installation brackets using the screws provided.
➤ If the shade is end mounted, the screws are placed horizontally when mounting the
bracket to the side jamb.
Proceed to “Install the Cables” on page 7.
Clutch
Side
Idler
Side
Clutch-Side
Bracket
Idler-Side
Bracket

INSTALLATION
4
Mount the Standard Installation Brackets — Outside Mount
Installation Brackets. The installation brackets are
supplied in pairs. One bracket is used on the clutch side
with the beaded cord loop and the other bracket is used
with the idler side of the shade.
The installation brackets are always mounted so that the
inner surfaces face each other, as shown. The brackets
must be mounted so the shade is level wheninstalled.
■ Center the shade over the window opening at
the desired height and make a mark on the end
of the clutch side of theshade.
■ Measure the width of the shade fabric. Mark the
width of the fabric plus 1¼" from the previously
made mark.
■ Place the outside edge of the clutch-side bracket on the first
mark, then mark the location of the screwholes.
■ Place the outside edge of the idler bracket
on the second mark, then mark the location
of the screw holes.
➤ The top of the installation brackets
should be at the desired height. The
brackets should be level andaligned.
IMPORTANT: The front edges of the
installation brackets must be level and
aligned to eachother.
■ Use a 1∕8" drill bit to drill the screw holes.
IMPORTANT: Do not mount into drywall,
only mount into studs.
■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.
Shims are not provided.
■ Attach the installation brackets using the screws provided.
➤ If the shade is ceiling mounted, the screws are placed vertically when mounting the
bracket to the ceiling.
Proceed to “Install the Cables” on page 7.
Clutch
Side
Idler
Side
Ceiling Mount
Holes
Outside
Mount Holes
Measure
Add 1¼"

INSTALLATION
5
Mount the Cassette Installation Brackets — Inside Mount
Installation Brackets for Cassette Shades. The number of installation brackets required
varies depending on the shade width, as shown in thetable.
■ Mark 2½" in from each jamb for bracket location.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■ Center the brackets on your marks and mark the screw holes.
➤ The minimum depth required for mounting is 2¼". Fully
recessed mounting requires 4¼" for the cassette to be flush
with the front of the window opening.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
■ Drill the screw holes with a 3∕32" drill bit.
IMPORTANT: Do not mount into drywall. Only mount
into wood.
■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.
Shims are not provided.
■ Attach the installation brackets using the screws provided.
Proceed to “Install the Cables” on page 7.
Cassette
Installation
Bracket
Cassette Shade
Shade
Width
Brackets
Required
Up to 36" 2
361/8" – 72" 3
721/8" – 90" 4
901/8" – 120" 5
Installation BracketsJamb Jamb
Space EvenlySpace Evenly2½" 2½"
2½"
Inside Mount

INSTALLATION
6
Mount the Cassette Installation Brackets — Outside Mount
Installation Brackets for Cassette Shades. The number of installation brackets required
varies depending on the shade width, as shown in thetable.
■ Center the cassette over the window opening at the desired height. Use a pencil to lightly
mark each end of the cassette.
➤ Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the window opening.
■ Mark 2½" in from each end of the cassette.
➤ If more than two installation brackets came with
your order, space additional bracket(s) evenly
between the two end brackets and mark their
location. Mount into wood whenever possible.
■ Center the brackets on your marks and mark the
screw holes.
➤ A minimum 4" flat vertical surface is required to
mount the brackets.
➤ The top of the installation brackets should be at
the desired height. The brackets should be level
andaligned.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
eachother.
■ Drill the screw holes with a 3∕32" drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall. Drywall anchors are
not provided.
Cassette
Installation
Bracket
Cassette Shade
Shade
Width
Brackets
Required
Up to 36" 2
361/8" – 72" 3
721/8" – 90" 4
901/8" – 120" 5
Cassette End Marks
Window Opening
Space EvenlySpace Evenly2½" 2½"
2½"
Outside
Mount

INSTALLATION
7
■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.
Shims are not provided.
■ Attach the installation brackets using the screws provided.
Install the Cables
■ Thread all of the cable through the hole in
each bracket or cassette (not shown) end plate.
Install the Shade
Standard Shades
IMPORTANT: Do not remove the paper banding used to prevent
shade from unrolling prematurely until after the shade is installed.
■ Hold the shade with the bottom of the clutch facing the floor,
and the beaded cord loop hanging straightdown.
■ Install the clutch end of the shade onto the tab on the clutch-side
bracket.
■ On the idler-side, slide the spring pin up the channel until
secured in the center hole of the channel.
■ Remove the paper banding on the shade.
Tab
Spring
Pin

INSTALLATION
8
■ It is important to verify gap between idler flange
and idler mount is 1∕16" or less. If the gap is greater,
see “Removing the Shade (Only If Necessary)” on
page 14. Loosen the screws on either or both
brackets and slide the brackets closer together.
Tighten screws and reinstall shade.
Cassette Shades
■ Angle the cassette back and then bring
the cassette forward to catch the front lip
of the bracket.
■ Push the cassette back to snap it into the
lower lip on the bracket.
Mount
Gap
Flange
Shade
1/16" or less
Bracket
Front
Lip
Cassette

INSTALLATION
9
Install the End Caps and Cables
■ Look inside each end cap for the identifier to indicate left hand or
right hand side for the end cap.
■ Align the end cap ribs with the bottom rail channels. Push end cap onto the bottom rail
and tap with a plastic mallet to secure.
■ Slide the cable through the bottom rail end cap.
Identifier
Cable
End
Cap

INSTALLATION
10

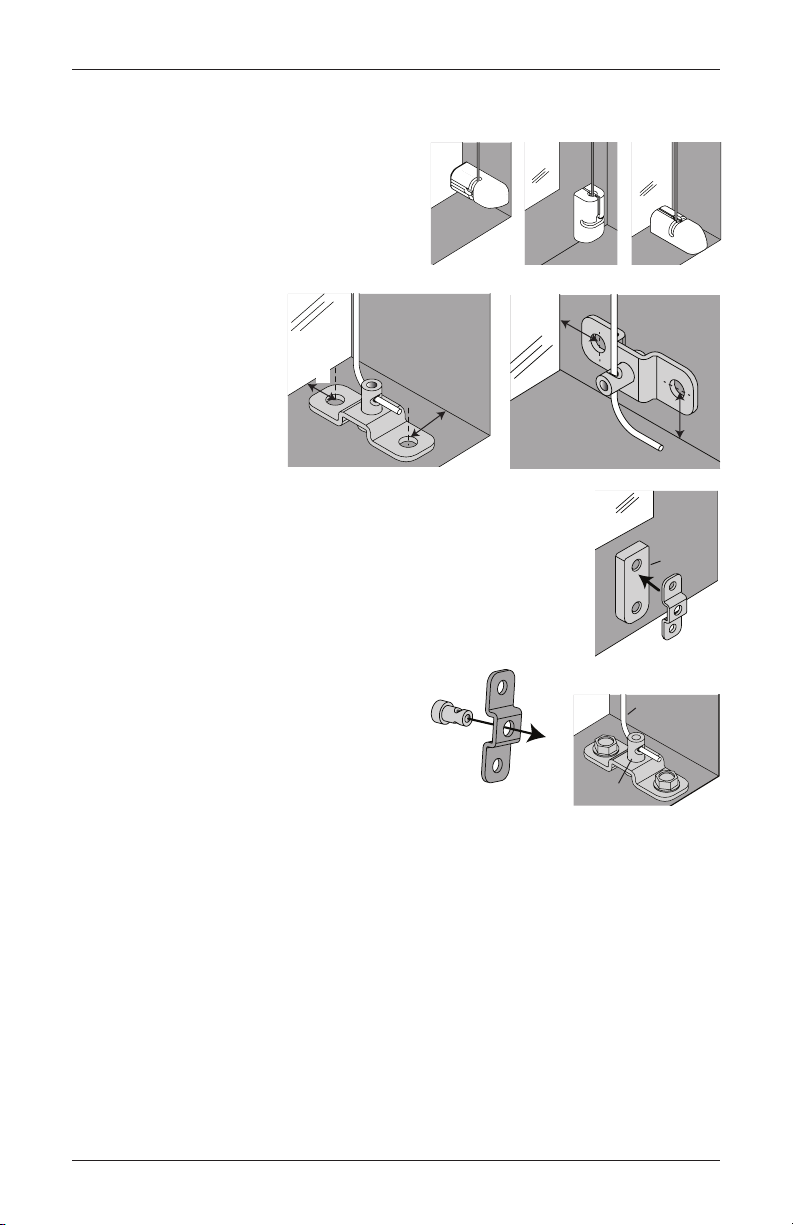

Attach the Cable Hold-Down Brackets
■ If not already, fully raise the shade.
■ Select one of the three mounting options:
■ Place the hold-down
bracket in the desired
location, allowing 3∕8"
clearance from the center
of the screw hole for the
top and sides. Mark the
screw holes.
➤ If using the back mount option, use a spacer behind the hold-
down bracket.
■ Use a 1∕8" drill bit to drill the screw holes.
IMPORTANT: Do not mount into drywall, only mount into wood.
■ Install cable clamp into the hold-down
bracket.
■ Attach the hold-down brackets using
the screws provided.
■ Thread the cable into the cable clamp.
Side Back Bottom
Spacer
3
/8"
3
/8"3
/8"
3
/8"
Clamp
Bracket
Cable
Clamp

INSTALLATION
11
■ Pull the cable taut and tightening the set screw
with the Allen wrench provided.
■ If the cable is long, wrap the cable with electrical
tape where you intend to cut it. A ½" of cable can
be left past the clamp for future adjustments. If
the cable is left too long, the cover will not snap
into place.
■ Slide the hold-down cover over the bracket with the cable in the
top slot. Push the cover down to snap into place. You may need
to spread the cover apart to snap it into place.
Attach the Universal Cord Tensioner (UCT)
Before doing anything, you must first slide the cord tensioner to the bottom of the beaded
cordloop.
■ Insert a small screwdriver, punch, or awl through the screw hole at the bottom of the cord
tensioner.
■ While holding the cord tensioner, move screw hole all the way down to the bottom of the
cord tensioner to release the safety mechanism.
■ Slide the cord tensioner down to the bottom of the beaded cordloop.
WARNING: It is imperative that the cord
tensioner be properly secured to the wall
or window frame to reduce children’s
access to the cord loop. Young children
can strangle in cord loops. They can
also wrap cords around their necks and
strangle.
CAUTION: The shade will not operate properly
unless the cord tensioner is secured. A cord
tensioner installation kit has been included with
your shade. Follow the instructions in the kit to
correctly secure the cord tensioner.
Pull
Cable
Turn to
Tighten
Spread
Bottom
Universal
Cord
Tensioner

OPERATION
12
Operate the Shade
To Lower the Shade
■ Hold the BACK of the cord loop and pull down.
■ Pull until the shade is at the desired height.
To Raise the Shade
■ Hold the FRONT of the cord loop and pull down.
■ Pull until the shade is at the desired height.
Troubleshooting
Problem
The shade raises or lowers unevenly.
Solution Check that the installation brackets are level and aligned. Shim the brackets, if
necessary. Shims are not provided.
Problem
The universal cord tensioner has climbed to the top of the shade.
Solution Pull down on the spring to relieve tension and pull the universal cord tensioner
to the bottom of the cord loop. Properly mount the cord tensioner. See
Universal Cord Tensioner Installation Instructions in the kit included with your
shade.
Problem
The universal cord tensioner grabs onto the cord upon operation.
Solution Check that the universal cord tensioner is mounted properly. Reinstall, if
necessary. See the Universal Cord Tensioner Installation Instructions that
came with your Cord TensionerKit.
Hold-Down
Bracket
BACK Cord
Lowers
Hold-Down
Bracket
FRONT Cord
Raises

OPERATION
13
Problem
The shade fabric winds unevenly on the roll.
Solution Check that the shade is level.
Using the beaded cord loop, completely lower the roller shade.
➤ If the fabric winds unevenly and begins to telescope to one side, check
to insure that the shade is level.
➤ If the shade is not level, remove it from the installation brackets and
shim or re-install the brackets, as necessary.
IMPORTANT: If the shade was unrolled before being installed, it may
not raise/lower to the right points. To correct this:
Remove the shade from the mounting brackets.
Roll the shade up until the bottom rod is even with the bottom of the clutch.
Re-install the shade.
Problem
The shade is slightly long or short.
Solution Raise the shade completely (until the bead stop touches the back of the
clutch).
➤ For a shorter drop, move the bead stop two to four beadsup.
➤ For a longer drop, move the bead stop two to four beadsdown.
IMPORTANT: Maximum adjustment is 1¾", or eight to nine beads.

OPERATION
14
Removing the Shade (Only If Necessary)
■ Remove the cover from hold-down bracket.
■ Remove the cable from the clamp on the hold-down bracket.
➤ Loosen the set screw then pull the cable from the clamp.
NOTE: A new cable may be necessary to reinstall securely.
Standard Shades
■ Place a screwdriver into the
channel of the idler-side
bracket.
■ While holding the shade, turn
the screwdriver to release the
shade from the bracket.
Cassette Shades
■ Insert the tip of a flat head screwdriver into the
screwdriver slot provided on the bracket.
■ Press down to release the cassette.
■ Roll the cassette forward and then down to remove.
Channel
Place
screwdriver
into channel
and turn.
View Looking Up to Shade
Pull to
Remove
Turn to
Loosen
Insert a
screwdriver
to release
the cassette.

CARE
15
Cleaning Procedures
Designer Screen Shades are made from anti-static, dust-resistant materials which repel dirt
and dust. The following options are available if your shade needs cleaning.
Dusting
■ Regular light dusting with a feather duster is all the cleaning needed in most
circumstances.
Vacuuming
■ Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air/Hair Dryer (Cool Setting)
■ Use compressed air or a hair-dryer on a cool setting, to blow dust and dirt off of shades.
Spot-Cleaning
■ Prepare a solution of warm water and a mild detergent.
■ Dampen a clean cloth in the solution and wring it out.
■ Dab the spot with the dampened cloth until it is gone. Do not rub the fabric.
■ Allow the shade to dry in the completely lowered position.

CHILD SAFETY
16
For more safety information call 1-888-501-8364
in the U.S. or 1-866-662-0666 in Canada.
WARNING
Young children can STRANGLE in cord loops. They can also wrap cords around their
necks and STRANGLE.
■ Always keep cords out of the reach of children.
■ Move cribs, playpens and other furniture away from cords. Children can climb
furniture to get to cords.
Cord Loop Shades
■ Attach the cord tensioner on the cord loop to the wall or window
casement. See “Attach the Universal Cord Tensioner (UCT)” on
page 10. This can prevent children from pulling cord loops
around their necks.
■ Hunter Douglas provides a cord tensioner installation kit with
instructions for attaching the cord tensioner. For the shade to
operate properly, the cord tensioner must be correctly mounted
andsecured.
■ Fasteners provided in this kit may not be appropriate for all
mounting surfaces. Use appropriate anchors for the mounting
surface conditions.
■ Only Hunter Douglas supplied cord tensioners and hardware
should be used. Replacement parts may be obtained by contacting the Hunter
Douglas Customer Information Center at 1-888-501-8364.

4/17LIT888295B
The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not
thoroughly satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support
of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY A LIFETIME LIMITED WARRANTY
TO OBTAIN WARRANTY SERVICE
NOT COVERED
BY A LIFETIME LIMITED WARRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship or
failure to operate for as long as the original retail
purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the date
of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to
service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for
assistance in obtaining warranty service or for further explanation of our warranty.
NOTE: In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for
incidental or consequential damages or for any other indirect damage, loss, cost or expense. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading over
time.
• Failure to follow our instructions with respect to
measurement, proper installation, cleaning or
maintenance.
• Shipping charges, cost of removal and
reinstallation.
