EVK-UFT285-6-7 Evaluation Board User Guide

Introduction

The EVK-UFT285-6-7 is designed to help the customer evaluate the 8T49N285, 8T49N286, and 8T49N287 devices, members

of IDT's 3rd generation Universal Frequency Translator family. When the board is connected to a PC running IDT Timing

Commander™software through USB, the device can be configured and programmed to generate frequencies with best-in-class

performances.

Contents

The EVK-UFT285-6-7 evaluation board ships with the following:

•1 – EVK-UFT285-6-7 Evaluation Board

•1 – USB Cable

Requirements

1. PC Requirements:

•IDT Timing Commander software installed.

•USB 2.0 interface. The evaluation board USB module is not compatible with USB 3.0. If using a computer with high speed

USB ports, please check if there's a standard USB 2.0 port available for use. The hardware drivers are automatically

installed during the Timing Commander installation.

•Windows XP SP3 or later.

•Processor: Minimum 1GHz.

•Memory: Minimum 512MB, recommended 1GB.

•Available Disk Space: Min 600MB (1.5GB 64bit), recommended 1GB (2GB 64bit)

•Network access during installation if the .NET framework is not currently installed on the system.

2. Power Supply with 3.3V and 1000mA rating

3. Three banana plug cables to connect the power supply to the board.

Quick Start: Powering Up the Board

(1) Set 3.3V supply current limit to 500mA.

(2) Remove all output terminations.

(3) Set Dip Switch selectors to the middle position.

(4) Connect a cable from a PC to the USB port.

(5) Connect VEE to the black GND jack.

(6) Connect 3.3V to VCC_J and VDDO_J.

(7) Power on the Power Supply.

(8) Press the Reset Button.

Once correct operation is verified, set the power supply limit for the number of outputs to be active.

The USB port must be powered by the PC in order to have the correct I2C bus voltage levels.

The board ships with a 38.88MHz crystal and will have a default frequency of 155.52MHz on Q0. If all outputs are unterminated,

current should measure ~256mA with 3.3V on VCC_J and VDDO_J. If all outputs are terminated, current should measure

~262mA.

When evaluating performance with the default hardware configuration, it is recommended that all active outputs be terminated

50ohms to VEE by either terminator plugs or an instrument.

REVISION B 04/01/15 2

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Board Overview

Use the following diagram to identify: power supply jacks, USB connector, input and output SMA connectors, reset button,

EEPROM, etc.

Figure 1. Evaluation Board Top View

8T49N286I_EVB

REVISION B 04/01/15 3

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Legend–Evaluation Board Top View

Inputs

CLK0_S Clock 0 sense lines.

CLK0 Clock 0 input lines. Can be configured for differential or single-ended input.

CLK1_S Clock 1 sense lines.

CLK1 Clock 1 input lines. Can be configured for differential or single-ended input.

CLK2 Clock 2 input lines. Can be configured for differential or single-ended input.

CLK3 Clock 3 input lines. Can be configured for differential or single-ended input.

Outputs

Q0 Output Q0. Can be a differential pair or two individual single-ended outputs.

Q1 Output Q1. Can be a differential pair or two individual single-ended outputs

Q2 Output Q2. Can be a differential pair or two individual single-ended outputs.

Q3 Output Q3. Can be a differential pair or two individual single-ended outputs.

Q4 Output Q4. Can be a differential pair or two individual single-ended outputs.

Q5 Output Q5. Can be a differential pair or two individual single-ended outputs.

Q6 Output Q6. Can be a differential pair or two individual single-ended outputs.

Q7 Output Q7. Can be a differential pair or two individual single-ended outputs.

Other

A Dip Switch for DC control signals (CLK_SEL, PLL_BYPASS, etc)

B VCCO_J

C VCC_J

D GPIOs

E RESET

F IDT8T49N286 – the device to be evaluated

G USB connector

H EEPROM – AT24CO4C

J Ground Jack

REVISION B 04/01/15 4

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Figure 2. Evaluation Board Bottom View

Legend–Evaluation Board Bottom View

X1 3.2 x 2.5 mm SMD Fox-603-38.88-4 Crystal

REVISION B 04/01/15 5

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Schematics

The following figures are schematics that are applicable to specific sections of this User Guide. The complete schematics are

available in a separate document.

Figure 3. Inputs Schematic

REVISION B 04/01/15 6

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Figure 4. Output Termination Schematic

REVISION B 04/01/15 7

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Figure 5. Crystal Interface Schematic

REVISION B 04/01/15 8

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

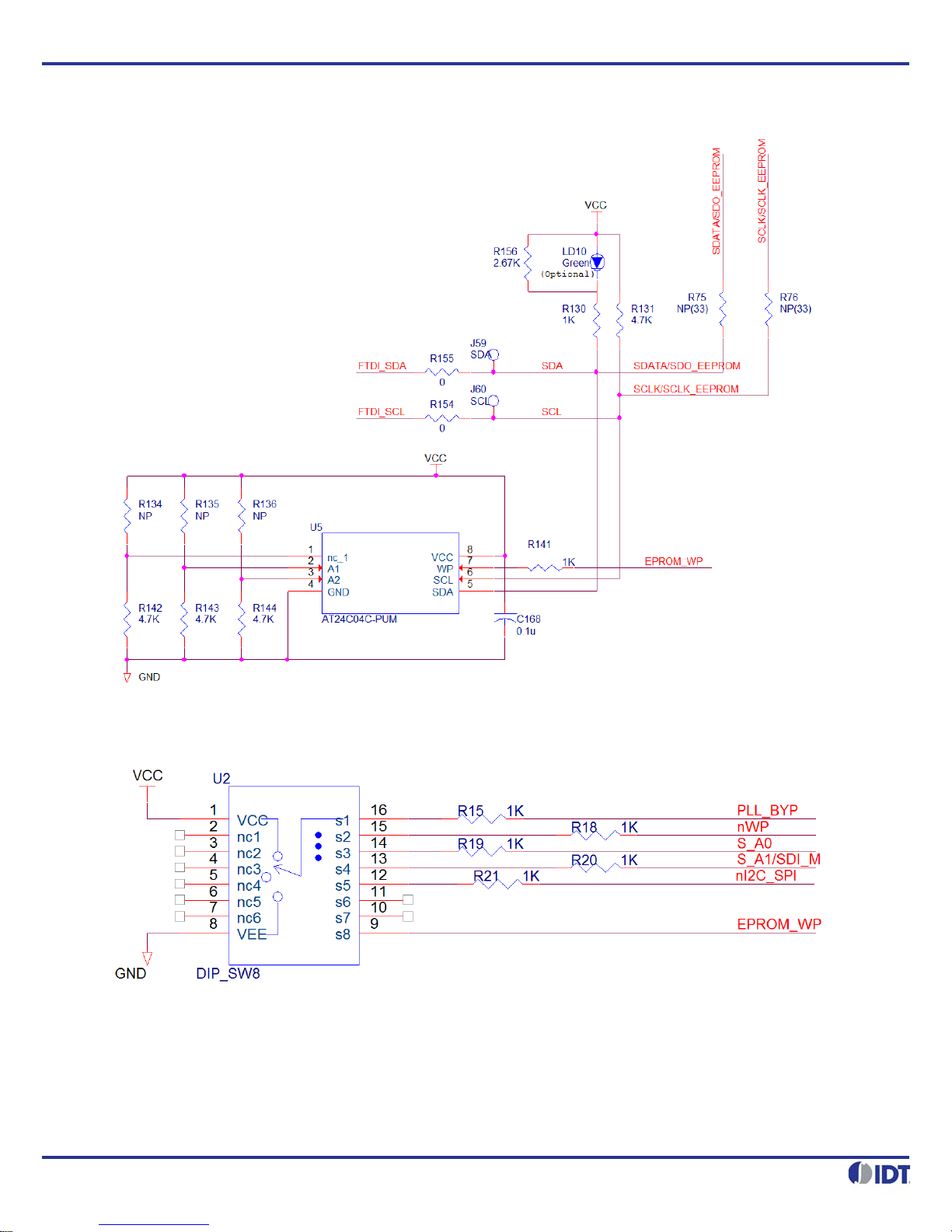

Figure 6. EEPROM/I2C Schematic

Figure 7. DC Control Schematic

(If the device is programmed to boot from EEPROM, use

R156=0ohm, R131=1Kohm, and do not populate LD10)

(0 ohm in a system

design)

(1K ohm in a

system design)

REVISION B 04/01/15 9

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Figure 8. VCCO Power Filtering

REVISION B 04/01/15 10

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Figure 9. VCC Filtering

ClosetotheDUT

FB18

BLM18BB221SN1D

C16

10uF

C89

10u

C55

0.1u

C119

10uF C120

0.1u

C26

10u

C104

0.1u C106

0.1u

VCC_J

FB2

BLM18BB221SN1D

GND

C42

10u

C62

10uF

GND

C108

0.1u

C12

10u

C103

0.1u

C14

0.1u

C43

0.1u

C110

0.1u

C76

10u

C88

0.1u

C63

0.1u

C13

0.1u

C65

10uF

GND

C17

10uF

C105

0.1u

C15

0. 1u

C90

0.1u

C61

0.1u C67

0.1u

C87

10u

C27

0.1u

FB10

BLM18BB221SN1D

J14

VCC

C18

0.1u

C11

10uF

C107

0.1u

C77

0.1u

C53

10u

C66

10u

C109

0.1u

GND

VCCO0 GND

VCCO1

GND

VCCO2

GND

VCCO3

GND GND

VCCO4 VCCO5 VCCO7VCCO6

GND

VCC

GND

GND GND GND

VCC_J

VCCA_PLL0

Typ ~95mA

VCCA_PLL1

VCCA_66

VCCA_71

VCCA_72

VCCA_70

VCCA_20

VCCA_19

VCCA_25

VCCA_21

VCCA_PLL1

C192

10uF

C193

0. 1 u

VCCA_PLL0

REVISION B 04/01/15 11

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Board Power Supply

Core Voltages

The core voltage includes a digital voltage VDD and an analog voltage VDDA. Both core voltages are powered by the external

bench power supply connected to J6 (VCC_J). See Figure 9 for details

Output Voltages

VDDO_J (J1) supplies the global voltage for the outputs and can be biased by the external power supply at 1.8V (all outputs

LVCMOS), 2.5V, or 3.3V.

Mixed Voltage Operation

This board provides the option to operate the outputs with a mixed combination of output voltages. Refer to Figure 8 for a

complete view of the VCCO schematic. Each VCCOx has a 0resistor that connects it to the global VCCO_J power rail. This

resistor can be removed and the voltage can be provided using the test point. For example, the schematic below can be

configured so that Q0 (VCCO0) operates at 2.5V and Q4 LVCMOS (VCCO4) operates at 1.8V as follows:

1) Connect 2.5V to J1 (VCCO_J).

2) Remove R146. This isolates VCCO4 from global VCCO_J.

3) Solder a wire onto test point VCCO4 and bias with a 1.8V supply.

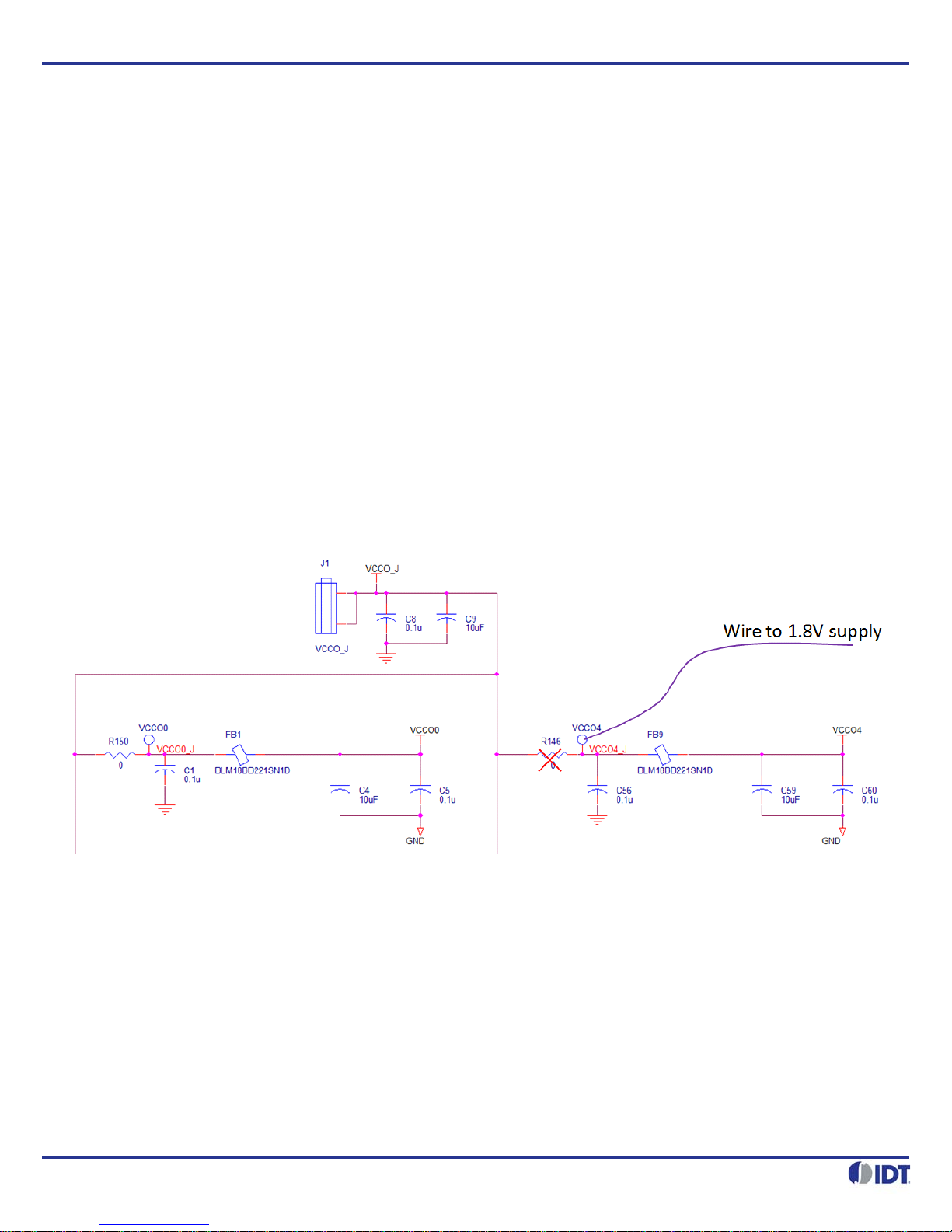

Figure 10. Mixed Output Voltage Operation

REVISION B 04/01/15 12

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Input Configuration

The inputs are configured with an ac-coupling termination scheme. This scheme allows flexibility for either differential or

single-ended inputs. The default configuration is as follows:

Table 1: Default Input Configuration

Differential Input

Connect the input signal to CLKx and nCLKx. For CLK0, the CLK0_S and nCLK0_s sense lines are available for observation of

the signal. They can be connected with 50ohm impedance cables to an oscilloscope with 50ohm termination, otherwise, they

should be terminated with 50ohm plugs in order prevent reflections.

Single-ended Input

Connect the input signal to CLKx and float nCLKx. For CLK0, connect CLK0_S with a 50ohm impedance cable to an oscilloscope

with 50ohm termination or terminate with a 50ohm plug.

Input Signals below 1MHz

For slow-frequency signals below 1MHz, we recommend that the coupling capacitors for the corresponding input be replaced

with zero-ohm resistors and that the signal input dc-offset be set so that it meets the device's Vcmr requirements. Refer to Figure

3to locate the components listed below.

Table 2: Input Termination Schemes

Input Default Termination Sense Lines

CLK0 50ohms to ground, ac-coupled into the device Use SMAs J15/J18 for observation of the input signal

CLK1 50ohms to ground, ac-coupled into the device Available but not connected. Populate R47 and R59 to observe

input signal on SMAs J23/J30

CLK2 50ohms to ground, ac-coupled into the device Not available

CLK3 50ohms to ground, ac-coupled into the device Not available

Signal Frequency

AC-coupling capacitors:

CLK0 (C121, C122)

CLK1 (C130,C131)

CLK2 (C150,C151)

CLK3 (C160,C161)

Input Signal DC Offset

>1MHz 1µF Don't care

<1MHz Must meet datasheet Vcmr specs

REVISION B 04/01/15 13

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Output Configuration

The outputs are ac-coupled, allowing for maximum flexibility for observation of the output whether configured for LVPECL, LVDS,

or LVCMOS levels. The default termination scheme can be used to measure either of the three output level-types but is not

optimal. The optimal termination circuits are tabulated below. Refer to Figure 4 to locate the components listed below.

Table 3: Termination Outputs for Q0

Table 4: Termination Outputs for Q1

Table 5: Termination Outputs for Q2

Table 6: Termination Outputs for Q3

Table 7: Termination Outputs for Q4

Signal Type 180 ohm pull-down:

R39, R40

Series capacitors:

C123, C125

Resistor Network:

R35, R36, R41, R42

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R43, R44

Series capacitors:

C124, C126

Resistor Network:

R37, R38, R45, R46

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R60, R61

Series capacitors:

C133, C138

Resistor Network:

R52, R53, R62, R63

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R64, R65

Series capacitors:

C134, C139

Resistor Network:

R54, R55, R66, R67

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R77, R78

Series capacitors:

C143, C145

Resistor Network:

R68, R69, R79, R80

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

REVISION B 04/01/15 14

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Table 8: Termination Outputs for Q5

Table 9: Termination Outputs for Q6

Table 10: Termination Outputs for Q7

As noted, the 4-resistor network is not installed in Tables 3~10 because an oscilloscope with internal 50termination is utilized

for signal termination and measurement. If a DC-coupled, stand-alone LVPECL output is needed (without oscilloscope

connections), the 4-resistor network needs to be installed accordingly. The table below provides the configuration for Q0:

Table 11: Resistor Termination Outputs for LVPECL for Q0

Output signals below 1MHz

For slow-frequency output signals below 1MHz, we recommend that the 1µF ac-coupling capacitors be replaced with 0ohm

resistors and that the correct terminations be provided at the receiver.

Signal Type 180 ohm pull-down:

R82, R83

Series capacitors:

C144, C146

Resistor Network:

R70, R71, R81, R84

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R94, R95

Series capacitors:

C154, C157

Resistor Network:

R90, R91, R96, R97

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R98, R99

Series capacitors:

C155, C158

Resistor Network:

R92, R93, R100, R101

LVPECL (Default) Installed 1µF Not installed

LVCMOS Not installed 33 ohm Not installed

LVDS Not installed 1µF Not installed

Signal Type 180 ohm pull-down:

R39, R40

Series capacitors:

C123, C125

Resistor Network:

R35, R36, R41 R42

LVPECL (Default) Not installed 0 ohm R35=R36=125ohm

R41=R42=84ohm

REVISION B 04/01/15 15

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

EEPROM Boot

The evaluation board ships with an IDT8T49N286-997device, which will attempt to boot from the EEPROM at power-up. By

default, the EEPROM boot is not enabled on the board. If use of the EEPROM boot is required, there are three options to enable

this mode.

1) No Rework Option. This option will enable the EEPROM boot and does not require any soldering. This sequence must

be performed each time the EEPROM needs to be reloaded into the device.

a. Hold down the reset button.

b. Unplug and then plug in the USB cable.

c. Release the reset button.

2) Rework Option. This option will enable the EEPROM boot but requires soldering. It does not require continually

unplugging/plugging-in the USB cable for reloading of the EEPROM into the device.

a. Remove LD10 or replace R156 with a 1Kohm resistor. (See Figure 6).

b. Power up the board with USB cable connected.

c. Press and release the reset button.

3) Stand-Alone Use. Sometimes it's necessary to evaluate the device inside a temperature chamber, a system rack, or a

Faraday cage where a USB connection to the device is impractical. For such cases contact IDT for further support.

For details on how to program the EEPROM, please refer to document How to Program the 8T49N28x EEPROM.

DC Controls

The Dip Switch has three settings: 0V, Float, and VCC. This board ships with all switches in the Float (middle) position. Refer to

Figure 1, label "A" for the location of the Dip Switch.

REVISION B 04/01/15 16

EVK-UFT285-6-7EVALUATIONBOARDUSERGUIDE

Crystal Interface

By default, a 3.2x2.5mm SMD 38.88MHz crystal is installed on bottom side of the board. It provides the reference frequency for

the device. This board supports other options for the XTAL_IN reference. If using one of the other options, the crystal on X1 must

be removed.

1) Through-hole crystal. With this option, the device can be evaluated with different crystals without the need to solder each

time the crystal is replaced:

a. Remove the crystal from X1 on bottom-side of the board. (See Figure 2, "X1" for location of the component.)

b. Solder in crystal sockets into the holes labeled X2. (See Figure 11 below for location of the component.)

c. Place a crystal into the socket.

Figure 11. Crystal Interface PCB

2) Crystal Overdrive. With this option, the device can be evaluated with different sources, such as frequency generators,

XO's, or other devices. Refer to Figure 5 and Figure 10 for identification of the components mentioned below.

a. Remove the crystal from X1. (See Figure 2, "X1" for location of the component.)

b. Populate SMA J56.

c. Solder a 1µF capacitor onto C164. Note: the input must be ac-coupled

d. R139 may be populated with a 50ohm resistor for input sources requiring such termination.

e. R137 must be populated. It may be a 0ohm resistor for input sources or 33ohms for CMOS inputs.

DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,

including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not

guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the

suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any

license under intellectual property rights of IDT or any third parties.

IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to signifi-

cantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.

Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected names, logos and

designs, are the property of IDT or their respective third party owners.

Corporate Headquarters

6024 Silver Creek Valley Road

San Jose, CA 95138 USA

Sales

1-800-345-7015 or

408-284-8200

Fax: 408-284-2775

www.IDT.com

Tech Support

email: [email protected]

480-763-2056
