IHP BLB36SF Series User manual

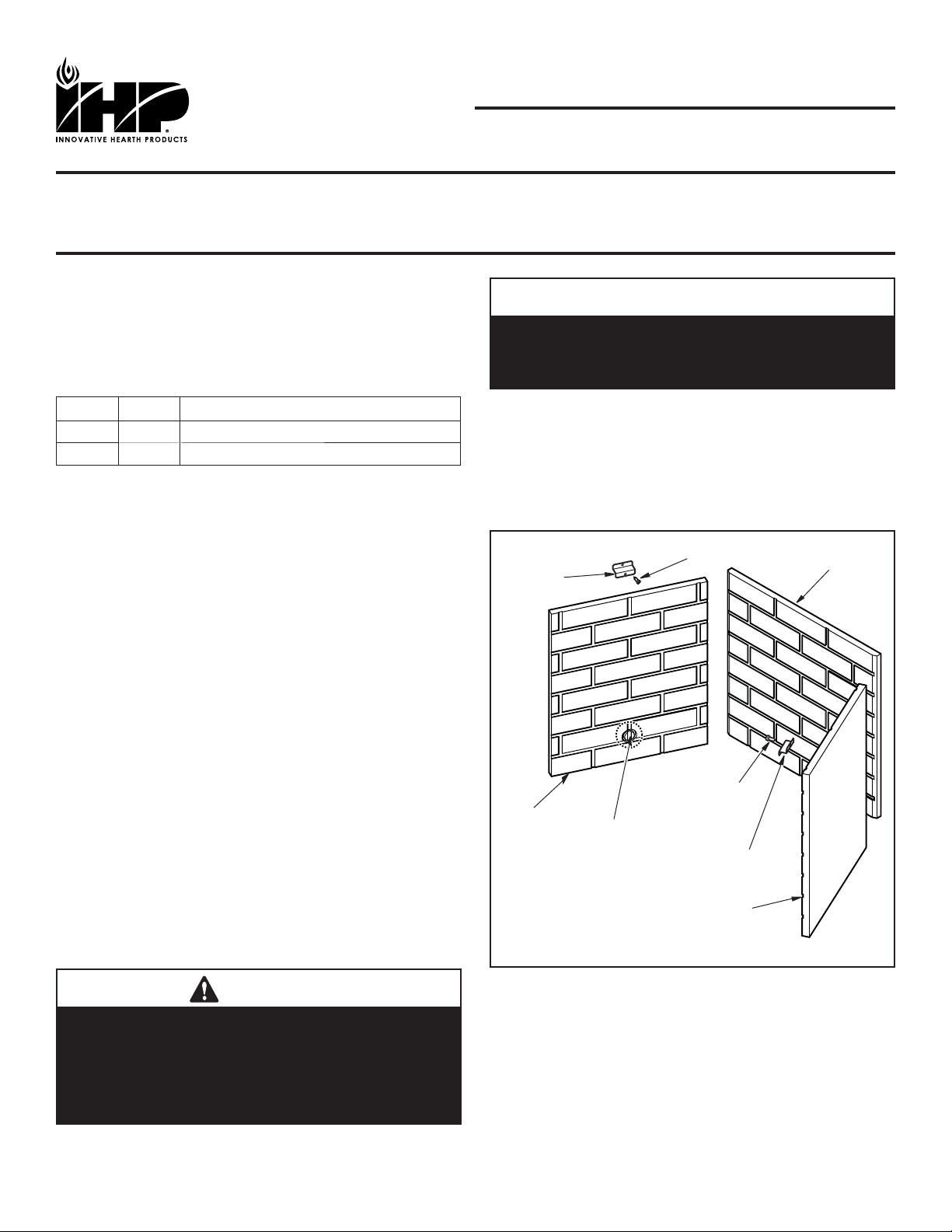

Figure 1 - Brick Liner Kit
Screw
Screw
Retaining
Bracket
Retaining
Bracket
Side
Firebrick
Panel
Side Firebrick Panel
Rear Firebrick Panel
Gas Line
Knockout
BLB36SF AND BLB42SF SERIES BRICK LINER KITS
[FOR USE WITH MODELS: VRT2036/42, VCT2036/42, OAKRIDGE36/42]
FIREBOX LINER KITS
36/42 FIREPLACES
P/N 127152-01
Rev. B, 04/2017
HEARTH PRODUCTS
KITS AND ACCESSORIES
REQUIRED TOOLS
Phillips Screwdriver
5/16'' Hex Socket Wrench or Nut Driver r
GENERAL INFORMATION
Attractive brick firebox liner kits are available for 36" and 42" models
listed above.
READ ENTIRE INSTRUCTION SHEET BEFORE STARTING THE
INSTALLATION
THE FIREPLACE MUST BE OFF AND COLD BEFORE BEGINNING.
ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN THE
INSTALLATION AND OPERATION MANUAL PROVIDED WITH THE
APPLIANCE APPLY TO THESE INSTRUCTIONS.
If you encounter any problems, need clarification of these instructions
or are not qualified to properly install this kit, contact you local
distributor or dealer.
If any of these parts are missing or damaged, contact your dealer or
IHP.us.com for referral information.
KIT CONTENTS
2 ea. Side Firebrick Panels
1 ea. Rear Firebrick Panel
2 ea. Retainer Brackets
2 ea. #10 Screws
1 ea. Instruction Sheet
Cat. No. Model Description
F1054 BLB36SF 36” White Stacked Ceramic Fiber Brick Liner
F1056 BLB42SF 42” White Stacked Ceramic Fiber Brick Liner
WARNING
•Turn off, unplug, and let fireplace cool before install-
ing brick liner. Only a qualified service person should
service and repair fireplace.
•A qualified service person must connect and discon-
nect fireplace to gas supply. Follow all local codes.
NOTICE
If already installed, you must remove log base
assembly before installing brick liner. Refer to log
base assembly owner's manual.
1
NOTE: Some installations may require the gas supply line to be
disconnected before removing log assembly. If so, call a qualified
service person to disconnect gas supply from fireplace.
IMPORTANT:Always handle firebrick panels with two hands.
IHP.us.com

Printed in U.S.A. © 2014 Innovative Hearth Products
P/N 127152-01 Rev. B 04/2017
INSTALLATION
1. Install rear firebrick panel on back wall. Rest bottom edge of firebrick
panel on firebox floor. Lean firebrick against back wall of firebox while
installing side panels.
NOTE: The rear panel is held in place by two side panels.
2. Gently slide left side brick into place while holding rear brick panel
upright against firebox back.
3. Use supplied retainer bracket and screw to secure side brick panel to
firebox (see Figure 2).
4. Repeat steps 2 and 3 for right side brick panel.
5. There is a gas knockout in each side panel for the gas line to feed through
(see Figure 2). Determine on which side the gas connection will be
located. Using a utility knife or cutting blade, remove the identified gas
knockout.
6. Replace log base, if removed, for firebrick installation (see log base
owner's manual for proper installation).
CAUTION
Always handle firebrick panels with two hands. Do
not force firebrick panels into place. Excessive force
will break firebrick panels.
Screw
Retaining
Bracket Retaining
Bracket
Gas
Knockout
WARNING
•Test all gas piping and connections for leaks after
installing or servicing. Correct all leaks at once.
•Never use an open flame to check for a leak. Apply
a noncorrosive leak detection fluid to all joints.
Bubbles forming show a leak. Correct all leaks at
once.
Figure 2 - Firebrick Panels with Retaining Brackets and Gas Knockout
2
IHP reserves the right to make changes at any time, without notice, in design, materials, specifica-
tions, prices and also to discontinue colors, styles and products. Consult your local distributor
for fireplace code information.
1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210
