Iluminar iL5XC User manual

USER
MANUAL
iL5XC MODEL 330W
1-877-540-5588
iluminarlighting.com
[email protected]
IL-5xc26FSG-120
IL-5xc26FSG-480

2
CONTENTS
• Observe all safety precautions (see page 8), seek the services of a
qualied electrician, installation professional, or call ILUMINAR Lighting
technicians for assistance.
• DO NOT handle or touch the xture while in use.
• Connect the xture only to the power sources of the appropriate voltage
using the correct AC plug type. Protect power cables from being pinched,
walked on, or otherwise damaged. Be especially careful where the power
cable enters the power outlet to the unit. Only connect the xture to an
electrical outlet or extension cord of comparable standard and level rating.
Connect the xture ONLY to the power sources of the correct voltage using
the plug received.
• The xture should only be cleaned as directed. Always seek service for
your system by qualied service personnel if any of the following occur:
1. The xture shows a noticeable change in performance.
2. The power-supply cord or plug is damaged.
3. The xture has been dropped, or the exterior is damaged.
Please read this manual thoroughly prior to
installing or operating the ILUMINAR iL5XC.
Pre-Install Information ........................................
Technical & Physical Specications......................
Hardware & Accessories ....................................
Hanging Instructions ...........................................
Daisy Chain Instructions .....................................
Important Cautions & Warranty ...........................
2
3
4
5-6
7
8
1-877-540-5588
iluminarlighting.com
[email protected]
© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.

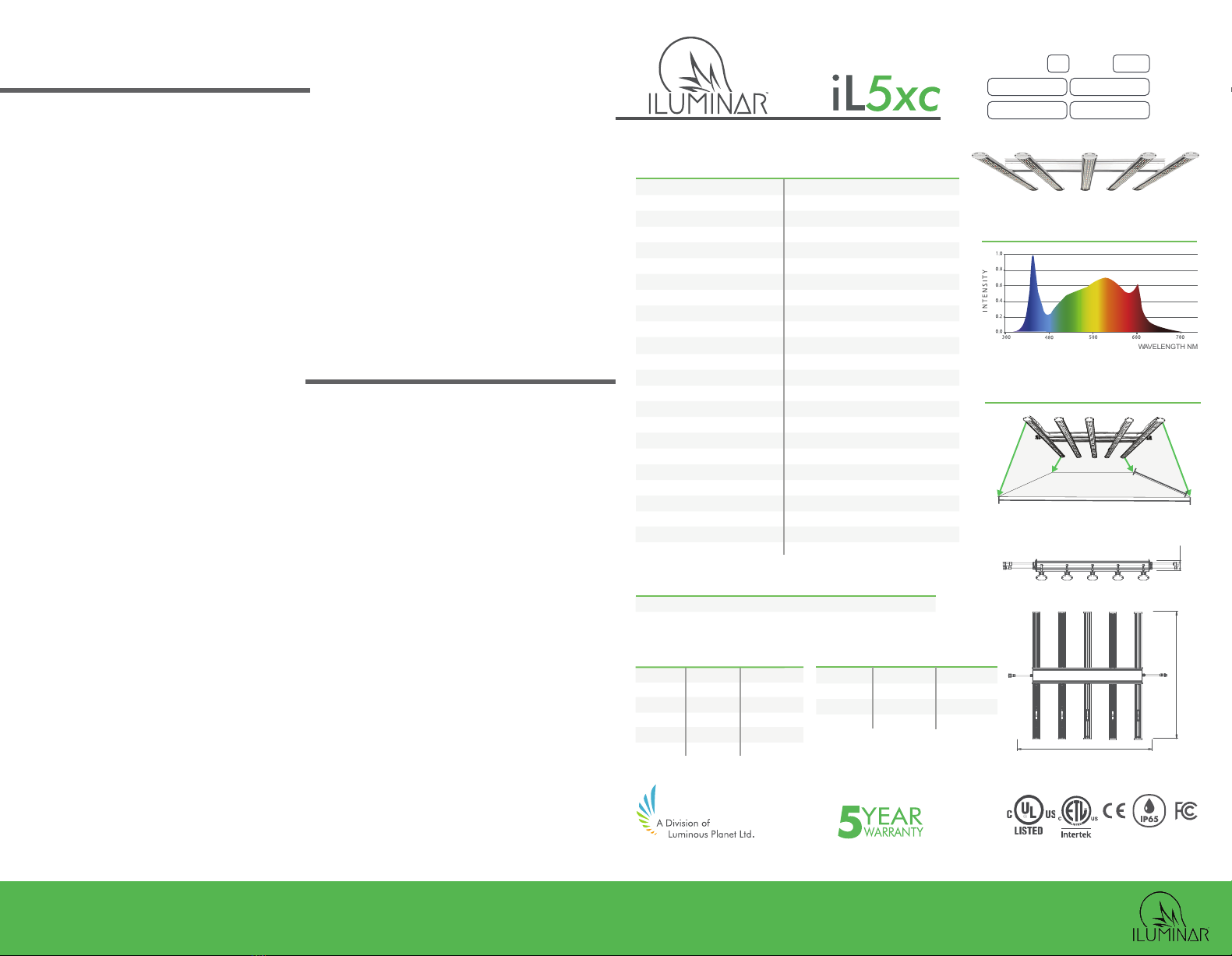

STANDALONE COVERAGE
1.2m / 4'
1.2m / 4'
iL5x 440W LED SPECTRUM
W
A
VELENGTH NM
1067 mm / 42”
1003 mm / 39”
129 mm / 5”
LED Lighting Solution
Toll Free: 1-877-540-5588 iluminarlighting.com © Copyright 2020 ILUMINAR Lighting
Subject to change without notice.
PFF
Efficacy
Input Current
Input Power
Output Voltage
Output Power
Min Power Factor
THD
Crest Factor
BTU
Rated Mains Voltage
Mains Frequency
Dimmable
Ambient Temperature
Max. Temperature
Relative Humidity
Plug Type
Color Temperature
Color Rendering Index
Finishing Mounting Height
Emitter Cooling
Light Distribution +/- 5%
Waterproof Rating
LED Lifespan (90% of Life)
858 µmol/s
2.6 µmol/j
9.20A
330W
33
303.6W
0.9
< 20%
0.99
1128
120-277V AC / 347-480V AC
50 / 60Hz
0-10V Controllable
-20..+45°C
75°C/167°F
98%
Power Cord Sold Seperately
4000k
88
6”-12” to top of Canopy
Passive / Extruded Case
125º
IP65 for Damp/Wet Conditions
55,000+ hours
TECHNICAL SPECIFICATIONS
PHYSICAL SPECIFICATIONS
Length
Width
Height
Weight
1067mm
1003mm
129mm
13.5kg
42.01"
39.49"
5.08"
29.76lbs
VOLTAGE AND AMPERAGE
120V
208V
240V
277V
347V
480V
0.99A
0.71A
2.85A
1.63A
1.41A
1.22A
340W
331W
341W
335W
332W
330W
MODEL: WATTS: 330W
2.6
200-480V
VOLTAGE: 100-277V
SKU: IL-5xc26FSG-480IL-5xc26FSG-120
DAISY CHAIN SPECIFICATIONS
Up to 4 fixtures can be connected in a series at 120V.
Up to 8 fixtures can be connected in a series at 277V.
3

4
HARDWARE AND ACCESSORIES
The iL5xc can be hung from steel
cables or can be mounted to a
rack.
Before you begin installation,
check that you have all the
necessary parts to begin.
1 iL5xc Fixture
1 Power Cable
4 Steel Hanging Cables with attached cylindrical
locks for hanging
IN THE BOX
1-877-540-5588
iluminarlighting.com
[email protected]
5
Lay the central mast on a at table top or surface with the
attachment brackets facing UP. Attach each LED Bar by aligning
the plastic clips and carefully sliding them into place until you
hear a soft click.
CONNECTION INSTRUCTIONS
Once the plastic clips are all snapped in place, attach the A/C cables
coming from the mast to each LED bar by aligning the connector pins
and pressing the ends together. Lock by twisting in opposite directions.
Once all the LED bars are fastened into place and A/C cables are
attached to the mast, turn the xture over (this may require more than
one person). Ensure the at surface is clear of anything that could
damage the delicate diodes.
SLIDE
2
1
3
! CAUTION when handling your ILUMINAR iL Fixture. The
LED array should NOT come in contact with sharp objects.
DO NOT touch diodes or apply direct force to the diodes as
this can/will cause permanent damage.
© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.

7
61-877-540-5588
iluminarlighting.com
[email protected]
HANGING INSTALLATION DAISY CHAIN CONNECTIONS
If you plan to utilize several LEDs in your room or facility, one of the many
benets of the ILUMINAR LED is that you can “daisy chain” one xture to
another to save space and use only one outlet to run several lamps, thus
minimizing the amount of cords used in your space.
If you plan to utilize the ILUMINAR HASH Controller, you can connect the
yellow connections from the controller to the xture and then connect the Daisy
Chain Controller Cable from xture to xture. Please consult with our lighting
layout designers to ensure proper spacing of outlets for your unique setup.
Attached the secure hooks to the xture.
Loop the hanging wire as shown around the support beam (as shown
in Figure A). Press down at base of hook to slide to adjust the mounting
height of the xture (Figure B).
! NEVER attach two AC input plugs. Safely
install only one AC Power Cable.
One side only used
to Daisy Chain
power to xture 2.
Once xture is hanging with all LED bars installed, connect the power
cable (blue tip) from the outlet to one side of the xture. DO NOT EVER
connect two power cables from the wall to the xture.
AC 100-277V
50/60 Hz INPUT
1
2
3
FIGURE A
FIGURE B
!
A/C 100-277V
50/60 Hz INPUT
(to power outlet)
Yellow Tip
Controller Cable
(to Controller)
Controller Cable
Daisy Chain
(yellow)
A/C Daisy
Chain Cable
(blue)
Controller Cable
Daisy Chain
(yellow)
! NEVER attach two AC input plugs. Safely
install only one AC Power Cable.
© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.

8
PRECAUTIONS
1. Leave at least one inch of space between the xture and the mounting
area for maximum performance and lifespan.
2. ALWAYS wear protective eye wear when looking directly at the diodes to
prevent eye damage.
3. Only handle, clean or move xture when it’s unplugged and completely
cool.
4. Keep the xture free of dust, debris, deposits to ensure the maximum
potential of the xture.
5. NEVER use cloth to clean the diodes. This will scratch the diodes and could
potentially break or dislodge them.
6. DO NOT use chemicals to clean the xture. Use ONLY low pressure air or
low pressure water to remove dust and debris.
At ILUMINAR, we stand behind our products and our
technology as well as our customers. All ILUMINAR xtures
are backed by our 5-Year Guarantee. Please visit our website
iluminarlighting.com/warranty for more information.
1-877-540-5588
iluminarlighting.com
[email protected]
GUARANTEE
Please read the following list carefully prior to beginning installation.
