Iluminar iL8x MODEL User manual

USER
MANUAL
iL8x MODEL 670W
1-877-540-5588
iluminarlighting.com
[email protected]
IL-8x26FSG-120
IL-8x26FSG-480

3
2
CONTENTS
Please read this manual thoroughly prior to
installing or operating the ILUMINAR iL8x.
1-877-540-5588
iluminarlighting.com
[email protected]
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
• Observe all safety precautions (see page 10), seek the services of a
qualified electrician, installation professional, or call ILUMINAR Lighting
technicians for assistance.
• DO NOT handle or touch the fixture while in use.
• Connect the fixture only to the power sources of the appropriate voltage
using the correct AC plug type. Protect power cables from being pinched,
walked on, or otherwise damaged. Be especially careful where the power
cable enters the power outlet to the unit. Only connect the fixture to an
electrical outlet or extension cord of comparable standard and level
rating. Connect the fixture ONLY to the power sources of the correct
voltage using the plug received.
• The fixture should only be cleaned as directed. Always seek service for
your system by qualified service personnel if any of the following occur:
1. The fixture shows a noticeable change in performance.
2. The powersupply cord or plug is damaged.
3. The fixture has been dropped, or the exterior is damaged.
Pre-Install Information ........................................
Technical & Physical Specications ......................
Hardware & Accessories ....................................
Instructions ........................................................
Daisy Chain Instructions .....................................
PPFD Map.........................................................
Precautions & Warranty ....................................
2
3
4
5 - 6
7
8 -9
10

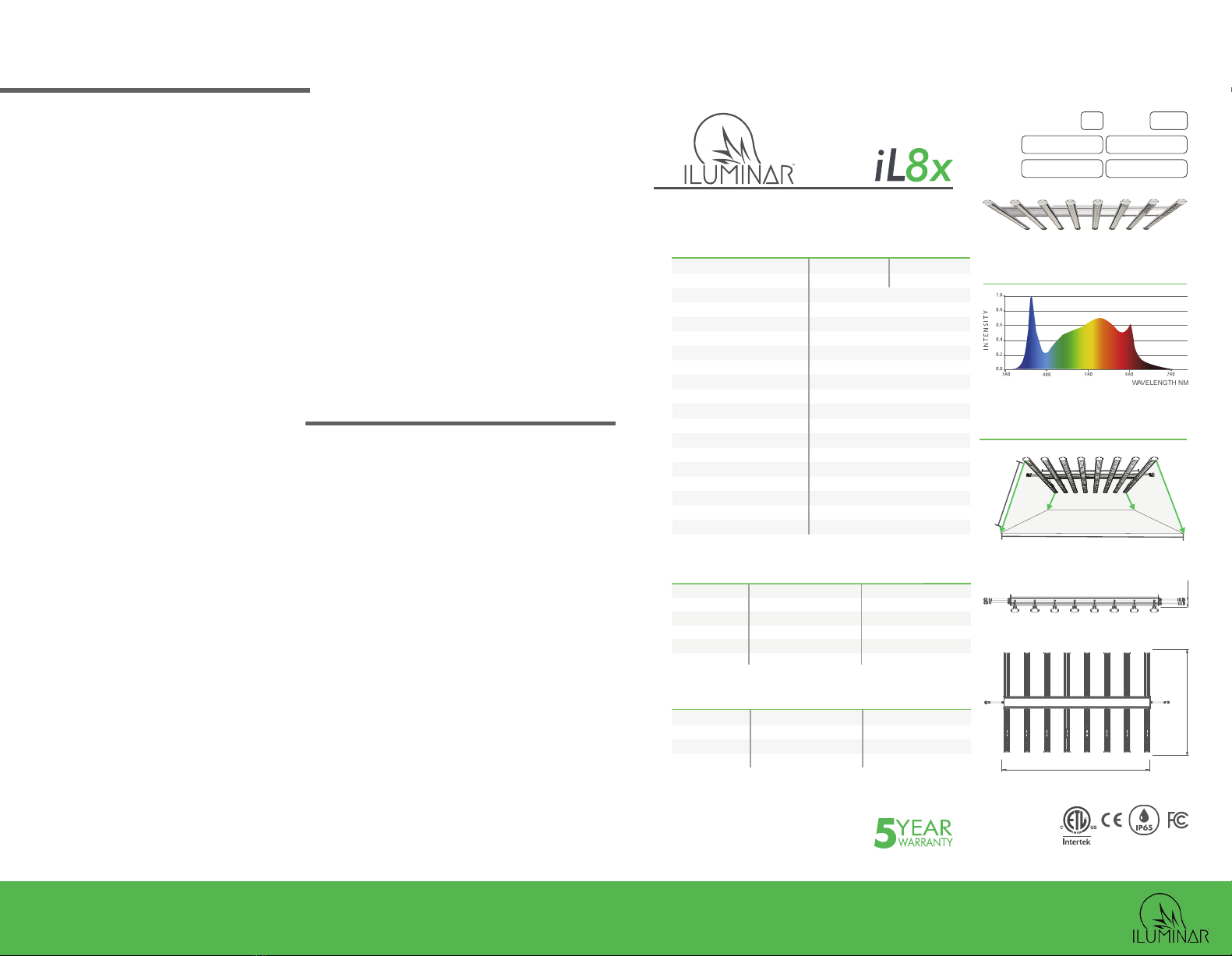

LED Lighting Solution
iL8x 670W LED SPECTRUM
W
A
VELENGTH NM
1067mm / 42.01"
1003mm / 39.49"
129mm / 5.08"
Toll Free: 1-877-540-5588 iluminarlighting.com © Copyright 2021 ILUMINAR Lighting
Subject to change without notice.
PHYSICAL SPECIFICATIONS
Length
Width
Height
Weight
1067mm
1003mm
129mm
16kg
42.01"
39.49"
5.08"
35.3lbs
VOLTAGE AND AMPERAGE
120V
208V
240V
277V
347V
480V
1.97A
1.41A
5.69A
3.25A
2.8A
2.42A
678W
660W
680W
670W
662W
656W
Rated Voltage
Voltage Range (+/-10%)
PPF
Efficacy
Min Power Factor
THD
Crest Factor
BTU
Frequency
Dimmable
Ambient Temperature
Relative Humidity
Color Temperature
Color Rendering Index
Minimum Mounting Height
Emitter Cooling
Light Distribution +/- 5%
Waterproof Rating
LED Lifespan (90% of Life)
120-277V AC 347-480V AC
100-277V 200-480V
1742 µmol/s
2.6 µmol/j
0.9
< 20%
0.99
2278
50 / 60Hz
0-10V Controllable
0 - 35°C / 32-95°F
98%
4000k
88
6”-12” to top of Canopy
Passive / Extruded Case
125º
IP65 for Damp/Wet Conditions
55,000+ hours
TECHNICAL SPECS
MOUNTING & COVERAGE
1.2m / 4'
1.2m / 4'
15-30cm / 6-12”
MODEL: WATTS: 670W
2.6
200-480V
VOLTAGE: 100-277V
SKU: IL-8x26FSG-480IL-8x26FSG-120

1-877-540-5588
iluminarlighting.com
[e-mail]
5
4
HARDWARE AND ACCESSORIES
The iL8x can be hung from rope
ratchets or can be mounted to a
rack.
Before you begin installation,
check that you have all the
necessary parts to begin.
1 iL8x Fixture
IN THE BOX
1-877-540-5588
iluminarlighting.com
[email protected]
Lay the central mast on a at table top or surface with the
attachment brackets facing UP. Attach each LED Bar by
aligning the plastic clips and carefully sliding them into place
until you hear a soft click.
CONNECTION INSTRUCTIONS
Once the plastic clips are all snapped in place, attach the A/C
cables coming from the mast to each LED bar by aligning the
connector pins and pressing the ends together. Lock by twisting in
opposite directions.
Once all the LED bars are fastened into place and A/C cables
are attached to the mast, turn the xture over (this may require
more than one person). Ensure the at surface is clear of
anything that could damage the delicate diodes.
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
SLIDE
2
1
3
! CAUTION when handling your ILUMINAR iL Fixture.
The LED array should NOT come in contact with sharp
objects. DO NOT touch diodes or apply direct force to
the diodes as this can/will cause permanent damage.
4 Rope Ratchets

7
61-877-540-5588
iluminarlighting.com
[email protected]
HANGING INSTALLATION DAISY CHAIN CONNECTIONS
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
1
4
2
3
1
4
A/C INPUT
(to power outlet)
Controller Cable
(to Controller)
A/C INPUT
(to power outlet)
Controller
Daisy Chain Cable
Controller Cable
(to Controller)
A/C Daisy
Chain Cable
If you plan to utilize several LEDs in your room or facility, one of the many benets
of the ILUMINAR LED is that you can “daisy chain” one xture to another to save
space and use only one outlet to run several lamps, thus minimizing the amount of
cords used in your space.
If you plan to utilize the ILUMINAR HASH Controller, connect the connections from
the controller to the xture and then connect the Daisy Chain Controller Cable from
xture to xture. Please consult with our lighting layout designers to ensure proper
spacing of outlets for your unique setup.
Lift the LED and attach the
carabiners to pre-installed hooks
from ceiling or mounting beam. The
Ratchets should be installed closest
to the LED (and not the ceiling).
A: Remove slack to raise xture.
B: Give slack to lower xture.
To suspend mount, attach the 4 rope ratchets that come packaged
with this xture to the LED.
Once xture is hanging with all LED bars installed, connect the LED
Power Cable from the outlet to the xture.
1
2
A
B
3
AVAILABLE CABLES

8
PPFD MAP
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
1-877-540-5588
iluminarlighting.com
[email protected]
9
>=1000 762-1000 581-762 443-581 338-443 258-338 196-258 150-196 <150
Legend
Clearance
Qty
Average PPFD
Max PPFD
Min PPFD
Median PPFD
Min/Average
Watts
Clearance
Qty
Average PPFD
Max PPFD
Min PPFD
Median PPFD
Min/Average
Watts
Clearance
Qty
Average PPFD
Max PPFD
Min PPFD
Median PPFD
Min/Average
Watts
Clearance
Qty
Average PPFD
Max PPFD
Min PPFD
Median PPFD
Min/Average
Watts
Clearance
Qty
Average PPFD
Max PPFD
Min PPFD
Median PPFD
Min/Average
Watts
Clearance
Qty
Average PPFD
Max PPFD
Min PPFD
Median PPFD
Min/Average
Watts
0.5
1
926.55
113 5
539
1016
58.17
670
3
1
329.31
415
233
325.5
70.75
670
1
1
740.39
994
400
773
54.03
670
4
1
231.63
276
180
230
7 7. 71
670
1.5
1
597.81
815
343
602
57.38
670
5
1
169.13
193
140
168.5
82.78
670
ft
u
μmol/m2/s
μmol/m2/s
μmol/m2/s
μmol/m2/s
%
W
ft
u
μmol/m2/s
μmol/m2/s
μmol/m2/s
μmol/m2/s
%
W
ft
u
μmol/m2/s
μmol/m2/s
μmol/m2/s
μmol/m2/s
%
W
ft
u
μmol/m2/s
μmol/m2/s
μmol/m2/s
μmol/m2/s
%
W
ft
u
μmol/m2/s
μmol/m2/s
μmol/m2/s
μmol/m2/s
%
W
ft
u
μmol/m2/s
μmol/m2/s
μmol/m2/s
μmol/m2/s
%
W
PPFD MAP iL8x at 0.5ft
PPFD MAP iL8x at 1ft
PPFD MAP iL8x at 1.5ft
PPFD MAP iL8x at 3ft
PPFD MAP iL8x at 4ft
PPFD MAP iL8x at 5ft

PRECAUTIONS
1. Leave at least one inch of space between the xture and the mounting
area for maximum performance and lifespan.
2. ALWAYS wear protective eye wear when looking directly at the diodes
to prevent eye damage.
3. The LED array should NEVER come in contact with sharp objects.
4. Do not touch or apply force to the diodes - this will cause permanent
damage.
5. Only handle, clean or move xture when it’s unplugged and
completely cool.
6. Keep the xture free of dust, debris, deposits to ensure the maximum
potential of the xture.
7. NEVER use cloth to clean the diodes. This will scratch the diodes and
could potentially break or dislodge them.
8. DO NOT use chemicals to clean the xture. Use ONLY low pressure air
or low pressure water to remove dust and debris.
Please read the following list carefully prior to beginning installation.
At ILUMINAR, we stand behind our products and our
technology as well as our customers. All ILUMINAR LED
xtures are backed by our 5-Year Guarantee. Please
visit our website iluminarlighting.com/warranty
for more information.
1-877-540-5588
iluminarlighting.com
[email protected]
GUARANTEE
