Iluminar iLogic8 User manual

USER
MANUAL
iLogic8 Full Spectrum
1-877-540-5588
iluminarlighting.com
[email protected]
IL-iLOGIC8
630W

3
2
CONTENTS
Please read this manual thoroughly prior to installing or
operating the ILUMINAR iLOGIC8
1-877-540-5588
iluminarlighting.com
[email protected]
• Observe all safety precautions (see page 10), seek the services of a
qualified electrician, installation professional, or call ILUMINAR Lighting
technicians for assistance.
• DO NOT handle or touch the fixture while in use.
• Connect the fixture only to the power sources of the appropriate voltage
using the correct AC plug type. Protect power cables from being pinched,
walked on, or otherwise damaged. Be especially careful where the power
cable enters the power outlet to the unit. Only connect the fixture to an
electrical outlet or extension cord of comparable standard and level
rating. Connect the fixture ONLY to the power sources of the correct
voltage using the plug received.
• The fixture should only be cleaned as directed. Always seek service for
your system by qualified service personnel if any of the following occur:
1. The fixture shows a noticeable change in performance.
2. The powersupply cord or plug is damaged.
3. The fixture has been dropped, or the exterior is damaged.
Pre-Install Information ........................................
Technical & Physical Specifications ......................
Hardware & Accessories ....................................
Connection Instructions .......................................
Hanging Installation ..........................................
Cable Logic Instructions .....................................
Important Cautions & Warranty ..........................
2
3
4
5
6
7-9
10
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
Rated Voltage 120-277V AC
Voltage Range (+/-10%) 100-277V
PPF 1700 μmol/s
Efficacy 2.7 μmol/J
Min Power Factor 0.95
THD < 20%
Crest Factor 1.5
BTU 1200
Frequency 50 / 60Hz
Dimmable 0-10V Controllable
Ambient Temperature 0 - 35°C / 32-95°F
Relative Humidity 85%
Color Temperature 3900k
Color Rendering Index 90
Minimum Mounting Height 8-12” to top of Canopy
Emitter Cooling Passive / Extruded Case
Light Distribution 120º
Waterproof Rating IP66 for Damp/Wet Conditions
LED Lifespan (90% of Life) 50,000+ hours
Length 1064mm 41.9 Inch
Width 1002mm 39.4 Inch
Height 124.3mm 4.9 Inch
Weight 22.8kg 50.3 Inch
120V 5.7A 652W
208V 3.2A 632.5W
240V 2.8A 631W
277V 2.4A 630W

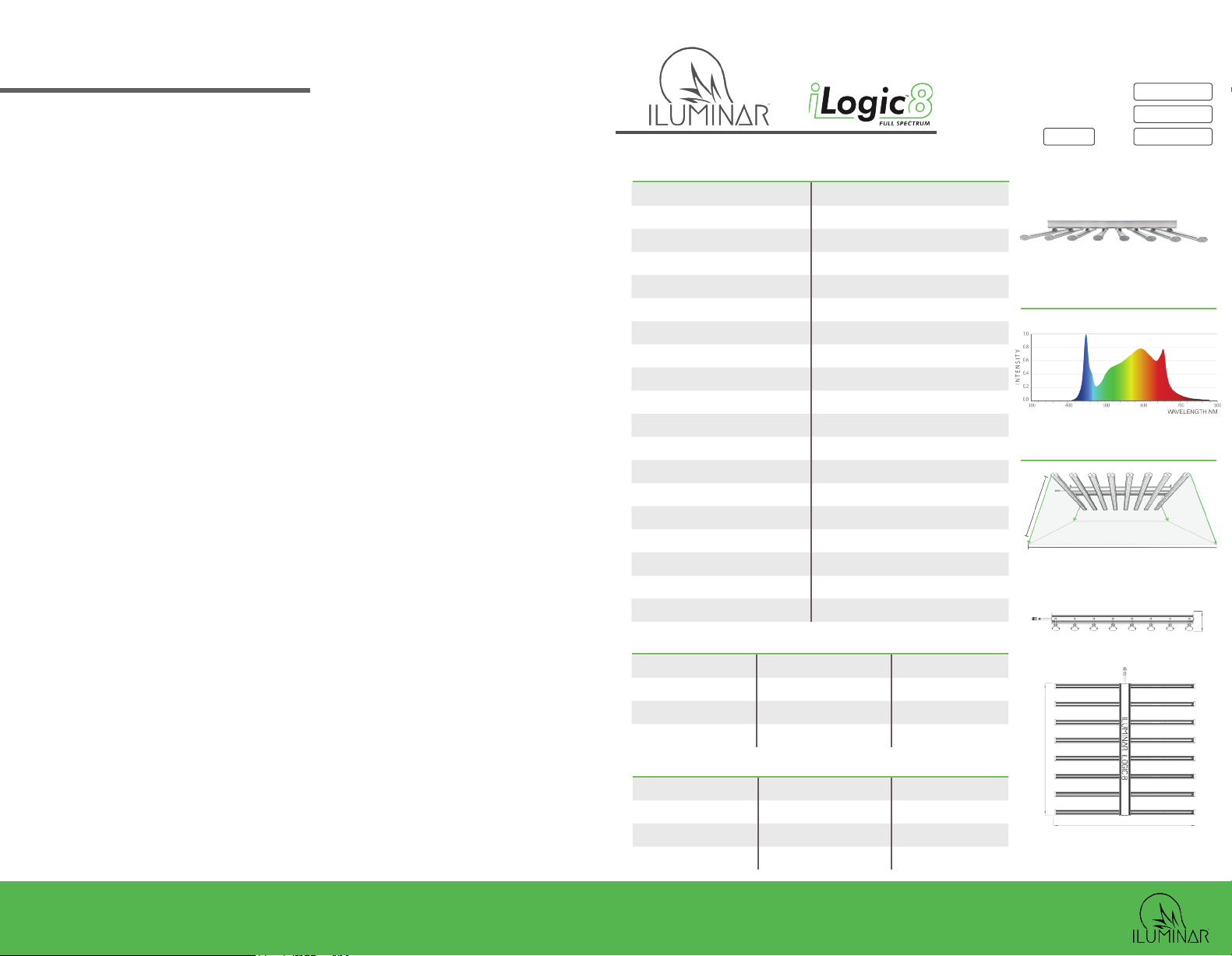

TECHNICAL SPECS
iLOGIC8 LED SPECTRUM
MOUNTING & COVERAGE
LED Lighting Solution
VOLTAGE AND AMPERAGE
VOLTAGE AND AMPERAGE
MODEL:
VOLTAGE:
SKU:WATTS: 630W
iLogic8
100-277V
IL-iLOGIC8
1002mm / 39.4”
124mm / 4.9”
1.2mm / 4’
1.2mm / 4’
25cm / 8-12”
1064mm / 41.9”

1-877-540-5588
iluminarlighting.com
[e-mail]
4
HARDWARE AND ACCESSORIES
The iLogic8 can be hung from
rope ratchets or can be mounted
to a rack.
Before you begin installation,
check that you have all the
necessary parts to begin.
1 iLogic8 Fixture
IN THE BOX
4 Rope Ratchets
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
5
1-877-540-5588
iluminarlighting.com
[email protected]
Lay the central mast on a flat table top or surface with
the attachment brackets facing UP. Attach each LED Bar
by aligning the plastic clips and carefully sliding them into
place until you hear a soft click.
CONNECTION INSTRUCTIONS
Once the plastic clips are all snapped in place, attach the A/C
cables coming from the mast to each LED bar by aligning the
connector pins and pressing the ends together. Lock by twisting
in opposite directions.
Once all the LED bars are fastened into place and A/C cables
are attached to the mast, turn the fixture over (this may require
more than one person). Ensure the flat surface is clear of
anything that could damage the delicate diodes.
2
1
3
! CAUTION when handling your ILUMINAR Fixture. The
LED array should NOT come in contact with sharp objects.
DO NOT touch diodes or apply direct force to the diodes
as this can/will cause permanent damage.

7
6
HANGING INSTALLATION
Lift the LED and attach the carabiners
to pre-installed hooks from ceiling or
mounting beam. The Ratchets should
be installed closest to the LED (and not
the ceiling).
A: Remove slack to raise fixture.
B: Give slack to lower fixture.
To suspend mount, attach the 4 rope ratchets that come packaged with
this fixture to the LED.
1
2
© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
1-877-540-5588
iluminarlighting.com
[email protected]
Once fixture is hanging with all LED bars installed, connect the power cable
(blue tip) from the outlet to one side of the fixture.
3
Power Supply
AC INPUT
Controller
Cable
Led Bar´s
A
B

8© Copyright 2021, ILUMINAR Lighting
Subject to change without notice.
CABLE LOGIC CONNECTIONS
If you’re planning to utilize several LEDs in your room or facility, one of the many benefits
of the ILUMINAR LED is that you can “daisy chain” one fixture to another to save space
and use only one outlet to run several lamps thus minimizing the amount of cords used in
your space.
If you plan to utilize the ILUMINAR HASH Controller, you can connect the
yellow connections from the controller to the fixture and then connect the Daisy
Chain Controller Cable from fixture to fixture. Please consult with our lighting
layout designers to ensure proper spacing of outlets for your unique setup.
1
1-877-540-5588
iluminarlighting.com
[email protected]
3
3
Cable Logic
RJ9 to RJ14 (Included with Touch+ Controller)
Dimming Cable
Cable Logic Secondary AC
Extension Cables
Hard Wired
Power Cable
2Cable Logic Single Joint
4Cable Logic 110V-480V
Panel Mount
Plug Options:
Cable Logic 120V AC Power
Cable Logic 240V AC Power
Cable Logic 277V AC Power Main or Sub Panel
Touch+ Controller
Electrician Wire to Panel
Junction Box
2.4 m / 8 ft
1.5 m / 5 ft
Cable Logic Main-Line AC
Extension Cable
1
Available Options
0.9 m / 3 ft
1.8 m / 6 ft
4.5 m / 15 ft
Available Options
0.9 m / 3 ft
1.8 m / 6 ft
Available Options
0.3 m / 1.3 ft
1.8 m / 6 ft
3 m / 10 ft
6 m / 20 ft
3m / 10 ft
0.15 m / 0.5 ft
0.25m / 0.85 ft
Hash Controller
Scale legend
1.6 ft (0.5 m)

10
CAUTION
1. Leave at least one inch of space between the fixture and the mounting area
for maximum performance and lifespan.
2. ALWAYS wear protective eye wear when looking directly at the diodes to
prevent eye damage.
3. Only handle, clean or move fixture when it’s unplugged and completely
cool.
4. Keep the fixture free of dust, debris, deposits to ensure the maximum
potential of the fixture.
5. NEVER use cloth to clean the diodes. This will scratch the diodes and could
potentially break or dislodge them.
6. DO NOT use chemicals to clean the fixture. Use ONLY low pressure air or
low pressure water to remove dust and debris.
7. Do NOT exceed 70% max load for breakers due to Inrush current in LED
fixtures.
Please read the following list carefully prior to beginning installation.
At ILUMINAR, we stand behind our products and our technology
as well as our customers. All ILUMINAR LED fixtures are backed
by our 5-Year Guarantee. Please visit our website iluminarlighting.
com/warranty for more information.
1-877-540-5588
iluminarlighting.com
[email protected]
GUARANTEE
