Impex MARCY SM-4903 User manual

NOTE:
PLEASE READ ALL
INSTRUCTIONS CAREFULLY
BEFORE USING THIS
PRODUCT
NOTE:
VEUILLEZ LIRE LES
INSTRUCTIONS
ATTENTIVEMENT AVANT
D’UTILISER CE PRODUIT
TABLE OF CONTENTS /
TABLE DES MATIÈRES
SAFETY NOTICE /
PRÉCAUTIONS
IMPORTANTES
ASSEMBLY INSTRUCTION /
ASSEMBLAGE
PARTS LIST / LISTE DES
PIÈCES
WARRANTY / GARANTIE
ORDERING PARTS / PIÈCES
DE RECHANGE
Model / Modèle
SM-4903
Retain This Manual for
Reference / Conserver ce
manuel comme référence
210409
ASSEMBLY & OWNER'S
MANUAL / MANUEL DU
PROPRIÉTAIRE
MARCY PRO
SMITH MACHINE
SM-4903
IMPORTANT: Please read this manual before commencing assembly
of this product.
ATTENTION! Veuillez lire attentivement le Manuel de l’utilisateur avant
d’assembler cet appareil
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: [phone]
www.marcypro.com
[e-mail]

©IMPEX INC. www.marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
1
IMPORANT SAFETY NOTICES
2
EXERCISE GUIDELINES
3
WARNING LABEL PLACEMENT
5
FREE AND TRAINING AREA
6
IMPORTANT ASSEMBLY INSTRUCTION
7
WEIGHT CAPACITY AND DIMENSION
8
CARE AND MAINTENANCE
8
OPERATING NOTES
9
WEIGHT RESISTANCE CHART
9
SMITH MACHINE PARTS LIST
10
SMITH MACHINE EXPLODED DIAGRAM
14
WARRANTY
16
ORDERING PARTS
16
BEFORE YOU BEGIN
Thank you for selecting MARCY PRO SMITH MACHINE SM-4903 by
IMPEX®INC. For your safety and benefit, read this manual carefully before
using the equipment. As a manufacturer, we are committed to providing you
with complete customer satisfaction. If you have any questions, or find there
are missing or damaged parts, we guarantee you complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer Service
Agents will provide immediate assistance.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.marcypro.com
[e-mail]

©IMPEX INC. www.marcypro.com
2
IMPORTANT SAFETY NOTICE
This exercise equipment is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your equipment. In particular, note the following safety
precautions:
1. Keep children and pets away from the equipment at all times. DO NOT
leave children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the equipment on a clear, leveled surface. DO NOT use the equipment
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment. Running
or aerobic shoes are also required when using the equipment.
7. Use the equipment only for its intended use as described in this manual.
DO NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the equipment.
9. Disabled persons should not use the equipment.
10. Before using the equipment to exercise, always do stretching exercises to
properly warm up.
11. Never operate the equipment if the equipment is not functioning properly.
12. A spotter is recommended during exercise.
13. This equipment is designed and intended for home and consumer use only, not for
commercial use.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.marcypro.com
3
EXECISE GUIDELINES
Building Muscle and Gaining Weight
Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on
strength training. A gradual weight gain can occur while building the size and strength of muscles.
While developing muscle mass, your body adapts to the stress placed upon it. You can modify your
diet to include foods such as meat, fish and vegetables. These foods help muscles recover and
replenish important nutrients after a strenuous workout.
Muscle Strength and Endurance
To achieve the greatest benefit from exercise, it is important to develop an exercise program that
allows you to work all of the major muscle groups equally.
To increase muscle strength, follow this principle:
Increasing resistance and maintaining the number of repetitions of an exercise results in increased
muscle strength.
To tone your body, follow this principle: Decreasing resistance plus increasing the number of
repetitions of an exercise results in increased body tone.
Once you feel comfortable with an exercise, you can change the resistance, the number of
repetitions, or the speed at which you do the exercise. It is not necessary to change all three
variables. For example, let’s say that you are training at 23 kg (50 lb.) and performing the exercise 10
times in 3 minutes. When this becomes too easy, you may decide to move up to lifting 27 kg (60 lb.)
for the same number of repetitions in the same amount of time. Lifting more weights fewer times most
often develops muscle strength. To gain both muscle strength and endurance, it is recommended that
you perform each exercise 15 to 20 reps per set.
Training Intensity
How hard you begin to train depends on your overall level of fitness. The soreness you experienced
can be lessened by decreasing the load you place on your muscles and by performing fewer sets. To
avoid injury, you should gradually work into an exercise program and set the load to your individual
fitness level. The load should increase as your fitness level increases.
Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a
long time, it may be time to change your program. Eventually, your muscle system will become
accustomed to the stress and strain placed on it.

©IMPEX INC. www.marcypro.com
4
Beginning a Strength Building Program
Warming Up
To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes.
This helps prepare the body for more strenuous exercise by increasing circulation, raising your body
temperature and developing more oxygen to your muscles.
Workout
For each workout, to keep in mind that muscle soreness that lasts for a long period is not desirable
and may mean that injury has occurred.
Cool Down
At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each
stretch only going as far as you can. This stage allows your muscles to wind down after training.
To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is
performed in addition to the strength training.
Drinking Water
For the body to function properly, it must be properly hydrated. If you are exercising, you should
increase your fluid intake. The reason for this is that the water you take in will leave your system
through the sweating mechanism that cools your body during exercise. The water you lose through
exercise must be replaced so that the muscles can recover properly.
Rest Day
Although you may not feel like doing it, taking a rest day at least once a week is important because it
gives your body a chance to heal it self. Continuously working your muscles will result in over-
training, which will not benefit you in the long run.

©IMPEX INC. www.marcypro.com
5
WARNING LABEL PLACEMENT
The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer, and Upper Frame. If the
labels are missing or illegible, please call customer service at 1-800-999-8899 for replacements. Apply the labels
in the location shown.

©IMPEX INC. www.marcypro.com
6

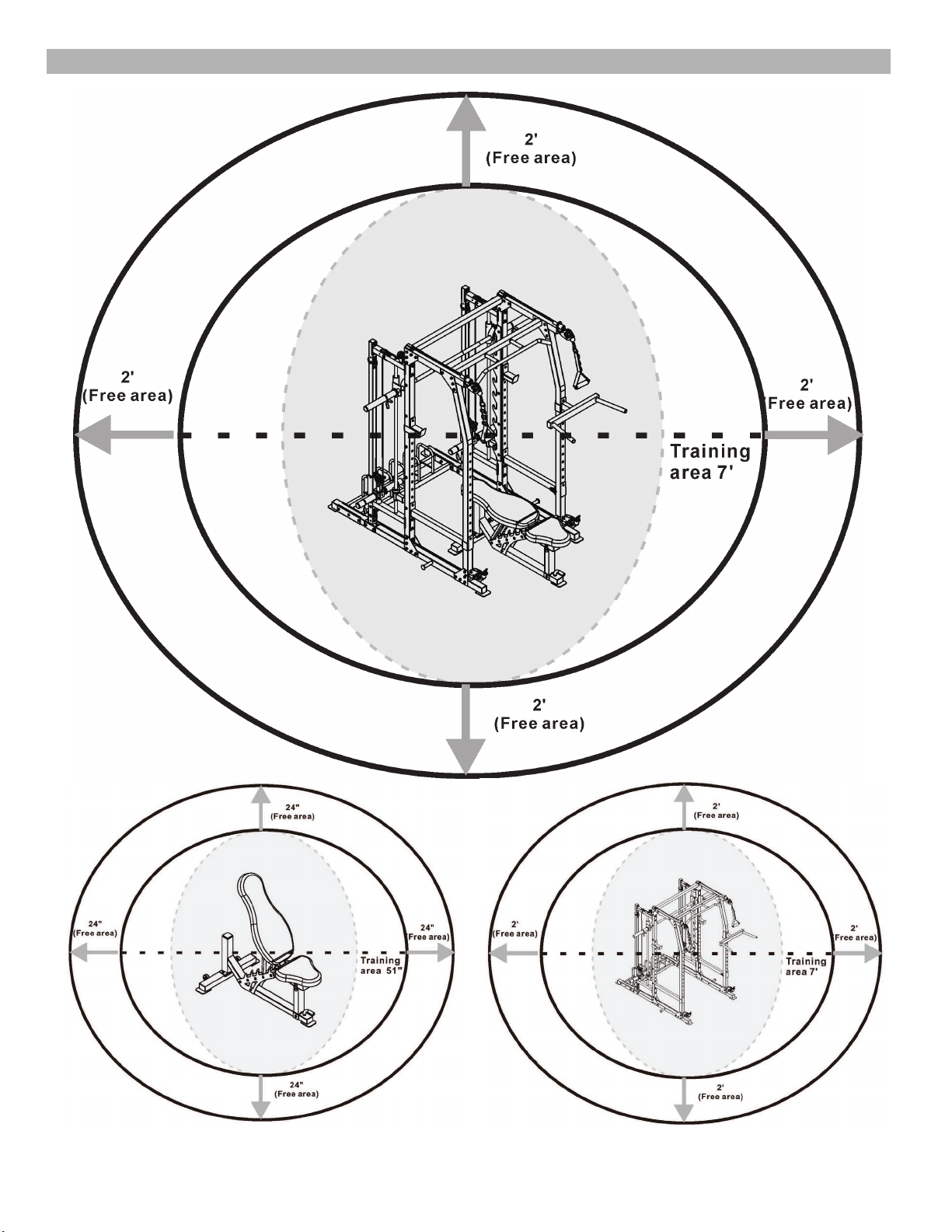

FREE AND TRAINING AREA

©IMPEX INC. www.marcypro.com
7
IMPORTANT ASSEMBLY INFORMATION
Tools required for assembling the bench: Two adjustable Wrenches and Allen wrenches.
NOTE: It is strongly recommended that this equipment be assembled by two or more
people to avoid possible injury.
Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to
be assembled. Attach washer only to end of the Carriage Bolt.
Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to
be assembled.
Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not
tighten each bolt right after it is installed
Fasten Nuts and Bolts
Securely tighten all nuts and bolts after all
components have been assembled in current and
previous steps.
NOTE: Do not over-tighten any component with
pivoting function.
Make sure all pivoting components are able to move
freely.
Do not tighten all nuts and bolts in this step.
Inspect and ensure all bolts and Nuts are fastened after the equipment is
completely assembled.
Assemble with correct Hardware Pack
Only use the hardware packs marked “For Smith Machine” to assemble Smith Machine.
Only use the hardware packs marked “For Bench” to assemble Bench.
Tools
Tools required for assembling this equipment: Allen Wrenches (provided by manufacturer), and
Adjustable Wrench, or Socket Wrench, or Ratchet Wrench.
NOTE: It is strongly recommended that this machine be assembled and moved by two or
more people to avoid possible injury.

©IMPEX INC. www.marcypro.com
8
WEIGHT CAPACITY AND DIMENSION
1. Maximum user weight: 300 lbs.
2. Maximum weight on Sliding Weight Trolley (#26): 300 lbs (150lbs on each side)
3. Maximum weight on Safety Bar Catch Brace (#5 & #6) and Bar catches (#10 & #11):
300 lbs
4. Maximum weight on Weight Bar (#27): 300 lbs
5. Maximum weight on Bench: 600lbs (including user weights)
6. Cage assembled dimensions: 86"x73"x85"
7. Bench assembled dimensions: 48"x27"x49"
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Examine the equipment regularly for signs of damage or wear.
5. Replace any defective components immediately and/or keep the equipment out of use until
repair.
6. Failure to examine regularly may affect the safety level of the equipment.

©IMPEX INC. www.marcypro.com
9
OPERATION NOTES
This equipment should be placed on flat surface. The incline or decline of surface should
be limited to 3% or less for best performance and safety.
Bench Backrest Adjustment Angles
Backrest adjustment angle ranges from 00 to 790.
SM-4903 WEIGHT RESISTANCE CHART
*Numbers are approximate. Actual resistance may vary.

©IMPEX INC. www.marcypro.com
10
SM-4903 SMITH MACHINE PARTS LIST
PART NO
DESCRIPTION
SIZE
QUANTITY
1 Cross Brace 1
2 Left Base Frame 1
3 Right Base Frame 1
4 Upper Rear Crossbeam 1
5 Right Safety Car Catch Brace 1
6 Left Safety Car Catch Brace 1
7 Upper Frame 2
8 Anchor 2
9 Front Vertical Beam 2
10 Right Bar Catch 1
11 Left Bar Catch 1
12 Rear Vertical Beam 2
13 Weight Plate Divider 5
14 Pull Up Assembly 1
15 Front Upper Frame 1
16 Safety Stop Frame 2
17 Rear Vertical Support 2
18 Lower Rear Support 2
19 Upper Rear Support 2
20 Right Bracket 2
21 Left Bracket 2
22 Pulley Housing 4
23 Dip Station Attachment 1
24 Left Safety Stop Limiter 1
25 Right Safety Stop Limiter 1
26 Sliding Weight Trolley 2
27 Weight Bar 1
28 Safety Catch 2
29 Guide Rod 2
30 Bench Main Frame 1
31 Seat Support 1
32 Rear Stabilizer 1
33 Bench Incline Support 1

©IMPEX INC. www.marcypro.com
11
34 Front Post Bracket 1
35 Back Rest Support 1
36 Seat Support 2
37 Front Post 1
38 Seat Incline Support 1
39 Incline Adjustment Base 2
40 Cross Brace Bracket 2
41 Rear Vertical Beam Bracket 6
42 Front Vertical Beam Bracket 2
43 Lower Rear Support Bracket 6
44 Allen Bolt M8×¾" 4
45 Allen Bolt M8×1½" 6
46 Allen Bolt M10×¾" 10
47 Allen Bolt M10×1⅜" 2
48 Allen Bolt M10×1½" 2
49 Allen Bolt M10×1¾" 6
50 Allen Bolt M10×2" 2
51 Allen Bolt M10×2⅜" 2
52 Allen Bolt M10×2½" 8
53 Allen Bolt M10×3⅛" 12
54 Allen Bolt M10×3½" 6
55 Allen Bolt M10×6¼” 1
56 Hex Bolt M12×6¼” 2
57 Hex Bolt M12×3⅜" 4
58 Carriage Bolt M10×2½" 4
59 Carriage Bolt M10×2¾" 2
60 Carriage Bolt M10×3⅛" 50
61 Washer Ø5/8" 12
62 Washer Ø3/4" 137
63 Washer Ø1" 12
64 Spring Washer Ø3/4" 2
65 Aircraft Nut M8 2
66 Aircraft Nut M10 98
67 Aircraft Nut M12 6
68 Bushing Ø⅞"×5/8" 8

©IMPEX INC. www.marcypro.com
12
69 Bushing Ø⅞"×½" 4
70 Screw M6×5/8" 2
71 Set Screw M6×1/4" 2
72 External Retaining Ring 4
73 Internal Retaining Ring 4
74 Linear Bearing 4
75 Bushing 8
76 Square End Cap 口2⅜" 4
77 Square End Cap 口1¾" 2
78 Square End Cap 口1" 4
79 Rectangular End Cap 2"×2¾" 4
80 Rectangular End Cap 1½"×2⅜" 2
81 Rectangular End Cap 1⅛"×2⅜" 2
82 Round End Cap Ø1" 8
83 Round End Cap ؾ" 12
84 Bushing 2
85 Rubber Bumper Pad 1
86 Rubber Bumper 2
87 Plastic Insert 4
88 Rubber Bumper 4
89 Non-Slip Pad 2
90 Spacer 2
91 Grip 2
92 Grip 2
93 Grip 1
94 Grip 1
95 Locking Pin Ø1/2"×4" 1
96 Transport Wheel 2
97 Locking Pin Head M8 1
98 Cable Retainer 4
99 Bushing 4
100 Round Rubber Bumper 2
101 Spring Collar 6
102 Locking Knob M16×1.5 2
103 Spring Collar Sleeve 12

©IMPEX INC. www.marcypro.com
13
104 Clip Hook 4
105 Single Handle 2
106 Pulley Ø4" 12
107 Pulley Ø3½" 4
108 Cable 281.5" 2
109 Ball Stop 2
110 U Bracket 2
111 Short Sleeve 4
112 Long Sleeve 2
113 Back Rest Pad 1
114 Seat Pad 1
115 Carriage Bolt M10×3½" 1
116 Locking Pin Ø1/2"× 3½" 1

SM-4903 SMITH MACHINE EXPLODED DIAGRAM

15
©IMPEX INC. www.marcypro.com
SM-4903 SMITH MACHINE EXPLODED DIAGRAM

16
©IMPEX INC. www.marcypro.com
IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under normal use and
service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the
original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer Service
Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This
warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service centre or for products used
for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the
use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues
or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages of whatsoever natures.
Some States do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above
limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability
or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some States do not
allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from State to State.
Register online at www.marcypro.com.
IMPEX®INC.
2801 S. Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899 during our
regular business hours: Monday through Friday, 9 a.m. to 5 p.m. Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase

17
©IMPEX INC. www.marcypro.com
TABLE DES MATIÈRES
AVANT DE COMMENCER
Merci d’avoir choisi le MARCY SMITH MACHINE SM-4903 d'IMPEX®INC.
Afin d’assurer votre sécurité et de tirer le maximum de ce produit, veuillez lire
ce guide attentivement avant d’utiliser l’appareil. En tant que fabricant, nous
nous engageons à garantir votre entière satisfaction. Si vous avez des
questions ou si certaines pièces manquent ou sont endommagées, notre
Service à la clientèle à l’usine garantira votre entière satisfaction. Afin
d’éviter les délais, veuillez téléphoner à notre Service à la clientèle au
NUMÉRO SANS FRAIS ci-dessous. Nos agents se feront un plaisir de vous
aider immédiatement.
Numéro sans frais du Service à la clientèle
1-800-999-8899 (anglais)
lundi au vendredi : 9 h à 17 h HNP
www.marcypro.com
[e-mail]
AVANT DE COMMENCER
17
AVIS IMPORTANTS SUR LA SÉCURITÉ
18
GUIDE D’EXERCICE
19
EMPLACEMENT DE L’ÉTIQUETTE DE MISE EN GARDE
21
ESPACE LIBRE ET ESPACE D’ENTRAÎNEMENT
22
INSTRUCTIONS D’ASSEMBLAGE IMPORTANTES
23
CAPACITÉ DE POIDS ET DIMENSIONS
24
ENTRETIEN ET ENTREPOSAGE
24
TABLEAU DE RÉSISTANCE DES POIDS
24
NOTES D’UTILISATION
25
LISTE DES PIÈCES
26
VUE ÉCLATÉE
30
GARANTIE
32
COMMANDER DES PIÈCES
32

18
©IMPEX INC. www.marcypro.com
AVIS DE SÉCURITÉ IMPORTANT
Cet appareil d’exercices a été conçu pour offrir un maximum de sécurité. Toutefois, il est
important de prendre certaines précautions au moment d’utiliser tout appareil d’exercices.
Lisez attentivement tout le guide avant d’assembler ou d’utiliser cet appareil. Prenez note
tout particulièrement des mesures de sécurité suivantes.
1. Tenir les enfants et les animaux domestiques loin de l’appareil en tout temps.
NE JAMAIS laisser un enfant sans surveillance dans la pièce où se trouve l’appareil.
2. L’appareil doit être utilisé par une seule personne à la fois.
3. Si l’utilisateur éprouve des étourdissements, des nausées, des douleurs à la poitrine ou
tout autre symptôme anormal, il doit CESSER l’exercice aussitôt et CONSULTER UN
MÉDECIN IMMÉDIATEMENT.
4. Placer l’appareil sur une surface de niveau et bien dégagée. NE PAS utiliser l’appareil
près de l’eau ou à l’extérieur.
5. Garder les mains loin de toutes les pièces mobiles.
6. Toujours porter des vêtements d’entraînement appropriés pour faire de l’exercice. NE PAS
porter de peignoir ou tout autre vêtement qui pourrait se coincer dans l’appareil. Le port de
chaussures de sport ou aérobiques est également requis pour utiliser l’appareil.
7. N’utiliser l’appareil qu’aux fins décrites dans ce guide. NE PAS utiliser d’accessoires non
recommandés par le fabricant avec ce produit.
8. Ne placer aucun objet tranchant près de l’appareil.
9. Les personnes handicapées ne devraient pas utiliser cet appareil.
10. Avant d’utiliser l’appareil, toujours faire des exercices d’étirement pour réchauffer les
muscles.
11. Ne jamais utiliser l’appareil si ce dernier ne fonctionne pas correctement.
12. Il est recommandé d’utiliser l’appareil en présence d’un surveillant.
13. Cet appareil est conçu uniquement pour l’usage domestique par les
consommateurs. Il n’est pas conçu à des fins commerciales.
ATTENTION! AVANT D’ENTREPRENDRE UN PROGRAMME D’EXERCICES, CONSULTEZ
VOTRE MÉDECIN. CECI EST TOUT PARTICULIÈREMENT INDIQUÉ POUR LES
PERSONNES DE 35 ANS ET PLUS OU QUI SOUFFRENT DÉJÀ DE PROBLÈMES DE
SANTÉ. LIRE TOUTES LES INSTRUCTIONS ATTENTIVEMENT AVANT D’UTILISER UN
APPAREIL D’EXERCICES. IMPEX INC. NE PEUT ÊTRE TENUE RESPONSABLE
D’AUCUNE BLESSURE NI D’AUCUN DOMMAGE MATÉRIEL SUBI PAR OU DÉCOULANT
DE L’UTILISATION DE CE PRODUIT.
VEUILLEZ CONSERVER CES INSTRUCTIONS.

19
©IMPEX INC. www.marcypro.com
INSTRUCTIONS LIÉES AUX EXERCICES
Développement des muscles et prise de poids
Contrairement à l’exercice aérobique qui met l’accent sur l’entraînement d’endurance, l’exercice
anaérobique est axé sur l’entraînement en force musculaire. La prise de poids graduelle peut survenir
alors que les muscles se développent et prennent de la force. Lorsque la masse musculaire se
développe, le corps s’adapte au stress qui lui est imposé. Vous pouvez modifier votre alimentation en
consommant de la viande, du poisson et des légumes. Ces aliments aident les muscles à récupérer
et à se réapprovisionner en éléments nutritifs après une séance d’exercices rigoureux.
Force musculaire et endurance
Afin de profiter au maximum des bienfaits de l’exercice, il est important d’établir un programme
d’exercices permettant de faire travailler tous les principaux groupes musculaires de manière égale.
Pour augmenter votre force musculaire, augmentez la résistance et maintenez le nombre de
répétitions de l’exercice.
Pour tonifier vos muscles, réduisez la résistance et augmentez le nombre de répétitions de l’exercice.
Une fois que vous êtes à l’aise avec un exercice, vous pouvez modifier la résistance, le nombre de
répétitions ou la vitesse à laquelle vous faites l’exercice. Il n’est pas nécessaire de modifier les trois
variables. Par exemple, disons que vous vous entraînez avec 22 kg (50 lb) et faites l’exercice 10 fois
en 3 minutes. Lorsque l’exercice devient trop facile, vous pouvez passer à 27 kg (60 lb) et faire le
même nombre de répétitions dans le même temps. La force musculaire se développe lorsque les
poids sont plus lourds, mais soulevés moins souvent. Si vous désirez développer votre force
musculaire et votre endurance en même temps, il est recommandé de faire chaque exercice de 15 à
20 fois par série.
Intensité de l’entraînement
Au début, l’intensité de votre entraînement dépend de votre condition physique générale.
L’endolorissement des muscles peut être diminué en réduisant le poids soulevé et en réduisant le
nombre de séries d’exercices. Afin d’éviter les blessures, il est préférable de commencer par des
exercices légers et d’établir le poids selon votre condition physique. Le poids devrait augmenter selon
l’amélioration de votre condition physique.
Il est normal d’avoir les muscles endoloris, surtout au début d’un programme d’exercices. Si la
douleur dure longtemps, c’est peut-être le moment de modifier le programme. Éventuellement, votre
système musculaire s’accoutumera au stress et à la tension qu’il subit.
