In-situ Level TROLL 500 User manual

Operator's Manual
Level TROLL®400, 500, 700, 700H Instruments
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu, Pocket-Situ, RDO,
RuggedCable, RuggedReader, SmarTROLL™, TROLL, VuSitu, and Win-Situ are trademarks or registered trademarks of In-Situ Inc.©2013.
All rights reserved. This product may be covered by patents identified at www.in-situ.com/patents
0052212 | 2018-05-07

1-800-446-7488 2www.in-situ.com
Copyright © 2013 by In-Situ All rights reserved.
This document contains proprietary information which is protected by copyright. No part of this document may be
photocopied, reproduced, or translated to another language without the prior written consent of In-Situ
Mailing and Shipping
Address: Phone: [phone] (international & domestic)
In-Situ
221 East Lincoln Avenue
Fort Collins, CO 80524
U.S.A.
Fax: [phone]
Internet: www.in-situ.com
Support: 800-446-7488 (U.S.A. & Canada)
In-Situ makes no warranty of any kind with regard to this material, including, but not limited to, its fitness for a particular
application. In-Situ will not be liable for errors contained herein or for incidental or consequential damages in connection with
the furnishing, performance, or use of this material.
In no event shall In-Situ Inc. be liable for any claim for direct, incidental, or consequential damages arising out of, or in
connection with, the sale, manufacture, delivery, or use of any product.
In-Situ and the In-Situ logo, Win-Situ, TROLL, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu, Pocket-Situ, RDO,
RuggedCable, RuggedReader, SmarTROLL™, TROLL, VuSitu™, and Win-Situ are trademarks or registered trademarks of
In-Situ Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of
Intel. Tefzel and Delrin are registered trademarks of E. I. DuPont de Nemours and Company. Viton is a registered trademark
of DuPont Dow Elastomers. Kellems is a registered trademark of Hubbell Inc. Alconox is a registered trademark of Alconox
Company. Lime-A-Way is a registered trademark of Reckitt Benckiser. Android is a trademark of Google Inc. iPod and
iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are
registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by In-Situ Inc. is under license. NIST is a
registered trademark of the National Institute of Standards and Technology, U.S.A. Other brand names and trademarks are
property of their respective owners.
The presence of the Waste Electrical and Electronic Equipment (WEEE)
marking on the product indicates that the device is not to be disposed via
the municipal waste collection system of any member state of the European
Union.
For products under the requirement of WEEE directive, please contact your
distributor or local In-Situ office for the proper decontamination
information and take back program, which will facilitate the proper
collection, treatment, recovery, recycling, and safe disposal of the device.
0052212 | 2018-05-07

1-800-446-7488 3www.in-situ.com
Table of Contents
1 Introduction 7
Scope 7
Serial Number Location 7
Certification 7
Unpacking and Inspection 7
Warranty 7
Contact Information 7
2 Product Specifications 8
Level TROLL 400 Instrument 8
Level TROLL 500 Instrument 9
Level TROLL 700 Instrument 11
Level TROLL 700H Instrument 12
BaroTROLL Instrument 13
RuggedCable System 14
Suspension Wire 14
3 About the Pressure/Level Sensor 15
Absolute Pressure Sensor 15
Gauged Pressure Sensor 15
BaroTROLL Atmospheric Pressure Sensor 16
Configuring Depth and Level for PLC or Data Logger 16
4 System Components 18
Instrument 18
RuggedCable System 18
Vented or Non-Vented Cable 18
Jacket Options 18
Customizable Cable Lengths 18
Cable Termination 18
Suspension Wire 20
Communication Cables 21
Description 21
Contents 22
Charging the Communication Device 22
Battery Tips 22
Connecting to a Wireless TROLL Com 23
Power Options 24
Internal Power—Batteries 24
AC Adapter 24
External Power—External Battery Packs 24
TROLL Battery Pack 24
TROLL Replaceable Battery Pack 25

1-800-446-7488 4www.in-situ.com
Estimated Battery Lifetime 25
Installation Accessories 26
NPT Adapter 26
Cable Extender 26
Twist-Lock Hanger 26
Bulkhead Connector 27
Locking Well Cap 27
Well Dock Installation Ring 28
5 Software 28
About VuSitu 28
Connecting Your Instrument to VuSitu 29
Selecting with Long-press and Swipe 30
Taking live readings in VuSitu 31
Setting Up a Log 32
Downloading and sharing your data. 32
6 Getting Started 33
Select a TROLL Com Communication Device 33
Connecting RuggedCable 35
Connect the Instrument to the RuggedCable 35
Connect TROLL Com Communication Device to the RuggedCable System 35
Install the Software 36
Win-Situ 5 Software 36
7 Field Deployment 37
Program the Instrument 37
Position the Instrument 37
Verify Instrument Depth 38
Secure the Cable 38
Install the Desiccant 39
Desiccant 39
Installation Guidelines 39
Stabilization Time 40
BaroTROLL Instrument Installation 41
Programming the Baro TROLL Instrument 41
Installation 41
8 Win-Situ Overview 43
Data Tab 43
Home Tab 45
Logging Tab 48
Sensors Tab 50
Device Setup Tab 50
9 Using Win-Situ 5 Software 52
Connecting an Instrument to the Software 52

1-800-446-7488 5www.in-situ.com
Selecting the Correct COM Port 52
Bluetooth &Wireless TROLLCom 53
Setting the Instrument Time 53
Adding a New Site 54
Log Setup 54
Logging Method Descriptions 54
Logging Methods for Long-Term Monitoring 54
Linear 54
Linear Average 55
Event 55
Logging Methods for Aquifer Testing 55
True Logarithmic 55
Fast Linear 55
Step Linear 55
About the Level Reference 55
Starting a Log 56
Starting a Pending Log 56
Starting a Manual Log 56
Suspending (Pausing) a Log 56
Resuming a Suspended Log 56
Stopping a Log 57
Downloading Data to a PC 57
Viewing Logged Data 57
Importing VuSitu Data to Win-Situ 58
Using BaroMerge Software 59
BaroMerge Input—BaroTROLL File 59
BaroMerge Output 60
Disconnecting an Instrument from the Software 61
10 Connect to a Data Logger or PLC Controller 61
Wiring 63
Analog (4-20 mA) 2 Wire 64
SDI-12 3 Wire 65
Modbus Master 66
Modbus Master with RS232 (Converter Required) 67
Power Connections 68
Communication Protocols 68
Redundant Logging 68
11 Cleaning and Maintenance 70
Overview 70
Operating Considerations 70
Temperature 70
Pressure Range 70
Batteries 70

1-800-446-7488 6www.in-situ.com
Desiccant Pack Options 71
Small Desiccant 71
Large and Extra Large Desiccant 71
Outboard Desiccant 71
Desiccant Refill Kit 72
Installing Desiccant with Twist-Lock Connectors 72
Installing Outboard Desiccant 72
Using the Desiccant Refill Kit 73
Antifouling 73
TROLL Shield Nose Cone 73
O-ring Inspection and Replacement 74
Cleaning and Storage 75
Cleaning the Instrument 75
Twist-Lock Connectors 75
Storage 75
Factory Calibration and Service 76
In-House Factory Calibration 76
Return Materials Authorization (RMA) Form 76
Obtaining Repair Service 76
Guidelines for Cleaning Returned Equipment 77
12 Decontamination and Cleaning Form 78
13 Troubleshooting 79
14 Declarations of Conformity and Similarity 81

1-800-446-7488 7www.in-situ.com
Introduction
The Level TROLL Instrument is a compact, modular system for measuring level and temperature in natural groundwater,
surface water, industrial waters, and other installations.
Scope
This document is intended to describe the characteristics, operation, calibration, and maintenance of the instrument.
Communication registers and SDI-12 programming information can be found in the Modbus and SDI-12 Reference Guides on
the In-Situ website.
Serial Number Location
The serial number is engraved on the instrument housing. It is also programmed into the instrument and is displayed when the
instrument is connected to a computer running Win-Situ Software.
Certification
See the Declarations of conformity at end of this manual.
Unpacking and Inspection
Your instrument was carefully inspected before shipping. Check for any physical damage sustained during shipment. Notify
In-Situ and file a claim with the carriers involved if there is any shipping damage. Accessories may be shipped separately and
should also be inspected for physical damage and the fulfillment of your order.
Please save packing materials for future storage and shipping. The shipping boxes have
been performance-tested and provide protection for the instrument and its accessories.
Warranty
See the product specification tables for warranty information.
Contact Information
Mailing and Shipping
Address: Phone: [phone] (international & domestic)
In-Situ
221 East Lincoln Avenue
Fort Collins, CO 80524
U.S.A.
Fax: [phone]
Internet: www.in-situ.com
Support: 800-446-7488 (U.S.A. & Canada)

1-800-446-7488 8www.in-situ.com
Product Specifications
Level TROLL 400 Instrument
General Level TROLL 400
Temperature ranges1
Operational: -20-80° C (-4-176° F)
Storage: -40-80° C (-40-176° F)
Calibrated: -5-50° C (23-122° F)
Diameter 1.83 cm (0.72 in.)
Length 21.6 cm (8.5 in.)
Weight 124 g (0.27 lb)
Materials Titanium body; Delrin nose cone
Output options Modbus/RS485, SDI-12, 4-20 mA
Battery type & life23.6 V lithium; 10 years or 2M readings
External power 8-36 VDC
Memory
Data records3
Data logs
2.0 MB
130,000
50
Log types Linear, Fast Linear, and Event
Fastest logging rate &
Modbus rate 2 per second
Fastest SDI-12 & 4-20
mA output rate 1 per second
Real-time clock Accurate to 1 second/24-hr period
Sensor Type/Material Piezoresistive; titanium
Calibrated Range
(Usable Depth)
Absolute (non-vented)
30 psia (11 m, 35 ft)
100 psia (60 m, 197 ft)
300 psia (200 m, 658 ft)
500 psia (341 m, 1120 ft)
Burst pressure Max. 2x range; burst > 3x range
Accuracy (FS)4±0.05%
Long-term stability5< 0.1%FS
Resolution ±0.005% FS or better
Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O
Level: in, ft, mm, cm, m
Temperature Sensor
Accuracy & resolution ±0.1° C; 0.01° C or better
Units of measure Celsius or Fahrenheit
Warranty 3 years
Extended warranties are available for all instruments—call for details

1-800-446-7488 9www.in-situ.com
Footnotes
1Temperature range for non-freezing liquids
2Typical battery life when used within the factory-calibrated temperature range
31 data record = date/time plus 2 parameters logged (no wrapping) from device within the factory-
calibrated temperature range
4Across factory-calibrated pressure and temperature ranges. Defined as greater than 98% of all
readings fall within spec across full temperature and pressure
5Includes linearity and hysteresis over one year
Specifications are subject to change without notice.
Delrin is a registered trademark of E.I. du Pont de Nemours and Company.
Level TROLL 500 Instrument
General Level TROLL 500
Temperature ranges1
Operational: -20-80° C (-4-176° F)
Storage: -40-80° C (-40-176° F)
Calibrated: -5-50° C (23-122° F)
Diameter 1.83 cm (0.72 in.)
Length 21.6 cm (8.5 in.)
Weight 124 g (0.27 lb)
Materials Titanium body; Delrin nose cone
Output options Modbus/RS485, SDI-12, 4-20 mA
Battery type & life23.6 V lithium; 10 years or 2M readings
External power 8-36 VDC
Memory
Data records3
Data logs
2.0 MB
130,000
50
Log types Linear, Fast Linear, and Event
Fastest logging rate & Modbus rate 2 per second
Fastest SDI-12 & 4-20 mA output rate 1 per second
Real-time clock Accurate to 1 second/24-hr period
Sensor Type/Material Piezoresistive; titanium
Calibrated Range
(Usable Depth)
Gauged (vented)
5 psig (3.5 m, 11.5 ft)
15 psig (11 m, 35 ft)
30 psig (21 m, 69 ft)
100 psig (70 m, 231 ft)
300 psig (210 m, 692 ft)
500 psig (351 m, 1153 ft)
Burst pressure Max. 2x range; burst > 3x range
Accuracy (FS)4±0.05%
Resolution ±0.005% FS or better
Long-term stability5< 0.1%FS
Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O
Level: in, ft, mm, cm, m
Temperature Sensor
Accuracy & resolution ±0.1° C; 0.01° C or better
Units of measure Celsius or Fahrenheit

1-800-446-7488 10 www.in-situ.com
Warranty 3 years
Extended warranties are available for all instruments—call for details
Footnotes See See page 8.

1-800-446-7488 11 www.in-situ.com
Level TROLL 700 Instrument
General Level TROLL 700
Temperature ranges1
Operational: -20-80° C (-4-176° F)
Storage: -40-80° C (-40-176° F)
Calibrated: -5-50° C (23-122° F)
Diameter 1.83 cm (0.72 in.)
Length 21.6 cm (8.5 in.)
Weight 124 g (0.27 lb)
Materials Titanium body; Delrin nose cone
Output options Modbus/RS485, SDI-12, 4-20 mA
Battery type & life23.6 V lithium; 10 years or 2M readings
External power 8-36 VDC
Memory
Data records3
Data logs
4.0 MB
260,000
50
Log types Linear, Fast Linear, Linear Average, Event, Step Linear, True Logarithmic
Fastest logging rate & Modbus rate 4 per second
Fastest SDI-12 & 4-20 mA output rate 1 per second
Real-time clock Accurate to 1 second/24-hr period
Sensor Type/Material Piezoresistive; titanium
Calibrated Range
(Usable Depth)
Absolute (non-vented)
30 psia (11 m, 35 ft)
100 psia (60 m, 197 ft)
300 psia (200 m, 658 ft)
500 psia (341 m, 1120 ft)
1000 psia (693 m, 2273 ft)
Gauged (vented)
5 psig (3.5 m, 11.5 ft)
15 psig (11 m, 35 ft)
30 psig (21 m, 69 ft)
100 psig (70 m, 231 ft)
300 psig (210 m, 692 ft)
500 psig (351 m, 1153 ft)
Burst pressure Max. 2x range; burst > 3x range
Accuracy (FS)4±0.05%
Resolution ±0.005% FS or better
Long-term stability5< 0.1%FS
Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O
Level: in, ft, mm, cm, m
Temperature Sensor
Accuracy & resolution ±0.1° C; 0.01° C or better
Units of measure Celsius or Fahrenheit
Warranty 3 years
Extended warranties are available for all instruments—call for details
Footnotes See See page 8.

1-800-446-7488 12 www.in-situ.com
Level TROLL 700H Instrument
Comply with the Office of Surface Water by using the most accurate pressure transducer available. The Level TROLL 700H
meets the surface-water specification of ±0.01 foot.
For accuracy under all operating conditions, instruments are calibrated over the full pressure and temperature range. Each
instrument includes a serialized, NIST-traceable calibration report.
General Level TROLL 700H
Temperature ranges1
Operational: -20-80° C (-4-176° F)
Storage: -40-80° C (-40-176° F)
Calibrated: 0-40° C (32-104° F)
Diameter 1.83 cm (0.72 in.)
Length 21.6 cm (8.5 in.)
Weight 124 g (0.27 lb)
Materials Titanium body; Delrin nose cone
Output options Modbus/RS485, SDI-12, 4-20 mA
Battery type & life23.6 V lithium; 10 years or 2M readings
External power 8-36 VDC
Memory
Data records3
Data logs
4.0 MB
260,000
50
Log types Linear, Fast Linear, Linear Average, Event, Step Linear, True Logarithmic
Fastest logging rate & Modbus rate 4 per second
Fastest SDI-12 & 4-20 mA output rate 1 per second
Real-time clock Accurate to 1 second/24-hr period
Pressure Sensor Type/Material Piezoresistive; titanium
Calibrated Range
(Usable Depth)
Gauged (vented)
15 psig (11 m, 35 ft)
Burst pressure Max. 2x range; burst > 3x range
Accuracy5±0.01 foot up to 15 ft and ±0.1% of reading > 15 ft
Resolution ±0.005% FS or better
Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O
Level: mm, cm, m, in, ft,
Temperature Sensor
Accuracy & resolution ±0.1° C; 0.01° C or better
Units of measure Celsius or Fahrenheit
Warranty 3 years
Extended warranties are available for all instruments—call for details
Footnotes See See page 8.

1-800-446-7488 13 www.in-situ.com
BaroTROLL Instrument
The titanium BaroTROLL measures and logs barometric pressure and temperature. Use the BaroTROLL in conjunction with
non-vented In-Situ Instruments.
Win-Situ BaroMerge Software simplifies post-correction of water level data by automatically subtracting barometric readings
from data collected by a non-vented instrument to compensate for changes in pressure due to barometric fluctuations.
General BaroTROLL
Temperature ranges1
Operational: -20-80° C (-4-176° F)
Storage: -40-80° C (-40-176° F)
Calibrated: -5-50° C (23-122° F)
Diameter 1.83 cm (0.72 in.)
Length 21.6 cm (8.5 in.)
Weight 124 g (0.27 lb)
Materials Titanium body; Delrin nose cone
Output options Modbus/RS485, SDI-12, 4-20 mA
Battery type & life23.6 V lithium; 10 years or 2M readings
External power 8-36 VDC
Memory
Data records3
Data logs
1.0 MB
65,000
2
Log types Linear
Fastest logging rate & Modbus rate 1 per minute
Fastest SDI-12 & 4-20 mA output rate 1 per second
Real-time clock Accurate to 1 second/24-hr period
Sensor Type/Material Piezoresistive; titanium
Calibrated Range
(Usable Range) 30 psia (usable up to 16.5 psi, 1.14 bar)
Burst pressure Vacuum/over-pressure above 16.5 psi damages sensor
Accuracy @ 15° C4±0.1% FS
Accuracy (FS)5±0.2% FS
Resolution ±0.005% FS or better
Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O
Temperature Sensor
Accuracy & resolution ±0.1° C; 0.01° C or better
Units of measure Celsius or Fahrenheit
Warranty 3 years
Extended warranties are available for all instruments—call for details
Footnotes See See page 8.

1-800-446-7488 14 www.in-situ.com
RuggedCable System
General RuggedCable System
Operating temp. range -25° to 80° C (-13° to 176° F)
Jacket options TPU (thermoplastic polyurethane)
Tefzel (ETFE fluoropolymer; generic equivalent to Teflon)
Vent options Non-vented (absolute)
Vented (gauged) with desiccant (used to mitigate moisture/humidity)
Conductors 6 conductors, 24 AWG, polypropylene insulation
Cable diameter TPU: 6.7 mm (0.265 in.)
Tefzel: 6.35 mm (0.25 in.)
Connector diameter 18. 5 mm (0.73 in.)
Weight
Non-vented, TPU: 16 kg/300 m (35.6 lbs/1,000 ft)
Non-vented, Tefzel: 14 kg/300 m (32 lbs/1,000 ft)
Vented, TPU: 14 kg/300 m (32 lbs/1,000 ft)
Vented, Tefzel: 14 kg/300 m (32 lbs/1,000 ft)
Minimum bend radius 2X cable diameter (13.5 mm; 0.54 in.)
Break strength 127 kg (280 lbs)
Maximum cable length 1,219 m (4,000 ft) for RS485
Desiccant pack
(required for vented
systems)
Large and extra large desiccant packs available with titanium, ABS, or stripped-and-tinned
termination.
Warranty 2 years
Specifications are subject to change without notice.
Suspension Wire
General Suspension Wire
Material 304 stainless steel, 7 x 7 strand
Coating 15 mil polyester elastomer insulation
Weight 0.28 kg / 30 m (0.60 lb / 100 ft)
Break strength 122 kg (270 lb) with proper clip tightening
Specifications are subject to change without notice.

1-800-446-7488 15 www.in-situ.com
About the Pressure/Level Sensor
A pressure transducer senses changes in pressure, measured in force per square unit of surface area, exerted by water or
other fluid on an internal media-isolated strain gauge. In-Situ offers instruments with either absolute (non-vented) or gauged
(vented) pressure sensors.
The "Absolute vs. Gauged: Comparing Absolute and Gauged Pressure Sensors" technical
note describes the difference between absolute and gauged pressure sensors and explains
the proper use of each type of sensor in different applications.
Absolute Pressure Sensor
An absolute or non-vented pressure sensor measures all pressure forces detected by the strain gauge, including atmospheric
pressure (PATM). The unit of measure is PSIA (pounds per square inch absolute), measured with respect to zero pressure.
The back of an absolute pressure sensor is sealed from the atmosphere. Therefore, the front of the absolute pressure sensor
responds to both atmospheric pressure and the pressure head of water above the sensor.
Absolute Sensor
1 Sensor back
2 Sensor front
3 Water pressure, PW(e.g., 20 PSI)
4 Atmospheric pressure PATM (e.g., 14.5 PSI)
5 Vacuum
Gauged Pressure Sensor
A gauged or vented pressure sensor eliminates the effects of atmospheric pressure because the vent tube in the cable allows
atmospheric pressure to be applied to the back of the sensor. The unit of measure is PSIG (pounds per square inch gauge),
measured with respect to atmospheric pressure.

1-800-446-7488 16 www.in-situ.com

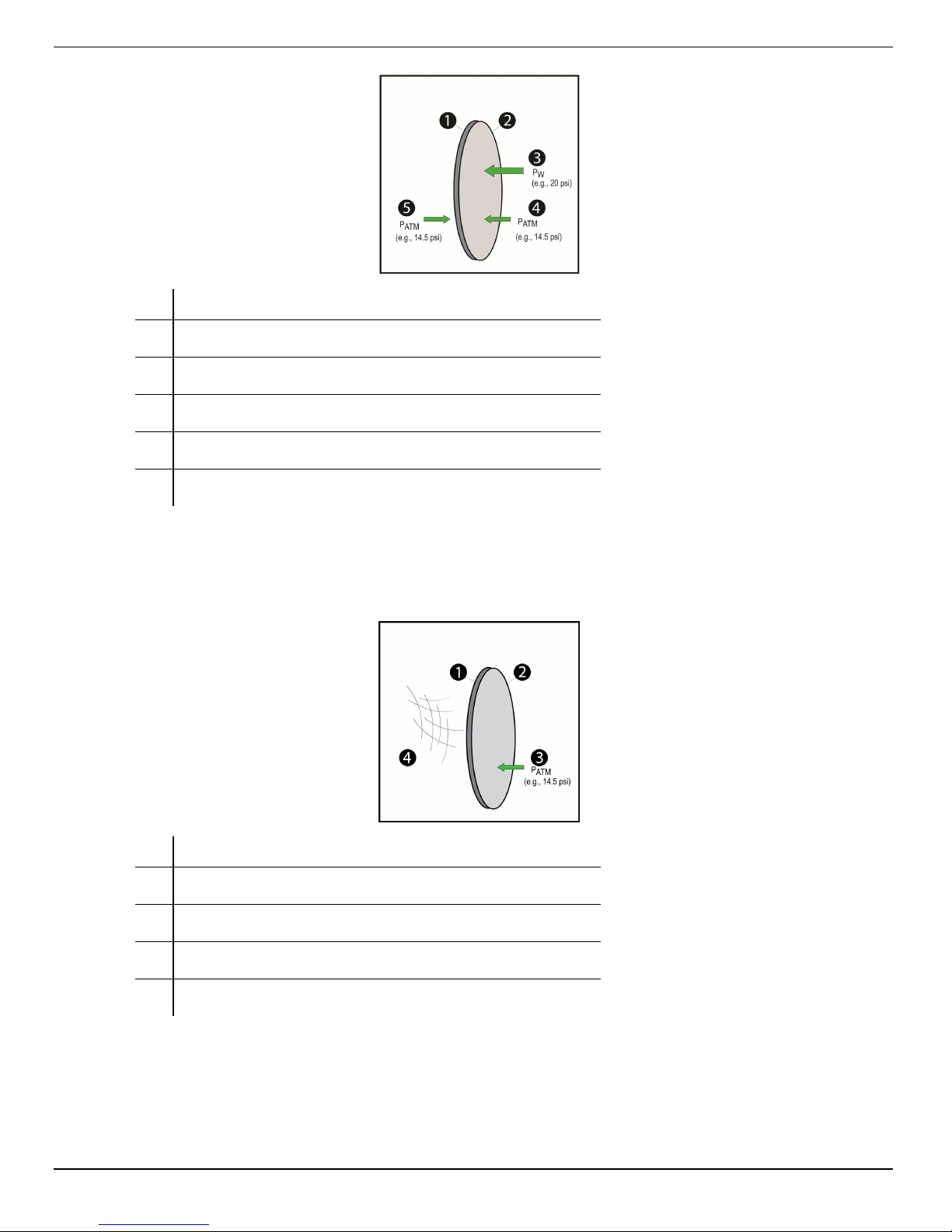

Gauged Pressure Sensor
1 Sensor back
2 Sensor front
3 Water pressure, PW(e.g., 20 PSI)
4 Atmospheric pressure PATM (e.g., 14.5 PSI)
5 Atmospheric pressure PATM (e.g., 14.5 PSI)
BaroTROLL Atmospheric Pressure Sensor
Barometric pressure applies a direct stress upon open wells and surface water. Locally, barometric effects can change
significantly from location to location as a result of topographical and micro-meteorological changes. Therefore, it is important
to compensate for the barometric pressure changes when monitoring water elevation.
BaroTROLL Sensor
1 Sensor back
2 Sensor front
3 Atmospheric pressure PATM (e.g., 14.5 PSI)
4 Vacuum
Configuring Depth and Level for PLC or Data Logger
When you configure level using the Sensors tab, the settings are stored in the instrument and are available for use in
Modbus, SDI-12, or 4-20 mA analog communication. A different configuration can be selected when you set up a log.

1-800-446-7488 17 www.in-situ.com
1. Connect the instrument to the software.
2. Click the Sensors tab .
3. Select the level/pressure sensor and click the Configure button. The Sensor Setup window appears.
4. In the Sensor Setup window, select the Level parameter, then click Configure The Level Setup Wizard opens.
5. In the Level Setup Wizard, select the options you want. For more information, view the Help in the Win-Situ 5
Software.

1-800-446-7488 18 www.in-situ.com
System Components
Instrument
The Level TROLL Instrument is completely sealed and contains no user-serviceable parts. The instrument includes pressure
and temperature sensors, a real-time clock, microprocessor, sealed lithium battery, data logger, and memory. Options
include a vented or non-vented pressure sensor in a variety of ranges.
RuggedCable System
RuggedCable Systems are custom-built, durable, direct-read cables that include the following items.
lTitanium twist-lock connectors for quick, reliable connections to the instrument, desiccant, and communication
cable
lMetal shield beneath the cable jacket to prevent electrical interferences
lKellems grip for secure instrument deployment
lSmall desiccant for vented systems (for storage only)
Non-vented cables are marked with VF, which means vent free.
Vented or Non-Vented Cable
Vented cable is used with vented pressure sensors to produce gauged measurements. The cable vent tube ensures that
atmospheric pressure is applied to the back of the sensor diaphragm.
Non-vented cable is used with non-vented instruments for absolute measurements. Compensate absolute measurements by
using a BaroTROLL Instrument and Win-Situ Baro Merge Software.
Vented cable is shipped with a small desiccant to protect against condensation. Larger
desiccants are necessary for deployment.
Jacket Options
Tefzel (vented) or thermoplastic polyurethane (TPU, vented or non-vented)
Customizable Cable Lengths
Cables can be ordered up to 1,219 m (4,000 ft).
Cable Termination
Cables can be ordered with a twist-lock termination (female connector) on both ends that connect to the instrument, the
TROLL Com Communication Device, desiccant, and other accessories.
Cables can also be ordered with stripped-and-tinned termination for wiring to a data logger or controller using SDI-12, analog
(4-20 mA), or Modbus communication protocol.

1-800-446-7488 19 www.in-situ.com
1 RuggedCable System with female to female connectors
2 Stripped-and-tinned RuggedCable System with female connector
3
Stripped-and-tinned RuggedCable System with male connector
(short length that converts a cable with a twist-lock connector to a
stripped-and-tinned cable)

1-800-446-7488 20 www.in-situ.com
Suspension Wire
Polyurethane-coated stainless steel suspension cable can be used to deploy instruments with non-vented pressure sensors
such as the Level TROLL 400 Instrument, the non-vented Level TROLL 700 Instrument, and the BaroTROLL Instrument.
Suspension wire is appropriate to use when direct communication with the instrument is not necessary during deployment.
Description Part Number
Suspension Wire - 300 feet 0066450
Suspension Wire - 150 feet 0066460
Suspension Wire - 50 feet 0066470
