Iseo ARIES User manual

Electronic Trim Set
User Manual
EN 01
ARIES

3
About this manual
Dear Customer,
Thanks for choosing this innovative ISEO product, designed and developed following the highest standard of
production, for an effective user-friendly and, at the same time, powerful and flexible access control.
This manual explains the functions, configurations and characteristics of Aries, the ISEO electronic Trim Set.
For commercial documents (catalogues and leaflets), technical documents (installation and maintenance
manuals) and certifications, refers to the ISEO website at the following link:
https://www.iseo.com
Information icons
For an easy reading of the manual, please take note of the following icons:
CAUTION: situations that could cause damage to your Device or other equipment.
NOTE: notes, suggestions and additional information.
WARNING: situations that could cause injury to yourself or others.

4
About this manual
Information on copyright
• No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any me-
ans, electronic or mechanical, including photocopying, recording, or storing in any information storage and
retrieval system, without the prior written permission of ISEO.
• ISEO reserves the right to change the specifications of the hardware and software described in this manual
at any time and without prior notice.
• ISEO will not be held liable for any damages resulting from the use of this product.
Trademarks
• The Apple logo, Apple™, iPhone™, iPad™ and App Store™ are trademarks of APPLE Inc.
• The Android logo, Google™, YouTube™, Google Play™ Store are trademarks of Google Inc.
• Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
• IOS is a trademark or registered trademark of Ciscoin the U.S. and other countries.
• MIFARE® is a registered Trademark of NXP B. V.
• All other trademarks and copyrights are the property of their respective owners.
Keywords
• Access control device:electronic and/or mechanical device to allow selective access through the users’
door.
• Contactless card: electronic card that can be read by the Access control device, by simply bringing it
closer to the same, without physical contact.
• Credential: device that allows to identify the user and authorize or not authorize access through a door.
For example: smartphone, tablets, Mifare cards or Mifare tags.
• Door: passage which access is electronically controlled by the Access control device.
• Master Card: Contactless card used to program the system.
• Master Card set: set of three Master Cards numbered from 1 to 3, belonging to the same System code.
The Master Card of higher number disable the Master Card of lower number.
• Opening time: time during which a door remains open, following a standard opening through credential.
• Programming mode: software condition, feasible by Master Card, that allows software modification to the
Device.
• Smart series:Access control devices featuring a built-in Bluetooth radio.
• System code:unique number associated to a Master Card set.
• User card:Contactless card used to open one or more doors.
• Users list:list of User cards enabled to open an Access control device.

5
Table of Contents
About this manual
3 Information icons
4 Information on copyright
4 Trademarks
4 Keywords
Safety and Environment
6 Warnings
7 Handling lithium batteries
8 Disposal and recycling
Certifications
9 Certifications and compliance
Overview
11 What is Aries Smart
12 Technical data
14 Dimensions
15 Options and versions
Getting started
18 Package contents
19 Installing Aries
19 Programming and using Aries
19 Privacy function
Maintenance
20 Battery replacement
22 Emergency opening by mechanical key
26 Cleaning
26 Storage
Troubleshooting
27 Error messages
27 Aries Troubleshooting
28 Light and acoustic signals
28 Technical assistance

6
Safety and Environment
To prevent damage to your product or injury to yourself or to others, read the following safety precautions in
their entirety before using this equipment.
Keep this manual in a convenient place so that you can refer to it when necessary.
Warnings
• Read this manual prior to use the device in order to ensure a safe and proper use.
• Preserve this manual as future reference.
• The installation of the device requires the intervention of qualified staff, adequately trained by ISEO.
• The instructions should be carefully followed during installation. These instructions and any mainte-
nance instructions should be passed on by the installer to the user.
• No modifications of any kind are permitted, except for those described in these instructions.
• The product must be destined only for the use for which it is expressly designed and therefore as
a cylinder of door lock for civil and industrial locations. Any other use is considered improper and
dangerous.
• For outdoors installation use Aries IP55 version. Ensure anyway, to retain the IP certification, that
water does not run over the door surface, entering through the door and the gaskets, or inside
the door itself (for example in case of empty door in the inside). Ensure also, in case the door has
grooves, that water does not run under the Aries gaskets.
• Be careful to not hit or scratch Aries cover with hard or sharp objects (keys, rings or other metal
objects).
• Check the lock latch movement is not subjected to any friction (maximum allowed torque 10Nm).
• Do not use or spray any lubricant and antioxidant oil in the Aries trim set.
• RFID: frequency 13,553 - 13,567 MHz, maximum magnetic field: 0,12 µA/m (measured at 3m at the
maximum power capacity)
• Only for device with on-board radio: frequency 2,40 - 2,4835 GHz, maximum power: 4,0 mW
• Operating temperature: -20°C + 60°C

7
Safety and Environment
Handling lithium batteries
Batteries may leak or explode if improperly handled. Observe the following precautions when handling batteries
for use in this product:
• Do not connect the battery during the shipping and the storage. Connet the battery just during
installation and use.
• Risk of explosion if the battery is replaced by an incorrect type.
• Use only battery of the same type as indicated in the product installation guide.
• Do not open, drill through or squash lithium batteries.
• Do not expose the battery to flame or to excessive heat.
• Do not immerse in or expose to water.
• Do not short circuit lithium batteries.
• Do not recharge lithium batteries.
• Do not connect lithium batteries in parallel.
• Do not transport or store the battery with metal objects such as necklaces or hairpins.

8
Safety and Environment
Disposal and recycling
This product and battery are designated for separate collection at an appropriate collection point. Do not
dispose of as household waste.
For more information, contact the retailer or the local authorities in charge of waste management.
This symbol on the battery indicates that the battery is to be collected separately.
Dispose of batteries according to your local environmental laws and guidelines.
This symbol indicates to not dispose of the packaging with household waste,
but send it for recycling.
Dispose of the product separately from household waste, in accordance with
local laws and regulations.
Remove the batteries before disposing of the product.

9
Certifications
Certifications and compliance
In conformity with the essential requirements and other relevant requirements of the:
2014/53/UE Directive (RED = radio)
2011/65/UE Directive (RoHS)
Donwload the conformity certificate at iseo.com website
Product Standard
Classification reached
Safety
Durability (4-6)
Security
Category of Use (1)
Corrosion resistance
Fire/smoke resistance (0-B)
Type of operation
Classification Result
• EN 1906
• 3 7 0 0 0 N P D 0 A
• Grade 0: normal use.
• Grade 7: high frequency of use, 200.000 cycles.
• Grade 0: no performance determined.
• Grade 3: high frequency of use by public or others with little incentive to
exercise care and with a high chance of misuse.
• No Performance Determined.
• Grade 0: no performance determined.
• Type A: spring-assisted furniture.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to
radio waves (radio frequency electromagnetic fields), recommended by international guidelines.

10
Certifications
Temperature range
Humidity
Protection by enclosures
Environmental resistance Result
• Operating temperature: -20°C ÷ +60°C
• Storage temperature: -25°C ÷ +75°C
• Max 95% non condensation.
Depending on the model:
• IP54 (protected installations)
• IP55 (Outdoor installations)
RFID tag reader
BTLE
Frequency type Frequency band MAX emission value
13,553 - 13,567 MHz Maximum magnetic field: 0,12 µA/m (at 3m)
2,40 - 2,4835 GHz Maximum power: 4,0 mW

11
Overview
What is Aries
Aries is the electronic trim set can be installed on almost any door currently available on the market, and it’s
designed to work with most mechanical locks. It’s battery operated, so doesn’t require any wiring. This makes
it the ideal solution for managing access, ensuring optimum flexibility and low installation costs for both new
installations and application on existing doors.
Aries is also available with Bluetooth Smart technology inside (Aries Smart version), in order to work with Argo,
the new ISEO application running on iOS and Android smartphone.
For the installation of Argo app, device initialization, setup of the opening, and other operations not
described herein, refer to the Argo User Manual, available at iseo.com.

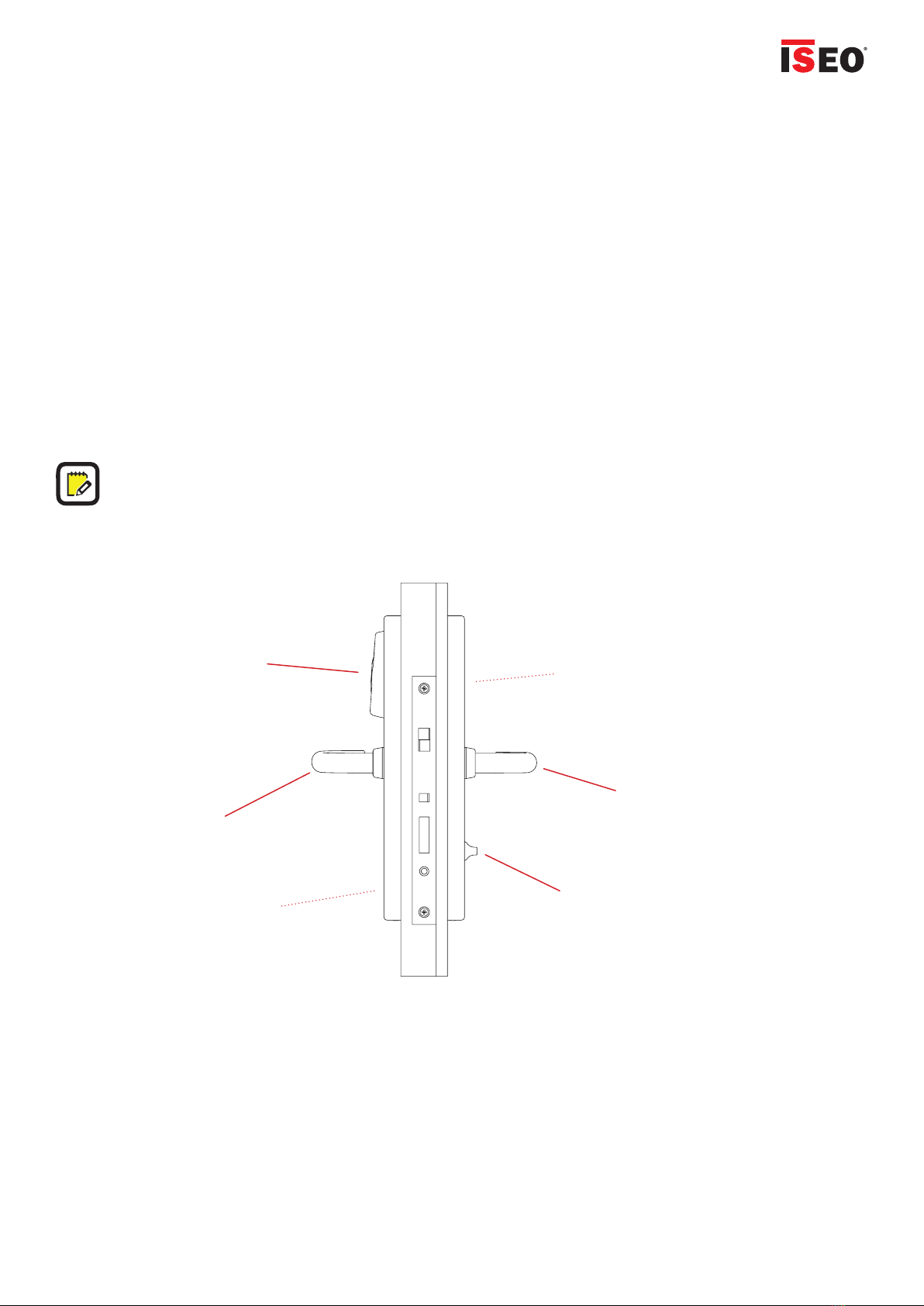

External handle
Mechanical cylinder
override (optional)
Internal handle
RFID reader and
signallling LED

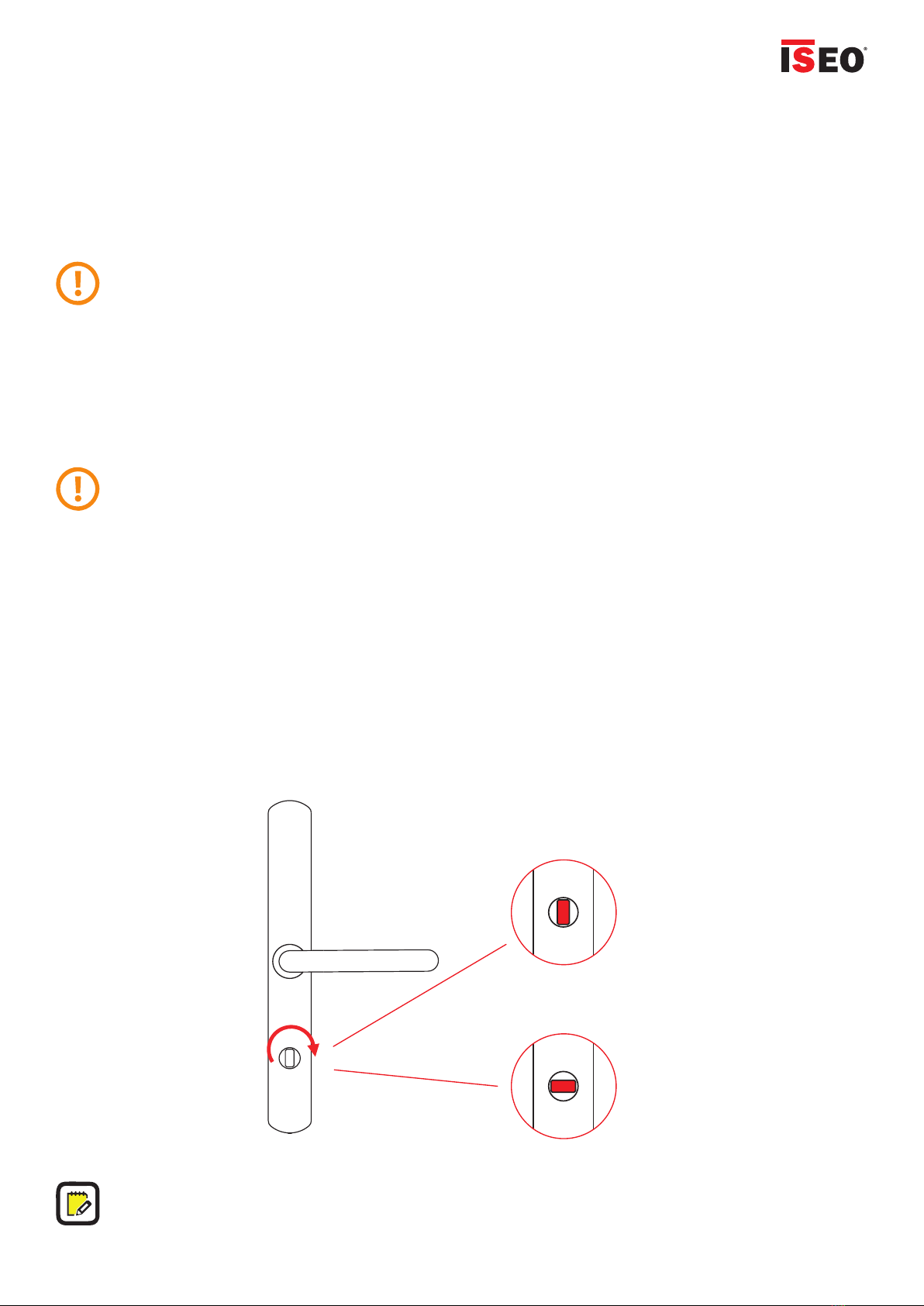

Privacy knob
Aries take also advatanges of the next importants and uniques features:
• Wake up by RFID card or phone detection (patented) or Real Time Clock.
• Low consumption battery operated.
• Permanently open mode (office mode), without extra battery consumption.
• Batteries voltage monitoring.
• Real Time Clock/Calendar.
• Optical and acoustic signalling.
• On-site software upgrading.
Batteries (under the cover)
INTERNAL SIDE OF THE DOOR
EXTERNAL SIDE OF THE DOOR

12
Overview
Technical data
Multistandard 13,56 Mhz:
Aries: up to 5 years or 50.000 opening (*)
High Security Iseo R90 Factory Monoprofile. Up to 3 mechanical
recodings.
V364 Software.
RFID Reader
Emergency override cylinder
Battery life (endurance)
External emergency power supply
Feature
Battery replacement from the inside for more security.
Buzzer.
Software
Main batteries
Ergonomic knob.
Signal reset after each door opening.
Privacy device (optional)
ISO14443A (Mifare Classic, Plus).
Aries Smart: up to 2 years or 20.000 opening (*).
Usage detected by electronics. KA on the same installation.
VAR/OEM development platform available.
Argo app available for Android and iOS phones (Aries Smart).
Software upgrade on site.
ISO14443B (i.e. ST microprocessor cards).
3 levels battery charge detection.
For installations with no override cylinder. Connector under the
external cover plate.
Internal handle movement.
2 x AA 3,6V high current lithium battery.
LEDs: 1 Green, 1 Red visible on 360° ring.Signallling
External handle movement.Detection internal sensors
NFC (card emulation and Peer-to-Peer).
(*) Depending on usage, environment, options.
Standard 9V battery.
Internal privacy button.
Characteristics
2,4Ghz Radio Board.Bluetooth 4.0 Module
RFID Near Field Magnetic communication.Communication interface
Emergency mechanical cylinder

13
Overview
40 - 85 mm (standard accessories).Door thickness
Finishes
Feature
Polished brass (PVD)
85 - 120 mm (special accessories).
Inox
Polished inox
70mm width (to cover existing holes).Black plastic underplate
AntiGerm (on request)
Satin brass (PVD)
Characteristics
Handle Safey U-shaped profile.
Center distance follower/cylinder 70, 72, 85 and 92 mm.
7, 8 or 9 (**) mm handle follower.Mechanical lock compatibility
Left or right hand to be set during installation.
Free rotating handle: only after a valid RFID card presented to the
reader the handle engages and is able to open the door.
Backset: minimum 25 mm. European profile cylinder hole.
Latch bolt only or automatic deadbolt function.
(**) With adaptor.
Customize removable handle (on request).
70, 72, 85 and 92 mm.Follower/cylinder center distance
Operating temperature: -20°C ÷ +60°C.Environmental characteristics
Storage temperature: -25°C ÷ +75°C.
Protection system (IP grading): IP54 or IP55
(outdoor installations).
1350 gr.Weight
For detailed commercial informatoin, please check related catalogue and leaflet at: iseo.com.

14
Overview
Dimensions
Dimensions Plate width: 38 mm
Plate thickness: 16,5 mm
1350 gr.
Feature
Plate length: 294 mm
Handle length: 131,5 mm from plate center
Weight
Follower/cylinder center distance
Characteristics
70, 72, 85 and 92 mm.

15
Overview
Options and versions
Aries can be supplied in different versions. The followings are the most commons ones. For all the available
options and versions, check the on-line catalogue at iseo.com website.
1) Aries with or without privacy function.
2) Aries with mechanical emergency key override with visible or hidden cylinder.
Privacy function No Privacy function
Visible cylinder Hidden cylinder (under the cover)

16
Overview
Options and versions
3) Aries with electric emergency power supply override (hidden).
4) Aries for panic devices.
9V standard battery to be
used for lock opening when
internal Aries batteries are
empty.
Internal battery pack
At the place of the cylinder Aries has an electric plug for a standard 9V battery. To open the lock when internal
batteries are empty, remove the external cover, plug-in the standard 9V battery to power up the lock, then
read a valid credential to open.
In this version Aries is supplied with the external plaque only. The batteries are placed in the internal side of
the door, in a separated battery pack.
For more information about Aries installation, refer to the Installation Guides available at: iseo.com.

17
Overview
Options and versions
5) Aries IP55 (Outdoor installations)
Aries IP55 for outdoor installation, is provided with gaskets to isolate the electronic and the mechanic from
water leaks.
ARIES IP55
All weather version
Guarnizioni
Gasket
Dichtung
Joints
Junta
Pakkingen
For outdoors installation use Aries IP55 version. Ensure anyway, to retain the IP certification, that water
does not run over the door surface, entering through the door and the gaskets, or inside the door itself
(for example in case of empty door in the inside). Ensure also, in case the door has grooves, that water
does not run under the Aries gaskets.

18
Getting Started
Package contents
The product box contains the following items:
• Aries electronic trim set internal and external plaque.
• Internal and external aesthetic covers.
• 2 x AA 3,6V high current lithium batteries.
• Installation guide.
• Warning sheet.
The items supplied with the Device and any available accessories may vary depending on the region or
service provider. Appearances and specifications are subjected to change without prior notice.

19
Getting Started
Installing Aries
Programming and using Aries
Privacy function
Installation must be performed only by skilled technical staff, following the Aries Installation Guide,
available at: iseo.com.
For a correct procedure see also Warnings at the Safety and Environment chapter.
For these operations, please refer to Argo User Manual for Aries Smart, or V364 System Administrator
Manual for Aries. Both available at: iseo.com.
This function allows a guest, inside the room, to block the access to all the other valid cards (i.e.: staff or main-
tenance cards), by rotating the privacy knob of Aries from the inside.
Only cards with override privacy function enabled can access to the room. It is basically the electronic version of
the “Do Not Disturb” placard that you can apply outside the door of he hotel room.
Privacy SET OFF
Privacy SET ON
The privacy is set automatically OFF every time the lock is opened from the inside or the outside.

20
Maintenance
Battery replacement
Replace the Aries battery as soon as the software in use notifies you, following the procedure later illustrated
in this topic. Aries has a multilevel battery charge detection, to allow a proper and in advance alert to change
the battery.
For more information about battery low signals, refer to the Argo User Manual for Aries Smart, or V364
System Administrator Manual for Aries. Both available at: iseo.com.
IT
Cambio batterie
GB
Battery replacement
D
Batteriewechsel
F
Emplacement de la pile
E
Sustitución de la batería
2,5 mm
If the battery is disconnected for more than 5 minute, the Device clock might go out of synchronization.
To synch the clock:
• Aries Smart: enter Programming Mode with Master Card and the door lock will automatically take
smartphone date and time.
• Aries: use the maintanance tool available to synchronize the lock.
When the new battery is connected to the Device, an automatic test is performed, and the Device
flashes red and green alternatively, for a few seconds. Wait until the procedure is completed without
removing the battery. If the battery test last more than 30sec for 2 times consecutively, replace the
battery with a new one.
1
Battery replacement does not affect the data stored in the User List.
