PORTOFINO HAND-WOUND MOON PHASEPORTOFINO HAND-WOUND MOON PHASE
— 5 —
OPERATING INSTRUCTIONS
English
— 25 —
使用说明
简体中文
— 39 —
使用說明
󰏠󰚸
— 49 —
取扱説明書
日本語
— 61 —
PETUNJUK PENGGUNAAN
Bahasa Indonesia
— 75 —
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
Русский
— 89 —
КЕРІВНИЦТВО З ВИКОРИСТАННЯ
Українська
— 103 —
NÁVOD K OBSLUZE
Česky

— 5 —
PORTOFINO HAND-WOUND MOON PHASE
Welcome to the small
circle of individuals who, if we are to
be absolutely precise, demand slightly
more of a watch than absolute precision.
Appreciation of a watch is more than
mere appreciation of the correct time.
It is enthusiasm for an ingenious idea.
For the interplay between precision
and imagin ation. Between time and
timelessness. Between boundaries
and infinity. Between laws to which
the entire world is subject, and taste,
which cannot be dictated to anyone.
That is why, since 1868, we have been
devoting rather more of our time to
watches that must not only run with
absolute precision but which also, with

— 6 — — 7 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
every passing second, exert a fascin
ation with the great achievements of
master craftsmanship: a fascin ation
with new inventions of a technical,
material or formal nature, even if they
are concealed in minute details that are
perhaps not even visible. You are now
the owner of a beautiful new example
of this IWC trad ition. We would like to
congratulate you on your choice and
send you our best wishes for the time
you will spend with your watch, which
perhaps cannot be described with any
greater accuracy than it is here.
IWC MANAGEMENT
THE TECHNICAL
REFINEMENTS OF THE
PORTOFINO HAND-
WOUND MOON PHASE
Your IWC watch shows you the time in
hours, minutes and seconds, together
with the date, the moon phase and
the power reserve. Thanks to the
fibreoptic image guide, the date is
extremely easy to read. The mechan
ical movement has a power reserve of
approximately 8 days (192 hours) when
fully wound. Your Portofino Hand
Wound Moon Phase is protected by
an archededge sapphire glass of
hardness grade 9 on Mohs’ scale.
Your watch is waterresistant 3bar. To
ensure that this extraordinary watch

— 8 — — 9 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
continues to perform faultlessly in the
future, it is essential to observe a few
important operating instructions.

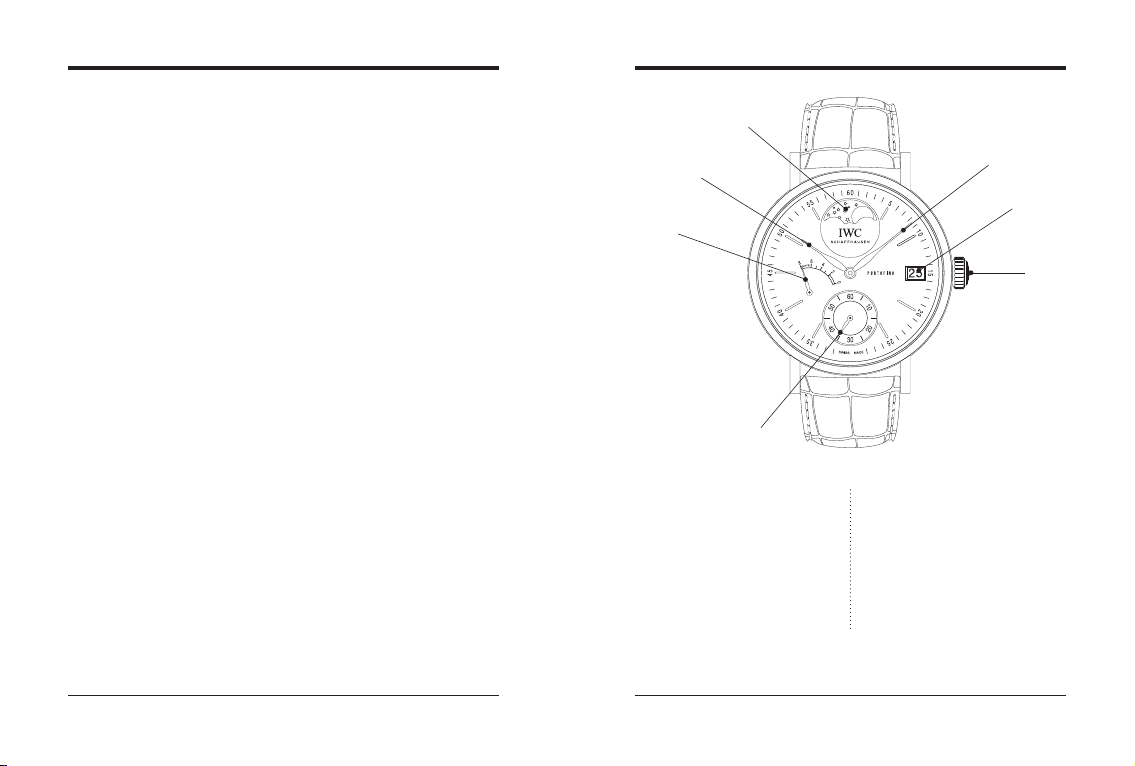

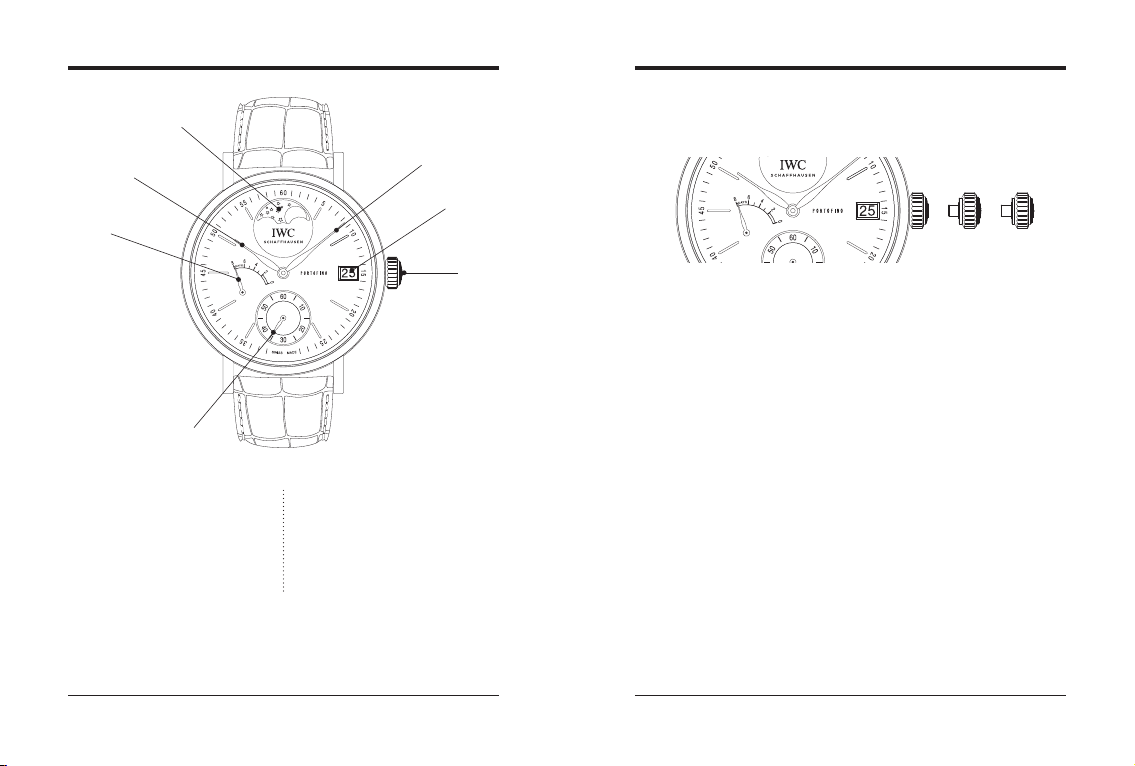

1 Hour hand
2Minute hand
3Small seconds
hand
4 Date display
Moon phase
display 5
Power reserve
display 6
Crown 7
3
2
7
1
5
4
6

— 10 — — 11 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE

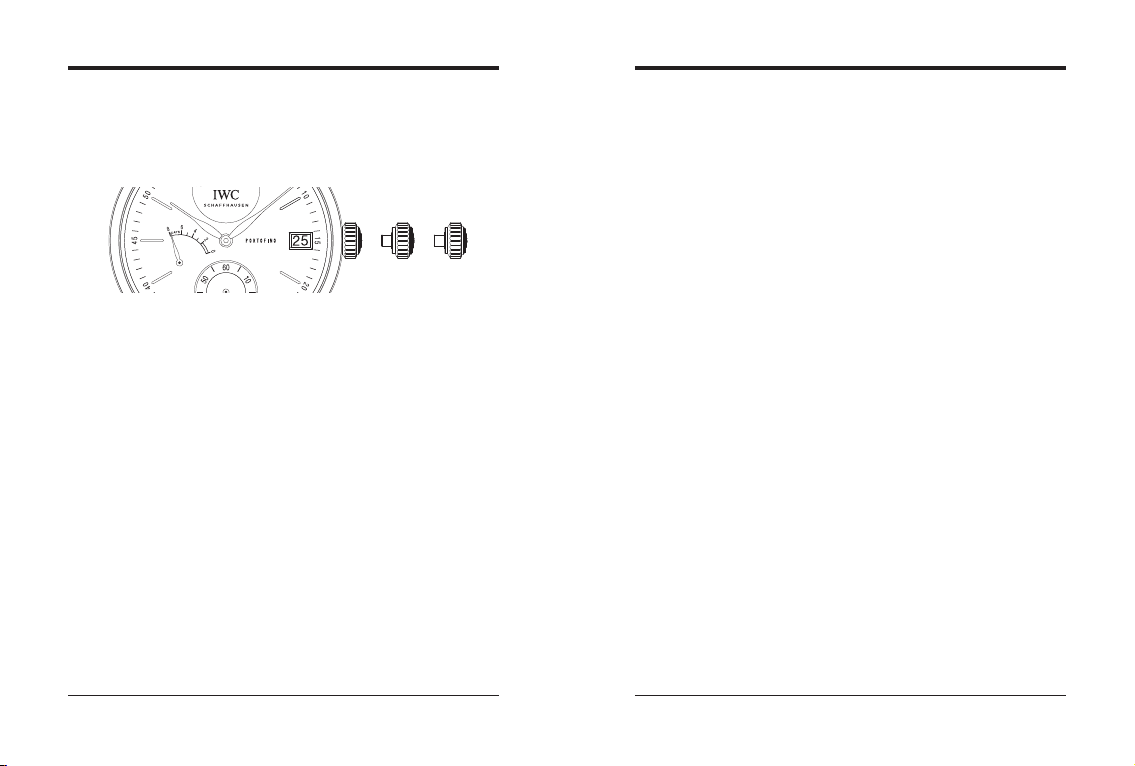

FUNCTIONS OF
THE CROWN
0—Normal position
1—Date and moon phase setting
2—Time setting
NORMAL POSITION
With the crown in the normal position
(0), you can wind the watch by turning
the crown clockwise. In order to guar
antee maximum precision, always wind
the watch fully to the marking of 8 days
on the power reserve display.
DATE AND MOON PHASE
SETTING
If a month has fewer than 31 days, you
will need to set the date manually to
the first day of the following month.
Pull out the crown to position1. You
can now set the date by turning the
crown to the left, and the moon phase
0 1 2

— 12 — — 13 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
display by turning it to the right (direct
advance). You should not use the
rapid-advance function between
8p.m. and 2 a.m. because the move-
ment automatically advances the
date and the moon phase display
during this period and the change
mechanism could be damaged.
TIME SETTING
Pull out the crown to position 2. This
will stop the movement. To set the time
accurately to the second, it is best to
stop the movement as the seconds
hand passes 60. Now move the minute
hand a few minute strokes beyond the
time to be set. Then position the minute
hand by moving it gently backwards
until it is exactly above the correct
minute stroke. This ensures that the
minute hand begins to move immedi
ately when you restart the movement.
To start the seconds hand, push in
the crown to position 0. When setting
the time, please be aware of the date
change, which always takes place at
12 midnight. If this change has already
taken place at 12 noon, you must move
the hands forwards by 12 hours.

— 14 — — 15 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
SETTING YOUR WATCH
CORRECTLY
To set your watch correctly, proceed
as follows:
– Always wind the watch fully, to the
point at which you feel a distinct
resistance in the crown.
– Pull out the crown to position 1.
– Check the Internet to find out the
date of the last full moon. Set the
date display to that date by turning
the crown to the left.
– Turn the crown to the right to advance
the moon phase display until the full
moon can be seen in the dial opening
at 12 o’clock.
– Now make as many corrections, both
to the right and to the left, as corres
pond to the difference in the number
of days between yesterday’s date
and the date of the last full moon.
The watch should now display yes
terday’s date and yesterday’s moon
phase.
– Pull out the crown to position 2. This
will stop the movement. To set the
time accur ately to the second, it is
best to stop the movement as the
seconds hand passes 60.
– Turn the hands forwards until the date
display and the moon phase display
change to today’s date. The hands
will now be positioned between 12
midnight and 1 a.m.
– Now turn the hands forwards beyond
the approximate time. Then move
them backwards to the correct time.

— 16 — — 17 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
INFORMATION ABOUT
MAGNETIC FIELDS
As a result of the ever greater prevalence
in recent years of very strong magnets
made from rareearth alloys (e.g. neo
dymiumironboron) – these are found
in objects such as loudspeakers,
mobile phones and fasteners on jewel 
lery as well as handbags– mechanical
watches are increasingly likely to come
into contact with such magnets and
become magnetized. This can lead
to the watch rate being perman ently
affected, a problem that can only be
resolved by a process of demagnet
ization carried out by a specialist. We
recommend that you keep your watch
away from such magnets.
If you are setting the watch in the
afternoon, you must turn the hands
past 12 (noon) again.
– Push the crown back to position 0 to
start the movement.
POWER RESERVE
DISPLAY
The power reserve display is divided
into eight days with continuous display.
The marking in the area of the last two
days tells you that the power reserve is
about to expire. You should then wind
the watch, since the precision can be
reduced in this area.

— 18 — — 19 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
WATER-RESISTANCE
The waterresistance of IWC watches is
stated in bar and not in metres. Metres,
which are often used elsewhere in the
watch industry to indicate waterresist
ance, cannot be equated with dive
depth because of the test procedures
that are frequently used. Waterresist
ance shown in metres provides no indi
cation as to actual use of the watch in
the presence of moisture and wetness,
and in or under water. Recommenda
tions for use in connection with the
waterresistance of your watch can be
found on the Inter net at www.iwc.com/
waterresistance. Your authorized IWC
Official Agent will also be pleased to
provide you with information.
Watches with a softiron inner case
provide a higher level of protection
against magnetic fields and far exceed
the requirements of DIN standard
8309. Nevertheless, it is still possible
for the watch movement to become
magnetized in close proximity to very
strong magnets. We therefore recom
mend that watches with a softiron
inner case also be kept away from
direct contact with strong magnets.
Should there be a sudden change in
the precision of your timepiece, please
contact an authorized IWC Official
Agent to have your watch checked for
magnetism.

— 20 — — 21 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
NOTE
If your watch has a strap made of
leather, textile or rubber with a leather
or textile inlay, make sure that the
highquality strap does not come into
contact with water, oily substances,
solvents, cleaning agents or cosmetic
products. This way you can prevent
discoloration and premature ageing of
the material.
To ensure that your watch continues to
function perfectly, you should have it
checked by an IWC service centre at
least once a year. Your watch should
also be tested after exposure to
unusually harsh conditions. If the tests
are not carried out as stipulated, or if
the watch is opened by unauthorized
persons, IWC will accept no warranty
or liability claims.
Recommendation: Your authorized
IWC Official Agent must carry out
a waterresistance test whenever your
IWC watch is opened and serviced.

— 22 — — 23 —
PORTOFINO HAND-WOUND MOON PHASE PORTOFINO HAND-WOUND MOON PHASE
CASE MATERIALS
CASE MATERIAL SCRATCH-RESISTANCE BREAKING STRENGTH WEIGHT
STAINLESS STEEL low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
BRONZE low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
RED GOLD/
WHITE GOLD low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
PLATINUM low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
TI TA N I UM low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
TITANIUM ALUMINIDE low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CERAMIC
(ZIRCONIUM OXIDE) low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CERAMIC
(BORON CARBIDE) low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CARBON low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CERATANIUM®low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
Further information at
www.iwc.com/case-materials
SERVICING YOUR PORTOFINO
HAND-WOUND MOON PHASE
Although the parts in this watch are
all manufactured from topquality
materials, a number of components
are subject to natural wear and tear.
It is particularly important to ensure
that the points at which wear occurs
are always well lubricated and that
oil contaminated by metal abrasion
is regularly removed. For this reason,
we recommend that you have your
watch serviced approximately every
5 years. Please contact an authorized
IWC Official Agent or send your watch
directly to the IWC Customer Service
Department in Schaffhausen. Effective from July 2017.
Technical specifications subject to change.

— 25 —
柏涛菲诺月相手动上链腕表
欢迎您加入IWC万国表爱表
人士的小圈子。确切来说，我们对腕表在性能
精准之上有更上一层楼的追求。体验腕表带给
您的乐趣，绝不仅限于其分秒不差的精准性能。
方 寸 之 间 ，您 可 欣 赏 其 独 具 匠 心 的 巧 思 创 意 、精
准性能与想象力的相辅相成，可体会时间与永
恒、疆界与无穷之间的交相辉映，以及千古亘久
的自然法则与自成一格之品位的完美融合。因
此 ，自 1868 年创 立至今，
IWC万国表倾情致力
于钟表制作，不惜时间制作出不仅运行绝对精
准 的 腕 表 ，而 且 ，随 着 每 一 秒 的 流 逝 ，每 只 腕 表
都释放出顶级钟表工艺辉煌成就的魅力：在技
术、材质和设计风格上的锐意创新或许隐于细
节之处甚或不易察觉，但依旧引人入胜。

— 26 — — 27 —
柏涛菲诺月相手动上链腕表 柏涛菲诺月相手动上链腕表
您所购买的精美腕表正是此IWC万国表优良
传统的典范。对于您明智的选择，请容我们献
上由衷的祝贺，并诚挚地祝福您与这款腕表共
度美好时光，记录生活每一刻。它的优异性能
将在下文中有详细的说明。
IWC万国表管理部
柏涛菲诺月相手动上链
腕表的技术特性
您的这款IWC万 国 表 具 有 时 、分 、秒 、日 期 、月
相和动力储备显示功能。纤维光学映像导体确
保日期的最佳可读性。机械机芯，上满链时可
提供约8天（ 192 小时）的动力储备。柏涛菲诺
月相手动上链腕表的防水达3巴 ，采 用 硬 度 等
级为莫氏9级的拱形边缘蓝宝石玻璃表镜，为
日常使用提供完美呵护。为确保本腕表在未来
能够始终保持超卓性能，请谨遵若干重要操作
说明。

— 28 — — 29 —
柏涛菲诺月相手动上链腕表 柏涛菲诺月相手动上链腕表
1时针
2分针
3小秒针
4日期显示
月相显示 5
动力储备显示 6
表冠 7
表冠功能
0—正常位置
1—日期和月相设置
2—时间设置
正常位置
在 正 常 位 置（ 0）可顺时针方向旋转表冠，为机
芯上链。为最大限度保证准确度，请在上链时
始终将表冠旋转至动力储备指针指向8日动力
储备为止 。
3
2
7
1
5
4
6
0 1 2

— 30 — — 31 —
柏涛菲诺月相手动上链腕表 柏涛菲诺月相手动上链腕表
日期和月相设置
如果当月少于31天 ，请 手 动 调 整 日 期 至 下 个 月
的 第 一 天 。将 表 冠 拉 至 位 置 1。此 时 可 将 表 冠 向
左转动设定日期，向右转动设定月相（直接设
定 ）。 请勿在晚上8点到凌晨2点之间使用快捷
设定功能，因为机芯在该时段内自动调校日期
和月相，此操作可能损坏转换机制。
时间设置
将表冠拉至位置2，中 止 机 芯 运 转 。为 确 保 设
置 的 时 间 精 确 至 秒 ，最 好 在 秒 针 达 到 60时中
止机芯。先将分针越过待设时间几分钟，然后
轻轻将其倒回，停在正确的分钟刻度上。采用
这种方法能够确保启动机芯时，分针立即开始
转 动 。将 表 冠 推 回 至 0位置，即可启动秒针。在
设置时间时请注意：由于日期转换都在午夜12
点 ，若 在 中 午 12 点已见转换，则须将时针往前
推进12 个小时。
正确设置您的腕表
请按以下步骤设置您的腕表：
–
为机芯上满链，直至明显感到表冠有阻力
为止。
–
将表冠拉出至位置1。
–
通过互联网查阅上一次满月的日期，向左旋
转表冠 ，以将日期显示调至这一日期 。
–
通过向右旋转表冠，您现在可以推进月相显
示 ，直 至 满 月 出 现 在 12 点钟位置的表盘视窗
中为止 。
–
现在，根据昨天至上一个满月之日的日期数
之差，通过向右和向左旋转表冠对月相显示
和日期显示进行相同次数地转换。腕表现在
应显示昨天的日期与月相 。

— 32 — — 33 —
柏涛菲诺月相手动上链腕表 柏涛菲诺月相手动上链腕表
–
将表冠拉至位置2，中 止 机 芯 运 转 。为 确 保 设
置的时间精确至秒，最好在秒针到达60时中
止机芯 。
–
向前拨动指针，直至日期显示变为今日日期，
月相显示将随之获得调校。此时指针处于午
夜12 点至凌晨1点之间。
–
此时可向前拨动指针越过待设时间，然后将
指 针 回 拨 至 正 确 时 间 。如 果 您 是 在 下 午 设 置
腕 表 ，则 须 再 次 将 指 针 拨 过 12 点（ 中 午 ）。
–
将表冠推回至位置0，启 动 腕 表 机 芯 。
动力储备显示
动力储备显示分为8日，显示是连续的。当动力
储备指针指向最后两日时，意味着动力储备即
将消耗殆尽。您应抓紧时机为腕表上链，因为
进入这一阶段后腕表的精准度会有所下降。
关于磁场的注意事项
鉴于近年来稀土合金高强磁铁（比如钕铁硼
磁铁）的广泛应用——包括用于扬声器、手机
以及珠宝饰品和手袋吸扣等物品中，机械腕表
在与此类磁铁发生接触时，可能会被磁化。这
种情况有可能导致腕表的走时产生永久偏差，
只有通过专业消磁处理才可解除。我们建议您
避免腕表接近此类磁铁。
配备软铁内壳的腕表具有较高的防磁性能，
是DIN 8309防 磁 标 准 的 数 倍 。尽 管 如 此 ，当 直
接处于强磁铁环境中时，机芯仍然有可能出现
磁化现象。因此，我们建议您避免腕表直接与
强 磁 铁 发 生 接 触 ，即 使 其 配 备 软 铁 内 壳 。
如果腕表的精准度突然发生变化，请您联系
IWC万国表授权经销商（官方代理商），检查您
的腕表是否发生磁化。

— 34 — — 35 —
柏涛菲诺月相手动上链腕表 柏涛菲诺月相手动上链腕表
防水
IWC万国表的防水性能以巴为单位，并非以米
数 来 计 算 。在 制 表 业 界 ，米 数 通 常 用 以 显 示 腕 表
的防水性能，但这并不等同于潜水深度，因为这
只是腕表在常用的测试程序下所承受的压力。
以米数所显示的防水性能不能代表腕表在潮湿
环境与水中或水面下的防水情况。我们建议您
登入www.iwc.com/waterresistance，浏 览
有关您的腕表的防水性能与建议使用方法的资
料 。您 的 IWC万国表授权经销商（官方代理商）
亦将会乐意为您提供有关资料。
为确保您的腕表持续正常运作，请您务必至少
每年在IWC万国表服务中心为其进行一次检
查。当腕表在异常恶劣环境中使用后，也须接
受检查。如果您的腕表未按照规定进行检查，
或经由未经授权的人员开启，
IWC万国表将拒
绝提供任何担保或赔偿 。
建 议：每次开启腕表并提供维修和保养服务
后，
IWC万国表授权经销商（官方代理商）都应
对腕表进行一次防水性能测试。
注意事项
如果您的腕表搭配皮革、织物表带或者镶衬了
皮革或织物的橡胶表带，请确保高品质的表带
不 要 与 水 、油 性 物 质 、溶 剂 、清 洁 剂 或 美 容 产 品
接 触 ，以 避 免 材 质 褪 色 和 提 前 老 化 。

— 36 — — 37 —
柏涛菲诺月相手动上链腕表 柏涛菲诺月相手动上链腕表
柏涛菲诺月相手动上链腕表的保养
虽然本腕表的所有零件均采用高品质材料制
造，但某些零件难免发生自然磨损。所以必须
确保易损部位得到理想润滑，并定期清理由金
属摩擦而形成的油污。为此，我们建议您大约
每五年对腕表进行一次保养。您可与IWC万国
表授权经销商（官方代理商）联系，或者将您的
腕表直接送至沙夫豪森的IWC万国表客户服
务部。
表壳材质
表壳材质 抗刮强度 抗断强度 重量
精钢 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
青铜 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
红 金／白 金 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
铂金 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
钛金属 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
钛铝合金 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
陶 瓷（ 氧 化 锆 ） 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
陶 瓷（ 碳 化 硼 ） 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
碳纤维 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
CERATANIUM®
（瓷化钛 金属） 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高 低 ● ● ● ● ● 高
如 需 更 多 信 息 ，请 访 问
www.iwc.com/case-materials
自2017年7月起生效。
规格可能有所改变。
