of rotation via the Pellaton winding mechanism. In addition
to the uniqueness of its functions, it is the display’s legibility
and the ease with which it can be used that distinguishes
this watch from all other complicated timepieces. To ensure
that this extraordinary watch continues to perform faultlessly
in the future, it is essential to observe a few important oper-
ating instructions.
THE TECHNICAL REFINEMENTS OF THE
BIG PILOT’S WATCH PERPETUAL CALENDAR
Your IWC watch shows you the time in hours, minutes and
seconds, the moon phase in both hemispheres, the day of the
week, the date, the month and the year in four digits, as well
as the remaining power reserve. The mechanical movement
with automatic winding has a power reserve of approximately
7 days (168 hours) when fully wound. Your Big Pilot’s Watch
Perpetual Calendar is protected by aconvex sapphire glass
of hardness grade 9 on Mohs’ scale. Your watch is shock-
proof and water-resistant to 6 bar. The engraved rotor with
its 18-carat gold medallion winds the watch in both directions

— 8 — — 9 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
FUNCTIONS OF THE CROWN
X Normal position
(screwed in)
0 Winding position
1 Setting the calendar
2 Time setting
NORMAL POSITION
This watch has a screw-in crown. Screwing the crown into
its normal position (X) prevents the inadvertent adjustment of
the time or perpetual calendar and also acts as a double seal
to prevent water from seeping into the case. To release the
crown, unscrew it by turning it to the left, where it automatic-
1 Hour hand
2 Minute hand
3 Seconds hand
4 Date display
5 Day display
6 Month display
7 Year display
8 Moon phase display
9 Power reserve display
10 Screw-in crown
3
6
1
4
5
10
9
2
8
7
X 0 1 2

— 10 — — 11 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
crown are enough to start the movement. However, it is rec-
ommended to wind the watch by turning the crown through
approximately 20 revolutions as this will ensure maximum
precision. The crown must always be in position X when you
are wearing your watch.
SETTING THE CALENDAR
Release the screw-in crown and pull it out to position 1. You
can now set the date by turning the crown to the left (direct
advance). You should not use the rapid-advance function
between 8p.m. and 2 a.m. because the movement auto-
matically advances the date during this period.
ally assumes position 0, the winding position. By depress-
ing the crown into positionX and turning it to the right at the
same time, it is screwed down firmly again and secured.
Important: The watch is water-resistant in positions 0, 1 and
2 as long as the crown is not moved. The crown should gen-
erally always be screwed in for normal use to ensure the sta-
bility of the seal and to protect the winding mechanism.
WINDING POSITION
With the crown in the winding position (0), you can also wind
the automatic movement by hand. A few revolutions of the

— 12 — — 13 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
to stop the movement until the calendar setting matches the
correct date once again – this makes sense if the date has
been set only a few days ahead – or, you take your watch to
your watchmaker, who will be able to adjust the movement
to reset the calendar. This is recommended in the event of
larger maladjustments.
TIME SETTING
Pull out the crown to position 2. This will stop the movement.
To set the time accurately to the second, it is best to stop
the movement as the seconds hand passes 60. Now move
the minute hand a few minute strokes beyond the time to be
Please note:
–If the crown is turned too quickly, the display discs might
not be positioned correctly in the display window. Generally,
such a default is automatically corrected by the movement
when the calendar advances within the following 24hours.
Should this not be the case, the movement needs to be
reset by an IWC watchmaker.
–You must not move the calendar beyond the correct date.
The complicated movement is mechanically programmed
and cannot be moved back in time without making a pro-
fessional adjustment to the movement. However, if you do
move the date forwards beyond the correct date, you have
two options: you can either pull out the crown to position 2

— 14 — — 15 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
–The hands must never be turned anticlockwise beyond
2a.m.
–The crown must be pushed back into the normal position
(X) before wearing the watch to avoid unintentional adjust-
ment of the calendar.
SETTING YOUR WATCH CORRECTLY
To set your watch correctly, proceed as follows:
–Release the crown by turning it to the left.
–Wind the movement (approximately 20 revolutions of the
crown).
set. Then position the minute hand by moving it gently back-
wards until it is exactly above the correct minute stroke. This
ensures that the minute hand begins to move immediately
when you restart the movement. To start the seconds hand,
push in the crown to position 0. Moving the hands forwards
past midnight causes the calendar to switch to the follow-
ing day. When advancing the calendar, you can follow and
observe the automatic switching sequence.
Important:
–Under no circumstances must the hands be turned back
between 8 p.m. and 2 a.m. as this will result in maladjust-
ment of the calendar.

— 16 — — 17 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
–Turn the hands forwards until the date display changes to
today’s date. The hands will now be positioned between
12midnight and 1 a.m.
–Now turn the hands forwards to the current time. If you
are setting the watch in the afternoon, you must turn the
hands past 12 (noon) again. Now move the minute hand
afew minute strokes beyond the time to be set. Then pos
ition the minute hand by moving it gently backwards until
it is exactly above the correct minute stroke. This ensures
that the minute hand begins to move immediately when you
restart the movement.
–Push the crown back into position 0 to start the movement.
– Pull out the crown to position 2 and turn the hands forwards
to approximately 4.40 a.m. This ensures that the calendar
mechanism is not in the middle of the automatic switch-
ing phase and that you can also see the calendar displays
easily.
– Push the crown into position 0 and pull it back to position1.
– Slowly turn the crown to the left. The calendar now advances
in steps. Set the display to yesterday’s date, keeping an eye
on the month and the year.
–Pull out the crown to position 2. This will stop the move-
ment. To set the time accurately to the second, it is best to
stop the movement as the seconds hand passes 60.

— 18 — — 19 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
area of the last day tells you that the power reserve is about
to expire. You should then wind the watch by hand, if neces-
sary, since the precision can be reduced in this area.
The entire calendar is now automatically set correctly. There
is no need for you to know the current phase of the moon
or whether you are in a leap year. You do not even need to
set the day of the week. This simplified setting is very con-
venient, particularly if you have not worn your IWC watch for
a few days.
POWER RESERVE DISPLAY
The power reserve display is divided into 7 days with con-
tinuous display. The winding mechanism winds the watch
continuously while you are wearing it, and you can follow the
process on the power reserve indicator. The marking in the

— 20 — — 21 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
precise that the display deviates by only a single day after
577.5 years.
READING THE TIME IN THE DARK
Both the dial and the hour and minute hands of your watch
have luminescent elements that allow you to read the time
effortlessly, even in total darkness. The luminescent element
at 12 o’clock serves as a reference point.
MOON PHASE DISPLAY

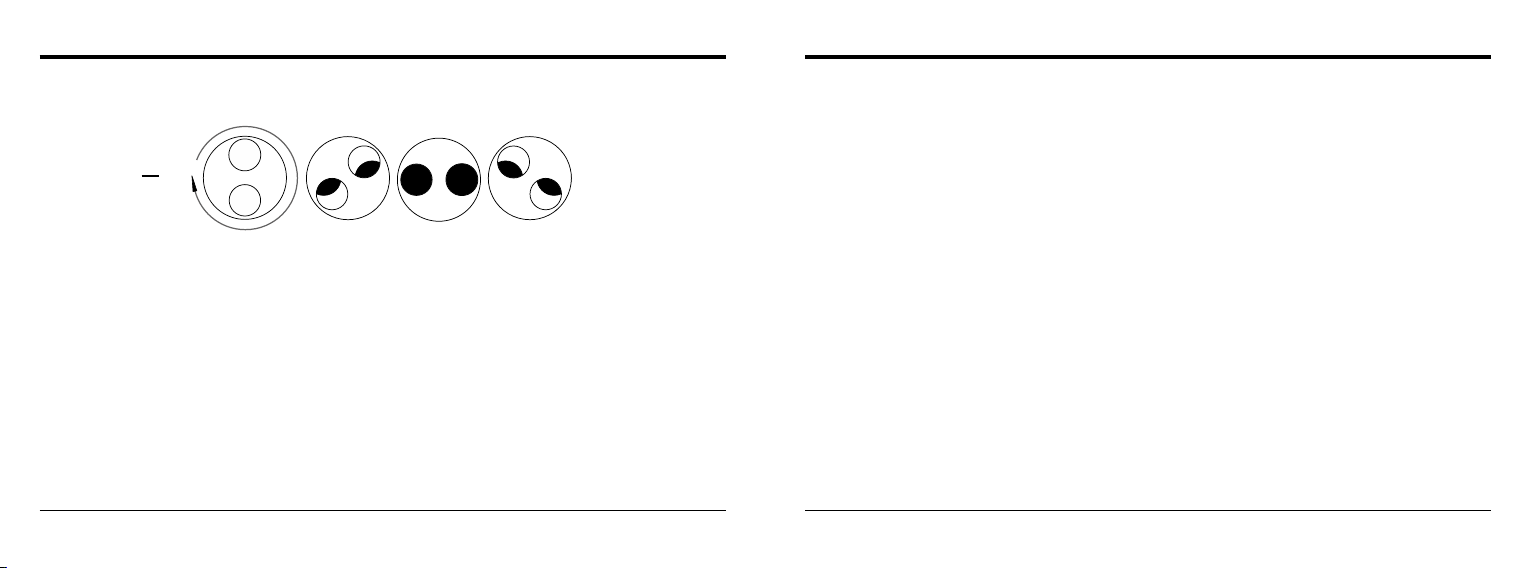

1 Full moon
2 Waning moon
3 New moon
4 Waxing moon
The moon phase display is automatically set by the calen-
dar so that it is always correct. The transmission ratio is so
Rotierendes Mondfenster
20.9.2002 - G. Plange
1 2 3 4
N
S

— 22 — — 23 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
Setting when crossing time zones:
–When crossing time zones in an easterly direction, you
should simply set the time forward to the new local time.
–When crossing time zones in a westerly direction, you can
set the hands of your watch back to the actual time of day.
When doing this, however, you must not move back into the
calendar’s automatic switching phase, i.e. beyond 2 a.m.
If this situation occurs when you are travelling west, you
should set the local time of your destination before 8 p.m.
You must not turn the hands back between 8 p.m. and
2 a.m.
CROSSING TIME ZONES AND THE
INTERNATIONAL DATE LINE WITH THE BIG
PILOT’S WATCH PERPETUAL CALENDAR
GMT
–11–10 –9 –8 –7 –6 –5 –4 –3 –2 –1 0+1+2+3+4+5+6+7+8+9+10 +11+12
INTERNATIONAL DATE LINE
INTERNATIONAL DATE LINE

— 24 — — 25 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
–Setting the watch back by 12 hours during the afternoon
between 2 p.m. and 8 p.m. will prevent the calendar from
advancing at midnight.
–Setting the watch back another 12 hours the following
morning between 2 a.m. and 11 a.m. will synchronize the
date display with the local date.
INFORMATION ABOUT MAGNETIC FIELDS
As a result of the ever greater prevalence in recent years of
very strong magnets made from rare-earth alloys (e.g. neo-
dymium-iron-boron) – these are found in objects such as loud-
speakers and mobile phones and fasteners on jewellery as
Setting when crossing the Inter national Date Line:
–When crossing the International Date Line in a westerly
direction (you enter the next day, regardless of the time of
day), simply turn the time forward to the new local time, and
the date change will take place automatically.
–When crossing the International Date Line in an easterly
direction (you enter the previous day, regardless of the time
of day), you must likewise set your watch forward to the new
local time. However, your watch will now indicate the wrong
date (one day too many). This incorrect date indication can
be corrected by resetting the hands twice, by 12 hours on
each occasion:

— 26 — — 27 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
that watches with a soft-iron inner case also be kept away
from direct contact with strong magnets.
Should there be a sudden change in the precision of your
timepiece, please contact an authorized IWC Official Agent
to have your watch checked for magnetism.
WATER-RESISTANCE
The water-resistance of IWC watches is stated in bar and not in
metres. Metres, which are often used elsewhere in the watch
industry to indicate water-resistance, cannot be equated with
dive depth because of the test procedures that are frequently
well as handbags – mechanical watches are increasingly likely
to come into contact with such magnets and become mag-
netized. This can lead to the watch rate being permanently
affected, a problem that can only be resolved by a process of
demagnetization carried out by a specialist. We recommend
that you keep your watch away from such magnets.
Watches with a soft-iron inner case provide a higher level of
protection against magnetic fields and far exceed the require-
ments of DIN standard 8309. Nevertheless, it is still pos-
sible for the watch movement to become magnetized in close
proximity to very strong magnets. We therefore recommend

— 28 — — 29 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
stipulated, or if the watch is opened by unauthorized persons,
IWC will accept no warranty or liability claims.
Recommendation: Your authorized IWC Official Agent must
carry out a water-resistance test whenever your IWC watch
is opened and serviced.
NOTE
If your watch has a strap made of leather, textile or rubber
with a leather or textile inlay, make sure that the high-quality
strap does not come into contact with water, oily substances,
solvents, cleaning agents or cosmetic products. This way
used. Water-resistance shown in metres provides no indication
as to actual use of the watch in the presence of moisture and
wetness, and in or under water. Recommendations for use
in connection with the water-resistance of your watch can
be found on the Internet at www.iwc.com/water-resistance.
Your authorized IWC Official Agent will also be pleased to
provide you with information.
To ensure that your watch stays properly water-resistant, you
should have it checked by an IWC service centre at least once
a year. Your watch should also be tested after exposure to
unusually harsh conditions. If the tests are not carried out as

— 30 — — 31 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
–Bronze is a traditional material which is not as resistant to
corrosion as those often used in the watchmaking industry
such as stainless steel, titanium, gold and platinum.
–Skin contact will cause bronze to develop a typical metallic
odour when worn (similar to that of coins).
SERVICING YOUR
BIG PILOT’S WATCH PERPETUAL CALENDAR
Although the parts in this watch are all manufactured from
top-quality materials, a number of components are subject
to natural wear and tear. It is particularly important to ensure
that the points at which wear occurs are always well lubri-
you can prevent discoloration and premature ageing of the
material.
The patina which develops over time protects the metal. It is
caused by oxidation, and is similar to the tarnish which can
be seen on items made of silver. The environment to which
the metal is exposed and how often it is used affects how
quickly the metal darkens. This is a natural process influenced
by skin contact, humidity, exposure to the elements, etc.
–The surface will not darken uniformly; darker areas and
blemishes may develop.

— 32 — — 33 —
BIG PILOT’S WATCH PERPETUAL CALENDAR BIG PILOT’S WATCH PERPETUAL CALENDAR
CASE MATERIALS
CASE MATERIAL SCRATCH-RESISTANCE BREAKING STRENGTH WEIGHT
STAINLESS STEEL low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
BRONZE low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
5N GOLD/WHITE GOLD low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
PLATINUM low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
TITANIUM low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
TITANIUM ALUMINIDE low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CERAMIC (ZIRCONIUM OXIDE) low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CERAMIC (BORON CARBIDE) low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CARBON low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
CERATANIUM® low ● ● ● ● ● high low ● ● ● ● ● high low ● ● ● ● ● high
FURTHER INFORMATION AT
WWW.IWC.COM/CASE-MATERIALS
Effective from January 2019. · Technical specifications subject to change.
cated and that oil contaminated by metal abrasion is regu-
larly removed. For this reason, we recommend that you have
your watch serviced approximately every 5 years. Please
contact an authorized IWC Official Agent.

— 34 — — 35 —
大型飞行员万年历腕表 大型飞行员万年历腕表
欢迎
欢迎您加入IWC万国表爱表人士的小圈子。确切来说，我们对腕表在性能
精准之上有更上一层楼的追求。体验腕表带给您的乐趣，绝不仅限于其分
秒不差的精准性能。方寸之间，您可欣赏其独具匠心的巧思创意、精准性
能与想象力的相辅相成，可体会时间与永恒、疆界与无穷之间的交相辉映，
以及千古亘久的自然法则与自成一格之品位的完美融合。因此，自1868 年
创立 至今，
IWC万国表倾情致力于钟表制作，不惜时间制作出不仅运行绝
对 精 准 的 腕 表 ，而 且 ，随 着 每 一 秒 的 流 逝 ，每 只 腕 表 都 释 放 出 顶 级 钟 表 工
艺辉煌成就的魅力：在技术、材质和设计风格上的锐意创新或许隐于细节
之处甚或不易察觉，但依旧引人入胜。您所购买的精美腕表正是此IWC万
国表优良传统的典范。对于您明智的选择，请容我们献上由衷的祝贺，并
诚挚地祝福您与这款腕表共度美好时光，记录生活每一刻。它的优异性能
将在下文中有详细的说明。
IWC万国表管理部

— 36 — — 37 —
大型飞行员万年历腕表 大型飞行员万年历腕表
大型飞行员万年历腕表的技术特性
您的这款IWC万 国 表 具 有 时 、分 、秒 显 示 功 能 ，并 显 示 南 北 半 球 月 相 、星
期 、日 期 、月 份 、四 位 数 年 份 及 剩 余 动 力 储 备 。自 动 上 链 机 械 机 芯 ，上 满 链
时可提供约7天（168 小时）的动力储备。大型飞行员万年历腕表的防水达
6巴，具有防震功能，并采用硬度等级为莫氏9级的凸状蓝宝石玻璃表镜，
为日常使用提供完美呵护。饰以18K金质徽章的雕刻摆陀通过比勒顿上链
系 统 为 腕 表 旋 转 式 双 向 上 链 。本 腕 表 不 仅 功 能 独 特 ，而 且 清 晰 易 读 ，操 作
简便，与其他复杂型腕表相比，别具一格。为确保本腕表在未来能够始终
保持超卓性能，请谨遵若干重要操作说明。
1 时针
2 分针
3 秒针
4 日期显示
5 星期显示
6 月份显示
7 年份显示
8 月相显示
9 动力储备显示
10 旋入式表冠
3
6
1
4
5
10
9
2
8
7

— 38 — — 39 —
大型飞行员万年历腕表 大型飞行员万年历腕表
表冠功能
X 正常位置（旋入状态）
0 上链位置
1 设置日历
2 时间设置
正常位置
本腕表具有旋入式表冠。将表冠旋入至正常位置（位置X）可 防 止 由 意 外
造成的时间或万年历调整，同时起到双层密封作用，防止液体渗入表壳。
将表冠向左旋转即可松开表冠，此时表冠自动处于上链位置，位置0。将
表冠推至位置X，并 同 时 向 右 旋 转 ，即 可 再 次 旋 紧 表 冠 将 其 固 定 。
X 0 1 2
注意：在不改变表冠位置或不使用表冠的前提下，本腕表在位置0、
1和2
时可以防水。正常使用时，表冠应一直处于旋紧状态，以确保密封性能稳
定并保护上链机制 。
上链位置
在上链位置（位置0）亦可手动为自动机芯上链。转动表冠数圈之后，机芯
就会启动。然而，我们建议上链时最好转动表冠20 圈 左 右 ，以 最 大 限 度 保
证准确度。佩戴腕表时，表冠须始终处于正常位置（位置X）。
