Jacuzzi BY82000 User manual

SUMMER RAIN™ II
2 PERSON SHOWER SYSTEM
ONE WALL
INSTALLATION AND OPERATING INSTRUCTIONS
Jacuzzi Whirlpool Bath©BY82000 03/05

Note: Thisisaprofessionalgradeproduct. Aknowledgeofconstructiontechniques,plumbingandelectrical
installationaccordingtocodesarerequiredforproperinstallationandusersatisfaction. Werecommendthat
alicensedcontractorperformtheinstallationofallJacuzziWhirlpoolBath©products. Ourwarranty does not
cover improper installation related problems.
IMPORTANT SAFETY INFORMATION
Do not place or use electrically connected devices, such as television, radio, or stereo speakers, lights, hair
dryers, or telephones, within 1.5 m (5 feet) of shower.

CONTENTS
Specifications _________________________________________________________________________ 2
Enclosure Specifications ________________________________________________________________ 3
Rough-in Reference ____________________________________________________________________ 3
Component Identification ________________________________________________________________ 4
Base Installation _______________________________________________________________________ 5-7
Tower and Doors Installation _____________________________________________________________ 8-15
Operation ___________________________________________________________________________ 16-17
Maintenance __________________________________________________________________________ 18
Tower Fixture Repair Parts _______________________________________________________________ 19
Tower Plumbing Repair Parts _____________________________________________________________ 20
Warranty ____________________________________________________________________________ 23-24
Owner's Record
Save These Instructions for Future Use.
Date Purchased ____________________________________________________________
Purchased From ____________________________________________________________
Installed By ________________________________________________________________
Serial Number _____________________________________________________________
Model ____________________________________________________________________
1Jacuzzi Whirlpool Bath© BY82000 03/05

Important: Read complete instructions before beginning installation.
Each unit arrives ready for installation, equipped with base, glass and associated hardware.
Remove the unit from the carton. Retain the shipping carton until satisfactory inspection of the product has been
made.
Immediately upon receipt, inspect the base and other components before installing. Check all carton inserts for
partsandhardware. Shouldinspectionrevealanydamageordefectinanycomponent,donotinstalltheunit. Damage
or defect to any component claimed after the unit is installed is excluded from the warranty. Jacuzzi Whirlpool Bath's
responsibilityforshippingdamageceasesupondeliveryoftheproductsin good order tothecarrier. Referanyclaims
for damage to the carrier. For definitions of warranty coverage and limitations, refer to the published warranty
information packed with the product.
JacuzziWhirlpool Bath©is not responsible for any defect that could havebeen discovered, repaired,or avoided by
following this inspection.

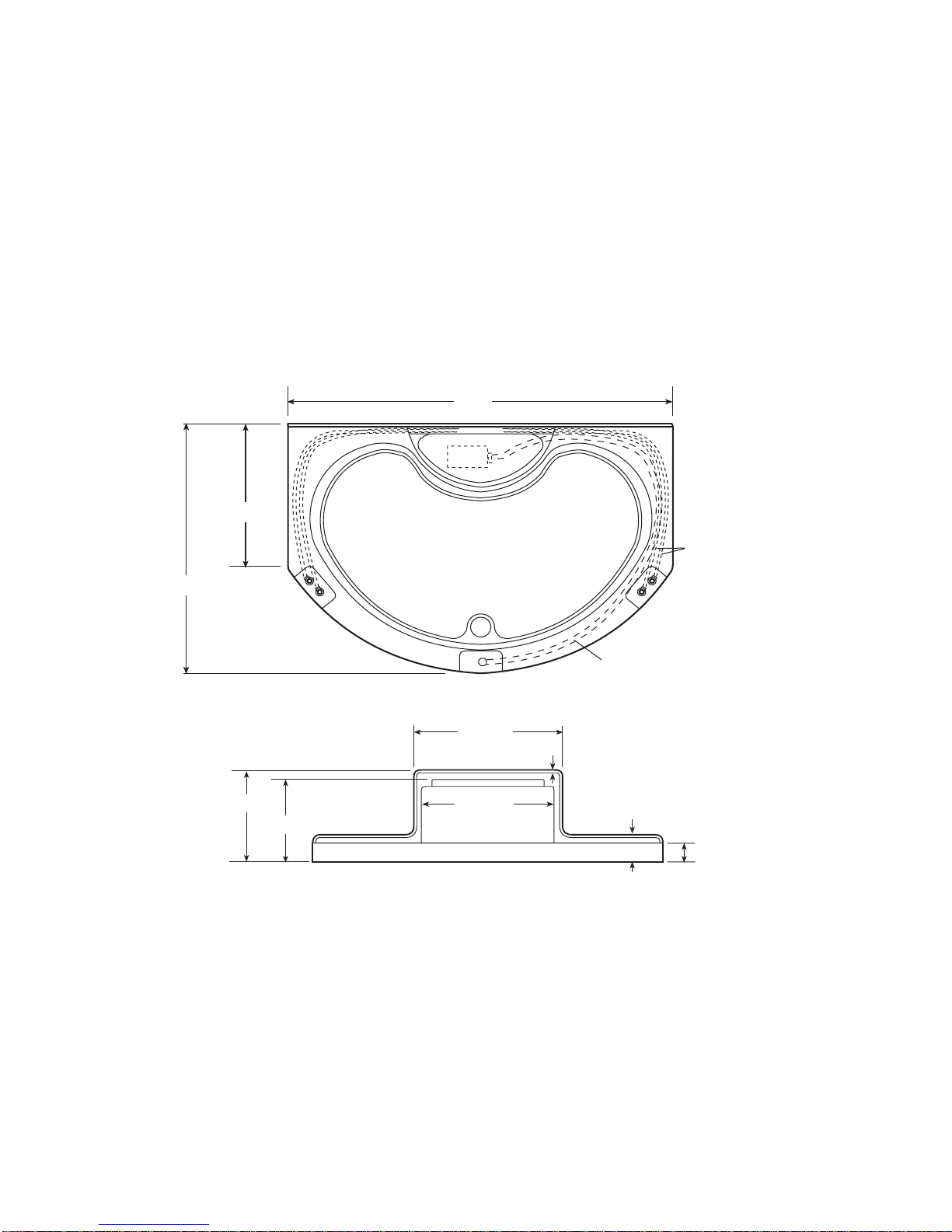

DIMENSIONS
BASE SPECIFICATIONS
PRODUCT WEIGHT (Base and Enclosure )
950 lb
(431 kg)
TOTAL WEIGHT/FLOOR LOADING
1266.6 lb (574.5 kg)
63.3 lb/sq. ft. (332.1 kg/m2)
SPECIFICATIONS
NOTE: MINIMUM WATER PRESSURE FOR THE SYSTEM IS 45 PSI WITH 3/4" HOT & COLD SUPPLY SERVICE.
48"
27-11/16"
TOP VIEW
72"
1/2" FLEXIBLE
WATER SUPPLY
HOSES UNDER
BASE
(BOTH SIDES)
AIR SUPPLY HOSE
FRONT VIEW
4-1/2"
18-11/16"
1-1/2" TILE FLANGE
6-1/2"
27-1/4"
30-1/4"
21-1/16"
2
Jacuzzi Whirlpool Bath©BY82000 03/05

ROUGH-IN REFERENCE
ENCLOSURE SPECIFICATIONS
48"
27-11/16"
TOP VIEW
72"
38-15/16"
36"
1" TILE FLANGE BLOWER MOTOR FOR
UNITS WITH AIR
AIR LINE FOR
UNITS WITH AIR
84"
72" 48"
FRONT VIEW SIDE VIEW
3Jacuzzi Whirlpool Bath© BY82000 03/05

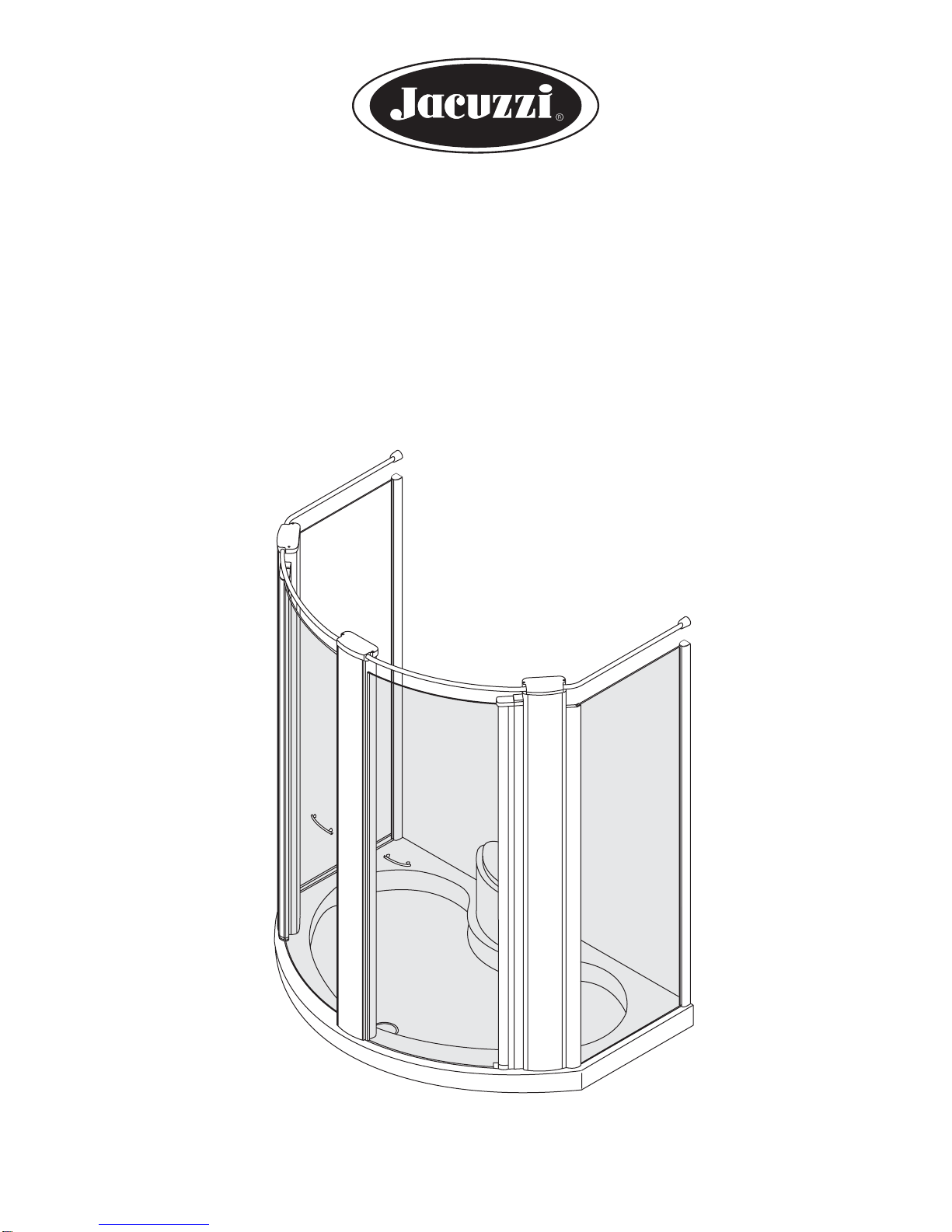

COMPONENT IDENTIFICATION
FRONT VIEW SIDE VIEW
GLASS SIDE PANEL
GLASS DOORS
RAIL BRACKET
AND COVER CAP
SIDE SUPPORT RAIL
CENTER SUPPORT RAIL
AIR TOWER WATER TOWER
SEAT
BASE
DOOR POST DOOR POST
WATER TOWER
WALL POST
GLASS SIDE PANEL
(SUPPORT AND SIDE SUPPORT RAILS NOT SHOWN)
GLASS SIDE PANEL
AIR TOWER
WATER TOWER
DOOR POST DOOR POST
WATER TOWER
DRAIN
SEAT
BASE
WALL POST WALL POST
GLASS SIDE PANEL
GLASS DOORS
4
Jacuzzi Whirlpool Bath©BY82000 03/05

PRELIMINARY ROUGH-IN
Thefloorstructurebeneaththeunitmustbeableto
support a total weight of the unit and bather. Refer
to page 2, SPECIFICATIONS, for weight specifica-
tions . Refer to COMPONENT IDENTIFICATION on
page 4 to help identify parts.
STEP 1
Provide an opening in the subfloor no less than 5" x 5"
square. This opening should be located on the center
lines of the shower base drain hole.
STEP 2
Remove the stainless steel strainer from the drain
assembly. Disassemble the locknut and two gaskets
from the back of the drain assembly. Apply a 1/4" bead
ofcaulking(silicone)tothedrainholeandinsertthedrain
assembly. Replace the rubber washer, fiber washer,
and lock nut in that order. Hand tighten the locknut.
Remove excess sealant from finished side.
Apply a lubricant (common household liquid soap
works well) to the inside of the rubber seal of the drain
assembly.
STRAINER
DRAIN
ASSEMBLY
SILICONE
SEALANT
SHOWER BASE
RUBBER WASHER
FIBER WASHER NUT
APPLY LUBRICANT
BASE INSTALLATION
INSTALLATION INSTRUCTIONS
STEP 3
If the subfloor is level, no other preparation is neces-
sary. Youcanproceedtoinstallthe showerbase. Ifthe
subfloorisnotlevel,levelthesubfloorbyspreadingfloor
leveling compound, mortar, plaster or minimal expan-
sion structural foam with a minimum density of 5 lbs./
cubic feet EVENLY over ENTIRE area where base will
be installed. The compound used MUST make contact
with the entire bottom surface of the base. Both sides
of a joint or splice of subfloor should be level to each
other. Levelandsupportwastepipecutoutareagreater
than5"x5". ThebaseisNOTtobesupportedbythetile
flange.
SPREAD MORTOR OR LEVELING
COMPOUND ETC EVENLY OVER ENTIRE AREA
45° COPPER ELBOW
PROVIDED (2)
COPPER FITTINGS
AND TUBING
NOT PROVIDED
STUD
WALL
DETAIL 1
5"X5" OPENING
(MIN. AS POSSIBLE)
C
L
C
L
2" WASTE PIPE
5Jacuzzi Whirlpool Bath© BY82000 03/05
CAUTION: Anonflammableprotective barrier must
be placed between soldering work and base unit to
prevent damage to the base.

STEP 6
With a large screwdriver and the tool included with the
drain, tighten the inside compression nut to seal the
drain pipe connection. After drain is fully installed, test
for proper drainage. If the shower base does not drain
properly, rectify this condition before proceeding with
the installation. Jacuzzi Whirlpool Bath©is not re-
sponsible for removal and/ or reinstallation costs.
TIGHTEN SEALING NUT
TOOL
(INCLUDED)
POSITION BASE OVER CENTER OF
DRAIN PIPE AND SET INTO PLACE
* ONLY WITH AIR TOWER UNITS
CONTROL
PANEL
CABLE*
FLOW
SWITCH
CABLE*
(2X)
STEP 4
Before installing the base, make sure the 4 water
supply hoses are routed to seat area. If you have a with
Air unit also route the air supply hose to the seat area.
If you have a with Air unit also pull the 2 flow switch
cables and the control panel cable through base at this
time.
With the drain fitting passing over the center of the
drainpipe, lower the shower base carefully into place,
push down firmly until the base is in place.
Youmustcheckthe levelofthebaseintwodirections.
Donot lift a corner of theshower baseto levelthe base.
Thiswillcausealossofcontactwiththemortarandvoid
yourwarranty. Attachtheshowerbaseflangetothestud
wall and blocking with self-drilling screws (included).
Use a minimum of 3 screws per flange section.
NOTE: Ifthereisanygapbetweenbaseflangeand
stud or blocking, shims MUST be used to prevent
distortion or cracking of the flange. See Shim In-
structions.
BASE INSTALLATION
GAP
TILE
FLANGE
INCORRECT
SHIM
STUD
CORRECT
TILE
FLANGE
STUD
USE
SCREWS
(PROVIDED
)
USE
SCREWS
(PROVIDED)
LOWER SEAT FRAME OVER
FLANGE ON BASE
APPLY
SEALANT
ON
FLANGE
BLOCKING
SEAT
FRAME
STEP 5
Before installing the seat frame, apply silicone sealant
around mating flange on base. Lower seat frame onto
flangeandbase. Attachtheseatframeflangetothestud
wall and blocking with self-drilling screws (included).
Useaminimumof3screwsperflangesection. Cleanup
any excess sealant.
6
Jacuzzi Whirlpool Bath©BY82000 03/05
NOTE: Ifthereisany gapbetweenseat frameflange
and stud or blocking, shims MUST be used to pre-
vent distortion or cracking of the flange. See Shim
Instructions.
NOTE: Watertight installation of the drain is the
installer’sresponsibility. Drainleakageisexcluded
from the Jacuzzi Whirlpool Bath©warranty.
Replace the strainer and tape over the drain hole to
prevent finishing material from entering drain.

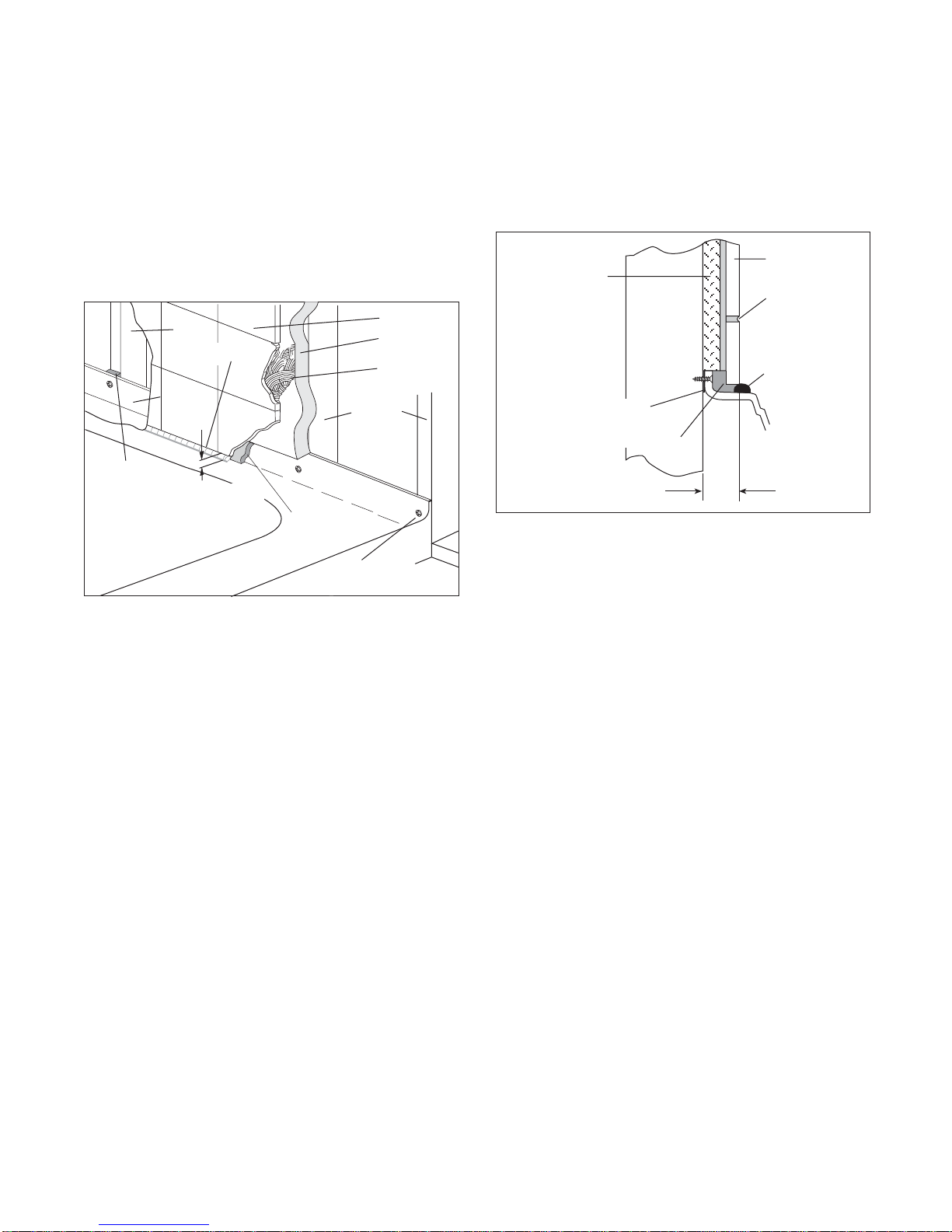

SHIM INSTRUCTIONS

STEP 7
Place cement board or equivalent on top of shower
base flange and secure to studwall.
Applytile(orotherfinishingmaterial)leavinga1/8"gap
between the finishing material and the shower base
flange lip. Seal this gap with silicone sealant. Leave a
minimum 1/4" gap at the back and front corners of the
shower base to allow drainage from leakage through
unsealed tiled grout.
BASE INSTALLATION
CLEAN UPAFTER BASE INSTALLATION
Toavoiddullingandscratchingtheacrylicsurfaceofthebase,neveruseabrasivecleaners. Amildliquiddetergent
and warm water clean soiled surfaces.
Remove spilled plaster with a wood or plastic edge. Metal tools scratch the surface. Spots left by plaster or grout
can be removed if lightly rubbed with detergent on a damp cloth or sponge.
Paint, tar, or other difficult stains can be removed with paint thinner, turpentine, or isopropyl alcohol (rubbing
alcohol).
Minor scratches which do not penetrate the color finish can be removed by lightly sanding with 600-grit wet/dry
sandpaper. You can restore the glossy finish to the acrylic surface of the base with a special compound, Meguiar’s
#10 Mirror Glaze. If not available, use automotive rubbing compound followed by an application of automotive paste
wax.
Major scratches and gouges which penetrate the acrylic surface require refinishing. See your Jacuzzi Whirlpool
Bath©dealer for special instructions.
GROUT
STUD
SHIM IF NECESSARY
DO NOT FILL
CEMENT
BOARD
TILE
SILICONE
SEALANT
1-1/8" MAXIMUM
NO MINIMUM
CAULKING
TILE
CEMENT
BOARD
TILE
ADHESIVE
STUD
FLANGE
SHIM IF
NECESSARY
TO FILL GAPS
BETWEEN STUD
AND FLANGE
STUD
ATTACH WITH
SCREWS PROVIDED
1/8" GAP
BETWEEN
BASE &
TILE
DO NOT FILL
THIS AREA
STEP 8
Filling the area marked DO NOT FILL will prevent
moisture from properly draining back into the base
through weep holes. This moisture is due to leakage
through the tile grout. Sealing the tile grout will reduce
or prevent this leakage.
STEP 9
NOTE: ALLOW 24 HOURS DRYING TIME BEFORE
BEGINNING THE TOWER AND DOOR INSTALLA-
TION.
7Jacuzzi Whirlpool Bath© BY82000 03/05
See Shim Instructions on page 6.

TOWERS AND DOORS INSTALLATION
THESE INSTRUCTIONS ARE FOR SUMMER RAIN
UNITSWITHANDWITHOUTAIRFEATUREOPTION.
REFERTOCOMPONENTIDENTIFICATIONONPAGE
4 TO HELP IDENTIFY PARTS.
All wall finish tiling, trim, and sealing should be
completedbeforebeginningthispartof theinstalla-
tion.
STEP 1

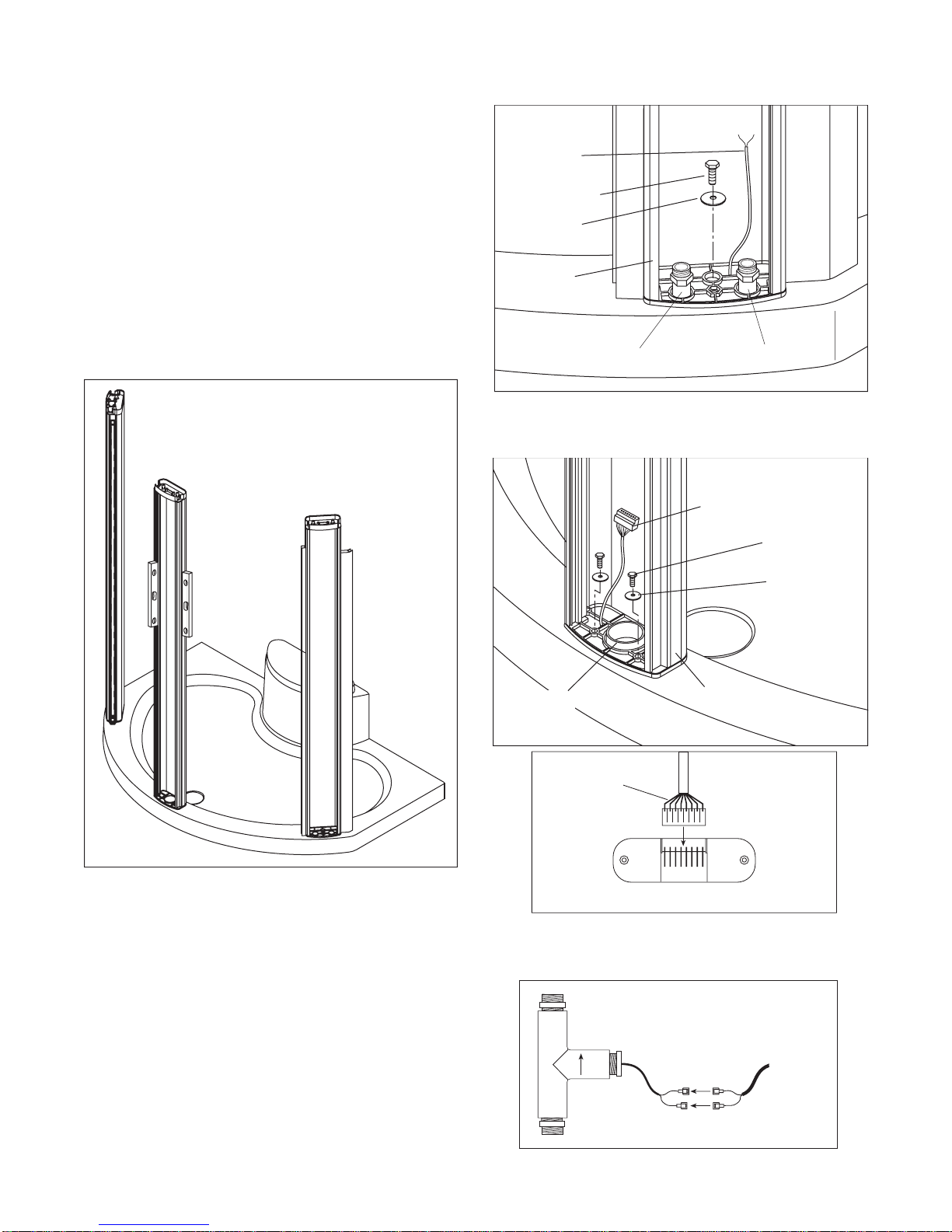

Position each tower on mounting pad on base. For the
shower towers, feed hot and cold supply line through
appropriate holes in bottom of tower. For air feature,
feed air line through large hole on bottom cap of the air
tower. Checkwithalevelwhenattachingtowerstobase.
Tightentowerbaseboltsafterleveling(1boltpershower
tower and 2 bolts for air tower).
WASHER
BOLT (5/16")
COLD HOT
SHOWER
TOWER (2X)
FLOW
SWITCH
CABLE*
* ONLY WITH AIR TOWER UNITS
WASHER (2)
BOLT 5/16" (2)
AIR SUPPY PIPE
AIR
TOWER
CONTROL
PANEL CABLE
WATER TOWER DETAIL
REAR OF CONTROLLER
BLACK LEAD
STEP 3 (WITH AIR FEATURE ONLY)
Route flow switch cables up through water towers and
connect to flow switch on both shower towers.
FROM
CONTROL
BOX
FLOW
SWITCH
STEP 2 (WITH AIR FEATURE ONLY)
Route control panel cable up through air tower and
connect to control panel.
8
Jacuzzi Whirlpool Bath©BY82000 03/05

TOWERS AND DOORS INSTALLATION
STEP 4

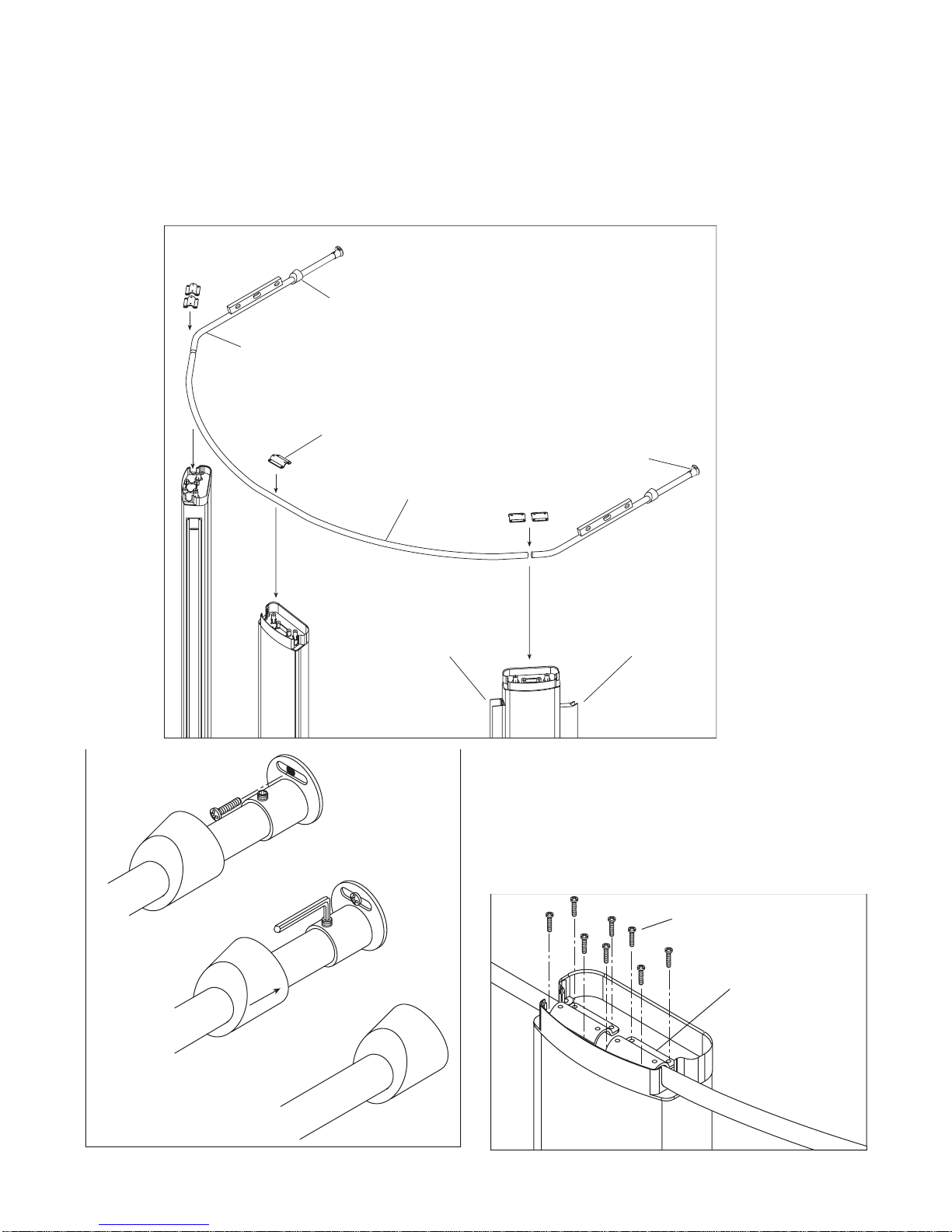

Taketheside support railsandinstall a covercapand wallbracketon each end. Placethecenter supportrailintoslot
on each tower. If rail does not readily fit into slots, it may be necessary to loosen the bolts holding towers to base (it
mayonlybenecessaryto loosen onetower).DO NOT FORCE CENTER RAIL INTOSLOTS.With center supportrail
inposition,installholddownbracketsbutdonottightenscrews.Placethesidesupportrailsintotheslotoneachwater
tower. With side rails in position install hold down brackets, but do not tighten screws. Check side support rails for
level and mark on the finished wall where to attach rail bracket. See DETAIL A. Drill 3/16" holes and secure bracket
withscrewsandwallanchorsprovided. Slidecovercapoverrailbracket. Ifatowerboltwasloosened,retightenwhile
checking the plumb of the tower. Tighten screws on all hold down brackets.
CENTER SUPPORT RAIL
HOLD DOWN BRACKETS (5)
COVER CAP (2)
RAIL BRACKET (2)
SIDE SUPPORT RAIL (2)
WATER TOWER DOOR POST WATER TOWER JAMB
RAIL HOLD
DOWN BRACKET
(1 PER AIR TOWER)
SCREW (8 PER WATER TOWER)
(4 PER AIR TOWER)
(2 PER WATER TOWER)
ATTACH RAIL
BRACKET TO WALL
SECURE RAIL TO
BRACKET (TURN CW
TO TIGHTEN)
MOVE COVER CAP
OVER BRACKET
DETAIL A
9Jacuzzi Whirlpool Bath© BY82000 03/05

TOWERS AND DOORS INSTALLATION
STEP 5
Two shut-off valves are provided per water tower. To
hook up supply lines, unscrew valves from braided line.
Using thread sealant, screw each valve to stub out at
bottom of tower. Then reconnect braided line using
provided gasket. Do not twist or kink supply lines when
connecting. Perform this step for both water towers.
SHUT OFF
VALVES
(PROVIDED)
COLD HOT
CAULK AROUND SUPPLY
PIPING AND INSIDE TOWER BASE
STEP 4 (WITH AIR FEATURE ONLY)
Attach air supply pipe to air tower plumbing.
10
Jacuzzi Whirlpool Bath©BY82000 03/05

TOWERS AND DOORS INSTALLATION
STEP 6

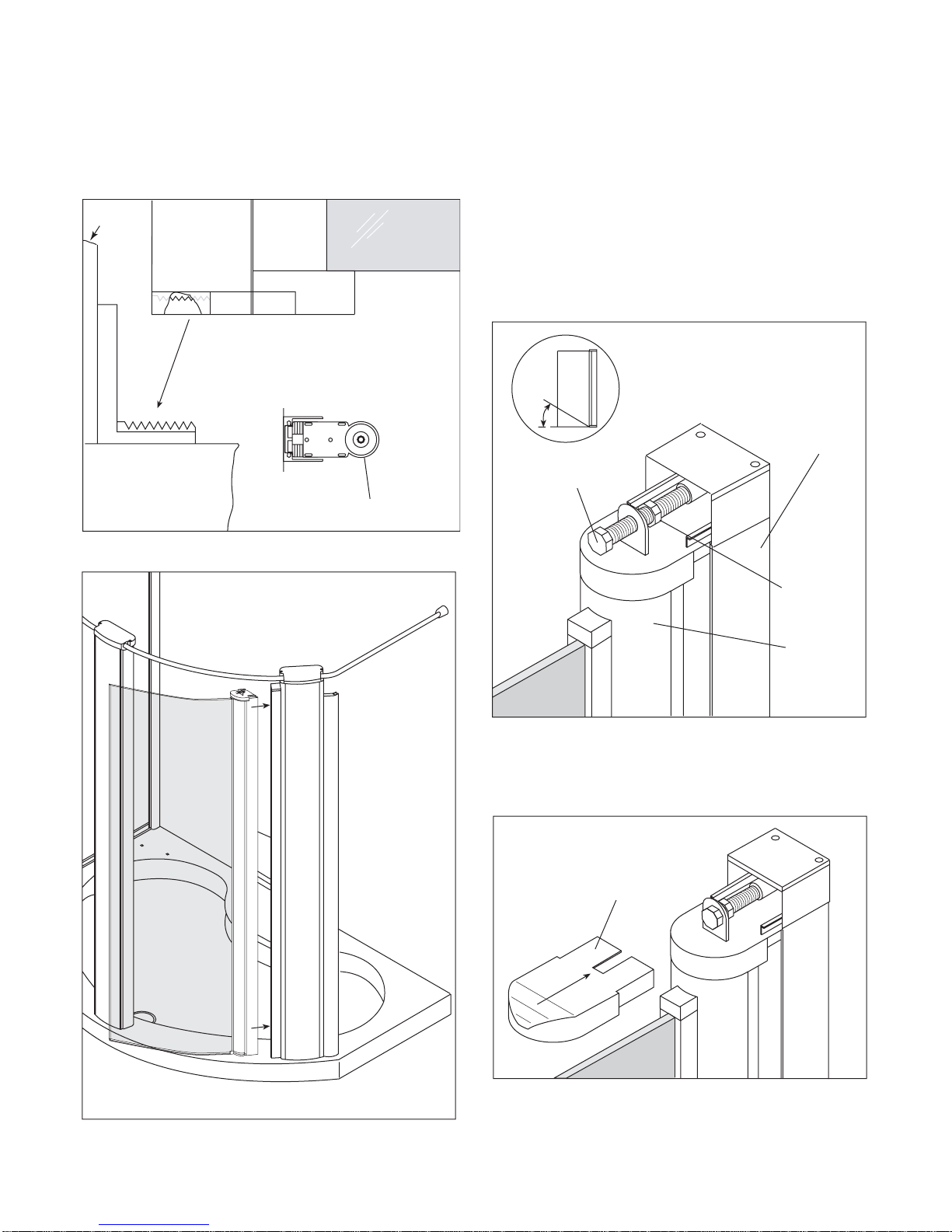

Movethedoorassemblytothedoorpostonwatertower
and slide the assembly into the door post. Locate the
base of the door into the slot of serrated door positioner
that positions the hinge barrel as shown.
BOTTOM OF
DOOR FRAME
HINGE BARREL
SHOWER BASE
WATER
TOWER
GLASS DOOR
STEP 7
Check that the magnetic mouldings on door and air
tower overlap. Insert adjusting bolt with locking nut into
fixed nut in top cap (See below). Adjust the door with
adjusting screw until the glass is parallel with shower
baseand door moulding mates with water tower mould-
ing. It may be necessary to reposition the door into
another slot (See STEP 6) which can be done without
removing door from wall post. To do so remove the
adjusting screw from wall post, lift the door slightly to
reposition. Reinsertadjustingscrewandlockingnutand
adjust glass door. After final adjustment, lock this posi-
tion with locking nut. Repeat for other door.
LOCKING
NUT
ADJUSTING
SCREW (12mm)
DOOR POST
HINGE
BARREL
STEP 8
Install cover cap by sliding over adjusting screw and
bracket.
COVER CAP
11 Jacuzzi Whirlpool Bath© BY82000 03/05

TOWERS AND DOORS INSTALLATION
FINISH WALL
EDGE
OF BASE
GLASS SIDE
PANEL MOUNTED
PARALLEL TO
EDGE OF BASE
WALL POST
TAPE (3)
SCREWS (3)
STEP 9

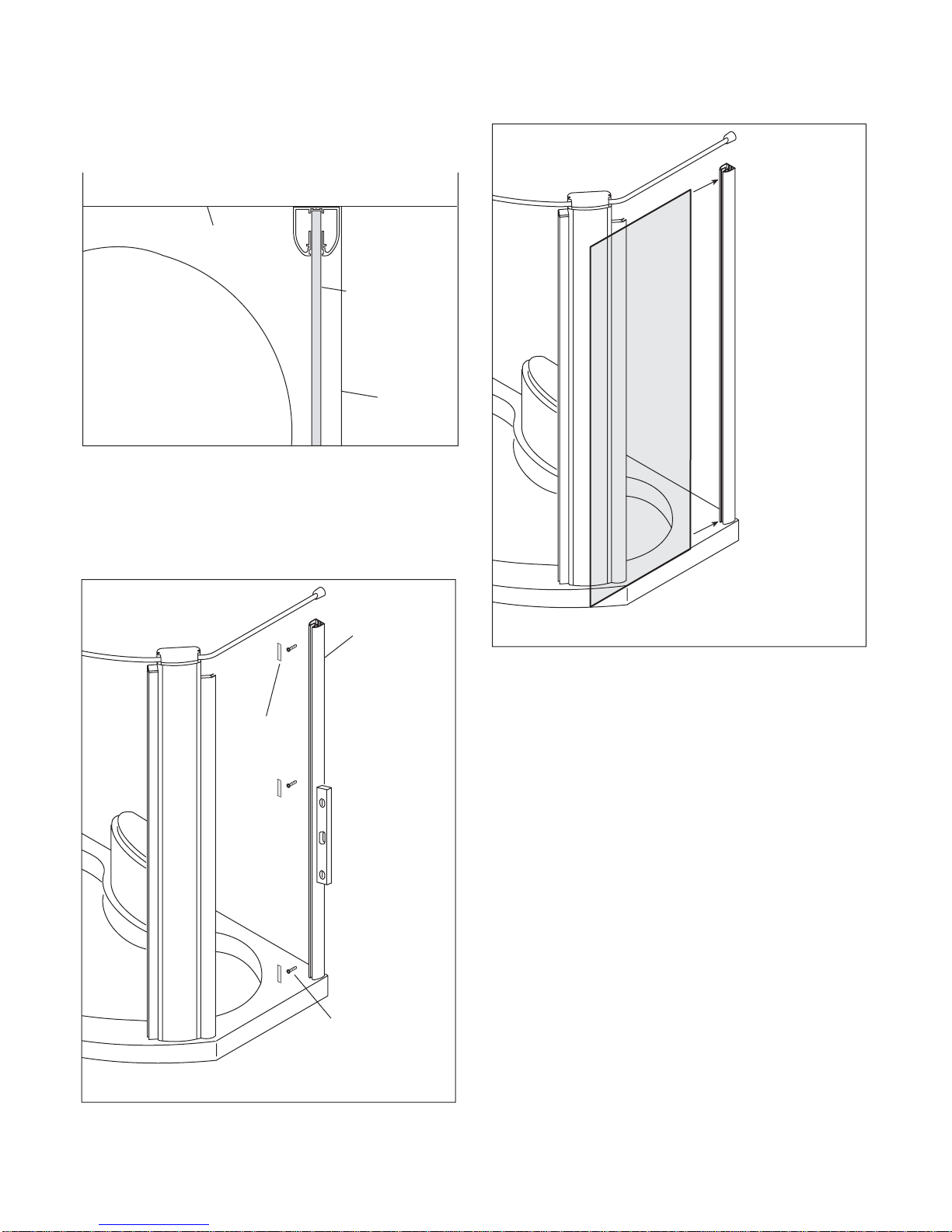

Position the fixed glass wall post so that the glass side
panel will be parallel with the outside edge of the base.
The fixed glass wall post position may vary slightly due
to the anchored location of the water tower.
STEP 10
Level the post in its proper position and mark where
screwholesaretobedrilled. Drill3/16"holesandsecure
with wall anchors and screws provided. Apply tape
(provided) firmly over screw heads.
STEP 11
Slide fixed glass panel all the way into wall post.
12
Jacuzzi Whirlpool Bath©BY82000 03/05

TOWERAND DOOR INSTALLATION
STEP 12
Align the glass with glass jamb and insert. Repeat
STEPS 8 through STEP 10 for the other fixed glass
panel.
WALL POST
GLASS
GLAZING GASKET
INSIDE OF
ENCLOSURE
APPLY SEALANT
JAMB
GLASS
GLAZING GASKET
INSIDE OF
ENCLOSURE
APPLY SEALANT
STEP 13
Installglazinggasketonfixedglasswallspostandjambs
ontheoutside. Noteorientationofgasket. Soapywater
may help to insert the glazing gasket.
NOTE: The glazing is to be installed on the outside of
enclosure for both wall posts and tower jambs.
Clean any soapy residue off the glass and towers. On
the inside of enclosure, apply sealant to entire length
of glass and wall post as well as the entire length of
the glass and tower jamb.
13 Jacuzzi Whirlpool Bath© BY82000 03/05

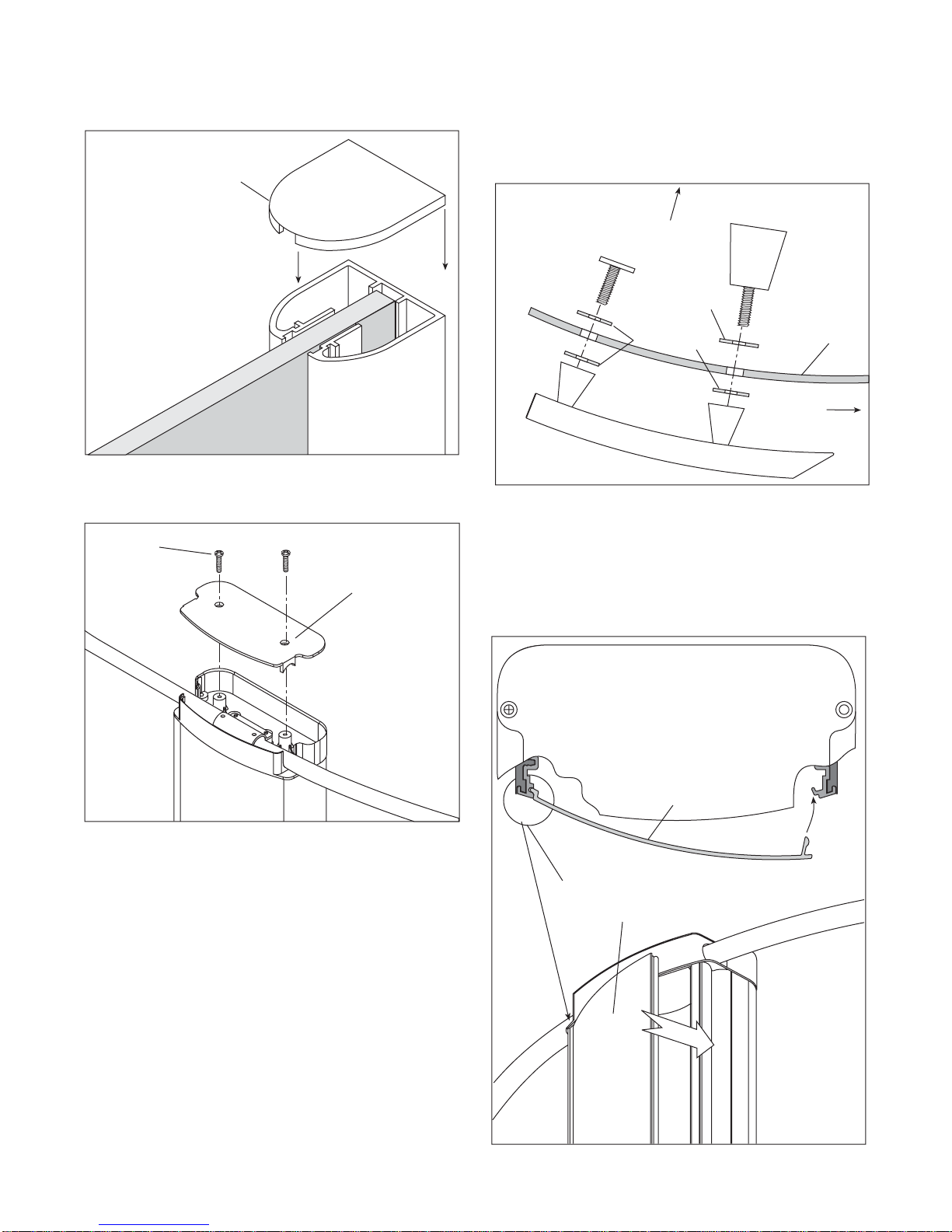

STEP 16
Install handles as shown. Note orientation of handle.
Handtightenknob. Flatscrewhasascrewdrivernotch.
Do not over tighten either knob or flat screw as cracked
glass may result.
GLASS
DOOR
WASHERS
LARGE
WASHER
INTERIOR OF
SHOWER
DOOR
HINGE
TOWER COVER
INSERT THIS SIDE FIRST
TOWER COVER
TOWER TOP PLATE
TOWERSAND DOOR INSTALLATION
COVER CAP
STEP 14
Install fixed glass cover cap on wall post.
STEP 15
Install all towers' top cover STEP 17
Turn on water supply and check for leaks. Correct any
leaks before continuing the installation.
STEP 18
Installall tower cover panels as shown. Align left sideof
tower cover panel with inside seat in each tower. Begin
each panel's snap in at the top of the tower.
TOWER
TOP COVER
SCREWS
(2 PER TOWER
14
Jacuzzi Whirlpool Bath©BY82000 03/05

TOWERSAND DOOR INSTALLATION

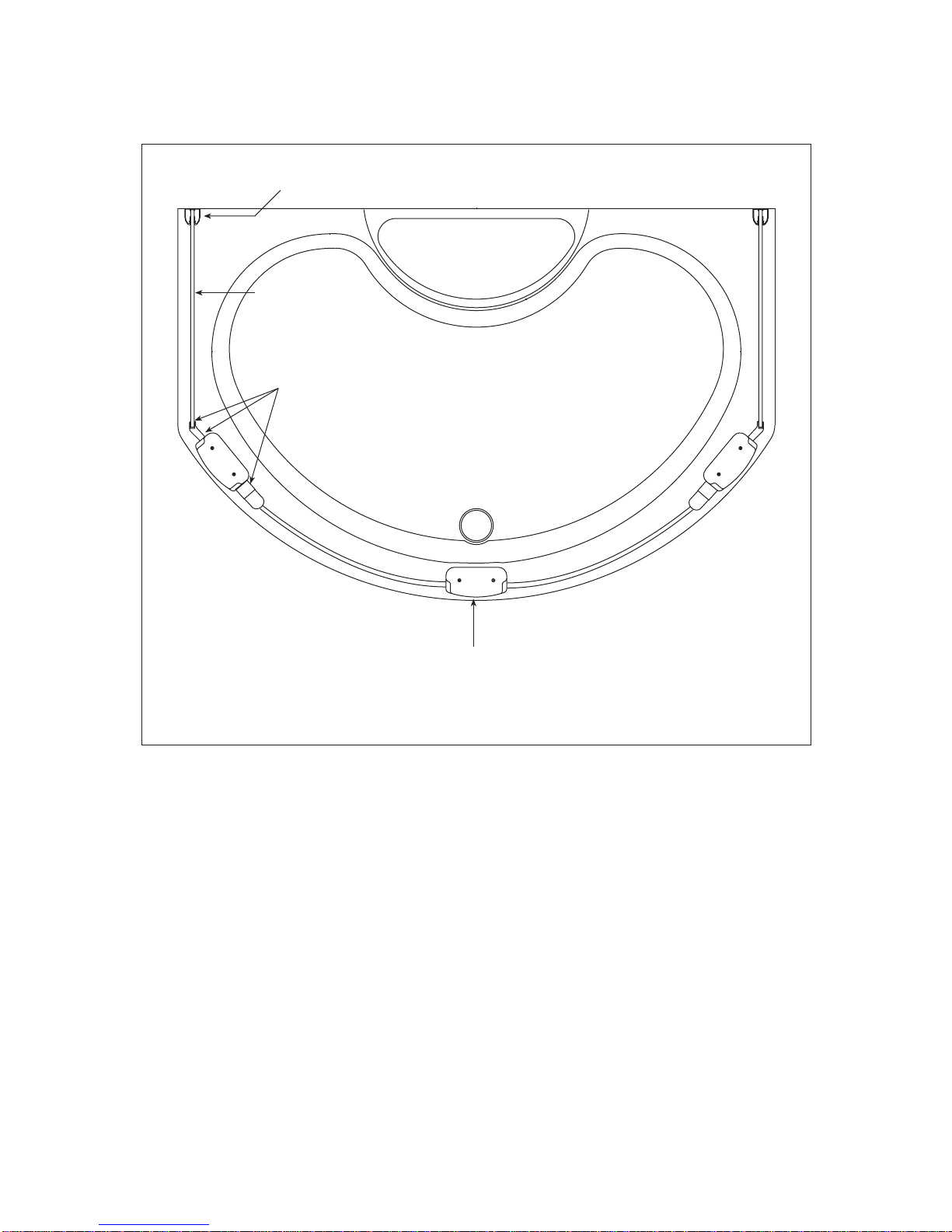

APPLY SEALANT ALONG BASE AND
SIDE OF WALL POSTAND GLASSAND
WALL POST (BOTH SIDES)
APPLY SEALANT
ALONG BASE
OF FIXED GLASS
(BOTH SIDES)
APPLY SEALANT ALONG SIDE OF JAMB
AND DOOR POSTAND JAMBAND GLASS
(BOTH TOWERS)
APPLY SEALANT ALLAROUND
TOWER BASES (ALL 3 BASES)
(RAIL NOT SHOWN)
STEP 19
Sealall around all bases oftowers with sealant. Also seal theinside of bothwall posts, jambs, door postsand bottom
of both glass side panels on the inside only.
CLEAN UP AFTER TOWERS AND DOOR INSTALLATION
Toavoiddullingandscratchingthetowersurfacesandsupportrailsneveruseabrasivecleaners. Useamildliquid
detergent and warm water clean soiled surfaces. Use a mild glass cleaner to clean glass panels and doors.
Paint,tar,orotherdifficultstainscanberemovedwithnormalglassandfinishcleaners.Usecautionwhenapplying
theseproductstocoatedmetalsurfaces.Testinaninconspicuousplacebeforeusing.Donotuseabrasives,alcohol,
acetone, ammonia or other solvents on any tower component.
Scratchestotowersandmetalcomponentsmaynotbufforpolishoutrequiring surfacerefinishingorreplacement.
Consult your Jacuzzi Whirlpool Bath©dealer or visit our website at: http://jacuzzi.com/ for a list of authorized finish
contractors.
15 Jacuzzi Whirlpool Bath© BY82000 03/05
STEP 20
Remove tape over drain and any other masking or protective covers. Proceed with clean up.

OPERATION
SHOWER TOWERS
16
Jacuzzi Whirlpool Bath©BY82000 03/05
Shower Head
There are three selectable positions: Jet, Normal Pul-
sating, and Aerated flow.
Body Sprays (2 Upper and 2 Lower)
To adjust the flow and intensity, turn as shown. The
spray can also be turned to change the direction of the
spray.
Diverter Control
To turn ON water, turn the inner knob clockwise and
adjust for more or less flow.
The outer knob will divert the water to body sprays,
shower head (position shown), and foot temperature
tester. Waterflow is proportionalto each functionwhen
outerknob ispositioned between main functions. When
outerknobispointingtowhitelineonouterdialface(half
way between main functions) water will be diverted
equally.
Temperature Valve
The temperature of the mixed water is adjusted by
means of the graduated handle. This handle has as
safety stop set at 100o F (38oC). To increase the tem-
perature, press the RED button to release the stop and
continue turning the handle.
Foot Temperature Tester
LESS FLOW AND INTENSITY
MORE FLOW AND INTENSITY
BODY
SPRAY
SHOWER
HEAD
FOOT
TEMPERATURE
TESTER
INNER
KNOB
OUTER
KNOB
STOP RELEASE
Shower Head
Body Sprays
(2 Upper & 2 Lower)
Diverter Control
Temperature Valve
Foot Temperature
Tester

OPERATION
CONTROLLER
To turn ON press ON/OFF button or turn ON water at either shower tower.
The unit will then automatically go into a preheat cycle to heat the air
transmission pipes. There will be a 5 (five) minute pause while the system
preheats. During this time both LEDs will be ON. When ready for drying,
press the ON/OFF button. Heat and air flow will rise together (only at initial
start-up). After reaching the desired flow, the temperature may be de-
creased or increased using the Temperature button. The air flow may also
be adjusted.
Note: Temperature and air flow are factory set with a predetermined heat
and air speed.
Air Jet (12)
Controller
AIR TOWER
ON/OFF
BUTTON
INCREASE
TEMPERATURE
DECREASE
TEMPERATURE
AIR FLOW LED
AIR FLOWAIR TEMPERATURE LED AIR TEMPERATURE
AIR TOWER CONTROLS
17 Jacuzzi Whirlpool Bath© BY82000 03/05

Toremove anylime scalefrom theshower headand bodysprays, rubwith yourfinger theouter ringof nozzleson the
shower head and all nozzles on the body spray.
To clean the foot temperature tester, unscrew the nozzle and back flush the wire mesh filter. Do not use metal tools
(such as scissors or screwdrivers, etc.) to clean the body sprays, shower head or foot temperature tester.
To clean the base, simply use a mild, nonabrasive liquid detergent solution. You can protect and restore the gloss to
a dulled acrylic surface by applying Meguiar's #10 Mirror Glaze, a product specifically designed for use on acrylic
finishes. If Meguiar's is not available, an acrylic polish of equal quality or automotive paste wax is acceptable.
The glass can be cleaned with any glass-cleaning product available on the market.
Do not use abrasives, alcohol, acetone, ammonia or other solvents on any tower component.
The thermostatic valve has 2 screen filters that should be cleaned periodically. To remove the filters turn off hot and
cold supplies. Remove each water tower cover. Disconnect the supply hoses from the valve and remove filter from
the hose. Remove any debris. Reinstallation is the reverse of removal. Turn on hot and cold supply and check for
leaks before replacing tower cover.
MAINTENANCE
18
Jacuzzi Whirlpool Bath©BY82000 03/05
