Jacuzzi BZ00000 User manual

SUMMER RAIN™ II
2 PERSON SHOWER SYSTEM
TWO WALL AND THREE WALL
INSTALLATION AND OPERATING INSTRUCTIONS
Jacuzzi Whirlpool Bath©BZ00000 03/05

Note: Thisisaprofessionalgradeproduct. Aknowledgeofconstructiontechniques,plumbingandelectrical
installationaccordingtocodesarerequiredforproperinstallationandusersatisfaction. Werecommendthat
alicensedcontractorperformtheinstallationofallJacuzziWhirlpoolBath©products. Ourwarranty does not
cover improper installation related problems.
IMPORTANT SAFETY INFORMATION
Do not place or use electrically connected devices, such as television, radio, or stereo speakers, lights, hair
dryers, or telephones, within 1.5 m (5 feet) of shower.

CONTENTS
Specifications _________________________________________________________________________ 2
Enclosure Specifications ________________________________________________________________ 3
Rough-in Reference ____________________________________________________________________ 3
Component Identification ________________________________________________________________ 4
Base Installation ______________________________________________________________________ 5-6
Clean Up After Base Installation __________________________________________________________ 7
Towers and Doors Installation_____________________________________________________________ 8-17
Clean Up After Towers and Doors Installation ________________________________________________ 17
Operation ___________________________________________________________________________ 18-19
Maintenance __________________________________________________________________________ 20
Tower Fixture Repair Parts _______________________________________________________________ 21
Tower Plumbing Repair Parts _____________________________________________________________ 22
Warranty ____________________________________________________________________________ 25-26
Owner's Record
Save These Instructions for Future Use.
Date Purchased ____________________________________________________________
Purchased From ____________________________________________________________
Installed By ________________________________________________________________
Serial Number _____________________________________________________________
Model ____________________________________________________________________
1Jacuzzi Whirlpool Bath© BZ00000 03/05

Important: Read complete instructions before beginning installation.
Each unit arrives ready for installation, equipped with base, glass and associated hardware.
Remove the unit from the carton. Retain the shipping carton until satisfactory inspection of the product has been
made.
Immediatelyuponreceipt,inspectthebaseandothercomponentsbeforeinstalling. Confirmyourunitmatchesyour
installationrough-in. Checkallcartoninsertsfor parts andhardware. Shouldinspectionrevealanydamage or defect
in any component, do not install the unit. Damage or defect to any component claimed after the unit is installed is
excludedfrom the warranty. Jacuzzi Whirlpool Bath's responsibility for shipping damage ceases upon delivery of the
productsingoodordertothe carrier. Refer anyclaimsfordamagetothe carrier. For definitionsofwarrantycoverage
and limitations, refer to the published warranty information packed with the product.
JacuzziWhirlpool Bath©is not responsiblefor any defectthat could have been discovered, repaired, or avoided by
following this inspection.

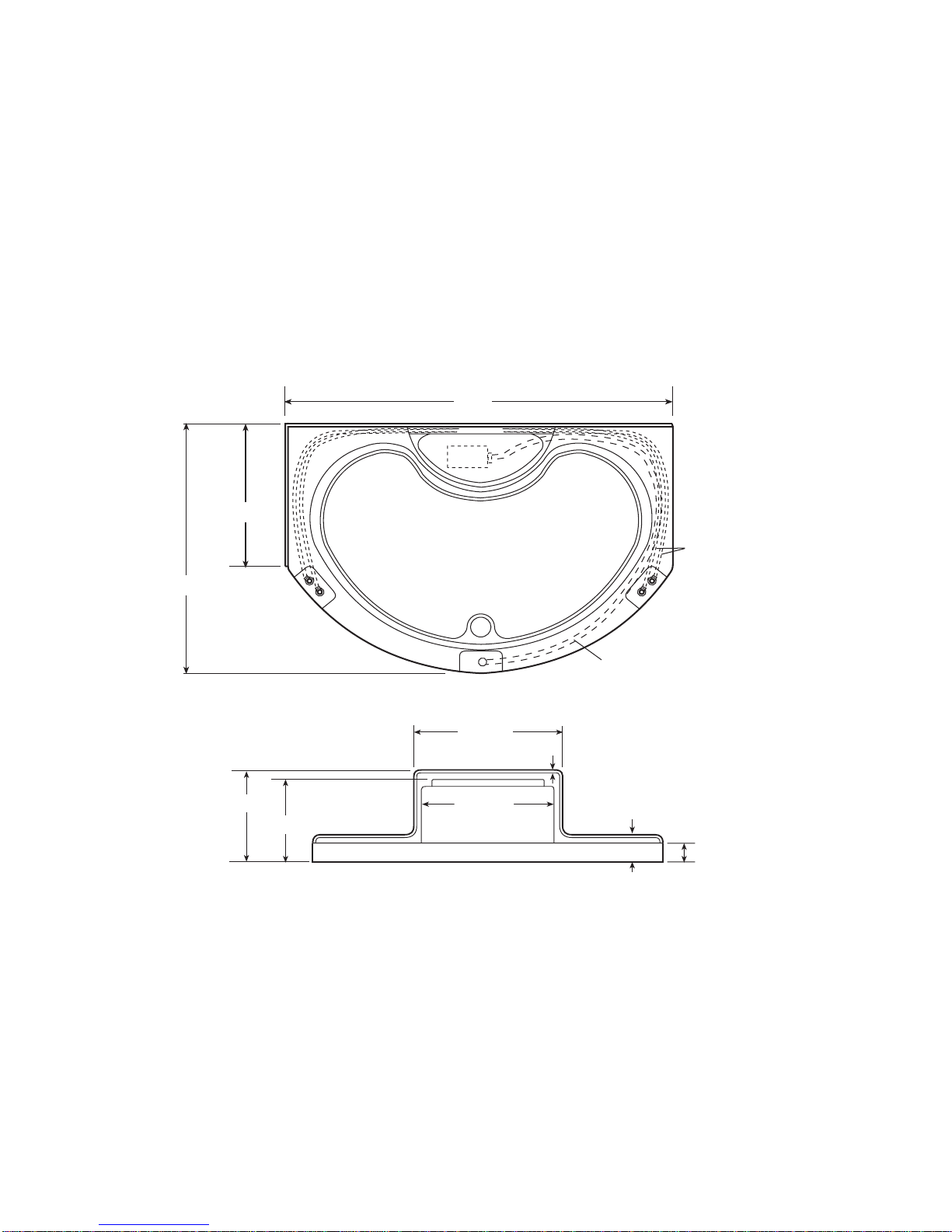

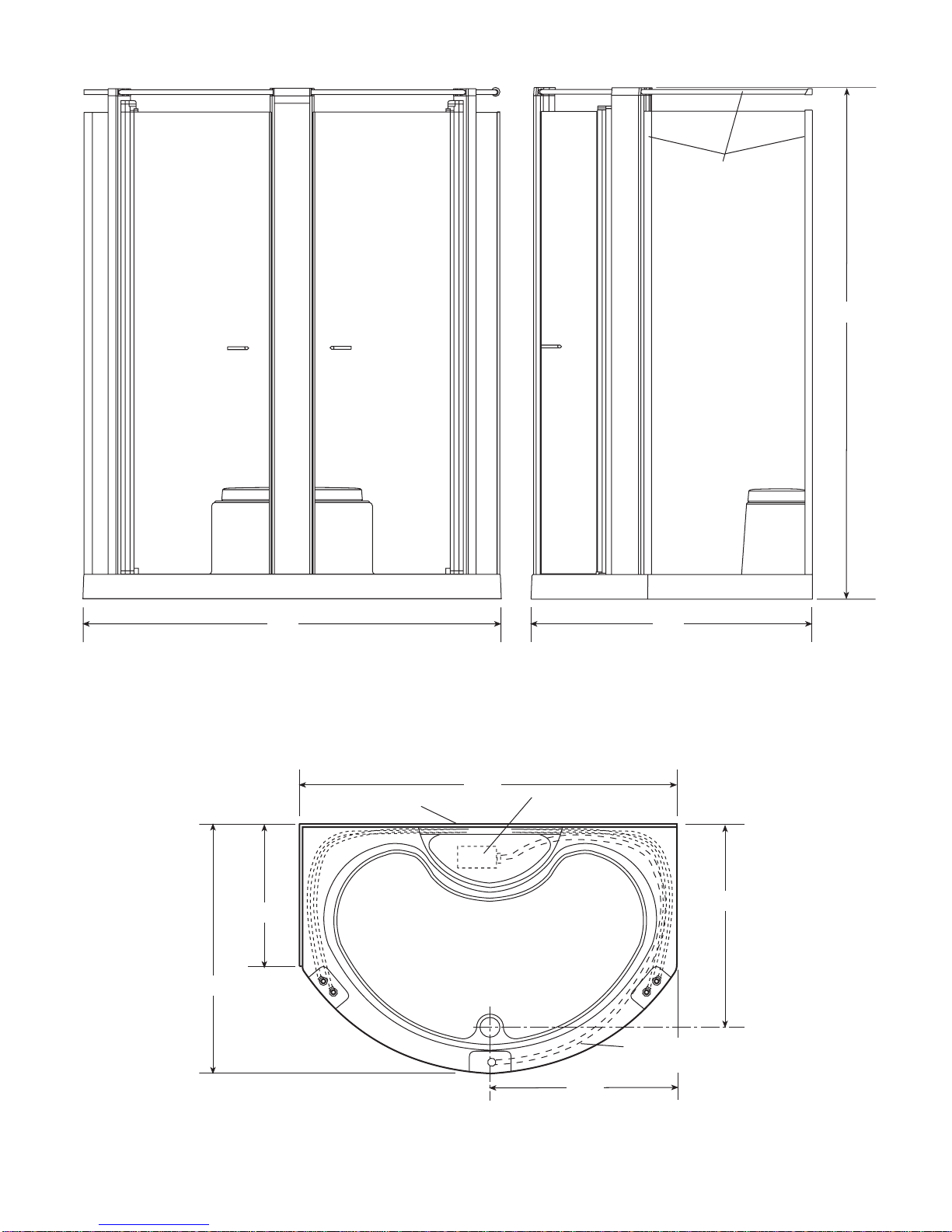

DIMENSIONS
BASE SPECIFICATIONS
Shown is 2 wall left hand base. Right hand opposite. The 3 wall base has tile flange on both sides and back.
PRODUCT WEIGHT (Base and Enclosure )
950 lb
(431 kg)
TOTAL WEIGHT/FLOOR LOADING
1266.6 lb (574.5 kg)
63.3 lb/sq. ft. (332.1 kg/m2)
SPECIFICATIONS
NOTE: MINIMUM WATER PRESSURE FOR THE SYSTEM IS 45 PSI WITH 3/4" HOT & COLD SUPPLY SERVICE.
48"
27-11/16"
TOP VIEW
72"
1/2" FLEXIBLE
WATER SUPPLY
HOSES UNDER
BASE
(BOTH SIDES)
AIR SUPPLY HOSE
FRONT VIEW
4-1/2"
18-11/16"
1-1/2" TILE FLANGE
6-1/2"
27-1/4"
30-1/4"
21-1/16"
2
Jacuzzi Whirlpool Bath©BZ00000 03/05

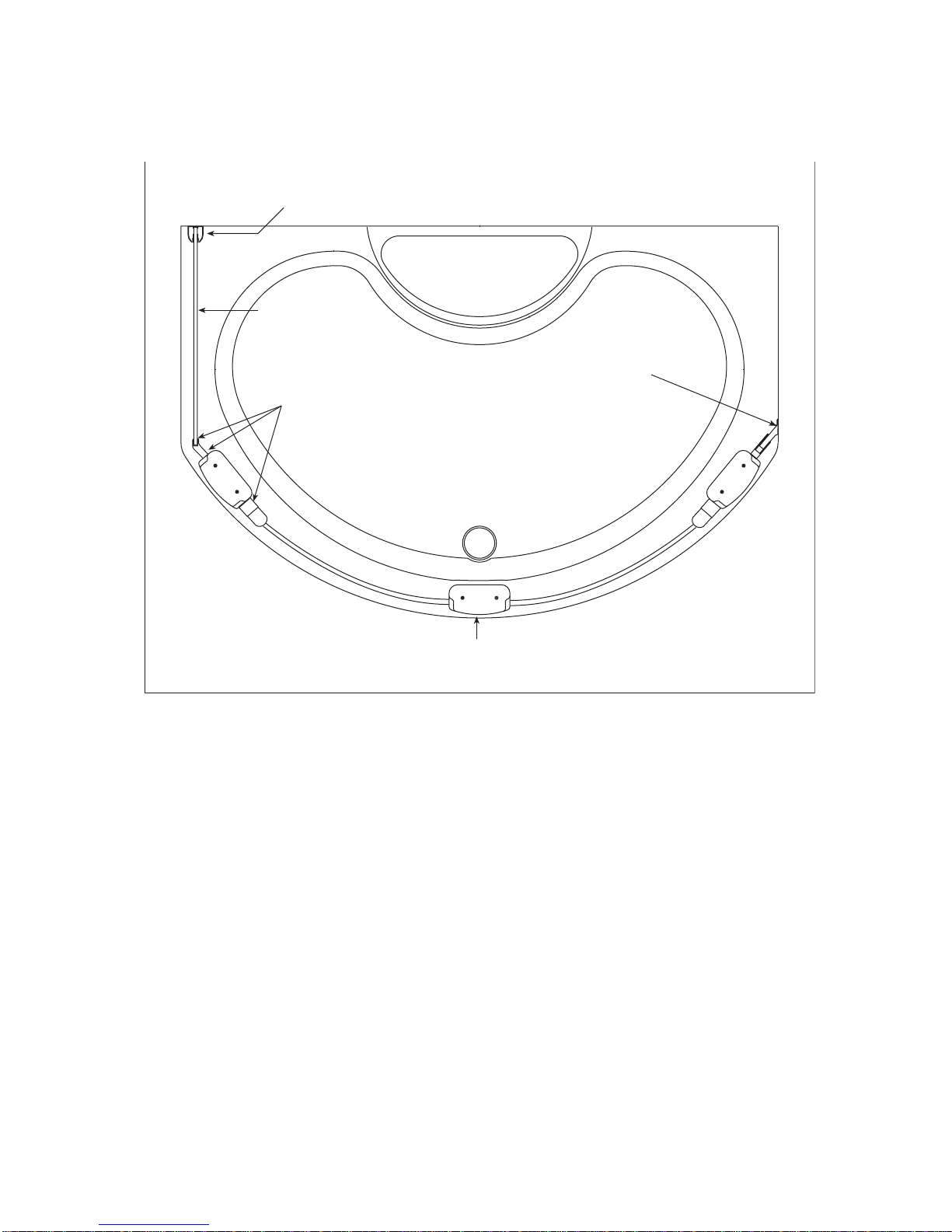

ROUGH-IN REFERENCE
Shown is 2 wall left hand base. Right hand opposite. The 3 wall base has tile flange on both sides and back.
ENCLOSURE SPECIFICATIONS
48"
27-11/16"
TOP VIEW
72"
38-15/16"
36"
1" TILE FLANGE BLOWER MOTOR FOR
UNITS WITH AIR
AIR LINE FOR
UNITS WITH AIR
84"
72" 48"
FRONT VIEW SIDE VIEW
2 WALL ONLY
GLASS SIDE PANEL
2 WALL ONLY
3Jacuzzi Whirlpool Bath© BZ00000 03/05

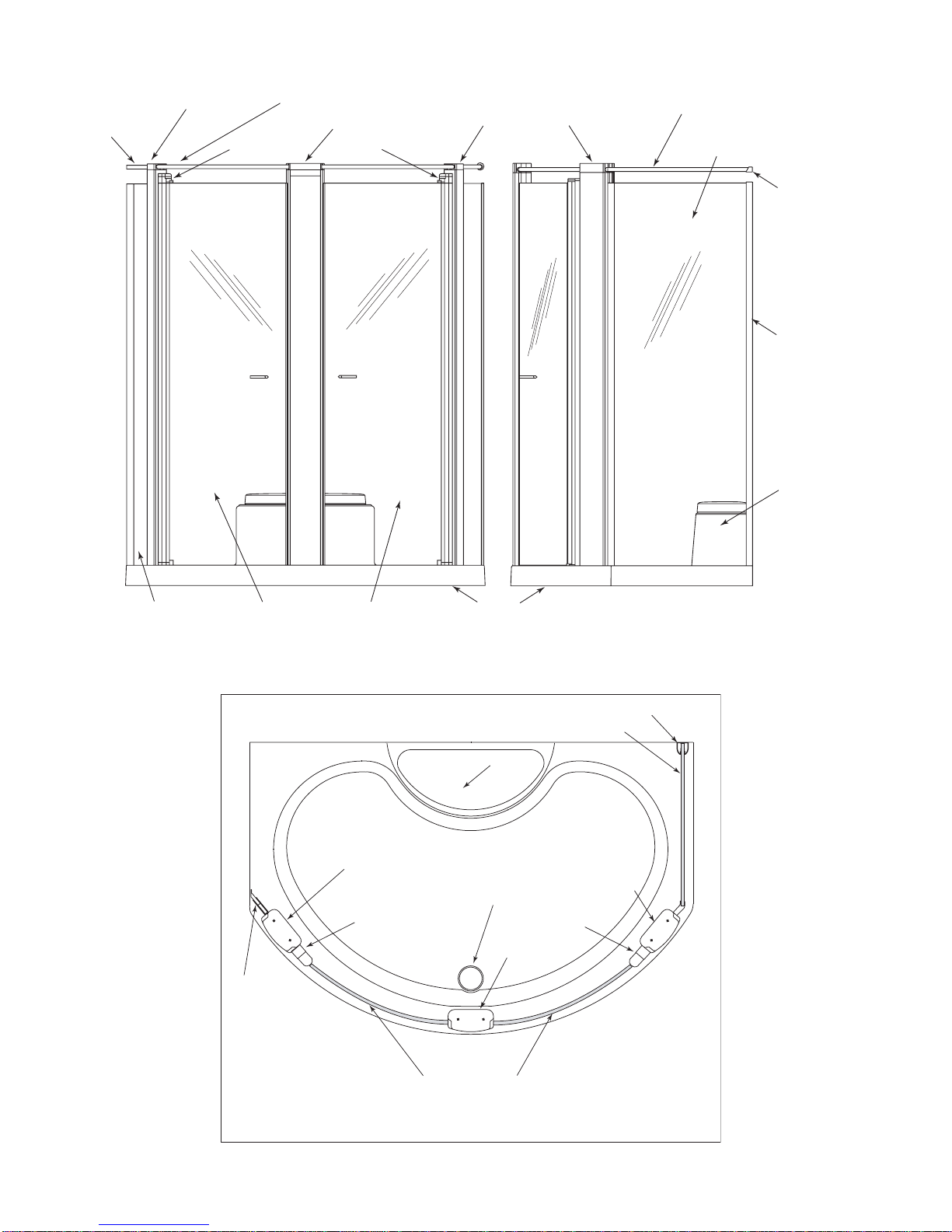

COMPONENT IDENTIFICATION
FRONT VIEW SIDE VIEW
(2 WALL ONLY )
GLASS SIDE PANEL
GLASS DOORS
RAIL BRACKET
AND COVER CAP
(2 WALL ONLY)
(2 WALL ONLY)
SIDE SUPPORT RAIL
CENTER SUPPORT RAIL
AIR TOWER WATER TOWER
SEAT
BASE
DOOR POST DOOR POST
WATER TOWER
WALL POST
(2 WALL ONLY)
WALL RAIL
WALL POST
AND JAMB
(SUPPORT, SIDE SUPPORT RAIL, AND WALL RAIL NOT SHOWN)
(2 WALL ONLY) GLASS SIDE PANEL
AIR TOWER
WATER TOWER
DOOR POST DOOR POST
WATER TOWER
DRAIN
SEAT
BASE
(2 WALL ONLY) WALL POST
GLASS DOORS
WALL JAMB
AND POST
4
Jacuzzi Whirlpool Bath©BZ00000 03/05
Shown is 2 wall left hand base. Right hand opposite. The 3 wall base has tile flange on both sides and back.

PRELIMINARY ROUGH-IN
Thefloorstructurebeneaththeunitmustbeableto
support a total weight of the unit and bather(s).
Refertopage2, SPECIFICATIONS,for weightspeci-
fications. Refer to COMPONENT IDENTIFICATION
on page 4 to help identify parts.
STEP 1
Provide an opening in the subfloor no less than 5" x 5"
square. This opening should be located on the center
lines of the shower base drain hole.
Install blocking in studwall for seat flange.
STEP 2
Remove the stainless steel strainer from the drain
assembly. Disassemble the locknut and two gaskets
from the back of the drain assembly. Apply a 1/4" bead
ofcaulking(silicone)tothedrainholeandinsertthedrain
assembly. Replace the rubber washer, fiber washer,
and lock nut in that order. Hand tighten the locknut.
Remove excess sealant from finished side.
Apply a lubricant (common household liquid soap
works well) to the inside of the rubber seal of the drain
assembly.
STRAINER
DRAIN
ASSEMBLY
SILICONE
SEALANT
SHOWER BASE
RUBBER WASHER
FIBER WASHER NUT
APPLY LUBRICANT
BASE INSTALLATION
INSTALLATION INSTRUCTIONS
STEP 3
If the subfloor is level, no other preparation is neces-
sary. Youcanproceedtoinstallthe showerbase. Ifthe
subfloorisnotlevel,levelthesubfloorbyspreadingfloor
leveling compound, mortar, plaster or minimal expan-
sion structural foam with a minimum density of 5 lbs/
cubic feet EVENLY over ENTIRE area where base will
be installed. The compound used MUST make contact
withtheentirebottomsurfaceofthebase. Bothsidesof
ajointorspliceofsubfloorshouldbeleveltoeachother.
Levelandsupportwastepipecutoutareagreaterthan5"
x5". ThebaseisNOTtobesupportedbythetileflange.
SPREAD MORTOR OR LEVELING
COMPOUND ETC EVENLY OVER ENTIRE AREA
45° COPPER ELBOW
PROVIDED (2)
COPPER FITTINGS
AND TUBING
NOT PROVIDED
STUD
WALL
DETAIL 1
5"x5" OPENING (MIN. AS POSSIBLE)
2" WASTE PIPE
21"
C
L
BLOCKING
5Jacuzzi Whirlpool Bath© BZ00000 03/05
CAUTION: Anonflammableprotective barrier must
be placed between soldering work and base unit to
prevent damage to the base.
WATER SUPPLY ROUGH-IN

STEP 6
With a large screwdriver and the tool included with the
drain, tighten the inside compression nut to seal the
drain pipe connection. After drain is fully installed, test
for proper drainage. If the shower base does not drain
properly, rectify this condition before proceeding with
the installation. Jacuzzi Whirlpool Bath©is not re-
sponsible for removal and/ or reinstallation costs.
TIGHTEN SEALING NUT
TOOL
(INCLUDED)
POSITION BASE OVER CENTER OF
DRAIN PIPE AND SET INTO PLACE
* ONLY WITH AIR TOWER UNITS
FLOW
SWITCH
CABLE*
(2X)
CONTROL
PANEL
CABLE*
STEP 4
Before installing the base, make sure the 4 water
supply hoses are routed to seat area.
IfyouhaveaWithAirunitalsoroutetheairsupplyhose
to the seat area.
If you have a With Air unit also pull the 2 flow switch
cables and the control panel cable through base at this
time.
With the drain fitting passing over the center of the
drainpipe, lower the shower base carefully into place,
push down firmly until the base is in place.
Youmustcheckthe levelofthebaseintwodirections.
Donot lift a corner of theshower baseto levelthe base.
Thiswillcausealossofcontactwiththemortarandvoid
yourwarranty. Attachtheshowerbaseflangetothestud
wall and blocking with self-drilling screws (included).
Use a minimum of 3 screws per flange section.

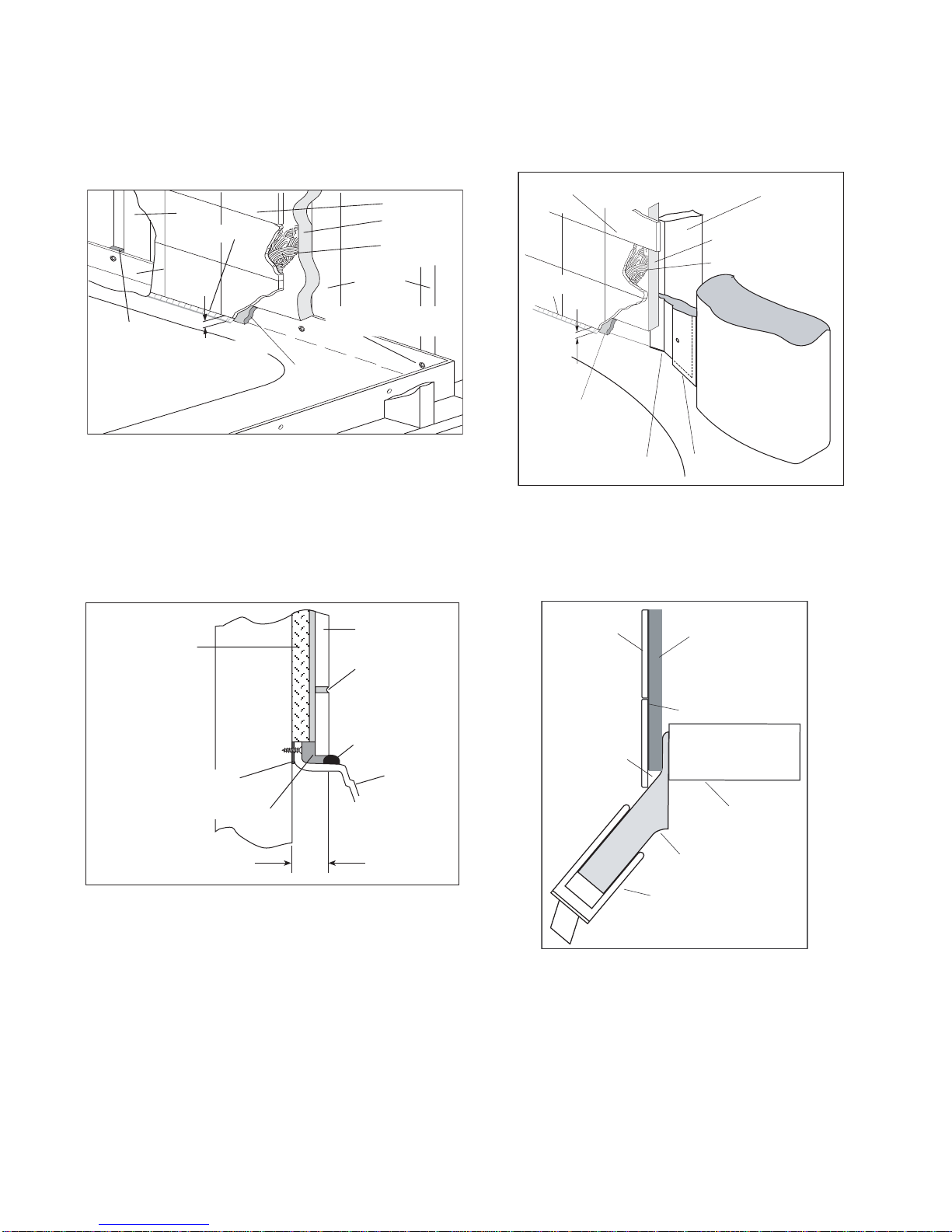

NOTE: If there is any gap between base flange and
stud or blocking, shims MUST be used to prevent
distortion or cracking of the flange. See Shim
Instructions on page 6.
BASE INSTALLATION
GAP
TILE
FLANGE
INCORRECT
SHIM
STUD
CORRECT
TILE
FLANGE
STUD
USE
SCREWS
(PROVIDED
)
USE
SCREWS
(PROVIDED)
LOWER SEAT FRAME OVER
FLANGE ON BASE
APPLY
SEALANT
ON
FLANGE
SEAT FRAME
STEP 5
Before installing the seat frame, apply silicone sealant
around mating flange on base. Lower seat frame onto
flangeandbase. Attachtheseatframeflangetothestud
wall and blocking with self-drilling screws (included).
Useaminimumof3screwsperflangesection. Cleanup
any excess sealant.
6
Jacuzzi Whirlpool Bath©BZ00000 03/05
NOTE: Ifthereisany gapbetweenseat frameflange
and stud or blocking, shims MUST be used to pre-
vent distortion or cracking of the flange. See Shim
Instructions on page 6.
NOTE: Watertight installation of the drain is the
installer’sresponsibility. Drainleakageisexcluded
from the Jacuzzi Whirlpool Bath©warranty.
Replace the strainer and tape over the drain hole to
prevent finishing material from entering drain.
SHIM INSTRUCTIONS

CLEAN UPAFTER BASE INSTALLATION
Toavoiddullingandscratchingtheacrylicsurfaceofthebase,neveruseabrasivecleaners. Amildliquiddetergent
and warm water clean soiled surfaces.
Remove spilled plaster with a wood or plastic edge. Metal tools scratch the surface. Spots left by plaster or grout
can be removed if lightly rubbed with detergent on a damp cloth or sponge.
Paint, tar, or other difficult stains can be removed with paint thinner, turpentine, or isopropyl alcohol (rubbing
alcohol).
Minor scratches which do not penetrate the color finish can be removed by lightly sanding with 600-grit wet/dry
sandpaper. You can restore the glossy finish to the acrylic surface of the base with a special compound, Meguiar’s
#10 Mirror Glaze. If not available, use automotive rubbing compound followed by an application of automotive paste
wax.
Major scratches and gouges which penetrate the acrylic surface require refinishing. See your Jacuzzi Whirlpool
Bath©dealer for special instructions.
7Jacuzzi Whirlpool Bath© BZ00000 03/05

TOWERS AND DOORS INSTALLATION
THESE INSTRUCTIONS ARE FOR SUMMER RAIN II
2 WALL AND 3 WALL UNITS WITH AND WITHOUT
AIR FEATURE OPTION.
RefertoCOMPONENTIDENTIFICATIONonpage4to
help identify parts.

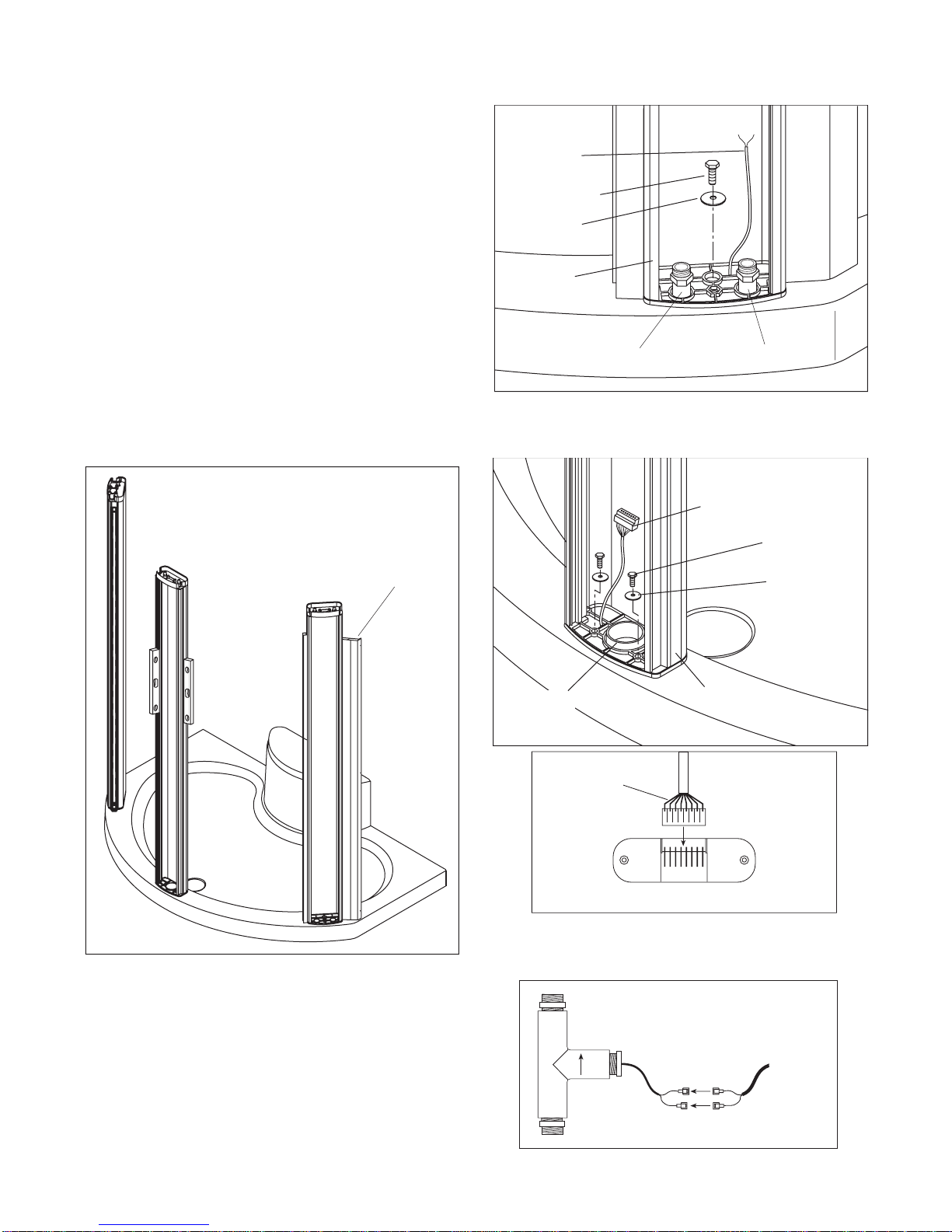

STEP 1
Onthe2wallunitattachthewalljambtothewatertower
adjacent to the side wall. Then insert the wall post into
the wall jamb. Do not screw jamb and post together
at this time. Position each tower on mounting pad on
base.
For the water towers, feed hot and cold supply line
through appropriate holes in bottom of tower. For air
feature,feedairlinethroughlargeholeonbottomcapof
the air tower. Check with a level when attaching towers
to base. Tighten tower base bolts after leveling (1 bolt
per shower tower and 2 bolts for air tower).
WASHER
BOLT (5/16")
COLD HOT
SHOWER
TOWER (2X)
FLOW
SWITCH
CABLE*
* ONLY WITH AIR TOWER UNITS
WASHER (2)
BOLT 5/16" (2)
AIR SUPPY PIPE
AIR
TOWER
CONTROL
PANEL CABLE
WATER TOWER DETAIL
REAR OF CONTROLLER
BLACK LEAD
STEP 3 (WITH AIR FEATURE ONLY)
Route flow switch cables up through water towers and
connect to flow switch on both shower towers.
FROM
CONTROL
BOX
FLOW
SWITCH
STEP 2 (WITH AIR FEATURE ONLY)
Route control panel cable up through air tower and
connect to control panel.
8
Jacuzzi Whirlpool Bath©BZ00000 03/05
JAMB AND
WALL POST

TOWERS AND DOORS INSTALLATION
STEP 4
Placethe center supportrail into slot on each tower. If
rail does not readily fit into slots, it may be necessary to
loosen the bolts holding towers to base (it may only be
necessary to loosen one tower). DO NOT FORCE
CENTER RAIL INTO SLOTS. With center support rail
in position, install hold down brackets but do not tighten
screws. Do not mount side rail or short rail(s) at this
time. SeeHOLDDOWNBRACKETdetail. Siderailand
short rail(s) must installed after all finish tiling, trim, and
sealing are completed.
9Jacuzzi Whirlpool Bath© BZ00000 03/05

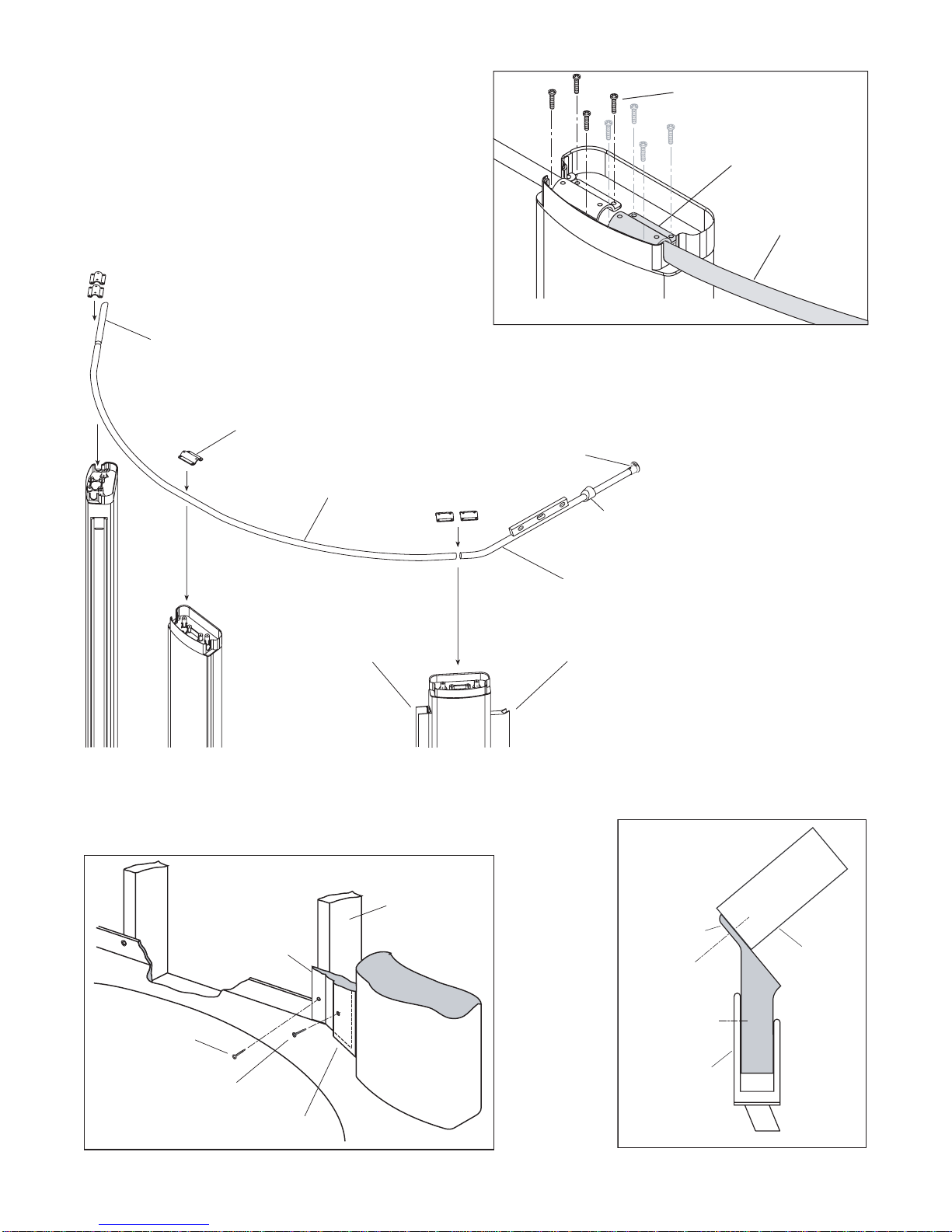

CENTER SUPPORT RAIL
HOLD DOWN BRACKETS (5) RAIL BRACKET
SHORT RAIL (1 RAIL WITH 2 WALL)
WATER TOWER DOOR POST
(2 RAILS WITH 3 WALL)
(2 WALL ONLY)
SIDE RAIL
COVER CAP
(2 WALL ONLY)
(2 WALL ONLY)
WATER TOWER JAMB
(2 WALL ONLY)
RAIL HOLD
DOWN BRACKET
(1 PER AIR TOWER)
SCREW (8 PER WATER TOWER)
(4 PER AIR TOWER)
(2 PER WATER TOWER)
SIDE RAIL OR
SHORT RAIL
HOLD DOWN BRACKET DETAIL
STEP 5
Add blocking if the side wall post does not rest on a wall stud. Level side wall post and anchor side wall post to wall
stud or blocking using 3 screws provided. Do not screw tower jamb to side
wall post at this time.
BLOCKING
WATER TOWER
SIDE WALL POST
SCREW
SCREW
SIDE JAMB
SIDE WALL POST
SIDE JAMB
BLOCKING
SCREW
SCREW

TOWERS AND DOORS INSTALLATION
10
Jacuzzi Whirlpool Bath©BZ00000 03/05
GROUT
STUD
SHIM IF NECESSARY
DO NOT FILL
CEMENT
BOARD
TILE
SILICONE
SEALANT
1-1/8" MAXIMUM
NO MINIMUM
SHOWER
BASE
CAULKING
TILE
CEMENT
BOARD
TILE
ADHESIVE
STUD
FLANGE
SHIM IF
NECESSARY
TO FILL GAPS
BETWEEN STUD
AND FLANGE
STUD
1/8" GAP
BETWEEN
BASE &
TILE
DO NOT FILL
THIS AREA
ATTACH WITH
SCREWS PROVIDED
STEP 6
Place cement board or equivalent on top of shower base flange and over side wall post flat then secure to studwall.
Apply tile (or other finishing material) leaving a 1/8" gap between the finishing material and the shower base flange
lip. Leavea1/8"gap betweenthefinishingmaterial andthesidewall postflange. Sealthegaps withsiliconesealant.
Leave a minimum 1/4" gap at the back and front corners of the shower base to allow drainage from leakage through
unsealed tiled grout. See Shim Instructions on page 6.
STEP 7
Filling the area marked DO NOT FILL will prevent moisture from properly draining back into the base through weep
holes. Thismoistureis duetoleakage throughthetile grout. Sealingthetile groutwillreduce orpreventthis leakage.
STUD OR
BLOCKING
WATER TOWER
SIDE WALL POST SIDE JAMB
CAULKING
TILE
CEMENT BOARD
TILE ADHESIVE
TILE
DO NOT FILL
THIS AREA
1/8" GAP
BETWEEN
BASE &
SIDE WALL POST
SIDE JAMB
STUD OR BLOCKING
TILE CEMENT BOARD
TILE ADHESIVE
DO NOT FILL
THIS AREA
STEP 8
NOTE: ALLOW 24HOURS DRYING TIMEBEFORE CONTINUING THETOWERS AND DOORS INSTALLATION.

STEP 9 (2 WALL ONLY)
Place the side support rail into the slot on the water tower. Place the short wall rail into the slot on the other water
tower. Rotateflatend ofshort wallrail flush towall. With railsin position installhold downbrackets, butdonot tighten
screws. Check water towers for level. Check side support rail for level and mark on the finished wall where to attach
railbracket. SeeDETAILA. Drill 3/16" holeandsecure bracket/short wallrailwithscrews andwallanchorsprovided.
Slidecovercapoverrailbracket. Ifatowerboltwasloosened,retightenwhilecheckingtheplumbofthetower. Tighten
screws on all hold down brackets.
STEP 9 (3 WALL ONLY)
Place the short wall rails into the slot on each water tower. Rotate flat end of short wall rails flush to wall. With rails
inpositioninstallholddownbrackets,butdonottightenscrews. Checkwatertowersandshortwallrailsforlevel. Drill
3/16" hole and secure short wall rails to wall with screws and wall anchors provided. If a tower bolt was loosened,
retighten while checking the plumb of the tower. Tighten screws on all hold down brackets.
TOWERS AND DOORS INSTALLATION
SHORT RAIL
(1 RAIL WITH 2 WALL)
(2 RAILS WITH 3 WALL)
FLAT END
FLUSH TO WALL
SHORT WALL RAIL (2 WALL AND 3 WALL)
CENTER SUPPORT RAIL
RAIL BRACKET
WATER TOWER
DOOR POST
SIDE RAIL
COVER CAP
WATER TOWER JAMB
HOLD DOWN BRACKET
SIDE RAIL (2 WALL ONLY)
ATTACH RAIL
BRACKET TO WALL
SECURE RAIL TO
BRACKET (TURN CW
TO TIGHTEN)
MOVE COVER CAP
OVER BRACKET
DETAIL A
SIDE RAIL COVER BRACKET (2 WALL ONLY)
11 Jacuzzi Whirlpool Bath© BZ00000 03/05
DRILL 3/16" HOLE
ATTACH RAIL
BRACKET TO WALL
SHORT WALL RAIL MOUNTING

STEP 10
Twoshut-offvalvesareprovidedperwatertower. Tohookupsupplylines,unscrewvalvesfrombraidedline. Using
threadsealant, screweach valve tostub outat bottom oftower. Then reconnectbraided line usingprovided gasket.
Do not twist or kink supply lines when connecting. Perform this step for both water towers.
SHUT OFF
VALVES
(PROVIDED)
COLD HOT
CAULK AROUND SUPPLY
PIPING AND INSIDE TOWER BASE
STEP 11 (WITH AIR FEATURE ONLY)
Attach air supply pipe to air tower plumbing.
TOWERS AND DOORS INSTALLATION
12
Jacuzzi Whirlpool Bath©BZ00000 03/05

TOWERS AND DOORS INSTALLATION
STEP 12
Move the door assembly to the door post on water
towerand slidethe assemblyinto thedoor post. Locate
the base of the door into the slot of serrated door
positioner that positions the hinge barrel as shown.
BOTTOM OF
DOOR FRAME
HINGE BARREL
SHOWER BASE
WATER TOWER
DOOR POST
GLASS DOOR
STEP 13
Check that the magnetic mouldings on door and air
tower overlap. Insert adjusting bolt with locking nut into
fixed nut in top cap (See below). Adjust the door with
adjusting screw until the glass is parallel with shower
baseand door mouldingmates with watertower mould-
ing. It may be necessary to reposition the door into
another slot (See STEP 12) which can be done without
removing door from wall post. To do so remove the
adjusting screw from wall post, lift the door slightly to
reposition. Reinsertadjustingscrewandlockingnutand
adjust glass door. After final adjustment, lock this
position with locking nut. Repeat for other door.
LOCKING
NUT
ADJUSTING
SCREW (12mm)
DOOR POST
HINGE
BARREL
STEP 14
Install cover cap by sliding over adjusting screw and
bracket.
COVER CAP
13 Jacuzzi Whirlpool Bath© BZ00000 03/05
NOTE: For 3 WALL installation continue with STEP
21 on page 16.

TOWERS AND DOORS INSTALLATION
FINISH WALL
EDGE
OF BASE
GLASS SIDE
PANEL MOUNTED
PARALLEL TO
EDGE OF BASE
WALL POST
TAPE (3)
SCREWS (3)
STEP 15 (2 WALL ONLY)
Position the fixed glass wall post so that the glass side
panel will be parallel with the outside edge of the base.
The fixed glass wall post position may vary slightly due
to the anchored location of the water tower.
STEP 16 (2 WALL ONLY)
Level the post in its proper position and mark where
screwholesaretobedrilled. Drill3/16"holesandsecure
with wall anchors and screws provided. Apply tape
(provided) firmly over screw heads.
STEP 17 (2 WALL ONLY)
Slide fixed glass panel all the way into wall post.
14
Jacuzzi Whirlpool Bath©BZ00000 03/05

TOWERAND DOOR INSTALLATION

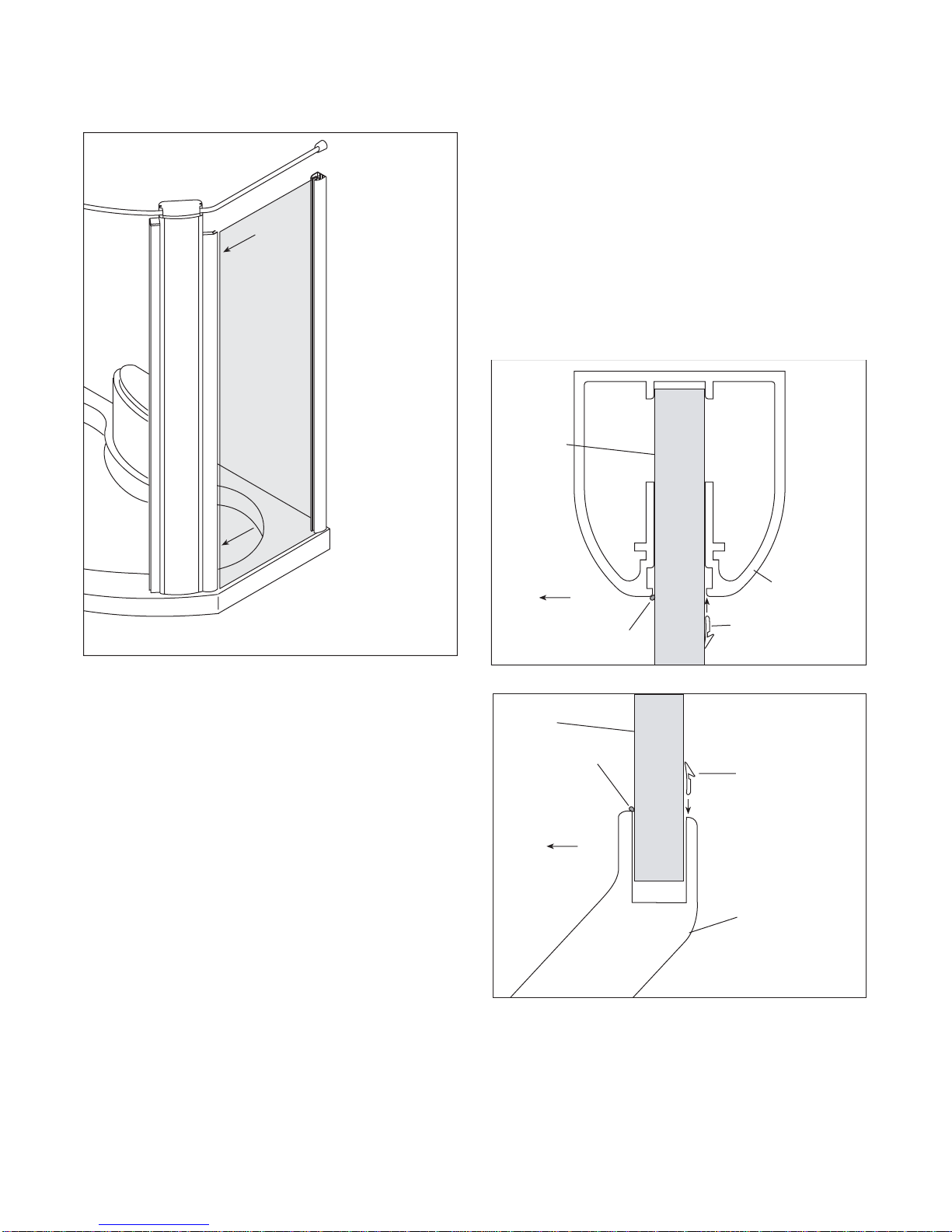

STEP 18 (2 WALL ONLY)
Align the glass with glass jamb and insert.
WALL POST
GLASS
GLAZING GASKET
INSIDE OF
ENCLOSURE
APPLY SEALANT
JAMB
GLASS
GLAZING GASKET
INSIDE OF
ENCLOSURE
APPLY SEALANT
STEP 19 (2 WALL ONLY)
Install glazing gasket on fixed glass wall post and
jambsontheoutside. Noteorientationofgasket. Soapy
water may help to insert the glazing gasket.
NOTE:Theglazingistobeinstalledontheoutsideof
enclosure for wall post and tower jamb.
Clean any soapy residue off the glass and towers.
On the inside of enclosure, apply sealant to entire
length of glass and wall post as well as the entire
length of the glass and tower jamb.
15 Jacuzzi Whirlpool Bath© BZ00000 03/05

STEP 23
Install handles as shown. Note orientation of handle.
Handtightenknob. Flatscrewhasascrewdrivernotch.
Do not over tighten either knob or flat screw as cracked
glass may result.
GLASS
DOOR
WASHERS
LARGE
WASHER
INTERIOR OF
SHOWER
DOOR
HINGE
TOWER COVER
INSERT THIS SIDE FIRST
TOWER COVER
TOWER TOP PLATE
TOWERSAND DOOR INSTALLATION
COVER CAP
STEP 20 (2 WALL ONLY)
Install fixed glass cover cap on wall post.
STEP 22
Install all towers' top cover.
STEP 24
Turnonwatersupplyandcheck for leaks. Correctany
leaks before continuing the installation.
STEP 25
Install all tower cover panels as shown. Align left side
of tower cover panel with inside seat in each tower.
Begin each panel's snap in at the top of the tower.
TOWER
TOP COVER
SCREWS
(2) PER TOWER
16
Jacuzzi Whirlpool Bath©BZ00000 03/05
STEP 21
Screw tower jamb to wallpost using 3 screws (pro-
vided).

TOWERSAND DOOR INSTALLATION
STEP 26
Sealall aroundall basesof towerswith sealant. Alsoseal theinside ofwall posts,jambs, doorposts, tilejoint towall
post, and bottom of glass side panel on the inside only.
CLEAN UP AFTER TOWERS AND DOOR INSTALLATION
Toavoiddullingandscratchingthetowersurfacesandsupportrailsneveruseabrasivecleaners. Useamildliquid
detergent and warm water clean soiled surfaces. Use a mild glass cleaner to clean glass panels and doors.
Paint,tar,orotherdifficultstainscanberemovedwithnormalglassandfinishcleaners. Usecautionwhenapplying
these products to coated metal surfaces. Test in an inconspicuous place before using. Do not use abrasives,
alcohol, acetone, ammonia or other solvents on any tower component.
Scratchestotowersandmetalcomponentsmaynotbufforpolishoutrequiring surfacerefinishingorreplacement.
Consult your Jacuzzi Whirlpool Bath©dealer or visit our website at: http://jacuzzi.com/ for a list of authorized finish
contractors.
17 Jacuzzi Whirlpool Bath© BZ00000 03/05
STEP 27
Remove tape over drain and any other masking or protective covers. Proceed with clean up.
APPLY SEALANT ALONG BASE AND
SIDE OF WALL POST AND GLASS AND
WALL POST (2 WALL ONLY)
APPLY SEALANT
ALONG BASE
OF FIXED GLASS
APPLY SEALANT ALONG SIDE OF JAMB
AND DOOR POSTAND JAMBAND GLASS
(BOTH TOWERS)
APPLY SEALANT ALL AROUND
TOWER BASES (ALL 3 BASES)
(RAIL NOT SHOWN)
APPLY SEALANT ALONG SIDE
OF TILE JOINT TO WALL POST
(2 WALL ONLY)
(2 WALL AND 3 WALL)
(2 WALL AND 3 WALL)

OPERATION
SHOWER TOWERS
18
Jacuzzi Whirlpool Bath©BZ00000 03/05

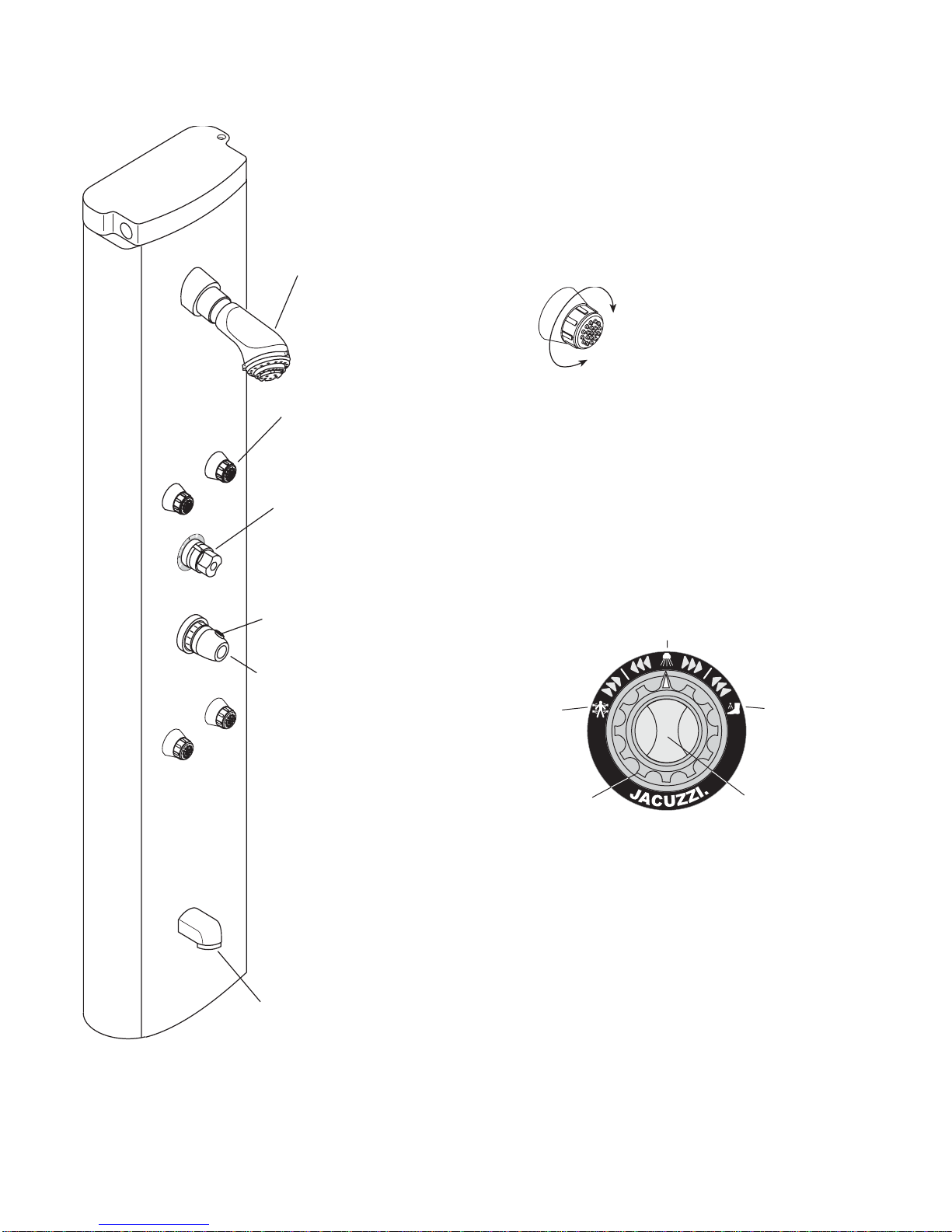

Shower Head
There are three selectable positions: Jet, Normal Pul-
sating, and Aerated flow.
Body Sprays (2 Upper and 2 Lower)
To adjust the flow and intensity, turn as shown. The
spray can also be turned to change the direction of the
spray.
Diverter Control
To turn ON water, turn the inner knob clockwise and
adjust for more or less flow.
The outer knob will divert the water to body sprays,
shower head (position shown), and foot temperature
tester. Waterflow is proportionalto each function when
outerknobispositionedbetweenmainfunctions. When
outerknobispointingtowhitelineonouterdialface(half
way between main functions) water will be diverted
equally.
Temperature Valve
The temperature of the mixed water is adjusted by
means of the graduated handle. This handle has as
safety stop set at 100o F (38oC). To increase the
temperature, press the RED button to release the stop
and continue turning the handle.
Foot Temperature Tester
LESS FLOW AND INTENSITY
MORE FLOW AND INTENSITY
BODY
SPRAY
SHOWER
HEAD
FOOT
TEMPERATURE
TESTER
INNER
KNOB
OUTER
KNOB
STOP RELEASE
Shower Head
Body Sprays
(2 Upper & 2 Lower)
Diverter Control
Temperature Valve
Foot Temperature
Tester
