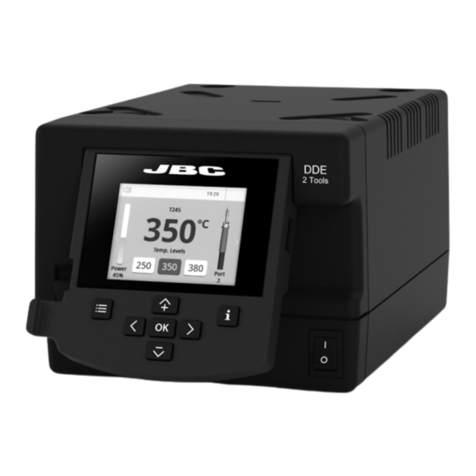

Connections

Work simultaneously with up to 2 tools and 1 module + 1 pedal for each tool (Peripherals).

PeripheralsStand

Control Unit

Tool

To another peripheral

RJ12 connector

for Robot system

USB-B

connector

Equipotential

connection

Power Socket

To Pedal

Ref. P-005

Module cable

Ref. 0012709

USB-A

connector

2,8” Color TFT screen

with capacitive keyboard

Tilt the display for

easy reading

2 3

Packing List

The following items should be included:

- 2 Tools Control Unit .............................. 1 unit

Ref. DDE-1A (120V)

.DDE-2A (230V)

.DDE-9A (100V)

- 1.5m Power Cord ................................... 1 unit

Ref. 0010569 (230V)

. 0013671 (100/120V)

- Manual ....................................................... 1 unit

Ref. 0013167

Features

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

www.jbctools.com

Ref. DN-SD Ref. AP-SD

Precision

purposes

Handle

Ref. T210

General

purposes

Handle

Ref. T245

HD General

purposes

Handle

Ref. T470

Nitrogen

Handle

Ref. T245-NA*

C130C245

Solder Feed Iron

Ref. AP130

Ref. AD-SD

* The MNE

Nitrogen Flow

Regulator is

required to work.

C210

Stands & Tools

For a basic working system you need: 1 Stand, 1 Tool and 1 Cartridge or tip.

Ref. PA-SD Ref. DS-SDRef. HT-SD Ref. DR-SD

C120 C420 C360

Micro Tweezers

Ref. PA120

Thermal Tweezers

Ref. HT420

Micro Desoldering Iron

Ref. DS360

Desoldering Iron

Ref. DR560

C560

4 5

Stands

Tools

Cartridges

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

www.jbctools.com

Compatibility

Basic working system Peripherals

Control

Unit Stand Tool Cartridge

Range MSE / MVE MNE FSE

DDE

AD-SD

T210 C210

T245 C245

T470 C245

DN-SD T245-NA* C245

AP-SD AP130 C130

PA-SD PA120 C120

HT-SD HT420 C420

DS-SD DS360 C360

DR-SD DR560 C560

* The MNE Nitrogen Flow Regulator is required to work.

Select the equipment that best suit your soldering or desoldering needs.

Peripherals

Join station ports with modules and work simultaneously with 1 module and 1 pedal for each tool.

Fume Extractor Switch

Ref. FSE-A

Nitrogen Flow Regulator

Ref. MNE-A

Pneumatic Desoldering Module

Ref. MVE-A

Electric Desoldering Module

Ref. MSE-A

Compatible with all modules.

Pedal

Ref. P-005

6 7

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

www.jbctools.com

8 9

Port

2

T245

17:14

3. Hibernation

Operation

The JBC Exclusive Heating System

Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user

can work at a lower temperature and improve the quality of soldering. The tip temperature is further

reduced thanks to the Sleep and Hibernation modes which increase the tip life by 5.

1. Work 2. Sleep

When the tool is lifted from the

stand the tip will heat up to the

selected temperature.

When the tool is in the stand,

the temperature falls to

180ºC / 360ºF (preset sleep

temperature).

After longer periods of

inactivity (pre-set to 30 min.),

the power is cut off and the

tool cools down to room

temperature.

Tools Menu:

· Set Sleep temperature

· Set Sleep delay

(from 0 to 9 min or no Sleep)

· Set Hibernation delay

(from 0 to 60 min or no

hibernation)

Tools Menu: Tools Menu:

Long time in

the stand

· Set temperature limits

· Select temperature levels

350ºC

Port

2

Power

45%

T245

17:14

Selected 350ºC

Sleep

Tool in the stand

Actual Temp. 180ºC

Delay to hibernation: 29:30

Port

2

T245

17:14

Hibernation

Actual Temp. 25ºC

MENU INFO

OK

350ºC

Port

2

Power

45%

Temp. Levels

T245

250 350 380

17:14

USB ﬂash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot.

Station software update.

Press INFO to start the process.

Warning.

Press INFO for failure description.

Error. Press INFO for failure description,

the type of error and how to proceed.

System notifications (Status Bar)Menu Options

Station

Information

Power

indicator

Tool

connected

Work Screen

Status Bar

The DDE-A offers an intuitive user interface which provides quick access to station parameters.

Change

port

Displayed if

temperature

levels are

activated

Station Tools Counters

ResetGraphicsPeripherals

Press INFO for each parameter description.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

www.jbctools.com

10 11

By pressing Graphics in the main MENU, temperature and power ﬁgures in real

time are displayed for each port. This helps you decide which tip to use to obtain

the best quality solder joints.

Process analysis

Export graphics

Insert a USB ﬂash drive into the USB-A

connector to start saving your soldering

process in csv format.

Graphics

MENU

OK

Port 1 - T245

450

400

350

300

250

150

100

50

200

Power Temp

17:14

Temperature

Power (%)

See other

port graphic

Soldering Net

Remotely manage and monitor as many stations as your PC can handle.

Functions:

- Set all the station parameters from your PC.

- Organize groups of stations and set all their parameters at the same time.

- Store specific configurations for later uses.

- Analyze the soldering graphics of the stations on your PC and export them.

1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html

2. Connect the stations via USB-B connector and the PC will automatically detect them.

3. The notification will be displayed on the station.

any JBC

station

JBC

Manager

software

USB Hub

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

www.jbctools.com

- Replace a blown fuse as follows:

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

12 13

Clean periodically

Maintenance

1. Connect the tool to the station port by means of the Converter.

2. Connect your Robot system to the Robot connector (RJ12) of the station.

DB9-RJ12 Adapater available only if necessary (Ref: 0013772).

3. Enable the Robot option in the station settings and the notification will be displayed:

4. Set your Robot’s commands according to the Robot Communication Protocol, available on the

website www.jbctools.com/jbcsoftware-menu-115.html.

Manage and monitor the station using a Robotic system.

Working with Robots

Control

Unit

Robot

Update the station software

1. Download the JBC Updater software from

www.jbctools.com/software.html and save

it on a USB flash drive. Preferably one with

no other files.

JBC

Updater

Before carrying out maintenance or storage, always allow the equipment to cool.

- Clean the station screen with a glass cleaner

or a damp cloth.

1. Pull off the fuse holder and remove the

fuse. If necessary use a tool to lever it off.

2. Press the new fuse into the fuse holder

and replace it in the station.

- Use a damp cloth to clean the casing and

the tool. Alcohol can only be used to clean

the metal parts.

- Periodically check that the metal parts of

the tool and stand are clean so that the

station can detect the tool status.

Fuse holder

- Maintain tip surface clean and tinned prior

to storage in order to avoid tip oxidation.

Rusty and dirty surfaces reduce heat

transfer to the solder joint.

- Periodically check all cables and tubes.

Converter

Ref. 0002747

2. Insert the USB ﬂash drive.

The icon is diplayed while updating.

Fuse

RS-232

connection

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

www.jbctools.com

14 15

Exploded ViewSafety

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode.

The soldering tip, the metal part of the tool and the stand may still be hot even when the station is

turned off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Use a “non residue” classified flux and avoid contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protective glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced

physical, sensory or mental capabilities or lack of experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

DDE-1A 120V 50/60Hz. Input fuse: 4A. Output: 23.5V

DDE-2A 230V 50/60Hz. Input fuse: 2A. Output: 23.5V

DDE-9A 100V 50/60Hz. Input fuse: 5A. Output: 23.5V

- Weight: 4.3 Kg (9.3 lb)

- Dimensions: 148 x 120 x 232 mm

- Output Peak Power: 150W per tool

- Temperature Range: 90-450 °C (90-840 ºF)

- Idle Temp. Stability (still air) ±1.5 ºC (±3 ºF)

- Tip to ground resistance: <2 ohms

- Tip to ground voltage: <2mV RMS

- Ambient Operating Temperature: 10-40 ºC (50-104 ºF)

- USB-A / USB-B / Peripherals connectors

- RJ12 connector for Robot

Complies with CE standards

ESD protected housing “skin effect”

Specifications

0013167-1014

Warranty

JBC’s 2 year warranty covers this equipment

against all manufacturing defects, including the

replacement of defective parts and labour.

Warranty does not cover product wear due to use

or mis-use.

In order for the warranty to be valid, equipment

must be returned, postage paid, to the dealer

where it was purchased.

This product should not be thrown in the garbage.

In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life

must be collected and returned to an authorized recycling facility.

www.jbctools.com
