jbc JNA User manual

JNA
High Precision Hot Air Station
INSTRUCTION MANUAL

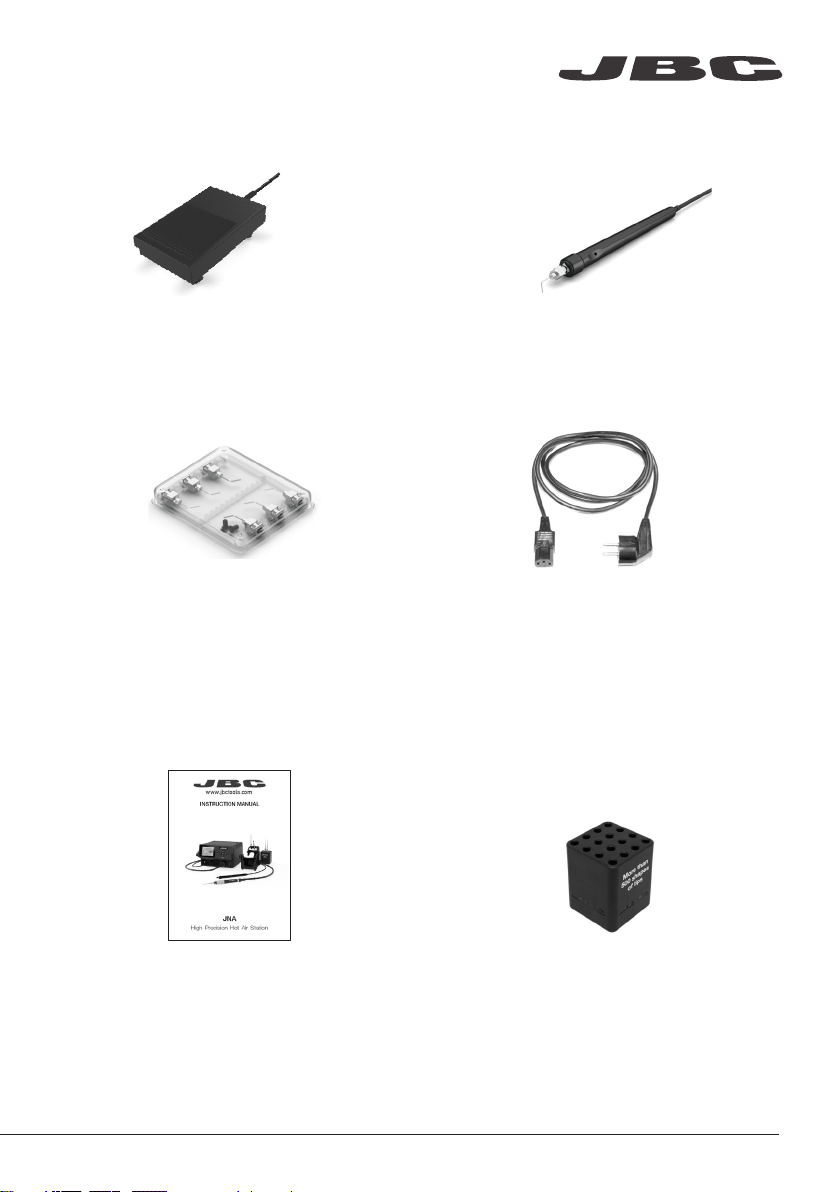

High Precision Heater Hose Set ............1 unit
Ref. NH-A
Stand .............................................................1 unit
Ref. NA-SA
JNAU Control Unit (85V -265V) ...............1 unit
Heating Element..........................................1 unit
Ref. J125010
This manual corresponds to the following references:
JNASE-9A (100V)
JNASE-1A (120V)
JNASE-2A (230V)
Packing List
The following items are included:
2

Pick & Place .................................................1unit
Ref. T260-A
Pedal.............................................................. 1 unit
Ref. P-405
Manual ...........................................................1 unit
Ref. 0024293
Matallic Needles & Cup Set ................... 1 unit
Ref. 0026490
Power Cord ................................................ 1 unit
Ref. 0024092 (100V)
0023715 (120V )
0023714 (230V)
Cartridge Holder ....................................... 1 unit
Ref. SCH-A
www.jbctools.com
3

Power Socket
Fuse USB Connector
Robot RS232
Connector
P-405 Pedal
Connector
Equipotential
Connector
Auxiliar
Connector
Pick and Place
Activation Switch
High-Precision
Heater Hose Set
Ref. NH-A
Stand
Ref. NA-SA
USB-A
Connector

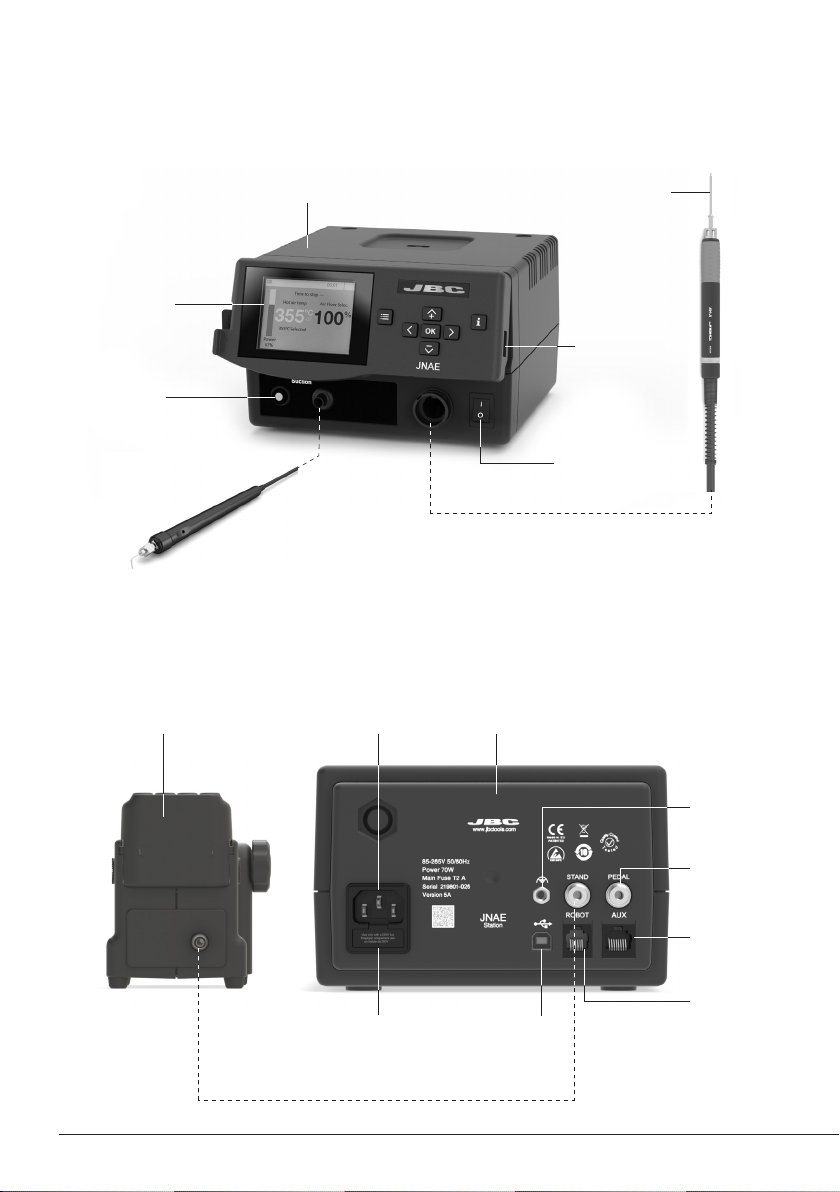

Features and Connections
Main Switch
Process
Screen
Cartridge
Ref. J125010
Pick & Place
Ref. T260-A
JNAU
Control Unit
(not inluded)
JNAU
Control Unit
(not inluded)
4

Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX

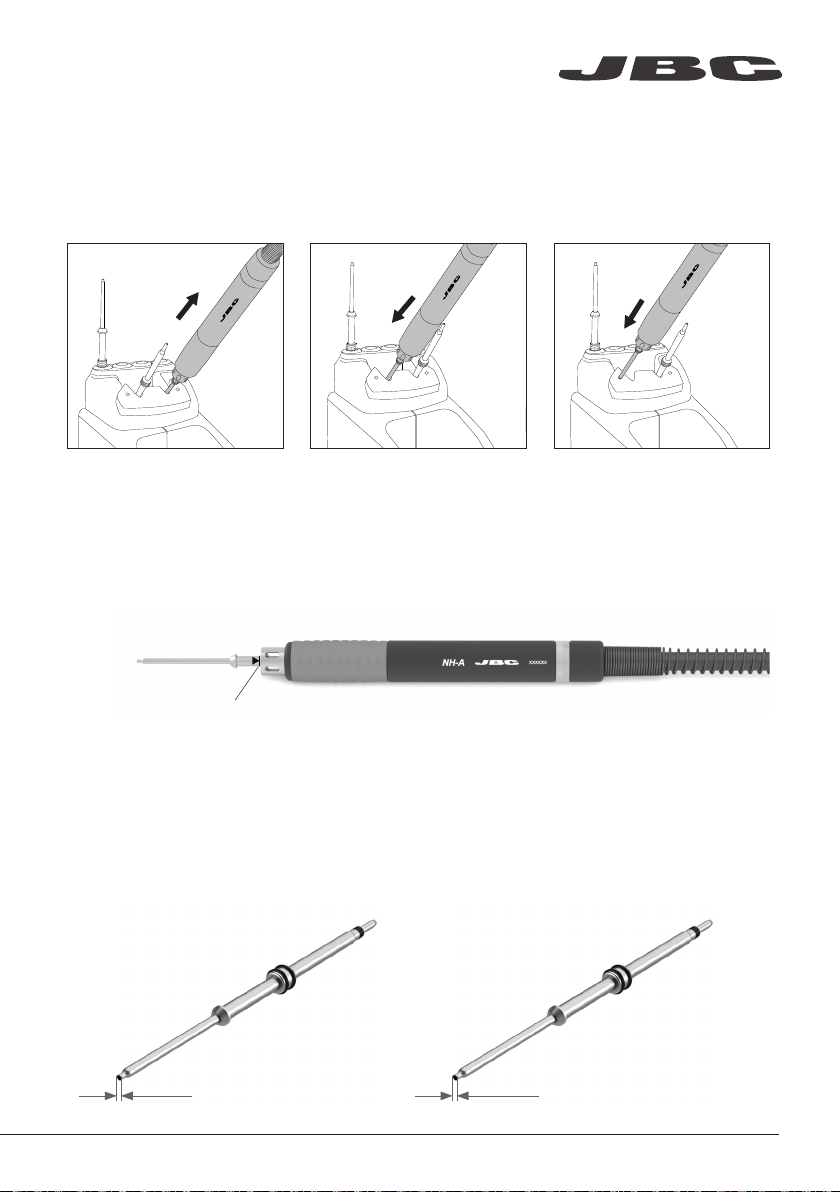

Changing Cartridges
Compatible Cartridges
*Important
It is essential to insert the cartridges as far as the mark for a proper connection.
1. Removing 2. Inserting 3. Fixing
Place the Cartridge in the
extractor and pull the handle
to remove it.
The JNA High Precision Hot Air Station works with J125 Cartridges and NH High Precision Heater
Hose Set.w
Find the model that best suits your soldering needs in www.jbctools.com
J125010 J125015
Place the handpiece on top of
the new Cartridge and press
down slightly.
Use the holes to fix the
Cartridge.
Save time and change cartridges safely without switching the station off.
Mark
Ø 1.0 mm Ø 1.5 mm
www.jbctools.com
5

Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Choose the needle that best fits the component and the suction cup if needed and start
as follows:

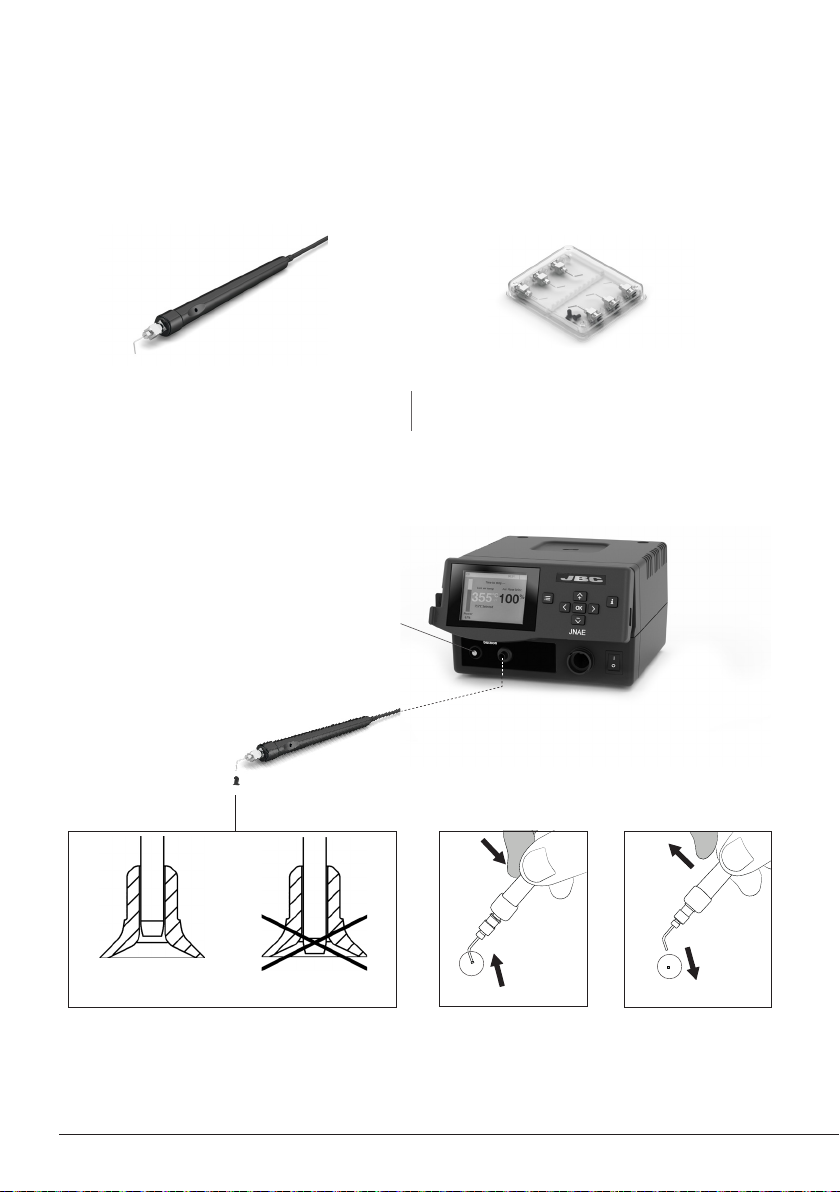

Operation
This tool helps you place and remove SMDs of any size easily thanks to the suction pump.
Pick & Place
Press the button to
start/stop the suction
Pick & Place
Ref. T260-A
Metallic Needles & Cup Set*
Ref. 0026490
1. Suction 2. Release
Once the suction is
activated, cover the
pen hole with your
finger and lift off the
component.
Insert the needle with
the cup for a correct
suction process.
Lift your finger to
release the
component.
Make sure the needle
does not protrude
from the cup.
Maximum working temp: 250ºC (482ºF)
*Set includes the following needles and cups (2 units of each reference):
- Ref. 0026637: 20G, 60º, Ø0.60 mm/0,0236 in - Ref. 0026639: 30G, 60º, Ø0.159 mm/0.00626 in
- Ref. 0026638: 25G, 60º, Ø0.26 mm/0.01023 in - Cup ref. 00940112, used with needle ref. 0026637
6

Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Pedal
By means of the Pedal (ref. P-405) connection the Heater Hose Set (ref. NH-A) for hot air funtion and
the Pick & Place Tool (ref. T260-A) for suction function may be activated and deactivated.
Tool Settings
Start Mode
Select menu .Then by pressing select “TOOL” and confirm with .
Select “PEDAL FUNCTION” and confirm with OK button. Then choose between “HOT AIR” and
“SUCTION”. Confirm again with OK button.
Activation Settings
In both applications, Hot Air and Suction, are 2 different pedal activation modes available.
One Touch Mode
Press the pedal once to activate the function. Press again to stop te function.
Pressed Mode
Start the function by pressing the pedal continuously and stop the function by lifting the pedal. The
function is active as long as the pedal is kept pressed.
Select “PEDAL” confirm with OK button and choose between PRESS ONCE” and “PRESS CONT”.
Confirm again with OK button.
The pedal should be plugged in at the
rear of the station into its connector,
which ist marked with “Pedal”, to use
the Pedal functionality.
www.jbctools.com
7

For rework jobs the use of preheaters is highly recommended.
JBC Preheaters
Applying high temperatures (350 ºC - 450 ºC / 660 ºF - 840º F) for a long time can damage both,
the printed circuit and the electronic components. In addition, significant temperature differences
between two points on a PCBA can also damage it due to the stress generated by expansion.
Preheating is a process that minimizes thermal stress and allows the welding process to take no
longer than it should.
For most rework processes JBC recommends a preheat temperature between 90 and 130 ºC / 195
and 265 ºF and not exceed a heating rate of 4 ºC/s. With the use of JBC preheaters, a homoge-
neous and controlled heating is achieved within the recommended parameters.
8

17:14
Power
45%
4m 38s
400ºC 80%
400ºC Selected
Hot Air Temp. Air Flow Selec.

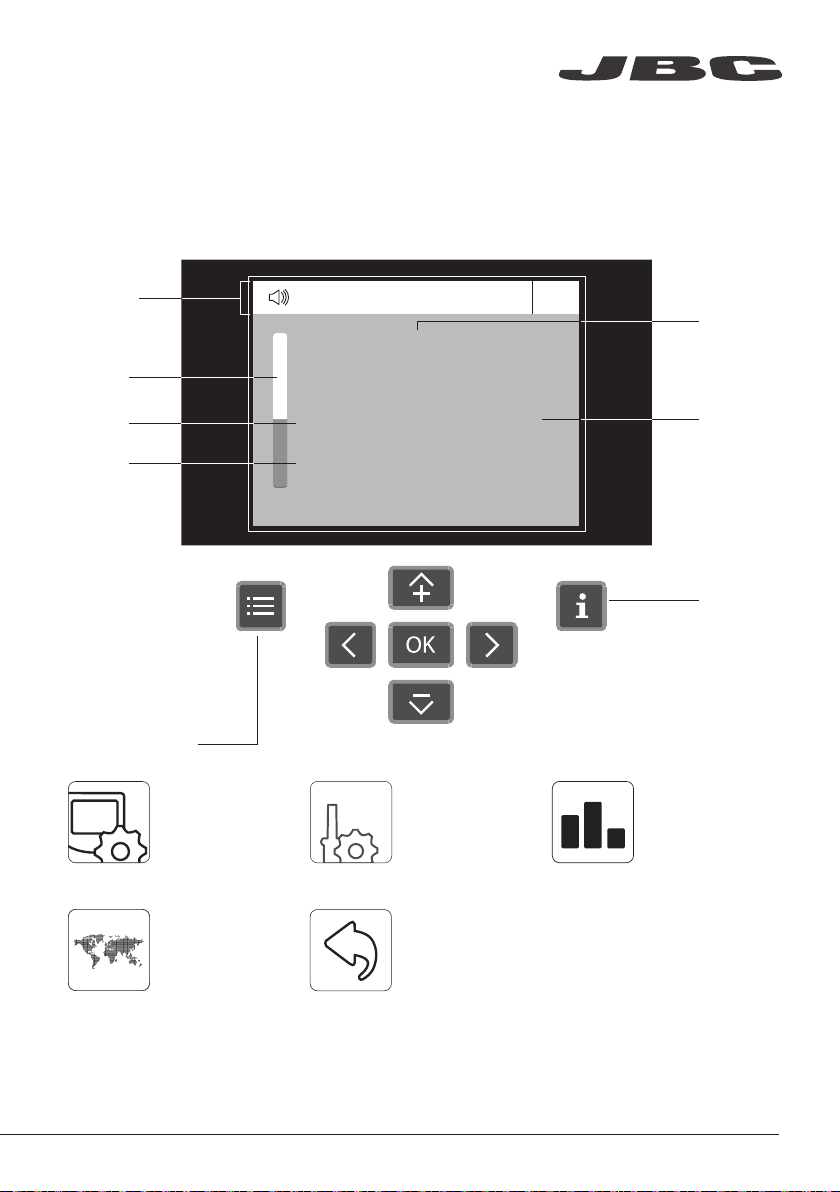

JNA Work Screen
The JNA offers an intuitive user interface which provides quick access to station parameters.
Default PIN: 0105
Menu Options
Station
Information
Current
Air
Temp.
Air
Temp.
Selected
Instant Power
Supplied to
Heater
Status
Indicator
Selected
Air flow
Status Bar
Station Tools Counters
ResetLanguage
Set the station
parameters
Set the tool
parameters
Display the hours
worked in each cycle
It is possible to
choose the language
from a list.
Allows you to carry
out an overall station
reset restoring all the
parameters to their
default values.
Station troubleshooting available on the product page at www.jbctools.com
Troubleshooting
www.jbctools.com
9

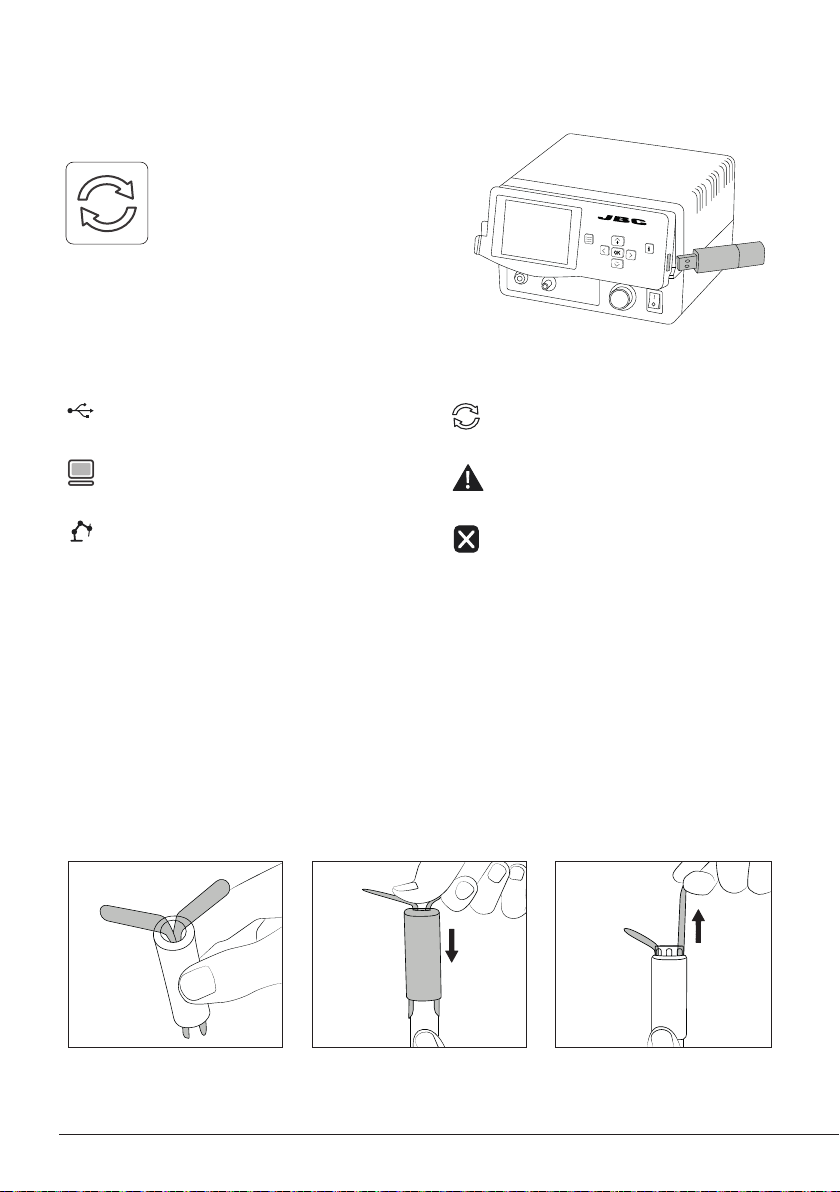

Update
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. te mp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240
ºC %
80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
240 ºC % 80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
The following icons will be displayed on the screen’s status bar.
Station Update
Download the JBC Update File from
www.jbctools.com/software.html
Insert the USB flash drive with the file
downloaded to the station.
Press INFO to start the process.
Warning.
Press INFO for failure description.
Error.
Press INFO for failure description,
the type of error and how to proceed.
USB flash drive is connected.
Station is controlled by a PC.
Station is controlled by a robot.
Station software update.
Grips for NH High Precision Heater Hose Set (Ref. 0024473)
Soft foam grips ensure a better manual control of the tool and greater comfort when working.
Easily replace the Grips for NH Heater Hose Set using the slip-on tabs.
Insert the slide-on tabs into the
new grip.
Push the grip with the tabs
onto the handle.
Hold the grip and pull them
out. Use a pliers if necessary.
1. Inserting Tabs 2. Inserting Handle 3. Removing Tabs
Compatible Accessories (Not included)
System Notifications
10

Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250 ºC
Flow
60 %
Time
2m 30s
3m 18s
240 ºC % 80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
OK
OK
Maximum working temp: 250ºC (482ºF)
Fuse holder
Fuse holder
Fuse
OK
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp .
4m 38s
400 ºC 80%
400ºC Selected
Protec�on
Hot Air Temp. Air Flow Selec.
Point
2/5
Temp
250 ºC
Flow
60 %
Time
2m 30s
3m 18s
240 ºC % 80
3m 18s
Profile ABC / Air temp
17:14
Prole ABC / Air temp
Hot Air Temp Air Flow
450
400
350
300
250
150
100
50
200
Power Temp
17:14
Ext. temp
NH-A
NH-A
NH-A
85-265V 50/60Hz
Power 70W
Main Fuse T2 A
Serial 219801-026
Version 5A
JNAE
Station
Made in EU
PATENTED
STAND PEDAL
ROBOT AUX
AD-SE (T210 & T245)
AM-SA (AM120 & PA120)
AL-SF
NA-SA
AT-SA
SF-SE

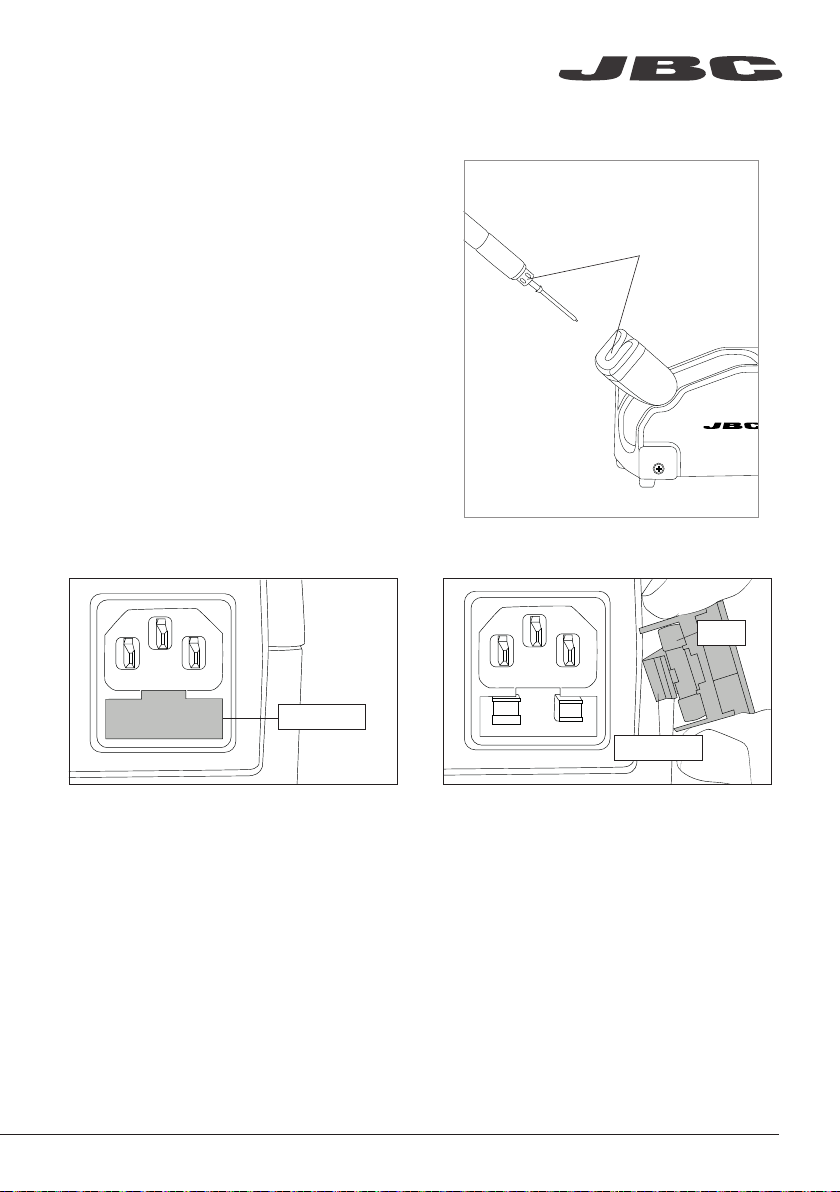

Maintenance
Before carrying out maintenance, always switch the
device off and disconnect it from the mains. Allow
the equipment to cool down.
- Clean the station screen with a glass cleaner or a
damp cloth.
- Use a damp cloth to clean the casing and the tool.
Alcohol can only be used to clean the metal parts.
- Periodically check that the metal parts of the tool
and stand are clean so that the station can detect
the tool status.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Insert the new fuse into the fuse holder
and return it to the station.
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
Clean
periodically
www.jbctools.com
11

Notes
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use to turn off the hot air.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid the contact of flux with skin or eyes to prevent irritation
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
Safety
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
12

Notes
www.jbctools.com
13

Notes
14

Specifications
JNASE-9A 100V 50/60Hz. Main fuse: T2A. Rated current 0.85A
JNASE-1A 120V 50/60Hz. Main fuse: T2A. Rated current 0.85A
JNASE-2A 230V 50/60Hz. Main fuse: T2A. Rated current 0.85A
- Temperature Selection: Room temp. / 150 - 450 °C / 300 - 840 °F
- Nominal Power: 70W
- Cool Mode: Temp. off. Used to blow air at room temperature
- Ambient Operating Temp.: 10 - 50 ºC / 50 - 122 ºF
- Air Flow Regulation: 0.15 - 2.5 SLPM
- Vacuum: 53% / 397 mmHg / 15.6 inHg
- Connectors: USB-A / USB-B
RJ12 for RS232
Pedal / Stand
- Control Unit Dimensions/Weight: 180 x 170 x 110 mm / 1.346 kg
(L x W x H) 7.1 x 6.7 x 4.3 in / 2.96 lb
- Total Package Dimensions/Weight: 370 x 370 x 200 mm / 4.062 kg
(L x W x H) 14.6 x 14.6 x 7.9 in / 8.95 lb
Complies with CE standards.
ESD protected.
www.jbctools.com
15

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
www.jbctools.com
0024293-0321
