jbc NP105-B User manual

www.jbctools.com
Steady Nano Tweezers
Ref. NP105-B
English
www.jbctools.com

2 3

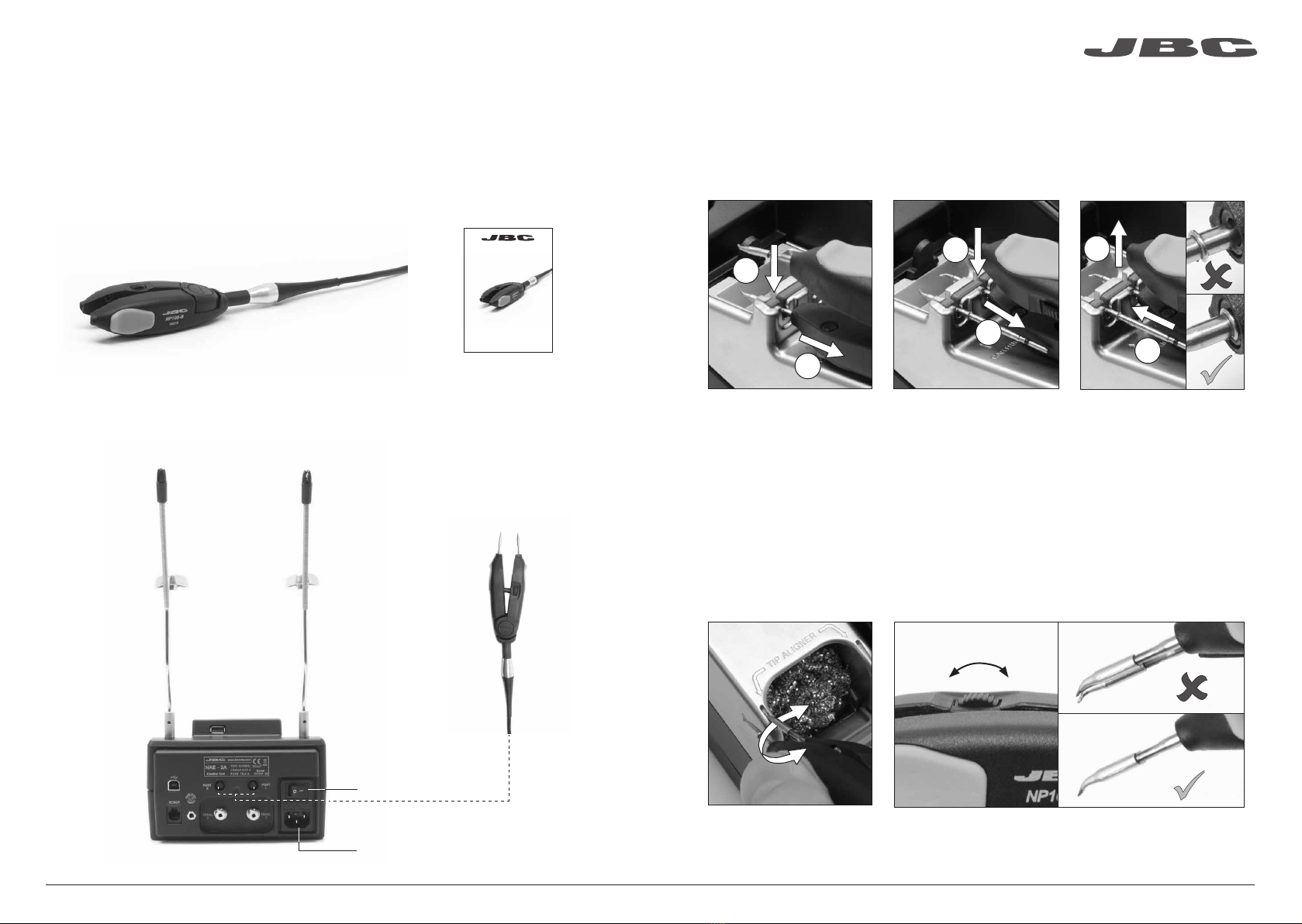

Packing List Changing cartridges
Aligning cartridges
The following items should be included: Save time and change cartridges safely without switching the station off.
Use the alignment systems to better suit the component to work.
Steady Nano Tweezers
Ref. NP105-B
Steady Nano Tweezers ........................................................... 1 unit
Ref. NP105-B
Manual............................ 1 unit
Ref. 0016016
Control Unit
Ref. NAE-1A
NAE-2A
NAE-9A
1. Removing cartridge
Tip aligner Tweezers screw
2. Removing the other one 3. Inserting cartridges
Nano Tweezers
Ref. NP105-B
Englis h
Features
Power Socket
Main Switch
Place the tool in the
extractor and pull to remove
the cartridge.
Fit the tip into the aligner and
turn to the desired position.
Turn the screw of the tweezers for a vertical alignment of the
cartridges. One tip lines up with the other.
Place the other cartridge
in another slot and pull to
remove it.
Follow the same steps
conversely. It is essential
to insert the cartridges as
far as the ring for a proper
connection.
www.jbctools.com
ww w.j bct ool s.co m
b
b
a
a
ab

0016016-0415
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear due to use
or mis-use.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Compatible cartridges
The NP105-B works with C105 tips. Find the model that best suits your soldering needs in
www.jbctools.com. Here are some C105 cartridges in real size (in mm):
ø 0,1
ø 0,3
0,7
3,5
ø 0,6
1
1,3 x 0,3
Ø2,5
0,2 x 0,1
C105-101 C105-105C105-109 C105-115
Stainless
steel tip
Round Chisel Bevel Knife
Round
bent
High thermal
performance
C105-111 C105-221C105-116
