PREFACE
Thank you for purchase of the JRC Inmarsat mini-C, Mobile Earth Station, JUE-95SA.
•Please read this manual carefully and carry out proper operation.
•Please keep this manual importantly to refer when it is necessary.
Please use it when questions and troubles are caused in operation, by any chance.

ii
ATTENTIONS BEFORE USING
•JRC cannot accept responsibility for any loss due to incorrect operation, malfunction, and other causes
except product guarantee condition and liability by law.
•There is possibility that some functions of the terminal may not operate correctly depend on the hardware
and software version of equipment connected to the terminal. Please confirm your equipment version
before connection with the dealer or agent you purchased, or JRC branches.
•Your communication data are transmitted via Inmarsat system and other global communications system,
so unusually some errors may occur in communication theory same as the landlines.
You are recommended to backup for your important data.
•Usually, digital scrambling of Inmarsat system protects your communication data privacy. However you
are recommended to understand that your communication data might be intercepted by special technology
and unauthorized access in the communication theory.
•Specifications of JUE-95SA and its accessories may change without notice for improvement.

iii
BEFORE OPERATION
About safety symbols
This manual and the terminal are indicated the following safety symbols for your correct operation to
prevent your and somebody’s injury or damage to the product and assets.
The symbols and descriptions are as follows.
You should understand well them before reading this manual and operating the terminal.
This symbol denotes high risk of causing death or
serious injury.
This symbol denotes that improper handling poses a
risk of causing death or serious injury.
This symbol denotes that improper handling poses
a risk of causing injury or damage to the product
and/or assets.
Examples of symbols
The △symbol denotes DANGER, WARNING or CAUTION.
The inside illustration of the △symbol denotes meaning of the DANGER,
WARNING or CAUTION more concretely. (This example warns of possible
electrical shock.)
The symbol denotes prohibited action.
The inside illustration of the symbol denotes the specific prohibited action more
concretely (this example indicated disassembly is prohibited).
The ●symbol denotes obligatory operation or instruction.
The inside illustration of the ●symbol denotes obligatory operation or instruction
more concretely(this example indicates unplugging is the obligatory instruction).
DANGE
R
WARNING
CAUTION

iv
ABOUT WORNING LABELS
Below mentioned warning labels are put on JUE-95SA.
Do not take off, destroy, or modify these labels.
Labels put on EME (NAF-742SA)
DO NOT PAINT RADOME INMARSAT-C EME
MODEL NAF-742SA
SERIAL NO.
MADE IN JAPAN
Compass safe distance
Standard compass: 0.1m
Steering compass : 0.1m
WARNING
DO NOT APPROACH
UNDER TRANSMISSION
RADIATION HAZARD
Labels put on EME (NAF-253SA)
Distances V.S Radiation Levels
Distance Radiation
0.5m 10W / m
2
0.3m 25W / m
2
0.2m 100W / m
2

v
Labels put on Console ＜Type1＞(EME: NAF-742SA)
Label on IME ＜Type2＞(EME: NAF-742SA)
Label put on Console ＜Type1＞(EME: NAF-742SA)
Label on IME ＜Type2＞(EME: NAF-742SA)
NOTES
Attestation number which means safe, high-quality product and suits EU
instruction (Free circulation was permitted in the EU signatory).
Technological, standard agreement proof and attestation number issued by Telecom
Engineering Center Foundation in Japan.
R 001VZAA1011

vi
CAUTIONS DURING OPERATION
DANGER
Do not touch any internal parts with your hands or tools to avoid danger of electronic shock.
The lithium battery is built into JUE-95SA (EME). Do not short-circuited of the terminal,
do not give the high impact, and wet it to water. There is danger of exploding.
WARNING DURING OPERATION
WARNING
Do not bring JUE-95SA (EME) close to the fire, or put it in the fire. It causes the explosion,
generation of heat, and the ignition of a built-in lithium battery.
Do not approach the JUE-95SA (EME) while transmitting. It transmits microwave, and strong
microwave might be cause injury.
If a foreign substances, such as metal fragment, water, liquid and etc., are get into your
JUE-95SA, turn off the power, and contact the agent you purchased or JRC branches.
Continuous operation may cause fire, electrical shock or malfunction.
Ask maintenance and the adjustment of JUE-85 internal equipment to our sales department
or nearest branch office.
Do not turn on the terminal under the primary power except the specific voltage (mentioned
below). The primary power except the specific voltage may cause fire, electrical shock or
malfunction. AC100V/220V(±10%) DC 24V (+30%, -20%).
Do not check or repair the internal equipment of JUE-95SA by yourself.
Any electrical work by any person other than our specialized maintenance persons may cause
fire or abnormal operation of this equipment or electrical shock. This equipment meets the
technical standard of the Ministry of Internal affairs and Communications (MIC).
Do not adjust the internal circuit or exchange the parts, because the internal circuit is adjusted
strictly. When an abnormal operation is found, please contact to the dealer of agent you
purchased, or JRC branches.
Do not take apart, and do not remodel the equipment. It causes a fire, the electric shock, and
the breakdown.

vii
CAUTIONS DURING OPERATION
CAUTION
Before operating JUE-95SA, read this operation manual carefully.
Inappropriate procedure may cause incorrect operation or malfunction.
＜EME＞
Do not give mechanical shock and force, because all units of EME are precision instrument.
Unwanted shock and force may cause malfunction.
Do not paint radome. Painting of radome may cause decrease of the communication quality.
Ask our agency or office to abandon JUE-95SA (EME). When the lithium battery is
short-circuited, receives the impact or it gets wet because of water, it causes generation of heat,
the explosion, and the ignition if this is not defended.

viii
ABBREVIATIONS
DTE Data Terminal Equipment
EGC Enhanced Group Call
EME Externally Mounted Equipment
Ex. PSU Externally Power supply Unit
FFA Forum Fisheries Agency
IME Internally Mounted Equipment
IMO International Maritime Organization
INMARSAT INMARSAT Ltd.
ISPS International Ship and Port Facility Security
JB Junction Box
MES Mobile Earth station
PSU Power Supply Unit
SOLAS Safety of Life at Sea
SSAS Ship Security Aleart System
VMS Vessel Monitoring System

TABLE OF CONTENTS
PREFACE.............................................................................................................................. i
ATTENTIONS BEFORE USING ........................................................................................ ii
BEFORE OPERATION ...................................................................................................... iii
ABOUT WORNING LABELS ........................................................................................... iv
CAUTIONS DURING OPERATION ................................................................................. vi
ABBREVIATIONS ........................................................................................................... viii
CHAPTER 1. GENERAL ....................................................................................................................... 1-1
1.1 Function of Ship Security Alert System ....................................................................................... 1-1
CHAPTER 2. Configuration................................................................................................................... 2-1
2.1 Cable connection and example of setting..................................................................................... 2-1
2.2 JUE-95SA Components list.......................................................................................................... 2-2
2.3 JUE-95SA Standard components appearance............................................................................... 2-3
2.3.1 EME (NAF-742SA/NAF-253SA) ............................................................................................. 2-3
2.3.2 IME (NTF-782SA) .................................................................................................................... 2-4
2.3.3 JB (MPBC40613) ...................................................................................................................... 2-5
2.3.4 Security Button (NQE-3154)..................................................................................................... 2-5

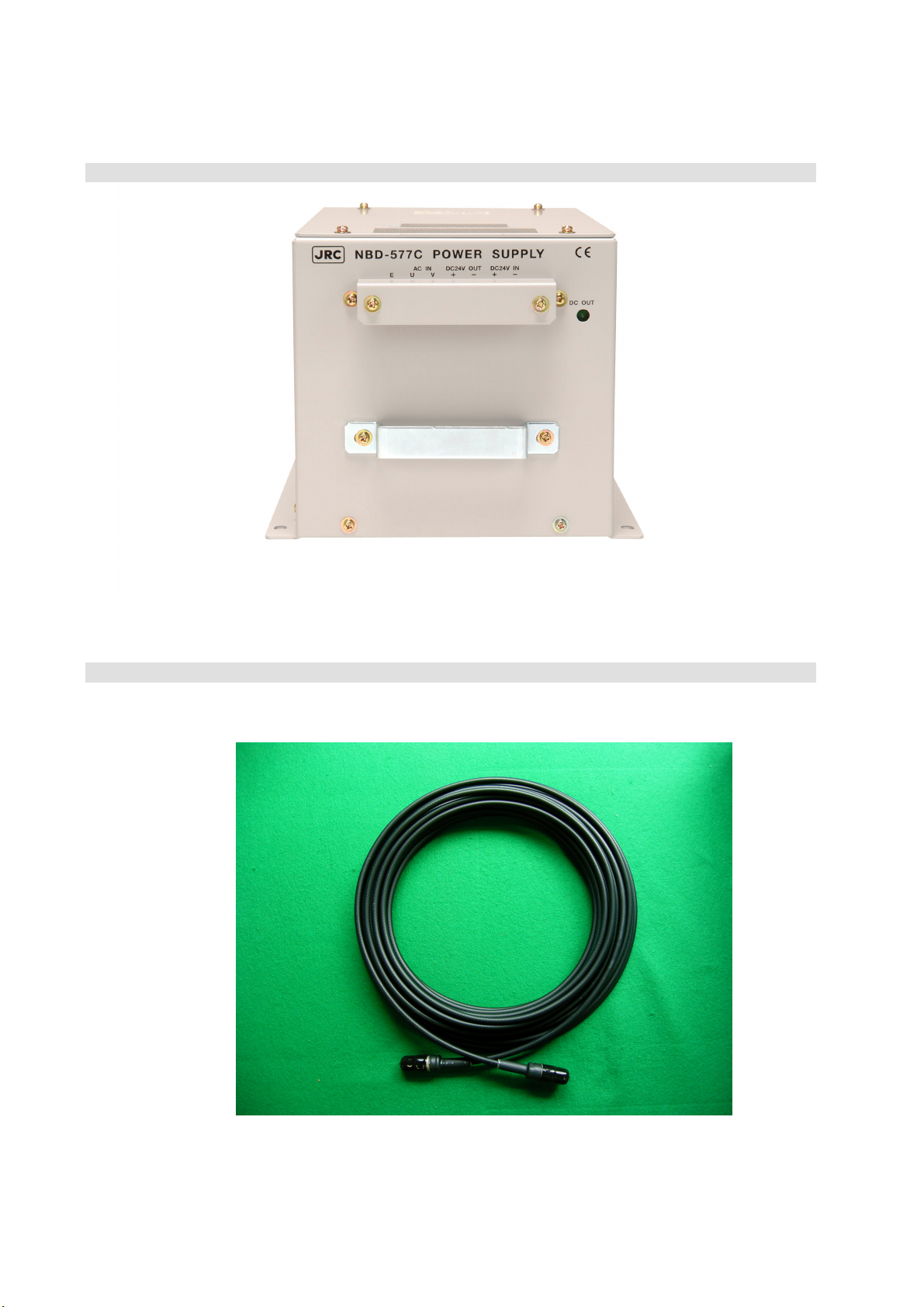

2.3.5 EXT PSU (NBD-577C)............................................................................................................. 2-6
2.3.6 Coaxial cable (CFQ-5924A3, or CFQ5924A15)....................................................................... 2-6
2.4 Optional components appearance................................................................................................. 2-7
2.4.1 DTE (Display: NDZ-127C1, Keyboard: NDF-368).................................................................. 2-7
2.4.2 DTE (Display: NDZ-227, Keyboard: NDF-369) ...................................................................... 2-7
2.4.3 Printer (NKG-800) .................................................................................................................... 2-8
2.5 Configuration (JUE-95SA Standard components) ....................................................................... 2-9
2.5.1 EME (NAF-742SA) .................................................................................................................. 2-9
2.5.2 EME (NAF-253SA) ................................................................................................................ 2-10
2.5.3 IME (NTF-782SA) .................................................................................................................. 2-11
2.5.4 JB (MPBC40613) .................................................................................................................... 2-12
2.5.5 Security Button (NQE-3154)................................................................................................... 2-13
2.5.6 EXT PSU (NBD-577C)........................................................................................................... 2-14
2.5.7 Coaxial Cable (CFQ-5924A3, CFQ5924A15) ........................................................................ 2-15
2.6 Optional Equipment Dimensional drawing................................................................................ 2-16
2.6.1 DTE (Display: NDZ-127C)..................................................................................................... 2-16
2.6.2 DTE (Keyboard: NDF-368) .................................................................................................... 2-17
2.6.3 DTE (Display: NDZ-227) ....................................................................................................... 2-18
2.6.4 DTE (Keyboard: NDF-369) .................................................................................................... 2-19
2.6.5 Printer (NKG-800) .................................................................................................................. 2-20
CHAPTER 3. OPERATION ................................................................................................................... 3-1
3.1 Basic operation of JUE-95SA ...................................................................................................... 3-1
3.1.1 Power on and log in................................................................................................................... 3-1
3.1.2 Log out and power off ............................................................................................................... 3-1
3.1.3 Setting of Security Alert ............................................................................................................ 3-1
3.1.4 Transmission of Security Alert .................................................................................................. 3-1
3.1.5 Cancellation of security alert..................................................................................................... 3-2
3.1.6 Test transmission of security alert ............................................................................................. 3-2
3.1.7 Optional DTE ............................................................................................................................ 3-2

3.1.8 Optional Printer ......................................................................................................................... 3-2
3.1.9 Optional Ex. PSU ...................................................................................................................... 3-2
3.2 SSAS Schedule confirmation/setting............................................................................................ 3-4
3.2.1 SSAS Schedule confirmation .................................................................................................... 3-4
3.2.2 Setting SSAS Schedule.............................................................................................................. 3-7
3.3 Transmitting Security Alert ........................................................................................................ 3-15
3.3.1 Flowchart of Security Alert transmission ................................................................................ 3-15
3.3.2 Security Alert transmission procedure..................................................................................... 3-15
3.4 Test transmission of Security Alert............................................................................................. 3-17
3.4.1 Flowchart of Security Alert Test Transmission........................................................................ 3-17
3.4.2 Procedure of Security Alert test transmission.......................................................................... 3-18
CHAPTER 4. MAINTENANCE ............................................................................................................ 4-1
4.1 Maintenance ................................................................................................................................. 4-1
4.2 Daily maintenance ........................................................................................................................ 4-1
4.3 Troubleshooting............................................................................................................................ 4-2
4.4 Shadow-sector countermeasure .................................................................................................... 4-4
4.4.1 Fore and aft directions ............................................................................................................... 4-4
4.4.2 Port and starboard directions ..................................................................................................... 4-4
4.4.3 Within radius 1m from EME ..................................................................................................... 4-4
4.4.4 Reference: Estimation methods of RX/TX signal loss by physical obstructions ...................... 4-5
4.5 Noise countermeasure (interference with other equipment)......................................................... 4-8
4.6 Countermeasure............................................................................................................................ 4-9
4.7 After service ............................................................................................................................... 4-10
4.7.1 Longevity/ exchange time of the consumption (lithium battery) ............................................ 4-10
4.7.2 When ordering repair............................................................................................................... 4-10
CHAPTER 5. SPECIFICATION............................................................................................................ 5-1
5.1 JUE-95SA (EME and IME).......................................................................................................... 5-1
CHAPTER 6. JRC Service Network ...................................................................................................... 6-1

1-1
1
CHAPTER 1. GENERAL
1.1 Function of Ship Security Alert System
Installing the Function of Ship SSAS (Security Alert System) was obligated to the freighter of Passenger
Boat and the gross tonnage 500 tons or more that engaged it in the international voyage, by the ISPS code
of SOLAS the agreement Chapter XI-1/XI-2, ship, and harbor equipment (ISPS code).
JUE-95SA can fill the demanded function of the SSAS of the below mentioned documents.
(1) SOLAS Chap.XI-2 Regulation 2&6
(2) ISPS Code Part A, 9.4.18
(3) IMO MSC Resolution 136(76)/147(77)
(4) IMO MSC/Circ.1072/1073

1-2

2
2-1
Security buttons shall be installed in the navigation bridge and at least one other location. (SOLAS Chapter XI-1 Regulation 6) Up to four Security buttons can be connected to the Junction Box.
CHAPTER 2. Configuration
2.1 Cable connection and example of setting
PSU
Printer
Captain Room
Other Rooms
Bridge
Fig. 2.1 JUE-95SA Installation wiring diagram
Security
Button
Security
Button
Security
Button
IME
JB Security
Button
DTE
TTYCS-1Q or equivalent
EME
(Option) (Option)
(Option) (Option)

2-2
2.2 JUE-95SA Components list
Table 2.2 JUE-95SA Components list
Equipment Type Q’ty
JUE-95SA
(Standard
Components)
EME (Externally Mounted Equipment) NAF-742SA/NAF-253SA 1
IME (Internally Mounted Equipment) NTF-782SA 1
Security Button NQE-3154 2
EXT.PSU（Externally Power Supply Unit）NBD-577C 1
EME-IME Coaxial Cable CFQ-5924A 1
Power Supply Cable 7ZCSC0202 1
Supplied parts for EME installation MPXP33401 1
Supplied parts for IME installation
(Including JB)
MPXP33616 1
Spare parts for Installation by JRC (for IME) 7ZXSC8501 1
JUE-95SA Instruction Manual 7ZPSC0193 1
JUE-95SA Operation Guide 7ZPSC0211 1
SSAS Setup Tool (CD-ROM) 7YZSC0005 1
(Optional
Components)
Security Button NQE-3154 Max.2
DTE (Data Terminal Equipment) NDZ-127C1/NDZ-227 1
Keyboard NDF-368/NDF-369 1
Printer NKG-800 1
DTE Signal Cable (1.5m) 7ZCSC0203 1
DTE Power Cable (2m) 7ZCSC0204 1
Printer Signal Cable (1.5m) 7ZCSC0205 1
Printer Power Cable (2m) 7ZCSC0206 1
IME-SB Cable (required when optional
seccurity button is installed)
7ZCSC0246 1
Earth Bolt (for EME) MTL318538A 1
JUE-85 Operation Manual 7ZPSC0189 1
* “Supplied parts for EME installation” will be supplied when NAF-742SA is supplied as EME.

2-3
2
2.3 JUE-95SA Standard components appearance
2.3.1 EME (NAF-742SA/NAF-253SA)
The EME is installed above deck for receiving signals from satellites.
The EME is covered with a radome.
Fig.2.3.1a EME (NAF-742SA) Fig.2.3.1b EME (NAF-253SA)

2-4
（3）DTE connecter
（1）EME connecter
（4）Connecter for Security button
X5 for SB1/2, X6 for SB3/4
（6）RECEIVE lamp
（2）POWER lamp
（3）SYNC lamp
（5）TRANSMIT lamp
（1）POWER switch
（4）LOG-IN lamp
（7）ALARM lamp
（8）RESET button
（9）TEST button
2.3.2 IME (NTF-782SA)
The IME is installed below deck.
Fi
g
.2.3.2a IME Front view
Fi
g
.2.3.2b IME Rear view
（2）PSU connecter

2-5
2
2.3.3 JB (MPBC40613)
It can be mounted to bottom part of IME.
Fig. 2.3.3 JB
2.3.4 Security Button (NQE-3154)
Fig. 2.3.4 Security Button

2-6
2.3.5 EXT PSU (NBD-577C)
Fig.2.3.5 EXT PSU
2.3.6 Coaxial cable (CFQ-5924A3, or CFQ5924A15)
It connects EME and IME.
Fig.2.3.6 Coaxial Cable
