KI HF User manual

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Assembly Instructions
WorkUp Adjustable Table
Model HF
April 2017
Tools Required
• #2 Phillips Screwdriver
• #3 Phillips Screwdriver
• 5mm Hex Key
Note: Before discarding any
packaging confirm all components
received against the packing list.
Table assembly should be done on a
clean flat floor.
Note: When tightening the
M8 x 18mm screws, first twist in
all four screws “finger tight”, then
tighten the screws one quarter turn
at a time using a diagonal tightening
pattern as shown in Detail A. Repeat
the diagonal pattern until all four
screws are tight (Figure 1 &
Detail A).
Feet To Columns Assembly
1. Set the column on end with the
smaller (inner) square tube on the
floor. The threaded holes visible
on the end of the column will be in
a rectangular (not square) pattern
(Figure 1).
2. Place the foot over the column end
so the column fits into the square
hole in the foot. The slotted holes
in the foot should line up with the
four holes in the column end. If not
the foot needs to be removed and
repositioned at 90 degrees
(Figure 1).
3. Attach the foot using four
M8 x 18mm screws and four 8mm
flat washers, tightening each screw
one quarter turn at a time in a
diagonal pattern until all four screws
are tight (Figure 1 & Detail A).
4. Thread leveling glide into the holes
at the ends of the foot (Figure 1).
Note: If the roller foot option was
purchased, one foot will have
pre-assembled rollers.
5. Repeat steps 1 through 4 for the
second foot and column (Figure 1).
Detail A
Motor-Operated Furnishing
-FOR COMMERICAL USE ONLY-
Figure 1
foot
column
M8 x 18mm
screw
leveling
glide
flat
washer

2
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
WorkUp Adjustable Table - Model HF
Assembly Instructions
Columns to Worksurface
Support Assembly
1. With the assistance of a
second person, hold both foot/
column assemblies in the
upright position, orienting the
two column cables inward as
illustrated (Figure 2).
2. Position the worksurface support
onto the foot/column assemblies
and allign the four holes in one
end of the support with the four
holes in the column (Figure 2).
3. Attach the worksurface support to
the column using four
M8 x 18mm screws until
snug, then tighten each screw
one quarter turn at a time in a
diagonal pattern until all four
screws are tight (Figure 2 &
Detail A).
4. Attach the second foot/column in
the same manner (Figure 2).
Worksurface Assembly
Note: Except for the “P” shaped
cable clamps, the worksurface is
pre-drilled for installation of all
components.
1. To avoid scratching the table top,
place it with the top side down on
a soft protective material
(Figure 3).
2. Place the worksurface support
with columns on the drilled face
of the table top so the heads
of the M8 bolts set into the
pockets milled in the table top.
The worksurface support should
now be flush with the table top
(Figure 3).
3. Move the worksurface support
with columns slightly to align
the holes in the table top with
those in the worksurface support
(Figure 3).
4. Attach the table top using
#12 x 1” tapping screws in each
available hole (Figure 3).
Figure 3
table top
#12 x 1”
screw
worksurface
support
assembly
Figure 2
worksurface
support
column
cables
foot/column
assembly
M8 x 18mm
screw
Detail A

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
3
WorkUp Adjustable Table - Model HF
Assembly Instructions
Electric Controls Installation
Note: The keypad may be
mounted to the underside of table
top, at pre-drilled locations on the
right- or left-hand side.
1. Attach the keypad at the left- or
right-hand front edge of the table
using (two screws for standard
keypad) or (four screws for
memory display keypad)
#10 x 11/16”tapping screws
(Figure 4).
Note: The hole pattern for the
keypad will accommodate the
standard keypad and the memory
display keypad, so all holes will
not be used.
2. Position and mount the control
box to the underside of the table
tops at one of two pre-drilled
hole locations. Attach the control
box at the left- or right-hand
side of the table top behind the
worksurface support using two
#12 x 1” screws (Figure 4).
3. If the optional plastic wire trough
was ordered, expose the two sided
tape and install it between the two
steel angles of the worksurface
support (Figure 4).
#12 x 1”
screws
table top
control
box
worksurface
support
keypad
#10 x /”
11
16
screw
plastic wire
trough
(optional)
Figure
4

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
4
WorkUp Adjustable Table - Model HF
Assembly Instructions
Wire Trough
Note: The wire trough is an
optional part that must be ordered
separately. If no wire trough is
specified, go now to page 5.
1. An optional wire trough may
mount to the underside of the
table top, centered over the
worksurface supports of any
depth table, as illustrated in
Detail C. If the wire trough is
not center-mounted over the
worksurface supports, the
table top depth determines the
mounting location. If the wire
trough is to be mounted under
table tops of 22” or 24” in depth,
see Figure 5. If the wire trough is
to be mounted under tops of 30”
or 36” in depth, see Detail B.
2. Align the wire trough mounting
holes to the appropriate holes in
the table top. Using six #10 x 5/8”
pan head screws, secure the
wire trough to the table top as
illustrated (Figure 5, Details B
or C).
table top
control
box
worksurface
support
Figure 5 - 22”
or 24”Table Top Depth
wire trough
(optional)
#10 x /”
5
8
pan head
screw
Detail B - 30” or 36”Table Top Depth
worksurface
support
table
top
wire
trough
Detail C - 22”, 24”, 30” or 36”Table Top Depth
worksurface
support
table
top
wire
trough

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
5
WorkUp Adjustable Table - Model HF
Assembly Instructions
Electrical Cables
Note: Control cables can be
routed differently than shown.
Your configuration may vary.
Note: The wire trough is an
optional part that may be ordered
separately. Your configuration
may vary.
1. Connect the extension cables
to the leg cables, then connect
cables to the M1 and M2 sockets
on the control box (Figure 6).
Note: Be sure the keypad cable
end is properly aligned before
pushing it into the socket
(Detail D).
2. Connect the keypad cable to the
HS socket on the control box
(Figure 6).
3. Using the “P” shaped cable
clamps and #10 x 3/4” self-drilling
screws provided, secure the
column and keypad cables to the
worksurface. Be sure to position
a cable clamp within 8” of where
the cable connectors plug into the
control box (Detail E).
Note: No cable clamps are
required for the power cord.
table top
control
box
Figure
6
power
cord
extension
cables
column
cable
keypad
cable
cable
clamp
Detail D - Keypad Cable End
alignment feature
Detail E - Cable Clamp
#10 x /
3
4
”
screw
cable
clamp
Detail
F
grounding
pin
grounded
outlet
This product is for use on a nominal 120-volt circuit and has a grounding plug
that looks like the plug illustrated in Detail F. Make sure that the product is
connected to an outlet having the same configuration as the plug. No adapter
should be used with this product.
GROUNDING INSTRUCTIONS

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
WorkUp Adjustable Table - Model HF
Assembly Instructions

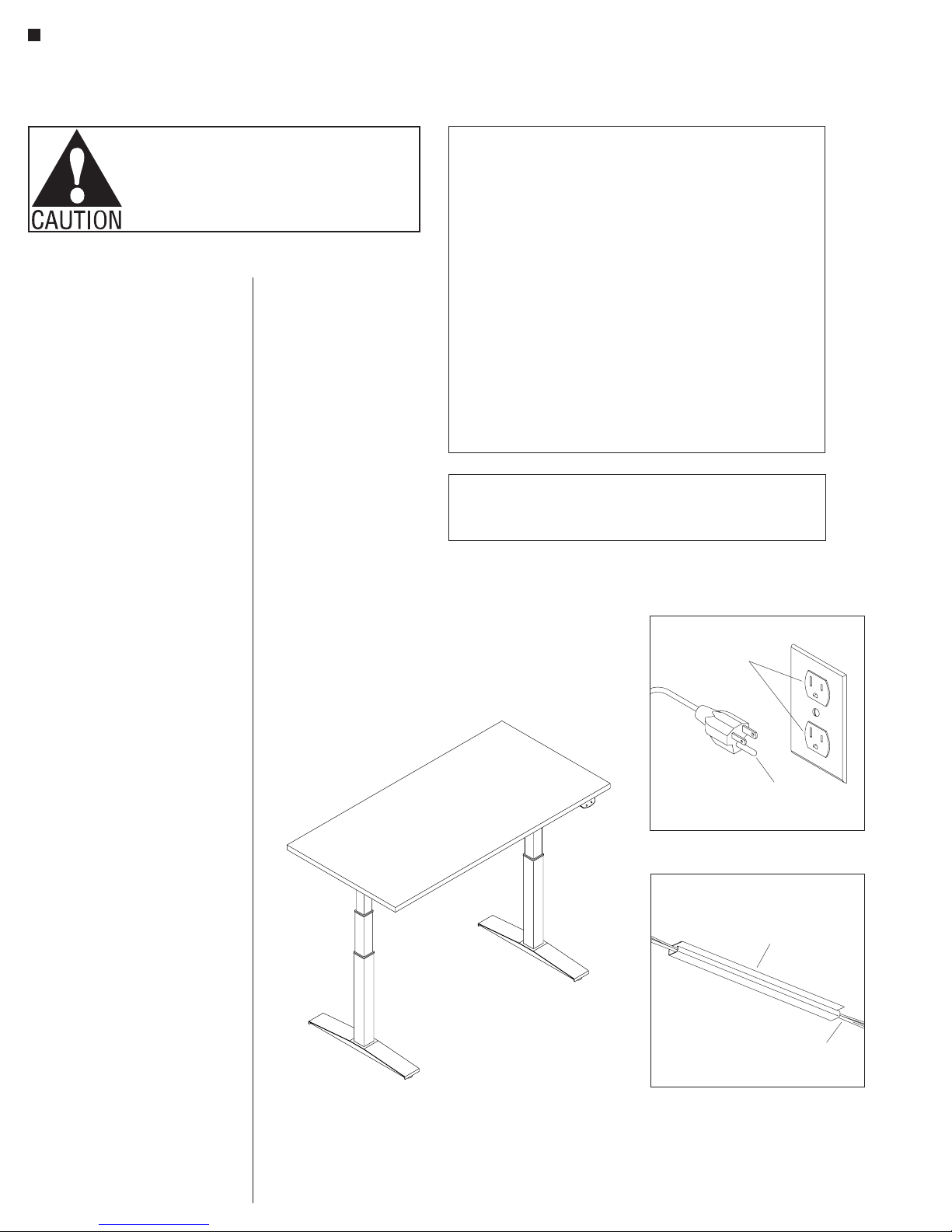

4. Carefully invert the table to its upright
position. Caution: The table is very
heavy. Two or more people are required
to turn table upright.
5. Adjust leveling glides to accommodate
for uneven floor.
6. Tuck the loose cables into the open side
of the plastic wire trough
(Figure 8, Detail G).
7. Insert the power cord into the socket on
the control box (Figure 7).
Note: Do not attempt to adjust the table
until the system is initialized.
Initializing The Table
1. Plug the power cord into a 110V AC
outlet (Detail F).
2. Simultaneously press and hold both the
up and down arrows, holding for five
seconds to zero the system. Continue to
hold both buttons until both legs are at
the midpoint of the travel.
3. Adjust the table to its highest and
lowest positions while checking that the
cables and power cord do not bind or
pull loose.
Operating the Table
Note: When adjusting the table always
be sure hands are clear of any potential
pinch areas created by the table and
adjacent furniture.
1. The table can be adjusted to the desired
height by pressing the up or down
arrows on the keypad.
Product Information
Maximum Load: The allowable load
is based on the size of the worksurface
and shall be evenly distributed on the
worksurface.
Allowable Load = Perimeter x 1.5 lbs.
Example: the allowable load for a
30 x 66 worksurface is
192 x 1.5 lbs. = 288 lbs.
Maximum Duty Cycle: 10% (2 minutes
on, 18 minutes off).
Figure 7
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be
followed, including the following:
Read all instructions before using (this furnishing).
DANGER: To reduce the risk of electric shock:
1. Always unplug this furnishing from the outlet before cleaning.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to
persons:
1. Unplug from outlet before putting on or taking parts off parts.
2. Close supervision is necessary when this furnishing is used by, or near
children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the manufacturer.
4. Do not use outdoors.
5. WARNING: Risk of Electric Shock-Connect this furnishing to a properly
grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
CAUTION: If Channels (Wire Troughs) are used they are not to be used for
routing extension cords. Power supply cords are not to be routed across or
through more than one complete unit/worksurface.
Detail
G
plastic wire trough
cables
Detail
F
grounding
pin
grounded
outlet
6

7
WorkUp Adjustable Table - Model HF
Assembly Instructions

WorkUp Adjustable Table - Model HF
Assembly Instructions
1330 Bellevue Street • P.O. Box 8100 • Green Bay, WI 54308-8100 • Tel [phone] • www.ki.com
© 2017 KI All Rights Reserved • Litho in USA • Code KI-62450R4/KI/PDF/0417
