Kidzone 060-ROT-02V2 User manual

Instruction Manual
Ride On SUV Personalize License Plate (24V)
Item number: 060-ROT-02V2
*Product appearance and colors may vary from the photo.
ATTENTION
This vehicle is packed with the battery disconnected. Connect
the battery before use.
This manual contains important safety, performance and
maintenance information. Read the manual thoroughly before
allowing your child to ride your new electric ride-on toy. Failure
to read the user manual can result in property damage or bodily
injuries. Keep this user manual for future reference.

Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Failure to follow the safety instructions may result in property damage, serious injury or death.
This owner’s manual contains assembly, use and maintenance instruction, and child safety warning. Adult
/guardian supervising children should read and understand this manual before allowing any child to use
the product.
BASIC SAFETY
• This product is suitable for children age 37 - 96 months old.
• Maximum users’ weight for this product is 77.2 LBS / 35.0 KGS.
• To protect against electrical shock, do not immerse cord, charger, transformer,
battery or the product in water or other liquid.
• Do not change, modify, or add any electrical wiring on the product. Alternations
system.
property damage and serious injury.
• For your children’s safety, the product should be assembled by adult only.
• Never leave children unattended with the ride-on toy. Close and constant adult
supervision is required when your child is operating this product.
• Adult and/or supervisors must instruct the user all common safety rules and safe
practice.
• Disconnect the battery if not used for a long time.
• To reduce the risk of injury, adult supervision is required. Never use in roadways,
near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than 1 rider.
I N GW A R N
1

• RISK OF FIRE. Do not bypass. Replace only with original size and type.
• Do not use this product in any slippery conditions including rain, snow, and ice,
or at any potential dangerous places. Always drive the vehicle on smooth surface,
and do not drive the vehicle on the tall grass or rugged ground.
• For best performance use on at, hard surfaces.
• Avoid using this product in tight environment to prevent damage to the product
or injury to the user.
• Do not use this product in the dark. Only operate this product during daytime
or well-lit area.
• Be aware and alert children that hands, legs, hair, clothing, and loose items can
potentially get caught in moving parts. Avoid placing body parts on moving
parts and do not wear loose clothing while using the ride-on toy.
• Avoid continuously hitting into obstacle to prevent overheating or damaging
the motor. Drive away or remove obstacle as soon as possible.
• Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
• For your child’s safety, make sure the seatbelt is securely fastened and the rider
is wearing personal protective equipment, such as helmet, when operating this
product.
I N GW A R N
2

WARNING
CHOKING HAZARD - Small parts. Not for children under 3 years. :
WARNING
Manufacturer and seller expressly disclaim any and all liability
for personal injury, property damage or losses, whether direct, indirect, or
incidental, resulting from the incorrect attachment, improper use, inadequate
maintenance, unapproved modication, or neglect of this product.
:
WARNING
This toy is to be assembled by an adult. Contains potentially
hazardous sharp edges and sharp points, or contains small parts before assembly.
Keep children away when assembling the ride-on toy.
Remove and dispose all protective materials, plastic bag, and packaging before
assembly.
:
WARNING
Do not drive this vehicle into any puddle or contact with any
liquids to avoid the electrical shock to product or user.
PREVENT FIRE
• Never modify the electrical system. Alterations could cause a re resulting in
serious injury and could also ruin the electrical system.
• Use of the wrong type of battery or charger could cause a re or explosion
resulting in serious injury.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by
adults only.
• Never lift or carry the battery by the wires or connector. This can damage the
battery and possibly cause a re resulting in serious injury. Lift and carry the
battery by the case only.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
Battery recharge in an average of 8 - 12 hours. Do not charge more than 20 hours,
or you might over heat the battery and cause damage or a re.
•
:
WARNING
3

FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT
IN SERIOUS INJURY OR DEATH.
Child Safety Warnings
• Adults supervising children must read and understand this entire manual before
allowing any child to use this product.
• Adults must evaluate their own children as to maturity, strength, judgment and
ability to follow safety rules. Published age guidelines are not a substitute for
careful evaluation of your own child.
• Adults must teach children about thinking ahead while riding as this may be the
see through the child’s eyes, and verbally teach them about steering and avoiding
obstacles in the approved riding area.
• Riding a motorized ride-on toy can be a dangerous activity, even under the best
of circumstances. Good choices regarding where and when to ride, constant adult
supervision of riding, and practice and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and therefore it is
that no amount of care, instruction or expertise can eliminate.
• If this inherent risk is not acceptable, adults should not allow children to ride this
ride-on toy.
Safe Riding Warnings
• Not to be used by children under 36 months over 96 months.
• Do not exceed the maximum weight capacity of 77.2 LBS / 35.0 KGS.
• Do not allow more than one (1) rider.
ADULTS AND SUPERVISORS, PLEASE NOTE:
1• Always instruct all children of common sense rules and safe practices.
3• Do not allow the child rider to operate the ride-on toy near streets, roads,
sidewalks, walkways, or any other place where they may encounter other
moving vehicles.
4• Never leave children unattended with this ride-on toy. Continuous adult
supervision is required.
N R AW G N I
N R AW G N I
4

5• If necessary, adults and supervisors are always responsible for setting up gates
and barriers to ensure a safe riding environment for the child rider.
6• Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
7• Sternly alert children that hands, legs, hair, and clothing can potentially get
caught in moving parts. Ensure they never place a body part or piece of clothing
near a moving part of the ride-on toy. Avoid loose clothing.
8• Instruct children to always wear shoes when using the ride-on toy.
into contact with any part of the ride-on toy while it is charging.
10. Firmly instruct children to use the ride-on toy in a safe manner. Unsafe
behaviors include, but are not limited to:
• Traveling at unsafe speeds
• Not riding in the seated position
• Riding at night or in any conditions of low visibility
• Riding in any wet conditions including rain, snow, and ice
• Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other
that involve notable risk
actions involving any notable risk
• Riding near any pool or open body of water
• Pushing, pulling, or shoving the driver in any way while operating the ride-on
toy
• Using the ride-on toy without the battery cover or any other safety cover fully
closed
• Pulling or hitching the ride-on toy with other similar moving ride-on toys or
products
I N GW A R N
5

Flammable and Explosive Materials Warnings
• Use of a battery or charger other than the supplied rechargeable battery and
battery and charger with the ride-on toy.
• Using the rechargeable battery and charger for any other product many
and charger with another product.
explosion. Avoid direct contact between the terminals. Lifting the battery
by the wires or charger can cause damage to the battery and may result in a
• Plug wall charger directly into a wall outlet. Do not use an extension cord
Electric Shock / Fire Warnings
liquids away from the battery and keep the battery dry.
or explosion and permanently damage the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
•Battery posts, terminals and related accessories contain lead and lead
compounds (acids) chemicals and are toxic and corrosive. Never open the
Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs with the skin or in the eyes, or if the chemical is
swallowed, call medical emergency immediately.
Corrosive Material Warnings
•
The following safety hazards may result in serious injury or death to the user
of the ride-on:
Battery and Charging Warnings
•
• Do not mix alkaline, standard (carbon-zinc), or rechargeable .yrettab
Do not mix old and new batteries.
battery.
I N GW A R N
6

• Regularly check charger, supply cord and connector for wear and damage.
Look for frayed or kinked wires, any exposed inner wires, any missing
insulation. If any damage is observed do not plug in the charger and do not
charge the battery.
"TTFNCMZ8BSOJOHT
• The ride-on toy must be assembled by an adult who has read and
understands the instructions in this manual.
Choking hazard to children under the age of 3 years.
This ride-on toy contains small parts that are for adult assembly only. Keep
small children away when assembling.
• Remove and dispose of all protective materials, plastic bags and packaging
before assembly.
•
•
•
Re-Charge Interval and Time
Damage to the battery may occur if it is allowed to drain completely. Do not
allow the battery to drain completely.
Check the battery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the battery if damage has occurred. Do not
use an extension cord when charging the ride-on toy.
On average you will need to charge the battery for 8-12 hours and no more
than 20 hours. Failure to charge the battery as directed could cause
permanent damage to the battery and void the warranty.
Only an adult who has read and understands the safety warnings should
handle, charge and recharge the battery.
•
•
•
CAUTION
I N GW A R N
I N GW A R N
7

Item: 060-ROT-02V2
Battery：12V7AH*2（24V）
Motor：200W*2,550,20000rpm
Age：37-96 Months
Max Weight：77.2 LBS / 35.0 KGS
Product Dimension：48.4” x 34.6” x 31.5”
Speed：1.8-3.1MPH
Play time：about 50 minutes
Charger：DC 28.8V 500mA
First charging time：8-12hours
：8-10hours
Max charging time：12 hours
Battery (Temperature tolerance)：-68 F to 140 F
O O
8

Parts and Feature
P (Steering Wheel)
1x
1x 1x 2x 1x 2x
1x 6x 3x (2 pcs pre-installed
on the front axle)
41x 10x
Y ( Remote Control)
S (Big Washer)
U (M10 Big Nut)
R (Charger) T (Small Washer)
C (Rear Axle)
L (Lamp Holder)
F (Front Wheel)
G (Rear Wheel)
B (Front Axle Assembly)
K (Bracket)
O (Wheel Cover)
D (Motor)
J (Fender)
E (Front Bumper)
H (Wind Shield)
N (Lamp Frame)
M (Seat)
I (Rear View Mirror)
A
P
Q
(Car Body)
(Rear mudguard)
(Rear bumper)
Parts and Feature
X (M8 Small Nut)
1x
6x (2 pcs pre-installed
on the front axle)
Z (AUX wire) Big Nut driver Small Nut driver Allen Key
W (M4x16)
V (M4x10)
9

Assembly Instruction
Secure the rear bumper to the body by using M4x10 screws (refer to the enlarged photo for details)
Assemble rear fender to the side of the car body and secure using M4x10 screws
1 2
3
To attach the rear bumper to the vehicle
the vehicle body and push the rear bumper
into the vehicle body slot.
10

To connect the rear suspensions to the rear axle assembly, loosen up the screw and the female thread
tube on the suspension by hand, attach the suspension to the rear axle assembly by tighten the screw
and the female thread tube by 2pcs allen keys, one for hold, another one for tighten.
1
1-1
2
3
The membrane on the rear shock
spring cannot be removed
Assembly Instruction
Complete the front axle assembly.
Turn the car body and assemble the front axle assembly to the vehicle bottom and secure using
8 pcs M4x16 screws.
Connect the direction lever and secure using a small washer and small nut.
These big nuts and
small washers are
pre-installed on the
L shape shafts.
1-1
1
2
3
/
11

Assembly Instruction
Detach both protective cover from the end of rear shaft and take it out from the hollow tube, insert the
rear shaft through the rear axle assembly hole and get through the hollow tube till to another side hole.
Install left and right motors through the end of rear shaft, put both motors wire connectors into holes
under the seat.
Assemble the wheel by adding a big washer and tighten a big nut by the provided big nut driver, then
add the wheel cover.
Make sure the motors are assembled on the correct side. There are left (L) and right (R) markings on the
chassis, install the left and right motors correspondingly.
Install the brackets and the front fenders to the car body and fix it with screws. Make sure to
assemble the parts on the correct side.
Big Washer
Big Nut
Left side Right side
LR
Assembly Instruction
M4×10 screws
The rear shaft get through
the hollow tube
12

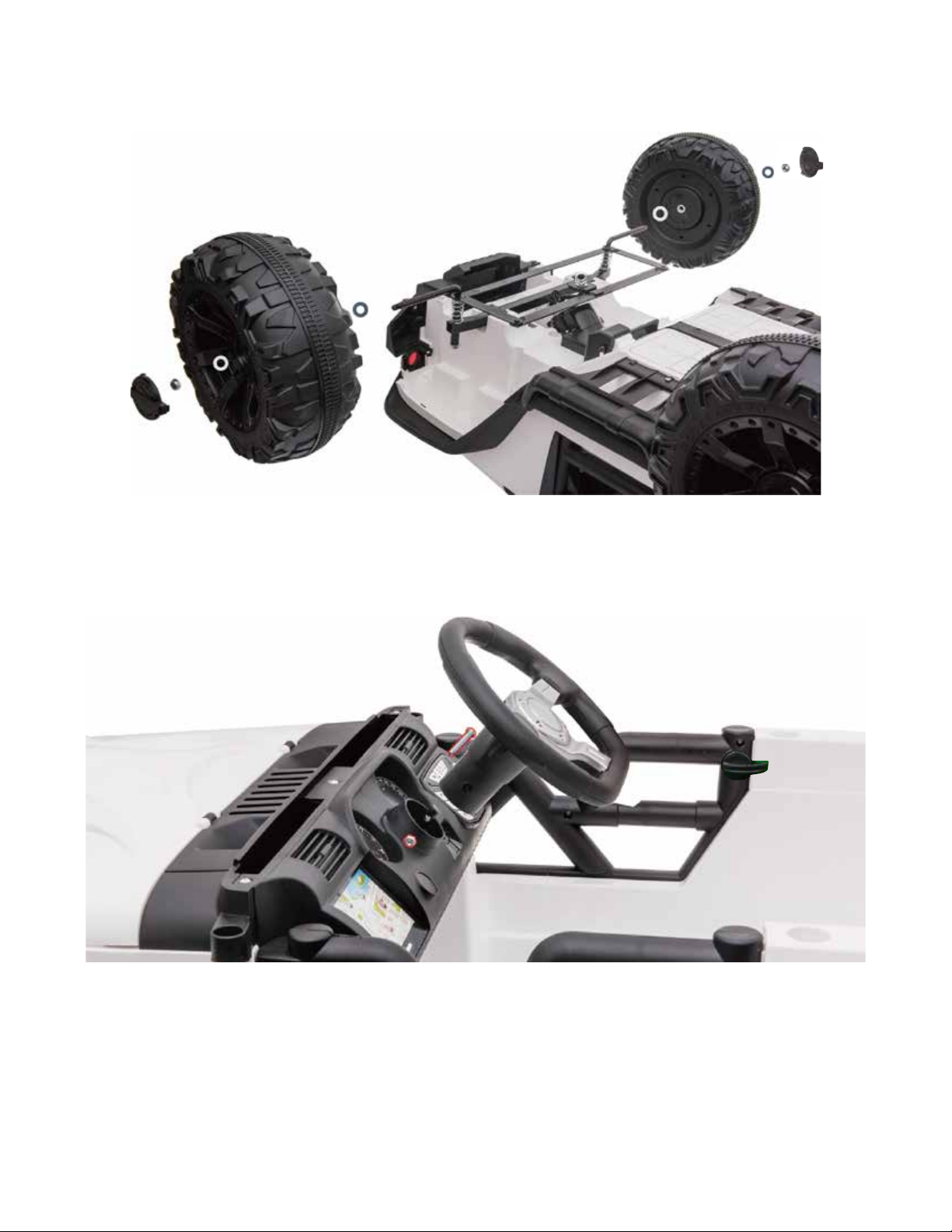

Assemble the washer, front wheel, follow by another washer to the front axle and secure with nut
by the provided big nut driver, then cover it with the wheel cover. Repeat the same steps on another side.
Remove the screw and nut from the steering wheel.
Slide the steering wheel to the car body and align the screw hole. Then secure it with the previously
removed screw and nut.
Assembly Instruction
P (Steering Wheel)
1x 1x
S (Big Washer)R (Charger)
F (Front Wheel)
B (Front Axle Assembly)
K (Bracket)
D (Motor)
J (Fender)
E (Front Bumper)
M (
13

Assembly Instruction
Insert the windshield and rear-view mirrors on the vehicle body.
As shown on the photo, before install the right body frame to the car body, connect the male and female
Note: after the wire has been connected, retract the connector and wire into the slot hole of the light frame,
so that it will be installed the light frame better.
【As shown on the diagram, press the two buckles of the light frame by hand for better installing.】
14

Assembly Instruction
Connect the motor wiring under the seat, the male connectors can be connected in either female
connector.
Open the front hood (unlock the two lock catches on the hood), connect the red wire to the battery
red terminal.1MVHUIFUXPSFEDPOOFDUPST
Assemble the seat on the car body and secure with 2 pcs M4 x 16 screws.
15

Assembly Instruction
Insert the front bumper to the front of the car.
16

User Instruction
Control the vehicle
1. Light Button
2. Multifunction Button
3. Speed Button
Select between high and l
To turn the lights on the rear tailstock on or o.
ow speed.
4. Forward Button
Press the button to enable the vehicle to move forward.
5. Reverse Button
Press the switch to enable the vehicle to move backward.
Do not change the speed or direction until the vehicle comes to a complete stop.
6. Bluetooth Button
Press the button to enable the Bluetooth mod
Press the button once to play the previous track. Press and hold to decrease volume.
Press the button once to play the next track. Press and hold to increase volume.
e.
11. Flash driver port
Insert ash driver to play the music.
7. Previous track / Decrease Volume Button
8. Next track / Increase Volume Button
9. Play / Pause Button
10. Start / Stop Button
12. AUX connector
Auxiliary port.
13. Power display
1234
5
6
PREV
VOL+
NEXT
VOL-
Back
LAMP
MODE
Fast
Slow
7
8
9
10 11 12 13
AUX /
Flash driver
Press to turn on the vehicle, press and hold a second to turn o the vehicle.
17

Note: 1) The vehicle cannot move if the Forward / Backward button not been selected even if the pedal
been pressed down.
2) Only the Forward button / Backward button / Speed button / Start and Stop button with indicator
light after selected.
Bluetooth connection
To connect your mobile device to the vehicle, turn on the Bluetooth and select "Kidzone Ride-On". You can
hear a voice message of connected successfully after pairing. Music can be played from the vehicle speaker
according to the user preferences. You can select the music or adjust the volume by the phone, you can also
select / play or pause the music by press the Previous track / Next track / Play and Pause buttons on the
control panel of vehicle.
Note: You can pause and resume the music by press the Start / Stop button on the control panel of vehicle.
Press the “Mode” button to switch to ash driver mode/AUX mode.
Flash driver connection
Insert the ash driver to the port, the vehicle can play music from the ash driver, you can operate it by
press Previous track / Next track / Play and Pause buttons, you can also press the Start / Stop button to
pause and resume the music. Press and hold to adjust the volume of music by press the volume button.
Press the “Mode” button to switch to Bluetooth mode/AUX mode. You can also press “B” button to switch
to Bluetooth mode directly.
AUX connection
Use the provided AUX wire to connect the phone/MP3 player and the vehicle, music can be played through
the vehicle speaker.
Press the “Mode” button to switch to Bluetooth Mode/ash driver Mode. You can press “B” button to switch
to Bluetooth mode directly.
18

User Instruction (Remote Control)
Using remote control
The remote control should only be used by adult. Remote control will over ride all control input from the
vehicle.
To pair the remote control to the vehicle by below two methods:
1. Press and hold the forward and backward button for 3 seconds on the remote control, the indicator will
the vehicle successfully.
the power of the vehicle, the indicator will change to solid light, remote control paired to the vehicle
successfully.
Right
Left
Pause
Forward
Backward
Speed Button
Speed button:
Press the “S” button to select the speed
One light ---Slow speed.
Two lights --- Middle speed.
Three lights --- high speed.
Pause button:
vehicle has no function either by controller or manual control from the vehicle.
Press the “P” Emergency Stop button again, three indicators change to solid light, vehicle back to
operation mode.
Pairing Button
19
