Kidzone Licensed Audi RS6 Ride ON User manual

Licensed Audi RS6 Ride ON (12V)
Owner’s Manual
060-ROT-32L
*Product appearance and colors may vary from the photo.
www.kidzonetoys.com

This owner’s manual contains important safety, performance, and
maintenance information.
Read the manual before allowing your child to ride on the product.
Keep this manual for future reference.
Hello !
Welcome to Kidzone’s world of ride-ons where fun and adventure
await! Little ones have a blast riding our toys at home, in the park, or on
the sidewalk.
At Kidzone, our goal is to make playtime more fun for kiddos, while
ensuring comfort and safety. Our ride-ons help create joyful moments
for the entire family that’ll turn into forever memories!
ATTENTION

Table of Contents
04
06
07
08
12
17
18
20
13
14
16
Safety Instruction
Product Specication
Parts and Accessories
Assembly Instruction
User’s Instruction
Care and Maintenance
Troubleshooting
Warrenty Information
User’s Instruction
Media Player
Remote Control
Charging
User’s Instruction
User’s Instruction

4
Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Failure to follow the safety instructions may result in property damage, serious injury or death.
DISCLAIMER
• Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or
losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use,
BASIC SAFETY
• This product is only designed to be used by children age 37 - 72 months.
• Do not exceed the maximum weight capacity of 66 lb / 30 kg.
•
Adult and/or supervisors must instruct the user all common safety rules and safe practice.
•
•
•
•
• Never leave children unattended with the ride-on toy. Close supervision is necessary when your
children is using the product.
This product should be operate on a at and smooth surface. Do not use this product in any slippery
conditions including rain, snow, and ice, or at any potential dangerous places.
To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles,
on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and
never allow more than 1 rider.
RISK OF FIRE. Do not bypass. Replace only with original size and type.
Do not use this product as a trac tool.
• If necessary, adult and/or supervisors should be responsible for setting up gate and barriers to ensure
a safe environment for child rider.
• Be aware and alert children that hands, legs, hair, clothings, and loose items can potentially get
caught in moving parts. Avoid placing body parts on moving parts and do not wear loose clothing
while using the ride-on toy.
• Avoid using this product in tight environment to prevent damage to the product or injury to the user.
• This product does not equip with brakes. Do not use this product in areas that requires active braking
to prevent possible rolls, crashes, or bodily injury.
• Do not use this product in the dark. Only operate this product during daytime or in a well lit area.
• Avoid continuously hitting into obstacle to prevent overheating or damaging the motor. Drive away
or remove obstacle as soon as possible.
• For your child’s safety, make sure the seatbelt is securely fasten and the rider is wearing personal
protective equipment, such as helmet, when operating this product.
W
E
A
R
P
R
O
T
E
C
T
I
V
E
E
Q
U
I
P
M
E
N
T
W
H
E
N
U
S
I
N
G
Correct Fitting
Make sure the helmet
covers your forehead.
Incorrect Fitting
Forhead is exposed and
vulerable to injury.
WARNING

ver. 06072023
5
CELL BATTERY AND RECHARGEABLE BATTERY HANDLING
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
• Permanent damage to the battery may occur if it is completely drained. Do not let the battery to drain
completely.
• On average, you will need to charge the battery for 8 - 12 hours. Do not charge the battery for more
than 20 hours. Failure to charge the battery as directed could cause permanent damage to the battery
and void the warranty.
• Only an adult who has read and underrstands the safety instruction should handle, charge, and
recharge the battery.
• Disconnect the battery if not used for a long period of time.
Failure to follow these instruction may result in permanent damage to the product or parts.
CHOCKING HAZARD, ASSEMBLY WARNING
• This product contains small parts before assembly. Keep children away when assembling the
ride-on toy. The assembly should only performed by an adult.
• Remove and dispose all protective materials, plastic bag, and packaging before assembly.
• This product should not be used by children under the age of 36 months old.
ELECTRIC SHOCK, FIRE HAZARD, FLAMMABLE AND EXPLOSIVE WARNING
• To protect against electrical shock, do not let cord, charger, transformer, battery or the product
contact with water or other liquid.
• Do not drive the vehicle into any puddle or contact with any liquid to prevent electrical shock.
• Do not change, modify, or add any electrical wiring on the product. Alternations could potentially
• Only use charger and battery provided or recommended by the manufacturer. Using the wrong type
• Check the battery, charger, and connectors for any sign of excessive wear or damage each time you
charge the battery. Do not use the charger or the battery if damages are present. Change and replace
damage part before use.
• Do not lift or carry the battery by the wires or charger. You might damage the wires and case electric
shock or re.
•
CORROSIVE CHEMICAL, PRODUCT MATERIAL WARNING
• Contact or exposure to battery leakage may cause serious injury. If contant or exposure occurs to the
skin or in the eyes, or if the chemical is swallowed, call medical emergency immediately.
• Battery posts, terminals, and related accessories contain lead and lead compounds which are toxic
and corrosive. Never open the battery.
Failure to follow these instruction may result in bodily harm, serious injury, or death.
cause shirt circuit, a re, or irreversible damage to the electrical system.
of battery or charger could cause a re and potentially property damage and serious injury.
Do not charge more than 20 hours. You might over heat the battery and cause damage or a re.
WARNING
CAUTION

6
Model no. 060-ROT-32L
Battery 12 v 4.5 Ah x1
Charger Input AC 120 v , 60 Hz
Charger output 12 v 500 mA
Batter Charge Time 8 - 12 hours
Speed 1.86 - 3.11 mph (3 - 5 km/h)
Suitable Age 37 - 72 months
Maximum User Weight 66 lb / 30 kg
Fuse 7A self-resetting

ver. 06072023
7

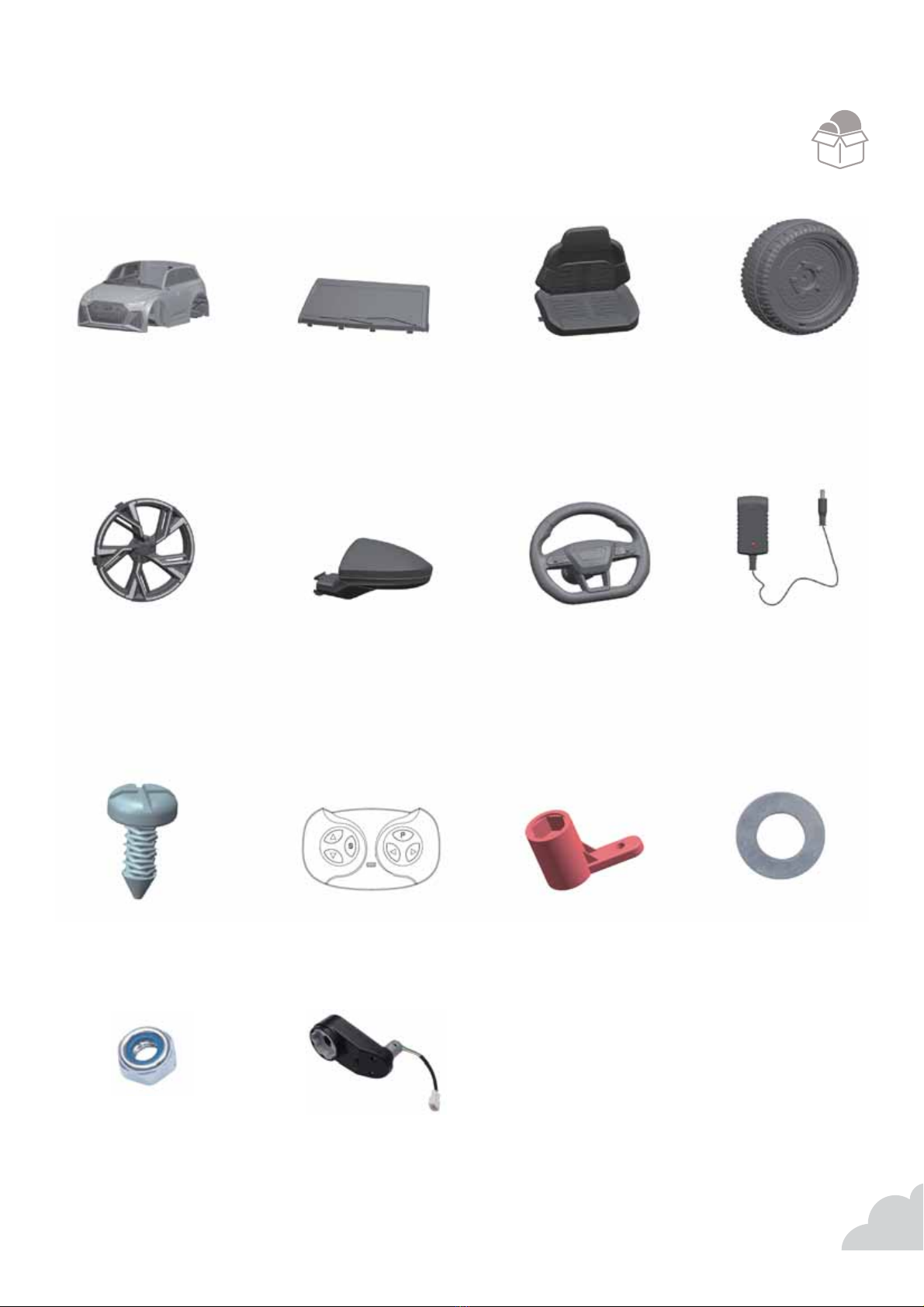

Parts and Accessories
A. Car Body
1x
E. Wheel Cap
4x
I. Screw
2x
B. Windshield
1x
F. Rear Mirror
1x Set
J. Remote Control L. Washer
6x
M. M10 Nut
4x
N. Motor
2x
1x
C. Seat
1x
G. Steering Wheel
1x
K. M10 Spanner
2x
D. Wheel
4x
H. Charger
1x
(4 pcs pre-installed on the
front axle, 2 pcs pre-installed
on the rear axle)
(2 pcs each on the
front and rear axles)

8
Assembly Instruction
•
•
Make sure the motors are connected to the rear axle.
• Insert wheels (D) to the axle and match with motors, then put on a washer and secure with M10 nut
on each wheel. Cover the wheels with wheel caps (E).
Tools required (not included)
This product should only be assembled by an adult.
Children can be harmed by small parts, sharp edges and points or by electrical
items. Care should be taken when unpacking and assembling the vehicle.
1
M10 Nut M10 Nut
M10 Nut M10 Nut
Washer
(E) Wheel Cap
(E) Wheel Cap
(E) Wheel Cap
(E) Wheel Cap
(D) Wheel
(D) Wheel
(D) Wheel
(D) Wheel
Washer
Washer Washer Washer
Motor Motor
p
p
(E
(E
W
r
W
r
Washer
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
t
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
t
WARNING
Rear wheels assembly:
Front wheels assembly:
Put a washer on the front axle and followed by a wheel, then put on a washer and secure with M10 nut
on the wheel. Cover the wheel with wheel cap (E). Repeat the same step on another side.

ver. 06072023
9
Assembly Instruction
• Connect the wire connector from the steering wheel (G) to that from the steering column.
• Push the steering wheel to the steering column until you hear it clicks to the groove.
• Connect the wire connector from the battery to that of the vehicle.
2
3
(G) Steering Wheel
This product is packed with the battery disconnected.
Connect the battery before use.
ATTENTION

10
Assembly Instruction
4
5
•
•
screws on both sides of the seat to the vehicle body.
(C) Seat
(B) Windshield

ver. 06072023
11
Assembly Instruction
6
• Attach side mirror (F) to the side of the vehicle.
• Repeat the same step for the other side.
(F) Side Mirror

12
User’s Instruction
Do not change direction until the vehicle comes to a complete stop.
Sudden change in direction may result in permanent damage to the motor.

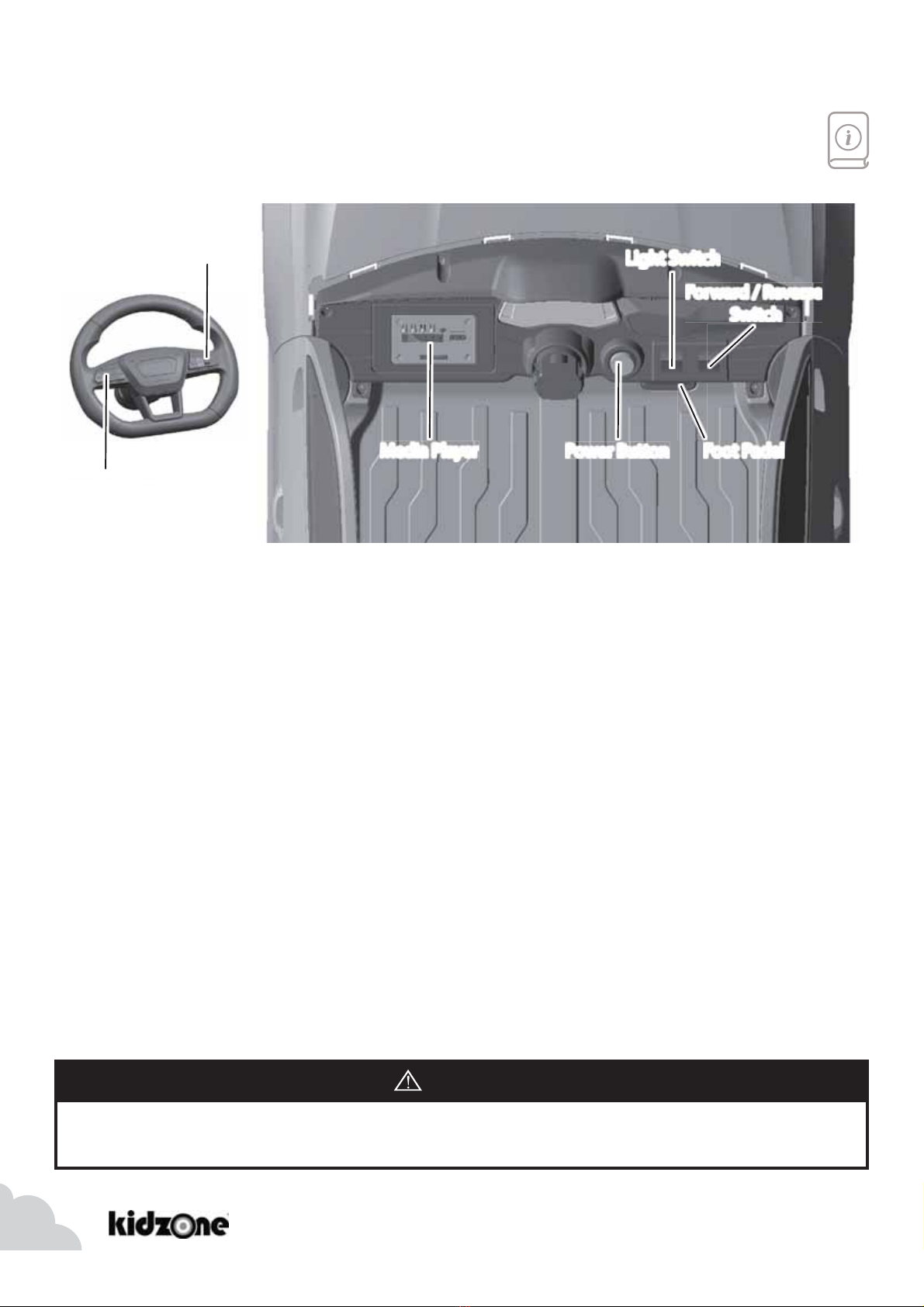

Control the vehicle
Power Button
Press the power button to turn ON or OFF the vehicle.
Forward / Reverse Switch
Press the switch to select the moving directions of the vehicle.
Light Switch
Press the switch to turn ON or OFF the light.
Foot Pedal
Press down to move the vehicle, release to slow and stop.
Horn Button
Press the button to make a horn sound. For the right horn button, it also can
be as next track button when ash drive connected.
Power ButtonMedia Player Foot Padel
Light Switch
Forward / Reverse
Switch
Horn Button
Horn Button /
Next track button
CAUTION

ver. 06072023
13
User’s Instruction (Media Player)
Media Player
Flash drive port
Music / Bluetooth Mode Button
Press the button to switch between music mode or bluetooth mode.
Next track button
Press the button to change to the next sound track.
Volume Buttons
Press the volume buttons to change the volume.
Bluetooth connection
To connect your mobile device to the vehicle,press the bluetooth button on the media player and
turn on the bluetooth of mobile device and select "Kidzone Ride-On". You can hear a voice message
of connected successfully after pairing. Music can be played from the vehicle speaker according to
the user preferences.
Flash drive port
Volume
Buttons
Next track button
Music / Bluetooth Mode button
Allow media player to play MP3 format les from your device by connecting via this port.

YJ1603BT12VFMEnglishVersion






















Equipmentfunctiondescription:
Shortpressthemodekeytoswitchthemode:musicmode/Bluetoothmode/FMmode.
Whenyouswitchtomusicmode,therewillbeamusicmodeprompttone,andthen
automaticallyplaymusic.Shortpressthepanelmusickeytoswitchsongs.
WhenswitchingtotheBluetoothmode,therewillbeaBluetoothmodeprompttone,then
waitfortheBluetoothdevicetoconnect,turnonotherdevicesandsearchfortheBluetooth
Name:YJbtcar.Aftersearchingforthename,clickConnect,andtherewillbeaconnection
prompttoneontheconnection.
WhenswitchingtoFMmode,therewillbeFMmodeprompttone.Afterthat,longpressthe
musickeytoentertheautomaticsearchstation.Afterthesearch,shortpressthemusickeyto
switchthestation.


Currentpowerindicator
ExternalUdiskcard
modeke
y
Shortpresstoturndownthevolumeinturn/
longpresstoturndownthevolumequickly
Shortpresstoincreasevolumeinturn/
longpresstoincreasevolumequickly
Tapmusic/next
Externalhornport
Externalmusicport
Externaltriggerport
Horncableport
Powerport

14
Left Turn
User Instruction (Remote Control)
Using the remote control
The remote control should only be used by an adult.
Pairing the remote control
• Insert batteries into the remote control. (see page 15)
•
• Turn on the power of the vehicle, the indicator should change to solid light after successful pairing.
If failed to pair, remove and replace the battery from the remote control and repeat the pairing steps.
Control the Vehicle
• The remote control will override any operation input by the foot pedal.
• Pressing the emergency brake button to enable emergency brake. All running function will be disabled
once the button is pressed. Press the emergency brake button agian to enable operation functions.
• Press the Speed button to switch between high and low speed.
NOTE:
The remote control will goes into power saving mode if not used after 10 seconds.
Forward
Reverse
Speed Button
Speed Indicator
Right Turn
Emergency Brake

ver. 06072023
15
User Instruction (Remote Control)
Changing the remote control battery
The remote control requires 2 AAA 1.5v batteries. (not included)
• Remove the cover on the back side of the remote control.
• Replace old batteries with 2 new AAA 1.5v batteries in correct polarity.
• Put the cover back in place and secured with screw.
The battery should only be changed by an adult.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
WARNING
AAA 1.5V
+
+
-
-
AAA 1.5V

16
User Instruction (Charging)
Charging the battery
1. Connect the charger to the charging port.
2. Plug the charger into a wall outlet. The battery will start charging.
•
•The vehicle must be OFF when charging.
The indicator on charger turn red when charging, and turn green after charging completed.
• Recharge the battery if the vehicle operates slowly.
• DO NOT operate the vehicle when charging.
NOTE:
• Damage to the battery may occur if it is completely drained.
• Charge the battery for about 8 - 12 hours.
• Do not charge the battery for more than 20 hours.
• Charge the battery at least once a month even if not operating the vehicle for a long time to
maximize the battery life.
• Do not charge or store the battery upside down.
•
The battery should only be charged by an adult.
Old battery or battery waste must be taken to hazardous waste disposal facility,
waste handler, or an authorized recycling facility.
DO NOT dispose battery as regular household waste.
WARNING
WARNING

ver. 06072023
17
Care and Maintenance
Fuse
• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts
if necessary.
• Make sure there is no cracked or broken plastic parts.
• Store the product away from heat source when not using, cover it with a tarp and away from wet
weather.
•
• Clean the vehicle with a cloth. Use a non-wax furniture polish to restore shine to plastic parts. Do not use
abrasive cleaner.
• Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts.
• Regularly charge the battery to prolong the battery life.
• Do not store the product near heat source, such as stoves and heaters. Plastic parts may melt under high
temperature.
vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored
after the product is turned OFF within 20 seconds and then turned ON again. If the thermal fuse trips
repeatedly during normal use, the vehicle may need repairing.
To tripping the fuse:
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive on steep slopes.
•
• Do not operate in hot weather to prevent overheating.
• Do not allow water or other liquids to come in contact with the battery or other electric components.
• Do not tamper with the electric system.
RISK OF FIRE. Do not bypass the fuse.
WARNING
The battery features a thermal fuse with a rest fuse that will automatically trip and cut o all power to the

18
Troubleshooting
Problem Possible Reason Solution
Vehicle does not move
Low Battery Fully charge the battery
Fuse Protection Fuse will reset automatically after
turning o within 20 seconds
Disconnected / Badly connected
battery Reconnect the battery
Failed battery / motor Contact Customer Service
Vehicle does not run very long
Low Battery Fully charge the battery
Old / Damaged Battery Replace battery if necessary
Vehicle runs very slow
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle is overloaded Make sure user’s weight is under
66 lb / 30 kg
Vehicle is being used in harsh
environment
Avoid using the vehicle in harsh
environment

ver. 06072023
19
Troubleshooting
Problem Possible Reason Solution
Vehicle needs a push to go
forward
Poor wire connection
Check if the battery connectors
Contact Customer service if
necessary
“Dead spot” on motor Contact customer service
Loud grinding sound or clicking
sound from the motor or gear box Damaged motor or gear box Contact customer service
Battery does not charge
Disconnected / Badly connected
battery Reconnect the battery
Disconnected / Badly connected
charger
plugged into the power source
and connected to the charging
port
Charger is not working Contact customer service
Vehicle does not stop Damaged equipment Contact customer service
Charger feels warm with charging Normal N/A
