Kidzone Licensed Bentley Bacalar Ride On User manual

Licensed Bentley Bacalar Ride On(12V)
Owner’s Manual
060-ROT-21L
*Product appearance and colors may vary from the photo.
www.kidzonetoys.com

This owner’s manual contains important safety, performance, and
maintenance information.
Read the manual before allowing your child to ride on the product.
Keep this manual for future reference.
Hello !
Welcome to Kidzone’s world of ride-ons where fun and adventure
await! Little ones have a blast riding our toys at home, in the park, or on
the sidewalk.
At Kidzone, our goal is to make playtime more fun for kiddos, while
ensuring comfort and safety. Our ride-ons help create joyful moments
for the entire family that’ll turn into forever memories!
ATTENTION

Table of Contents
04
06
07
08
13
18
19
21
14
15
16
Safety Instruction
Product Specication
Parts and Accessories
Assembly Instruction
User’s Instruction
Care and Maintenance
Troubleshooting
Warrenty Information
User’s Instruction
Media Player
Remote Control
Charging
User’s Instruction
User’s Instruction

4

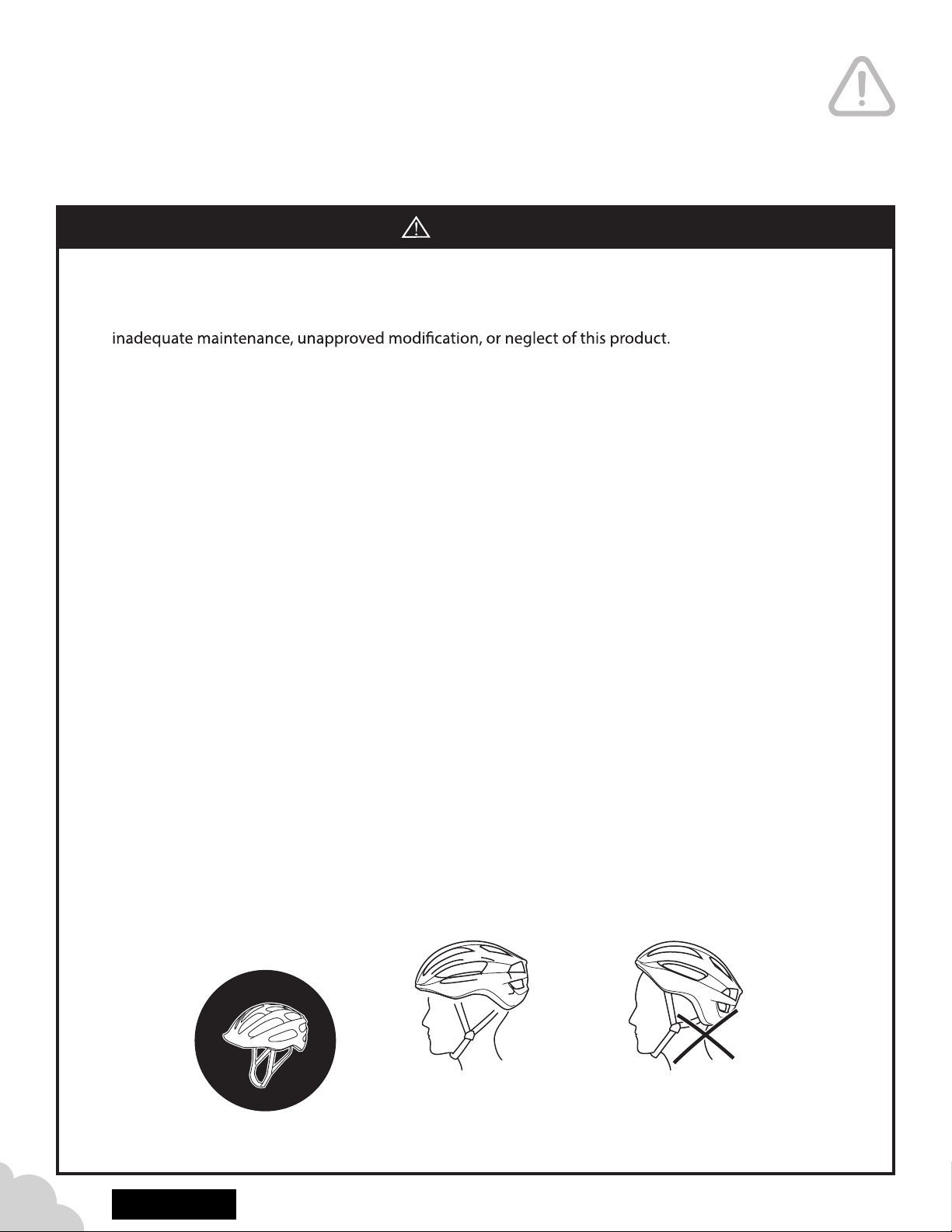

Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Failure to follow the safety instructions may result in property damage, serious injury or death.
DISCLAIMER
• Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or
losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use,
BASIC SAFETY
• This product is only designed to be used by children age 37 - 72 months.
• Do not exceed the maximum weight capacity of 66 lb / 30 kg.
•
Adult and/or supervisors must instruct the user all common safety rules and safe practice.
•
•
•
•
• Never leave children unattended with the ride-on toy. Close supervision is necessary when your
children is using the product.
This product should be operate on a at and smooth surface. Do not use this product in any slippery
conditions including rain, snow, and ice, or at any potential dangerous places.
To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles,
on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and
never allow more than 1 rider.
RISK OF FIRE. Do not bypass. Replace only with original size and type.
Do not use this product as a trac tool.
• If necessary, adult and/or supervisors should be responsible for setting up gate and barriers to ensure
a safe environment for child rider.
• Be aware and alert children that hands, legs, hair, clothings, and loose items can potentially get
caught in moving parts. Avoid placing body parts on moving parts and do not wear loose clothing
while using the ride-on toy.
• Avoid using this product in tight environment to prevent damage to the product or injury to the user.
• This product does not equip with brakes. Do not use this product in areas that requires active braking
to prevent possible rolls, crashes, or bodily injury.
• Do not use this product in the dark. Only operate this product during daytime or in a well lit area.
• Avoid continuously hitting into obstacle to prevent overheating or damaging the motor. Drive away
or remove obstacle as soon as possible.
• For your child’s safety, make sure the seatbelt is securely fasten and the rider is wearing personal
protective equipment, such as helmet, when operating this product.
W
E
A
R
P
R
O
T
E
C
T
I
V
E
E
Q
U
I
P
M
E
N
T
W
H
E
N
U
S
I
N
G
Correct Fitting
Make sure the helmet
covers your forehead.
Incorrect Fitting
Forhead is exposed and
vulerable to injury.
WARNING

ver. 04192023
5
CELL BATTERY AND RECHARGEABLE BATTERY HANDLING
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
• Permanent damage to the battery may occur if it is completely drained. Do not let the battery to drain
completely.
• On average, you will need to charge the battery for 8 - 12 hours. Do not charge the battery for more
than 20 hours. Failure to charge the battery as directed could cause permanent damage to the battery
and void the warranty.
• Only an adult who has read and underrstands the safety instruction should handle, charge, and
recharge the battery.
• Disconnect the battery if not used for a long period of time.
Failure to follow these instruction may result in permanent damage to the product or parts.
CHOCKING HAZARD, ASSEMBLY WARNING
• This product contains small parts before assembly. Keep children away when assembling the
ride-on toy. The assembly should only performed by an adult.
• Remove and dispose all protective materials, plastic bag, and packaging before assembly.
• This product should not be used by children under the age of 36 months old.
ELECTRIC SHOCK, FIRE HAZARD, FLAMMABLE AND EXPLOSIVE WARNING
• To protect against electrical shock, do not let cord, charger, transformer, battery or the product
contact with water or other liquid.
• Do not drive the vehicle into any puddle or contact with any liquid to prevent electrical shock.
• Do not change, modify, or add any electrical wiring on the product. Alternations could potentially
• Only use charger and battery provided or recommended by the manufacturer. Using the wrong type
• Check the battery, charger, and connectors for any sign of excessive wear or damage each time you
charge the battery. Do not use the charger or the battery if damages are present. Change and replace
damage part before use.
• Do not lift or carry the battery by the wires or charger. You might damage the wires and case electric
shock or re.
•
CORROSIVE CHEMICAL, PRODUCT MATERIAL WARNING
• Contact or exposure to battery leakage may cause serious injury. If contant or exposure occurs to the
skin or in the eyes, or if the chemical is swallowed, call medical emergency immediately.
• Battery posts, terminals, and related accessories contain lead and lead compounds which are toxic
and corrosive. Never open the battery.
Failure to follow these instruction may result in bodily harm, serious injury, or death.
cause shirt circuit, a re, or irreversible damage to the electrical system.
of battery or charger could cause a re and potentially property damage and serious injury.
Do not charge more than 20 hours. You might over heat the battery and cause damage or a re.
WARNING
CAUTION

6
Model no. 060-ROT-21L
Battery 12 v 4.5 Ah
Charger output 12 v 500 mA
Batter Charge Time 8 - 12 hours
Speed 1.86 - 3.11 mph (3 - 5 km/h)
Suitable Age 37 - 72 months
Maximum User Weight 66 lb / 30 kg

ver. 04192023
7
Parts and Accessories
A Vehicle Body x1
BØ10 Washer x6
C Wheel x4
D Wheel Hub x2
E Lock Nut x4
F Hubcap x4
G Side Mirror x1 Pair
H Windshield x1
I Steering Wheel x1
J M5 x 30 Machine Screw x1
KØ5 Nut x1
L Seat x1
MØ4 x 16 Screw x6
N Spanner x2
O Charger x1
P Remote Control x1
A
B
B
B
C
C
D
E
E
F
F
G
G
H
I
J
K
L
M
O
N
P

8
Assembly Instruction
• Attach wheel hub (D) to the wheel (C). Then attach and tighten 3 Ø4x16 screws (M) to secure the wheel
hub in place.
• Align the wheel with the wheel hub to the rear gear box.
• Slide the rear wheel onto the rear axle, follow by a Ø10 washer (B) and secure using a lock nut (E).
• Put on the hubcap on the wheel.
• Repeat the same step for the other side of the vehicle.
Tools required (not included)
This product should only be assembled by an adult.
Children can be harmed by small parts, sharp edges and points or by electrical
items. Care should be taken when unpacking and assembling the vehicle.
1
Rear Gear Box
C
D
B
E
F
C
M
D
WARNING

ver. 04192023
9
Assembly Instruction
• Slide a Ø10 washer (B) onto the front axle, follow by a wheel (C) and another a Ø10 washer (B).
• Secure the wheel to the front axle with a lock nut (E).
• Put on the hubcap (F) on the wheel.
• Repeat the same step for the other side of the vehicle.
Check the gap between the wheel and the axle after
assembling. Make sure the wheel can rotate smootly but not
too loose from the axle. Add or remove washers to ensure
smooth and secure operation.
2
Front Axle
C
B
B
E
F
Gap

10
Assembly Instruction
3
4
• Remove the battery cover from the steering wheel (A) by lossening the screw.
• Insert 2 1.5v AA batteries into the steering wheel in correct polarity.
• Place the cover back on the steering wheel and tighten the screw.
• Remove the M5x30 machine screw (J) andØ5 nut (K) from the steering wheel (I).
• Place the steering wheel over the steering column.
• Align the holes on the steering wheel to the that of the steering column.
• Secure the steering wheel by inserting the M5x30 machine screw and tighten the Ø5 nut through the
steering column.
I
1.5v AA battery x2
Screw
The battery should only be changed by an adult.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
K
J
I
Steering column
WARNING

ver. 04192023
11
Assembly Instruction
5
6
•
• Attach side mirror (G) to the side of the vehicle.
• Repeat the same step for the other side.
H
G
Attach the windshield (H) to the vehicle by tting the tabs into the grooves until it"clicks"in place.

12
Assembly Instruction
This product is packed with the battery disconnected.
Connect the battery before use.
ATTENTION
• Connect the battery to the vehicle.
• Attach the seat (L) to the vehicle.
• Fit the tabs on the back of the seat into the grooves on the rear of the vehicle, then tighten the screws.
7
L
Tabs

ver. 04192023
13
User’s Instruction
Do not change direction until the vehicle comes to a complete stop.
Sudden change in direction may result in permanent damage to the motor.
R/C - Pedal Switch Foot Pedal
Forward / Reverse LeverSound Buttons
Control the vehicle
Power Button
Press the power button to turn ON or OFF the vehicle.
Speed Button
Press the speed button to switch between high and low speed.
Forward / Reverse Lever
Push the lever to the up position to move forward
Pull the lever to the down position to move in reverse.
Foot Pedal
Press down to move the vehicle, release to slow and stop.
Sound Buttons
Press the sound button for pre-programed sounds.
R/C - Pedal Switch
Press the switch to select operation input from remote control or foot pedal.
Power Button
Speed Switch
CAUTION

14
User’s Instruction (Media Player)
Media Player
A. Player Power Button
Press the player power button to turn ON or OFF the media player.
B. Flash driver port
C. 3.5mm AUX Port
D. Increase Volume
E. Decrease Volume
F. FM Button
Press the FM button to play FM radio on the media player.
Allow media player to play MP3 format les from your ash driver device. It doesn't work well if the
memory storage capacity of fash driver exceed 64 GB.
G. Bluetooth
H. Horn Button
I. Previous Track
J. Play / Pause
K. Next Track
L. Digital Voltmeter
The display will show your battery power. The battery need to be recharged when the value is under 12.5v.
A
LCB
D E F G H I J K

ver. 04192023
15
Forward
Left Turn
Right Turn
Speed Selection
Indicator
Connection Button
Speed Button
Reverse
Emergency Brake
User Instruction (Remote Control)
Using the remote control
The remote control should only be used by an adult.
Changing the remote control battery
The remote control requires 2 AAA 1.5v batteries. (not included)
• Remove the cover on the back side of the remote control.
• Replace old batteries with 2 new AAA 1.5v batteries in correct polarity.
• Put the cover back in place.
Pairing the remote control
•
• Turn on the power of the vehicle, the indicator should change to solid light.
If failed to pair, remove and replace the battery from the remote control and repeat the pairing steps.
Control the Vehicle
• Press the R/C - Pedal switch on the vehicle and choose remote control as the prefered input.
• Press the directional buttons to move the vehicle.
• Press the “P” button to enable emergency brake. All running function will be disabled once the button is
pressed. Press the “P” button again to enable other functions.
• Press the “S” button to switch between high and low speed
NOTE:
The remote control will goes into power saving mode if not used after 10 seconds.
The battery should only be changed by an adult.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
WARNING

16
User Instruction (Charging)
Charging the battery via charging port (Option 1)
1. Connect the charger to the charging port.
2. Plug the charger into a wall outlet. The battery will start charging.
•
•
The vehicle must be OFF when charging.
The indicator on charger turn red when charging, and turn green after charging completed.
• Recharge the battery if the vehicle operates slowly.
•
NOTE:
• Damage to the battery may occur if it is completely drained.
• Charge the battery for about 8 - 12 hours.
• Do not charge the battery for more than 20 hours.
• Charge the battery at least once a month even if not operating the vehicle for a long time to
maximize the battery life.
• Do not charge or store the battery upside down.
•
The battery should only be charged by an adult.
WARNING
1

ver. 04192023
17
User Instruction (Charging)
Charging the battery directly (Option 2)
1. Remove the seat from the vehicle
2. Disconnect the battery from the vehicle
3. Loosen the screws and remove the battery from the vehicle.
4. Connect the charger to the battery and then plug the charger into a wall outlet. The battery will start
charging
Old battery or battery waste must be taken to hazardous waste disposal facility,
waste handler, or an authorized recycling facility.
DO NOT dispose battery as regular household waste.
WARNING

18
Care and Maintenance
Fuse
• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts
if necessary.
• Make sure there is no cracked or broken plastic parts.
• Store the product away from heat source when not using, cover it with a tarp and away from wet
weather.
•
• Clean the vehicle with a cloth. Use a non-wax furniture polish to restore shine to plastic parts. Do not use
abrasive cleaner.
• Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts.
• Regularly charge the battery to prolong the battery life.
• Do not store the product near heat source, such as stoves and heaters. Plastic parts may melt under high
temperature.
vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored
after the product is turned OFF for 5-15 seconds and then turned ON again. If the thermal fuse trips repeatedly
during normal use, the vehicle may need repairing.
To tripping the fuse:
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive on steep slopes.
•
• Do not operate in hot weather to prevent overheating.
• Do not allow water or other liquids to come in contact with the battery or other electric components.
• Do not tamper with the electric system.
RISK OF FIRE. Do not bypass the fuse.
Do not drive into xed obstacle, which may cause the wheels to spin and overheat the motor.
WARNING

ver. 04192023
19
Troubleshooting
Problem Possible Reason Solution
Vehicle does not move
Low Battery Fully charge the battery
Fuse Protection Fuse will reset automatically after
Disconnected / Badly connected
battery Reconnect the battery
Failed battery / motor Contact Customer Service
Vehicle does not run very long
Low Battery Fully charge the battery
Old / Damaged Battery Replace battery if necessary
Vehicle runs very slow
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle is overloaded Make sure user’s weight is under
66 lb / 30 kg
Vehicle is being used in harsh
environment
Avoid using the vehicle in harsh
environment
turning o for 5-15 seconds

20
Troubleshooting
Problem Possible Reason Solution
Vehicle needs a push to go
forward
Poor wire connection
Check if the battery connectors
Contact Customer service if
necessary
“Dead spot” on motor Contact customer service
Loud grinding sound or clicking
sound from the motor or gear box Damaged motor or gear box Contact customer service
Battery does not charge
Disconnected / Badly connected
battery Reconnect the battery
Disconnected / Badly connected
charger
plugged into the power source
and connected to the charging
port
Charger is not working Contact customer service
Vehicle does not stop Damaged equipment Contact customer service
Charger feels warm with charging Normal N/A
