Kidzone 060-ROT-23L User manual

Licensed Mercedes-Benz AMG GT 2 Seater Ride On (12V)
Item number: 060-ROT-23L
Note: Product appearance and colors may vary from the photo.
This vehicle is packed with the battery disconnected.
Connect the battery before use.
This manual contains important safety, performance
and maintenance information. Read the manual before
allowing your child to ride your new electric ride-on toy.
Keep this manual properly for future reference.
Instruction Manual

Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following
Read all Instruction before operating this product
• To Protect against electrical shock, do not immerse cord, charger, transformer,
battery, or the product in water or other liquid.
• Only use charging devices, transformer, and battery provided or recommended
by the manufacturer.
• For your children’s safety, the product should be assembled by adult.
• This toy is not intended for children below 36 months old.
• Closely adult supervision is necessary when your child is operating this product.
• Disconnect the battery if not used for a long time.
• To reduce the risk of injury, adult supervision is required. Never use in roadways,
near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than 2 riders.
• Do not use this product on slippery surface.
• Always keep hands, hair, and clothing away from moving parts.
• Maximum users’ weight for this product is 88 lb / 40 kg.
• Do not change, modify or add any electrical wiring on this product.
• Avoid using this product in tight environment to prevent damage to the product
or injury to the user.
• Do not use this product in the dark. Only operate this product during daytime or
well-lit area.
• For your child’s safety, please make sure the seat belt is securely fastened when
operating this product.
Personal protective equipment such as helmet is needed when operating this
product.
WARNING:
WARNING:
•

PREVENT FIRE
• Never modify the electrical system. Alterations could cause a re resulting in serious
injury and could also ruin the electrical system.
• Use of the wrong type of battery or charger could cause a re or explosion resulting
in serious injury.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults
only.
• Never lift or carry the battery by the wires or connector. This can damage the battery
and possibly cause a re resulting in serious injury. Lift and carry the battery by the
case only.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
WARNING:
WARNING:
Manufacturer and seller expressly disclaim any and all liability for personal injury,
property damage or loss, whether direct, indirect, or incidental, resulting from the
incorrect attachment, improper use, inadequate maintenance, unapproved
modication, or neglect of this product.
WARNING
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN
SERIOUS INJURY OR DEATH
Child Safety Warnings
•Adults supervising children must read and understand this entire manual before
allowing any child to use this product.
Adults must evaluate their own children as to maturity, strength, judgment and
ability to follow safety rules. Published age guidelines are not a substitute for
careful evaluation of your own child.
Adults must teach children about thinking ahead while riding as this may be the
see through the child’s eyes, and verbally teach them about steering and avoiding
obstacles in the approved riding area.
•
•
The owner’s manual contains assembly, use and maintenance instructions.

WARNING
• Riding a motorized ride-on toy can be a dangerous activity, even under the best
of circumstances. Good choices regarding where and when to ride, constant adult
supervision of riding, and practice and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and therefore it is
that no amount of care, instruction or expertise can eliminate.
• If this inherent risk is not acceptable, adults should not allow children to ride this
ride-on toy.
WARNING
Safe Riding Warnings
• Not to be used by children under 36 months or children over 72 months.
•
•Do not exceed the maximum weight capacity of 88 lb (40kg). Do not allow more than 2 riders.
ADULTS AND SUPERVISORS, PLEASE NOTE:
1. Always instruct all children of common sense rules and safe practices.
3. Do not allow the child rider to operate the ride-on toy near streets, roads,
sidewalks, walkways, or any other place where they may encounter other
moving vehicles.
4. Never leave children unattended with this ride-on toy. Continuous adult
supervision is required.
5. If necessary, adults and supervisors are always responsible for setting up
gates and barriers to ensure a safe riding environment for the child rider.
6. Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
7. Teach children not to allow other children to use this ride-on toy. Communicate
this message to other adults and supervisors of fellow children with which your
child interacts.
8. Sternly alert children that hands, legs, hair, and clothing can potentially get
caught in moving parts. Ensure they never place a body part or piece of clothing
near a moving part of the ride-on toy. Avoid loose clothing.
9. Instruct children to always wear shoes when using the ride-on toy.
into contact with any part of the ride-on toy while it is charging.

• Riding near any pool or open body of water
• Pushing, pulling, or shoving the driver in any way while operating the ride-on
toy
• Using the ride-on toy without the battery cover or any other safety cover fully
closed
• Pulling or hitching the ride-on toy with other similar moving ride-on toys or
products
WARNING
11.Do not mix old and new batteries.
12.Do not mix alkaline, standard (carbon zinc), or rechargeable batteries.
13.Firmly instruct children to use the ride-on toy in a safe manner. Unsafe
behaviors include, but are not limited to:
• Traveling at unsafe speeds
• Not riding in the seated position
• Riding at night or in any conditions of low visibility
• Riding in any wet conditions including rain, snow, and ice
• Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other
actions involving any notable risk
WARNING
•Battery posts, terminals and related accessories contain lead and lead
compounds (acids) chemicals and are toxic and corrosive. Never open the
Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs with the skin or in the eyes, or if the chemical is
swallowed, immediately call 911.
Corrosive Material Warnings
•
The following safety hazards may result in serious injury or death to the user
of the ride-on:
Battery and Charging Warnings
•
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium
batteries.)
Do not mix old and new batteries.
battery.

WARNING
Flammable and Explosive Materials Warnings
• Use of a battery or charger other than the supplied rechargeable battery and
charger may cause a re or explosion. Only use the supplied rechargeable
battery and charger with the ride-on toy.
• Do not charge the battery near heat or ammable materials.
• Using the rechargeable battery and charger for any other product many
result in overheating, re or explosion. Never use the rechargeable battery
and charger with another product.
• Contact between the positive and negative terminals may result in re or
explosion. Avoid direct contact between the terminals. Lifting the battery
by the wires or charger can cause damage to the battery and may result in a
re. Always lift the battery by its case or handles.
• Plug wall charger directly into a wall outlet. Do not use an extension cord
when charging as the use of an extension cord can cause a re.
Electric Shock / Fire Warnings
• Liquids on the battery may cause re or electric shock. Always keep all
liquids away from the battery and keep the battery dry.
• Tampering or modifying the electric circuit system may cause a shock, re
or explosion and permanently damage the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
• Regularly check charger, supply cord and connector for wear and damage.
Look for frayed or kinked wires, any exposed inner wires, any missing
insulation. If any damage is observed do not plug in the charger and do not
charge the battery.

CAUTION
Re-Charge Interval and Time
Important!
WARNING
Product Warning
This product can expose you to chemicals including lead, and lead
components which is known to the State of California to cause cancer and
birth defects or other reproductive harm. For more information go to www.
P65Warnings.ca.gov.
Assembly Warnings
• The ride-on toy must be assembled by an adult who has read and
understands the instructions in this manual.
• Choking hazard to children under the age of 3 years.
This ride-on toy contains small parts that are for adult assembly only. Keep
small children away when assembling.
• Remove and dispose of all protective materials, plastic bags and packaging
before assembly.
Damage to the battery may occur if it is allowed to drain completely. Do not
allow the battery to drain completely.
Check the battery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the battery if damage has occurred. Do not
use an extension cord when charging the ride-on toy.

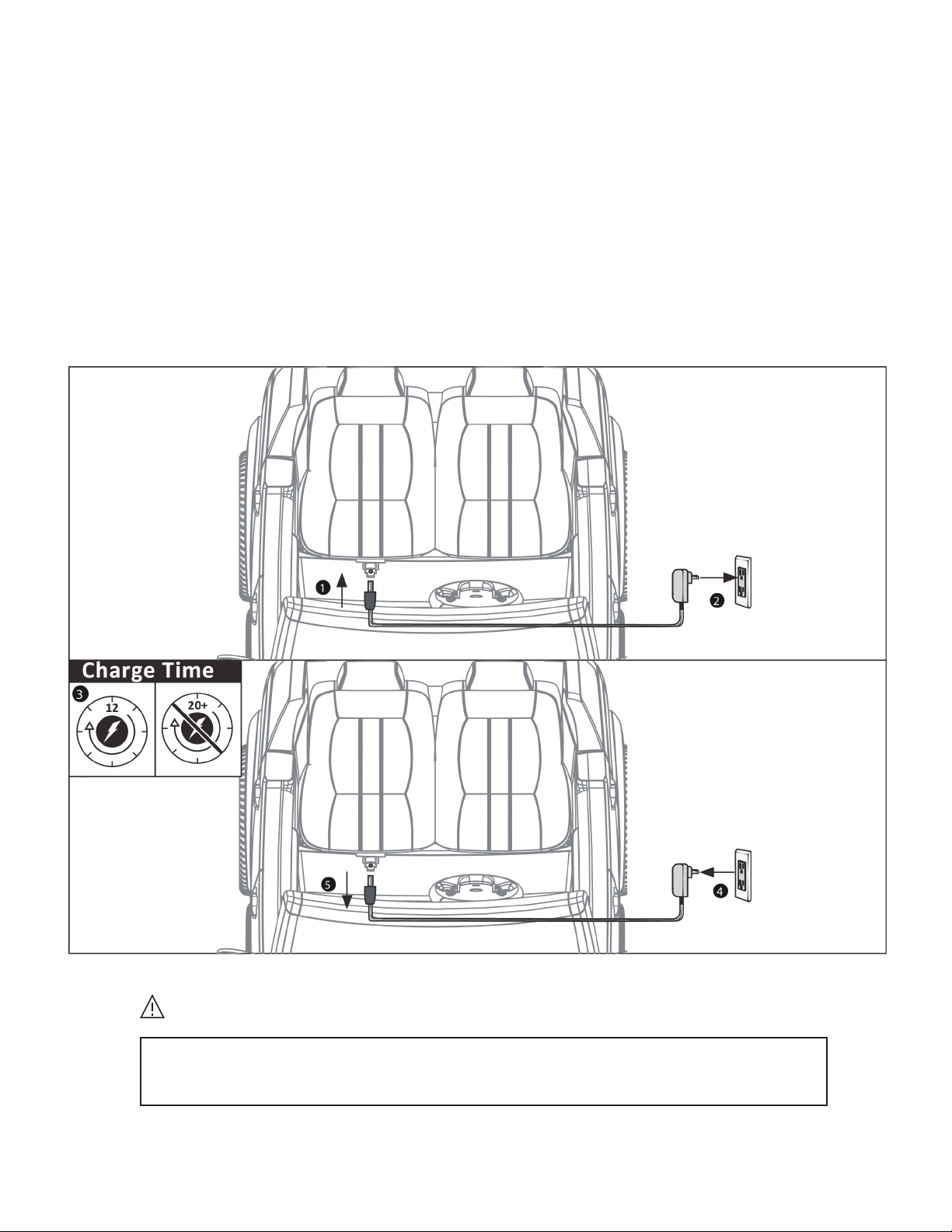

On average you will need to charge the battery for 8-12 hours and no more
than 20 hours. Failure to charge the battery as directed could cause
permanent damage to the battery and void the warranty.
Only an adult who has read and understands the safety warnings should
handle, charge and recharge the battery.
•
•
•
•
WARNING:

Motor: 12V, 45W*2, 12000rpm
Battery: 12V7AH x1
Charger: 15V1000mA
Speed: 0.7 – 3.1 mph
Suitable Age: 37 - 72 months
Maximum User Weight: 88 lb / 40 kg
Dimension: 46 x 29 x 19 INCH / 116.8 x 73.7 x 48.3 CM
Battery Charge Time: 8 - 12 hours
Operation Time: 1 - 2 hours
First Charging Time：8-12 hours
Max Charging Time: 20 hours
Battery (Temperature Tolerance): -68°F to 140°F

Parts and Feature
A (Steering Wheel)
E (Remote Control)
H (Wheel Cover)
Q (Charger)
L (Rear View Mirror L) R (Rear View Mirror R)
F (Wind Shield)
N (Seat)
X (Self-Tapping Screw)
J (Wheel)
P (M8 Spanner)

Assembly Instruction
Use the spanner (P) to loosen the M8 nut (2) and gasket (1) from the rear
axle. Remove and put the protective cover (3) from the axle in the trash.
Install the wheel (J) to the rear axle (4). Use spanner (P) to secure the wheel with M8 gasket (1) and M8
nut (2) and cover the wheel with wheel cover (H).

Assembly Instruction
Use the spanner (P) to loosen the M8 nut (2) and M8 gasket (1) from the front axle (3).
Slide the wheels (J) to the front axle (3). Use spanner (P) to secure the wheel with M8 gasket (1) and
M8 nut (2) and cover the wheel with wheel cover (H).

Assembly Instruction
Connect the steering wheel terminal (M)
and the body terminal (S), then align the
steering wheel (A) to the steering column
and connect as shown in the diagram.
Assemble the wind shield (F) to the
corresponding groove on the car body.
Align and insert rear view mirror (C) (D) to the
car body.
steering column

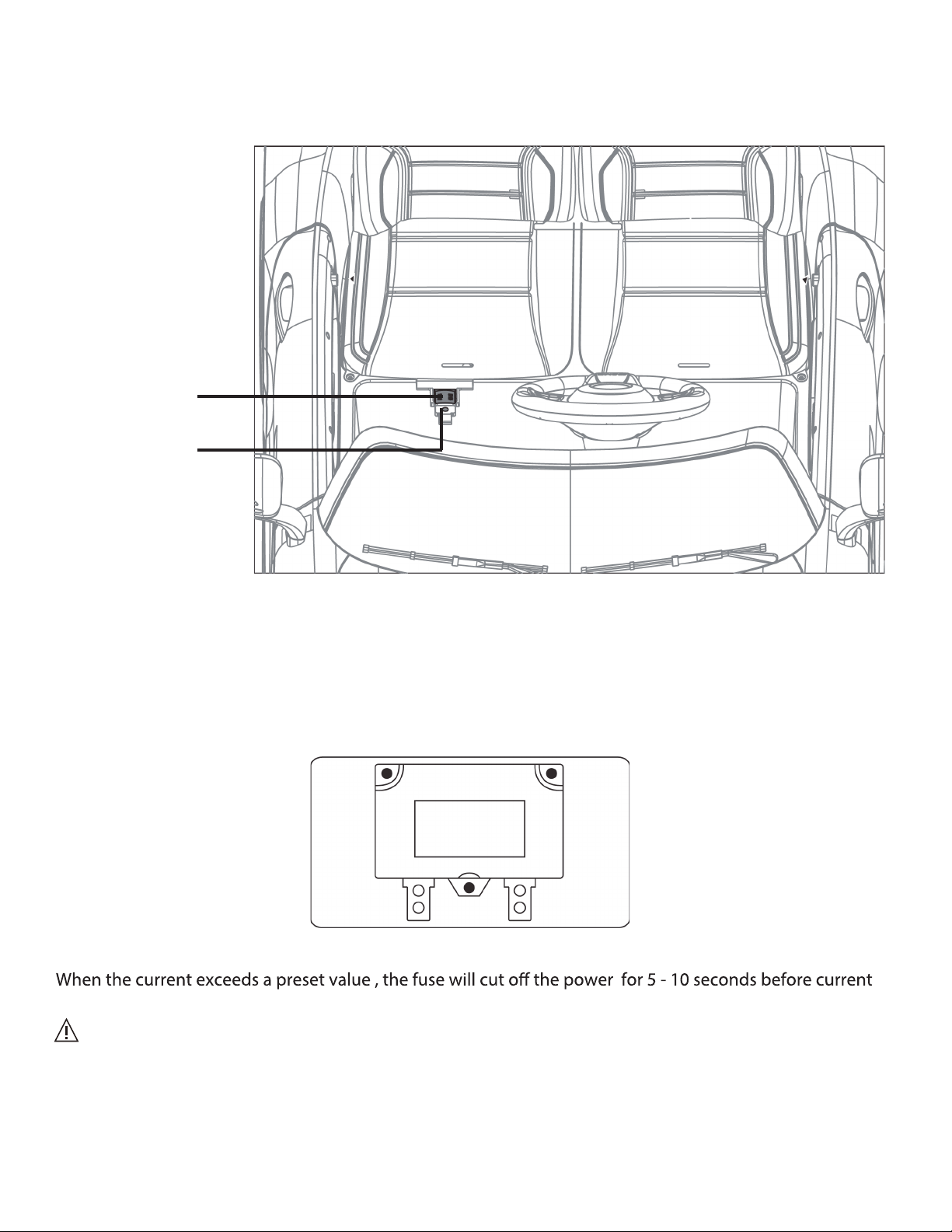

First find out the 2 red power terminals
under the seat and connect them.
Assemble the seat (N) to the car body and
secure it in place with 2 self - tapping screws
(X) by screwdriver .
1
2
3
4
Assembly Instruction

User Instruction
Control the vehicle
1. Start Switch
2. Light Switch
3. Music Button
4. Horn Button
Press the button the horn.Press and hold the button to decrease volume.
5. Forward / Reverse Switch
Press the switch to control the vehicle to move forward /
reverse.
Do not change the speed or direction until the vehicle comes to a
6. MP3 multifunctional player
WARNING:
complete stop.

User Instruction
Speed Switch
Control the speed of the vehicle in slow or fast.
NOTE: The vehicle can only be operated in slow for
reverse.
User Instruction (Fuse)
Resettable Fuse
resume.
Do not bypass the fuse. The fuse is designed to protect the product
Speed Switch
Charging Port
WARNING:
from overload and electrical system damage.

User Instruction (Multifunction Player)
A. Battery Level Screen
The screen display battery level.
B. USB connector
insert USB to play the music.
NOTE: Only support MP3 le format.
C. Previous Track / DecreaseVolume
Press the button once to play the previous track. Press and hold to decrease volume.
D. Play / Pause
Press the button to pause.
Press and hold the button to search radio station in FM mode.
E. Next Track / Increase Volume
Press the button once to play the next track. Press and hold to increase volume.
F. Mode Button
Press the mode button to cycle through dierent modes.
G. AUX port
Connect an external device to play audio le via AUX cable to the AUX port.
AB
C D E F G

User Instruction (Remote Control)
Using the remote control
The remote control should only be used by adult.
To pair the remote control to the vehicle,
1.
2. Turn on the power of the vehicle.
3.
The battery should only be changed by an adult.
Press the directional buttons to move the vehicle.
Press the “P” button to enable emergency brake. All running function will be disable once the button
is pressed. Press “P” button again to disable.
Press “S” button to adjust the speed.
Control the vehicle
Close supervision is needed when children is operating the vehicle.
•
•
•
WARNING:
WARNING:

The battery should only be charged by an adult. The battery is not
replaceable.
Changing the battery
1. Remove the cover on the back side with a screwdriver.
2. Replace the old battery with two new AAA 1.5V batteries in correct polarity.
3. Put the
NOTE: If the remote controller is not used for 10 seconds, it will shut down automatically.
4. Do not mix old and new batteries.
5. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
User Instruction (Charging)
cover back in place and secure with the screw.
WARNING:

User Instruction (Pull Rod)
Unfold the pull rod and caster rollers from the bottom of the vehicle.
Charging the battery
1. Insert the charging cable to the charging port located below the vehicle seat.
2. Insert the charger plug into a wall outlet.
• The vehicle must be OFF when charging.
• Recharge the battery if the vehicle operates slowly.
• The vehicle cannot be operated when charging.
NOTE:
Damage to the battery may occur if it is completely drained.
Do not charge the battery for more than 20 hours.
NOTE: Charge the battery at least oncea montheven not operating the vehicle to maximize
the battery life.

Troubleshooting
Care and Maintenance
• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts
if necessary.
• Make sure there is no cracked or broken plastic parts.
•Keep away the product from heat and humid area, cover it with trap when not in use.
•
•Clean the vehicle with a cloth. Use a non-wax furniture polish to restore the shininess of the plastic parts.
Do not use abrasive cleaner.
•Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts
Problem Possible Reason Solution
Vehicle does not move
Low Battery Fully charge the battery
Fuse Protection Replace with a new fuse
Disconnected / Badly connected
battery Reconnect the battery
Failed battery / engine Contact Customer Service
Battery not last long
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle runs very slow
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle is overloaded Make sure user’s weight is under
88 lb / 40 kg
Vehicle is being used in harsh
environment
Avoid using the vehicle in harsh
environment
Ture o the product and disconnect the battery if the product is not use for a long period of time.
