Kidzone 060-ROT-12L User manual

Licensed Lamborghini V12 Vision Gran Turismo Ride On
Item number: 060-ROT-12L / 12LP
*Product appearance and colors may vary from the photo.
This vehicle is packed with the battery disconnected. Connect
the battery before use.
This manual contains important safety, performance and
maintenance information. Read the manual thoroughly before
allowing your child to ride your new electric ride-on toy.
Failure to read the user manual can result in property damage
or bodily injuries. Keep this user manual for future reference.
Instruction Manual

Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Read all Instruction before use
•To Protect against electrical shock, do not immerse cord, charger, transformer,
battery, or the product in water or other liquid.
Only use charging devices, transformer, and battery provided or recommended
by the manufacturer.
For your children’s safety, the product should be assembled by adult.
Close and constant adult supervision is required when your child is operating this
product.
Disconnect the battery if not used for a long time.
To reduce the risk of injury, adult supervision is required. Never use in roadways,
near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than 1 rider.
Do not use this product on slippery surface. Always drive the vehicle on smooth
surface, and do not drive the vehicle on the grassplot, rugged ground.
Always keep hands, hair, clothing, and loose items away from moving parts.
Maximum users’ weight for this product is 55.12 lb / 25 kg.
Do not change, modify or add any electrical wiring on this product.
Avoid using this product in tight environment to prevent damage to the product or
injury to the user.
Do not use this product in the dark. Only operate this product during daytime or
well-lit area.
For your child 's safety, please make sure the seatbelt is securely fastened when
operating this product.
•
•
•
•
Personal protective equipment such as helmet is needed when using this product.
•
•
•
•
•
•
•Rider should always wear shoes when riding on this product.
•
•
•
•This product is suitable for children age of 3 years or older.
•
WARNING:

PREVENT FIRE
injury and could also ruin the electrical system.
in serious injury.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults
only.
• Never lift or carry the battery by the wires or connector. This can damage the battery
case only.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
WARNING:
WARNING: CHOKING HAZARD - Small parts. Not for children under 3 years.
WARNING: This toy is to be assembled by an adult. Contains potentially hazardous
sharp edges and sharp points, or contains small parts before assembly.
WARNING: Do not drive this vehicle into any puddle or contact with any liquids to
avoid the electrical shock to product or user.
WARNING:
Manufacturer and seller expressly disclaim any and all liability for personal injury,
property damage or loss, whether direct, indirect, or incidental, resulting from the
incorrect attachment, improper use, inadequate maintenance, unapproved
WARNING
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN
SERIOUS INJURY OR DEATH
Child Safety Warnings
•Adults supervising children must read and understand this entire manual before
allowing any child to use this product.
The owner’s manual contains assembly, use and maintenance instructions.

WARNING
•
•
•
Riding a motorized ride-on toy can be a dangerous activity, even under the best
of circumstances. Good choices regarding where and when to ride, constant adult
supervision of riding, and practice and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and therefore it is
that no amount of care, instruction or expertise can eliminate.
• If this inherent risk is not acceptable, adults should not allow children to ride this
ride-on toy.
WARNING
Safe Riding Warnings
• Not to be used by children under 36 months.
•
•
Do not exceed the maximum weight capacity of 55.12 lb (25kg).
Do not allow more than one (1) rider.
ADULTS AND SUPERVISORS, PLEASE NOTE:
1. Always instruct all children of common sense rules and safe practices.
3. Do not allow the child rider to operate the ride-on toy near streets, roads,
sidewalks, walkways, or any other place where they may encounter other
moving vehicles.
4. Never leave children unattended with this ride-on toy. Continuous adult
supervision is required.
5. If necessary, adults and supervisors are always responsible for setting up
gates and barriers to ensure a safe riding environment for the child rider.
6. Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
7. Teach children not to allow other children to use this ride-on toy. Communicate
this message to other adults and supervisors of fellow children with which your
child interacts.
Adults must evaluate their own children as to maturity, strength, judgment and
ability to follow safety rules. Published age guidelines are not a substitute for
careful evaluation of your own child.
Adults must teach children about thinking ahead while riding as this may be the
see through the child’s eyes, and verbally teach them about steering and avoiding
obstacles in the approved riding area.

• Riding near any pool or open body of water
• Pushing, pulling, or shoving the driver in any way while operating the ride-on
toy
• Using the ride-on toy without the battery cover or any other safety cover fully
closed
• Pulling or hitching the ride-on toy with other similar moving ride-on toys or
products
WARNING
11.Do not mix old and new batteries.
12.Do not mix alkaline, standard (carbon zinc), or rechargeable batteries.
13.Firmly instruct children to use the ride-on toy in a safe manner. Unsafe
behaviors include, but are not limited to:
• Traveling at unsafe speeds
• Not riding in the seated position
• Riding at night or in any conditions of low visibility
• Riding in any wet conditions including rain, snow, and ice
• Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other
actions involving any notable risk
WARNING
•Battery posts, terminals and related accessories contain lead and lead
compounds (acids) chemicals and are toxic and corrosive. Never open the
Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs with the skin or in the eyes, or if the chemical is
swallowed, immediately call 911.
Corrosive Material Warnings
•
The following safety hazards may result in serious injury or death to the user
of the ride-on:
Battery and Charging Warnings
•
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium
batteries.)
Do not mix old and new batteries.
battery.
8. Sternly alert children that hands, legs, hair, and clothing can potentially
get caught in moving parts. Ensure they never place a body part or piece
of clothing near a moving part of the ride-on toy. Avoid loose clothing.
9. Instruct children to always wear shoes when using the ride-on toy.
come into contact with any part of the ride-on toy while it is charging.

WARNING
Flammable and Explosive Materials Warnings
• Use of a battery or charger other than the supplied rechargeable battery and
charger may cause a re or explosion. Only use the supplied rechargeable
battery and charger with the ride-on toy.
• Do not charge the battery near heat or ammable materials.
• Using the rechargeable battery and charger for any other product many
result in overheating, re or explosion. Never use the rechargeable battery
and charger with another product.
• Contact between the positive and negative terminals may result in re or
explosion. Avoid direct contact between the terminals. Lifting the battery
by the wires or charger can cause damage to the battery and may result in a
re. Always lift the battery by its case or handles.
• Plug wall charger directly into a wall outlet. Do not use an extension cord
when charging as the use of an extension cord can cause a re.
Electric Shock / Fire Warnings
• Liquids on the battery may cause re or electric shock. Always keep all
liquids away from the battery and keep the battery dry.
• Tampering or modifying the electric circuit system may cause a shock, re
or explosion and permanently damage the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
• Regularly check charger, supply cord and connector for wear and damage.
Look for frayed or kinked wires, any exposed inner wires, any missing
insulation. If any damage is observed do not plug in the charger and do not
charge the battery.

CAUTION
Re-Charge Interval and Time
Important!
WARNING
Product Warning
This product can expose you to chemicals, including Lead, which is known
to the State of California to cause birth defects and or other reproductive
harm, and Di (2-ethylhexyl) phthalate(DEHP), which is known to the State
of California to cause cancer and birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Assembly Warnings
• The ride-on toy must be assembled by an adult who has read and
understands the instructions in this manual.
• Choking hazard to children under the age of 3 years.
This ride-on toy contains small parts that are for adult assembly only. Keep
small children away when assembling.
• Remove and dispose of all protective materials, plastic bags and packaging
before assembly.
Damage to the battery may occur if it is allowed to drain completely. Do not
allow the battery to drain completely.
Check the battery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the battery if damage has occurred. Do not
use an extension cord when charging the ride-on toy.
On average you will need to charge the battery for 8-10 hours and no more
than 20 hours. Failure to charge the battery as directed could cause
permanent damage to the battery and void the warranty.
Only an adult who has read and understands the safety warnings should
handle, charge and recharge the battery.
•
•
•
•
WARNING:

Model No.: 060-ROT-12L / 060-ROT-12LP
Battery:12L: 12V 7A X1; 12LP: 12V 7A X2
Charger input: 100 - 120VAC
Charger output: 12V
12L Speed: 1.2~3.1mph
12LP Speed: 1.2~2.5mph
Suitable Age: 3+ years
Maximum User Weight: 55.12 lbs / 25 kgs
Battery Charge Time: 8 - 10 hours

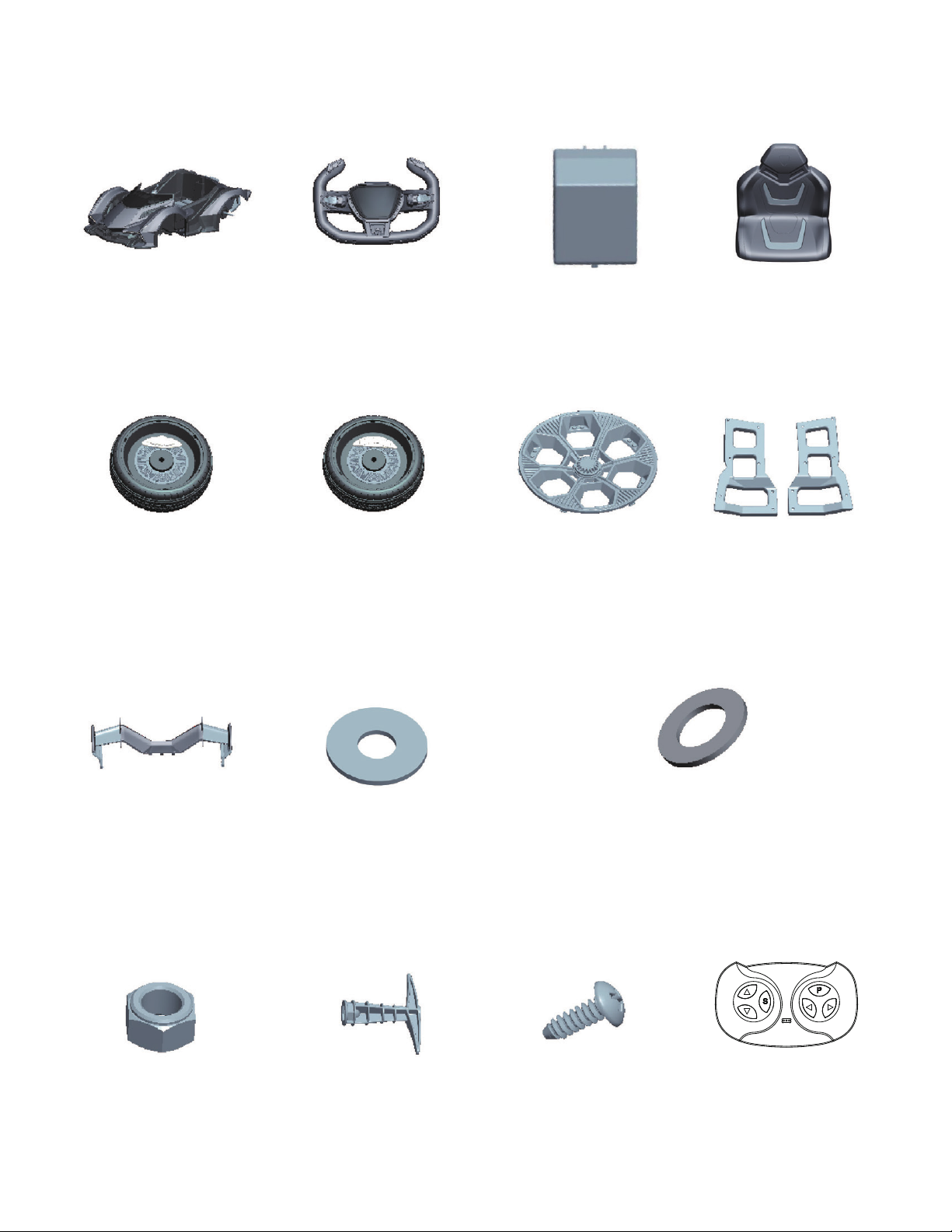

Parts and Feature
A. Car Body
1x
E. Rear Wheel
2x
I. Rear Spoiler
1x
L. Nut
4x
B. Steering Wheel
1x
F. Front Wheel
2x
J. Washer (M8 x 1.3mm)
4x
M. Spanner
2x
C. Charger
1x
G. Wheel Cover
4x
K. Washer (M12 x 1.5mm)
2x
NO. Remote control . Screw (M4 x 12mm)
18x 1x
D. Seat
1x
H. Side Bracket (L/R)
1x
Small Big

Assembly Instruction
• Assemble a M12 Big Washer (K), Front Wheel (F), M8 Small Washer (J) to the front axle, and secure
with a Nut (L). Then cover with a Wheel Cover (G). Repeat the same process on the other side.
• Assemble a Rear Wheel (E), M8 Small Washer (J) to the rear axle, and secure with Nut (L). Then cover with a
Wheel Cover (G). Repeat the same process on the other side.
• Assemble the Side Bracket (H) under the car body. (On the two sides of car bottom middle)
• Secure the Side Bracket with 8 pcs M4 x 12 mm Screws (N) on each side.
(N) Screw
(H) Side Bracket
(K) Washer
(M12 x 1.5mm)
(J) Washer
(M8 x 1.3mm)
(J) Washer
(M8 x 1.3mm)
(L) Nut (L) Nut
(F) Front Wheel (E) Rear Wheel (G) Wheel Cover (G) Wheel Cover
This product should only be assembled by an adult.
Children can be harmed by small parts, sharp edges and points
or by electrical items. Care should be taken when unpacking and
assembling the vehicle.
WARNING!
12L (2 motors):

• Assemble a Front Wheel (F), M8 Small Washer (J) to the front axle, and secure with a Nut (L). Then cover
with a Wheel Cover (G). Repeat the same process on the other side.
• Assemble a Rear Wheel (E), M8 Small Washer (J) to the rear axle, and secure with Nut (L). Then cover with
a Wheel Cover (G). Repeat the same process on the other side.
(L) Nut (L) Nut
12LP (4 motors):
(F) Front Wheel (E) Rear Wheel
(J) Small Washer
(M8 x 1.3mm)
(J) Small Washer
(M8 x 1.3mm)
(G) Wheel Cover
(G) Wheel Cover
Attention: In order to fully tightening the nuts on the rear axle to secure the rear
wheels, you need to use another spanner to hold another side nut on the rear axle.
And you may adjust the rear axle position when assemble the rear wheels.

Assembly Instruction

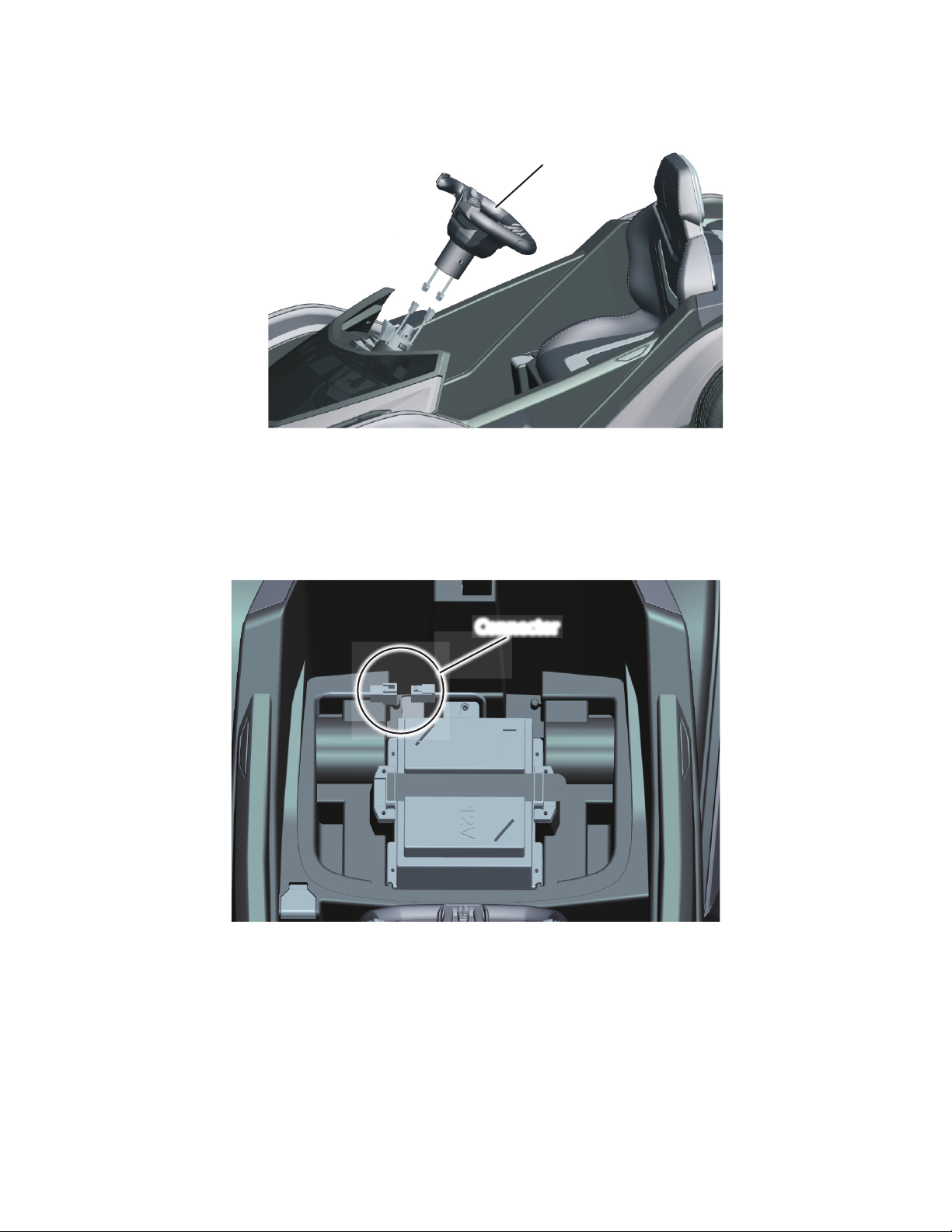

• Connect the steering rod and steering wheel connectors by the correspond colored wires.
•Insert the Steering wheel into the slot of the steering column.
• Connect the electric wire from the battery to the car body.
(B) Steering
Wheel
Connector

Assembly Instruction

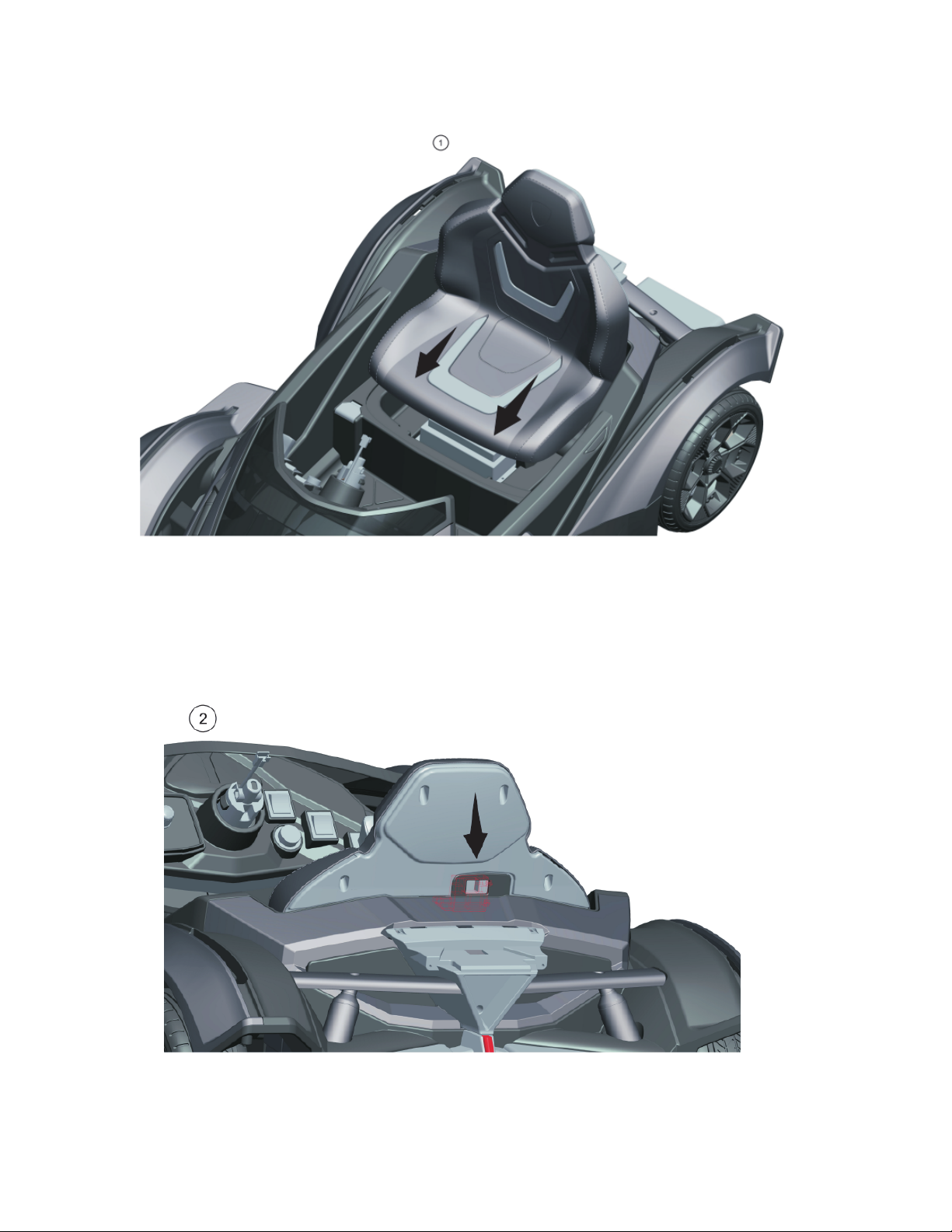

（1）Align and insert the two joints of seat to the slots on the seat base as above diagram.
(2) Align and press/snap the Seat(D) to the slot on the car body as above diagram.

Push the button to right if you
want to detach the Seat

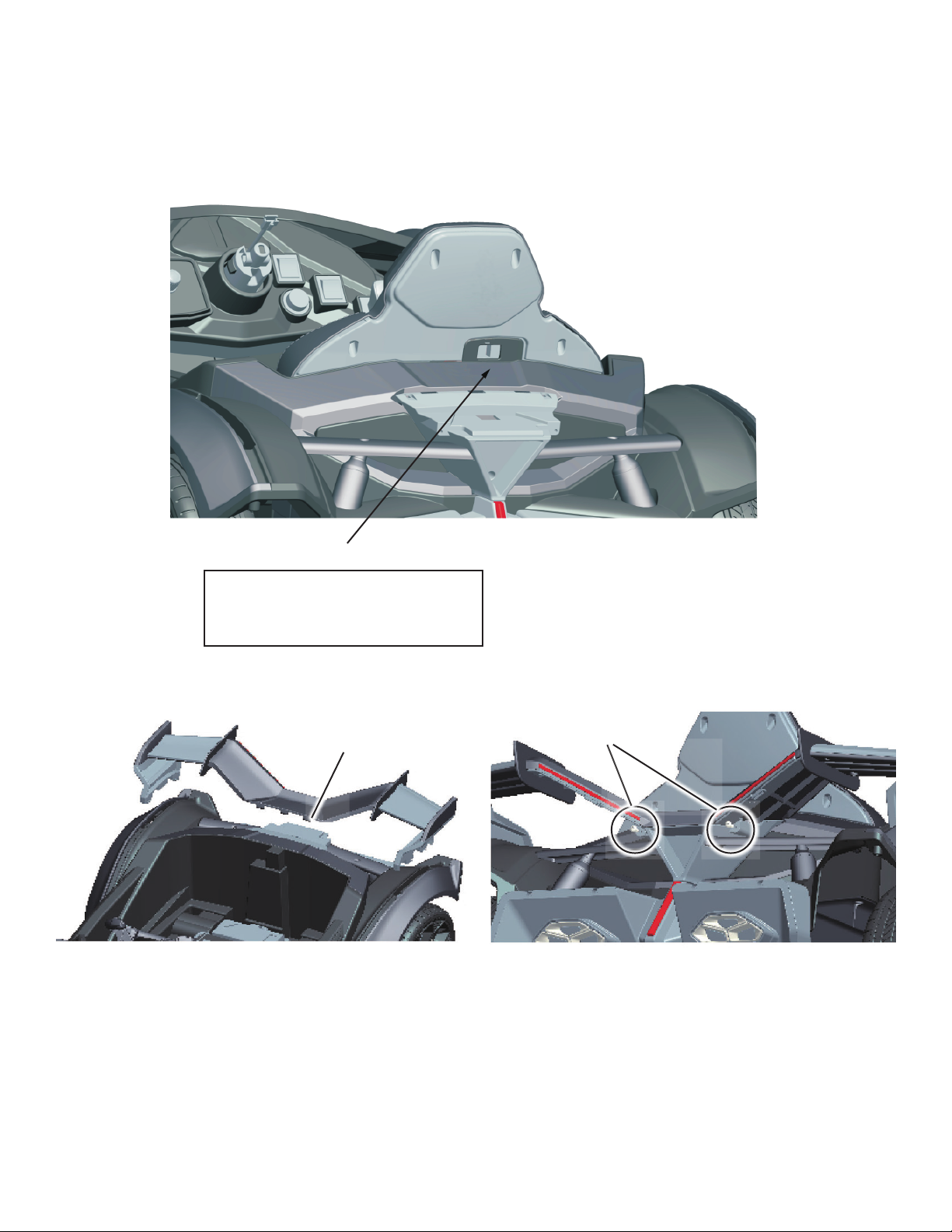

• Connect the light connectors (please retract the wires into the square slot after connection),
align and insert then snap the Rear Spoiler (I) to the car body.
• Secure the Rear Spoiler in place using 2 Screws (N).
(N) Screw
(I) Rear Spoiler
Assembly Instruction
Seat dis-assembly:

User Instruction
Control the vehicle
A. Power Button
Press and hold the power button to turn ON and OFF the vehicle.
B. Speed Switch
Press the speed switch to choose between low and high speed mode.
C. Forward / Neutral / Reverse Lever
Push / Pull the lever to forward or backward to choose the vehicle moving direction.
Hold the lever on the middle position toenable the vehicle in neutral.
Do not change between forward and reverse until the vehicle comes to a complete stop.
D. Light Switch
F. Sound Button
G. Accelerator Pedal
Step on the accelerator pedal to move the vehicle.
Release the accelerator pedal to stop the vehicle.
H. Media Player
Use the media player to play music.
Horn Sound
Button Engine sound
and next music track button
Accelerator
Pedal
Media Player
Speed Switch
Light Switch
Forward / Reverse
Lever
Power Button

User Instruction (Media Player)
Display Screen
Mode Button
Previous Button
Play Button
USB port
AUX port
Next Button
Control the media player
1. Display Screen
The display screen can display the battery voltage status and audio source.
2. Mode Button
Press the mode button to choose between USB, AUX, Bluetooth, and FM radio functions.
3. Previous / Volume down button
Press once to play the previous music track.
Press and hold to decrease the volume.
4. Play / Pause / FM Station Search
Press once to play or pause the music track.
Press and hold to automatically search a radio station.
5. Next / Volume up Button
Press once to play the next music track.
Press and hold to increase the volume.
6. Audio Source
• Insert and play music from an external device by connecting via USB port or AUX port.
• External device can be connected to the media player via Bluetooth.
- Turn on the Bluetooth setting on the device.
- Select “KIDZONE RIDE-ON” from the device list searched by the device.

For your child's safety, please make sure the seat belt is securely fastened when operating this product.
Remove the cover on the back of the controller and insert two AAA (LR03) batteries in correct polarity.
The battery should only be replaced by an adult.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.

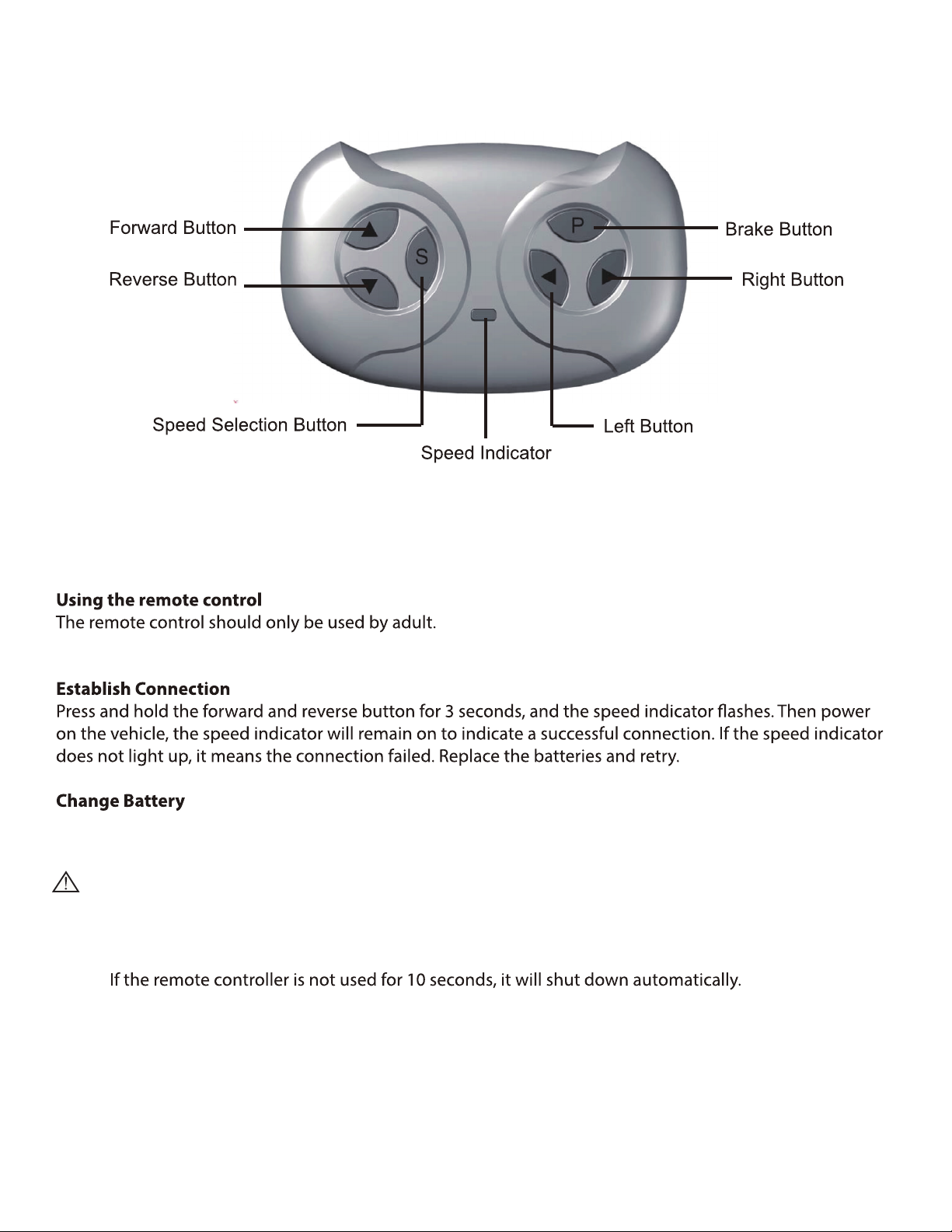

User Instruction (Remote Control)
NOTE:
One light=slow speed
Two lights=middle speed
Three lights=high speed
WARNING:

User Instruction (Charging)
The battery should only be charged by an adult. The battery is
not replaceable.

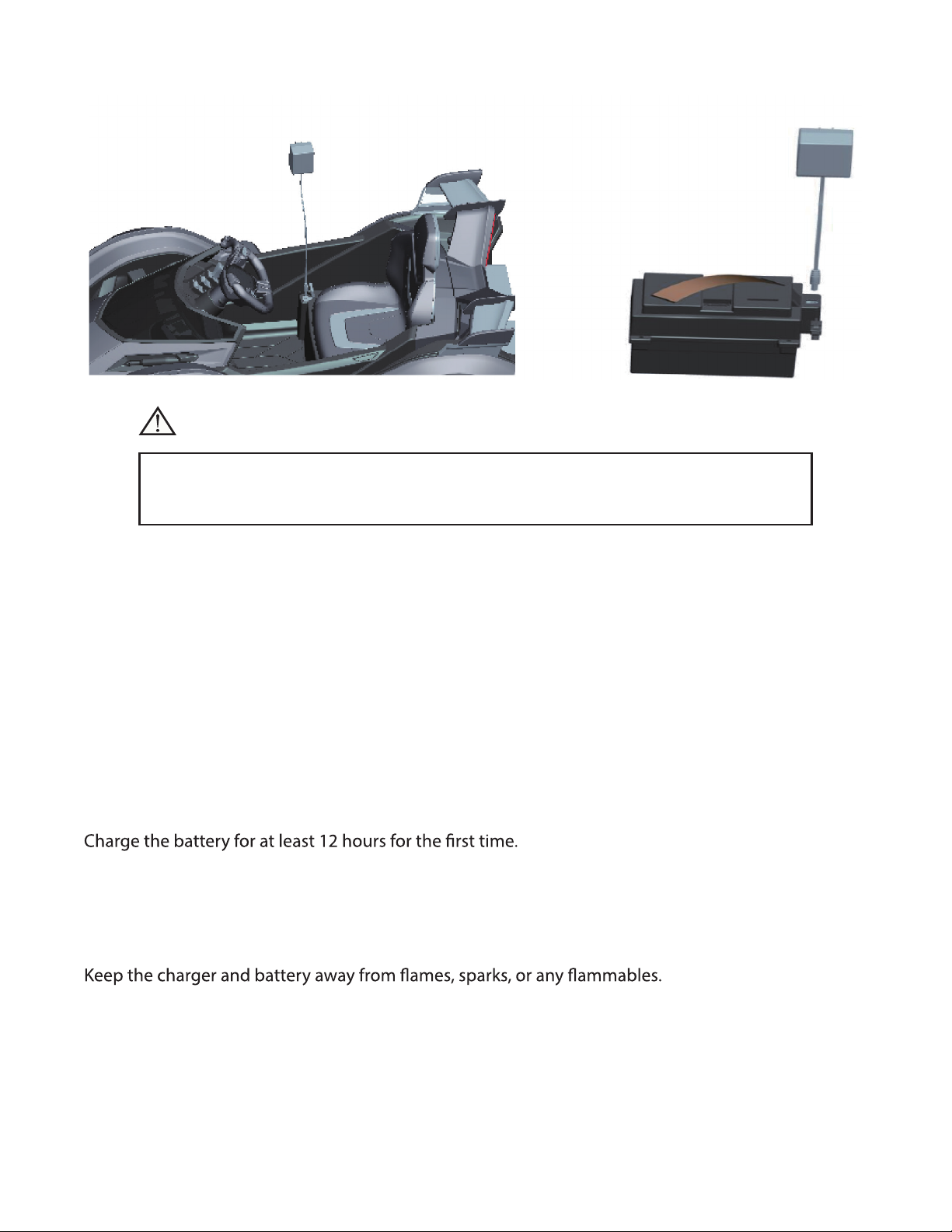

Charging the battery
1. Locate the charging port on the car body (near the seat) or directly on the battery.
2. Connect the charger to the charging port.
3. Plug the charger into a wall outlet. The battery will start charging.
• The vehicle must be OFF when charging.
• Recharge the battery if the vehicle operates slowly.
• DO NOT operate the vehicle charging.
NOTE:
• Damage to the battery may occur if it is completely drained.
•
• Charge the battery for about 8 - 10 hours.
• Do not charge the battery for more than 20 hours.
• Charge the battery at least once a month even if not operating the vehicle for a long time to maximize
the battery life.
• Do not charge or store the battery upside down.
•
WARNING!
or
Two methods for charging:

User Instruction
Battery Replacement
In the event of battery malfunction and need to be removed,
1. Remove the seat.
2. Disconnect the battery connection.
3. Remove the 4 screws on the side of the battery.
4. Lift and take the battery away from the compartment.
NOTE:
• Sealed lead-acid battery must be recycled or disposed in an environmentally sound manner and subject
to local regulation.
• Never dispose the battery in the regular, household trash.
• Always remove exhausted or malfunctioned battery from the vehicle.
• Do not dispose a lead-acid battery in a re, the battery may explode or lead harmful materials.
Protective Fuse
• When electrical current exceed certain rating, the fuse will cut o power supply for 10 seconds
automatically.
❙WARNING
• DO NOT remove or bypass the protective fuse.
Removing or bypassing the fuse may overload and damage the electrical system.

Troubleshooting
Care and Maintenance
• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts
if necessary.
• Make sure there is no cracked or broken plastic parts.
• Keep away the product from heat and humid area, cover it with trap when not in use
•
• Clean the vehicle with a cloth. Use a non-wax furniture polish to restore shine to plastic parts. Do not use
abrasive cleaner.
• Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts.
Problem Possible Reason Solution
Vehicle does not move
Low Battery Fully charge the battery
Fuse Protection Fuse will reset automatically in
about 10 seconds
Disconnected / Badly connected
battery Reconnect the battery
Failed battery / engine Contact Customer Service
Vehicle does not run very long
Low Battery Fully charge the battery
Old / Damaged Battery Replace battery if necessary
Vehicle runs very slow
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle is overloaded Make sure user’s weight is under
55.12 lbs / 25 kgs
Vehicle is being used in harsh
environment
Avoid using the vehicle in harsh
environment
