Kidzone Licensed McLaren 765LT Ride ON User manual

Licensed McLaren 765LT Ride ON (12V)
Owner’s Manual
060-ROT-33L
*Product appearance and colors may vary from the photo.
www.kidzonetoys.com
This product should only be assembled by an adult.
WARNING：
Maximum User Weight : 55 lbs / 25 kg
For Age
37-72
Months

This owner’s manual contains important safety, performance, and
maintenance information.
Read the manual before allowing your child to ride on the product.
Keep this manual for future reference.
Hello !
Welcome to Kidzone’s world of ride-ons where fun and adventure
await! Little ones have a blast riding our toys at home, in the park, or on
the sidewalk.
At Kidzone, our goal is to make playtime more fun for kiddos, while
ensuring comfort and safety. Our ride-ons help create joyful moments
for the entire family that’ll turn into forever memories!
ATTENTION

Table of Contents
04
06
07
08
14
19
20
22
15
16
18
Safety Instruction
Product Specication
Parts and Accessories
Assembly Instruction
User’s Instruction
Care and Maintenance
Troubleshooting
Warrenty Information
User’s Instruction
Media Player
Remote Control
Charging
User’s Instruction
User’s Instruction

4
4
Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Failure to follow the safety instructions may result in property damage, serious injury or death.
DISCLAIMER
• Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or
losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use,
BASIC SAFETY
•This product is only designed to be used by children age 37-72 Months.
•Do not exceed the maximum weight capacity of 55 lbs / 25 kg.
•Adult and/or supervisors must instruct the user all common safety rules and safe practice.
Do not drive the vehicle on the long grass , rugged or muddy ground.
•
•
•
•
•
•Never leave children unattended with the ride-on toy. Close supervision is necessary when your
children is using the product.
conditions including rain, snow, and ice, or at any potential dangerous places.
To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles,
on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and
never allow more than 1 rider.
RISK OF FIRE. Do not bypass. Replace only with original size and type.
•If necessary, adult and/or supervisors should be responsible for setting up gate and barriers to ensure
a safe environment for child rider.
•Be aware and alert children that hands, legs, hair, clothings, and loose items can potentially get
caught in moving parts. Avoid placing body parts on moving parts and do not wear loose clothing
while using the ride-on toy.
•Avoid using this product in tight environment to prevent damage to the product or injury to the user.
•This product does not equip with brakes. Do not use this product in areas that requires active braking
to prevent possible rolls, crashes, or bodily injury.
•Do not use this product in the dark. Only operate this product during daytime or in a well lit area.
•Avoid continuously hitting into obstacle to prevent overheating or damaging the motor. Drive away
or remove obstacle as soon as possible.
•For your child’s safety, make sure the seatbelt is securely fasten and the rider is wearing personal
protective equipment, such as helmet, when operating this product.
W
E
A
R
P
R
O
T
E
C
T
I
V
E
E
Q
U
I
P
M
E
N
T
W
H
E
N
U
S
I
N
G
Correct Fitting
Make sure the helmet
covers your forehead.
Incorrect Fitting
Forhead is exposed and
vulerable to injury.
WARNING

ver. 09212023
55
CELL BATTERY AND RECHARGEABLE BATTERY HANDLING
•Do not mix old and new batteries.
•Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
•Permanent damage to the battery may occur if it is completely drained. Do not let the battery to drain
completely.
•On average, you will need to charge the battery for 8 - 12 hours. Do not charge the battery for more
than 20 hours. Failure to charge the battery as directed could cause permanent damage to the battery
and void the warranty.
•Only an adult who has read and underrstands the safety instruction should handle, charge, and
recharge the battery.
•Disconnect the battery if not used for a long period of time.
Failure to follow these instruction may result in permanent damage to the product or parts.
CHOCKING HAZARD, ASSEMBLY WARNING
•This product contains small parts before assembly. Keep children away when assembling the
ride-on toy. The assembly should only performed by an adult.
•Remove and dispose all protective materials, plastic bag, and packaging before assembly.
•This product should not be used by children under the age of 36 months old.
ELECTRIC SHOCK, FIRE HAZARD, FLAMMABLE AND EXPLOSIVE WARNING
•To protect against electrical shock, do not let cord, charger, transformer, battery or the product
contact with water or other liquid.
•Do not drive the vehicle into any puddle or contact with any liquid to prevent electrical shock.
•Do not change, modify, or add any electrical wiring on the product. Alternations could potentially
•Only use charger and battery provided or recommended by the manufacturer. Using the wrong type
•Check the battery, charger, and connectors for any sign of excessive wear or damage each time you
charge the battery. Do not use the charger or the battery if damages are present. Change and replace
damage part before use.
•Do not lift or carry the battery by the wires or charger. You might damage the wires and case electric
•
CORROSIVE CHEMICAL, PRODUCT MATERIAL WARNING
•Contact or exposure to battery leakage may cause serious injury. If contant or exposure occurs to the
skin or in the eyes, or if the chemical is swallowed, call medical emergency immediately.
•Battery posts, terminals, and related accessories contain lead and lead compounds which are toxic
and corrosive. Never open the battery.
Failure to follow these instruction may result in bodily harm, serious injury, or death.
WARNING
CAUTION

6
Model no. 060-ROT-33L
Battery 12 v 4.5 Lead-acid Battery x1
Charger Input AC 120 V, 0.25 A, 60HZ
Charger output DC 12 V 0.5 A
Battery Charge Time 8 - 12 hours
Dimension 44.5” x 26.8” x 17.3” (113 cm x 68 cm x 44 cm)
Speed 1.86 - 3.11 mph (3 - 5 km/h)
Suitable Age 37- 72 Months
Maximum User Weight 55 lbs / 25 kg

ver. 09212023
7
Parts and Accessories
A Vehicle Body x1
B Windshield x1
C Seat x1
D Motor x2
E Wheel x4
F Hubcap x4
G Steering Wheel x1
H Side Mirror x1 Pair
Nut
(pre-installed on axle)
J
K Wheel Cover x4
A
B
C
E
EE
E D D
F
F
KK
KK
F
I
II I I
I
J J
JJ
F
G
H
x4
Washer
(pre-installed on axle)
Ix6

8
Assembly Instruction
• Place the vehicle body up side down, and then remove the pre-installed washers (I) and nuts (J) from the
rear axle.
• Install motor (D) and wheels (E) to the rear axle , and then secure with washer (I) and Nut (J).
• Attach the wheel cover (K) and hubcap (F) to the wheel.
Tools required (not included)
This product should only be assembled by an adult.
Children can be harmed by small parts, sharp edges and points or by electrical
items. Care should be taken when unpacking and assembling the vehicle.
1(I) Washer
(I) Washer
(J) Nut
(I) Washer
(J) Nut
Rear Axle
(K) Wheel Cover
(J) Nut
(D) Motor
(E) Wheel
(F) Hubcap
WARNING

ver. 09212023
9
Assembly Instruction
• Remove the pre-installed washer (I) and nut (J) from the front axle（remain 1 washer
on the axle each side that not need to removed).
• Install wheel (E) to the front axle , and then secure with washer (I) and Nut (J).
• Attach the wheel cover (K) and hubcap (F) to the wheel.
2
(I) Washer
(I) Washer
(J) Nut
(J) Nut
(I) Washer
(J) Nut
(K) Wheel Cover
(E) Wheel
(F) Hubcap
Front Axle
(I) Washer
this two remain here, not need removed
(I) Washer
(I) Washer (I) Washer

10
Assembly Instruction
3
4
•
• Connect the wires from the steering wheel (G) to the vehicle, and then insert the steering wheel into the
steering column.
(B) Windshield
(G) Steering Wheel

ver. 09212023
11
Assembly Instruction
5

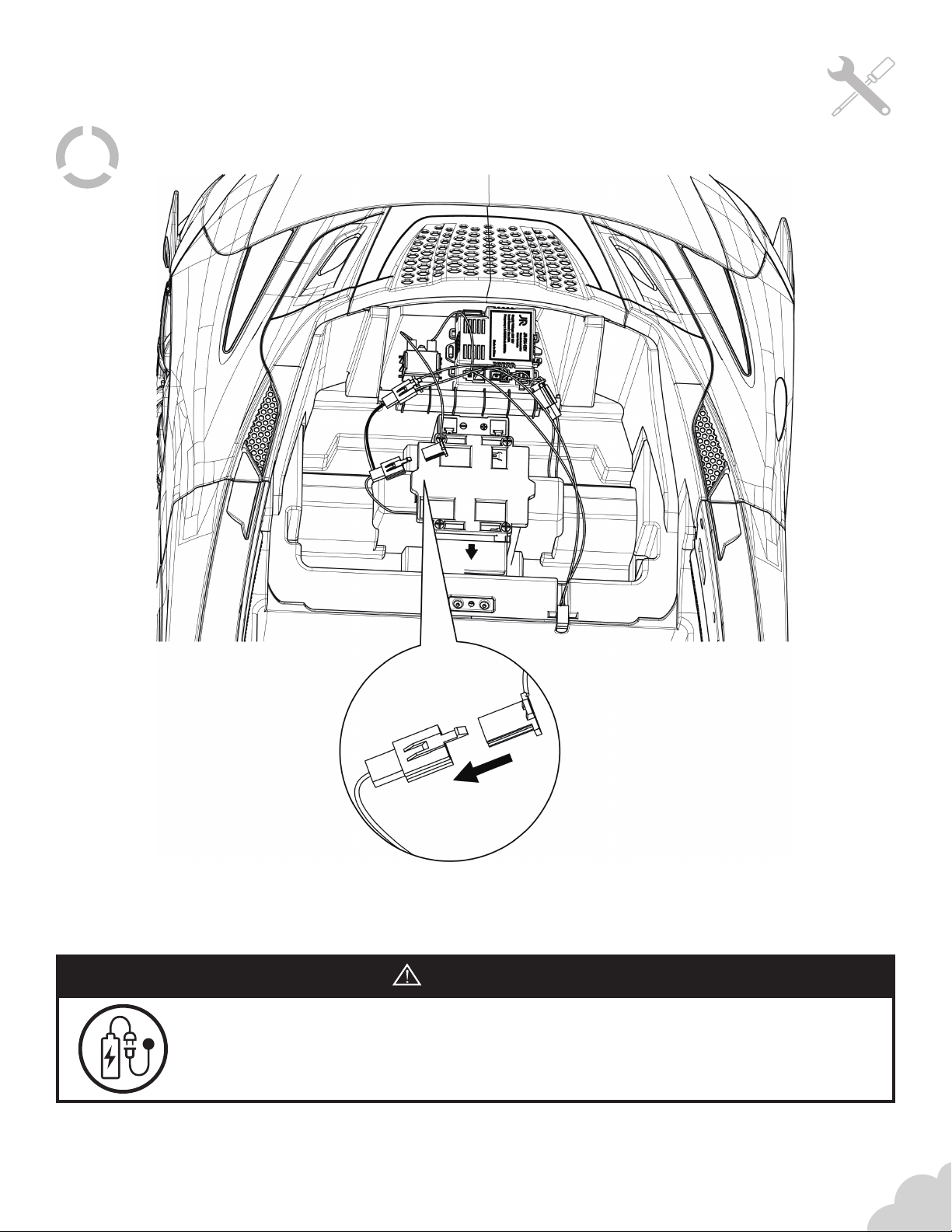

• Connect the motor cables to the vehicle control unit, which is located under the seat well.
• Connect the battery cable to the vehicle control unit.
This product is packed with the battery disconnected.
Connect the battery before use.
ATTENTION

12
Assembly Instruction
6
(C) Seat
• Remove the pre-installed screw from the seat well.
• Align and push the seat (C) to the vehicle body.
• Secure the seat with the screw.

ver. 09212023
13
Assembly Instruction
7
• Insert the side mirrors (H) to the sides of the vehicle body.
(H) Side Mirror

14
User’s Instruction
Do not change direction until the vehicle comes to a complete stop.
Sudden change in direction may result in permanent damage to the motor.
Control the vehicle
Power Button
Press the power button to turn ON or OFF the vehicle.
Forward / Reverse Switch
Press the switch to select the moving directions of the vehicle.
Light Switch
Press the switch to turn ON or OFF the light.
Foot Pedal
Press down to move the vehicle, release to slow and stop.
Media Player
Foot Pedal
Power Button
Light Button
Foward / Reverse
Button
CAUTION

ver. 09212023
15
User’s Instruction (Media Player)
Media Player
Play / Pause Button
Allow the media player to play or pause a soundtrack.
Power Display
The display shows the power level of the battery.
Bluetooth Button
Press the button to enable bluetooth mode and connect your device to the media player via bluetooth.
Next Button
Press the button to change to the next sound track.
Volume Knob
Turn the volume knob to change the volume level.
Horn Button
Press the button to make a horn sound（There are two horn buttons on the steering wheel bottom).
Bluetooth connection
To connect your mobile device to the vehicle, turn on the Bluetooth and select "Kidzone Ride on". You
can hear a voice message of connected successfully from vehicle after pairing. Music can be played from
the vehicle speaker according to the user preferences. You can select the music or adjust the volume by
your mobile device.
Play / Pause Button Power Display
Next Button
Horn ButtonBluetooth Button Volume Knob

16
Left Turn
User Instruction (Remote Control)
Using the remote control
The remote control should only be used by an adult.

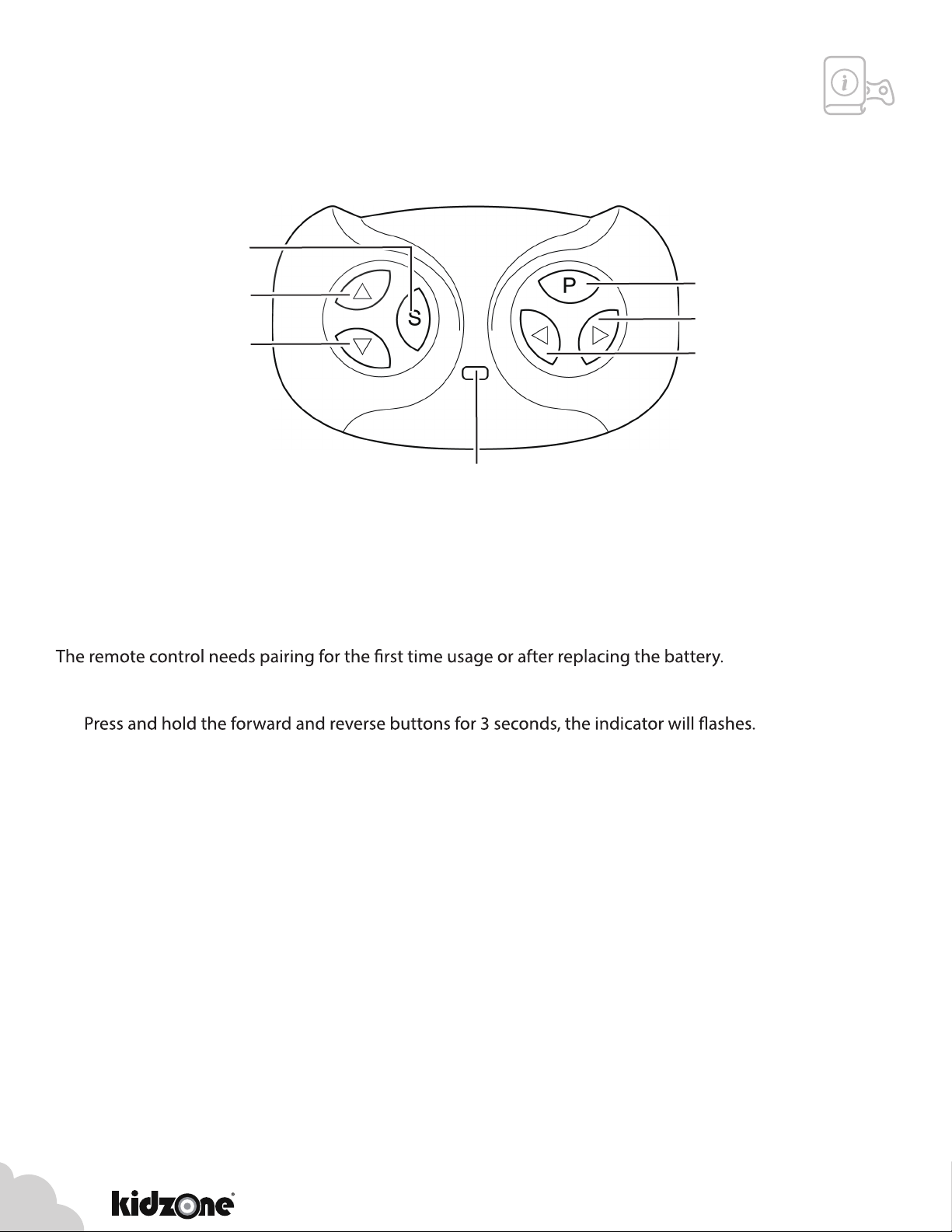

Pairing the remote control
• Insert batteries into the remote control. (see page 17)
•
• Turn on the power of the vehicle, the indicator should change to solid light after successful pairing.
If failed to pair, remove and replace the battery from the remote control and repeat the pairing steps.
Control the Vehicle
• The remote control will override any operation input by the foot pedal.
• Pressing the emergency brake button to enable emergency brake. All running function will be disabled
once the button is pressed. Press the emergency brake button agian to enable operation functions.
• Press the Speed button to switch between high, normal and low speed.
NOTE:
The remote control will goes into power saving mode if not used after 10 seconds.
Forward
Reverse
Speed Button
Speed Indicator
Right Turn
Emergency Brake

ver. 09212023
17
User Instruction (Remote Control)

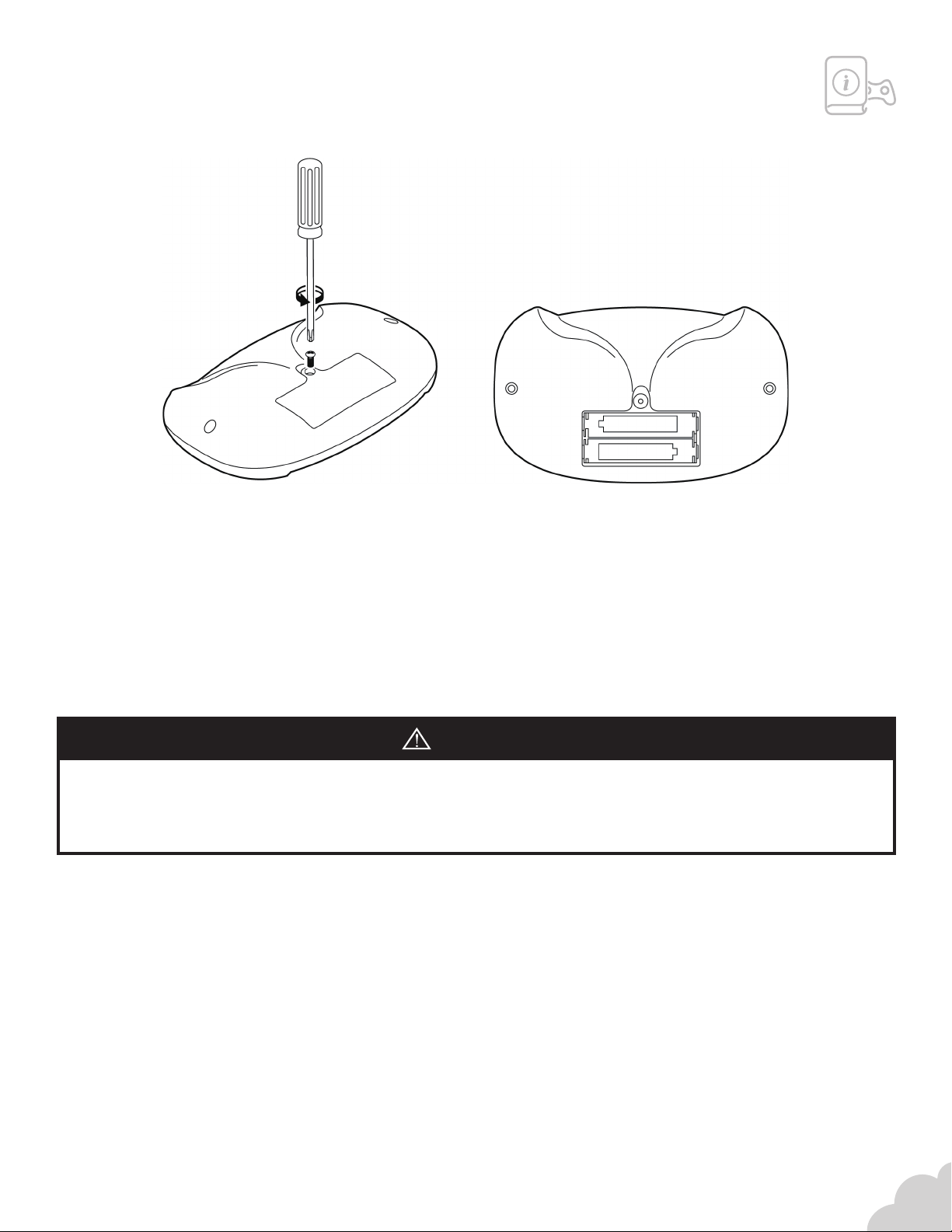

Changing the remote control battery
The remote control requires 2 AAA 1.5v batteries. (not included)
• Remove the cover on the back side of the remote control.
• Replace old batteries with 2 new AAA 1.5v batteries in correct polarity.
• Put the cover back in place.
The battery should only be changed by an adult.
Do not mix old and new batteries.
Do not mix alkaline, carbon-zinc, or rechargeable batteries.
WARNING
+ 1.5V AAA/LR03 -
- 1.5V AAA/LR03 +

18
User Instruction (Charging)
Charging the battery
1. Connect the charger to the charging port.
2. Plug the charger into a wall outlet. The battery will start charging.
• The indicator on charger turn red when charging, and turn green after charging completed.
• The vehicle must be OFF when charging.
• Recharge the battery if the vehicle operates slowly.
• DO NOT operate the vehicle when charging.
NOTE:
• Damage to the battery may occur if it is completely drained.
• Charge the battery for about 8 - 12 hours.
• Do not charge the battery for more than 20 hours.
• Charge the battery at least once a month even if not operating the vehicle for a long time to
maximize the battery life.
• Do not charge or store the battery upside down.
•
The battery should only be charged by an adult.
Old battery or battery waste must be taken to hazardous waste disposal facility,
waste handler, or an authorized recycling facility.
DO NOT dispose battery as regular household waste.
WARNING
WARNING

ver. 09212023
19
Care and Maintenance
Fuse
• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts
if necessary.
• Make sure there is no cracked or broken plastic parts.
• Store the product away from heat source when not using, cover it with a tarp and away from wet
weather.
•
• Clean the vehicle with a cloth. Use a non-wax furniture polish to restore shine to plastic parts. Do not use
abrasive cleaner.
• Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts.
• Regularly charge the battery to prolong the battery life.
• Do not store the product near heat source, such as stoves and heaters. Plastic parts may melt under high
temperature.
vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored
after the product is turned OFF for 20 seconds and then turned ON again. If the thermal fuse trips repeatedly
during normal use, the vehicle may need repairing.
To tripping the fuse:
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive on steep slopes.
•
• Do not operate in hot weather to prevent overheating.
• Do not allow water or other liquids to come in contact with the battery or other electric components.
• Do not tamper with the electric system.
RISK OF FIRE. Do not bypass the fuse. Replace only with original size and type.
WARNING

20
Troubleshooting
Problem Possible Reason Solution
Vehicle does not move
Low Battery Fully charge the battery
Fuse Protection Fuse will reset automatically after
Disconnected / Badly connected
battery Reconnect the battery
Failed battery / motor Contact Customer Service
Vehicle does not run very long
Low Battery Fully charge the battery
Old / Damaged Battery Replace battery if necessary
Vehicle runs very slow
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle is overloaded Make sure user’s weight is under
55 lbs / 25 kg
Vehicle is being used in harsh
environment
Avoid using the vehicle in harsh
environment
