Kidzone Ride On SUV w/ Personalize License Plate User manual

Ride On SUV w/ Personalize License Plate (12V)
Owner’s Manual
060-ROT-05
*Product appearance and colors may vary from the photo.
www.kidzonetoys.com
This product should only be assembled by an adult.
WARNING：
Suitable Ages: 37-72 Months
Maximum User Weight : 110 lb / 50 kg

This owner’s manual contains important safety, performance, and mainte-
nance information.
Read the manual before allowing your child to ride on the product.
Keep this manual for future reference.
Hello !
Welcome to Kidzone’s world of ride-ons where fun and adventure
await! Little ones have a blast riding our toys at home, in the park, or on
the sidewalk.
At Kidzone, our goal is to make playtime more fun for kiddos, while
ensuring comfort and safety. Our ride-ons help create joyful moments
for the entire family that’ll turn into forever memories!
ATTENTION

Table of Contents
04
06
07
09
18
22
23
25
19
20
21
Safety Instruction
Product Specication
Parts and Accessories
Assembly Instruction
User’s Instruction
Care and Maintenance
Troubleshooting
Warrenty Information
User’s Instruction
Control Panel

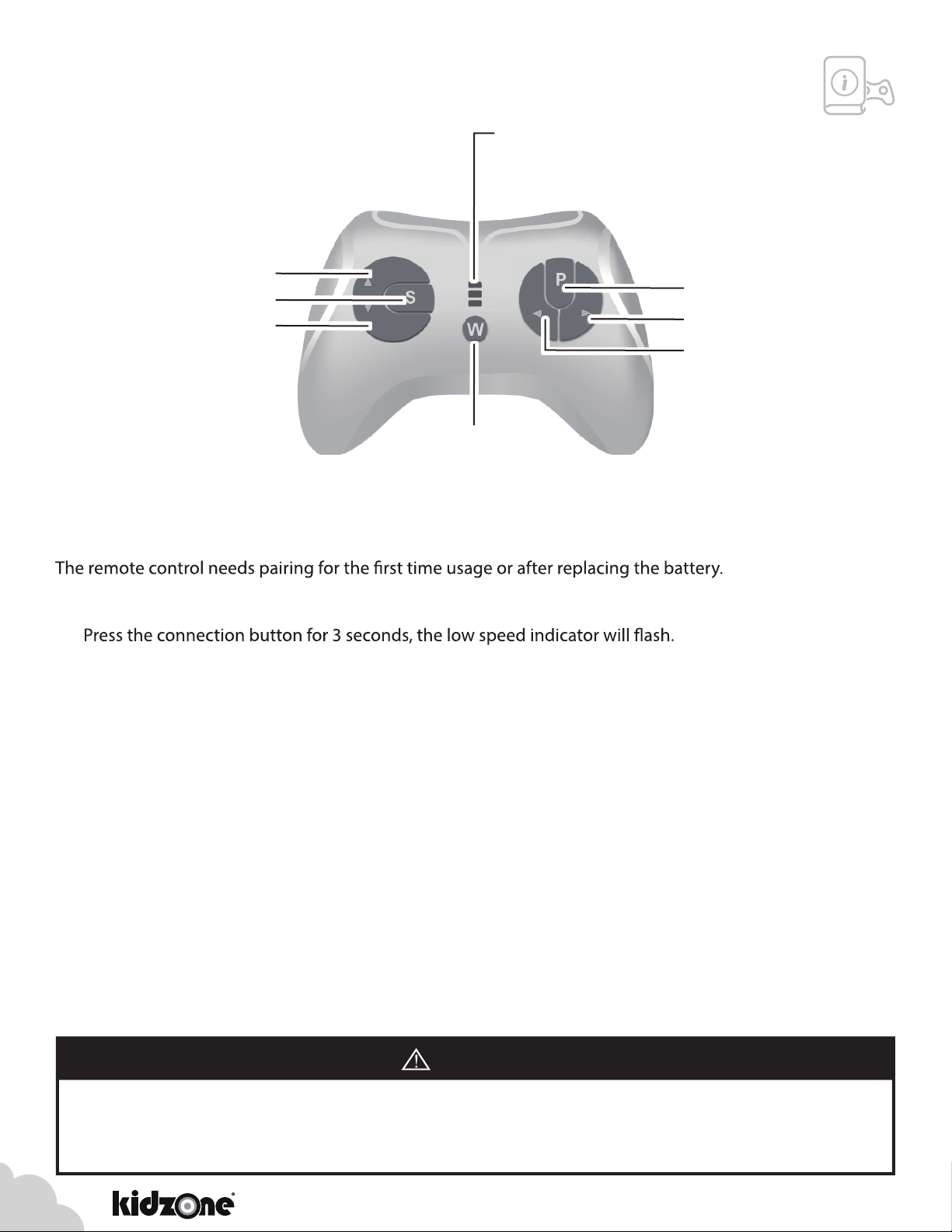

Remote Control
Charging
User’s Instruction
User’s Instruction

4
Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Failure to follow the safety instructions may result in property damage, serious injury or death.
DISCLAIMER
• Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or
losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use,
BASIC SAFETY
•This product is only designed to be used by children age 37-72 Months.
•Do not exceed the maximum weight capacity of 110 lb / 50 kg.
•Adult and/or supervisors must instruct the user all common safety rules and safe practice.
This product should be operate on a at and smooth surface. Do not use this product in any slippery
conditions including rain, snow, and ice, or at any potential dangerous places.
•
•
•
•
•
•Never leave children unattended with the ride-on toy. Close supervision is necessary when your
children is using the product.
Do not drive the vehicle on the long grass , rugged or muddy ground.
To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles,
on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and
never allow more than 1 rider.
RISK OF FIRE. Do not bypass. Replace only with original size and type.
Do not use this product as a trac tool.
•If necessary, adult and/or supervisors should be responsible for setting up gate and barriers to ensure
a safe environment for child rider.
•Be aware and alert children that hands, legs, hair, clothings, and loose items can potentially get
caught in moving parts. Avoid placing body parts on moving parts and do not wear loose clothing
while using the ride-on toy.
•Avoid using this product in tight environment to prevent damage to the product or injury to the user.
•This product does not equip with brakes. Do not use this product in areas that requires active braking
to prevent possible rolls, crashes, or bodily injury.
•Do not use this product in the dark. Only operate this product during daytime or in a well lit area.
•Avoid continuously hitting into obstacle to prevent overheating or damaging the motor. Drive away
or remove obstacle as soon as possible.
•For your child’s safety, make sure the seatbelt is securely fasten and the rider is wearing personal
protective equipment, such as helmet, when operating this product.

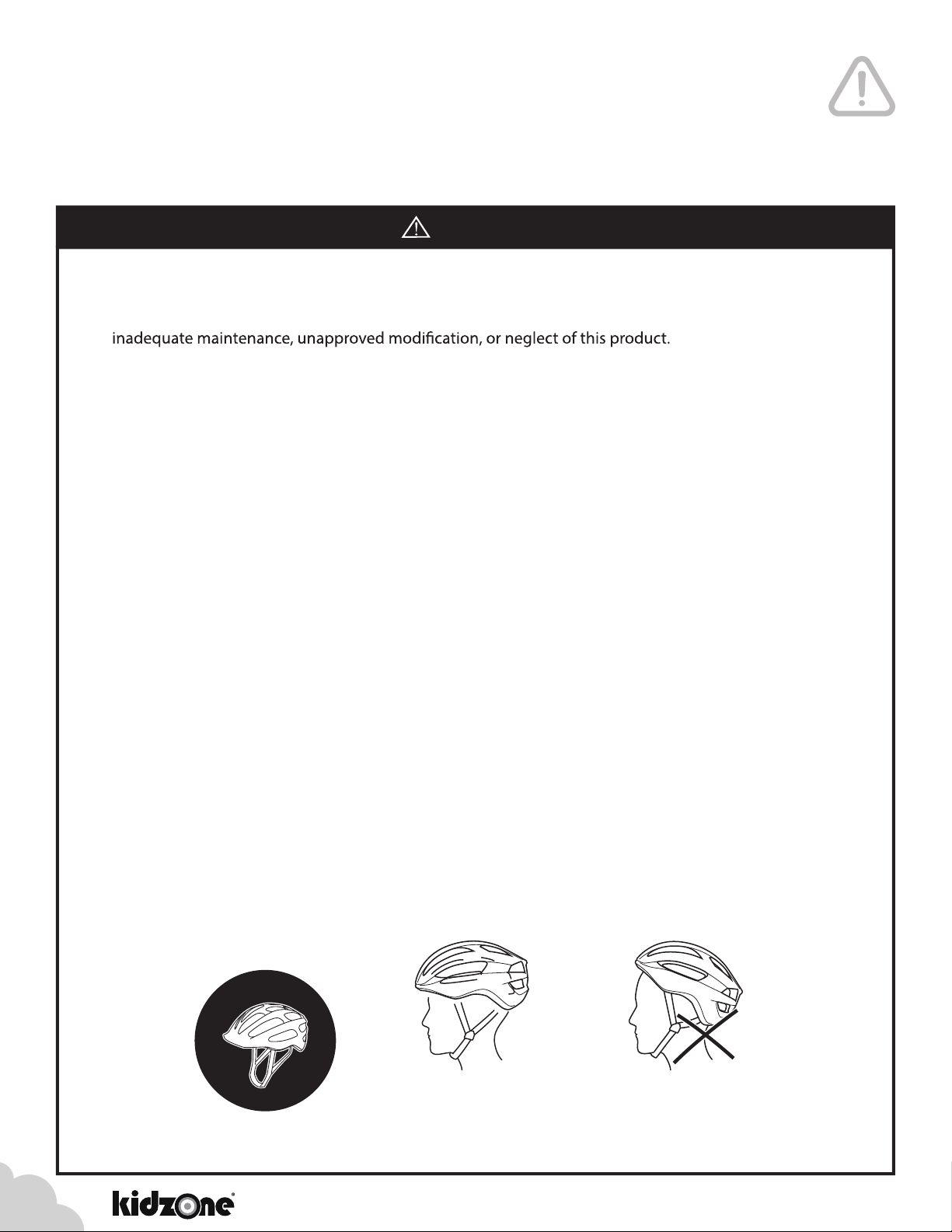

W
E
A
R
P
R
O
T
E
C
T
I
V
E
E
Q
U
I
P
M
E
N
T
W
H
E
N
U
S
I
N
G
Correct Fitting
Make sure the helmet
covers your forehead.
Incorrect Fitting
Forhead is exposed and
vulerable to injury.
WARNING

ver. 08282023
5
CELL BATTERY AND RECHARGEABLE BATTERY HANDLING
•Do not mix old and new batteries.
•Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries.
•Permanent damage to the battery may occur if it is completely drained. Do not let the battery to drain
completely.
•On average, you will need to charge the battery for 8 - 12 hours. Do not charge the battery for more
than 20 hours. Failure to charge the battery as directed could cause permanent damage to the battery
and void the warranty.
•Only an adult who has read and underrstands the safety instruction should handle, charge, and
recharge the battery.
•Disconnect the battery if not used for a long period of time.
Failure to follow these instruction may result in permanent damage to the product or parts.
CHOCKING HAZARD, ASSEMBLY WARNING
•This product contains small parts before assembly. Keep children away when assembling the
ride-on toy. The assembly should only performed by an adult.
•Remove and dispose all protective materials, plastic bag, and packaging before assembly.
•This product should not be used by children under the age of 36 months old.
ELECTRIC SHOCK, FIRE HAZARD, FLAMMABLE AND EXPLOSIVE WARNING
•To protect against electrical shock, do not let cord, charger, transformer, battery or the product
contact with water or other liquid.
•Do not drive the vehicle into any puddle or contact with any liquid to prevent electrical shock.
•Do not change, modify, or add any electrical wiring on the product. Alternations could potentially
•Only use charger and battery provided or recommended by the manufacturer. Using the wrong type
•Check the battery, charger, and connectors for any sign of excessive wear or damage each time you
charge the battery. Do not use the charger or the battery if damages are present. Change and replace
damage part before use.
•Do not lift or carry the battery by the wires or charger. You might damage the wires and case electric
shock or re.
•
CORROSIVE CHEMICAL, PRODUCT MATERIAL WARNING
•Contact or exposure to battery leakage may cause serious injury. If contant or exposure occurs to the
skin or in the eyes, or if the chemical is swallowed, call medical emergency immediately.
•Battery posts, terminals, and related accessories contain lead and lead compounds which are toxic
and corrosive. Never open the battery.
Failure to follow these instruction may result in bodily harm, serious injury, or death.
cause shirt circuit, a re, or irreversible damage to the electrical system.
of battery or charger could cause a re and potentially property damage and serious injury.
Do not charge more than 20 hours. You might over heat the battery and cause damage or a re.
WARNING
CAUTION

6
Model no. 060-ROT-05
Battery
Charger input
12 V 7 Ah x1
120V AC, 0.25 A, 60 Hz
Charger output 12 V 900 mA
Battery Charge Time 8 - 12 hours
Dimension 45.08” x 28.54” x 28.74” (1145 mm x 725 mm x 730 mm)
Speed 1.56- 3.8 mph (2.5-6.0 km/h)
Suitable Age 37-72 Months
Maximum User Weight 110 lb / 50 kg

ver. 09012023
7
Parts and Accessories
2
1
13
17
23
24
13
14
18
25
26
27
19
16
3
4
4
5
6
6
7
7
8
8
910
15
11
22
23
24
12
20
21
21

8
Parts and Accessories
Part No. Part Name QTY
1 Vehicle Body 1
2 Gear Box 2
3 Wheel Hub 2
4 Wheel 4
5Ø12 Washer 2
6Ø10 Washer 4
7 Lock Nut 4
8 Wheel Cover 4
9 Rear Axle Housing 1
10 Rear Axle 1
11 Front Axle 1
12 Ø4 x 12 Screw 45
13 Side Mirror 1 Pair
14 Steering Wheel 1
15 M5 x 45 Machine Screw 1
16 Ø5 Nut 1
17 Wideshield 1
18 Seat 1
19 Backrest 1
20 Light Bar 1
21 Light Bar Support 1 Pair
22 Front Bumper 1
23 Front Fender 1 Pair
24 Rear Fender 1 Pair
25 Spanner 2
26 Charger 1
27 Remote Control 1

ver. 09012023
9
Assembly Instruction

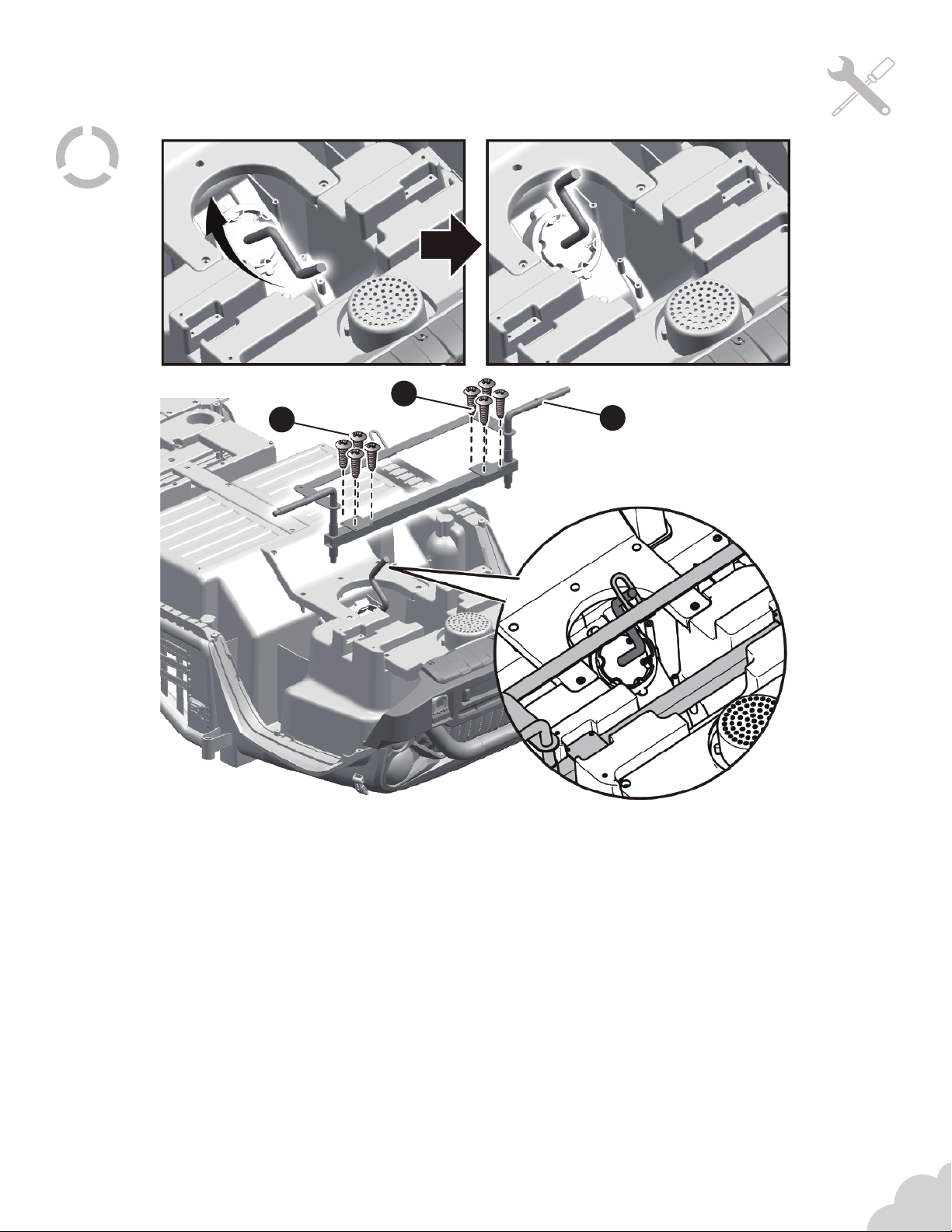

• Turn the vehicle body upside down.
•Ø4 x 12 screws (12).
Tools required (not included)
This product should only be assembled by an adult.
Children can be harmed by small parts, sharp edges and points or by electrical
items. Care should be taken when unpacking and assembling the vehicle.
1
22
12
12
12
12
12
WARNING

10
Assembly Instruction
• Click the front fenders (23) to the front of the vehicle body and the rear fenders (24) to the rear of the
vehicle body.
• Secure each front fender with three Ø4 x 12 screws (12).
• Secure each rear fender with four Ø4 x 12 screws (12).
2
12
12
12
12
12
12
12
23
23
24
24
23
24
Front Fender InstallationRear Fender Installation

ver. 09012023
11
Assembly Instruction
• Rotate and align the steering column on the vehicle body to the front axle linkage(11).
• Secure the front axle (11) on the vehicle body with eight Ø4 x 12 screws (12).
3
11
12
12

12
Assembly Instruction
• Slide Ø12 washer (5), wheel (4), Ø10 washer (6) to the front axle (11).
• Secure the wheel in place with lock nut (7).
• Snap the wheel cover (8) to the wheel.
• Repeat the same step on the other side of the vehicle.
• Assemble the rear axle housing (9) to the vehicle body with eight Ø4 x 12 screws (12).
4
5
5
9
12
4
6
7
8
11

ver. 09012023
13
• Assemble the wheel hub (3) to the wheel (4) with four Ø4 x 12 screws (12).
• Slide the gear box (2), a wheel (4), a Ø10 washer (6) to the rear axle.
• Tighten the wheel with lock nuts (7). Make sure to not over tighten and the wheel can rotate.
• Snap the wheel cover (8) to the wheel.
• Repeat the same step on the other side of the vehicle at the same time.
Assembly Instruction
6
7
• Insert the rear axle (10) into the rear axle housing (9).
4
3
12
9
10
2
4
6
7
8
Note: In order to lock the left and right wheels, you need to tighten the two nuts (7) in opposite
direction at the same time.

14
Assembly Instruction
8
21
21
20
• Connect the cable from the light bar (20) to that in the right light bar support (21).
• Assemble the light bar between the light bar supports.
• Connect the cable from the right light bar support to that in the vehicle body.
• Attach the light bar assembly onto the vehicle body.
Attention: Be careful that not damage the cables when assembly.

ver. 09012023
15
Assembly Instruction
9
10
14
17
15
16

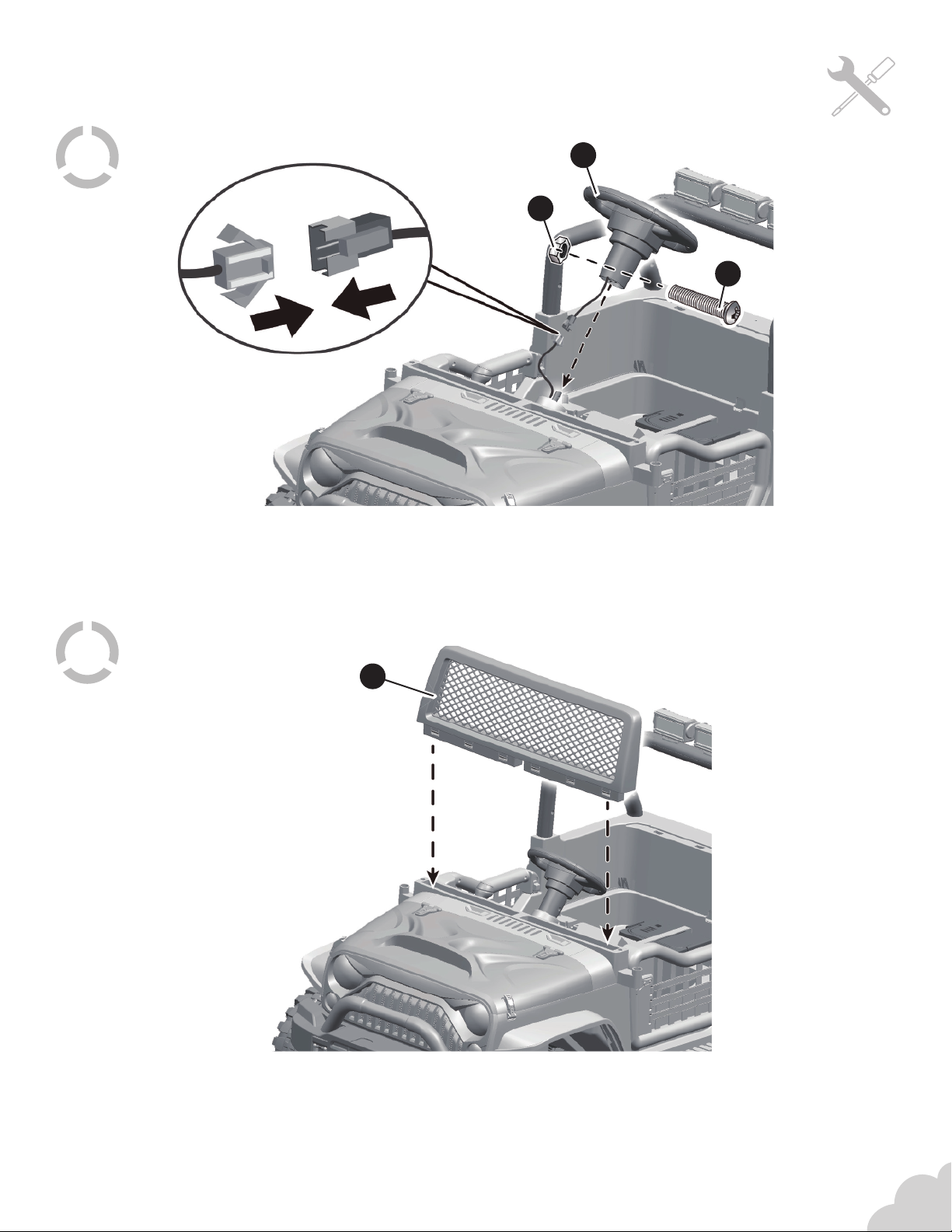

• Connect the cable from steering wheel (14) to that in the vehicle body.
• Insert the steering wheel to the steering column and secure in place with a M5 x 45 machine screw (15)
and a Ø5 nut (16).
• Assemble the windshield (17) to the vehicle body.

16
Assembly Instruction
11
12
13
•
•
Insert the side mirrors (13) to the vehicle body.
Plug the red connector on the vehicle
body into the red connector on the
battery.
•Plug the two white connectors from
the motor into the white connectors
on both side of the vehicle body.
(Red to Red, White to White)
• Connect the cables on the seat well.
This product is packed with the battery disconnected.
Connect the battery before use.
ATTENTION

ver. 09012023
17

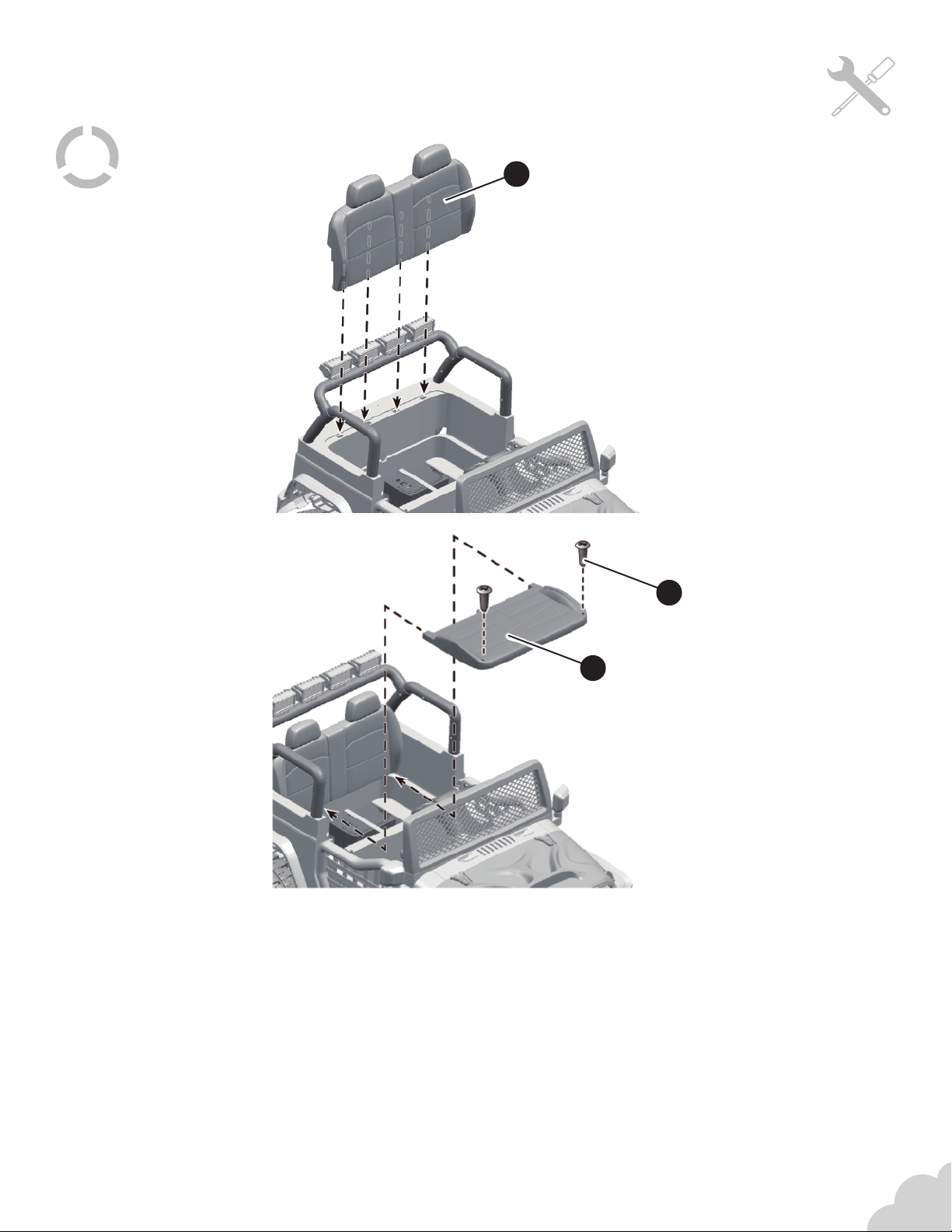

Assembly Instruction
13 19
• Align and insert the tabs on the backrest (19) to the vehicle body.
• Assemble the seat (18) to the vehicle body and secure in place with two Ø4 x 12 screws (12).
18
12

18
User’s Instruction
Do not change direction until the vehicle comes to a complete stop.
Sudden change in direction may result in permanent damage to the motor.
Control the vehicle

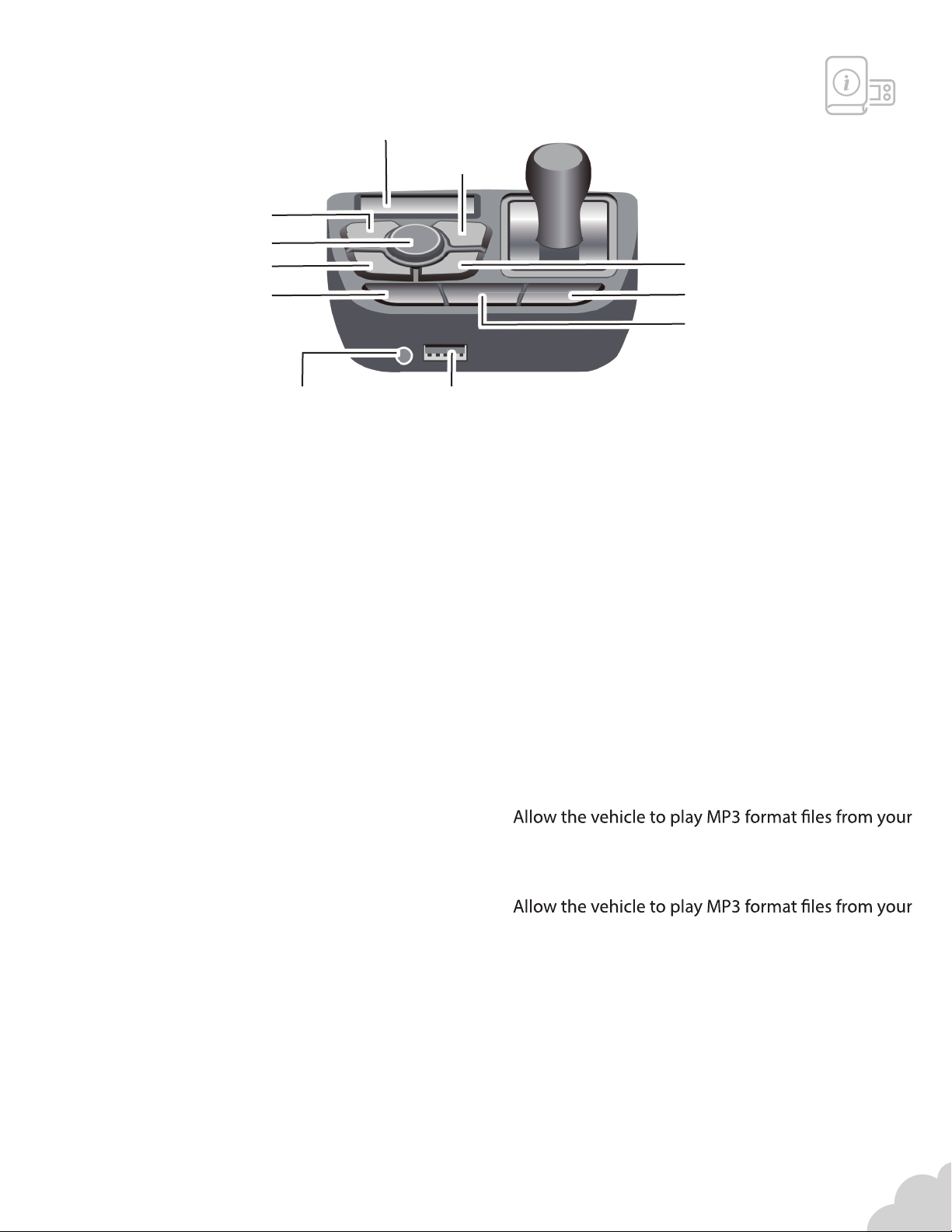

Control Panel
Control the functions of the car. (See page 19 for detail instruction)
Shift Lever
Push / Pull the lever to choose the vehicle forward and backward direction.
Horn Button
Press the button to horn. Press and hold can be decrease the volume.
Right button
Press and hold to increase the volume, and can be cycle next track.
Foot Pedal
Press the foot pedal to move the vehicle, release the pedal to stop.
Shift Lever
Control Panel
Foot Pedal
CAUTION
Next Track / Volume +
Horn Button / Volume -

ver. 09012023
19
User’s Instruction (Control Panel)
Power Button
FM Button
Mode Button
Next Track / Volume +
Bluetooth Button
Play / Pause
Previous Track / Volume −
Flash drive port
3.5mm AUX Port
Power Indicator
Control Panel
Power Button
Press the power button turn ON the vehicle.
Press and hold the power button for 3 seconds to
turn OFF the vehicle.
FM Button
A shortcut button for quick FM radio mode access.
Press and hold the play button to search for radio
station when the player in FM radio mode. After search
comleted, you can select the radio station by press the
next track / previous track button.
Mode Button
Press the mode button to cycle through audio input
from Flash drive port, Bluetooth wireless technology,
FM radio and AUX port.
Bluetooth Button
Allow the vehicle to connect your device via
bluetooth wireless technology ( name: Kidzone Ride-on).
Bluetooth connection
To connect your mobile device to the vehicle, turn on
the Bluetooth and select "Kidzone Ride-on". You can hear
a voice message of connected successfully from vehicle
after pairing. Music can be played from the vehicle speaker
according to the user preferences. You can select the
music or adjust the volume by your mobile device, you
can also select / play / pause the music by press the
Previous track / Next track / Play and Pause buttons on
the control panel of vehicle.
Note: You need to select the bluetooth mode before
connecting.
Next Track / Volume + Button
Press the button to select the next music track.
Press and hold the button to increase the volume.
Play / Pause Button
Press the play button to play or pause the music.
Previous Track / Volume −Button
Press the button to select the previous music track.
Press and hold the button to decrease the volume.
Light Button
Press the button to turn ON or OFF the light.
Flash drive port
Flash drive.
3.5mm AUX Port
device via AUX cable connection.
Power Indicator
Indicator shows the estimate power level of the
battery.
Light Button

20
User’s Instruction (Remote Control)
Using the remote control
The remote control should only be used by an adult.
Pairing the remote control
• Insert batteries into the remote control.
•
• Turn on the power of the vehicle, the indicator should change to solid light.
If failed to pair, remove and replace the battery from the remote control and repeat the pairing steps.
Control the Vehicle
• Press the directional buttons to move the vehicle.
• Press the “P” button to enable emergency brake. All running function will be disabled once the button is
pressed. Press the “P” button again to enable other functions.
• Press the “S” button to switch between high, normal and low speed
The remote control will goes into power saving mode if not used after 10 seconds.
Changing the remote control battery
The remote control requires 2 AAA 1.5v batteries. (not included)
• Remove the cover on the back side of the remote control.
• Replace old batteries with 2 new AAA 1.5v batteries in correct polarity.
• Put the cover back in place and secure with the screw.
The battery should only be changed by an adult.
Do not mix old and new batteries.
Do not mix alkaline, carbon-zinc, or rechargeable batteries.
Connection Button
Brake Button
Forward Button
Speed Select Button
Reverse Button Right Button
Left Button
Speed Indicator
• High
• Normal
• Low
WARNING
