Kidzone Licensed Toyota Tacoma Ride On User manual

Licensed Toyota Tacoma Ride On (12V)
Item number: 060-ROT-18L
Instruction Manual
*Product appearance and colors may vary from the photo.
W
E
A
R
P
R
O
T
E
C
T
I
V
E
E
Q
U
I
P
M
E
N
T
W
H
E
N
U
S
I
N
G
ATTENTION
This vehicle is packed with the battery disconnected. Connect
the battery before use.
This manual contains important safety, performance and
maintenance information. Read the manual thoroughly before
allowing your child to ride your new electric ride-on toy. Failure
to read the user manual can result in property damage or bodily
injuries. Keep this user manual for future reference.

Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following:
Failure to follow the safety instructions may result in property damage, serious injury or death.
This owner’s manual contains assembly, use and maintenance instruction, and child safety warning. Adult
/guardian supervising children should read and understand this manual before allowing any child to use
the product.
BASIC SAFETY
• This product is suitable for children age 37 - 72 months old.
• Maximum users’ weight for this product is 66 lb / 30 kg.
• To protect against electrical shock, do not immerse cord, charger, transformer,
battery or the product in water or other liquid.
• Do not change, modify, or add any electrical wiring on the product. Alternations
could potentially cause shirt circuit, a re, or irreversible damage to the electrical
system.
• Only use charger and battery specied or recommended by the manufacturer.
Using the wrong type of battery or charger could cause a re and potentially
property damage and serious injury.
• For your children’s safety, the product should be assembled by adult only.
• Never leave children unattended with the ride-on toy. Close and constant adult
supervision is required when your child is operating this product.
• Adult and/or supervisors must instruct the user all common safety rules and safe
practice.
• Disconnect the battery if not used for a long time.
• Do not use this product as a trac tool.
• To reduce the risk of injury, adult supervision is required. Never use in roadways,
near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than 1 rider.
2
INGWARN

3
• RISK OF FIRE. Do not bypass. Replace only with original size and type.
• Do not use this product in any slippery conditions including rain, snow, and ice,
or at any potential dangerous places. Always drive the vehicle on smooth surface,
and do not drive the vehicle on the tall grass or rugged ground.
• For best performance use on at, hard surfaces.
• Avoid using this product in tight environment to prevent damage to the product
or injury to the user.
• Do not use this product in the dark. Only operate this product during daytime
or well-lit area.
• Be aware and alert children that hands, legs, hair, clothing, and loose items can
potentially get caught in moving parts. Avoid placing body parts on moving
parts and do not wear loose clothing while using the ride-on toy.
• Avoid continuously hitting into obstacle to prevent overheating or damaging
the motor. Drive away or remove obstacle as soon as possible.
• Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
• For your child’s safety, make sure the seatbelt is securely fastened and the rider
is wearing personal protective equipment, such as helmet, when operating this
product.
INGWARN

WARNING
CHOKING HAZARD - Small parts. Not for children under 3 years. :
WARNING
Manufacturer and seller expressly disclaim any and all liability
for personal injury, property damage or losses, whether direct, indirect, or
incidental, resulting from the incorrect attachment, improper use, inadequate
maintenance, unapproved modication, or neglect of this product.
:
WARNING
This toy is to be assembled by an adult. Contains potentially
hazardous sharp edges and sharp points, or contains small parts before assembly.
Keep children away when assembling the ride-on toy.
Remove and dispose all protective materials, plastic bag, and packaging before
assembly.
:
WARNING
Do not drive this vehicle into any puddle or contact with any
liquids to avoid the electrical shock to product or user.
PREVENT FIRE
• Never modify the electrical system. Alterations could cause a re resulting in
serious injury and could also ruin the electrical system.
• Use of the wrong type of battery or charger could cause a re or explosion
resulting in serious injury.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by
adults only.
• Never lift or carry the battery by the wires or connector. This can damage the
battery and possibly cause a re resulting in serious injury. Lift and carry the
battery by the case only.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
Battery recharge in an average of 8 - 12 hours. Do not charge more than 20 hours,
or you might over heat the battery and cause damage or a re.
•
:
WARNING
4

FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT
IN SERIOUS INJURY OR DEATH.
Child Safety Warnings
• Adults supervising children must read and understand this entire manual before
allowing any child to use this product.
• Adults must evaluate their own children as to maturity, strength, judgment and
ability to follow safety rules. Published age guidelines are not a substitute for
careful evaluation of your own child.
• Adults must teach children about thinking ahead while riding as this may be the
see through the child’s eyes, and verbally teach them about steering and avoiding
obstacles in the approved riding area.
• Riding a motorized ride-on toy can be a dangerous activity, even under the best
of circumstances. Good choices regarding where and when to ride, constant adult
supervision of riding, and practice and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and therefore it is
that no amount of care, instruction or expertise can eliminate.
• If this inherent risk is not acceptable, adults should not allow children to ride this
ride-on toy.
Safe Riding Warnings
• Not to be used by children under 36 months over 72 months.
• Do not exceed the maximum weight capacity of 66 lb (30 kg).
• Do not allow more than one (1) rider.
ADULTS AND SUPERVISORS, PLEASE NOTE:
1• Always instruct all children of common sense rules and safe practices.
3• Do not allow the child rider to operate the ride-on toy near streets, roads,
sidewalks, walkways, or any other place where they may encounter other
moving vehicles.
4• Never leave children unattended with this ride-on toy. Continuous adult
supervision is required.
INGWARN
INGWARN
5

5• If necessary, adults and supervisors are always responsible for setting up gates
and barriers to ensure a safe riding environment for the child rider.
6• Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
7• Sternly alert children that hands, legs, hair, and clothing can potentially get
caught in moving parts. Ensure they never place a body part or piece of clothing
near a moving part of the ride-on toy. Avoid loose clothing.
8• Instruct children to always wear shoes when using the ride-on toy.
into contact with any part of the ride-on toy while it is charging.
10. Firmly instruct children to use the ride-on toy in a safe manner. Unsafe
behaviors include, but are not limited to:
• Traveling at unsafe speeds
• Not riding in the seated position
• Riding at night or in any conditions of low visibility
• Riding in any wet conditions including rain, snow, and ice
• Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other
that involve notable risk
actions involving any notable risk
• Riding near any pool or open body of water
• Pushing, pulling, or shoving the driver in any way while operating the ride-on
toy
• Using the ride-on toy without the battery cover or any other safety cover fully
closed
• Pulling or hitching the ride-on toy with other similar moving ride-on toys or
products
6
INGWARN

Flammable and Explosive Materials Warnings
• Use of a battery or charger other than the supplied rechargeable battery and
battery and charger with the ride-on toy.
• Using the rechargeable battery and charger for any other product many
and charger with another product.
explosion. Avoid direct contact between the terminals. Lifting the battery
by the wires or charger can cause damage to the battery and may result in a
• Plug wall charger directly into a wall outlet. Do not use an extension cord
Electric Shock / Fire Warnings
liquids away from the battery and keep the battery dry.
or explosion and permanently damage the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
•Battery posts, terminals and related accessories contain lead and lead
compounds (acids) chemicals and are toxic and corrosive. Never open the
Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs with the skin or in the eyes, or if the chemical is
swallowed, call medical emergency immediately.
Corrosive Material Warnings
•
The following safety hazards may result in serious injury or death to the user
of the ride-on:
Battery and Charging Warnings
•

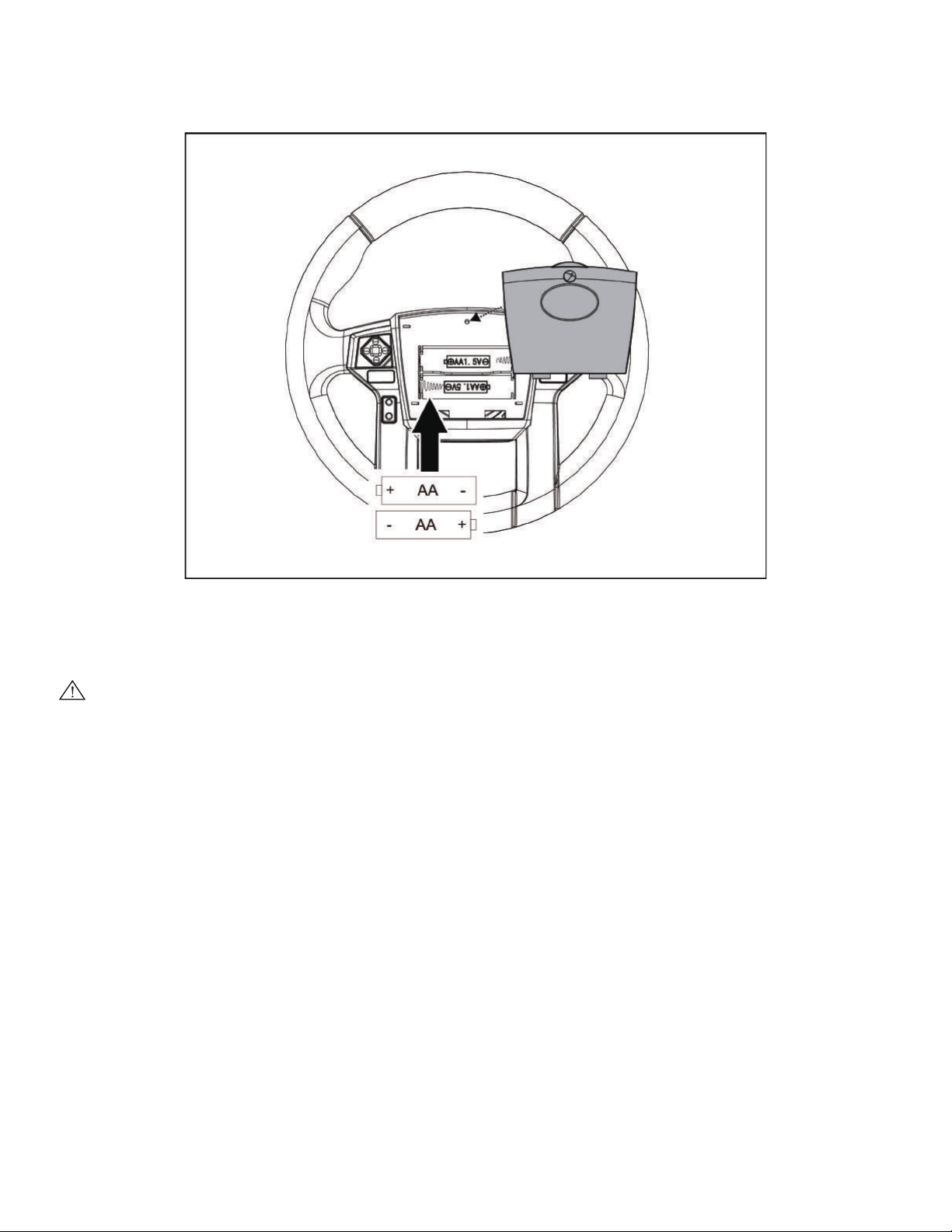

• Do not mix alkaline, standard (carbon-zinc), or rechargeable .yrettab
Do not mix old and new batteries.
battery.
7
INGWARN

• Regularly check charger, supply cord and connector for wear and damage.
Look for frayed or kinked wires, any exposed inner wires, any missing
insulation. If any damage is observed do not plug in the charger and do not
charge the battery.
Assembly Warnings
• The ride-on toy must be assembled by an adult who has read and
understands the instructions in this manual.
Choking hazard to children under the age of 3 years.
This ride-on toy contains small parts that are for adult assembly only. Keep
small children away when assembling.
• Remove and dispose of all protective materials, plastic bags and packaging
before assembly.
•
•
•
Re-Charge Interval and Time
Damage to the battery may occur if it is allowed to drain completely. Do not
allow the battery to drain completely.
Check the battery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the battery if damage has occurred. Do not
use an extension cord when charging the ride-on toy.
On average you will need to charge the battery for 8-12 hours and no more
than 20 hours. Failure to charge the battery as directed could cause
permanent damage to the battery and void the warranty.
Only an adult who has read and understands the safety warnings should
handle, charge and recharge the battery.
•
•
•
CAUTION
8
INGWARN
INGWARN

Model No.: 060-ROT-18L
Drive Motor: DC 12V x 2
Steering Motor: DC 12V x 1
Battery: 12V 4.5AH x 1
Charger input: 100 - 240V AC
Charger output: DC 12V 500MA
Speed: 1.2 - 2.5 mph (2 - 4 km/h)
Suitable Ages: 37 - 72 months
Maximum User Weight: 66 lb / 30 kg
Battery Charge Time: 8 - 12 hours
Operation Time: 40-60 Minutes
Main Material: PP (Polypropylene) , Metal (Iron)
9
Product Specication

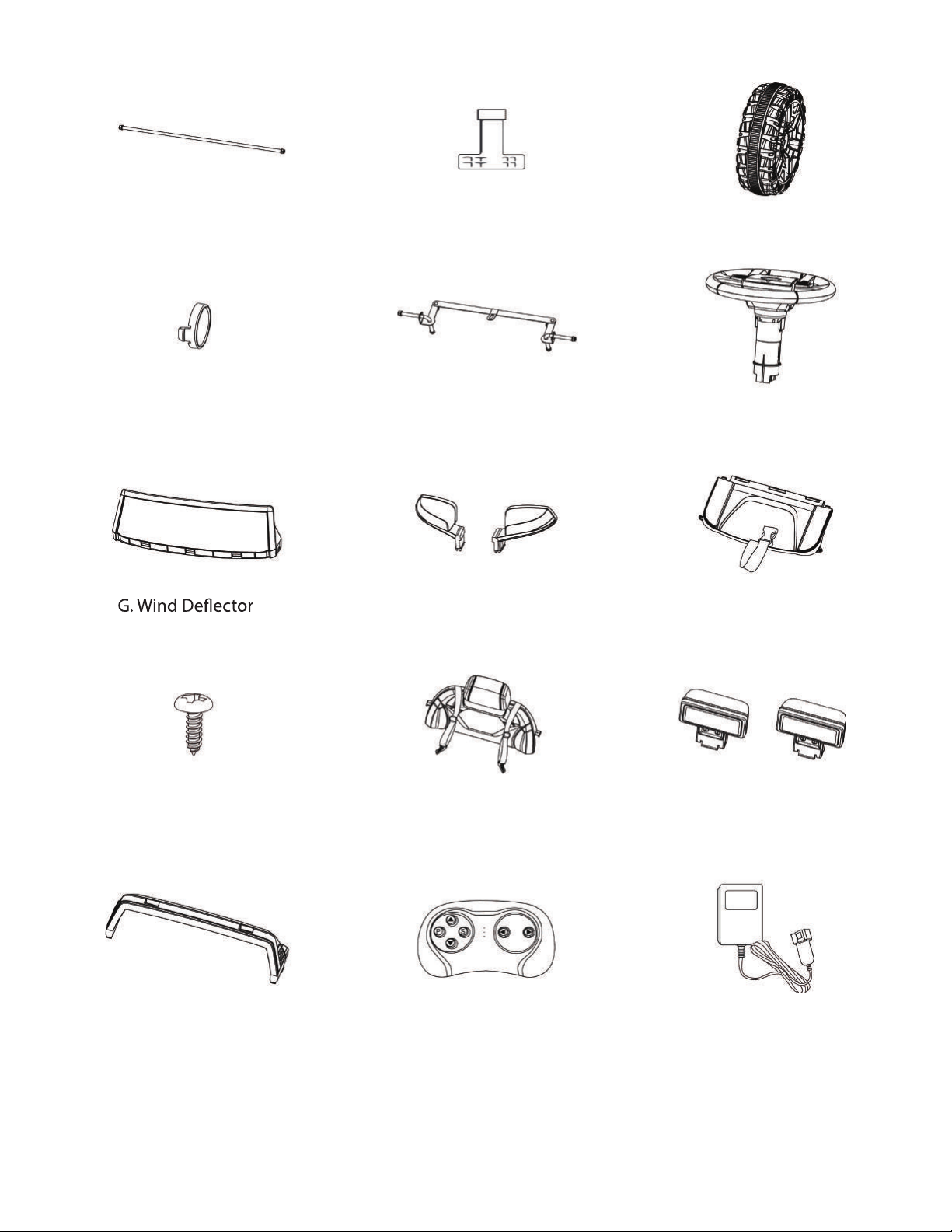

Parts and Feature

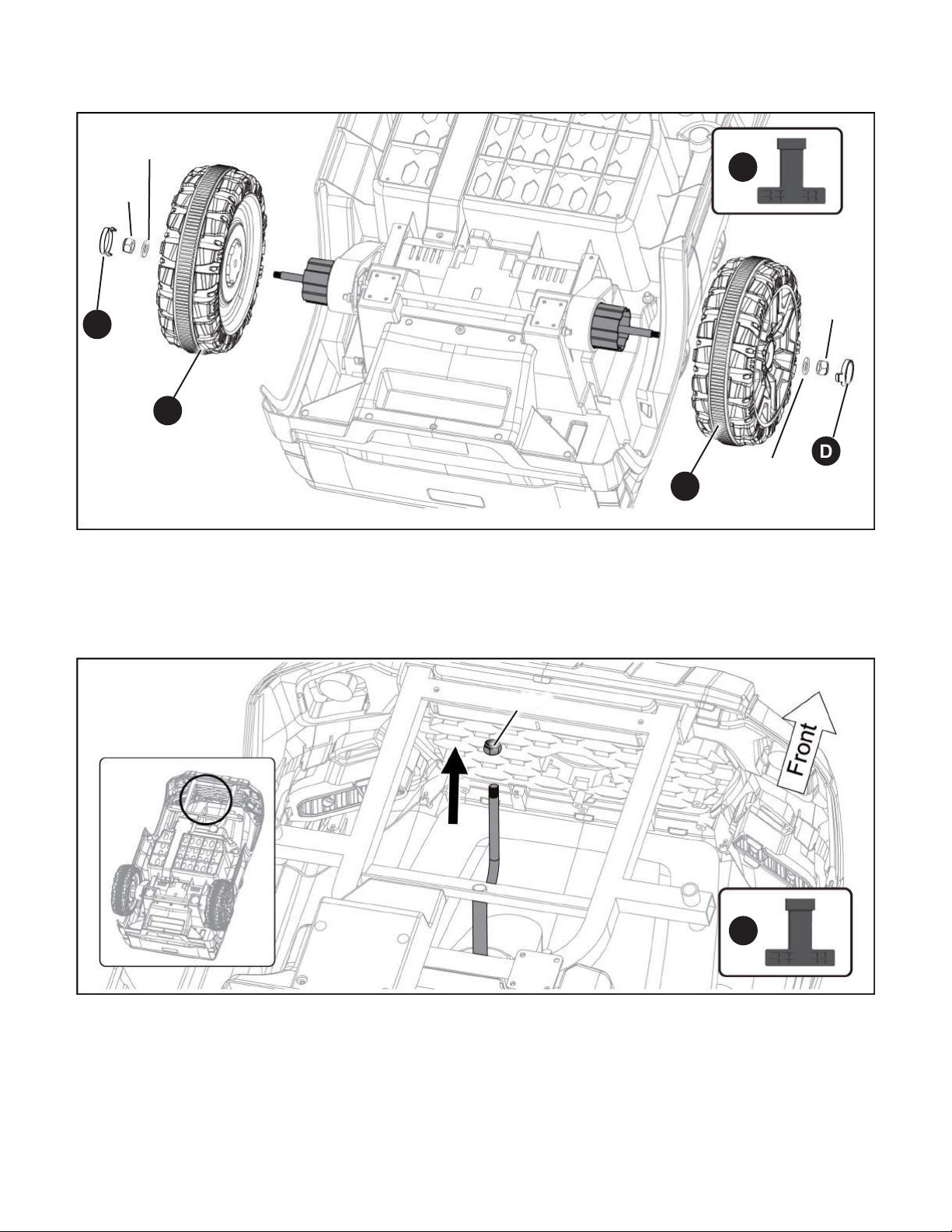

A. Rear Axle
1x
D . Wheel Cover
4x
1x
J. Self-Tapping Screw
4x
M. Tail Frame Lamp Holder
1x
B. M8 Socket Wrench
2x
E. Front Axle
1x
H. Rearview Mirror
1 pair
K. Backrest
1x
N. Remote Control
1x
C. Wheel
4x
F. Steering Wheel
1x
I. Seat
1x
L. Rear Lamp
1 pair
O. Charger
1x
Remark: 1) The M8 nuts (7 pcs) & washers (6 pcs) were pre-installed on the front/rear axle& steering axle.
2) The M5 screw(1pc) & M5 nut(1pc) were pre-installed on the steering wheel.
10

Assembly Instruction
• Remove the M8 nuts and washers from the rear axle (A).
• Insert the rear axle (A) through the car body and motor from one side to another.
This product should only be assembled by an adult.
Children can be harmed by small parts, sharp edges and points
or by electrical items. Care should be taken when unpacking and
assembling the vehicle.
WARNING!
A
A
M8 NutM8 Nut
Washer Washer
11

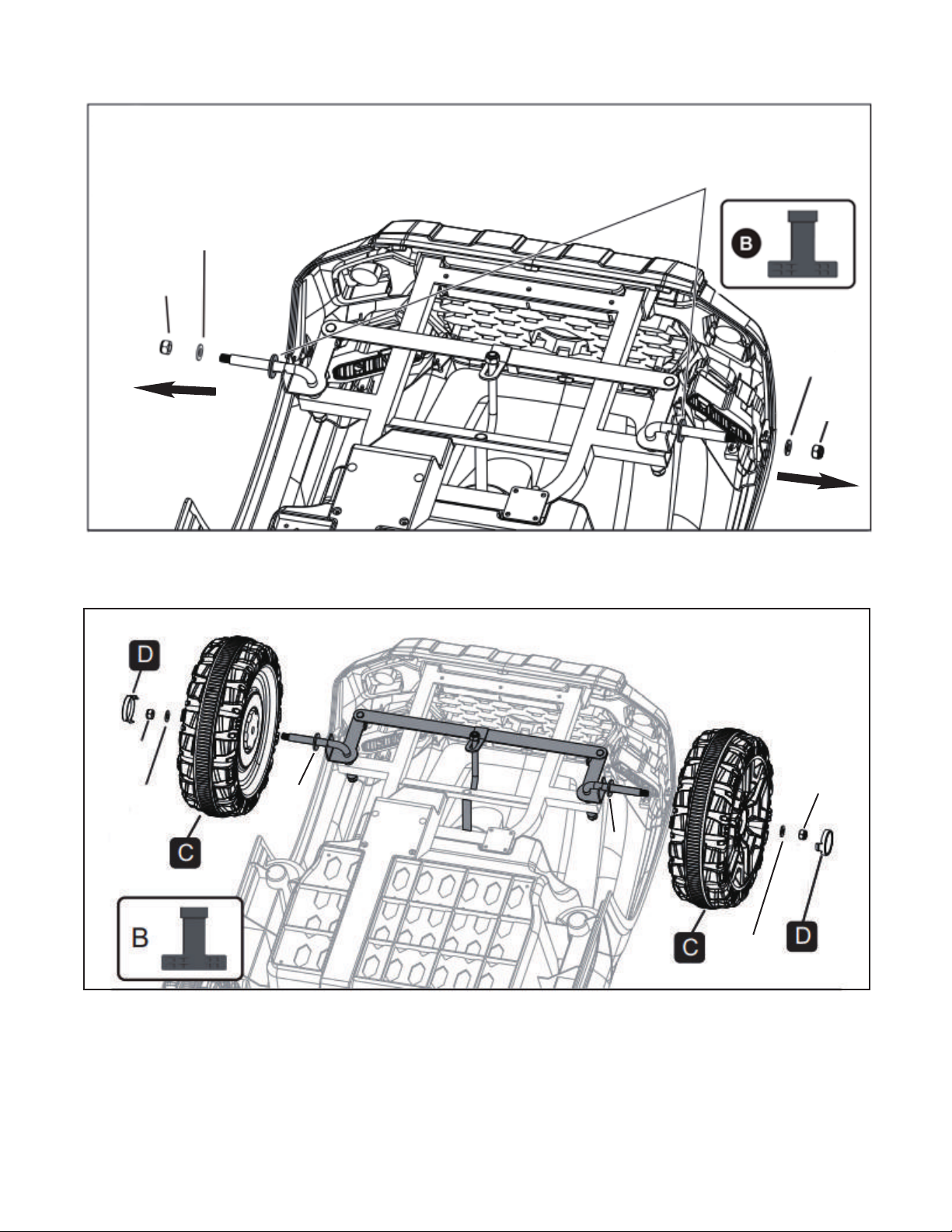

Assembly Instruction
•Assemble wheel (C) to the rear axle and secure with a washer and M8 nut.
• Attach the wheel cover (D) on the wheel.
• Repeat the same step on the other side.
• Remove the M8 nut from the steering axle using a M8 socket wrench.
C
D
B
B
D
C
M8 Nut
M8 Nut
M8 Nut
Washer
Washer
12

Assembly Instruction
• Attach the front axle (E) to the underbody frame and the steering axle and put back the M8 nuts
then secure them.
• Remove the M8 nut from the front axle (E) using a M8 socket wrench.
M8 Nut
M8 Nut
M8 Nut
M8 Nut
M8 Nut
E
E
13

Assembly Instruction
Remove washers and M8 nuts from the front axle.
B
• Assemble wheel (C) to the front axle and secure with a washer and M8 nut.
• Attach the wheel cover (D) on the wheel.
• Repeat the same step on the other side.
14
Washer
M8 Nut
Washer Washer
Washer
Washer
M8 Nut
M8 Nut
M8 Nut
Washer
Keep this one, not need to remove.
*

Assembly Instruction
• Unscrew the screw on steering wheel cover.
• Detach the steering wheel cover from the steering wheel, and attach 2 AA batteries into the battery slot.
• Secure the steering wheel cover back on the steering wheel.
• Do not recharge non-rechargeable battery.
• Battery should be inserted in the correct polarity.
• Remove and properly dispose or recycle dead battery.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
• Battery should only be changed by an adult who has read and understand the
safety warnings.
WARNING:
15

• Detach the screw and nut from the steering wheel (F).
• Attach the steering wheel to the steering axle, and secure the steering wheel in place using the screw
and nut removed previously.
•
Assembly Instruction
F
F
G
Screw
Screw
16
Nut
Nut

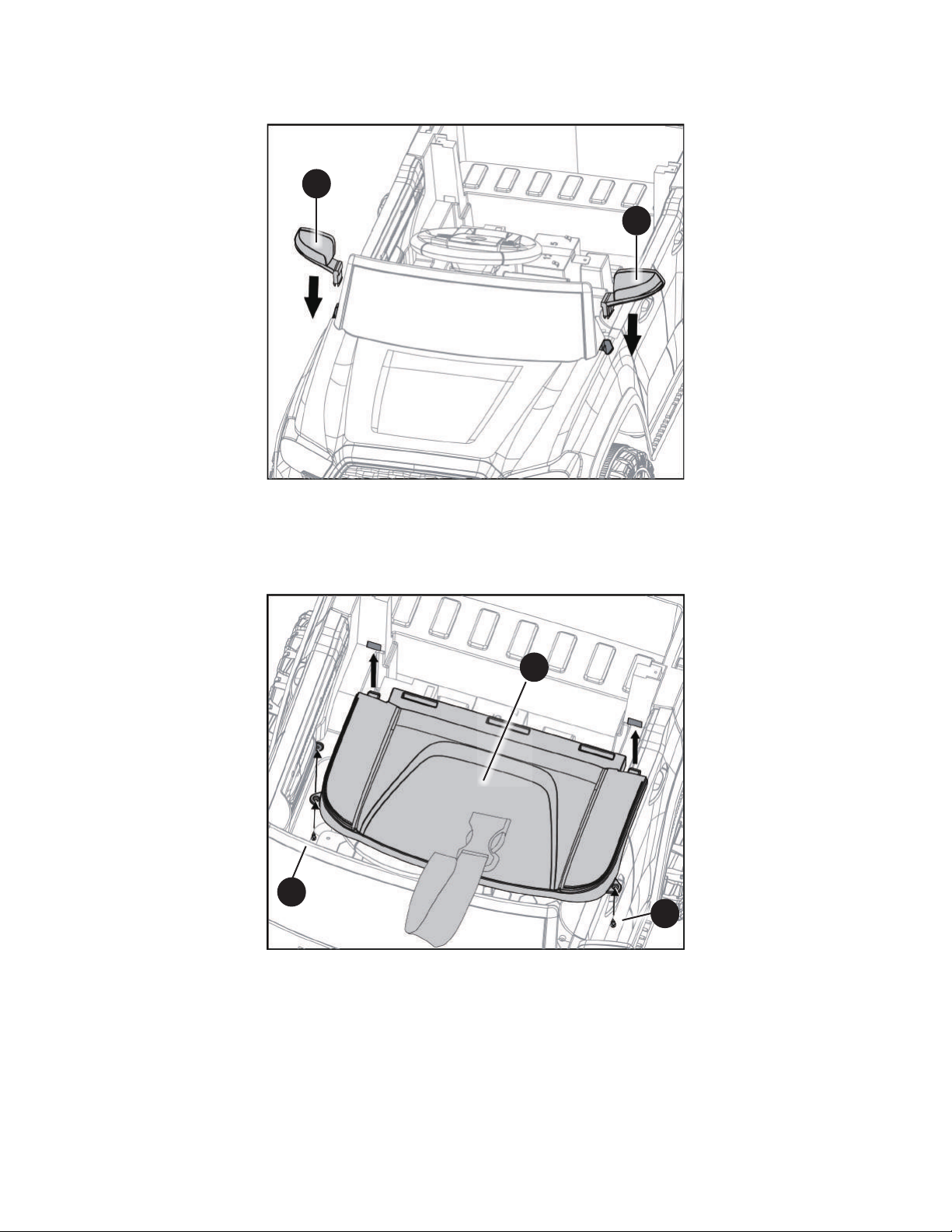

• Attach rear view mirror (H) to the car body.
• Align and insert the seat (I) to the slots of the car body.
• Secure the seat in place with 2 self-tapping screws (J).
Assembly Instruction
H
J
J
I
H
Remark: Please open the doors in order to have more enough space for easily assemble the seat.
17

Assembly Instruction
• Attach the backrest (K) to the car body using 2 self-tapping screws (J).
• Attach the rear lamp (L) to the tail frame lamp holder (M).
K
M
L
L
J
J
18

Assembly Instruction
• Attach the tail frame lamp holder (M) to the car body.
M
19

Assembly Instruction
• Locate the terminal cover in front of the seat.
• Connect the battery terminal to the car terminal.
• Close the cover.
The battery should only be connected by an adult.
WARNING!
20
