Kongsberg EM 2040 User manual

Installation manual
EM 2040
Slim Processing Unit

391932/C
April2015©KongsbergMaritimeAS
KongsbergEM2040
ProcessingUnit
Installation

KongsbergMaritimeAS
www.kongsberg.com
Copyright
©CopyrightKongsbergMaritimeAS
TheinformationcontainedinthisdocumentremainsthesolepropertyofKongsbergMaritimeAS.Nopart
ofthisdocumentmaybecopiedorreproducedinanyformorbyanymeans,andtheinformationcontained
withinitisnottobecommunicatedtoathirdparty,withoutthepriorwrittenconsentofKongsberg
MaritimeAS.Thedocument,oranypartofit,maynotbetranslatedtoanyotherlanguagewithoutthe
writtenapprovalfromKongsbergMaritimeAS.
Disclaimer
KongsbergMaritimeASendeavourstoensurethatallinformationinthisdocumentiscorrectandfairly
stated,butdoesnotacceptliabilityforanyerrorsoromissions.
Warning
Theequipmenttowhichthismanualappliesmustonlybeusedforthepurposeforwhichitwasdesigned.
Improperuseormaintenancemaycausedamagetotheequipmentand/orinjurytopersonnel.Allusers
mustbefamiliarwiththecontentsoftheappropriatemanualsbeforeattemptingtoinstall,operate,
maintainorinanyotherwayworkontheequipment.
KongsbergMaritimeASdisclaimsanyresponsibilityfordamageorinjurycausedbyimproperinstallation,
useormaintenanceoftheequipment.
Supportinformation
Ifyourequiremaintenanceorrepair,contactyourlocaldealer.Youcanalsocontactususingthefollowing
address:[email protected].Ifyouneedinformationaboutourotherproducts,
visithttp://www.km.kongsberg.com.

391932/C3
Tableofcontents
ABOUTTHISMANUAL..............................................................5
KONGSBERGEM2040..............................................................7
SystemDescription............................................................................................................7
Systemdiagram..................................................................................................................9
Systemunits.....................................................................................................................12
Transducerdescription...........................................................................................12
EM2040ProcessingUnitdescription....................................................................13
HydrographicWorkStationdescription.................................................................13
Ethernetswitch.......................................................................................................13
RemoteControlUnit(K-Rem)description............................................................14
CABLELAYOUTANDINTERCONNECTIONS.............................15
Readthisrst...................................................................................................................16
Cableplans.......................................................................................................................17

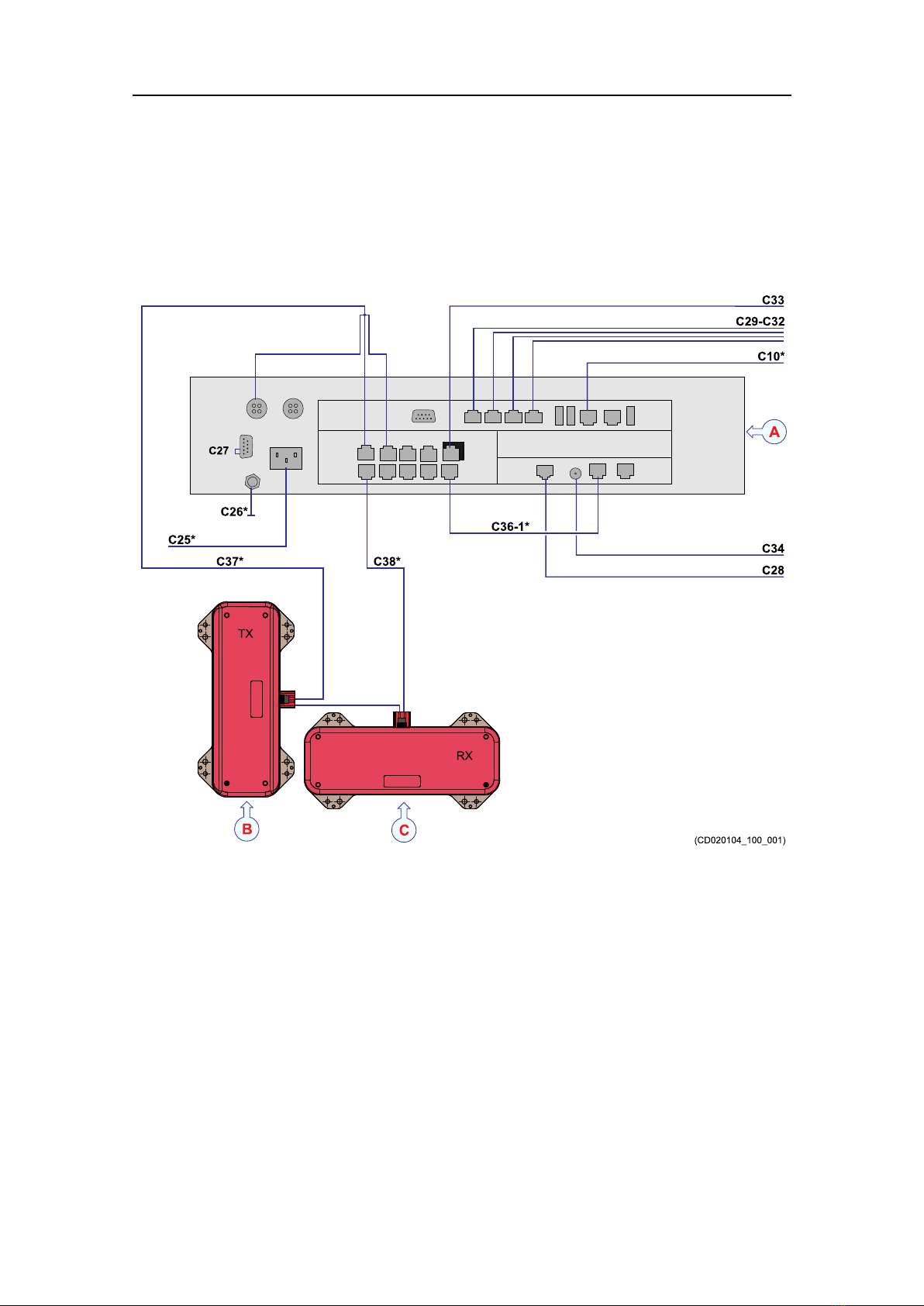

SingleRXcableplan,ProcessingUnit..................................................................18
DualRXcableplan,ProcessingUnit.....................................................................19
DualTXcableplan,ProcessingUnit.....................................................................20
SingleRXwithdualswathcableplan,ProcessingUnit........................................21
DualRXwithdualswathcableplan,ProcessingUnit...........................................22
Topsidecableplan..................................................................................................24
ListofEM2040cables....................................................................................................25
Cabledrawingsandspecications...................................................................................27
RS–232seriallineusingthree3wiresandRJ45connector..................................28
RS-422seriallineusingvewiresandRJ45connector........................................29
1PPS(Onepulsepersecond)usingacoaxcable...................................................30
Remotecontrol.......................................................................................................32
RemoteControlusingK-Rem................................................................................33
Notusingtheremotecontroloption.......................................................................34
ExternalSynchronization.......................................................................................35
Transmittransducercable.......................................................................................39
Receivetransducercable........................................................................................42
TXtoRXtransducercable.....................................................................................45
TXtodualRXtransducercable.............................................................................48
DRAWINGFILE......................................................................51
ProcessingUnitdimensions.............................................................................................52
HydrographicWorkStationoutlinedimensions..............................................................53
RemoteControlUnit(K-REM)outlinedimensions........................................................55
TECHNICALSPECIFICATIONS................................................57
Installation

4391932/C
Weightsandoutlinedimensions......................................................................................57
KongsbergEM2040

391932/C5
Aboutthismanual
ObservethisgeneralinformationabouttheEM2040Installation;itspurposeandtarget
audience.
Purpose
Thepurposeofthismanualistoprovidetheinformationandbasicdrawingsrequiredfor
thephysicalinstallationoftheEM2040.
FormoredetailedinformationaboutthepracticaluseoftheEM2040,refertothe
Operatormanualand/ortheReferencemanual.
Targetaudience
Themanualisintendedfortechnicalpersonnel;suchasskilledshipyardworkers,
electricians,qualiedengineersandnavalarchitects.Itisassumedthatyouunderstand
thegeneralprinciplesofmaritimeelectronicequipment.Youmustalsobefamiliarwith
computerhardware,interfacetechnologyandinstallationofelectronicandmechanical
products.
Weassumethatyouarefamiliarwiththebasicacousticprinciplesofsoundinwater,
andthatyouhavesomeexperiencewithmultibeamand/orsinglebeamechosoundersin
hydrographicapplications.
Installationinstructions
Youmustfollowtheinstructionsinthismanualtoensureoptimalperformance.Asa
guide,installationproceduresarepresentedintheordertheymustbedone.
Theequipmentdescribedinthismanualincludesthecompletesystemwithrelevant
cabinets.Unitsprovidedlocallybythecustomer,installationshipyardorlocal
representativearenotdescribed.
Themanualalsodenestheequipmentresponsibility,andprovidesapplicable
instructionsforunpackingandstorageofunits.
Aboutthismanual

6391932/C
Note
Youmustfollowtheinstructionsgiveninthismanual.Ifnotitmayaffectthewarranty.
KongsbergMaritimeASwillacceptnoresponsibilityforanydamageorinjurytothe
system,vesselorpersonnelcausedbyequipmentthathasbeenincorrectlyinstalledor
maintained,orbydrawings,instructionsorproceduresthathavenotbeenprepared
byus.
Installationdrawings
Thecustomer,ortheshipyardcontractedtodotheinstallation,mustproviderelevant
detailedvesselspecicmechanicaldrawings.
Note
Ifrequired,alldrawingsprovidedbytheshipyardforthephysicalinstallationof
theEM2040mustbeapprovedbythevessel’ snationalregistryandcorresponding
maritimeauthorityand/orclassicationsociety.Suchapprovalmustbeobtainedbefore
theinstallationcanbegin.Theshipownerandshipyarddoingtheinstallationare
responsibleforobtainingandpayingforsuchapproval.
KongsbergMaritimeASmay,onspecialorder,provideassistancetothesedrawings.
Applicablegenericoutlinedimensionandproductionsdrawingsareprovidedinthe
Drawinglechapter.
On-lineinformation
ForinformationabouttheEM2040andotherproductsfromKongsbergMaritime,
visitourwebsiteon
•http://www.km.kongsberg.com
Registeredtrademarks
Observetheregisteredtrademarksthatapply.
Windows®,WindowsXP®,andWindows®7areeitherregisteredtrademarks,or
trademarksofMicrosoftCorporationintheUnitedStatesand/orothercountries.
KongsbergEM2040

391932/C7
KongsbergEM2040
Topics
SystemDescription,page7
Systemdiagram,page9
Systemunits,page12
SystemDescription
TheKongsbergEM2040isanadvancedmultibeamechosounder.
Keyfeaturesinclude:
•Frequencyrangefrom200to400kHz
•FMchirpallowingmuchlongerrangecapability(depthandcoverage)compared
toCWpulses
•Completeroll,pitchandyawstabilization
•Neareldfocusingonbothtransmitandreceive
•Operateswithveryshortpulselengths–shortestpulseis25microseconds
•Thedepthratingofthesubseapartsis6000metres
•IHO-S44specialordercompliant
•TheEM2040hastwoTXarraysizes:
–EM2040-04(0.4degreesat400kHz)
–EM2040-07(0.7degreesat400kHz)
TheEM2040multibeamechosounderistherstsystemtobringalltheadvanced
featuresofdeepwatermultibeamstothenearbottomsoundingenvironment.
TheEM2040operatingbandwidthisfrom200to400kHz,whichisafulloctave,and
thisisachievedusingthestandardtransducers.Threestandardmodesareavailable.300
kHzisusedfornormaloperation,givinganoptimumbalancebetweenhighresolution,
KongsbergEM2040

8391932/C
depthcapabilityandtoleranceofperformancedeterioratingfactorssuchaswatercolumn
sediments.200kHzisavailableformeetingrequirementstooperateatthestandard
hydrographicsinglebeamfrequency,butalsotoachievethebestdepthcapability.400
kHzisprovidedforinspectionworkwiththeutmostresolution.
EM2040hasthefunctionalityofthelowerfrequencyEMsystems,andthesmallsizeand
weightadvantageofthehighfrequencysystems,aswellasbeamwidthof0.4degrees.
FMpulsesareusedtoincreasethemaximumrangecapabilitywithoutsacricing
resolution.Example:12msFMwith1.7kHzsweepbandwidthcomparedto600usCW
pulse(1.7kHzbandwidth):Theresolutionisthesamesincethebandwidthisthesame.
ThesignaltonoiseratioinFMmodeisincreasedby13dB.Thishasthesameeffectas
increasingthetransmitpowerlevelby13dB.Therangeresolution(denedascT/2)for
600usCWpulseis45cm.A4.5msCWpulsewouldgivethesamecoverageas12ms
FM.ButthisCWpulsewouldgivearangeresolutionof200cm(=4.5*45cm).
Thenormallyrecommendedsurveyfrequencyis300kHz.Atthisfrequencythe
bandwidthusedismorethan75kHzwiththreeangularsectorsrunningatseparate
frequencies.Withdualswathsixfrequenciesareused(withshortestpulsethetotal
bandwidtusedismorethan100kHz).Theminimumpulselengthis70microsecondsin
threesectors,andreducedto35microsecondsusingonesector.With35μspulsethe
rangeresolution(denedascτ/2)is26mm.FordeepwatersFMchirpisemployedwith
abandwidthof1.7kHz.Thisallowsaswathwidthintheorderof600mandadepth
capabilityofabout400mincoldoceanwaters.
The200kHzfrequencymodeissimilartothe300kHzmode.ItusesthesameCWpulse
lengths,whiletheFMchirppulselengthisincreased.Therangeanddepthresolutionis
thesame.Normallytwosectorsareusedperswath,butsinglesectorcanalsobeused.At
thisfrequencytheabsorptioninthewaterislowerthanat300kHz,resultinginincreased
swathwidthanddepthcapability.IncoldoceanwaterswithFMchirpaswathwidthof
700mcanbeexpectedandapproximately500mdepthcapability.
The400kHzfrequencymodeisintendedforhighresolutioninspectionwork.Veryshort
transmitpulsesandwidereceiverbandwidthisused.Theoperatormayselectbetween
oneandthreetransmitsectors.WithasingleRXtransducerthecoveragelimitis120
degrees(±60degrees),andwithdualRXthecoverageis180degrees(±90degrees).The
shortestpulseusedis25μsgivingarangeresolutionlessthan20mm(cτ/2).Itisalso
possibletorundualswath,butnotusingtheshortestpulselength.
TheEM2040ismodular,allowingtheusertotailorthebeamwidthstotheoperational
requirements,0.4by0.7degreesor0.7by0.7degrees.Thetransmitfanisdividedinto
threesectorspingingsimultaneouslyatseparatefrequencies.Thisensuresaverystrong
andbenecialdampeningofmultibounceinterferencewhichonsimplersystemsoften
isseenatbeamanglesfrom60degreesandoutwards.TheEM2040hasdualswath
capability,allowingasufcientsoundingdensityalongtrackatareasonablevesselspeed.
EM2040alsohasascanningmode,i.e.onesectoristransmittedatatime,givingthe
possibilitytousetheshortestpulselengthwhilestillkeepingthefullswathcoverage.
ThestandarddepthratingoftheEM2040subseapartsis6000m.Thesystemisideal
foruseonsubseavehiclessuchasAUVsorROVs.Allanalogelectronicsarecontained
KongsbergEM2040

391932/C9
inthetransducers,andcommunicationtothetopsideprocessingunitisonstandard
Ethernet.Forsubseavehicleusetheprocessingunitmaybeinstalledinapressurerated
tankwithaninnerdiameterassmallas230mm.
FormoreinformationabouttheuseofEM2040onROVsandAUVspleaseseethe
followingapplicationnotes(documentnumbersinbrackets):
•HighResolutionBathymetryfromROVMountedEM2040[368428]
•HighResolutionBathymetryfromROVMountedEM2040andHAINInertial
Navigation[368429]
Systemdiagram
ThesystemdiagramidentiesthemaincomponentsoftheEM2040system,aswell
asthekeyconnectionsbetweentheseunits.Interfacecapabilitiesandpowercables
arenotshown.
ThestandardEM2040multibeamechosoundersystemconsistsofonetransmit
transducer,onereceivetransducer,oneProcessingUnit(PU)andoneHydrographic
WorkStation(computer).
Acompletesystemforseabedmappingwillinadditionincludeatransducermounting
plate,amotionsensor,aheadingsensor,asoundvelocitysensorandapositioningsystem.
KongsbergEM2040

10391932/C
(cd020104_101_001)
TX
RX
KongsbergEM2040

391932/C11
AHydrographicWorkStation
BInterfaces:
•Soundspeedsensor
•Tide
•Centerdepthoutput
CProcessingUnit(PU)
DProcessingUnitinterfaces:
•Positioningsystems
•Attitude(roll,pitchandheave)
•Velocity
•Heading
•Clock
ProcessingUnitspecialinterfaces:
•Triggerinput/output
•Clocksynchronization(1PPS)
EEthernet
FTXtransducercable(Ethernet/power)
GRXtransducercable(Ethernet)
HTXtoRXtransducercable(synchronization/power)
ITransmittransducer(TX)
JReceivetransducer(RX)
KongsbergEM2040

12391932/C
Systemunits
TheEM2040comprisesamodularsetofelectronicunits.
Topics
Transducerdescription,page12
EM2040ProcessingUnitdescription,page13
HydrographicWorkStationdescription,page13
Ethernetswitch,page13
RemoteControlUnit(K-Rem)description,page14
Transducerdescription
Thetransducersarethedevicesthattransmitsoundintothewaterandreceivethe
echo.Theyarefullywatertightunitsintendedformanyyearsoftrouble-freeoperation
inroughseas.
TheEM2040consistsofseparatetransducersfor
transmitandreceive.
Thesystemmaybedeliveredindifferentversions
withdifferenttransmissionbeamwidth.Thestandard
typesare:
•EM2040-04(0.4degreesat400kHz)
•EM2040-07(0.7degreesat400kHz)
Note
Theredprotectivecoatingisanvitalpartofthetransducer.Itisveryimportantthat
neitherthiscoatingnortheinternalpartsofthetransduceraredamagedduringthe
handling,installationorcleaning.Anyholesand/orscratchesinthetransducersurface
willallowwatertopenetratethetransducer.Ifaleakoccurs,thetransducermustbe
replaced.
Atransducermustalwaysbehandledasadelicateitem.Anywrongfulhandlingmay
damagethetransducerbeyondrepair.
Observetheserules:
1Donotactivatethetransducerwhenitisoutofthewater.
2Donotliftthetransducerbythecable.
3Donotsteponthetransducercable.
4Donothandlethetransducerroughly,avoidimpacts.
KongsbergEM2040

391932/C13
5Donotexposethetransducertodirectsunlightorexcessiveheat.
6Donotusehighpressurewater,sandblastingormetaltoolstocleanthetransducer
face.
7Donotusestrongsolventstocleanthetransducerface.
8Donotdamagetheouterprotectiveskinonthetransducer.
EM2040ProcessingUnitdescription
TheEM2040ProcessingUnitisprovidedtoprocessthesignalstoandfromthe
transducer(s).
TheEM2040ProcessingUnitisanindustrial
computerusingbothCOTS(commercialoff-the-shelf)
componentsandcustommadecomponents.Theunitis
designedandtestedforruggeduse.TheProcessingUnitisthecentralcontrollingdevice
intheEMmultibeamsystem.ItadministersthetransmittalofpingsviatheTXunit(s)
andreceptionofdatafromtheRXunit(s).
Theprocessingunitalsosupplies48Vdcpowertothetransducer(s).
HydrographicWorkStationdescription
TheHydrographicWorkStationisamaritimecomputer.Itcontainstheoperational
software,andofferstheuserinterfacethatallowsyoutocontroltheEM2040system.
Adedicatedmaritimecomputerisprovidedwith
theKongsbergEM2040system.Itissetupwithall
necessarysoftware.
ThecomputerisbasedontheMicrosoft®Windows®
7operatingsystem.
Thecomputerisnormallymountedonthebridgeor
inascienticlaboratory.
Inthispublication,thecomputerisreferredtoastheHydrographicWorkStation.
Ethernetswitch
AhighcapacityEthernetswitchissometimesrequired.
IfyouusemorethanoneProcessingUnitinyourEM2040system,youmustusean
EthernetswitchtoconnecteachProcessingUnittotheHydrographicWorkStation.
AhighcapacityEthernetswitch(1000BASE-T)isincludedintheEM2040delivery.
KongsbergEM2040

14391932/C
Note
ItisveryimportantthathighqualityEthernetcablesareusedeverywhere.Youmust
useCAT-5Ecablesorbetter.Cableswithlowerbandwidthcapacitywillreducethe
EM2040performance.
1000BASE-T(alsoknownasIEEE802.3ab)isastandardforgigabitEthernetover
copperwiring.Each1000BASE-Tnetworksegmentcanbeamaximumlength
of100meters(330feet),andmustuseCategory5cableorbetter(includingCat
5eandCat6).
Wikipedia,April2014
RemoteControlUnit(K-Rem)description
Adedicatedjunctionboxhasbeendesignedtoprovideremoteon/offswitcheswithlight
indicationandinterfacetoaremotesynchronizingsystem.Thejunctionboxcontainsa
terminalblockandfourswitcheswithlampsmountedinthefront.
Note
TheRemoteControlUnitisnotastandardpartof
theEM2040delivery.
TheRemoteControlUnitiscalledK-Rem.Itis
preparedforremotecontrolandinterfacetoanexternalsynchronizationsystemfor
thefollowingKongsbergechosounders:
•OneSub-bottomproler(SBP120orSBP300)
•TwoEMmultibeamechosounders
•OneEAsinglebeamechosounder
TheRemoteControlUnitisdesignedtobemountedina19inchrack,butitisalso
possibletomountitonaatsurfaceorinabulkhead.Itisalsopreparedformounting
ontelescopicrails.
KongsbergEM2040

391932/C15
Cablelayoutand
interconnections
Cablingprinciples,cableplansanddrawings,aswellasrelevantprocedures,are
provided.
Topics
Readthisrst,page16
Cableplans,page17
ListofEM2040cables,page25
Cabledrawingsandspecications,page27
Cablelayoutandinterconnections

16391932/C
Readthisrst
Detailedinformationaboutcablespecications,terminationandconnectorsisprovided.
Unlessotherwisespecied,allcablesaresuppliedbyKongsbergMaritimeasapart
oftheEM2040delivery.
Note
Allelectronicinstallationsandcorrespondingwiringmustbeinaccordancewiththe
vessel'snationalregistryandcorrespondingmaritimeauthorityand/orclassication
society.Ifnosuchguidelinesexist,werecommendthatDetNorskeVeritas(DNVGL)
ReportNo.80-P008"GuidelinesforInstallationandProposalforTestofEquipment"
isusedasaguide.
OnlytrainedandauthorizedpersonnelcaninstalltheEM2040cables.
KongsbergMaritimewillnotacceptanyresponsibilityforerrors,malfunctionsor
damagetosystemorpersonnelcausedbyimproperwiring.
Adetaileddrawingforeachspeciccableisprovided.Eachdrawingprovidesadditional
information,andmay,whenapplicable,includeminimumspecications,connector
terminationsandtherequirednumberofcores.
Drawingsaregenerallynotprovidedforstandardcommercialcables.
Cablesfallintotwocategories.
1Systemcables:ThesecablesareprovidedbyKongsbergMaritimeasapartofthe
EM2040delivery.
2Shipyardcables:Thesecablesmustbeprovidedbytheshipyardperformingthe
installation,ortheshipowner.Itisveryimportantthatthecablesusedmeetthe
minimumspecicationsprovidedinthismanual.
KongsbergMaritimeacceptsnoresponsibilityfordamagetothesystemorreduced
operationalperformancecausedbyimproperwiring.
Note
Itisveryimportantthatallcablesareproperlyinstalledandcorrectlyterminated.
Observetherelevantregulationsandworkstandards.Alwaysleaveenoughcableslack
closetosystemunitsandcabinetstoallowformaintenance.
KongsbergEM2040

391932/C17
Cableplans
Topics
SingleRXcableplan,ProcessingUnit,page18
DualRXcableplan,ProcessingUnit,page19
DualTXcableplan,ProcessingUnit,page20
SingleRXwithdualswathcableplan,ProcessingUnit,page21
DualRXwithdualswathcableplan,ProcessingUnit,page22
Topsidecableplan,page24
Cablelayoutandinterconnections

18391932/C
SingleRXcableplan,ProcessingUnit
TheprocessingunitcablesincludethoseusedtoconnecttheEM2040processingunit
toACmainspower,andtothetransducer.OneEthernetcableisusedtoconnectthe
processingunittotheHydrographicWorkStation.
C27
(CD020104_100_001)
C28
C34
C29-C32
C10*
C33
C25*
C39*
C38*
C37*
C36-1*
TX
RX
C26*
A
BC
AProcessingUnit
BTransmitTransducer(TX)
CReceiveTransducer(RX)
Cablesidentiedwithanasterisk(*)areprovidedwiththestandardEM2040delivery.
KongsbergEM2040
