Kumpan electric 1953 User manual

User manual

Safety intructions important information
basic safety rules
check before your first ride
first steps
The Kumpan 1953
overview
location of controls and dispaly
electrical control left
electrical control right
display
ignition switch and steering lock
bag hook
vehicle identification number
seat lock and storage compartment
Operation / Driving charging the batteries in the vehicle
charging status indicator
charging the Batteries - hints
safety instructions
mirrors
starting the engine
acceleration
safe driving and stopping
first drives
boost function
cruise control
stopping / parking
using the stand
Contents
6
8
13
14
16
18
19
20
21
24
25
26
27
28
29
30
31
32
34
34
36
37
42
44
46
47
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P .
P .
P.
P.
P.
P.
P.
P.

3
Maintenance lighting
-front light
-turn signals front and rear
-rear light
batteries and wiring
brakes
-Front and rear brake
main switch / main fuse
Cleaning and care
Accessories top case
Troubleshooting
Technical Specifications
removing batteries
storage rack
48
50
52
52
56
58
60
62
63
65
66
68
72
74
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.
P.

Congratulations to your Kumpan electric 1953!
We wish you much fun and joy with your new Kumpan.
KUMPAN would like to thank you
We have written this manual to enable you to get the most out of it. Please read it carefully
before riding your motocycle for the first time. It contains information, advice and precautions
regarding the use of your vehicle.You will discover features, details and devices wich will
reassure you that you have made the right choice.We believe that if you follow our suggestions
you will soon find yourself in harmony with your new vehicle, and ride it fully satisfied for
a long time.
The instructions contained in this booklet were written to provide simple and clear guide for
use of the vehicle you will also find small maintenance operations and periodic cheks you
shoud have done at your Autorized KUMPAN store or Dealer as well as intructions for some
simple repairs. Procedures not described in detail here require the use of special tools and /
or specific technical knowledge: you are therefore advised to have them carried out at an
Autorized KUMPAN store or Service Center.
Prolog

5

Safety instructions
When using this vehicle the following papers
need to be with the vehicle or carried by the driver:
• Identity card
• Driving license
• Insurance papers
• License Plate
Warning:
Rules on the road vary from country to country and state to
state. It is essential that you understand in advance the rules
of the road of the country and state in which your vehicle will
be used. The use of the vehicle may be restricted by provincial
authorities to certain roads.

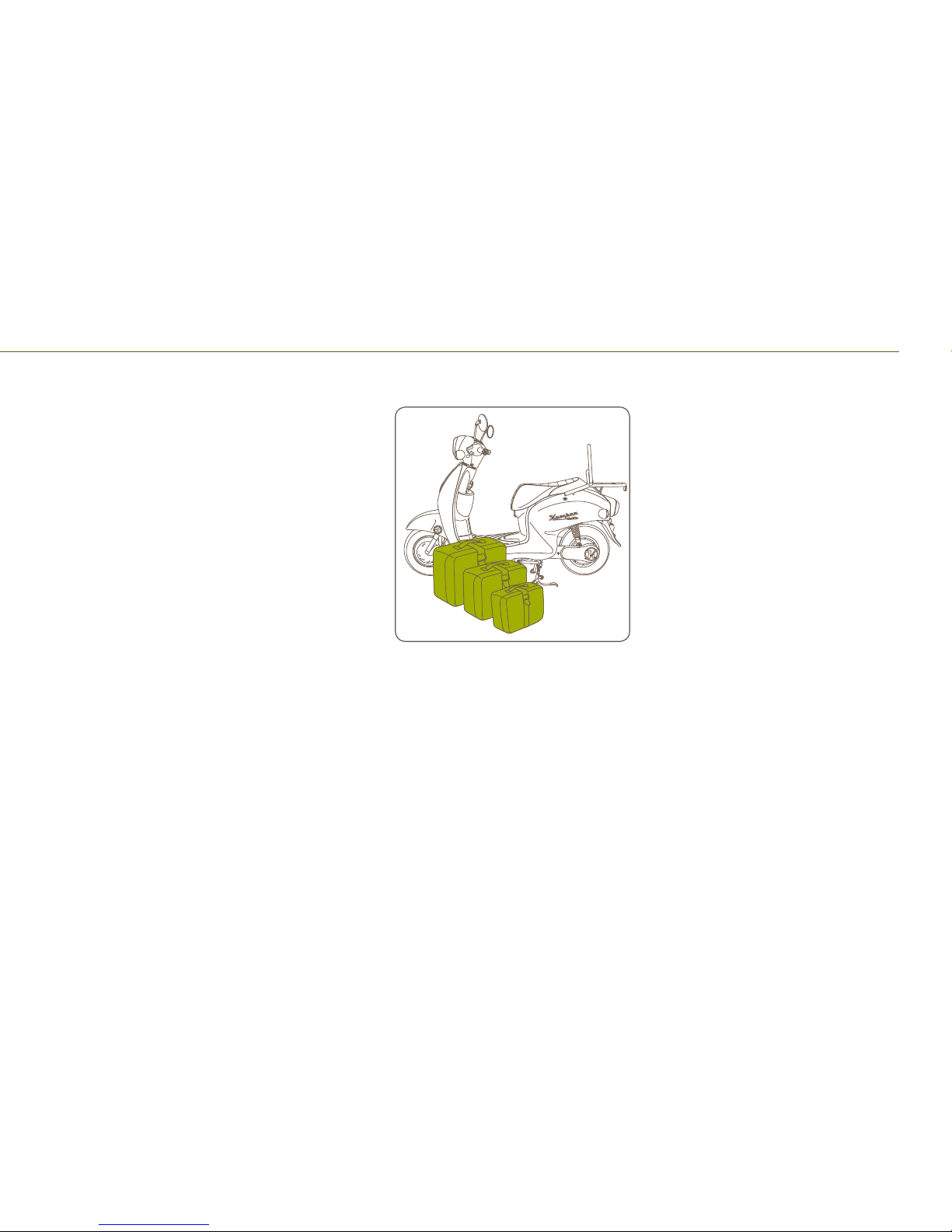

The scooter is designed to operate as a single seater.
Riding with a passenger is not permitted!
This scooter has been Designed and produced for use on even
and paved roads or surfaces only. Do not use the scooter
on unpaved surfaces, in order to avoid overturning or other
accidents.
Modification of any part of characterristic with the intent of
increasing its power or performance is prohibited. Modifica-
tions of this type are illegal. There is also the risk of serious-
ly damaging the scooter, and worse, such modifications can
Important information:
make it unsafe, leading to possible falls or accidents, with
serious or even fatal injuries. In addition, this type of modifi-
cation results in the immediate and total voiding of the war-
ranty. Please contact your Kumpan store or dealer to determi-
ne which accessories can be installed without impacting the
performance and voiding the warranty.
Caution:
Caution: Modification of any part or characteristic with the
intent of increasing its power or performance is prohibited.
Modifications of this type are illegal. There is also the risk of
seriously damaging the scooter, and worse, such modifica-
tions can make it unsafe, leading to possible falls or accidents,
with serious or even fatal injuries. In addition, this type of
modification results in the immediate and total voiding of the
warranty. Please contact your Kumpan dealer to determine
which accessories can be installed without impacting
the performance and voiding the warranty.

7
The vehicle identification number of the scooter are:
• Vehicle Identication Number (see page 26)
• Engine number (see page 17)
Before every ride the scooter should be checked about its road
safety. This test includes:
- Function of the brake
- Correct tire pressure
- Function of all signal and lighting systems
- General functional condition
To increase the output of motor or controller is punishable by
law. You endanger your own safety, as well as the operational
safety of the vehicle. The lifetime of your vehicle will be re-
duced. In addition, the insurance coverage, EC-Certicate of
Conformity (COC), as well as the warranty expire.

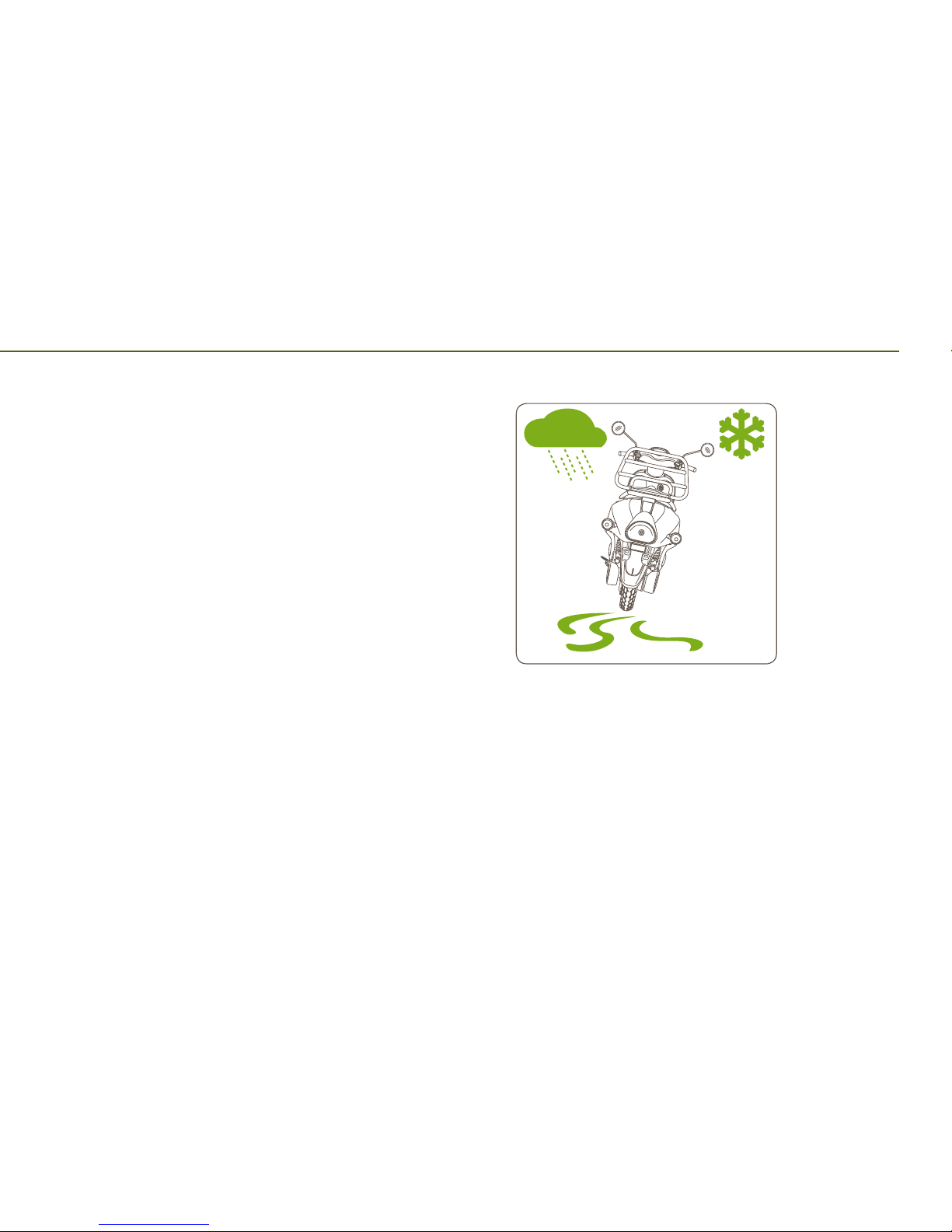

Use extra care during bad weather rides (fog, Snow, ice).
Always drive with caution appropriate to the weather
conditions and road conditions.
After long rides in rain and after washing the vehicle, water
may delay the reaction of the brake system.
Therefore, please regulary use the brake system gently during
rides in rainy conditions.
After washing the vehicle please use the brakes „dry braking“
before starting your ride.
Warning:
In freezing temperatures please test all functions of your
brake system befor using your vehicle.

Safety instructions
Always follow the national and local
traffic regulations. Avoid sudden
changes of direction with your vehicle
or Any actions that could endanger
your own safety Or the safety of
other road users.
The risk of accidents significantly
increases when taking drugs or
alcohol. If your physical and mental
health is affected, don’t use
the vehicle. Please also don’t use
the vehicle when feeling fatigue or
restlessness.
Basic safety rules:
Most accidents are caused by the
inexperience of the driver.
Always make sure that the driver is
capable and has the knowledge to
drive your vehicle.

9

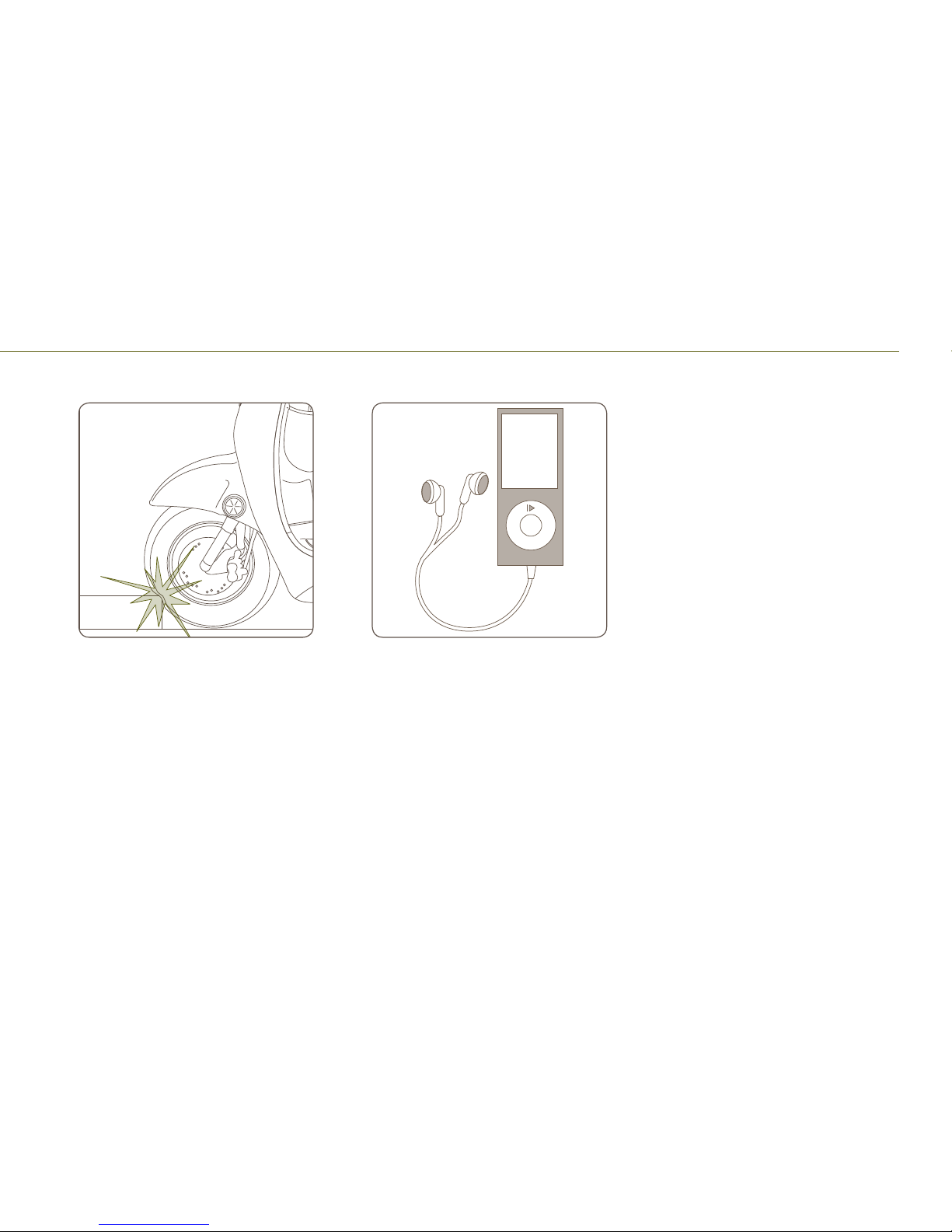

Always avoid driving agains
obstacles that could damage the
vehicle or make it unstable.
Do not drive too close behind
preceding vehicles and respect the
right distance to allow safe braking.
Always keep both hands on the
handlebar and both feet on the
footboard. Ensure a correct driving
posture and never stand up during
driving. Always remain focused and
controlled when driving your vehicle.
Don’t distract yourself during driving.
(no smoking, no eating, no drinking,
etc.).
In case of an accident, fall or impact
of the vehicle, make sure that all
controls, the braking system and all
main parts are fully functional.
If any component was affected bring
you vehicle to a Kumpan electric
Service station for repair and check
up. Please inform the Kumpan elec-
tric service station what happened
to help indentify any fault. Never
continue to drive, if you recognize a
fault on you vehicle.

Safety instructions
Never change the position, the incli-
nation or color of the following
parts: license plate, turn indicators,
lights or horn. Any of these changes
void the warranty, the insurance
coverage and the driving allowance
on streets.
Any changes that are performed on
the vehicle, including the removal
of original parts, can affect the
performance of the vehicle and also
compromise the safety or make it
illegal. Always respect all local and
national regulations regarding the
vehicle equipment. Avoid changes
that increase the vehicle performance
or change the original characteristics
of the vehicle. Avoid off-road driving.
Basic safety rules:
Protective clothing:
For your safety, we strongly recom-
mend that you always wear and
approved motorcycle helmet,
eye protection, boots,gloves, long
pants, and a long-sleeved shirt or
jacket whenever you ride. Although
complete protection is not possible,
wearing proper gear can reduce the
chance of injury. See your Kumpan
dealer for stylish comfortable and
effective riding gear suggestions.
Helmet and eye protection:
Your helmet is your most important piece of
riding gear because it offers the best protection
against head injuries. A helmet should fit your
head comfortably and securely. A bright -colored
helmet can make you more noticeable in traffic,
as can reflective strips. An open-face helmet
offers some protection, but a full-face helmet
offers more. Always remember to properly
fasten your crash helmet. Regardless of the sty-
le, look for a DOT ( Department Of Transportati-
on) sticker in any helmet you buy (USA only) and
always wear a face shield or gogles to protect
your eyes and help your vision.
Additional riding gear:
In addition to a helmet and eye protection,
we also recommend:
1) Boots worn correctly with an anti-slip sole to
protect your feet and calves
2) Leather gloves to keep your hands warm and
help prevent blisters, cuts, burns ans scraped skin
3) A motorscooter riding suit or jacket to com-
fort as well as protection
Bright-colored and reflective clothing can help
make you more noticeable in traffic. Be sure
to avoid loose clothes that could get caught on
any part of your motorscooter.
