This user manual is for the
following models:
• 54 inspire (25/45 km/h)
by e-bility GmbH
Dieselstraße 28
53424 Remagen, Germany
www.kumpan-electric.com
1st edition, Remagen, Sept. 2020
© 2020 e-bilty GmbH
All rights reserved.

3
Contents
Safety instructions P. 6
Important information P. 6
Driver’s licence categories P. 6
Check & Start P. 7
Loading & Unloading P. 7
Wet & Slippy Conditions P. 7
Cold Weather P. 8
Body & Soul P. 8
Spirit & Knowledge P. 8
Law & Order P. 9
Defects & Accidents P. 9
Clothing for Head & Body P. 10
Accessories P. 10
Checklist before your first drive P. 11
The Kumpan 54 inspire P. 14
Bluetooth Key P. 15
Start-Stop button P. 15
Switching the Kumpan On and Off P. 16
Kumpan Key app P. 16
Rearview Mirror P. 17
Overall View Left P. 18
Overall View Right P. 19
View from the Front and Rear P. 20
Switch Unit Left P. 21
Switch Unit Right P. 22
Glove Compartment/Leg Compartment P. 23
Seat/Battery Compartment P. 24
Battery Power Pack 2.0 P. 26
Technical Properties P. 27
Battery Displays P. 28
Placing and Removing the Power Pack P. 29
Storage P. 31
Charging Unit P. 32
Charging Outside of the Vehicle P. 33
12 V Back-up Battery P. 34

4
Contents
Main Stand P. 51
Side Stand P. 51
Retracting P. 52
Feet Rests P. 53
Maintenance and Care P. 54
Brakes P. 55
Brake Fluid Level P. 56
Chassis P. 57
General Instructions P. 58
Vehicle and Battery Storage Periods – Winter Break P. 60
Troubleshooting P. 61
Technical Details P. 65
Accessories P. 70
Key Safety Instructions P. 71
Display/Operation P. 35
Display/Touch Screen P. 36
Display / Touch Screen – View while Driving P. 37
Operating the Touch Screen P. 38
Scooter Functions P. 39
Menu items P. 40
Driving Mode P. 41
General Settings P. 42
System Info P. 44
Control Pad Operation P. 45
Quick Overview P. 46
Battery Display/Charging Status P. 47
Opening the Seat P. 47
Opening the Topcase P. 47
Notifications/Notices P. 47
Menu P. 48
Operating/Driving P. 49
Safe Driving and Stopping P. 50
Handlebar Lock P. 50

5
Foreword
Congratulations, you’re the proud owner of a Kumpan 54
inspire! We hope you have loads of fun with your new two-
wheel companion.
This manual primarily serves to provide you with instructions
and references to allow you to handle your Kumpan in a safe
and careful way. It contains information on the various models
and equipment versions of the Kumpan 54 inspire.
Please read through the manual before your first trip so you
can learn how to properly handle your Kumpan.
Have fun!

6
Driver’s Licence Categories
The vehicle can be approved for use on public roads and may be operated with
the following licence permit categories:
Kumpan 54 inspire restricted at 25 km/h
- From 15 years with a moped certificate
Kumpan 54 inspire 45 km/h
- Driver’s licence categories AM, A1
- Driver’s licence categories A, B
- Former categories 1, 1b, 1a, 3, 4
Important information
The scooter is designed for operation on public roads with a driver and a
passenger.
Any improper use of the vehicle will void both the manufacturer’s warranty
and statutory warranty.
All interventions to improve the performance, speed, and other interventions
that fundamentally alter the scooter’s properties are punishable and legal
steps will be taken. Such interventions will void the manufacturer’s warranty,
any other warranties, and the operating permit. Changes to the chassis
number are punishable under criminal and administrative law. The owner will
be held liable.
The max. design speed of 25/45 km/h may not be exceeded.
The scooter identification numbers are:
- The chassis number (“VIN”) (see page 19/44)
Safety
Instructions

7
MAX.
195 Kg
Safety
Instructions DANGER
Check & Start

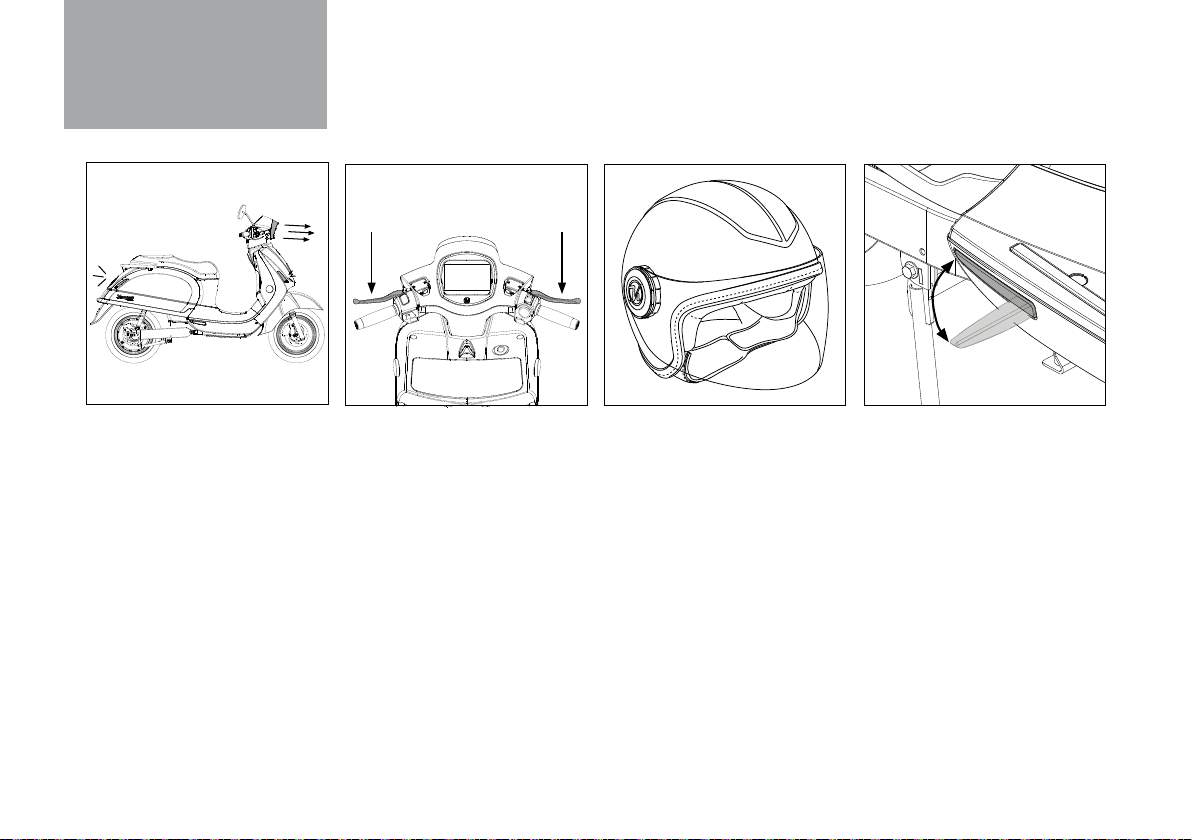

Before every trip, inspect the scooter
to make sure it is safe for use on the
road.
This inspection comprises:
- Proper functioning of the brake system
- Proper tyre pressure
- Check all signalisation and lighting
systems for proper functioning
- Proper general condition
Transporting people or animals on
the luggage rack is prohibited.
Maximum Load
(battery/passengers/luggage/
accessories):
195 kg
Maximum overall mass:
280 kg
Wet & Slippy Conditions
Exercise particular caution when
driving in poor weather conditions
(wet, snow, black ice). Always make
sure to adapt your driving behaviour
to the weather and road conditions.
After longer drives through the rain
and after cleaning the scooter, the
humidity might cause a delay before
the brake system applies. Therefore,
make sure to frequently brake
carefully when driving in the rain.
Loading & Unloading
Always load the Kumpan carefully and
beware of overloading. Securely fix
luggage. High luggage weights and
volumes might impair the stability of
and control over the Kumpan.
Never attach bulky, heavy, and/or
dangerous objects to the handlebar,
mudguard, and/or the front wheel
fork.

8
Safety
Instructions DANGER

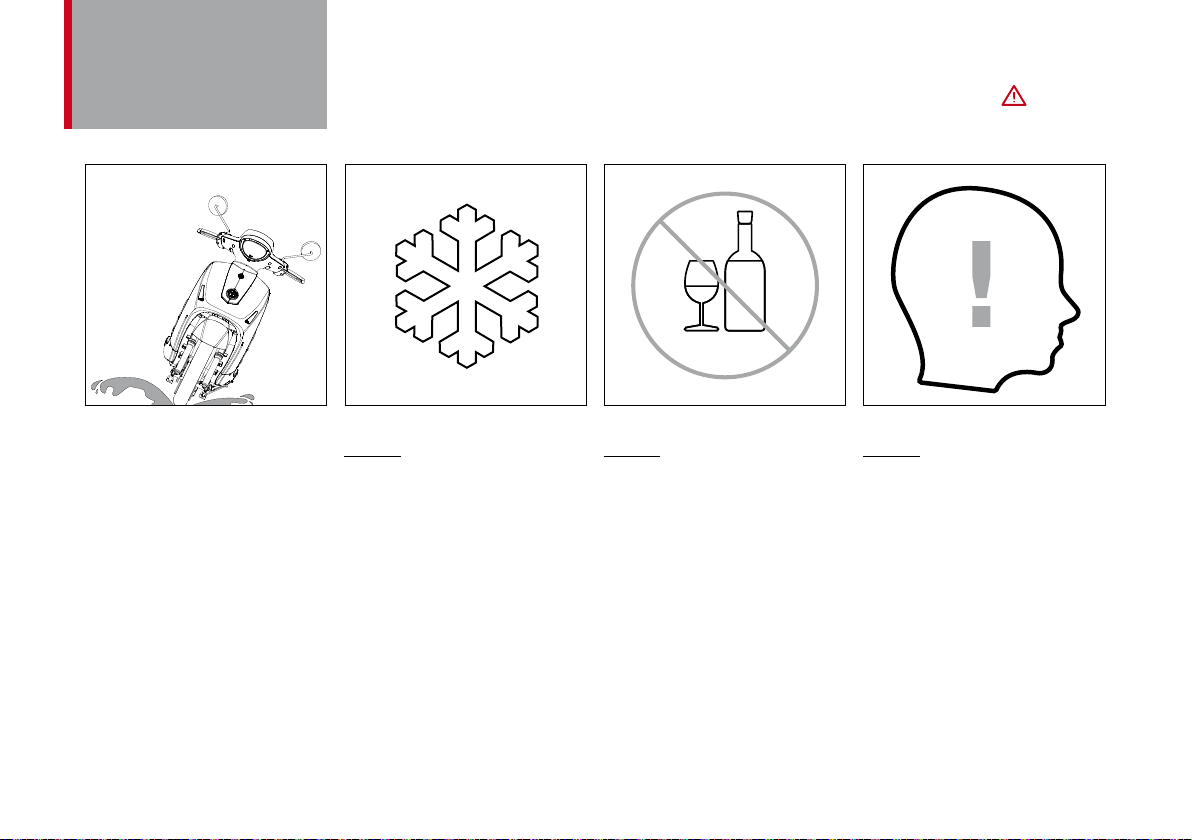

After cleaning the scooter, the brakes
should carefully be “braked dry” at
a secure location, to ensure proper
braking.
Cold Weather
Before every trip, make sure that all
moving parts operate without fault,
above all if the temperature drops
towards 0°C
Body & Soul
The taking of certain medicines,
alcohol, non-prescription drugs or
narcotics will significantly increase
the risk of having an accident. Do not
get on the vehicle if your physical or
mental state is impaired.
Spirit & Knowledge
Never stand up while driving. Always
drive with focus and care.
Do not get distracted by persons,
objects or the actions of others while
driving.
Always make sure to keep both
hands on the handlebar and both feet
on the footplate or feet rests.

9
Safety
Instructions DANGER
Most accidents are caused by
inexperience, which is why you
should never let a novice driver use
your vehicle. Always make sure that
the driver has the knowledge and
skills required to drive on public
roads.
Law & Order
Always observe the road signs as
well as national and/or local traffic
regulations. Avoid doing anything
that might put your own safety or
the safety of other road users at risk.
Always take the road conditions,
visibility conditions, etc. into
consideration.
Defects & Accidents
Try to never drive over or hit objects
that might damage the vehicle or
impair its stability.
After an accident/fall or collision,
always check important components
of your scooter for damage. If you are
unsure or if your scooter is damaged,
let it be serviced by your Kumpan
electric contract partner. They will
check your Kumpan and all safety-
relevant components and devices. To
make it easier to carry out necessary
works, inform the personnel of your
workshop about any faults. Never
keep driving if the damage might
threaten your health!

10
Safety
Instructions DANGER
Clothing – Head & Body
Always wear a protective helmet.
Make sure that the helmet meets the
test standard required under law, is
free of damage, and that the visor is
neither dirty nor scratched.
For your protection, always wear
appropriate and tight-fitting clothes
suitable for the weather conditions.
Accessories
The owner of the vehicle is
responsible for choosing and
installing the accessories. When
installing accessories, make sure that
they don’t impair the functioning,
control over or operation of your
Kumpan.
Ensure that the accessory is properly
attached to the vehicle to avoid risky
situations during your trip.
Devices that might exceed the electric
capacity of the system must never be
installed. This poses the risk of the
vehicle suddenly failing altogether.
Kumpan electric recommends
exclusively using original accessories.
The use of accessories not approved
by Kumpan electric might void both
the manufacturer’s warranty and
statutory warranty.
Loose items of clothing (such as
neckties, laces and similar) must
be fixed before your trip. Your
freedom of movement must never be
impaired.
Avoid wearing sharp objects such
as keys and ballpoints on your body;
they might be dangerous in the event
of a fall.
