Kumpan electric 1954 Ri 2019 Series User manual

1954 Ri
USER MANUAL

1
a brand by e-bility GmbH
Dieselstraße 28
53424 Remagen
www.kumpan-electric.com
1st Edition, Remagen, Feb.
2019
This user guide covers the following
model variants:
• 1954 Ri 10“ (25/45 km/h)
• 1954 Ri 12“ (25/45 km/h)
• 1954 Ri S (100 km/h)

2
Safety regulations
Important Information P. 6
Basic safety regulations P. 8
The Kumpan 1954 Ri
Overview left side P. 14
Overview right side P. 15
Overview front and rear P. 16
Switch unit left P. 17
Switch unit right P. 18
Display / Touchscreen P. 19
Seat bench / battery compartment P. 22
Glove compartment / legroom compartment P. 24
Bag hook P. 25
Start-stop button P.25
Key P. 26
Operate / Drive
Safety instructions P. 28
Rear-view mirror P. 29
Battery charger P. 30
Kraftpaket 2.0 (Battery pack) P. 31
- Insertion and removal of batteries P. 33
- On-board charging P. 36
- External charging P. 38
- 12V (DC) backup battery P. 39
Footrests P. 40
Turning on the scooter via the key P. 41
Turning on the scooter via the start-stop button P. 41
Safe driving and stopping P. 42
Handlebar lock P. 42
Putting vehicle on the stand P. 43
Run-in P. 4 4
Control Cross operation P. 46
Touchscreen operation P. 50
Menu overview P. 52
- Driving mode P. 53
- Settings P. 54
- System information P. 56
- Defect warning symbols P. 57
Content

3
Maintenance
Light P. 58
- Main head light P. 58
- Parking light P. 59
- Rear lights and direction indicators P. 60
Kraftpacket2.0 (Battery pack) P. 61
Brakes P. 62
Brake fluid level P. 63
Antilocking System (ABS) P. 64
Suspension P. 65
- Adjustment spring pretension P. 65
Cleaning and care P. 66
Accessories P. 68
Storage periods of the scooter and battery P. 70
Troubleshooting P. 72
Technical specifications P. 74

4
Congratulations for your Kumpan 1954 Ri! We wish you lots of fun
and joy with your new companion. This manual serves primarily as
a guide and reference book enabling your safe and gentle handle of
your Kumpan. It contains information on the various versions und
equipment variants of the Kumpan 1954 Ri series. Please familiarize
yourself with the manual before your first ride, in order to accustom
the correct handling of your Kumpan.
Have fun!
Preface

5

6
Safety
regulations
Important information:
When using this vehicle, the following identification
documents and papers must be carried:
- Id card
- Driver‘s license / moped test certificate
- Insurance certificate (1954 Ri 25/45 km/h Variant)
- License plate
- Operating license (1954 Ri 25/45 Km/h Variant)
- Registration certificate part I (1954 Ri Sport 100 km/h Variant)

7
The Kumpan 1954 Ri is designed for operation with driver
and passenger, for use in road trac. Any improper use of
the vehicle will void the manufacturer‘s warranty and the
legal warranty.
All interventions to increase performance, speed and those
that lead to a general alteration of the scooter’s features,
are punishable by law and will be prosecuted. They annul the
manufacturer‘s warranty, warranty and operating permit.
The change of the chassis number is subject to prosecution
under criminal and administrative law. The owner will be held
liable.
The permitted maximum speed of 25/45/100km/h must not
be exceeded.
The vehicle identification number of the scooter is:
- Chassis (VIN) (See S. 15/56)
Before each ride, the scooter must be checked for its road
safety.
The examination includes:
- Braking system functionality
- Proper tire pressure
- Functionality of all signal and light equipment
- Functionally reliable general condition
Special care must be taken when driving in bad weather (rain,
snow, ice). An appropriate driving behavior, corresponding to
the weather and road conditions, must always be ensured.

8
Safety
regulations

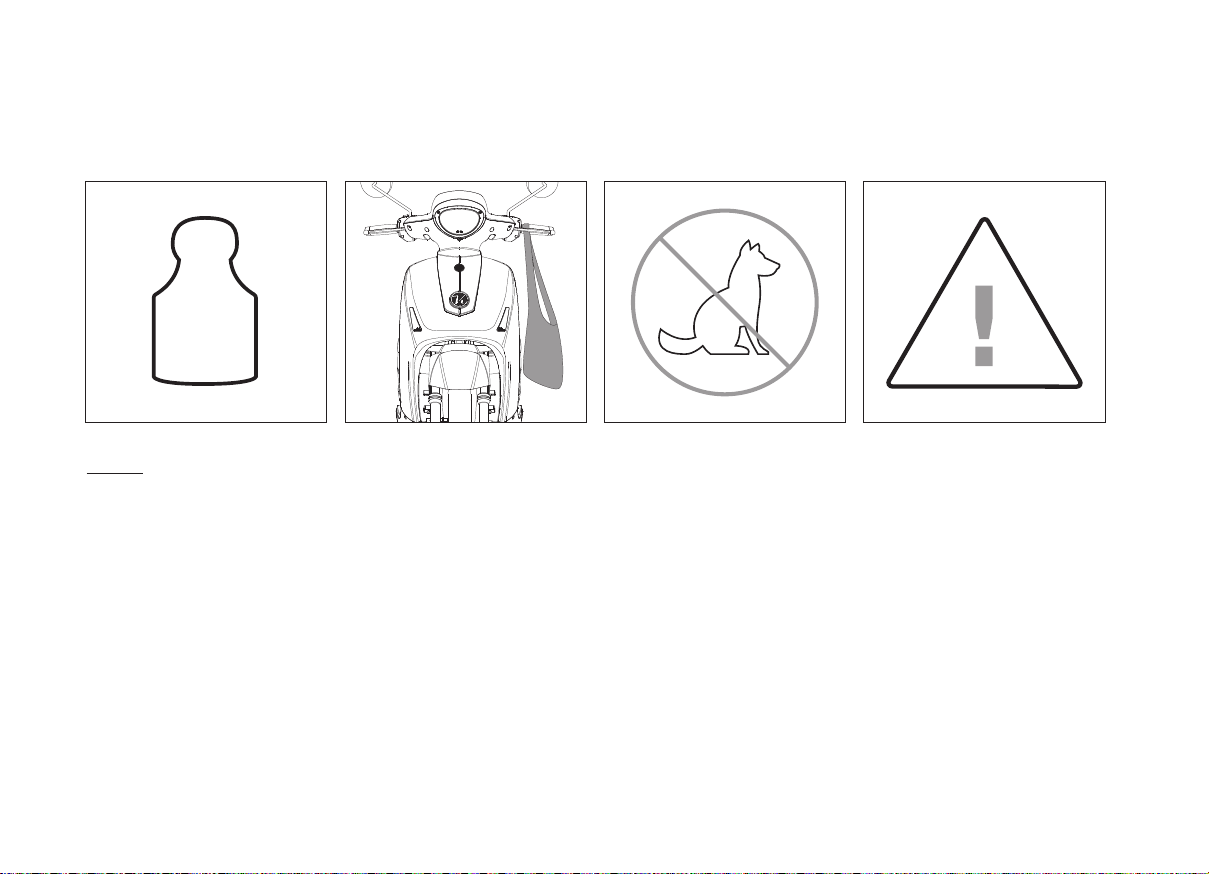

Basic safety regulations:
In the case of longer rides in the rain or after the cleaning
of the scooter, the braking system may respond with de-
lay due to moisture. Therefore, when riding in the rain, the
brakes should be often and carefully applied. After cleaning
the scooter, the brakes should be carefully „braked-dry“ in
trac-safe areas to ensure a flawless braking eect.
Attention:
Always ensure the impeccable function of moving parts
and brakes, especially at temperatures around the
freezing point.

9
The intake of certain medicines, al-
cohol, intoxicating substances or
narcotics significantly increase the
risk of accidents. If your physical and
mental condition is impaired, do not
board the vehicle.
Since most accidents happen due
to inexperience, do not lend your
vehicle to a beginner. Always make
sure the driver has the necessary
knowledge to drive on the road.
The trac signs and the national or
local road trac regulations must
be strictly followed. Avoid sudden
driving direction changes and any
circumstances that could endanger
yourself or other trac-participants
(e.g. driving with the front wheel lif-
ted, exceeding the speed limit, etc.)
Always consider the road surface,
the visibility, etc.
