Kusam-meco KM 7016 IN User manual

Digital Variable
High Voltage Insulation Tester
KM 7016 IN
®®
AN ISO 9001:2015 COMPANY
INSTRUCTION MANUAL

Index
1. Safety Precautions..................................................
2. Overview.................................................................
3. Features..................................................................
4. Specications..........................................................
5. Connections............................................................
6. Instrument layout....................................................
7. Measuring procedure..............................................
8. Charge....................................................................
9. Maintenance & repair..............................................
10. Interface connection and operation.......................
Page
1-2
2
3
4
5
6
7-15
16
17
18-29

-1-
1. Safety Precautions
Electricity can cause severe injuries even with low voltages or
currents.
Therefore it is extremely important that you read the following
information before using your high voltage insulation tester.
a. This Instrument must only be used and operated by a
competent trained person and in strict accordance with the
instructions. we will not accept liability for any damage or injury
caused by misuse or non compliance with instructions and
safety procedures.
b. This instrument must not be used on live circuits. Ensure all
circuits are de-energised before testing. see paragraph for
details of built-in warning features should your high voltage
insulation tester be connected to a live system.
c. Always inspect your high voltage insulation tester and test
leads before use for any sign of abnormality or damage. If any
abnormal conditions exist (broken test leads, cracked case,
display faulty etc...) do not attempt to take any measurement
or use the tester. Return your high voltage insulation tester to
your nearest distributor for service.
d. Your high voltage insulation tester has been designed with
your safety in mind. However, no design can completely
protect against incorrect use. Electrical circuits can be
dangerous and / or lethal when a lack of caution or poor safety
practice is used.
e. Pay attention to cautions and warnings which will inform you of
potentially dangerous procedures.
f. Your high voltage insulation tester has a live circuit warning
beeper. If it is connected to a live circuit, a rapid pulsating
bleep will be heard. DO NOT proceed to test and immediately
disconnect the instrument from the circuit. In addition your
tester will display the warning message.

-2-
g. Rated environmental conditions :
(1) Indoor use.
(2) Installation Category Ⅳ.
(3) Pollution Degree 2.
(4) Altitude up to 2000 meters.
(5) Relative humidity 80% max.
(6) Ambient temperature 0ºC~40ºC.
h. Observe the international Electrical Symbols listed below :
Meter is protected throughout by double insulation or
reinforced insulation.
Warning ! Risk of electric shock.
Caution ! Refer to this manual before using the meter.
Earth
2. Overview
This is a variable high voltage insulation tester from 500V to
15kV in 500V steps.
The is menu driven and uses Dynamic Current Auto ranging
technology.
When pressing the on/off button, the top line of the display shows
current year, month, date, hour and minutes indication. The
bottom line of the display shows Insulation Meter.
When doing the test, the top line of the display shows Ω reading
and the time duration.
The bottom line of the display shows output voltage and current.
This instrument displays a voltage warning and sounds when AC
or DC is present before injecting the test voltage.

-3-
3. Features
● Microprocessor controlled.
● 2 Lines x 16 characters, large intelligent LCD module.
● 30 insulation test voltages :
500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV,
3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV,
6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV,
9.5kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV,
12.5kV, 13kV, 13.5kV, 14kV, 14.5kV, 15kV
● AC/DC Voltmeter.
● PI (Polarization Index) indication.
● DAR (Dielectric Absorption ratio) indication.
●Auto-ranging on all insulation ranges.
● Current measurement.
● Backlight function.
● Menu driven.
● Visual and audible warning if external voltage is present.
(≥30Vac or ≥30Vdc)
● Short-circuit current up to 5mA
● Auto-hold function to freeze the reading.
● Overload protection.
● Adjustment for testing time (duration) : 1~30 minutes.
● Calendar.
● Indication memory for data storage.
● Optical USB to RS-232 data transmission.
● Auto-off.
● 200 measurement results can be saved in the memory and
recalled on the display.

-4-
4. Specications
Test Voltage From 500Vdc to 15kVdc
Adjustable in 500V steps
Preset buttons 1kV, 5kV, 10kV, 15kV
Measuring ranges 1TΩ / 0.5kV
1TΩ at 0.5kV~30TΩ at 15kV
Accuracy
1kV : 0~200GΩ
5kV : 0~1TΩ
10kV : 0~2TΩ
15kV : 0~3TΩ
±(5%rdg+5dgt)
1kV : 200GΩ~2TΩ
5kV : 1TΩ~10TΩ
10kV : 2TΩ~20TΩ
15kV : 3TΩ~30TΩ
±20%
Resolution
1GΩ : 0.001GΩ
10GΩ : 0.01GΩ
100GΩ : 0.1GΩ
1TΩ : 1GΩ
10TΩ : 10GΩ
30TΩ : 100GΩ
Short circuit current up to 5mA
Current measurement 0.5nA~0.55mA (Depending on the
insulation resistance)
PI (Polarization Index) √
DAR (Dielectric
Absorption Ratio) √
Voltmeter
ACV : 30~600V (50/60Hz)
DCV : 30~600V
Accuracy : ±(2.0%rdg+3dgt)
Resolution : 1V
Power source Rechargeable battery
AC Adapter Input : 100-240Vac ,0.4A ,50-60Hz
Output : 24Vdc 0.62A
Dimensions 430(L) x 324(W) x 127(D)mm
Weight Approx : 6.56kg

-5-

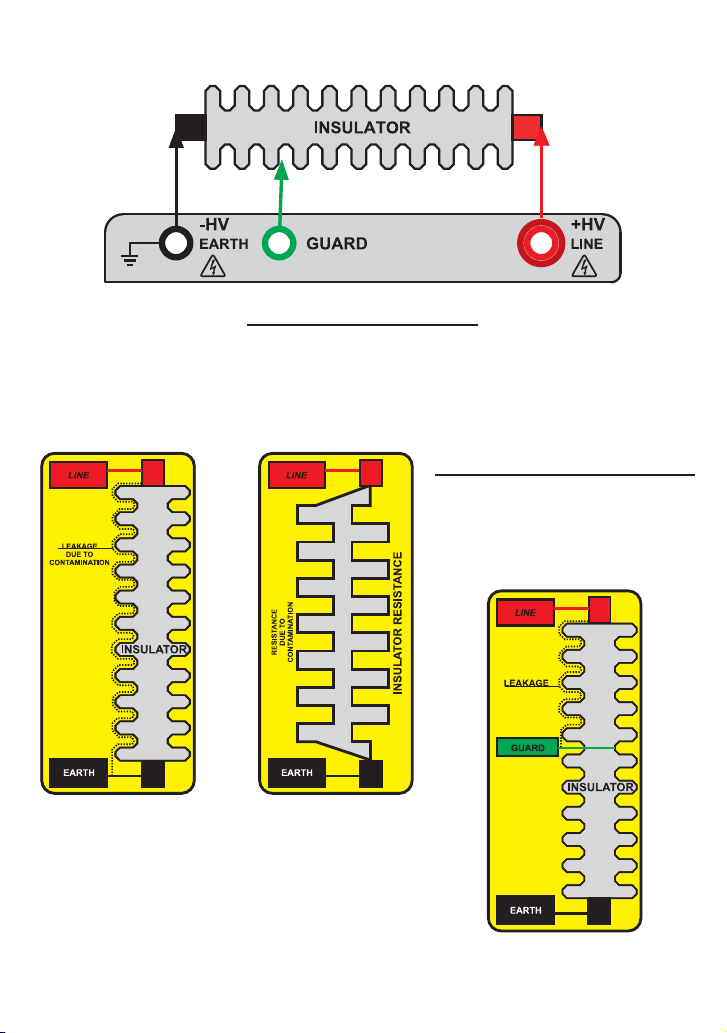

5. Connections
FIRST MEASUREMENT
MEASURE WITHOUT THE GUARD TO TAKE EVERYTHING INTO
ACCOUNT AND FIND OUT IF NEED CLEANING.
RESISTANCE DUE TO CONTAMINATION
CAN BE VERY LOW AND LOWER THE
TOTAL RESISTANCE.
CLEANING PERIODICALLY CAN ALSO
REDUCE SYSTEM POWER CONSUMPTION.
SECOND MEASUREMENT
MEASURE WITH
THE GUARD TO ENSURE
INSULATOR IS CORRECT.
TYPICAL TEST
DIRTY
INSULATOR
ELECTRICAL EQUIVALENT
CIRCUIT DIRTY INSULATOR

-6-

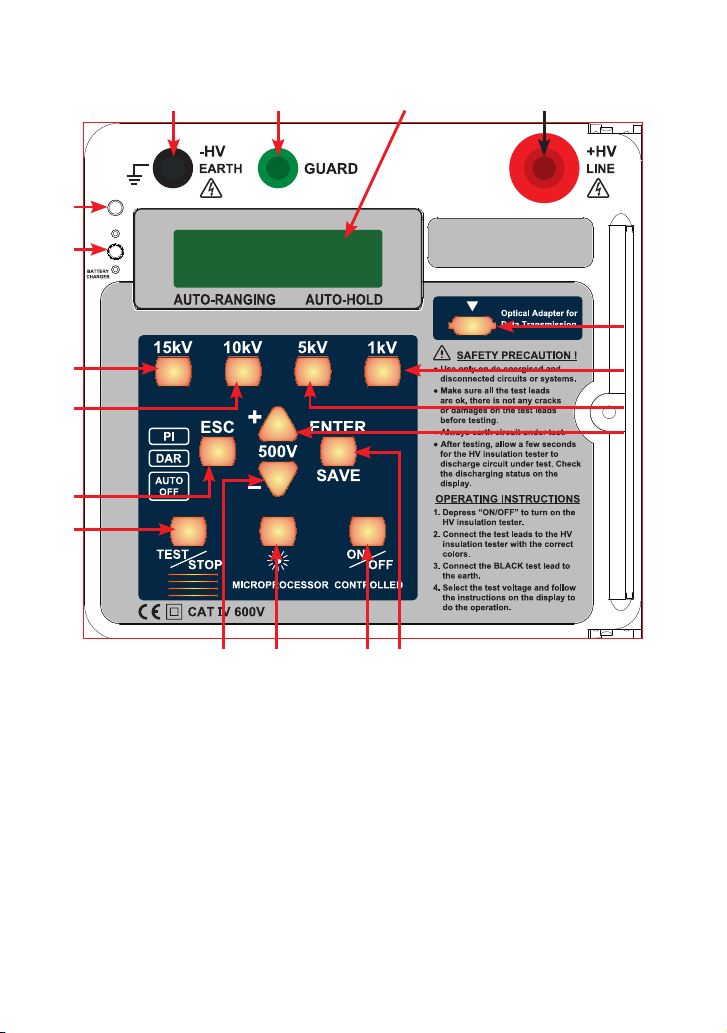

6. Instrument layout
①Power ON/OFF button ⑦To subtract (-500V) button to
②Insulation resistance test at the selected test voltage
1kV button ⑧TEST/STOP button
③Insulation resistance test at ⑨ENTER & SAVE button
5kV button ⑩ ESC button
④Insulation resistance test at ⑪ BACKLIT button
10kV button ⑫ Connection socket for
⑤Insulation resistance test at data transmission
15kV button ⑬ Battery-charge socket
⑥To add (+500V) button to the ⑭ Charge indicator
selected test voltage
7016 IN
30TΩ 20TΩ 10TΩ 2TΩ
-HV terminal L.C.D.GUARD terminal +HV terminal
④
⑧
⑩
⑪
⑥
① ⑨
⑫
②
③
⑦
⑤
⑬
⑭

-7-
7. Measuring procedure
This tester provide one main and ve minor functions:
Main Function: insulation resistance test.
Minor functions:
Function 1 ─ Voltage meter
Function 2 ─ RTC Adjustment
Function 3 ─ Test Timer
Function 4 ─ LOG Display
Function 5 ─ LOG Clear
(A) Insulation resistance measurement test (main function)
Note:
1. Before test performed, be sure that no voltage is made on
the specimen. If voltage exists therein, remove the power
supplied.
2. To secure operator’s safety, check if there is any damage
on the tester or test cable.
3. During the test, do not touch the metal on the specimen
surface or test cable.
4. Wear insulation gloves and rubber shoes while operating
this high-voltage measuring instrument.
(a) Checks before test is performed:
Press the power switch and check if power supply is
sufcient? If insufcient, "Low Battery" will be displayed
on the LCD display. Charge the battery before making
measurement.
(b) Measuring procedure:
1. Connect specimen by test cable.

-8-
2. Press ①(ON/OFF) button.
(Main page)
3. Select test voltage:
(1) Select one from 1kV, 5kV, 10kV or 15kV, press (② , ③,
④or ⑤) respectively.
(2) To select voltage other than the four indicated, press
anyone among ②, ③, ④, ⑤, then, press ⑥(volt-add)
or ⑦(volt-reduce) till the required voltage is reached.
4. Be sure that the cable connecting the specimen and Tester
is correct. Then, press ⑧ (TEST/STOP); LCD displays as
below:
5. Then, press ⑧(TEST/STOP).
Note:
a. During test process, if there is a exterior voltage
(above AC30V or DC30V) exerted, beeper activates
in response; and LCD displays the warning picture as
shown in below:
Now, test cannot be performed. To go on the test it
should remove the exterior voltage.
b. While test is running, beeper activates to remind
operator that test is underway.
c. After the set test time is due (see Function 3: the test
time setting), test stops and system will automatically
lock down the test value.
d. To read the test value on the LCD display, press the ⑪
BACKLIT button( ).
Volt Detection
AC 50V 60HZ
Make sure the
Line Connected.
2018‐11‐05 11:30
Insulation Meter

-9-
6. Read the test value from LCD display.
7. Press ⑧ (TEST/ STOP); LCD shows the “discharging”.
8. To store the data, press ⑨ (ENTER/SAVE); LCD displays
the picture shown in below.
200G 10:20
V:1100V I:2.5nA
200G 10:30
Discharging
001 1.0KV
200G 10:35
Note:
When do the insulation test, always connect the test
leads to the object we want to measure before pressing
the TEST button.
Do not press the TEST button in advance.

-10-
(B)Measurevoltage(VoltageMeter)─Function1
1. Press ①(ON/OFF) button.
(Main page)
2. Press ⑥ value-add “+” or ⑦ value-reduce “-”; LCD
displays the picture shown in below:
3. Press ⑨(ENTER/SAVE) to perform measurement; LCD
displays the picture shown in below:
4. Read the data measured from LCD display.
5. Press ⑩(ESC) to return back to the former screen.
6. Then, press ⑩(ESC) to return back to the main page.
Note: SAVE cannot be applied during voltage
measurement process.
Voltage Meter
DC+ < 30 V
2018‐11‐05 11:40
Insulation Meter
Function 1
Voltage Meter

-11-
(C)Date/timeadjustment(RTCAdjustment)─Function2
1. Press ①(ON/OFF) button.
(Main page)
2. Press ⑥ (value-add) "+" for 2 times; LCD display the
following pictures respectively:
3. Press ⑨(ENTER/SAVE) button.
4. Press ⑥ (value-add) "+" or ⑦ (value-reduce) "-" till the
correct voltage is reached. Press ⑧(TEST/STOP) to
switch to next time unit and go on the required adjustment.
5. After all adjustments are complete, press ⑨(ENTER/
SAVE) to conrm and save the data measured.
Note: if time unit (year, month, day, hour, minute or second)
needs not to be adjusted, press ⑧(TEST/STOP) to
skip it.
6. Press ⑩(ESC) to return back to the main page.
2018‐11‐05 11:40
Insulation Meter
Function 2
RTC Adjustmeter

-12-
(D)Measurementtimesetting(TestTimer)─Function3
1. Press ①(ON/OFF) button.
(Main page)
2. Press ⑥ (value-add) "+" for 3 times; LCD display the
following pictures respectively:
3. Press⑨ (ENTER/SAVE), LCD displays the picture shown
in below:
4. Press ⑥ value-add“+” or ⑦ value-reduce “-” to set the test
time.
5. After setting is complete, press ⑨(ENTER/SAVE) to
conrm & save the data measured.
6. Press ⑩(ESC) to return back to the main page.
(E)Displaythedatastored(LOGDisplay)─Function4
1. Press ①(ON/OFF) button.
(Main page)
2. Press ⑥(value-add) "+" for 4 times; LCD display the
following pictures respectively:
2018‐11‐05 11:40
Insulation Meter
Function 3
Test Timer
Test Timer
10 minutes
2018‐11‐05 11:40
Insulation Meter
Function 4
001 LOG Display

-13-
3. Press ⑨ (ENTER/SAVE), LCD displays the picture shown
in below:
4. Press ⑨ (ENTER/SAVE), LCD displays the “DAR” and “PI”
picture shown in below:
5. Press ⑨ (ENTER/SAVE), LCD displays the “Volt” picture
shown in below:
6. Press ⑨ (ENTER/SAVE), LCD displays the “Date” and
“Time” picture shown in below:
7. Press ⑥ value-add”+” or ⑦ value-add”-” to nd LOGS
which has been saved.
8. Press ⑥ value-add“+” or ⑦ value-reduce “-” to select the
required data value. If no data available, LCD displays the
picture shown in below:
9. Press ⑨(ENTER/SAVE) to query the subpage of data.
10. After the query is over, press ⑩(ESC) twice to go back
the main page.
001 1.0KV
Vout:1100V
LOG SHOW 000/000
There is no LOG
001 1.0KV
200G 10:35
001 1.0KV
DAR:2.00 PI:1.00
001 1.0KV
2018-11-05 10:35

-14-
(F) Clear/erasethedisplayofdatastored(LOGClear)─
Function 5
1. Press ①(ON/OFF) button.
(Main page)
2. Press ⑥(value-add) "+" for 5 times; LCD display the
following pictures respectively:
3. Press ⑨(ENTER/SAVE) to inquire whether to clear up the
data or not; LCD displays the picture shown in below:
Erase ─ press ⑨ (ENTER/SAVE). LCD displays the
picture shown in below:
Not erase ─ press ⑩(ESC) to go back to the main page.
2018‐11‐05 11:30
Insulation Meter
Function 5
LOG Clear
Clear 001 log
Are you sure?
Clear 001 log
Clear Completely

-15-
(G) Introduction of other functions
1. Dielectric absorption ratio (DAR):
Ratio of insulation resistance between 1-min and 30-sec
1-min insulation resistance
DAR :
30-sec insulation resistance
2. Polarization index (PI):
Ratio of insulation resistance between 10-min and 1-min
10-min insulation resistance
PI :
1-min insulation resistance
Operation:
During the test run, wait for one minute, DAR will be
displayed automatically; wait for 10 minutes, PI will be
displayed automatically.
3. AUTO OFF:
System will shutdown automatically after 3 minutes without
operation.
Lower insulation resistance tested takes longer test
time, which would deteriorate the specimen. Thus,
higher DAR or PI (as close to 1) would create better
insulation grade of specimen.

-16-
8. Charge
(A) Timing:
After "Low Battery" is displayed on LCD display, perform
battery charge; LCD displays the picture shown in below:
(B) Process:
1. Plug one end of charger into the battery plug-in socket (Fig
⑬); and the other end into the ACV power socket.
2. If ACV plug socket is energized, the charge indicator (Fig
⑭) is lit on indicating that charge is underway.
If the ACV plug socket isn’t energized, remove to another
power-energized one making power charge.
3. After the voltage reaches 16.5V, charge process is
complete. (It can be observed on LCD display.)
No measurement can be performed during the charging
process.
Batt. Low 11:40
Insulation Meter

-17-
9. Maintenance & repair
(A) To avoid and electric-shock or device damage, do not wet
inner part of the tester.
(B) Avoid the tester from being dropped down that would damage
or disconnect devices apart.
(C) Wipe the tester surface with soft, dry cloth and mild detergent.
Prohibit from using sand paper or solvent.
Note:
1. This tester is HV operated; user should not open the outer
casing. If any damage occurs, take the tester back to
manufacturer for repair.
REMEMBER TO CHARGE THE BATTERY!
ALWAYS recharge the battery when the Low Battery info
appears on the display. Leaving the battery uncharged for a
long period of time may affect the lifespan of the battery.
Charging interval: Every 3 months

-18-
10. Interface connection and operation
(A) Insulation Tester Installation Steps:
1. This program will install Insulation Tester on your
computer automatically.
2. Click the “Next” key to set.
3. If you want to install a different folder, click Browse, and
select another folder.
If it’s not necessary, click the “Next” key.
