LAI Games Little Speedy User manual

► Read this manual BEFORE operating the machine.
► Keep this manual for your reference.
►Go to www.LAIGames.com click on Operator Access to register your
games and receive of future updates.
PLEASE NOTE:
© LAI Games
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Correspondence regarding this machine should be addressed to your
closest LAI Games office, or LAI Games Distributor.
For contact details, refer to the back page of this manual.
LAI Games
© LAI Games
Copyright Notice:
Authorization is hereby provided to you to copy this
manual in its entirety provided such copies are used for
non-commercial purposes and solely for use with
LAI Games products. This authorization is specifically
conditioned to include all legends, copyright, proprietary
and other notices which appear herein are unaltered on
any and all copies you make.
LAI Games
[e-mail] www.laigames.com
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
ii
TABLE OF CONTENTS
SAFETY PRECAUTIONS ......................................................................................................1
MACHINE INSTALLATION AND INSPECTION ............................................................2
INTRODUCTION ................................................................................................................3
SPECIFICATIONS ..............................................................................................................4
INSTALL THE KICK PLATE ............................................................................................5
HOW TO PLAY ....................................................................................................................6
OPERATION ............................................................................................................................7
OPERATIONAL DIAGRAM .............................................................................................7
ATTRACT MODE ..............................................................................................................7
PLAY MODE ......................................................................................................................7
TEST MODE .........................................................................................................................8
TEST MODE DIAGRAM ...................................................................................................8
GAME SWITCHES ............................................................................................................9
PROGRAMMABLE ADJUSTMENTS QUICK REFERENCE TABLE V1.3 .................10
PROGRAMMABLE ADJUSTMENTS DETAILED .......................................................11
AUDITS MODE ..................................................................................................................17
AUDITS MODE DIAGRAM ............................................................................................17
AUDIT PROCEDURE ......................................................................................................18
AUDITS QUICK REFERENCE TABLE .........................................................................19
UDITS DETAILED...........................................................................................................19
GAME HISTORY MODE..................................................................................................21
GAME HISTORY MODE DIAGRAM .............................................................................21
GAME HISTORY PROCEDURE ....................................................................................21
GAME HISTORY QUICK REFERENCE TABLE ..........................................................22
ERRORS AND TROUBLESHOOTING ..........................................................................23
ERROR CODE QUICK REFERENCE TABLE ...............................................................23
TROUBLESHOOTING GAME ERRORS .......................................................................23
SECTION A: SERVICE INSTRUCTIONS ........................................................................25
LOCATING AND ACCESING PARTS ...........................................................................26
PARTS DESCRIPTION ....................................................................................................28
LAMPS ................................................................................................................................29
MAINTENANCE ................................................................................................................30
SECTION B: TECHNICAL DETAILS ...............................................................................31
MAINS VOLTAGE ADJUSTMENT ................................................................................32
COIN OPTIONS REFERENCE GUIDE ..........................................................................33
TICKET DISPENSER REFERENCE GUIDE ................................................................34
MAIN WIRING LITTLE SPEEDY ..................................................................................39
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
iii
MAIN WIRING 1 LITTLE SPEEDY ...............................................................................40
MAIN WIRING 2 LITTLE SPEEDY ...............................................................................41
CONTROL WIRING LITTLE SPEEDY .........................................................................42
CONTROL WIRING 1 LITTLE SPEEDY ......................................................................43
POWER WIRING LITTLE SPEEDY ..............................................................................44
OPTIONAL WIRING LITTLE SPEEDY ........................................................................45
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
Page 1
SAFETY PRECAUTIONS
The following safety precautions and advisories are used throughout this manual and
are defined as follows.
BE SURE TO READ THE FOLLOWING
* WARNING! *
Disregarding this text could result in serious injury.
* CAUTION! *
Disregarding this text could result in damage to the machine.
* WARNING! *
Always turn OFF Mains AC power and unplugged the game, before
opening or replacing any parts.
Always when unplugging the game from an electrical outlet, grasp the
plug, not the line cord.
Always connect the Game Cabinet to grounded electrical outlet with a
securely connected ground line.
Do Not installs the Game Cabinet outdoors or in areas of high
humidity, direct water contact, dust, high heat or extreme cold.
Do Not installs the Game Cabinet in areas that would present an
obstacle in case of an emergency, i.e. near fire equipment or emergency
exits.
* NOTE! *
Is an advisory text to hint or help understand more!
* CAUTION! *
Always use a Digital Multimeter, logic tester or oscilloscope for testing
integrated circuit (IC) logic PC boards. The use of a continuity tester is
not permitted.
Do Not Connect or disconnect any of the integrated circuit (IC) logic PC
boards while the power is ON.
Do Not uses any fuse that does not meet the specified rating.
Do Not Subject the game cabinet to extreme temperature variations.
Reliability of electrical components deteriorates rapidly over 60 oC.
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
Page 2
MACHINE INSTALLATION and INSPECTION
When installing and inspecting “Little Speedy”, be very careful of the following
points and pay attention to ensure that the players can enjoy the game safely.
 Be sure to turn the power OFF before working on the machine.
 Make sure the power cord is not exposed on the surface (floor, ground, etc.) where
people walk.
 Check that the rubber glide feet levelers are set correctly on the floor so that the
game cabinet is level and stable.
 Always make complete connections for the integrated circuit (IC) logic PC Boards
and other connectors. Insufficient insertion can damage the electrical
components.
 Only qualified personnel should inspect or test the integrated circuit (IC) logic PC
Boards.
 If any integrated circuit (IC) logic PC Boards should need servicing. Please
contact the nearest LAI Games Distributor. (Refer to the back page of this manual)
* CAUTION! *
Before Switching the machine on be sure to check that it has been set on the
correct voltage for your area!
Refer To the mains voltage adjustment section of this manual. Machines are
normally shipped on 220V AC unless otherwise specified.
* WARNING! *
Always Turn OFF mains power before removing safety covers and refit all safety
covers when work is completed.
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
Page 3
INTRODUCTION
CONGRATULATIONS! On your purchase of “Little Speedy”, the speed and
reflex game by LAI Games. We hope you take the time to read this manual and learn
about the many other features and user-friendly adjustments that can be made to fine-
tune the game for maximum earning potential.
It is another great product from LAI GAMES.
We hope you take the time to read this manual and learn about the many other
features and user-friendly adjustments that can be made to “fine-tune” the game for
maximum earning potential.
DESCRIPTION
The “Little Speedy” player has to press randomly illuminated lights on the button
matrix. 6 lights are illuminated at once. Each time one is pressed, it goes out and
another is illuminated. Game play is fast and frantic, with the aim to get as high a
score as possible within a designated time.
PACKAGING
At delivery, the machine should arrive in good condition. To move the packaged
machine for transport or placement, use a forklift and take care not to hit the package
or stack heavy objects on top, as this may cause damage to the machine.
CONTENTS
 The “Little Speedy” cabinet
 Keys: 2 x coin door keys
2 x back door keys
2 x ticket door key
 Operator‟s manual
 IEC Power Cord (In cash box)
 Parts & Accessories (In cash box)
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
Page 4
SPECIFICATIONS
DIMENSIONS
 Weight: 90 kg (198.5lb)
 Height: 1510 mm (59.4”)
 Width: 480 mm (18.8”)
 Length: 1210 mm (47.6”)
 Power: Maximum 100 W – (220V @ 0.5A)(120V @0.9 A)
ELECTRIC SUPPLY
The game has the option to operate on an 110V, 120V, 220V or 240V AC 50/60Hz
single phase mains electric supply.
The supply must be a three wire grounded supply.
LOCATION REQUIREMENTS
 Ambient temperature: between 5oC and 40oC.
 Ambient humidity: Low
 Ambient U.V. radiation: Very low
 Vibrations level: Low
* CAUTION! *
Before switching the machine on be sure to check that it has been set on the
correct voltage for your area!
Please Refer to the mains voltage adjustment section of this manual. Machines are
normally shipped on 220V AC unless otherwise specified.
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
Page 5

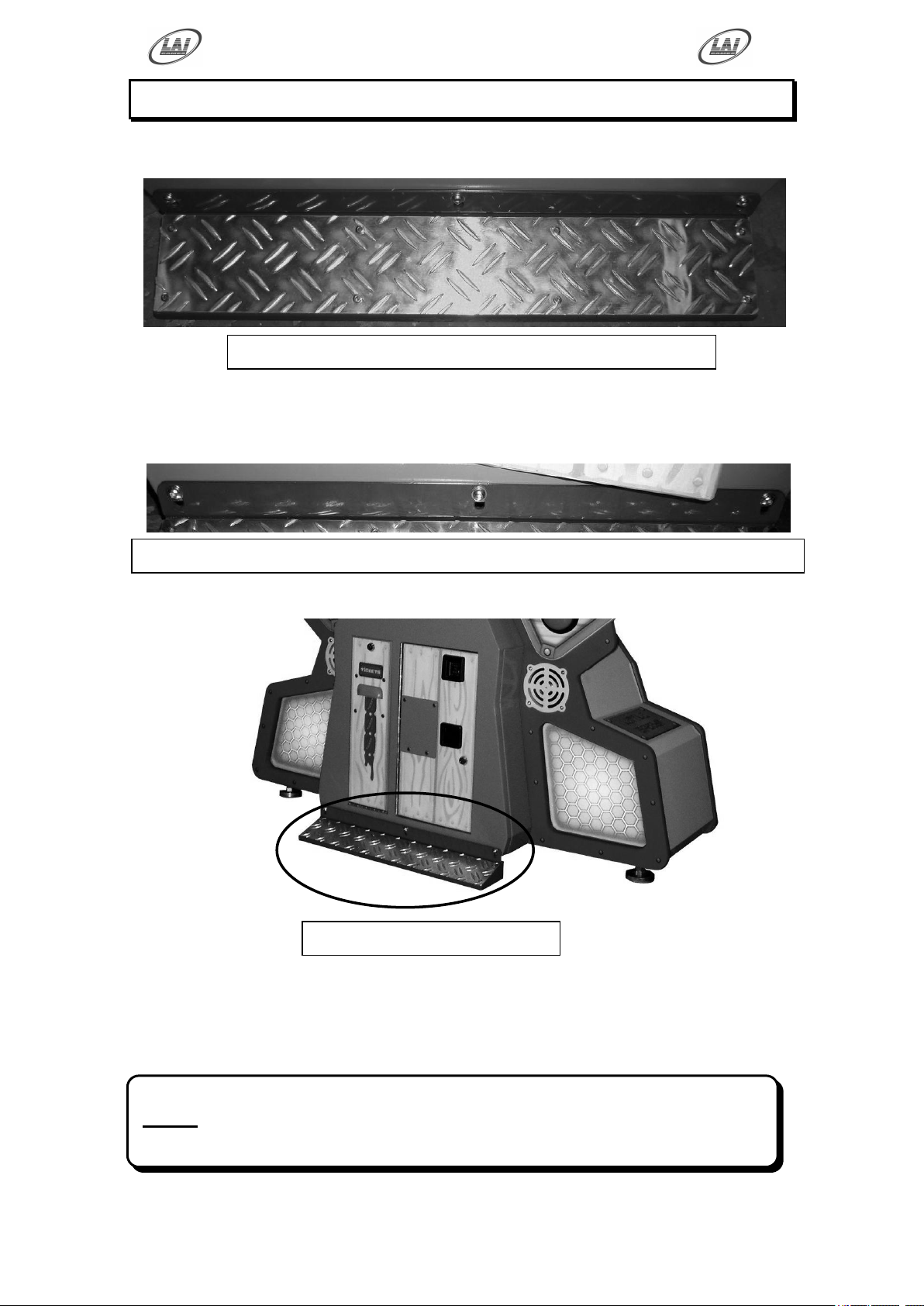

INSTALL THE KICK PLATE
Find the kick plate on separate box inside the cabinet
Position and secure the Kick plate with screws supplied underneath the control panel
* WARNING! *
Always put the Kick Plate securely on the position otherwise the cabinet will be
Unbalanced.
Kick Plate securely installed
To Purchase This Item, Please Visit : BMIGaming.com | Call Global Sales : + 561.391.7200 | USA / CA : [phone]

Operator's Manual – Little Speedy
© LAI GAMES
Page 6
HOW TO PLAY

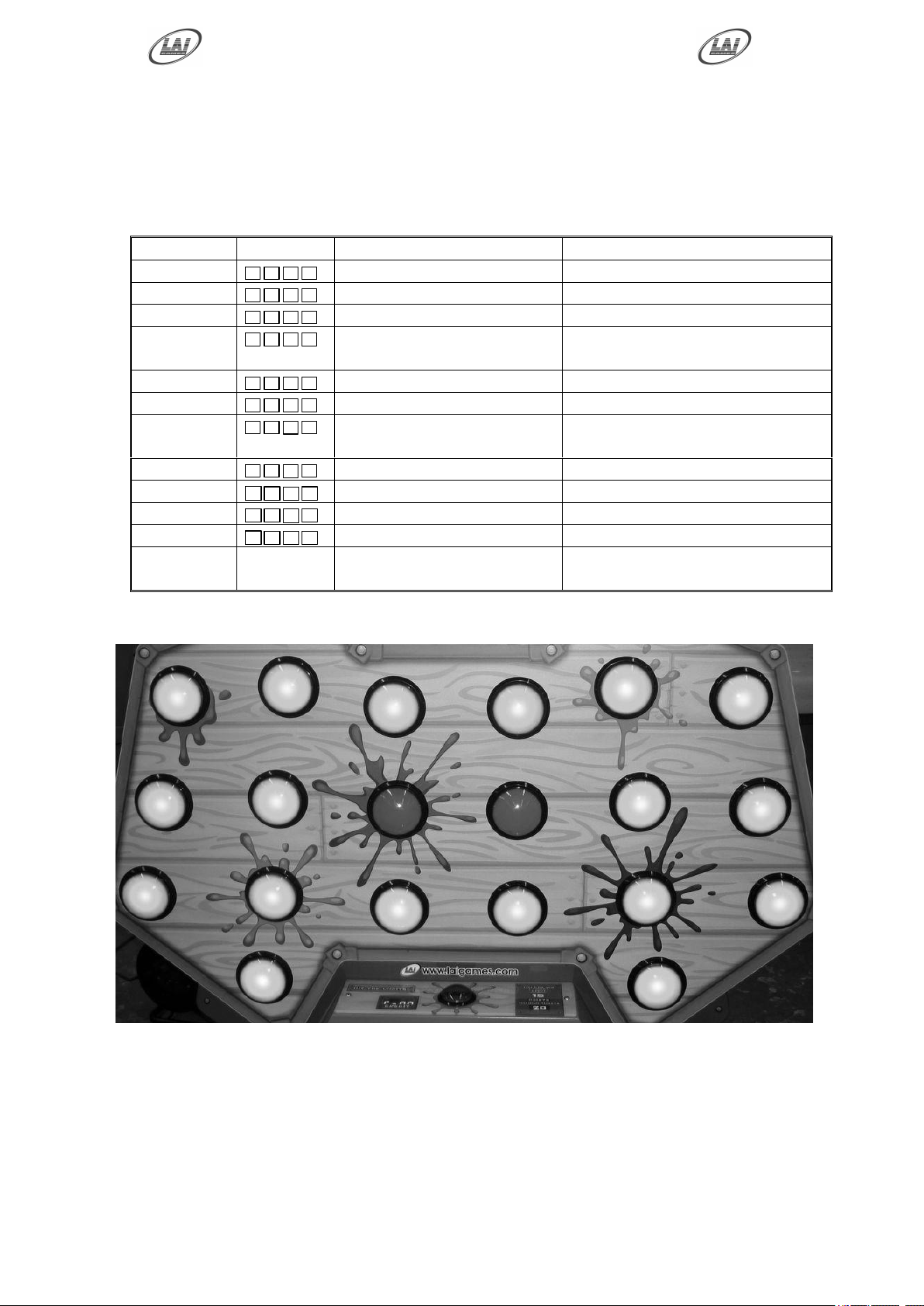

Players hit as many illuminated buttons as they can within the designated time limit.
Bonus points are awarded for hitting the lit buttons continuously at a high speed. At
the end of normal game time, there is a three-second bonus round in which all the
buttons are illuminated at once, and the player hits as many as they can.
Pay to play.
 Select your game mode
 Hit the lit buttons as fast as you can within the time limit
 Hit as many buttons as you can in the three-second bonus round
 Win tickets based on:
 Score (points per ticket)
 Beating the high score
 Reaching the top score of 999
 Or win bonus credits based on:
 Beating the high score
Reaching the top score of 999
