LAI Games Slam 'n' Jam Overhead Display User manual

Leisure & Allied Industries Branches are
Located in
Singapore - Australia - Philippines - Indonesia - New Zealand - USA
LEISURE & ALLIED
INDUSTRIES
Correspondence regarding this machine should be addressed
to your closest LAI Games Distributor, or Leisure and Allied
Industries office. For a list of Leisure and Allied office
contact details, refer to the back page of this manual.

TABLE OF CONTENTS
INTRODUCTION …………….….….…………….….………………. 1
Specifications ………….……………………….……………….. 2
Caution ……….…………………………………….…………… 3
Handling precautions ………….………….……..……………… 4
FITTING THE OVERHEAD DISPLAY …………………….……….. 5
LINKING THE OVERHEAD DISPLAY …………………………… 8
Link Cabling Diagrams ………………………………………… 8
GAME POWER UP SEQUENCE ……………….…………………….. 11
TROUBLESHOOTING THE LINK SYSTEM ………………..…….. 13
OPERATION …………………………………………………….…….. 15
Display Mode …………………………………………………… 15
Test Mode …………………….………………………………… 15
PROGRAMABLE ADUSTMENTS MODE ………………………… 16
Programmable Adjustments Quick Reference Table ……….….. 18
Programmable Adjustments Detailed …….…………………….. 19
AUDITS MODE ………………………………………………………. 25
Game Audits Quick Reference Table …….……….……………. 25
Game Audits Detailed ………………………………………….. 26
ERRORS & TROUBLESHOOTING …………….…………………. 27
FUSE LIST ……………………………………………………………. 28
Fuses Location Diagram ………………….……….……………. 28
Fused Detailed …………………………………….……………. 28

SECTION A – SERVICE INSTRUCTIONS
LOCATING AND ACCESSING PARTS ……………………………. 29
Parts Location Diagrams ……………….……….……….……… 29
MAINTENANCE & CLEANING ………….………………………… 30
SECTION B – TECHNICAL DETAILS
MAINS VOLTAGE ADJUSTMENT …….…….……………………. 31
OVERHEAD DISPLAY PARTS LIST ……………………….………. 32
WIRING DIAGRAMS ………………………………………………… 34
Main Display Wiring …………………………………………… 34
Power Distribution ……………………………..………………. 35
WARRANTY ……….……….……….………………… Back inside cover
LAI GAMES OFFICES & CONTACT DETAILS …..……... Back cover

1
INTRODUCTION
CONGRATULATIONS! on purchasing our Overhead Bonus Jackpot Display. This
display is used in combination with 2 – 8 linked “Slam ‘n’ Jam” Basket Ball games. It
has a ‘HIGH SCORE’ feature, which means when a player matches, or beats that score,
they win the displayed bonus tickets in addition to their game tickets.
The display is fully adjustable with operator adjustable winning score that can
automatically decrement if programmed. The bonus ticket amount is also
programmable, and can increment automatically if required. For more information,
refer to the Programmable Adjustment section of this manual.
PACKAGING
DELIVERY
!"
At delivery, the Display should arrive in good condition. To move the packaged
machine for transport or placement, use a fork lift and take care not to hit the
package or stack heavy objects on top as this may cause damage to the machine.
CONTENTS
!"
4 x Long Replacement Allen Head Bolts for “Slam ‘n’ Jam” M/C Top M6 x 50mm
with nyloc nut & flat washer
!"
6 x Mounting Bolts M6 x 25mm flat & spring washer
!"
Power cable
!"
Test Switch Box & cable
!"
1 x Link cable
!"
Operator’s manual

2
SPECIFICATIONS
DIMENSIONS
!"
Width: 2250mm (88.½")
!"
Weight: kg (lb)
!"
Height: 570mm (22.½")
!"
Height Inc. Bracket above machine: 640mm (25.½")
!"
Total Height Inc. Machines from ground: 2250mm (88.½")
!"
Length: 2400mm (94.½")
ELECTRIC SUPPLY
!"
The game has the option to operate on a 110V, 220V, 240V AC 50/60Hz mains
electric supply.
LOCATION REQUIREMENTS
!"
Ambient temperature: between 5oC and 40oC.
!"
Ambient humidity: Low
!"
Ambient U.V. radiation: Very low
!"
Vibrations level: Low
* NOTE: BEWARE!!! Before switching the machine on be sure to chec
k
that it has been set on the correct voltage for your area!! Refer to the mains
voltage adjustment section of this manual. Page 31. Machines are normall
y
shipped on 220V AC unless otherwise specified.

3
CAUTION
DO NOT
Attempt to test the logic boards (PCBs) with ordinary test equipment as this may result
in damage to digital components.
DO NOT
Connect or disconnect any of the logic boards’ integrated circuit modules (ICs) while
the power is ON.
!"
Mains AC power should always be turned OFF and the game
unplugged, before replacing any parts.
!"
When unplugging the game from an electrical outlet, always
grasp the plug, not the line cord.
!"
The Overhead Display should be grounded with a securely
connected ground line.
DO NOT
Subject the “Overhead Bonus Jackpot Display” to extreme temperature variations.
Reliability of electrical components deteriorates rapidly over 60oC.
DO NOT
Expose the game logic boards to U.V. radiation (eg. direct sunlight) as this could
eventually corrupt the program.
DO NOT
Install the Overhead Bonus Jackpot Display outdoors or in areas of high humidity,
direct water contact, dust, high heat or extreme cold or in areas that would present an
obstacle in case of an emergency, ie. near fire equipment or emergency exits, or an
unstable surface or surface subject to floor or other vibration.
IF A PC BOARD SHOULD NEED SERVICING, CONTACT YOUR NEAREST
LEISURE & ALLIED INDUSTRIES
OFFICE

4
HANDLING PRECAUTIONS
When installing or inspecting the Overhead Bonus Jackpot Display, be very careful of
the following points and pay attention to ensure that the player can enjoy the game
safely.
!" Be sure to turn the power OFF before working on the Display or machine.
!" Make sure the power cord or the grounding wire is not exposed on the surface
(floor, ground, etc.). Make sure that grounding connections are made safe.
!" Do not use any fuse that does not meet specified rating.
!" Make complete connections for the IC Board and other connectors. Insufficient
insertion is very dangerous.
!" The operating (ambient) temperature range is from 5oC to 40oC.
!" Only qualified personnel to inspect or test the IC boards.
!" Only use a logic tester for testing IC boards. The use of a continuity tester is not
permitted. After confirming that there are no irregularities, turn the power ON.

5
FITTING THE OVERHEAD DISPLAY
!" The Overhead Display can be fitted in two positions, depending if it is fitted
above an “even” number of machines, or an odd number of machines. The
mounting brackets and the fitting of the brackets are the same for both an odd
and even bank of machines. The difference is in the position where they are
bolted onto the back of the display is different. Refer to diagrams below:
3, 5 OR 7 MACHINES
OVERHEAD
JACKPOT
DISPLAY
2, 4, 6, OR 8 MACHINES
OVERHEAD
JACKPOT
DISPLAY

6

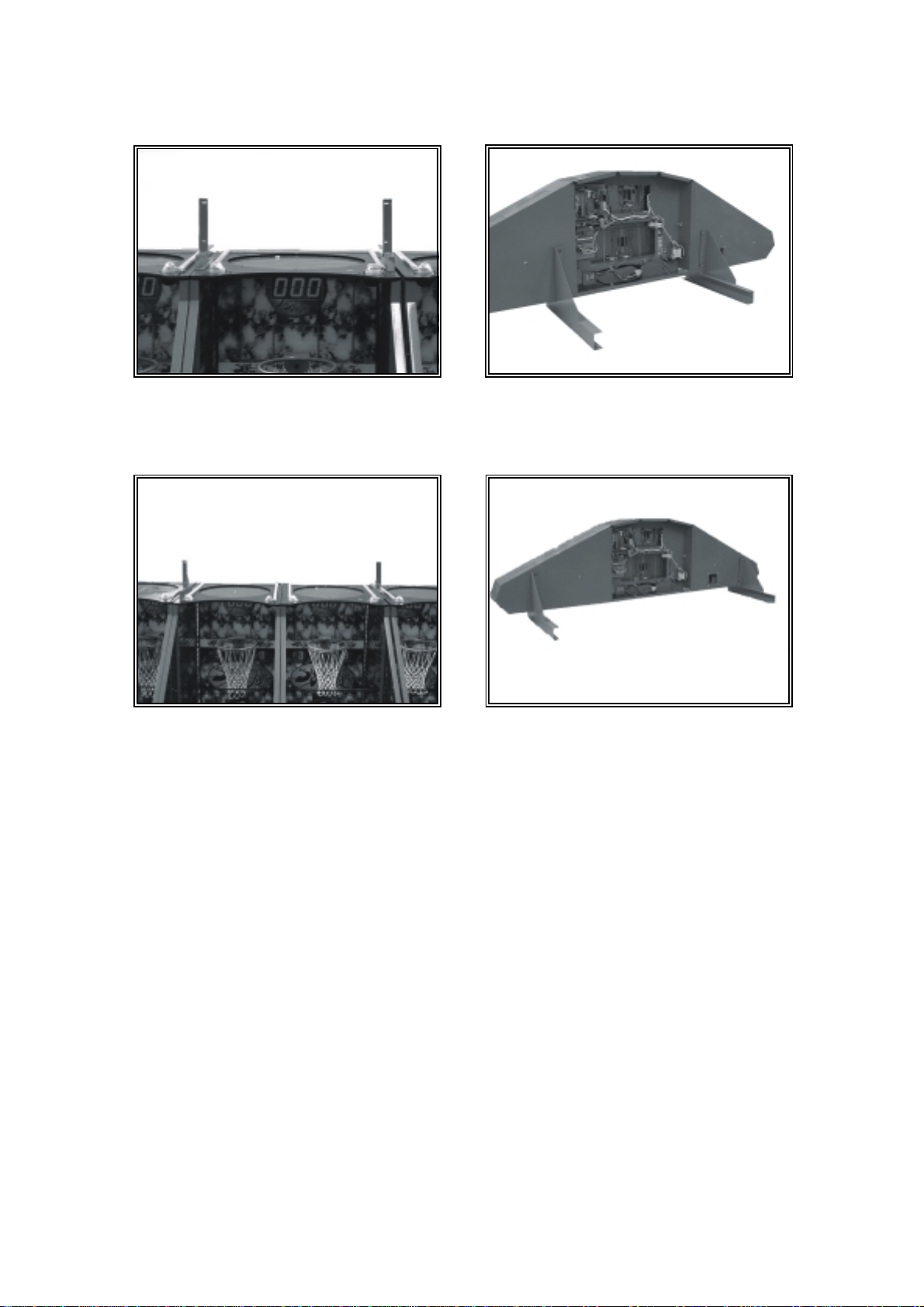

STEP ONE: Removal and Exchange of Allen Head Bolts.
!"
Remove the 4 Allen head bolts from the Top Panel of the “Slam ‘n’ Jam” machine
as per Figure 1. Replace these with the four, 6mm x 40mm Allen head bolts
supplied as per Figure 2.
STEP Two: Attachment of Brackets.
FIGURE 1 FIGURE 2
!"
Loosely bolt the two
brackets in position on top
of these longer bolts usin
g
the nuts and washers
supplied as per the
adjacent picture.
Remove bolts as shown
from both sides &
replace with longer bolts
as supplied.
Replacement with
longer bolts.

7

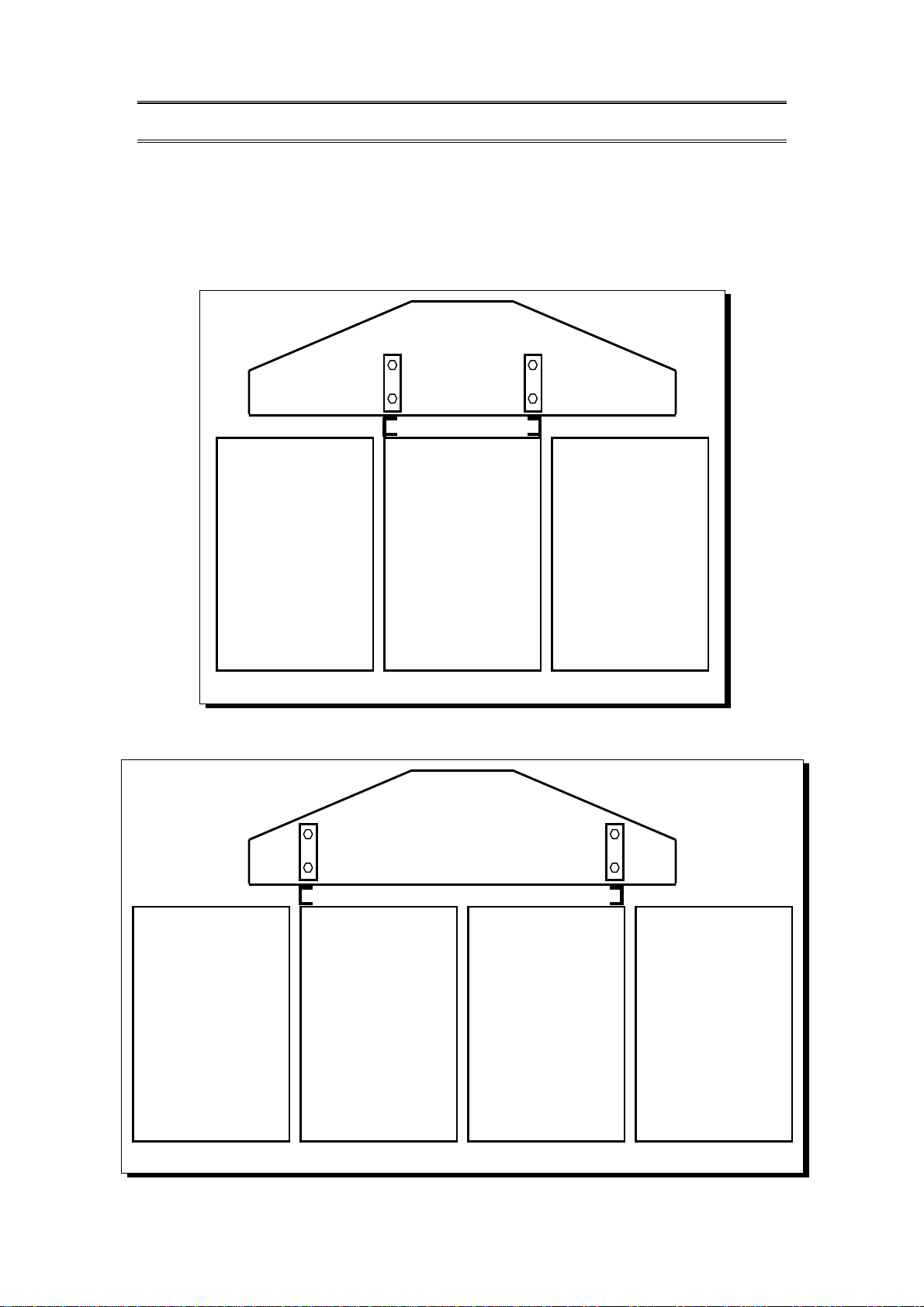

STEP Three: Positioning of Overhead Jackpot Display.
POSITIONING FOR 3, 5 OR 7 MACHINES
POSITIONING FOR 2, 4, 6, OR 8 MACHINES
!"
Lift the overhead display into position and bolt up to the brackets using the six,
6mm x 25mm bolts and washers supplied. Two bolts at the back each side, and one
bolt each side from underneath. When aligned and in position, tighten all the bolts.
STEP Four: Connection of Test Switch Box & Link Cables.
!"
Screw the test switch box inside the machine for easy access. Feed the test switch
box cable out through the back of the machine.
!"
Plug in the test switch box cable into the back of the overhead display.
!"
Plug in the linking cables. (Refer to linking games section of the manual Page 8).
!"
Switch on machines and program the desired settings. (Refer to Programmable
Adjustments section of this manual Page 19).

8
LINKING THE OVERHEAD DISPLAY
2 MA
C
HINE
S
+
OV
ERHEAD DI
S
PLAY
IN OUT
2 IN OUT 1
SLAVESLAVE
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER
3 MACHINES + OVERHEAD DISPLAY
IN OUT
3 IN OUT 2 IN OUT 1
SLAVESLAVE SLAVE
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER

9
LINKING THE OVERHEAD DISPLAY continued
IN OUT
4 IN OUT 3 IN OUT 2 IN OUT 1
SLAVESLAVESLAVE SLAVE
4
MA
C
HINE
S
+
OV
ERHEAD DI
S
PLAY
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER
5 MA
C
HINE
S
+
OV
ERHEAD DI
S
PLAY
IN OUT
5 IN OUT 4 IN OUT 3 IN OUT 2 IN OUT 1
SLAVESLAVESLAVESLAVE SLAVE

10
LINKING THE OVERHEAD DISPLAY continued
IN OUT
6 IN OUT 5 IN OUT 4IN OUT 3 IN OUT 2 IN OUT 1
SLAVESLAVESLAVESLAVESLAVE SLAVE
6
MA
C
HINE
S
+
OV
ERHEAD DI
S
PLAY
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER
7 MA
C
HINE
S
+
OV
ERHEAD DI
S
PLA
Y
IN OUT
6 IN OUT 5 IN OUT 4 IN OUT 3 IN OUT 2 IN OUT 1
IN OUT
7
SLAVE SLAVESLAVESLAVESLAVESLAVE SLAVE
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER

11
LINKING THE OVERHEAD DISPLAY continued
After cabling the machines as per diagrams, set all basketball game machines to
“Slave” (Program Adjustment P 01 set to 2). For more information on linking refer to
the “Slam ‘n’ Jam” Game Manual.
When an overhead display is fitted, it is automatically the “Master” and can not be
changed, so therefore, all other machines must be slaves. After these settings are
done, the machines should link when powered up. If you have any problems with
linking, refer to “Troubleshooting the Link System” Page13 of this manual.
GAME POWER UP SEQUENCE
Below is an example of the power up sequence for a bank of 8 machines with an
overhead display unit fitted.
POWER ALL GAMES ON
IN OUT
8 IN OUT 6 IN OUT 5 IN OUT 4 IN OUT 3 IN OUT 2 IN OUT 1
IN OUT
7
SLAVE SLAVE SLAVESLAVESLAVESLAVESLAVE SLAVE
8
MA
C
HINE
S
+
OV
ERHEAD DI
S
PLA
Y
OVERHEAD
JACKPOT
DISPLAY
OUT IN
MASTER
—
—
—
4
—
—
—
1
—
—
—
2
—
—
—
3
—
—
—
5
—
—
—
6
—
—
—
8
SLAVE SLAVESLAVESLAVESLAVESLAVESLAVE SLAVE
—
—
—
7
MACHINE
3 DIGIT
DISPLAYS
MASTER
L
L
L

12
OVERHEAD DISPLAY CHECKS FOR LINK OF ALL MACHINES
OVERHEAD DISPLAY SETS GAME ID NUMBER
(In order of cabling)
GAMES READY TO PLAY
00 0
4
00 0
1
00 0
2
00 0
3
00 0
5
00 0
6
00 0
8
SLAVE SLAVESLAVESLAVESLAVESLAVESLAVE SLAVE
00 0
7
MACHINE
3 DIGIT
DISPLAYS
MASTER
01 2
00 3 0
4 123568
SLAVE SLAVESLAVESLAVESLAVESLAVESLAVE SLAVE
LL L LL LLL LLL LLL LLL LLL L LL L
7
MACHINE
3 DIGIT
DISPLAYS
MASTER
LL L
4 1 23 5 6 8
SLAVE SLAVESLAVESLAVESLAVESLAVESLAVE SLAVE
7
MACHINE
3 DIGIT
DISPLAYS
MASTER
1
L
5L 2L3L4L6L7L9L 8L

13

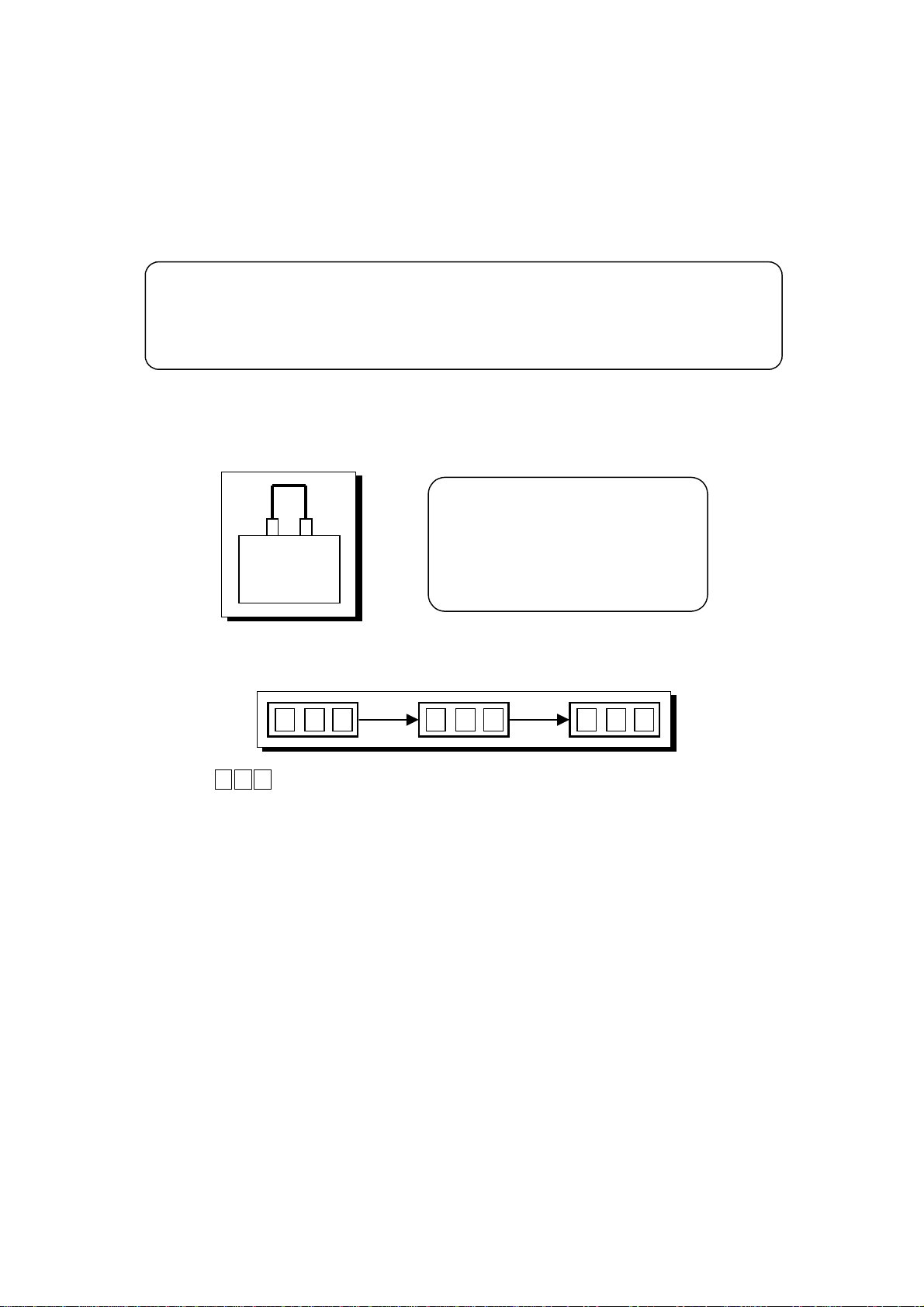

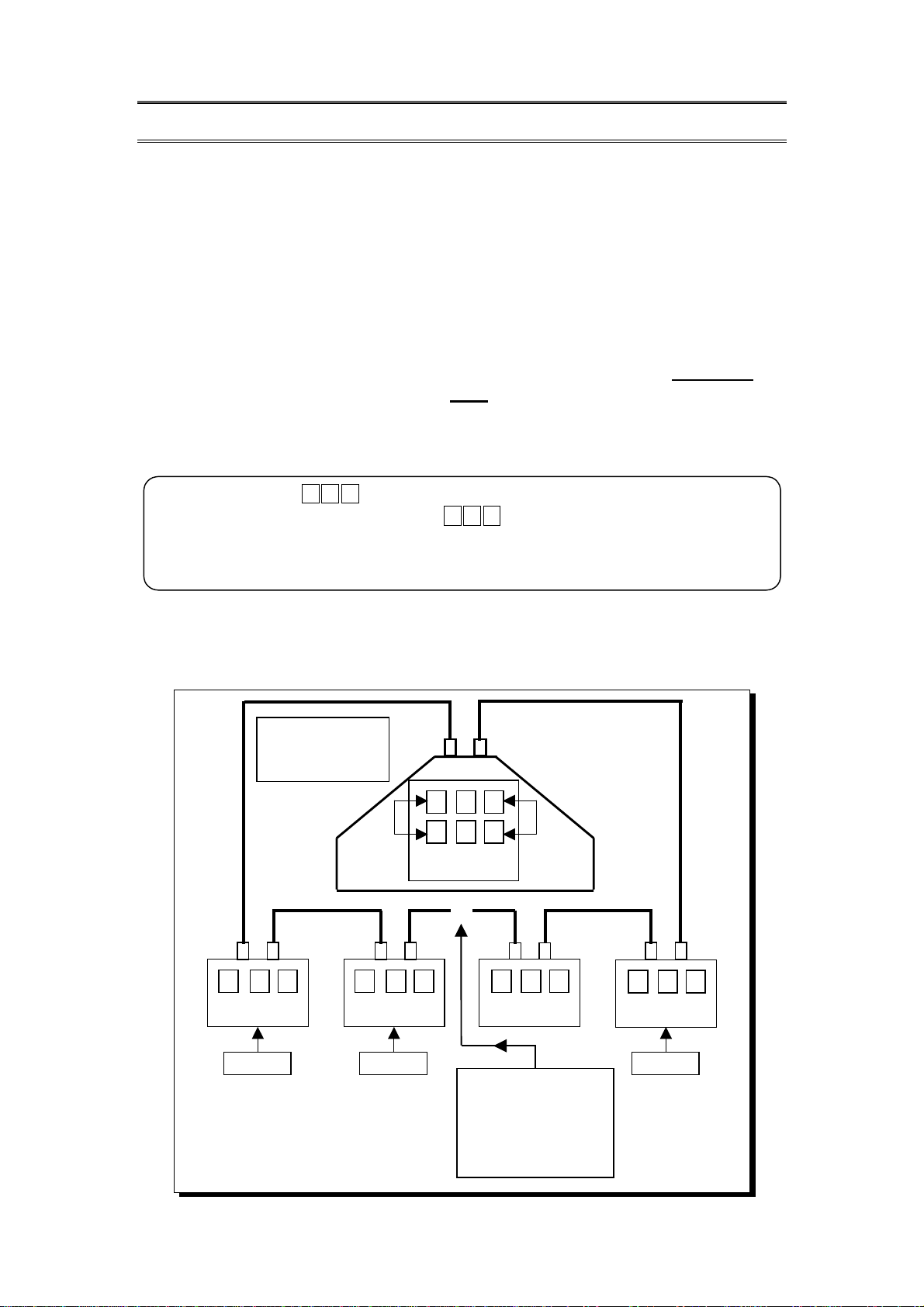

TROUBLESHOOTING THE LINK SYSTEM
COMMON PROBLEMS:
WHEN GAMES WON’T LINK (ERROR Er4 is displayed on the
overhead display)
!"
Check that all link cables are tightly connected and go correctly from IN of one
machine to OUT of the next machine in a continuous loop. Refer to diagrams,
Page 6 to 9.
!"
Check that there is only one ‘MASTER MACHINE’ (This is ALWAYS the
Overhead Jackpot Display), and ALL the game machines are ‘SLAVE
MACHINES’. (Program adjustment P01).
!"
By checking what the displays show on ‘POWER UP’; can help diagnose where
a break or bad connection in the link could be. Refer to diagram below:
* NOTE: If, is displayed on more than one machine it means that
there is more than ONE ‘MASTER’. error is only displayed on a master
machine that is automatically the Overhead Jackpot display. Change any other
games displaying Er4 to ‘SLAVE”.
E r 4
E r 4
X
A BREAK IN
THE LINK
BETWEEN
MACHINES
SLAVESLAVE SLAVE
L
L
L
2
—
—
—
5
—
—
—
4
L
L
L
3
MASTER
flashes between
L1 & Er4
L
L
L
1
4E r

14
!"
Check the link cables for continuity with a multi-meter if a cable problem is
diagnosed.
!"
If there are still problems linking a large bank of machines, try linking the
‘OVEHEAD JACKPOT DISPLAY’ machine with just one machine at a time to
check there is not an internal problem with any one machine. After linking two
machines successfully, try introducing other machines one at a time.
!"
A single machines internal linking hardware and cables can be checked by setting
the single machine to ‘MASTER’ and looping the cable from OUT to IN as per
the diagram below:
!"
Turn the single machine off and on and the 3 digit display should show the
following sequence:
!"
If an error occurs, this would mean that the single link cable is faulty, or
the internal machine hardware is faulty. (If the machine hardware is faulty, contact
your nearest LAI Games Distributor).
* NOTE: If games will not link, the ‘OVERHEAD JACKPOT
DISPLAY’ will try for approximately 60 seconds, and if unsuccessful, the
games will power up as solo machines and the overhead jackpot display will no
t
be active and continue to display Er4.
E r 4
* REMEMBER *
After performing this test, don’t
forget to set the machine back to
its correct P01 setting.
(‘MASTER’ or ‘SLAVE’)
OUTIN
SET TO
MASTER
L
L
L
1
L
00 0

15
OPERATION
The Overhead Jackpot Display has four operational modes: Display mode, Test
mode, Programmable Adjustments Mode and Audits Mode.
DISPLAY MODE
!"
The Overhead Jackpot Display displays the score needed to win and the number
of tickets that will be won.
TEST MODE
!"
The Test Mode has two test configurations, allowing you to test the function of the
Lamps and Displays, and the Test Switches.
PROGRAMMABLE ADJUSTMENTS MODE
audits MODE
Press
TEST
Press
TEST
Press
TEST
Press
TEST
POWER UP
Display MODE
TEST MODE
Press
TEST
BOTH DISPLAYS COUNT AND THE ROPE LIGHT IS
FLASHING
Lamps & display test
Display MODE
PROGRAMMABLE ADJUSTMENTS MODE
Press TEST to Exit
Press SERVICE / ENTER Press START / STEP Button
SWITCH TEST
Press
TEST
C 1
C 2
C 0

16
PROGRAMMABLE ADJUSTMENTS MODE
GAME ADJUSTMENTS
♦ The game has twenty-seven changeable Programmable Adjustments. ALL
game settings are adjusted by the Overhead Jackpot Display. P01 is NOT
adjustable, P02 to P15 are the Slam ‘n’ Jam game adjustments, and P16 to
P27 are for adjusting the Jackpot Display features. When in Programmable
Adjustment mode, the code number and value is displayed alternately during
to adjustment program. The three-digit display is not used.

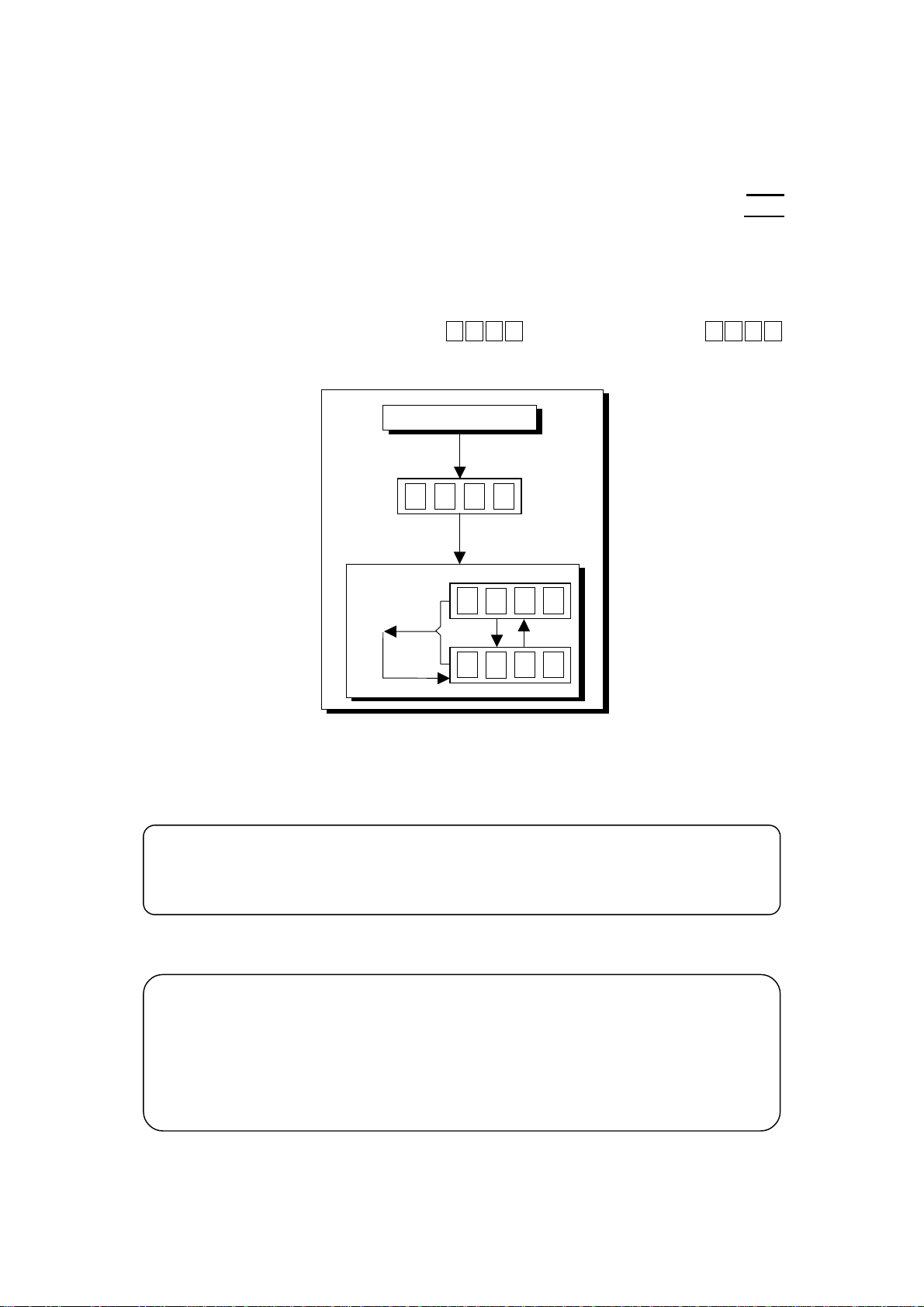

Example: displayed adjustment alternates with its value .
Refer to the diagram below:
♦ There is a range of values for each variable of the game, and any value in this
range can be chosen for the game settings, using the change procedure.
Press
TEST
50P 0
3
Press
SERVICE
NUMBER OF COINS MECH 1
1, 2, 3, ..., 10
to
change
value
Press
START 0 3
P
0 5
TEST MODE
Press
TEST
P P P
P
* NOTE: Programmable adjustments P02 – P15 are the adjustments for all
linked games. These adjustments are controlled and downloaded by the
Overhead Jackpot Display. No game adjustments can be made by the individual
games.
Programmable adjustments P16 – P27 are solely for ‘fine tuning’
the operation of the Overhead Jackpot Display.
* NOTE: ALL game settings and adjustments for all linked machines are
p
erformed using the programmable adjustments as listed below. The Overhea
d
Jackpot Display is always the ‘MASTER’ and controls all other linked games.
