Lampo HYPERCOLOR 575 User manual

HYPERCOLOR 575
CYM continuous colour changer wash luminaire
USER’ S MANUAL release 1.0
This manual must be considered an integral part of the projector.

1
BEFORE CONNECTING AND USING THE PROJECTOR, IT IS IMPORTANT TO READ CAREFULLY ALL THE
INSTRUCTIONS IN THIS MANUAL.
QUALIFIED PERSONNEL ONLY, IN COMPLIANCE WITH ALL THE SECURITY LAWS, CAN DO THE
INSTALLATION, THE MAINTENANCE AND THE UTILISATION OF THIS PROJECTOR.
BEFORE CONNECTING THE PROJECTOR, MAKE SURE THAT THE FREQUENCY AND THE VOLTAGE
VALUES ARE SUITABLE AS SPECIFIED ON THE PROJECTOR.
FOR ANY DOUBT, CONTACT YOUR SUPPLIER OR SEND AN E-MAIL TO:
[email protected]
INDEX
GENERAL DESCRIPTION ---------------------------------------------------------------------------- page 2
START-UP PROCEDURES -------------------------------------------------------------------------- page 4
CONNECTIONS ------------------------------------------------------------------------------------------ page 5
DMX CHANNEL ASSIGNMENT -------------------------------------------------------------------- page 6
STAND ALONE FUNCTION ------------------------------------------------------------------------- page 8
MAINTENAINCE ---------------------------------------------------------------------------------------- page 9
TROUBLESHOOTING -------------------------------------------------------------------------------- page 11
WARRANTY --------------------------------------------------------------------------------------------- page 11
OPTIONAL AND BEAM ANGLE ------------------------------------------------------------------- page 12

2
GENERAL DESCRIPTION
As shown in Figure 1, the HYPERCOLOR 575 is made up of the following parts:
1. Auxiliary support/ Rear panel
2. Cooling fan
3. Optional Anchoring bracket
4. Anchoring bracket
5. Projector body
6. Front panel
7. Top cover knob
Features and dimensions
Voltage rating 230 V
Rated current 4,1 A
Absorbed power 940 W
Frequency 50 Hz (order option 60 Hz)
Socket GX9.5
Lamp MSR-MSD-HSR
Maximum room temperature 35º C
Maximum surface temperature 70º C
Distance from inflammable surfaces 1 mt
Main montage via n°1 screw M 12
Auxiliary device mount via n°1 screw M 12
Length 550 mm
Width 290 mm
Deep 330 mm
Weight 16,9 Kg
Weight, including packaging 20 Kg
CAUTION
The projector cannot be mounted on inflammable surfaces.
Norms applied to construction:
EN 60 598-1 EN 60 598-2-17EN 294EN 50 082-1
EN 55 015 EN 60 555-2 EN 61 000-3-2

3
Rear panel
As shown below, the following elements can be seen on the rear panel:
4
1
0
DMX
OUT
DMX
IN
1,6AT
6,3AT
A4,5 V230
HZ5060
CE
SIG NAL LED
LAMPMSR/MSD
575WGX 9,5
Hypercolor 575
DMX CHANNEL ASSIGNEMENT
CH1= CYAN
C H2 = YELLO W
CH3= MAGENTA
CH4= DIMMER
CH5= SHUTTER
CH6= SPECIAL FUNCTIONS
DMXST
ART
ING
CHANNEL
-
256 -
128 -
64 -
32 -
16 -
8 -
4 -
2 -
1 -
-
-
-
-
-
-
-
INVERTSHUTTER -
INVERTDIMMER-
INVERTCOLOURS-
ON
OFF
ON
OFF
RESET
MADE IN ITALY
TEL+ 39 035 951 777
FAX+ 39 035 951 738
WWW.SAGITTER.IT
Adjustment of Projector Body Angle
As shown in the two pictures HYPERCOLOR 575 can be adjusted to any possible angle. Utilizing the Optional
anchoring point the projector can easily adapt itself to any mounting situation like theatre and television ceiling
applications or standard stage utilizations.
Once installed or any time you change position of the unit,
- Make sure the projector is correctly mounted at the new angle and that the cables are not too tighter in the new
position
Working Position
Hypercolor 575 can work in any position.
Mechanical Safety Guards
A bipolar cut-off switch is located between the lamp compartment and the cooling unit. This safety switch cuts off
the power to the projector if the top lid is opened.
Noise Level
After the projector has been powered up and the initial configuration takes place, the noise produced by the
projector is primarily due to its cooling system. The noise level is much lower than the limit of 70 dB as permitted
by the law.
Packing
The projector is shipped and delivered in a cardboard box made of KRAFT cardboard and semi-chemical additive-
free paper, in compliance with BSFV Class 3 standards for waste disposal. The projector is completely assembled,
placed in the box inside a polyethylene bag and held firmly in place with preformed polyester packing material. The
box is stapled shut. The package can not be exposed to inclement weather or humidity.
1. Power supply
2. Main switch
3. 1,6A Fuse
4. 6.3A Fuse
5. DMX OUT
6. DMX IN
7. Dip-Switches
8. DMX detector
9. Personality swithces
10. Reset button

4
No more than three identical boxes can be stacked one on top of the other.
Keep the original packing for possible shipments in the future.
Storage
The projector, in its original packing, must be kept in covered, dry areas with a temperature between -10° C and
+50° C.
Handling
The projector, with or without packing, must be handled with care. Lifting and handling must be carried out with
special equipment. Do not expose the projector, with or without its packing, to brusque accelerated or decelerated
movements, knocks, dragging, or other stress caused by unsuitable handling methods.
IMPORTANT
The projector in its packing can be seriously damaged if it falls or suffers a blow during transportation.
HANDLE WITH CARE!
START-UP PROCEDURES
Positioning and Installation
Follow these steps for opening the package and installing the projector on its working position:
· Place the projector near the place it will be installed.
· Open the package and remove anchoring elements and accessories.
· Carefully read the instructions in the manual.
· Prepare suitable hooks for the anchoring brackets and auxiliary support.
· Using suitable lifting equipment, place the projector up against the hooks.
· Tighten the M12 bolts and insert a device to prevent them from accidentally loosening.
· Attach the auxiliary support element and make sure it is tightly fastened.
· Make sure all adjustable parts are locked firmly in place in the desired position.
CAUTION
You must verify the stability of the anchoring elements when the projector is in working condition. In compliance
with the laws in force, the anchoring support must withstand a load of 170 kg. Screws, hooks, and hardware must
be inserted correctly and installed to prevent them from accidentally loosening.
IMPORTANT
The projector was designed to function when attached to the bracket. The projector cannot function sitting upon a
flat surface that obstructs the rear cooling vents. Do not install the projector where there are objects located at a
distance of less than 20 centimetres from the cooling system.
Lamp installation
· Loosen the two knobs that close the top lid.
· Remove the lamp from the packing and carefully read the Manufacturer’s instructions.
· Position the new lamp into the socket without touching the glass with the hand or any other dirt or greasy thing.
· Reposition the top lid and firmly tighten the two knobs.
Admissible environmental Conditions
The projector was engineered and produced to function in covered, dry areas with an air temperature ranging
between 5° and 35°C, and with a humidity level between 30 and 90%. Sharp changes in room temperature may
generate condensation inside the projector, which can harm the projector. Therefore, switch on the projector only
after it has undergone a period of gradual adaptation to the room temperature.

5
CONNECTIONS

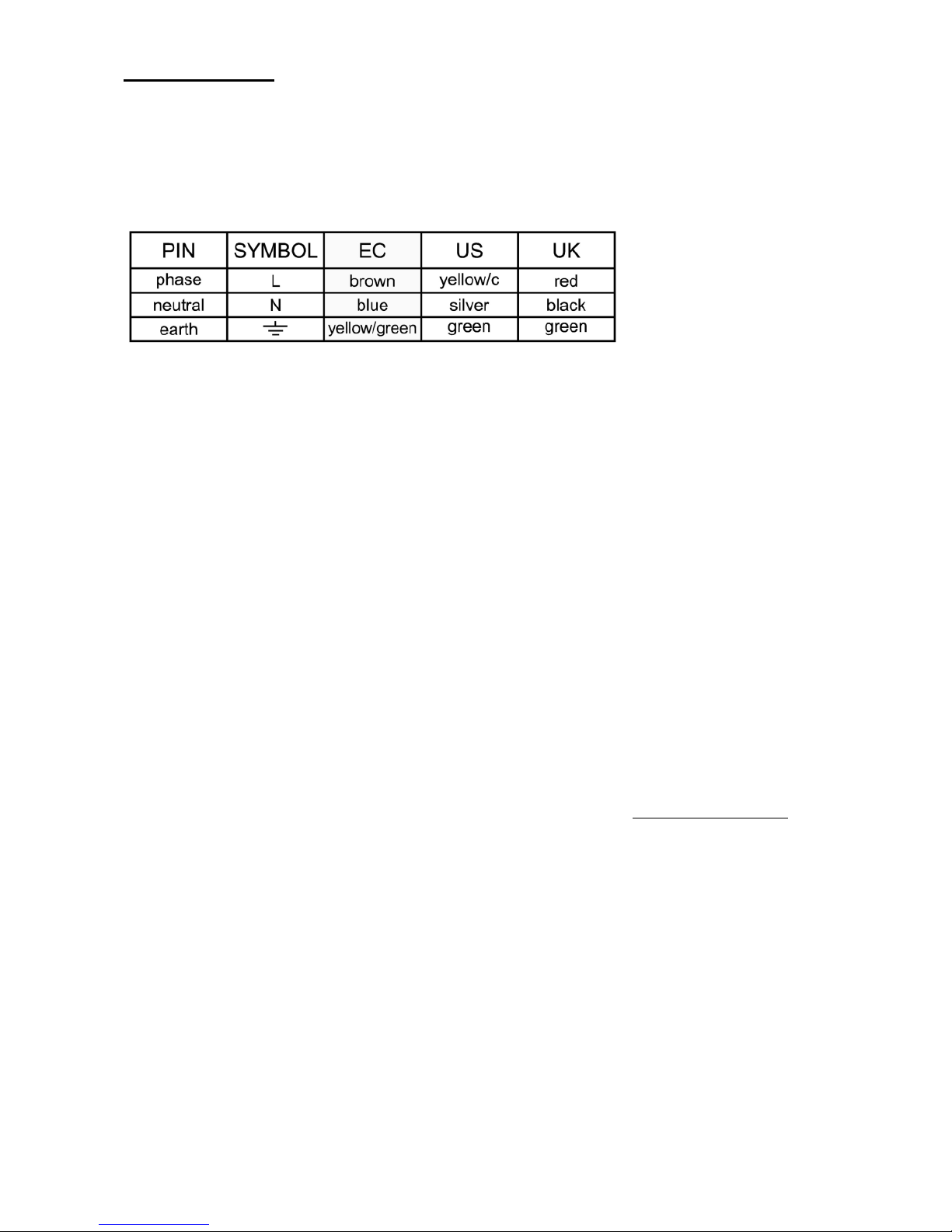

Power Supply
Use the cable provided inside the special junction box. The power line must be protected by a differential magneto
thermal circuit breaker, while metal parts that might be electrically charged through the projector must be grounded.
Hypercolor 575 absorbs 940W at 230V. Makes sure the projector does not pull the cable in all different working
positions, and that sources of heat are not placed in the vicinity.
When in doubt, consult a qualified electrician.
Don’t power the projector with a dimmer circuit
Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the
wires! Inside the projector, the ignitor circuit have very high voltage, over 5Kv.
The User must ensure that the power supply is provided with a highly sensitive differential circuit breaker 30m/A to
protect the projector from indirect contacts, and that the grounding system PE is working properly.
Control Unit
HYPERCOLOR Projectors can be controlled by practically all types of controllers on the market that can execute the standard
DMX 512 protocol. Controller-projector and projector-projector connections require a two-core screened cable provided with
CANNON XLR 3 pin plugs and sockets. The ground braid on the screened cable must be connected to just one end of the
cable. The projector and cables must not be installed near overhead ducts for electrical cables or intense magnetic fields.
Projector Address
To make sure the projector functions properly, the dip-switches in the DMX ADDRESS AREA, on the rear panel(page 3,
object#7), must be correctly configured. Keep in mind that each HYPERCOLOR occupies 6 DMX channels . Each projector
must be set separately on its own BASE CHANNEL (or STARTING CHANNEL). The BASE CHANNEL assignment is obtained
by summing the values for each switch in the DMX SECTION (for example, to set a projector on BASE CHANNEL #39, you
must set dip-switches 32, 4, 2, and 1 to the ON position, because 32+4+2+1=39). In the Standard Operating Mode, this means
the HYPERCOLOR will receive signals on 6 channels following the BASE CHANNEL, BASE CHANNEL included (for example,
if the projector is set on BASE CHANNEL #39, it will receive signals on channels #39, 40, 41, 42, 43 and 44).
RESET procedure
To enable RESET proc. keep a stable DMX signal between 240 and 250 on all 6 channels for 5 seconds.
Do not forget to change the values after the reset start to avoid the continuous reset procedure.

6
DMX CHANNEL ASSIGNMENT
CHANNEL FUNCTION
01 CYAN
02 YELLOW
03 MAGENTA
04 DIMMER
05 SHUTTER
06 SPECIAL FUNCTIONS
DMX values (The values % are approximated)
CHANNEL 1 = CYAN
percent values decimal values
0 % >>> OPEN =0
>>> 100% CYAN =255
OPTION: PERSONALITY DIP-SWITCH N°01 in position ON
0 % >>> CYAN =0
>>> 100% OPEN =255
CHANNEL 2 = YELLOW
percent values decimal values
0 % >>> OPEN =0
>>> 100% YELLOW =255
OPTION: PERSONALITY DIP-SWITCH N°01 in position ON
0 % >>> YELLOW =0
>>> 100% OPEN =255
CHANNEL 3 = MAGENTA
percent values decimal values
0 % >>> OPEN =0
>>> 100% MAGENTA =255
OPTION: PERSONALITY DIP-SWITCH N°01 in position ON
0 % >>> MAGENTA =0
>>> 100% OPEN =255
CHANNEL 4 = DIMMER
Percent values decimal values
0% BLACK –OUT =0
>< INCREASING DIMMER LEVEL
100% DIMMER LEVEL 100% (OPEN) =255
OPTION: PERSONALITY DIP-SWITCH N°02 in position ON
0% DIMMER LEVEL 100% (OPEN) =0
>< DECREASING DIMMER LEVEL
100% BLACK-OUT =255

7
CHANNEL 5 = SHUTTER
Percent values decimal values
0 > 10% OPEN =0
11 >20 % CLOSED =40
21%>>>> STROBE EFFECT MIN SPEED =54
>>> 100% STROBE EFFECT MAX SPEED =255
OPTION : PERSONALITY DIP-SWITCH N°03 in position ON
0 > 10% CLOSED =0
11 > 20% OPEN =40
21%>>> STROBE EFFECT MIN SPEED =54
>>> 100% STROBE EFFECT MAX SPEED =255
CHANNEL 6 = SPECIAL FUNCTIONS
DMX decimal values FUNCTION
000>>>>031 special function disabled
032 colour change mode: fading colours from colour 1 to colour 4
033 speed 1 (max) (1 sec/col)
034>>>062 28 variable speed
063 speed 30 (min) (1800 sec/col)
064 colour change mode: colours change from colour 1 to colour 4 (no fading)
065 speed 1 (max) (1 sec/col)
066>>>094 28 variable speed
095 speed 30 (min) (1800 sec/col)
096 colour change mode: fading colours from colour 2 to colour 4
097 speed 1 (max) (1 sec/col)
098>>>126 28 variable speed
127 speed 30 (min) (1800 sec/col)
128 colour change mode: colours change from colour 2 to colour 4 (no fading)
129 speed 1 (max) (1 sec/col)
130>>>158 28 variable speed
159 speed 30 (min) (1800 sec/col)
160 colour change mode: fading colours from colour 2 to colour 7
161 speed 1 (max) (1 sec/col)
162>>>190 28 variable speed
191 speed 30 (min) (1800 sec/col)
192 colour change mode: fading colours from colour 1 to colour 7
193 speed 1 (max) (1 sec/col)
194>>>222 28 variable speed
223 speed 30 (min) (1800 sec/col)
224 colour change mode: colours change from colour 1 to colour 7 (no fading)
225 speed 1 (max) (1 sec/col)
226>>>253 28 variable speed
254 speed 30 (min) (1800 sec/col)
255 special functions disabled

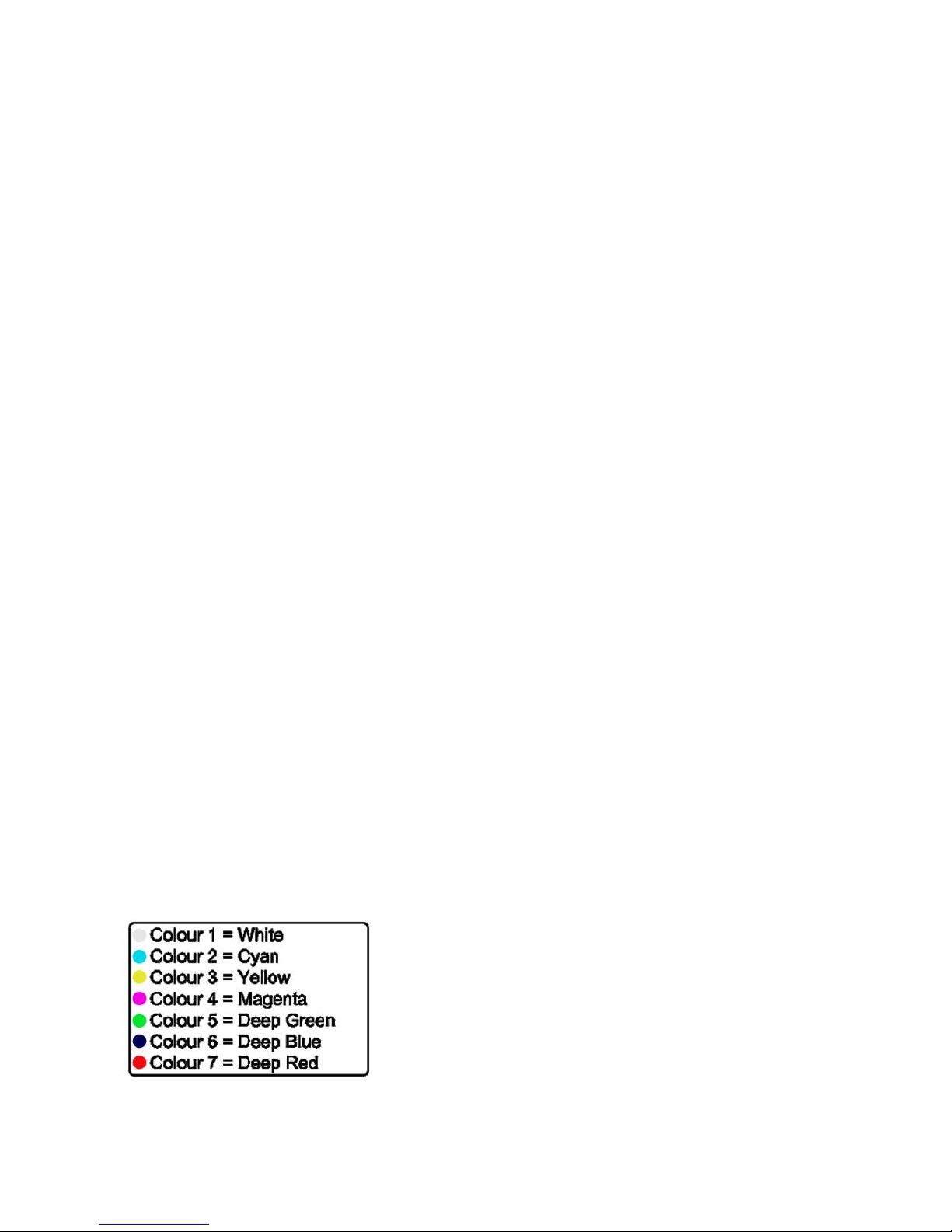

COLOUR MODE

8
STAND-ALONE FUNCTIONS
HYPERCOLOR can work in Stand-alone both single and in banks, that means without the need of a control unit, in
Master/Slave function, since any luminaries can be Master of a bank, it becomes able to control synchronously all
the other HYPERCOLOR fixtures and to manage a menu for a total of 6 options.
To make the HYPERCOLOR operating in Stand-alone mode, you must put in position ON the dip-switch 10. This
enable the projector to start its own program.
With HYPERCOLOR, once in stand-alone functioning, you just connect the DMX cable starting from the DMX OUT
(see page 2 object n°5) and the unit will perform the same program to all the other units.
All the “Slave” fixtures must be addressed on DMX 001. This means with the dip-switch 1 in position ON and all the
other dip-switches in OFF position.
Putting the dip-switch n°10 in position ON enable the unit to work in stand-alone functioning performing
the menu of channel 6 (see page 6).
Practically the DMX value is setted directly through the dip-switches value.
EXAMPLES
- The first 5 dip switches set the speed of the colour sequences (increasing from 1 to 31 binary code)
- The switches 6 –7 – 8 set the colours change mode, combining the 3 dip switches we can obtain 7 different colour
sequences:
from colour 1 to colour 4 (fading) = 32
from colour 1 to colour 4 (no fading) = 64
from colour 2 to colour 4 (fading) = 96 (32+64)
from colour 2 to colour 4 (no fading) = 128
from colour 2 to colour 7 (fading) = 160 (32+128)
from colour 1 to colour 7 (fading) = 192 (64+128)
from colour 1 to colour 7 (no fading) = 224 (32+64+128)
EX 1: Dip-switch 10 in position ON
Medium speed, the binary code is 1+2+8 = 11
Colour change from 1 to 4, whit fading, the binary code is 32
EX 2: Dip-switch 10 in position ON
Medium speed, the binary code is 2+8 = 10
Colour change from 2 to 7, whit fading, the binary code is 32+128=160

9
MAINTENANCE
CAUTION
Safety guards, lenses, and filters must be replaced if they are visibly damaged to the point that they become
ineffective (for example, if they have deep slashes or cuts).
The lamp must be replaced if damaged, cracked, or deformed by the heat.
PLANNED MAINTENANCE
at user’s charge and responsibility
Operation Frequency Action
Lamp replacement 750 hours M1
Surface temperature test Quarterly M3
Cleaning Two months M4
Testing of safety breaker circuit on general
electric system Monthly Check life-saving safety device pressing “T” button
Check damage to cables due to mobile use
of projector Once a year Replace cables if
damaged
NOTE: To ensure the correct functioning of the unit, a general service check of the projector must be made, twice a
year, from an authorized technician
ATTENTION
Always use original spare parts to ensure safe and proper functioning of the projector.
ATTENTION
Do not make changes to the projector. A modified projector requires a new CE marking.
M1 - LAMP REPLACEMENT
The lamp must be replaced with the same type of lamp and according to the same frequency. A less efficient lamp
jeopardizes projector performance. Replace the lamp as follows:
- When the projector is cold, turn off the ON/OFF switch to cut the electricity and follow the instruction as explained
in page 3 of this manual .
-Switch on the projector to make sure the lamp is working correctly.
M3 - SURFACE TEMPERATURE TEST
Before you check the temperature, make sure the projector is in the full operating mode (wait about 20 minutes
after switching on the projector). Use a contact probe to measure the surface temperature on the projector’s metal
case and determine the hottest area (Top lid near to the lamp). The temperature must be less than 70°. Otherwise,
check the cooling system.
M4 - CLEANING ATTENTION
Cleaning must be carried out when the projector is cool, disconnected from the power supply, with the general
power switch turned off, and the ON/OFF switch on the rear panel switched OFF.

10
FREQUENCY
It is recommended to clean the projector every two months to ensure efficiency and performances. If the projector
is used in particularly smoky or dusty areas, clean the projector more frequently.
1. Use a (soft) compressor to remove the dust from the front areas and from the fan (keeping the fan blocked with
i.e. a screwdriver)
2. Use a vacuum cleaner to remove dust.
3. Use a soft cloth (non-fabric) and pH neutral (pH7) liquid detergent to clean front glass and the other surfaces.
Make sure you remove all residual traces.
4. Make sure the cleaning procedure did not damage any internal part or modified their correct position.
5. Make sure no cleaning materials or tools remain inside the projector.
LIFE SPAN AND DISPOSAL
If the projector is operated in ordinary working conditions and the user follows the planned maintenance operations
established by the Manufacturer, it should last for three years. When the projector is discarded, it must be disposed
of according to recycling laws.
The improper use of this projector, cancel the guarantee and our responsibility. All the information have been written and driven
with extreme care; however, we do not engage us any responsibility for contingent errors or omissions. We reserve the right to
modify and/ or improve our product as we retain necessary, without subsequent warning or notice. It is forbidden any complete
or partial reproduction of this handbook, if not expressly authorized.

11
TROUBLESHOOTING
Problem Possible cause SOLUTIONS
Projector will not
turn ON
No mains power
No power to the
projector
Burned-out fuse
Make sure the mains power is ON and the circuit breaker hasn’t
been triggered
Make sure the switch on the back of the projector is ON.
Make sure the top lid is tightly closed
Replace the burned-out fuse *Use the type of fuse indicated on
the side of the fuse box
The lamp will not
light Burned-out or faulty lamp Replace the lamp
The beam is not
regular
An optical element is
damaged
Dirt on glasses and
dichroic filters
Switch OFF the power and check the optical components. If
damaged call an authorized technician
Switch off the power and clean the parts as explained in the
cleaning paragraph
The projector does
not respond to
controller signals
Malfunctioning
signal cable
Wrong DMX address
Malfunctioning
electronic circuit
Malfunctioning motor
or transmission
Replace the cable and check the line before switching on again
the projector
Check the DMX SECTION dip-switch setting and correctly
reconfigure them
Contact an authorized technician
Discontinuous
projector functioning Safety thermostat has been triggered
Remove the dirt and check to see if the cooling system is working
properly
Contact an authorized technician
Noisy projector Mechanical wear Identify the source of the noise and remove the cause.
Contact an authorized technician
*Before switching on the projector, identify and remove the causes that made the fuse intervene
WARRANTY
HYPERCOLOR 575 is guaranteed against any manufacturing defects or material flaws, if defects or breakdowns
occur during the warranty period. After inspection and according to its own unquestionable judgment, the
Manufacturer will repair or replace the defective part.
The warranty is not valid in the following cases:
1. If the projector was used improperly or with negligence, or if it was damaged and repaired and/or modified to the
point of jeopardizing safe functioning.
2. If the projector is used in conditions other than those specified in this manual.
3. If non-original spare parts are used.
4. All malfunctioning and breakdowns caused by acts of God, negligence, and improper use, and parts subject to
wear are not covered by the warranty.
The Customer shall be responsible for all shipping costs for the material.
All orders for spare parts must be accompanied by the model of the projector and the serial number.

12
OPTIONAL AND BEAM ANGLE
BARN DOORS KIT
The barn doors mounting kit is supplied if requested as a optional, the
mounting process is very easy:
1- Unscrew the 4 PH screws from the front panel.
2- Insert the 4 spacers you will find in the barn door kit and firmly tight.
3- Position the barn doors and reposition the 4 PH screws of the front
panel without thigh them
4- Once in the correct position, tight firmly.
SPOT ADAPTER
The spot adapter it is mountable on HYPERCOLOR 575.
This system enable the projector to perform a beam like a standard
theatrical PC Spot: Loosing a bit the knob on top of the adapter and
moving the lens from front to back enable to project a variable aperture
beam from 10° up to 25° aperture.
The SPOT ADAPTER is supplied, under request as an optional and it is
mounting process is exactly the same as per the BARNDOORS.
Adjust the beam loosing and reblocking the knob on top of the adapter to
obtain the desired aperture.
