Leviton 73A00-4ZB Mounting instructions

WIRELESS 5A LOAD CONTROL MODULE
CAT. NO. 73A00-4ZB
Installation Instructions and User’s Guide
INSTALLATION ENGLISH
DI-021-ZI734-00A
(73I00-4ZB)
LEVITON LIMITED WARRANTY
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that products manufactured by Leviton under the Leviton brand name (“Product”) will be free
from defects in material and workmanship for the time periods indicated below, whichever is shorter: • OmniPro II and Lumina Pro: three (3) years from installation or 42 months from
manufacture date. • OmniLT, Omni IIe, and Lumina: two (2) years from installation or 30 months from manufacture date. • Thermostats, Accessories: two (2) years from installation or
30 months from manufacture date. • Batteries: Rechargeable batteries in products are warranted for ninety (90) days from date of purchase. Note: Primary (non-rechargeable) batteries
shipped in products are not warranted. Products with Windows® Operating Systems: During the warranty period, Leviton will restore corrupted operating systems to factory default
at no charge, provided that the product has been used as originally intended. Installation of non-Leviton software or modification of the operating system voids this warranty. Leviton’s
obligation under this Limited Warranty is limited to the repair or replacement, at Leviton’s option, of Product that fails due to defect in material or workmanship. Leviton reserves the
right to replace product under this Limited Warranty with new or remanufactured product. Leviton will not be responsible for labor costs of removal or reinstallation of Product.
The repaired or replaced product is then warranted under the terms of this Limited Warranty for the remainder of the Limited Warranty time period or ninety (90) days, whichever
is longer. This Limited Warranty does not cover PC-based software products. Leviton is not responsible for conditions or applications beyond Leviton’s control. Leviton is
not responsible for issues related to improper installation, including failure to follow written Installation and operation instructions, normal wear and tear,
catastrophe, fault or negligence of the user or other problems external to the Product.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing or by telephone.
Description
The Model 73A00-3ZB Wireless 5A Load Control Module (LCM) can be used to control low voltage circuits in outdoor air
conditioning units, pool and spa heaters, pool and spa pumps, generators, and much more.
Enrolling the 73A00-4ZB LCM to ZigBee Network
1) Confirm that the LCM is currently not enrolled in the network (i.e. blinking 1/Second at 50% On). If the LCM is enrolled in the
network, disband LCM.
2) Place the supplied magnet on LCM near the magnetic sensor until the LED changes to blinking 7 times per second. This will
require that the magnet be held at this location for 5+ seconds.
3) Enroll the device using the ZigBee Interface Module (ZIM).
4) Verify device was enrolled properly by checking to see if the LED is blinking 1 time a second at 10% On (Normal operation).
Disbanding the 73A00-4ZB LCM from ZigBee Network
1) Confirm LCM is currently in network (i.e. any LED state except blinking 1/Second at 50% On).
2) Place magnet on LCM near magnetic sensor and hold at this location for 6-8 seconds.
3) Remove magnetic from magnetic sensor for 6-8 seconds.
4) Place magnetic on LCM near magnetic sensor and hold at this location for 6-8 seconds, until the LED changes to blinking 1/
Second at 50% On.
5) Device is disbanded.
Local Control
The 73A00-4ZB LCM can be controlled locally by placing the magnet near the magnetic sensor momentarily to toggle the state
(On/Off) of the controlled device.
WARNINGS AND CAUTIONS
•TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse
and test that power is off before wiring!
•If you are unsure about any part of these instructions, consult an electrician.
•SAVE THESE INSTRUCTIONS.
WARNINGS AND CAUTIONS
•To be installed and/or used in accordance with appropriate electrical codes and
regulations.
•Use this device with copper or copper-clad wire only.
•For indoor use only.

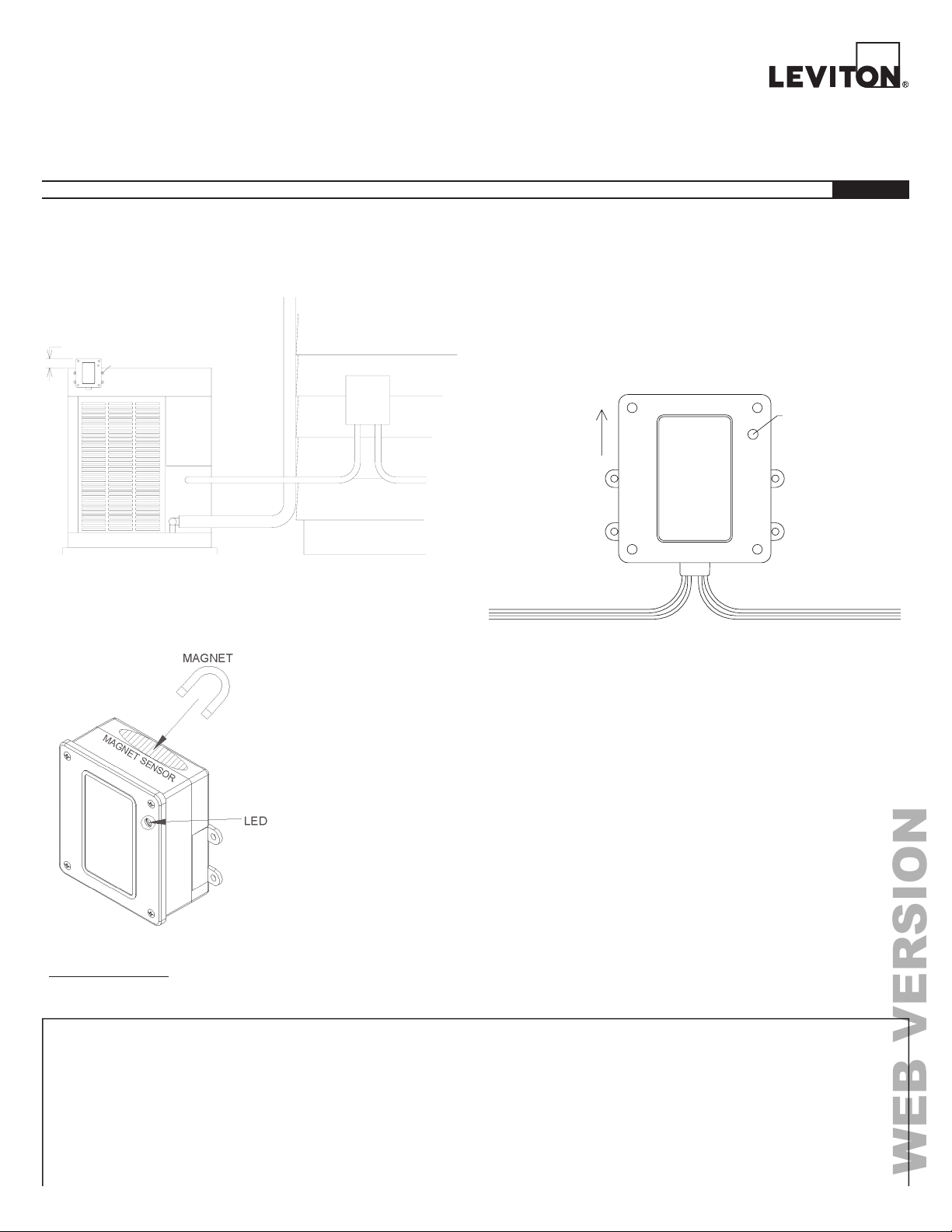

ORANGE / ORANGE
SWITCHED CONTROL CIRCUI
T
5A @ 240VAC GEN PURPOSE
5A @ 28VDC GEN PURPOSE
240VA @ 240 VAC PI
LOT DUTY
THIS SIDE UP
LED INDICATOR
BLACK / WHITE
100-250VAC, 50/60 Hz
POWER SUPPLY:
CONNECT TO "ALWAYS ON" CIRCUIT
POWER .35W STANDBY; .95W ACTIVE
USE APPROPRIATE SCREWS (NOT PROVIDED)
TO MOUNT UNIT, DO NOT OVER-TIGHTEN
FOR BEST RF PERFORMANCE, MOUNT TO NON-METALLIC
SURFACE, OR MOUNT WITH TOP OF UNIT 1.5 INCHES OR
MORE ABOVE METALLIC SURFACE
1.5" MIN
Example: This product employs certain elements from one or more of the following U.S. Patents:
IP CO, LLC: 7,089,125; 7,054,271; 6,249,516; 6,044,062. SIPCO LLC: 7,103,511;
6,914,893; 6,891,838; 5,714,931; 6,233,327; 7,397,907; 6,618,578; 7,079,810;
7,295,128; 7,263,073; 7,480,501; 6,437,692; 7,468,661; 7,053,767; 7,650,425;
7,739,378
This device is intended for installation in accordance with the National Electrical
Code and local regulations. It is recommended that a qualified electrician perform
this installation. Retain these instructions for future reference.
This product is suitable for indoor or outdoor use.
WEB VERSION
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Copyright and Trademark Information
This document and all its contents herein are subject to and protected by international copyright and other intellectual property rights and are the property of Leviton
Manufacturing Co., Inc, its subsidiaries, affiliates and/or licensors. © 2013 Leviton Manufacturing Co., Inc. All rights reserved.
Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their
respective owners; such use is not meant to imply affiliation, sponsorship, or endorsement.
No part of this document may be reproduced, transmitted or transcribed without the express written permission of Leviton Manufacturing Co., Inc.
© 2013 Leviton Mfg. Co., Inc. DI-021-ZI734-00A
STATUS RATE DESCRIPTION
OFF 0% On Device is malfunctioning or connected improperly, device has no power.
ON 100% On Device is currently in override mode, the load is turned off.
SHORT BLINK 1/Second 10% On Device is currently in network and not in override (operating normally).
LONG BLINK 1/Second 50% On Device is currently not in a Network.
QUICK BLINK 7/Second 50% On Device is currently trying to join network (sending beacons).
FAULT 2/Second 20% On Device is experiencing fault conditions.
LED Status Indicator
The LCM uses a status LED to indicate the current mode of operation. The states of the LED are the following:
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
