Liko Likorall 200 Manual
IMPORTANT!
Read the instruction guide for both the patient lift and lifting accessories before use. Lifting and transferring
a person always involves a certain level of risk. It is important to completely understand the contents of the
instruction guides. The equipment should only be used by trained personnel. Please contact Liko in the event of
any uncertainties or questions.
Product Description
is a warning triangle used for situations that demand extra care and attention.
In this document, the person being lifted is referred to as the patient, and the person helping them is referred
to as the caregiver.
Likorall 200™
Instruction Guide
English
7EN120114-01
2009-07-06
Applies to the following models:
Likorall 200 Product No. 3121001
Likorall is a stationary lift unit often called an
“overhead lift”. Likorall is mounted in Liko’s rail
system, which is adapted to suit the room/rooms
it will be operated in. The rail system can be built
straight, with or without curves, as a traverse system
and also as a room-to-room system. Liko’s rail
system is comprised of several hundred different
needed to customize each system to suit the room
it will be mounted in. The rail system can either be
authorized personnel and in accordance with Liko’s
installation instructions.
Likorall is intended for use in lifting and transferring
and balance training, when weighing the patient and
when lifting the patient with a stretcher.
Likorall 200 is adapted to Liko’s Quick-release Hook
accessories.
Liko’s Room-to-Room system (R2R), enables the patient
to be moved between two rail systems in separate
rooms, without connecting rails and without making
holes over doors.
A large range of accessories are available for Likorall,
including different sling models in a range of types and
sizes.
2 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01
Table of Contents
NOTE! This instruction guide contains important information for product users.
All who use the product should review and completely understand the contents of the instruction guide.
Remember to keep the instruction guide in a place where it is always available to those using the product.
Safety Instructions
Likorall 200 has been tested by accredited testing institutes and complies with the requirements for MDD Class I
products (MDD 93/42/EEC).
...............................................................................2
Technical Data .....................................................................................3
.............................................................................................3
Assembly..............................................................................................4
...........................................................................................
Charging the Batteries .........................................................................7
Transferring from Room to Room.........................................................8
.....................................................................................9
Recommended Lifting Accessories .................................................9-10
...................................................................... 11
Care and Maintenance .......................................................................12
Before lifting always ensure that:
• the lift strap is not twisted or worn and can move in and
out of the lift unit freely
• the lifting accessories are not damaged
• the sling is correctly and securely applied to the patient
in order to prevent injuries from occurring
• the lifting accessory is correctly applied to the lifting
equipment
• the sling strap loops are correctly connected to the
before the patient is lifted from the underlying surface
• the emergency lowering device is freely suspended
(not interfering with surrounding parts)
• the correct lifting accessory has been chosen, with
respect to type, size, material and version in relation to
the needs of the patient.
Before using make sure that:
• the lift is assembled in accordance with the assembly
instruction
• the lifting equipment is thoroughly attached to the lift
•the batteries are charged for at least 8 hours
• you have read the instruction guides for the lift and
lifting accessories
•personnel using the lift are informed of the correct use
of the lift and lifting accessories.
Max. load: 200 kg / 440 Ibs.
Contact Liko for further information.
Particular care must be observed when using strong sources of potential disturbance, such as diathermy, etc, so
that diathermy cables are not positioned on or near the lift. If you have questions, please consult the responsible
assistive-device technician or the supplier.
goods are stored.
3 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01.
Technical Data
Maximum load: 200 kg / 440 Ibs.
Batteries:
regulated lead-acid gel-type
batteries. New batteries are
provided by the supplier.
Battery charger:
Lifting speed:
Lifting interval:1800 mm / 70.9 inch.
Electrical data:
Lift unit
dimensions:
mm
Lift unit weight:
against uncontrolled lowering. The lift strap has a tenfold safety.
1. Hand control with spring clamp
2. Emergency lowering device (electric)
3. Emergency stop string
4. Emergency stop
6. Charge indicator
7. Lift unit
9. Lift strap
10. Q-link (quick fastener)
11. Quick-release hook
Emergency
lowering device: Electrical
Intermittent power:
Protection class
lift motor:
Sound level:
Expected life time:
Protection class
hand control:
Operating forces
hand control:
period of 100, the total active time
consecutive minutes.
IP 33
10 years
3N
Intended for indoor use.
Type B, in accordance with the electrical shock
protection class.
3
6
1
8
2
7
10
9
11
13
12
4
4 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01
Assembly
• the battery charger functions properly and the
indicator lamps are illuminated during charging
• the batteries are charged for at least 8 hours
After assembly, ensure that:
• the lift’s functions correspond to the markings
of the hand control
• the electrical emergency lowering device
functions properly
Likorall may only be mounted and installed by authorized staff and in accordance with the installation instructions
supplied by Liko.
Mounting lifting accessories using Quick-release Hook
Likorall 200 is equipped with Q-link (Quick-fastener), which is combined with Liko’s Quick-release Hook´s for
safe and easy mounting of lifting accessories. Liko’s Quick-release Hooks are protected against unintentional
detachment.
Mounting lifting accessories R2R (Room-to-Room)
The R2R sling bar has a double hook with Quick-release.The double hook is protected against unintentional
detachment.
w w w . l i k o . c o m
Likorall 200 • 7EN120114-01.
Manoeuvring
The lifting motion in Likorall 200 is controlled using
an attached hand control. Likorall 200 is manoeuvered
by pressing lightly on the hand control buttons. The
arrows indicate direction. Motion ceases when the
button is released.
Electrical Emergency lowering
In the event that the hand control or electronics
malfunction, the lift can be lowered by pulling on
the emergency lowering device.
In the event of emergency lowering, always ensure
the patient is lowered into a bed, wheelchair or other
suitable place.
Emergency stop
To activate the emergency stop: pull the red emergency
stop string.
To reset the emergency stop: turn the red emergency
stop button in the direction shown by the arrows.
The red button on the lift unit end cover is intended
-
ton is pressed, contact between the motor and power
source is broken, which stops the lifting motion.
Operation
Down
Hand control with spring clamp
attached to the lift strap using the spring clamp on the
back side of the hand control.
6 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01
SSP Limit Switch
The lifting motion is broken by lightly pressing on the
the illustration).
SSP Limit Switch activated by the Q-link
Its function breaks the lifting motion electrically and
Adjustable friction brake
The amount of drag on the lift unit is adjusted with
the friction brake on the carriage. Turn the brake
clockwise for increased resistance and counter
clockwise to reduce resistance.
The following carriages have a friction brake:
SSP Limit Switch activated by the Lift strap
It is important that the lift strap’s lifting motion is
performed as vertically as possible to ensure safe
the lifting motion if the lift strap is subjected to harmful
is activated so that the lifting motion stops, the lift can
once again be operated after the lift strap is straight
again (a short delay may occur when re-starting the
lifting motion is normal in these cases).
Be aware that the lift strap is kept straight and
stretched when it runs in and out of the lift unit.
1
2
Losen the emergancy lowering device strap
1. Press in, see illustration.
2. Pull simultaneously the strap (during 1.)
see illustration.
Fasten the emergency lowering device strap
1. Push together the parts until you hear a "click"
sound, see illustration.
2. Check if the strap is correctly fastened, by pulling
the strap, see illustration.
2
1
7 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01.
Charging the Batteries
NOTE!
of time, place the hand control in the charger unit in
order to charge the battery.
you charge the batteries after use or every night.
1. Check to ensure that the emergency stop button is
not pressed in during charging.
2. Place the hand control in the charging station
and connect the charger.
socket.
4. A LED on the hand control will illuminate and
indicates that the charger is connected to a power
source.
on the lift unit indicates that the batteries are
charging.
will shut off automatically and the yellow LED
turns off.
Charge indicator
Likorall has two indicators that warn when the battery
has a low charge:
• Buzzer that sounds when lifting
• LED that illuminates during lifting
illuminate, the unit should be charged as soon
as possible.
8 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01

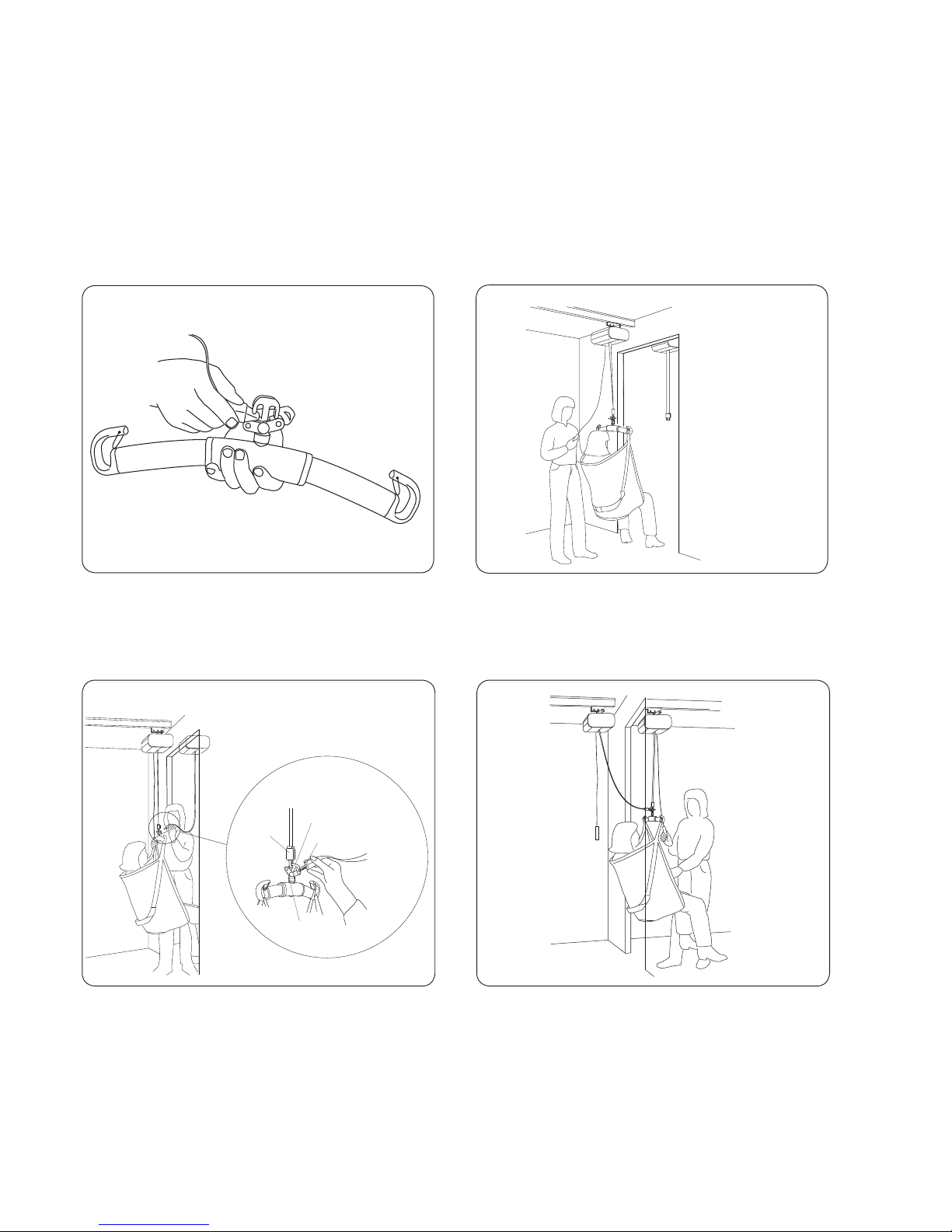

1. Move lift 1 with the patient as close to the door
opening as possible. Lower the patient as far down
as possible, with regard to patient comfort.
2. Move Lift 2 forward as close to the door opening as
possible. Move down the lift strap from Lift 2 to a
sling bar.
Check to ensure that the safety latches on the R2R
connector function properly.
Lift 2
Lift 1
the lift strap for Lift 1, disconnect the lift strap from
the R2R sling bar and the transfer can be carried
be necessary to let out additional strap from Lift 1.
Lift 1 Lift 2
Mounting a sling bar R2R (Room-to-Room)
The R2R sling bar has a double hook with Quick-
release.The double hook is protected against
unintentional detachment.
Lift 2
Lift 1
Lift 2
Q-link
Q-link
Lift 1 R2R connector,
(double hook)
Liko’s Room-to-Room system (R2R) is an effective solution for safe and easy transfer of patients between two
or more rooms. The R2R system is mounted without making openings in walls over doors and full isolation is
therefore retained between the rooms supported by the system.
Transfer is performed in a safe and easy manner, with the aid of separate lift units and a rail system for each room.
Liko’s R2R sling bar makes it possible to link together two lift units when moving a patient from room to room.
The movement between two rooms is performed with a comfortable transition for the patient from one lift unit
to another.
Transferring from Room to Room
9 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01.
Recommended Lifting Accessories
Maximum Load
system
of 200 kg (440 lbs.) applies to the assembled lift system
contact your Liko representative if you have any questions.
SlingBar Mini 220 R2R
Universal SlingBar 350 R2R Prod. No.
Universal SlingBar 450 R2R Prod. No.
SlingBar Mini 220 Prod. No.
(Requires Quick-release Hook TDM)
Universal SlingBar 350 with Quick-release Hook Prod. No.
Universal SlingBar 450 with Quick-release Hook Prod. No.
(660 Ibs)
Universal SlingBar 600 with Quick-release Hook Prod. No.
Universal SlingBar 670 Twin with Quick-release Hook Prod. No.
Universal SideBars 450 Prod. No.
including bag
Sling Cross-bar 450 with Quick-release Hook
Sling Cross-bar 670 with Quick-release Hook
Using other lifting accessories than those recommended below may induce risk.
Liko’s product range contains a wide assortment of sling bars, slings, stretchers, scales and other accessories
to solve most lifting needs. Below is an overview of the lifting accessories available for Likorall 200.
guidance in selecting a sling, study the instruction guide for the respective sling models. Here, you will also
Contact your Liko representative or visit www.liko.com for advice and information on Liko’s product range.
10 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01
Stretcher
All stretchers in Liko’s product range can be used with Likorall.
Contact Liko for further information.
Scale
Contact Liko for further information.
Liko Support Springs for bounce and gait training
Elastic springs are available as an accessory in order to
The springs are available in three different versions:
Long, 28 cm/11 inch., m
Prod. No.
Prod. No.
60 and 64 or Liko LiftPants model 92, for more information.
0
LikoScale 350
Quick-release Hook
Liko’s Quick-release Hooks form a system providing safe and easy
changing of lifting accessories. Liko’s Quick-release Hooks protect
against unintentional detachment. Likorall 200 is used solely with lifting
accessories equipped with Quick-release Hooks.
downloaded from our website www.liko.com, or contact Liko for more
information about the advantages and use of the Quick-release Hook system.
Quick-release Hook
Universal
Quick-release
Hook TDM
Parking Panel
Parking Panel 600 Prod. No.
Prod. No. 3126006
Quick reference guide for the most important lift functions
plate for the battery charger and a parking hook for the sling bar.
(Charger and sling bar not included).
SlingBar Cover Paddy 30 Prod. No. 3607001
VIKTIGT!
Dennaanvändaranvisning ersätter inte
lyftensbruksanvisning,vilkenkanladdas
nerfrånwww.liko.se.
• Läs bruksanvisning för både patientlyft och
lyfttillbehörföreanvändning.
• Planera lyftmomentet noggrant.
• Innan brukaren lyfts från underlaget, men
närlyftselensband är ordentligt sträckta, är
detviktigtatt kontrollera att banden är rätt
påhakadepålyftbygeln.
•MaxlastLikorall242: 200 kg.
MaxlastLikorall243: 230 kg.
MaxlastLikorall250: 250 kg.
Förbibehållenmaxlast krävs tillbehör avsedda
försammabelastning eller mer.
Likorall
Användaranvisning
Modell242,243 & 250
Säkerhetsföreskrifter
242S/ES
1
4
2
5
3
R2R Snabbkoppling
6 7
Svensk
Battery Charger Likorall 200
Prod. No. 3126131
11 w w w . l i k o . c o m
Likorall 200 • 7EN120114-01.
Simple Troubleshooting
The lift doesn’t work.
The lift emits a repeated audible signal.
The lift stops in elevated position.
You hear unusual sounds.
1. Check to ensure that the emergency stop
2. Charge the battery (page 7).
3.
If the lift still does not function properly,
please contact Liko.
1. Charge the battery immediately (page 7).
2.
If the lift still does not function properly,
please contact Liko.
1. Check to ensure that the emergency stop
lowering device to lower the patient onto
3. Charge the battery (page 7).
4.
If the lift still does not function properly,
please contact Liko.
Contact Liko.
The lift does not achieve maximum lifting
capacity.
1. Charge the battery (page 7).
2.
If the lift still does not function properly,
please contact Liko.
The lift emits a repeated LED signal. 1. Charge the battery immediately (page 7).
2.
If the lift still does not function properly,
please contact Liko.
© Copyright Liko AB 2009-07
Care and Maintenance
Care and Maintenance
• Check the sling bar attachment.
• Check the lift strap for wear and to ensure the strap is not twisted.
• Check the functionality of the safety latches.
• Check the control function of the lift movement.
• Check to make sure that the emergency lowering functions.
• Charge the batteries each day the lift is used and check to ensure the charger works.
NOTE! Do not use cleaning agents that contain phenol or chlorine, since these can damage aluminum
and plastic materials.
The lift should not be exposed to running water.
Service
Likorall should be inspected for wear of parts at least once a year.
Repairs and maintenance may only be performed by authorized Liko service personnel using original
Liko spare parts.
Service Agreement
Liko offers the opportunity to enter into service contracts for the maintenance and regular inspection of your Liko
products.
Transport and Storage
During transport, or if the lift is not going to be used for a long time, the emergency stop should be engaged.
The environment where the patient lift is transported and stored should have a temperature between
Recycling
Product Changes
Liko’s products undergo continuous development, which is why we reserve the right to make product changes
without prior notice. Contact your Liko representative for advice and information about product upgrades.
Design and Quality by Liko in Sweden
•Brunel Centre,
info@liko.co.uk
Manufacturer:
Liko AB
info@liko.se
Liko North America
www.liko.com
Other manuals for Likorall 200
5
Table of contents
Other Liko Lifting System manuals
Liko
Liko UltraTwin FreeSpan Manual
Liko
Liko Golvo G7 User manual
Liko
Liko Multirall 200 Manual
Liko
Liko Vest for StandingShell Manual
Liko
Liko Likorall 200 User manual
Liko
Liko Sabina II EE Manual
Liko
Liko 3EN401101-04 Operating manual
Liko
Liko SlingGuard 450 User manual
Liko
Liko Viking S Manual
Liko
Liko Viking XL 2040003 User manual
Popular Lifting System manuals by other brands
TQ Pro
TQ Pro PROTL500A owner's manual
AMGO
AMGO PRO-18A Installation and service manual
Palfinger
Palfinger MBB V 1000 SCL operating manual
Challenger Lifts
Challenger Lifts E15 Installation, operation & maintenance manual
Nussbaum
Nussbaum SPL 4000 Operating Instruction and Documentation
Jet
Jet L100-25 Operating instructions and parts manual
