IMPORTANT!
Read the instructions for both the patient lift and the lifting accessories before use. Lifting and transferring a
patient always involves a degree of risk. A complete understanding of the contents of instructions is essential,
and only trained personnel should use the equipment. When in doubt, contact Liko.
Product Description
Lifting very heavy people requires special techniques
and specially designed lift equipment. Liko’s lift system
for lifting over 300 kg / 661 lbs. is called UltraTwin. The
UltraTwin principle is based on the use of two Likorall
lift units working in tandem to lift and position the
patient. For lifting, both units are used, while for posi-
tioning in an upright, semi-seated or prone position,
only one lift unit is used.
FreeSpan UltraTwin is height-adjustable to four posi-
tions, and 8 different rail lengths are available, allowing
a total width of 2 to 5.5 metres.
To facilitate installation of lift units and/or move the
FreeSpan UltraTwin to another location, the lift system
can be lowered to the transport position (1700 mm /
67 inch.).
FreeSpan UltraTwin has lockable twin castor wheels,
is made of aluminium and is despite its low weight a
very stable lift system.
FreeSpan UltraTwin complies with EN ISO 10535 acc-
ording to the Medical Device Directive MDD 93/42/EEC.
Caution triangles are used to warn of situations that demand extra care and attention.
In this document, the person being transferred is referred to as the patient and the person helping them is referred
to as the caregiver.
FreeSpan UltraTwin
Instruction Guide
English
7EN130104 Rev. 2
2015-11-02

2www.liko.comFreeSpan UltraTwin • 7EN130104 Rev. 2
Safety Instructions ................................................................... 2
Denitions................................................................................. 3
Product Specication ............................................................... 3
Lift Unit ..................................................................................... 3
Technical Data/Measurements ................................................ 4
Lifting Height with Lift Unit ............................................................. 4
Assembly.............................................................................. 5–6
Operation.............................................................................. 7–8
Choosing Width ............................................................................ 7
Placement of FreeSpan UltraTwin ................................................. 7
Moving FreeSpan UltraTwin .......................................................7-8
Maximum Load......................................................................... 8
Recommended Lifting Accessories .......................................... 9
Inspection and Maintenance................................................... 10
Table of Contents
Safety Instructions
Before using the product, make certain that:
• The lift unit and lift system are assembled according to the instructions.
• The lift system is assembled at working height (2270-2570 mm / 89.4-101.2 Inch.).
• Lifting equipment is properly connected to the lift units.
• Your have read and understood the instruction guides for FreeSpan UltraTwin, the lift units and lifting accessories.
• Personnel using the lift system, lift units and lifting accessories have received appropriate instructions and training.
• You have checked to ensure that lifting accessories are not damaged.
• The correct lifting accessory has been chosen, with respect to type, size, material and version in relation to the
needs of the patient.
• The lifting accessory is correctly and securely applied to the patient, so that there is no risk of personal injury.
Never leave a patient unattended during a lifting situation!
FreeSpan UltraTwin complies with EN ISO 10535.
Max. load: 400 kg (882 Ibs.), 460 kg (1014 lbs.) or 500 kg (1102 lbs.), depending on rail length and the
model of lift unit to be used (see page 4).
FreeSpan UltraTwin is a composite product system consisting of a lift system, lift units and lifting accessories. For
current product information, please refer to our website, www.liko.com. Instruction guides are also available for
downloading, free of charge, on our website. When in doubt, contact Liko.
NOTE!
This instruction guide contains important information about the use of the product.
All personnel who use this product must be thoroughly familiar with the contents of this instruction guide.
Remember to keep the instructions where they are easily accessible for users of the product.

3www.liko.com
FreeSpan UltraTwin • 7EN130104 Rev. 2
Denitions
Lift Unit
1. Rail with corners
2. Carriage (two-piece)
3. Parking position
4. Charger mount
5. Holes for alternative placement of uprights
6. Twin castor wheels with brakes
7. Uprights, telescopic
8. Lower locking handle
9. Handle
10. Upper locking handle
11. End stop
12. Locking handle for adjustment of corner
NOTE! Locking handles for adjustment
of corners must never be removed!
4
5
10
12 1
2
7
8
9
11
3
6
Recommended lift units for use on the FreeSpan UltraTwin systems are Likorall 242 S R2R, Likorall 242 ES R2R,
Likorall 243 ES or Likorall 250 ES. When Likorall 243 ES or Likorall 250 ES are used the lift straps must be equipped
with Q-link to enable use of the Quick-release Hook system on the intended lifting accessories.
Mounting of Likorall lift units on FreeSpan UltraTwin is described on page 5 of this instruction guide.
Product Specication
For a complete FreeSpan UltraTwin the following is required:
• FreeSpan Rail x 2 (Prod. No. 3103115-3103150)
• UltraTwin upright (Prod. No. 3103520-3103521)
• Lift unit Likorall x 2
• Handcontrol x 2, alternatively Ultra Control Unit (Prod. No. 3126040) or UltraTwist (Prod. No. 3126045 / 3126047)
• Slingbar x 2, alternatively Ultra Slingbar (Prod. No. 3103603) or UltraStretch (Prod. No. 3156058)
• Charger x 2 (only 1 when using Ultra Control Unit, Prod. No. 3126040 or UltraTwist, Prod. No. 3126045 / 3126047)
• Sling, lifting sheet or lift straps

4www.liko.comFreeSpan UltraTwin • 7EN130104 Rev. 2
L
B
CD

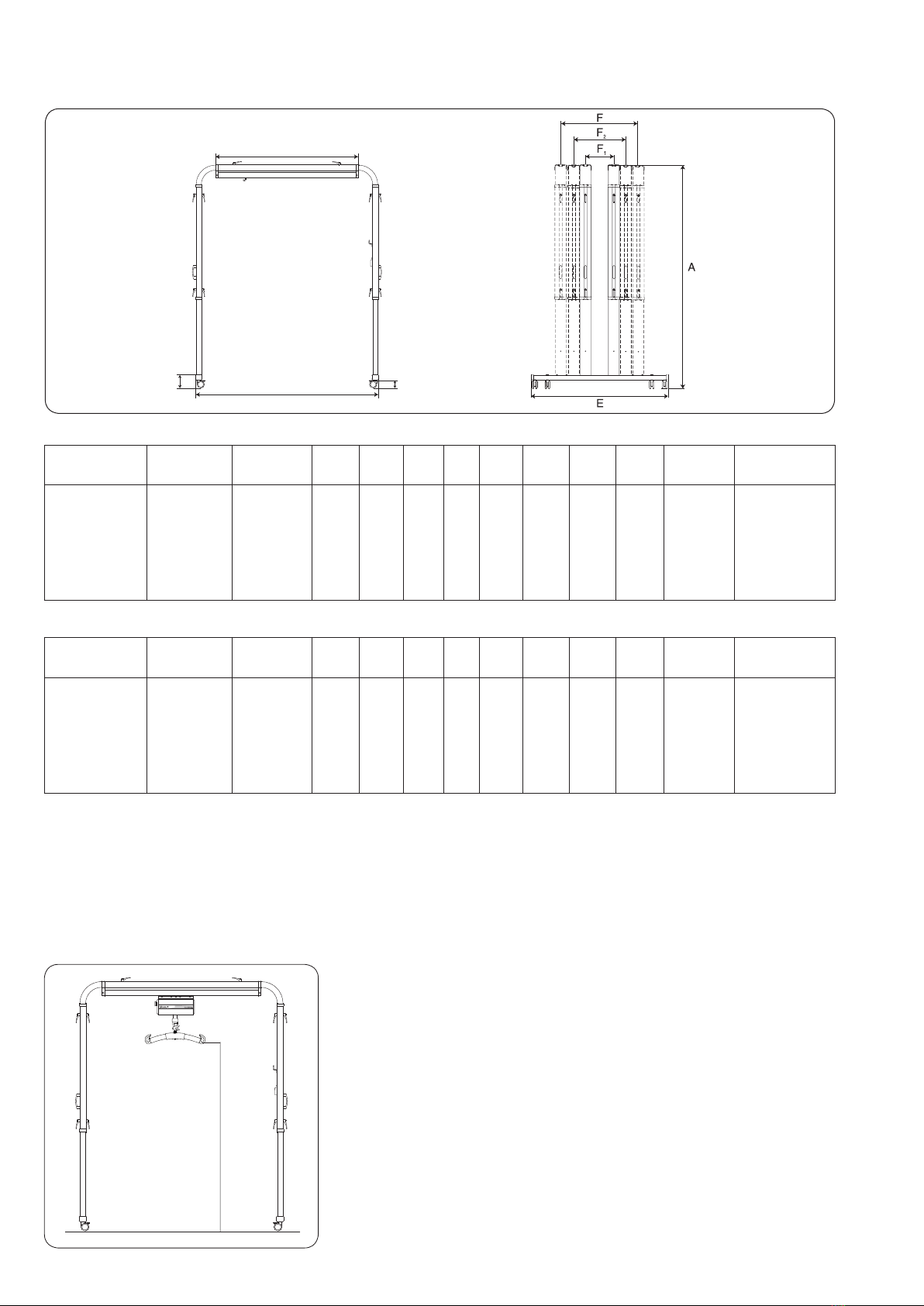

Technical Data/Measurements
3
Lifting Height with Lift Units
The highest lifting height (H) varies depending on the choice of lift unit
model and on the working height at which the system is assembled.
Example:
Likorall 242 S/ES R2R with the system assembled at the lowest working
height (2270 mm / 89.4 inch.): H = 1753 mm / 69 inch.
Likorall 242 S/ES R2R with the system assembled at the highest working
height (2570 mm / 101.2 ínch.): H = 2053 mm / 80.8 inch.
All lift units with Universal Slingbar 450.
Contact Liko for more information.
H
Rail length (L) Max. load¹ A* Amin** B C D E F1*** F2*** F3*** Weight
total
Weight
part ****
1500
2000
2500
3000
3500
4000
4500
5000
500
500
500
500
500
460
400
400
2270-2570
2270-2570
2270-2570
2270-2570
2270-2570
2270-2570
2270-2570
2270-2570
1700
1700
1700
1700
1700
1700
1700
1700
1990
2490
2990
3490
3990
4490
4990
5490
135
135
135
135
135
135
135
135
75
75
75
75
75
75
75
75
1440
1440
1440
1440
1440
1440
1440
1440
300
300
300
300
300
300
300
300
500
500
500
500
500
500
500
500
800
800
800
800
800
800
800
800
78.4
84.0
89.6
95.4
101.0
106.6
112.2
118.0
23.5 (upright)
23.5 (upright)
23.5 (upright)
24.2 (rail)
27.0 (rail)
29.8 (rail)
32.6 (rail)
35.5 (rail)
1 Note that the length of the rail determines the max. load for the FreeSpan UltraTwin system!
* The height of the FreeSpan UltraTwin system can be adjusted at intervals of 100 mm (3,9 inch.).
** Note that the lowest working height of FreeSpan UltraTwin is 2270 mm (89,4 inch.). The 1700 mm (67 inch.) height position is only
intended for transport.
*** There are three different alternatives for the uprights: 300 cc, 500 cc or 800 cc, see page 7.
**** Weight of the single heaviest component on the FreeSpan UltraTwin system when disassembled.
Rail length (L) Max. load¹ A* Amin** B C D E F1*** F2*** F3*** Weight
total
Weight
part ****
59.1
78.7
98.4
118.1
137.8
157.5
177.2
196.9
1102
1102
1102
1102
1102
1014
882
882
89.4-101.2
89.4-101.2
89.4-101.2
89.4-101.2
89.4-101.2
89.4-101.2
89.4-101.2
89.4-101.2
66.9
66.9
66.9
66.9
66.9
66.9
66.9
66.9
78.3
98
117.7
137.4
157.1
176.8
196.5
216.1
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
3
3
3
3
3
3
3
3
56.7
56.7
56.7
56.7
56.7
56.7
56.7
56.7
11.8
11.8
11.8
11.8
11.8
11.8
11.8
11.8
19.7
19.7
19.7
19.7
19.7
19.7
19.7
19.7
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
173
185
198
210
223
235
247
260
52 (upright)
52 (upright)
52 (upright)
53 (rail)
60 (rail)
66 (rail)
72 (rail)
78 (rail)
Max.load and weight in Ibs. Dimensions in inch.
Max. load and weight in kg.Dimensions in mm.

5www.liko.com
FreeSpan UltraTwin • 7EN130104 Rev. 2
Assembly
Before assembly, ensure that the uprights are locked in the lowest position (1700 mm / 67 inch.) and that the
upper locking handles have been removed from each upright. Lock the castor wheels on the uprights.
• Uprights (2 pcs.) with castor wheels, handles, locking
handles, parking position and charger mounts
• 4 screws (K6S M4x10)
1. Place both rails in one pair of uprights. Secure the rails
in place in the uprights with the locking handles. Ensure
that the handles are pointing downward, parallel to the
upright.
2. Repeat the procedure on the other side. Both rails
must be lifted into place simultaneously.
3. Install the desired lift units on the rail system, see below. When purchasing rails, select the rail with carriage
that is intended for use with Likorall lift units.
Before use, study the instruction guide for the respective lift unit!
Loosen and remove the nuts and bolts from the car-
riages. Insert the lift unit into the longer carriage, with
the end plate with the Emergency Stop button facing
away from the carriage.
Use the nut and bolt provided to secure the carriage
to the lift unit via the outermost hole in the mounting
rail on the top of the lift unit.
Guide the shorter carriage onto the lift unit’s mount-
ing rail from the other direction. Use the nut and bolt
provided to secure the carriage to the lift unit via the
outermost hole in the mounting rail on the top of the
lift unit.
Repeat the procedure with the other lift unit.
Before assembly, make sure you have the following components:
• Rails with corners (2 pcs.), end stops, carriages
and locking handles.
Adjustable
(friction) brake

6www.liko.comFreeSpan UltraTwin • 7EN130104 Rev. 2
4. Now the FreeSpan UltraTwin can be raised to the correct height. There are four alternative positions.
Check to ensure that the lift units roll freely on the rails; thereafter, guide the lift units towards the
side that is not to be raised.
Hold the handles and remove the lower locking handles. Lift the handles; both rails must be lifted into place
simultaneously. Mount the locking handles in the desired position; max. total height is 2570 mm / 101.2. inch.
Tighten the locking handles.
Repeat the procedure on the other side.
Mounting the charger
The battery charger for Likorall can be installed on the charger mount on the upright.
Afx the charger to the charger mount with the two
accompanying screws (K6S M4x10).
Hook the charger’s lower edge to the pre-installed
charger mount as illustrated.
Connect the charger cable to the power source (100-240 VAC~).
Now the charger is ready for use.
Repeat the procedure with the other charger.
Note that when using the Ultra Control Unit or UltraTwist, only
one charger is required.
• Charger
connected to
power supply
• Charging in
progress
• Not charging

7www.liko.com
FreeSpan UltraTwin • 7EN130104 Rev. 2

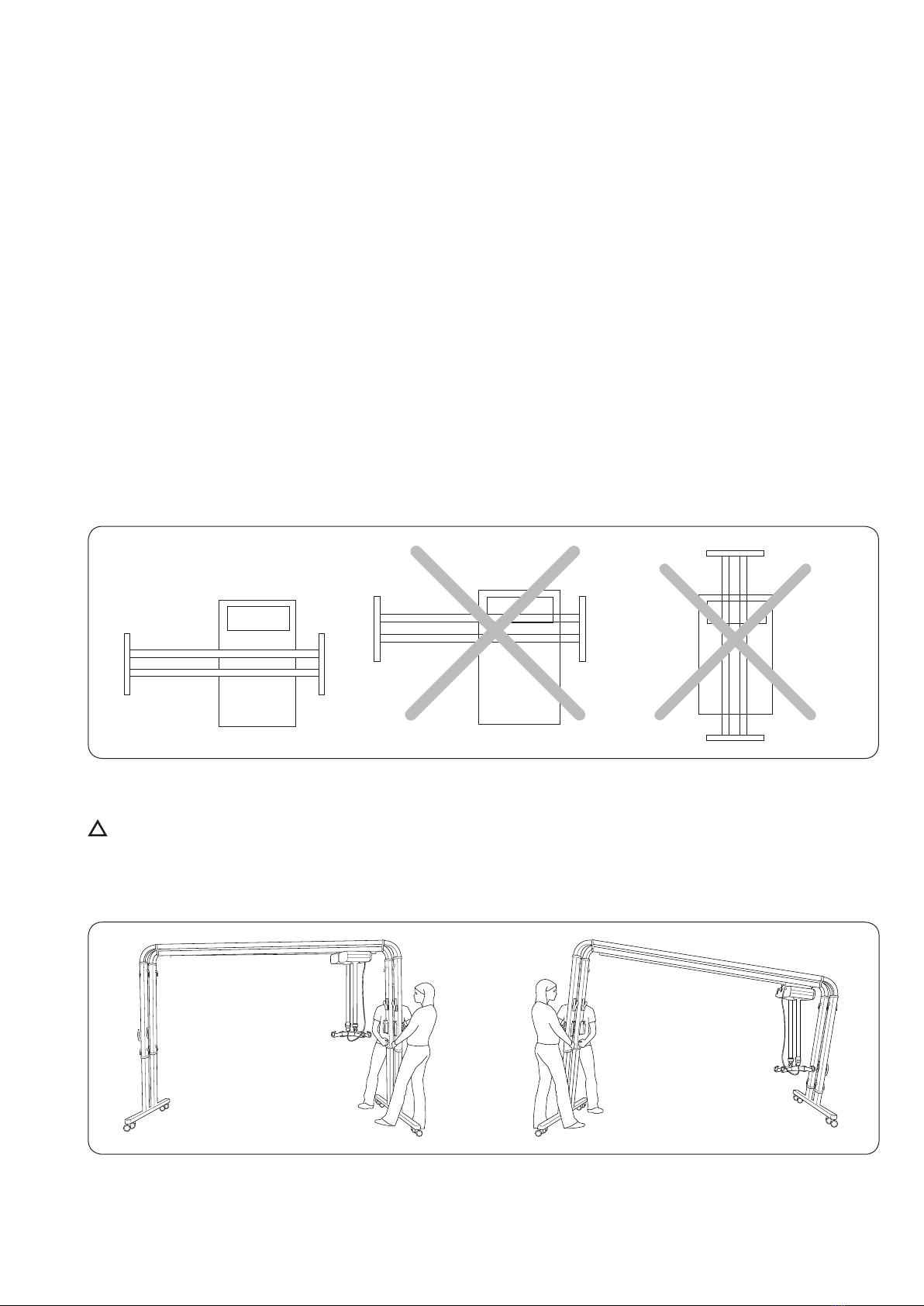

Choosing Width
To adapt the lift system according to lifting needs, the uprights can be assembled in different widths. There are
three different assembly alternatives, where each width has unique features. For recommended lifting accessories
for the various width adjustments, see page 9.
300 cc - is a standard measurement that is suitable for lifting the patient in the seated position.
500 cc - is a special measurement for the uprights and mounting is done according to separate installation instruc-
tions. This width setting is essential for use of UltraTwist on the system. UltraTwist allows full rotation of
the lift units; the patient can be rotated during lifting, and lifting in both the seated and horizontal positions
is possible. For lifting patients from a horizontal position in a stretcher, UltraTwist Wide is required. For
more information, contact Liko.
800 cc - is a standard measurement that is suitable, above all, for lifting with a stretcher but it can also be used for
lifting patients in a seated position.
Placement of FreeSpan UltraTwin
During use, FreeSpan UltraTwin should be positioned so that the rails are always centred as directly as possible
above the patient’s centre of gravity. Lifting in a skewed direction has a negative effect on stability. When lifting
from bed, this means that the rails should be centred directly over the bed, about 1 m from the head board end.
This applies both when lifting from the bed to the bedside or to another location e.g., a wheelchair.
Moving FreeSpan UltraTwin
FreeSpan UltraTwin is not intended to be moved during a lifting situation.
FreeSpan UltraTwin can be moved when fully assembled. When moving FreeSpan UltraTwin out of a room with a
low doorway, FreeSpan UltraTwin must be lowered to the transport position (1700 mm / 67 inch.). We recommend
that two people assist when moving the lift system.
Operation
When lowering the uprights, move the lift units towards
the side that is to be lowered. Grasp the handles rmly.
Remove the lower locking handles and lower the up-
rights.
Then lower the uprights on the opposite side. Grasp
the handles rmly. Remove the lower locking handles
and lower the uprights.

8www.liko.comFreeSpan UltraTwin • 7EN130104 Rev. 2
Locking the castor wheels
To lock, press down on the wheel’s front lever. To release,
lift the lever.
Helpful hint: When moving the lift system between two
rooms where the doorway is narrower than 1440 mm /
56.7 inch., FreeSpan can be moved zigzag, as in the
illustration.
FreeSpan UltraTwin is now lowered to the transport
position and can be moved.
The length of the rail determines the max. load for the FreeSpan UltraTwin system. To maintain the max. load
rating indicated on the rail, the lift units and accessories used must be approved for the same max. load or
greater. The lift units’ max. load ratings vary according to model. See the instruction guides for the respective
models. If a lifting accessory or lift unit with a max. load rating lower than that indicated on the rail is used, the
max. load rating of the entire lift system is reduced to that of the accessory or lift unit. Read the label on the lift
unit and lifting accessory, or contact a Liko representative.
Maximum Load

9www.liko.com
FreeSpan UltraTwin • 7EN130104 Rev. 2
Recommended Lifting Accessories
Accessories 300 cc
Universal Slingbar 450 with Quick-release Hook Prod. No. 3156085
Max. 300 kg
Universal Slingbar 600 with Quick-release Hook Prod. No. 3156086
Max. 300 kg
Ultra Slingbar Prod. No. 3103603
Max. 460 kg
Ultra control unit Prod. No. 3126040
Incl. handcontrol
Used for simplied manoeuvring with one handcontrol.
Accessories 500 cc
Universal Slingbar 450 with Quick-release Hook Prod. No. 3156085
Max. 300 kg
Universal Slingbar 600 with Quick-release Hook Prod. No. 3156086
Max. 300 kg
UltraTwist Slim Prod. No. 3126045
Incl. handcontrol
Max. 500 kg
UltraTwist Wide Prod. No. 3126047
Incl. handcontrol
Max. 500 kg
UltraStretch Prod. No. 3156058
Max. 400 kg
Accessories 800 cc
Universal Slingbar 450 with Quick-release Hook Prod. No. 3156085
Max. 300 kg
Universal Slingbar 600 with Quick-release Hook Prod. No. 3156086
Max. 300 kg
UltraStretch Prod. No. 3156058
Max. 400 kg
Below, we present recommended slingbars and accessories for use with UltraTwin systems.
For choice of appropriate slings and other accessories, consult our brochure "Lifting Accessories".
Carefully study the instruction guides for the accessories used.
Contact your Liko representative or visit www.liko.com for advice and information on new products in Liko’s range.

To ensure trouble-free operation, certain details should be inspected each day the lift system is used.
• Check the lift system for any signs of external damage.
• Check carriage function.
• Ensure that all locking handles are properly tightened.
When necessary, clean the lift system using a damp cloth and ensure that the wheels are clean and free of dirt and
hair. NOTE! Do not use cleaning agents that contain phenol or chlorine, since these can damage aluminium
and polyamide material.
Inspection
FreeSpan UltraTwin should be thoroughly inspected for wear at least once per year.
Inspection must be performed according to the Liko service manual and by authorized personnel.
IMPORTANT!
Repairs and maintenance may only be carried out by authorized Liko service personnel using original Liko spare
parts.
Storage
The lift system must be stored at a temperature above the freezing point and at normal relative humidity (not
exceeding 60 %).
Service agreements
Liko invites you to sign a service agreement for regular maintenance and testing of your lift system. Liko’s products
undergo continuous development, which is why we reserve the right to make product changes without prior notice.
Contact your Liko representative for advice and information about product upgrades.
Recycling
For instructions on how the lift system should be recycled, please visit our website: www.liko.com.
Made in Sweden
Liko is quality certied according to ISO 9001 and its equivalence for the medical device industry, ISO 13485.
Liko is also certied according to environmental standard ISO 14001.
Inspection and Maintenance
www.liko.com
Manufacturer:
Liko AB
Nedre vägen 100
SE-975 92 Luleå
[phone]
Sweden
(C)2015. Liko R&D AB. All Rights Reserved.
