Liko Uno 200 User manual

© Copyright Liko AB 2014 September
Uno 200™
mobile li
Service Manual
Uno 200 Product No. 2010020
3EN500402 Rev. 5
ENGLISH

Liko AB • Nedre vägen 100 • SE-975 92 Luleå • Sweden
tel [phone] • fax [phone]
www.liko.com
Table of Contents
Uno 200™ mobile li
Page
1.0
1.0 Table of Contents ................................................................................... 3
2.0 Spare Parts Posions.............................................................................. 5
3.0 Technical Data ..................................................................................... 6
4.0 Troubleshoong ..................................................................................... 9
5.0 Spare Parts List ................................................................................... 10
5.21 Baery 2,9 Ah /12V.................................................... 12
5.356 Control Box ................................................................ 13

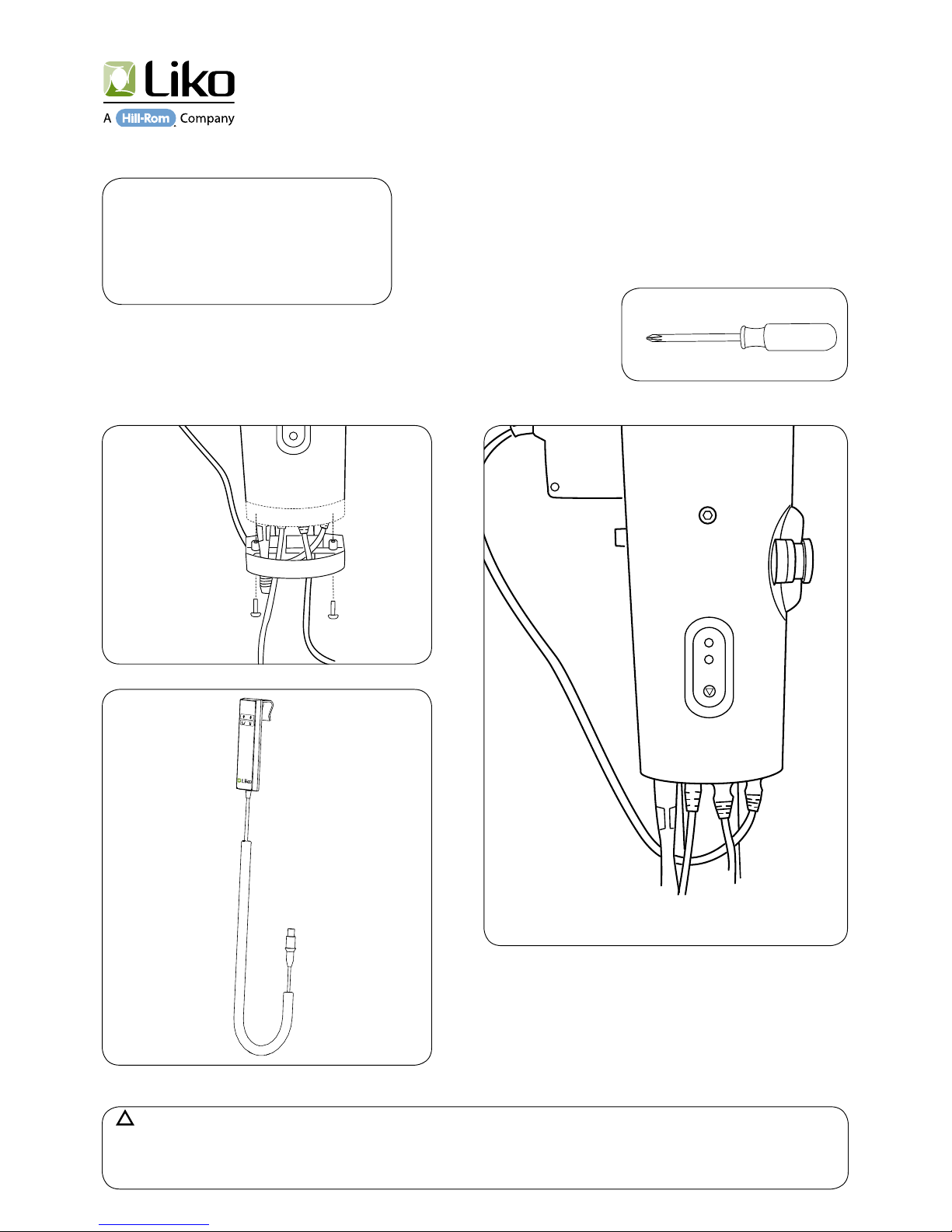

5.357 Hand control ............................................................. 14
5.359 Actuator LA31 ............................................................ 15

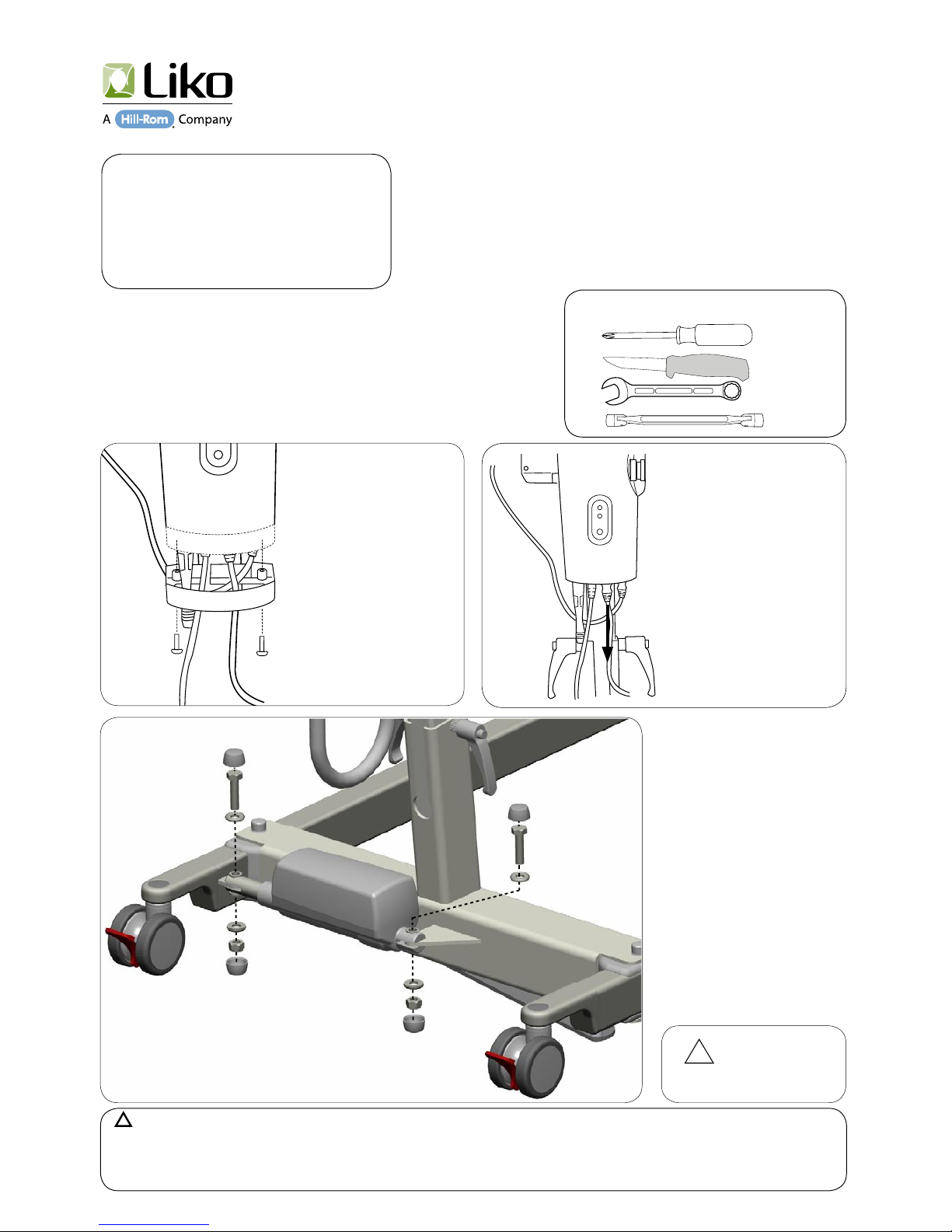

5.360 Base Motor ................................................................ 16

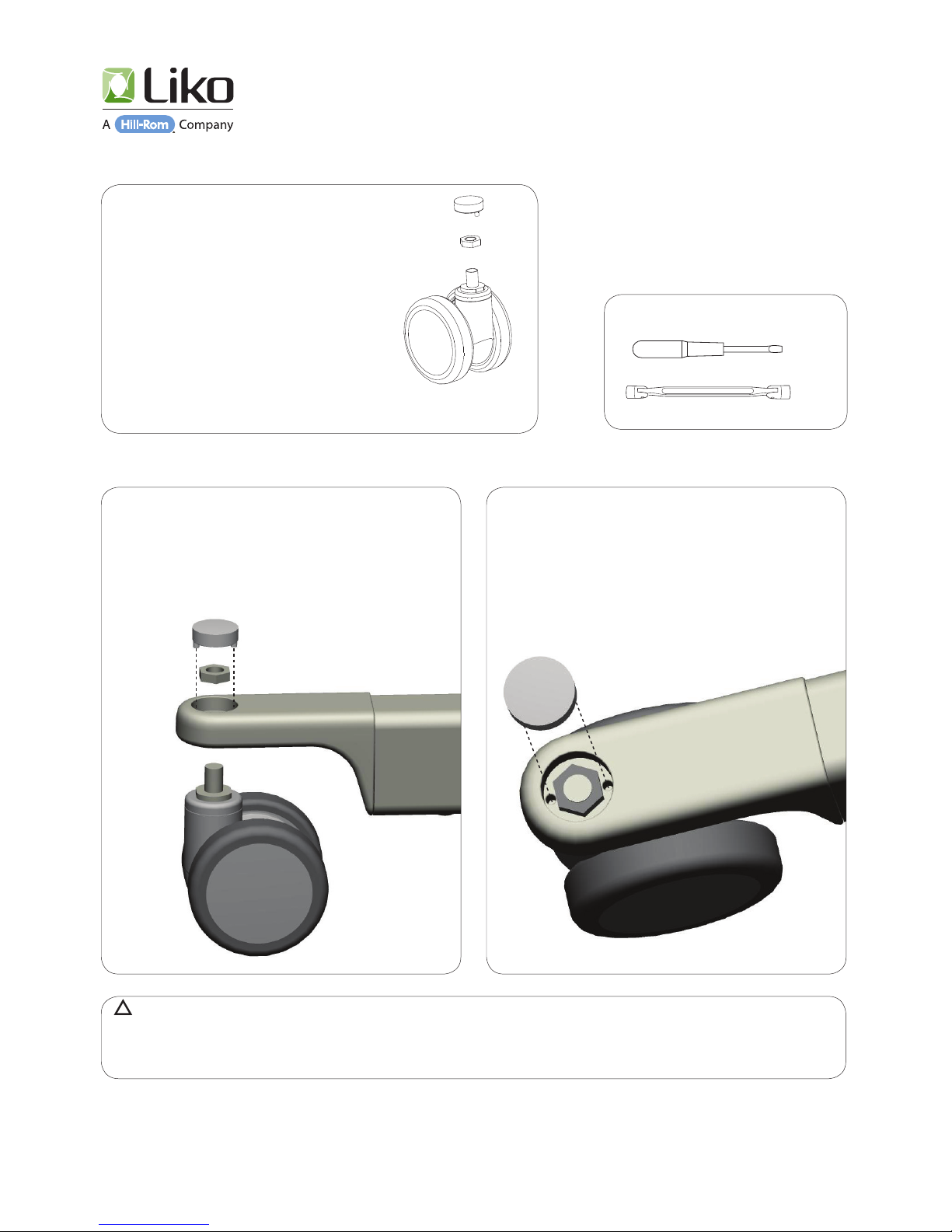

5.363 Front wheel 75mm .................................................... 17

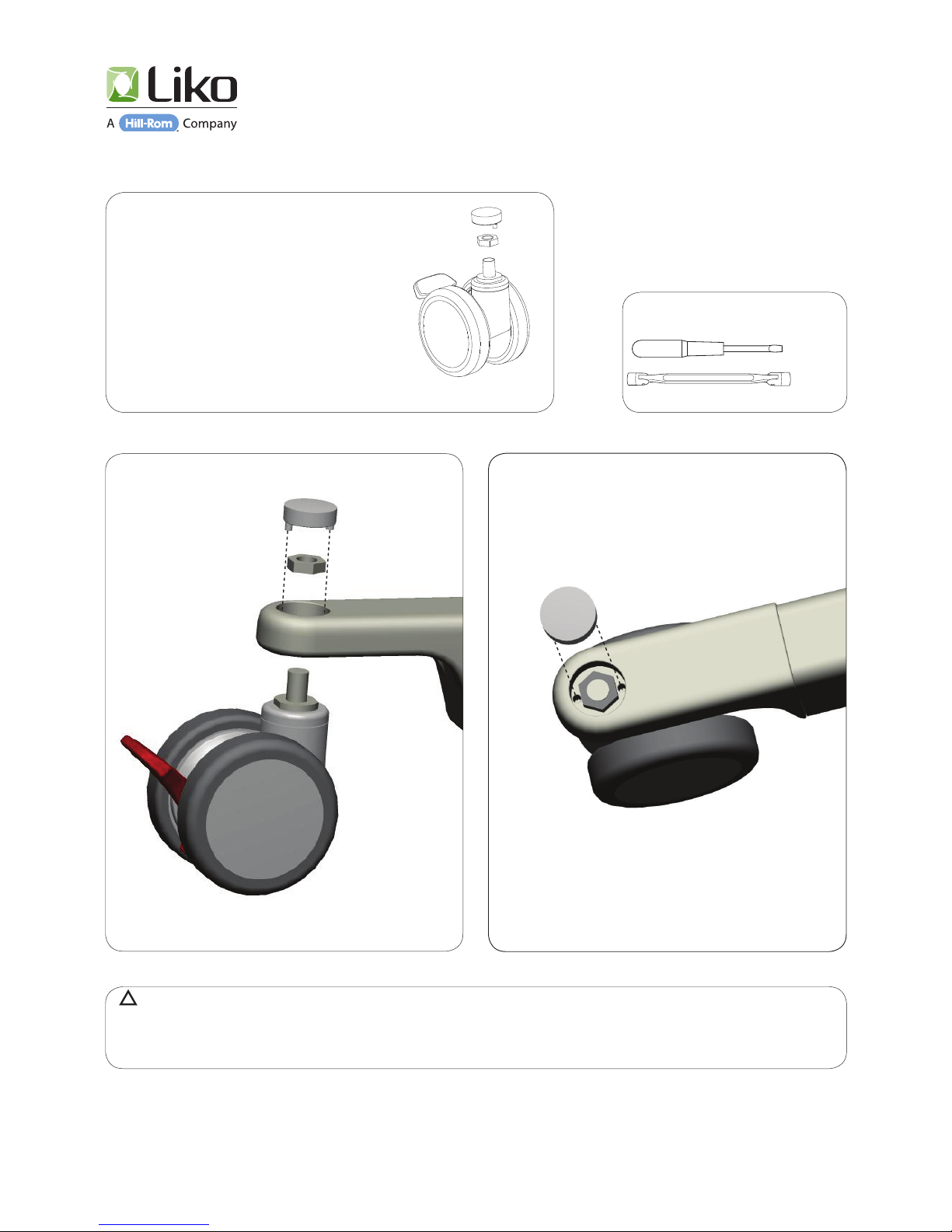

5.364 Rear wheel 75mm .................................................... 18

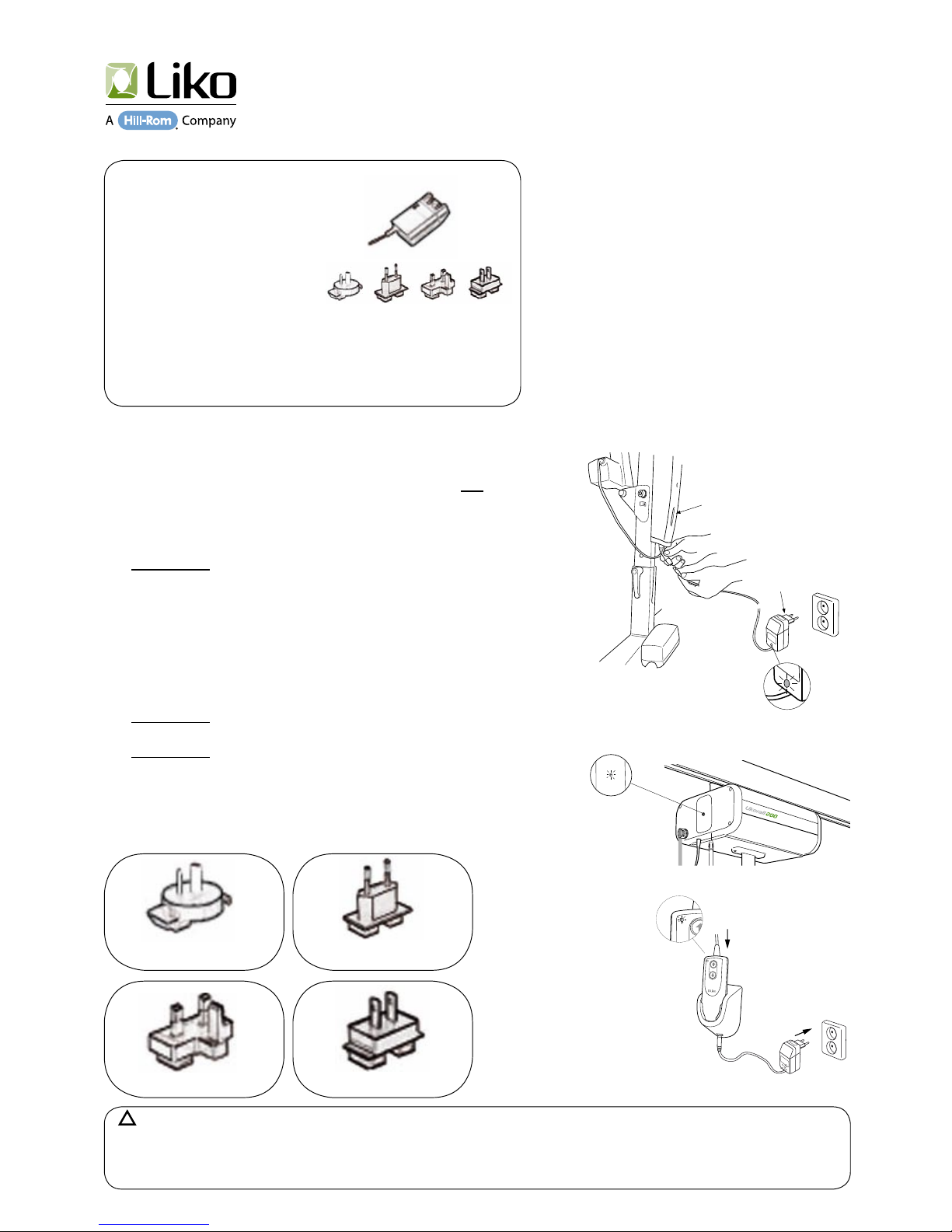

5.368 Charger CH01 ............................................................. 19
5.382 Li arm, plasc cover ............................................... 20
5.384 Licking handles........................................................... 21

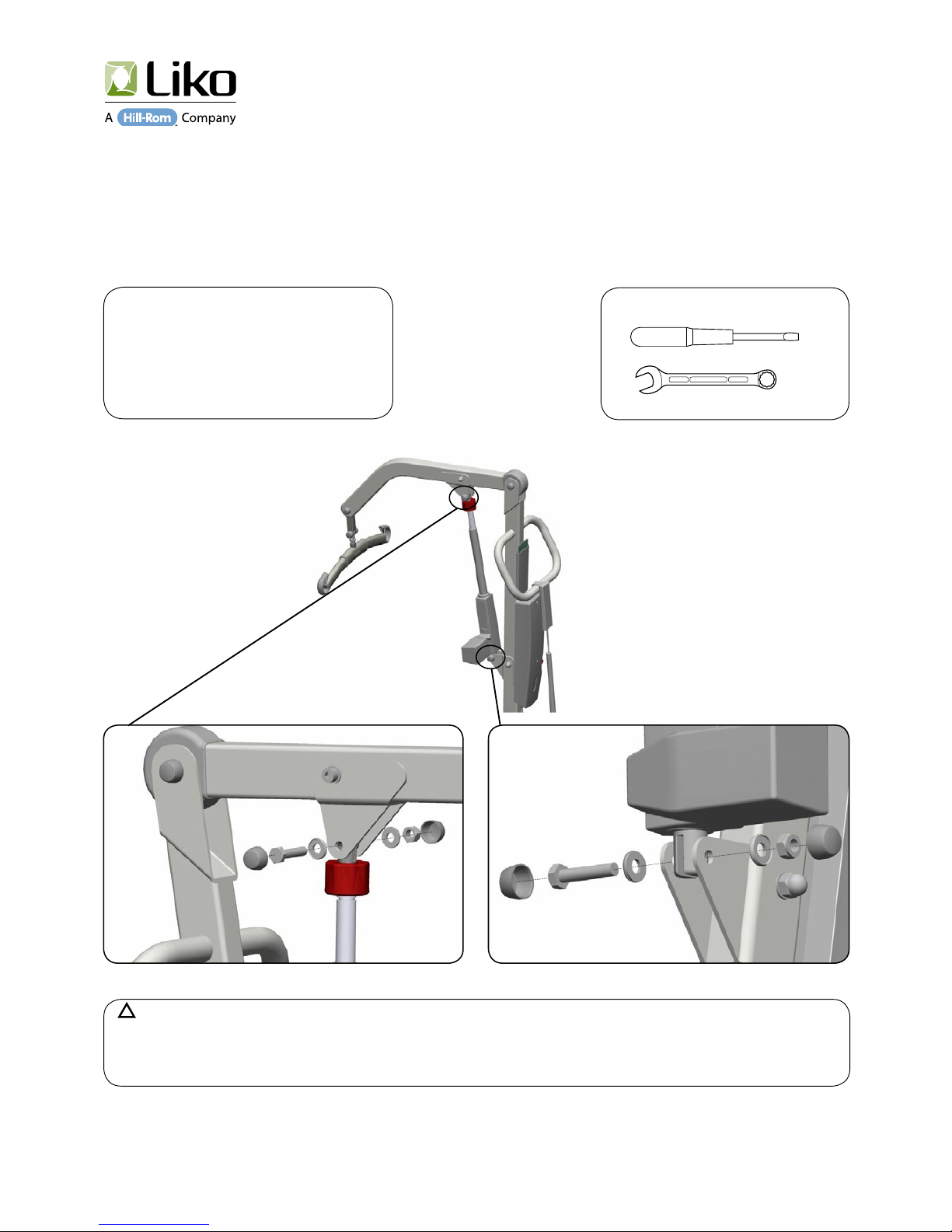

5.408 Lower Actuator aachment ....................................... 22
5.490 SlingBar Assembly set ................................................ 23
5.502 Flexlink Uno 200......................................................... 24
5.530 Charger Socket Connecon........................................ 25
6.0 Periodic Inspecon............................................................................... 27
7.0 Preventave Maintenance................................................................... 31
8.0 Product Changes .................................................................................. 37
Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko
and using original Liko spare parts.
For informaon regarding Service and Maintenance educaon, contact your Hill-Rom/Liko representave.
For contact informaon please visit our website: www.liko.com

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 5 www.liko.com

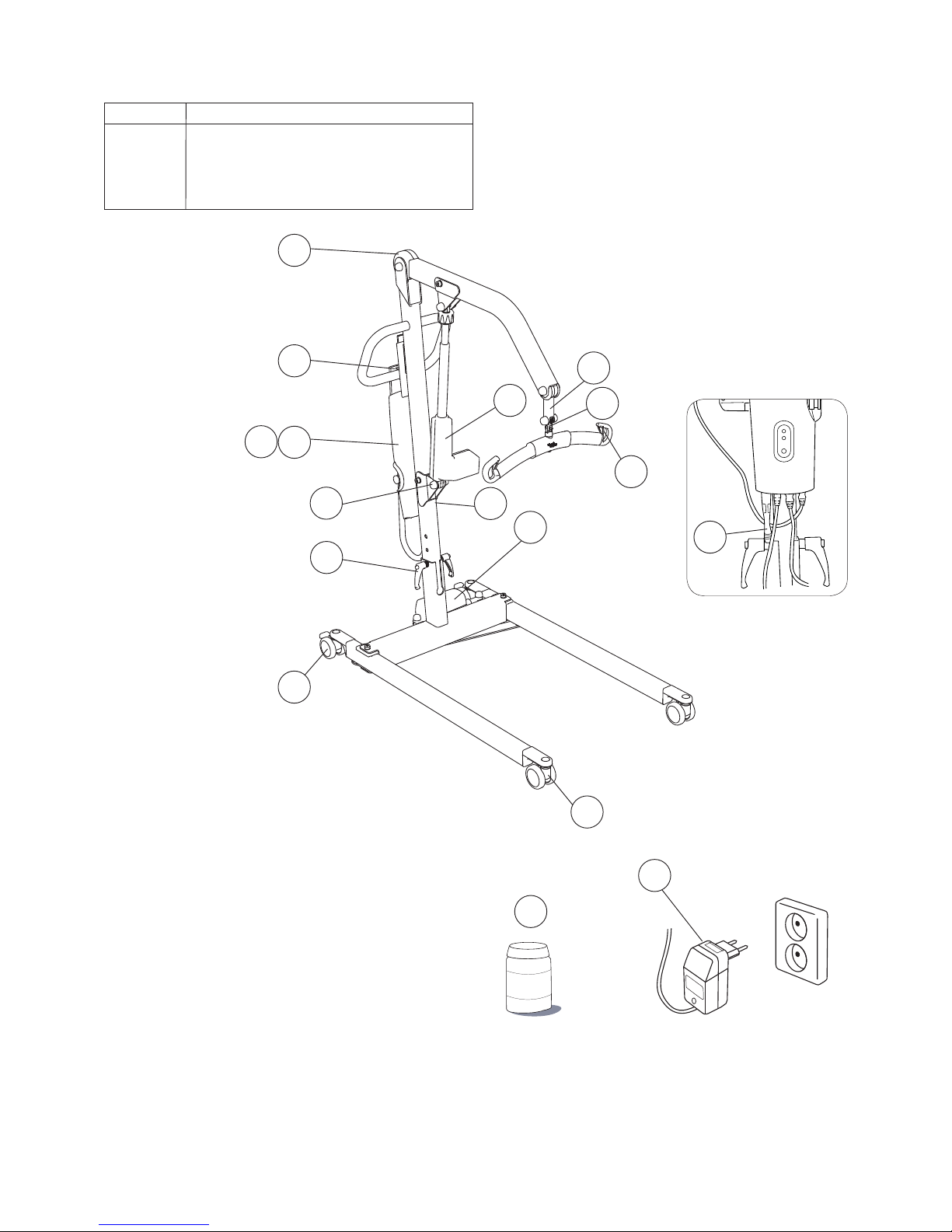

2.0
PROD. NO. PRODUCT
52 www.liko.com
363
364
356
21
382
357
359
360
368
2010020 Uno 200 (Disconnued 2014)
384
408
448
490
502
311
530
530
Spare Parts Posions Uno™ mobile li

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 6 www.liko.com
3.0
Technical Data
3www.liko.com
Uno 200 • 7EN150105-05
Denitions
1. Upper attachment (lift motor)
2. Lift mast
3. Holder for quick reference guide with
colour codes for sling sizes
4. Manoeuvering handle
5. Hand control
6. Control unit with built-in battery
7. Emergency stop
8. Cable for hand control
9. Locking handle
10. Motor for base-width adjustment
11. Rear wheels with brake
12. Base
13. Front wheels
14. Lower attachment (lift motor)
15. Lift motor (incl. actuator)
16. Product decal
17. Emergency lowering (mechanical)
18. Sling bar
19. Safety latches
20. Flexlink
21. Lift arm
22. LED (yellow light) - charger connected
23. LED (green light) - lift activated
24. Emergency lowering (electrical)
Technical Data
The device is intended for indoor use.
Type B degree of protection against electrical
shock.
Class II equipment.
5
15
12
11
6
10
14
4
9
13
8
7
17
18
1
2
320
Forward direction
22
24
6
16
21
23
19
Max. load: 160 kg (350 lbs) /200 kg (440 lbs)
depending on mounting alterna-
tive
Material: Painted steel with lacquer top
coat.
Weight: Total: 40 kg (88 lbs)
Heaviest dismountable part:
20.5 kg (45 lbs)
Wheels: Front: 75 mm (2.9 in) twin wheels.
Rear: 75 mm (2.9 in) lockable
twin wheels.
Turning diameter: 1330 mm (52.4 pulg.)
Emergency
lowering:
Mechanical and electrical
Lifting speed
(without load):
22 mm (0.9 in)/s
for max. load 160 kg (350 lbs)
18 mm (0.7 in)/s
for max. load 200 kg (440 lbs)
Sound level: 42 dB(A)
Protection class: IP X4
Expected life
time: 10 years
Operating forces
of controls:
Buttons on hand control: 4 N
Buttons on display: 4 N
Electrical data: 24 V
Intermittent
operation:
Int. Op 10/90, active operation
max 2 min. Out of a time of 100,
active must be less than 10,
though not more than 2 min
Batteries: 2 pcs. 12 V, 2,9 Ah, valve-regula-
ted lead-acid gel-type batteries.
New batteries are provided by
your Liko representative.
Battery charger:
External charger, 100-240 V AC,
50-60 Hz, max 500 mA.
Lift motor: 24 V, permanent magnet motor
with mechanical safety mecha-
nism
Motor for base: 24 V, permanent magnet motor

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 7 www.liko.com
3.0
Technical Data
5www.liko.com
Uno 200 • 7EN150105-05
Mounting alternative Max. load
A*
B B1 B2 B3**
C D
D1 D2** E* F F1
L*
Lifting range
M N O
max min max min max min max min
X1 200
1835
1785
1735
1430
1380
1330
1220 910 620
620
600
545
1110 675 1000 570 875 255
1080
1030
980
105 20
1590
1540
1490
710
660
610
885 370 295 425
X2 200
1755
1705
1655
1430
1380
1330
1220 910 620
605
545
545
1110 675 1000 570 875 255
1080
1030
980
105 20
1495
1445
1395
630
580
530
870 340 295 495
Y1 160
1940
1890
1840
1430
1380
1330
1220 910 620
615
595
540
1110 675 1000 570 875 255
1080
1030
980
105 20
1705
1655
1605
675
625
575
1035 440 295 460
Y2 160
1845
1795
1745
1430
1380
1330
1220 910 620
605
545
545
1110 675 1000 570 875 255
1080
1030
980
105 20
1600
1550
1500
565
515
465
1040 370 295 570

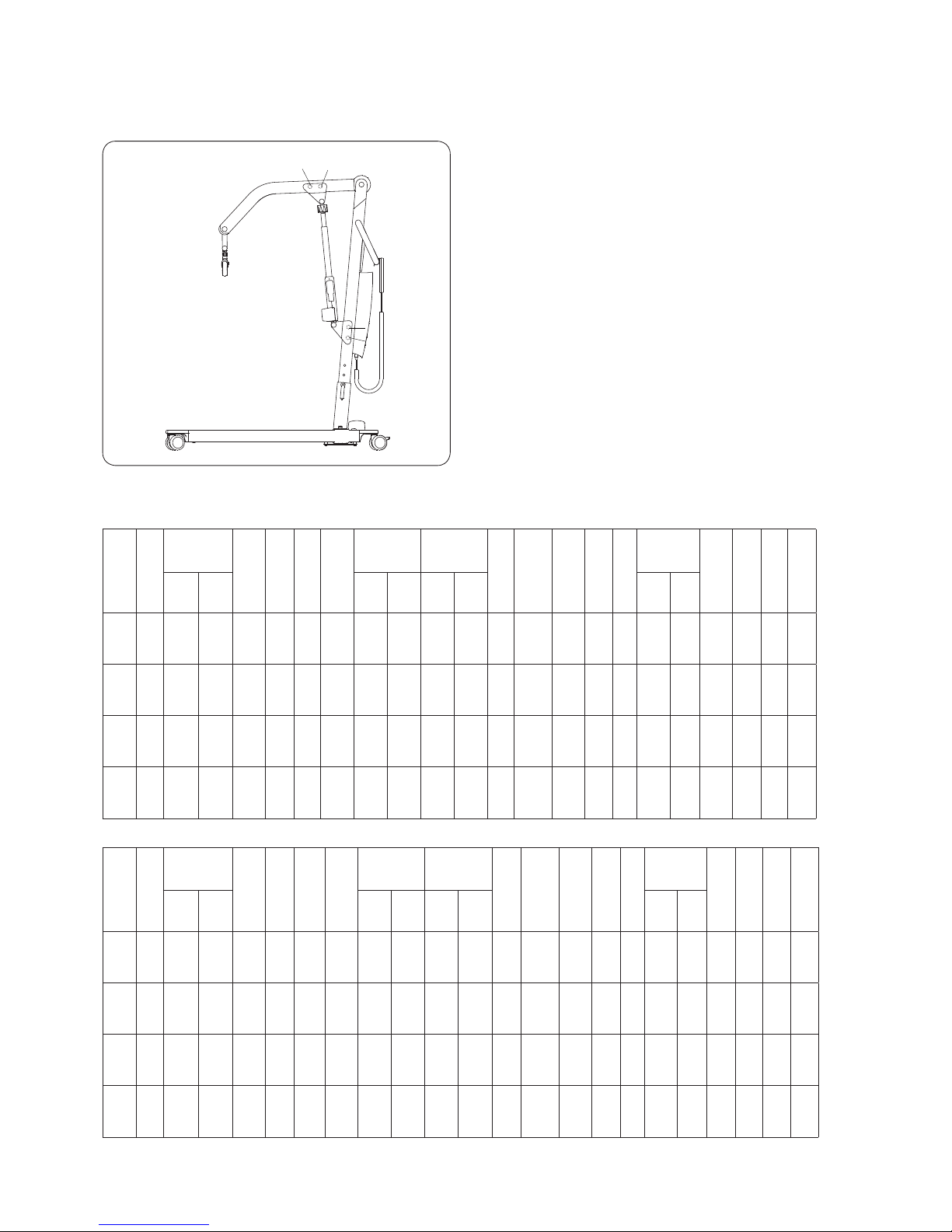

X Y The lift motor can be mounted in four different
combinations:
X1: outer position (X) on the lift arm
upper position (1) on the lift mast
X2: outer position(X) on the lift arm
lower position (2) on the lift mast
Y1: inner position (Y) on the lift arm
upper position (1) on the lift mast
Y2: inner position (Y) on the lift arm
lower position (2) on the lift mast
The different mounting alternatives affect the lift's lifting
height and maximum allowable load. See "Table of
measurements" below.
Adjustments of maximum load/lifting height
Table of measurements
1
2
Mounting alternative Max. load
A*
B B1 B2 B3**
C D
D1 D2** E* F F1
L*
Lifting range
M N O
max min max min max min max min
X1 440
72.2
70.3
68.3
56.3
54.3
52.3
48 35.8 24.4
24.4
23.6
21.4
43.7 26.5 39.3 22.4 34.4 10
42.5
40.5
38.5
4.1 0.8
62.6
60.6
58.6
28
26
24
34.6 14.5 11.6 16.7
X2 440
69.1
67.1
65.2
56.3
54.3
52.3
48 35.8 24.4
23.8
21.4
21.4
43.7 26.5 39.3 22.4 34.4 10
42.5
40.5
38.5
4.1 0.8
58.8
56.8
54.8
24.8
22.8
20.8
34 13.4 11.6 19.4
Y1 352
76.4
74.4
72.4
56.3
54.3
52.3
48 35.8 24.4
24.2
23.4
21.3
43.7 26.5 39.3 22.4 34.4 10
42.5
40.5
38.5
4.1 0.8
67.1
65.1
63.1
26.6
24.6
22.6
40.5 17.3 11.6 18.1
Y2 352
76.4
74.4
72.4
56.3
54.3
52.3
48 35.8 24.4
23.8
21.4
21.4
43.7 26.5 39.3 22.4 34.4 10
42.5
40.5
38.5
4.1 0.8
63
61
59
22.3
20.3
18.3
40.7 14.5 11.6 22.4
* Measures vary depending on height setting level, see "Assembly" page 6. NOTE! The measures apply for a lift equipped with standard sling
bar and standard wheels. Before changing lifting equipment or wheels, ensure that the lift still achieves the desired lifting height.
** Reference measurements according to Standard EN ISO10535:2006.
Max. load in kg. Dimensions in mm.
Max. load in lbs. Dimensions in inch.

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 8 www.liko.com
3.0
Technical Data
4www.liko.com
Uno 200 • 7EN150105-05

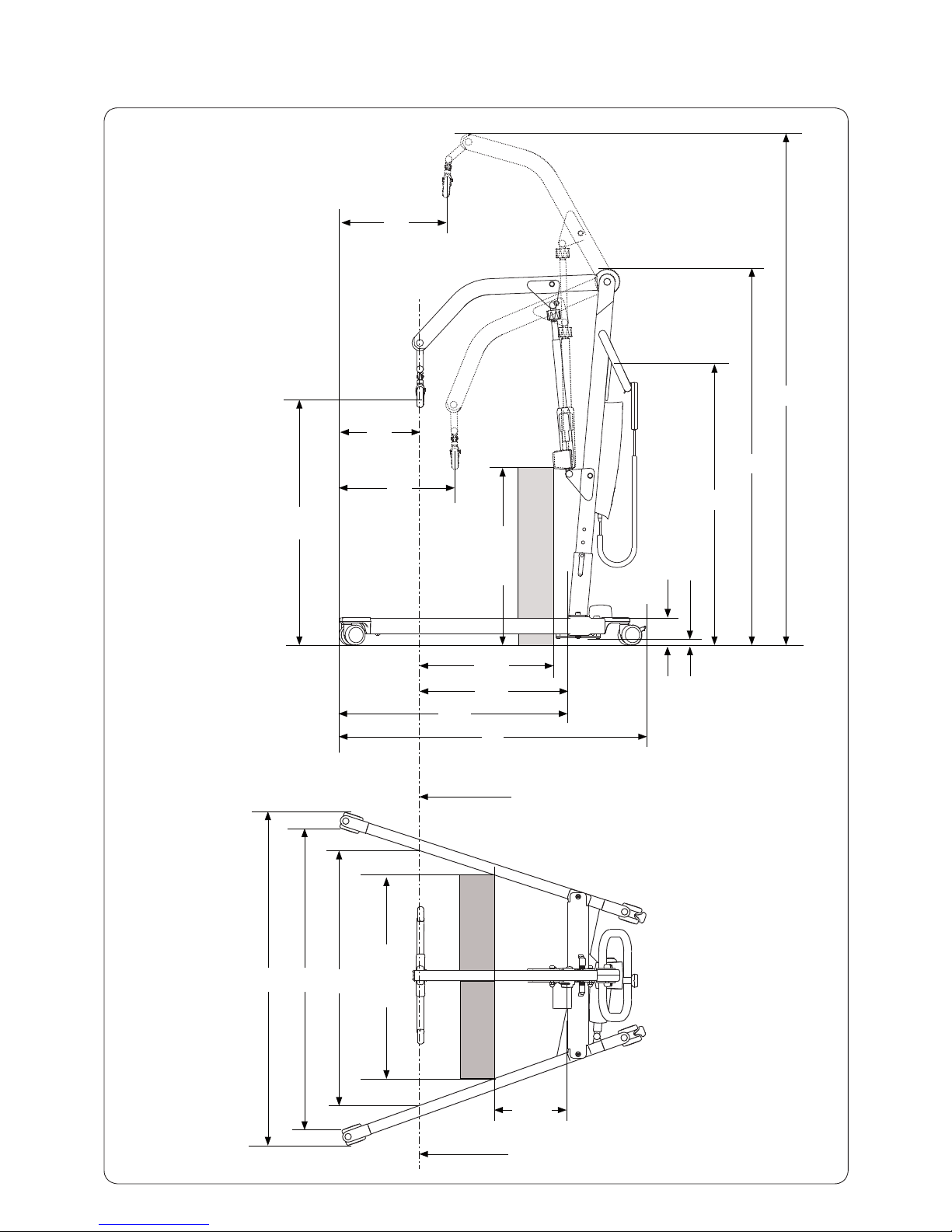

Measurements
C
B
B1
D2
F F1
Amax
B2
D
Amin
600 mm
E
700 mm
M
N
O
Top view
Side view
Maximum reach of lift arm
Maximum reach of lift arm
L
Ref. 1
Ref. 2
D1
B3

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 9 www.liko.com
4.0
Troubleshoong
13 www.liko.com
Uno 200 • 7EN150105-05
Simple Troubleshooting
If you hear unusual sounds. Contact Liko/Hill-Rom.
The lift does not work up/down.
Width adjustment does not work
in/out.
1. Check that the emergency stop button is
not pushed in (p. 7).
2. Check that the cables to the control unit
are correctly connected (p. 6).
3. Check that the charger cable is not
connected to an electric socket.
4. Check that the battery is charged (p. 10).
5. If the lift still does not work satisfactorily,
contact Liko-Hill-Rom.
Battery charging does not work. 1. Check that the emergency stop button is
not pushed in (p. 7).
2. Check to ensure that the electric socket
is power-supplied.
3. Check that the charger cable is correctly
connected (p.10).
4. If the lift still does not work satisfactorily,
contact Liko/Hill-Rom.
The lift stops in the elevated position. 1. Check that the emergency stop button is
not pushed in (p. 7).
2. Use the electrical emergency lowering
to lower the patient to a stable underlying
surface (p 8).
3. Use the mechanical emergency
lowering to lower the patient to a stable
underlying surface (page 8).
4. Check that the battery is charged (p.10).
5. If the lift still does not work satisfactorily,
contact Liko/Hill-Rom.
.
.
.
.
.
.
.
.
.

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 10 www.liko.com

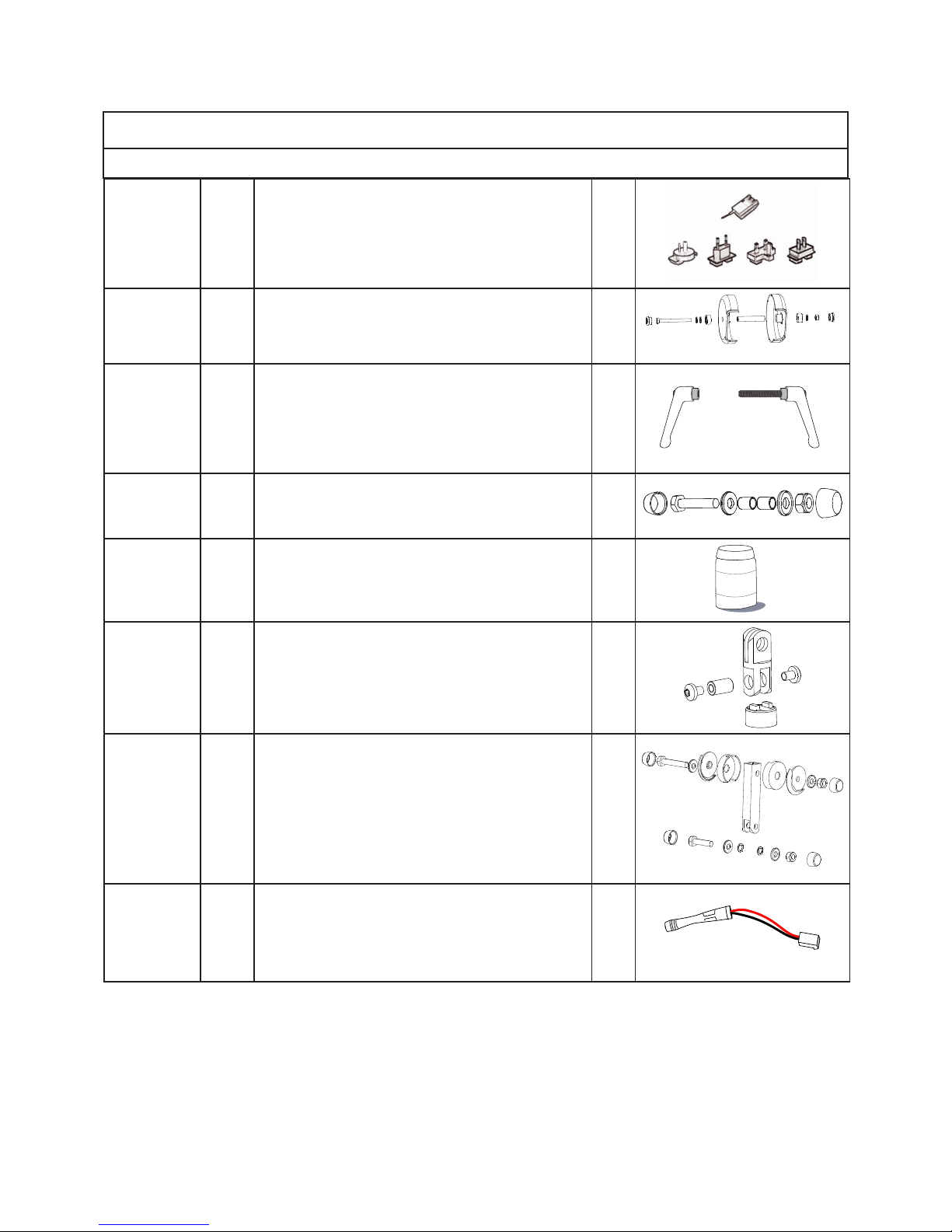

5.0
Spare Parts List
PROD. NO. POS. NO. NAME UNIT
53 www.liko.com
Spare Parts
Uno™ 200 mobile li
20090025 21 Baery 2,9 Ah /12V pair
31590014 311 Latch, composite
Fits SlingBar from S/N 1299511
pair
20190060 356 Control Box Uno 200
baeries included
pce
20190061 357 Hand control Uno 200 pce
20190063 359 Actuator LA31 pce
20190064 360 Basemotor Uno 200 pce
20190065 363 Front wheel 75mm pce
20190066 364 Rear wheel 75mm pce

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 11 www.liko.com
5.0
Spare Parts List
PROD. NO. POS. NO. NAME UNIT
54 www.liko.com
Spare Parts
21090025 368 Charger CH01 set
20190068 382 Li arm, plasc cover set
2107101 384 Locking handles (Sabina, Uno) pair
20190072 408 Lower Actuator aachment set
20190048 448 Lacquer Top Coat for Improvement , Grey pce
20490052 490 SlingBar Assembly set set
20190071 502 Flexlink Uno 200 set
20190079 530 Charger Socket Connecon pce
Uno™ 200 mobile li

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 12 www.liko.com
Battery 2,9Ah/12V
Batteri 2,9Ah/12V
Assembly Instruction
Monteringsanvisning
Prod. No. 20090025
3SE380201-06
2009-11-13
© Copyright Liko AB www.liko.com
NOTE
- Before use, charge the batteries according to the instruction guide.
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
- Old batteries are to be left at the nearest recycling station.
5.21
Contains: Qty:
Batteries 1 pair with cable 1
Fits: 20490016 20190060 5019024
Control unit Viking S Control Box Uno 200 Control unit Car/Cap
Products: Viking S Uno 200 Caroli (from S/N 3100596)
Viking XS Sabina 200 Capella (from S/N 3300692)
T20
1. 2.
20490016 Control unit Viking S
Tools required:
3 mm
1: Hand control
2: Base-motor cable
3: Lift motor cable
1 2 3
20190060 Control Box Uno 200 & 5019024 Control unit Car/Cap:
Tools required: 1. 2.
3. 4.
5 mm
T20
T10
Replace the batteries and
assemble in reverse order.
Replace the batteries and
assemble in reverse order.
5.21

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 13 www.liko.com
Control box, Uno 200
Kontrollbox, Uno 200
Assembly Instruction
Monteringsanvisning
Prod. No. 20190060
3SE650223-03
2009-06-22
© Copyright Liko AB www.liko.com
Tools required:
5.356.1
5 mm
1: Hand control
2: Base-motor cable
3: Lift motor cable
1 2 3
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.
Contains: Qty:
Screw M6x75 2
Controlbox UNO200 1
Fits:
Uno 200
Sabina 200
5.356

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 14 www.liko.com
Hand control, Uno 200
Handkontroll, Uno 200
Assembly Instruction
Monteringsanvisning
Prod. No. 20190061
3SE650224-03
2009-06-22
© Copyright Liko AB www.liko.com
Tools required:
5.357
- Hand control cable to socket 1.
1.
Contains: Qty:
Hand control UNO200 1
Fits:
Uno 200
Sabina 200
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 15 www.liko.com
Actuator LA31
Ställdon LA31
Assembly Instruction
Monteringsanvisning
Prod. No. 20190063
3SE650226-03
2009-10-06
© Copyright Liko AB www.liko.com
Tools required:
5.359
2x 17 mm
AB
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.
Contains: Qty:
Actuator LA31 UNO200 1
Fits:
Uno 200
5.359

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 16 www.liko.com
Base Motor Uno 200
Motor Uno 200
Assembly Instruction
Monteringsanvisning
Prod. No. 20190064
3SE650227-04
2009-06-22
© Copyright Liko AB www.liko.com
Tools required:
5.360.1
17 mm
17 mm
1: Hand control
2: Base-motor cable
3: Lift motor cable
1 2 3
Check all
functions!
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.
Contains: Qty:
Actuator LA28 UNO200 1
Fits:
Uno 200
Sabina 200
5.360

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 17 www.liko.com
Front Wheel 75 mm
Framhjul 75 mm
Assembly Instruction
Monteringsanvisning
Prod. No. 20190065
3SE650221-04
2013-03-20
© Copyright Liko AB www.liko.com
Tools required:
16 mm
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
-
Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
Contains: Qty:
Coverhat front fork 1
Front wheel 75mm 1
Nut M6LM M10 ISO 1
Fits:
Liko M220 / M230
Sabina 200
Uno 200
Uno 102 EE from Rev 01 / S/N 52 000
5.363
5.363

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 18 www.liko.com
Rear Wheel 75 mm
Bakhjul 75 mm
Assembly Instruction
Monteringsanvisning
Prod. No. 20190066
3SE650222-04
2013-03-20
© Copyright Liko AB www.liko.com
Tools required:
16 mm
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
Contains: Qty:
Coverhat front fork 1
Rear wheel 75mm 1
Nut M6LM M10 ISO 1
Fits:
Liko M220 / M230
Sabina 200
Uno 200
Uno 102 EE from Rev 01 / S/N 52 000
5.364
5.364

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 19 www.liko.com
Charger CH01
Laddare CH01
Assembly Instruction
Monteringsanvisning
Prod. No. 21090025
3SE650232-04
2010-04-07
www.liko.com
© Copyright Liko AB
5.368
3.
2. 4.
5.
6.
The lift does not operate when the charger cable is plugged into an electric socket!
* Plug adaptor units:
Australian plug EU plug
Contains:
Charger Uno 200 1
Adaptor EU Uno 200 1
Adaptor UK Uno 200 1
Adaptor US Uno 200 1
Adaptor AU Uno 200 1
Fits:
Uno 200
Sabina 200
Viking S
Viking XS
Likorall 200
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.
3.
2.
4.
6.
5.
1.
7.
1. Check to ensure that the emergency stop button is not pressed in
during charging.
2. Connect the charger cable to the charger socket under the control
unit.
Likorall 200: Place the hand control in the charging station.
3. Slide on the Plug adaptor unit*to the Charging module.
4. Connect the charger to a 100-240 V AC electric socket.
5. When the charger is connected a LED indicates:
-yellow light indicates charging
-green light indicates maintenance charging.
6. A yellow LED at the control unit lights when the charger is
connected to the electric socket.
Likorall 200: A LED on the hand control will light up and indicates
that the charger is connected to a power source.
7. Likorall 200: Charging starts automatically and a yellow LED on the
lift unit indicates that the batteries are charging. When the battery
is fully charged, the yellow LED turns off.
UK plug US / Japan plug

ServiceManual Uno™200 mobile lift (3EN500402 Rev. 5) 20 www.liko.com
Liftarm Plastic Cover
Pelarkåpa, sats
Assembly Instruction
Monteringsanvisning
Prod. No. 20190068
3SE650239-01
2009-03-02
© Copyright Liko AB www.liko.com
5.382
10 mm
2X
Tools required
Contains:
Plastic cover 2
Cover hat Liko 2
Cover hat Liko bottom 2
Sleeve bearing Mob.53 1
Locking nut M6 Nyloc 1
Washer PS 6x12x1 3 (use only 2 at Uno 200)
Screw M6S M6x65 1
Fits:
Uno 100 EE, EM, ES
Uno 102 EE, EM, ES
Uno 200
Uno 200:
Use only 1 washer (PS 6x12x1)
on each side!
NOTE
Make sure the spare part is mounted according to the assembly instruction.
Check all functions.
Repairs and maintenance may only be performed by personnel authorized by
Liko/Hill-Rom and using original Liko spare parts.
5.382
