Liko Likorall 242 ES User manual

Doc.No. 7SE120401-01
2003-10-23
Likorall 242 ES/242 ES R2R
242 S/242 S R2R
Service Manual
10:1

www.liko.com
Table of contents
Likorall 242 ES/242 ES R2R 242 S/242 S R2R
Position Ref.no.
Table of contents .............................................................................................. 1.0
Care and maintenance ..................................................................................... 2.0
Technical Specications ................................................................................... 3.0
Positions........................................................................................................... 4.0
Spareparts with positions. ................................................................................ 5.0
Spring Magazine .................................................................. 36..................... 4.36
Emergency Lowering Device................................................. 77..................... 4.77
Body/Handle set for Emergency Lowering Device ................ 78..................... 4.78
Plastic Housing...................................................................... 79..................... 4.79
Slingbar Universal 450 .......................................................... 86..................... 4.86
Safety Latch .......................................................................... 87..................... 4.87
Battery 2,6Ah/12V ................................................................. 90..................... 4.90
Lift Strap Likorall.................................................................... 91..................... 4.91
Battery charger, EU .............................................................. 118................... 4.118
Battery charger, UK .............................................................. 119................... 4.119
Battery charger, US .............................................................. 120................... 4.120
Lift Strap Likorall R2R .......................................................... 129................... 4.129
Carriage Part without Brake ................................................. 132................... 4.132
Carriage Part with Brake ...................................................... 134................... 4.134
Actuator Restoration set LR 242 .......................................... 151................... 4.151
Hook R2R............................................................................. 186................... 4.186
Strap Stop ............................................................................ 203................... 4.203
Electronic Card with Cover ES ............................................. 204................... 4.204
Movable Strap Stop.............................................................. 210................... 4.210
Plastic Wheel with bearing ................................................... 213................... 4.213
Hand Control LR 242 ES, 2.Button ...................................... 214................... 4.214
Hand Control LR 242 ES, 4.Button ...................................... 215................... 4.215
Battery charger, AU .............................................................. 227................... 4.227
Electronic Card with Cover S ............................................... 241................... 4.241
Hand Control Remote 242 ES.............................................. 242................... 4.242
Hand Control LR 242 ES, 6.Button ...................................... 249................... 4.249
Troubleshooting................................................................................................ 6.0
Drawings .......................................................................................................... 7.0
Checklist........................................................................................................... 8.0
1.0

www.liko.com
Innehållsförteckning
Likorall 242 ES/242 ES R2R 242 S/242 S R2R
Position Bladnr.
Innehållsförteckning ......................................................................................... 1.0
Tillsyn och underhåll.........................................................................................2.0
Teknisk data ..................................................................................................... 3.0
Positioner ......................................................................................................... 4.0
Reservdelslista med positioner ........................................................................ 5.0
Fjäderkassett......................................................................... 36..................... 4.36
Nödsänkning ......................................................................... 77..................... 4.77
Stomme/Handtag .................................................................. 78..................... 4.78
Bandmagasin ........................................................................ 79..................... 4.79
Lyftbygel Universal 450 ......................................................... 86..................... 4.86
Urkrokningsskydd.................................................................. 87..................... 4.87
Battery 2,6Ah/12V ................................................................. 90..................... 4.90
Lyftband Likorall .................................................................... 91..................... 4.91
Laddare väggmonterad, EU ................................................. 118................... 4.118
Laddare väggmonterad, UK ................................................. 119................... 4.119
Laddare väggmonterad,US .................................................. 120................... 4.120
Lyftband Likorall R2R ........................................................... 129................... 4.129
Åkvagnsdel utan broms........................................................ 132................... 4.132
Åkvagn med broms .............................................................. 134................... 4.134
Motorpaket LR 242............................................................... 151................... 4.151
Krok R2R.............................................................................. 186................... 4.186
Bandstopp komplett.............................................................. 203................... 4.203
Gavel med kretskort 242ES ................................................. 204................... 4.204
Bandmarkering ..................................................................... 210................... 4.210
Hjulbana med lager .............................................................. 213................... 4.213
Handkontroll LR 242 ES, 2-knapp........................................ 214................... 4.214
HandkontrollLR 242 ES, 4-knapp......................................... 215................... 4.215
Laddare väggmonterad, AU ................................................. 227................... 4.227
Gavel med kretskort 242S.................................................... 241................... 4.241
Fjärrkontroll 242 ES.............................................................. 242................... 4.242
Handkontroll LR 242 ES, 6-knapp........................................ 249................... 4.249
Enkel felsökning ............................................................................................... 6.0
Ritningar ........................................................................................................... 7.0
Checklista......................................................................................................... 8.0
1.0

www.liko.com
2.0
Care and Maintenance
Checklist
For safe and troublefree operation, there are a few routine measures which should be performed
every day the lift is used.
• Inspect the lift and check for any external damage.
• Check the connecting joints of the sling bar.
• Check the lift strap for wear and that the strap is not twisted.
• Check the function of the safety latch.
• Check the control function of the lift movement.
• Check that the lifting height is correctly adjusted and that the emergency-lowering device works.
• Charge the batteries every day the lift is used, and check that the battery charger works.
As needed, clean the lift with warm water or disinfectant. Caution! Do not use cleaning products
that contain phenol or chlorine, since it can damage the aluminum and polyamide material.
Inspection and Control
Likorall should be thoroughly inspected for wear of parts at least once per year. Inspection should
be in accordance with Liko service instructions and conducted by authorized individuals.
WARNING!
Use only authorized Liko service personnel and Liko spare parts.
Transport and Storing
During transportation, or when the patient lift is not to be used for some time, the emergency
button should be pushed in. When storing, keep the patient lift at a temperature exceeding free-
zing point and at a relative humidity no more than 60%.
We always try to improve our products. Naturally, this means changes from time to time.
Please contact our local representative or visit www.liko.com to receive the latest updates.

www.liko.com
Tillsyn och underhåll
För att försäkra sig om en problemfri användning är det vissa detaljer som bör kontrolleras varje dag
lyften används.
• Inspektera lyften och kontrollera att inga yttre skador har skett.
• Kontrollera infästningen av lyftbygeln.
• Kontrollera lyftbandets slitage, samt att bandet inte är vridet.
• Kontrollera urkrokningsskyddens funktion.
• Kontrollera manövreringen av lyftrörelsen.
• Kontrollera att lyfthöjden är korrekt inställd och att nödsänkningen fungerar.
• Ladda batterierna varje dag lyften använts och kontrollera då att laddaren fungerar.
Vid behov, rengör lyften med varmt vatten eller tvättsprit. OBS! Använd inte rengöringsmedel som
innehåller fenol eller klor, då detta kan skada aluminium- och polyamidmaterialen.
Tillsyn och kontroll
Likorall skall genomgå kontroll minst en gång per år av förslitningsdetaljer.
Utföres i enlighet med Likos serviceinstruktion och av auktoriserad personal.
VIKTIGT!
Reparation och underhåll får endast utföras av Liko auktoriserad personal och med originalreservdelar.
Transport och lagring
Under transport, eller då lyften inte skall användas under en längre tid, bör nödstoppen vara intryckt.
Lyften bör också förvaras frostfritt samt ej över normal luftfuktighet (ca 60%).
Serviceavtal
Liko erbjuder möjlighet att teckna serviceavtal för underhåll och fortlöpande tillsyn av er Likorallanläggning.
Likos produkter utvecklas ständigt varför vi förbehåller oss rätten till ändringar i produkter utan föregående
notis. Kontakta din Likorepresentant för information, råd och eventuella uppdateringar.
Made in Sweden
Liko är kvalitetscertierat enligt ISO 9002 och miljöcertierat enligt ISO 14001.
2.0

www.liko.com
3.0
Technical specications
Lifting capacity: 200 kg/440 lbs.
Batteries: Two 12V 2.6 Ah valve-
regulated lead-acid gel-type
batteries. New batteries are
available from Liko.
Battery charger: 100 - 240 VAC 40-60 Hz,
max. 0.6 A.
Lifting speed: 5 cm/s
Lifting range: 210 cm (height adjustable)
Power: 24 V 12 A
Lift unit dimensions: 250x125x320 mm. WxHxL
9.8x4.9x12.6 inch. WxHxL
Material: Anodized aluminium.
Emergency lowering: Electrical and mechanical
(not mechanical on R2R).
Intermittent operation: Int. Op 10/90, active opera
tion max 6 min. Out of a
time of 100, active must be
less than 10, though not
more than 6 min.
IP Class 43
Intended for indoor use.
Type B, according to the degree of protection
against electric shock.
Class ll equipment.

www.liko.com
Tekniska data
Lyftkapacitet: 200 kg.
Batterier: 2 st 12 V 2,6 Ah. Ventilreglerade
blyackar. S.k. gelbatterier.
Nya batterier tillhandahålles av Liko.
Batteriladdare: 100 - 240 VAC 40-60 Hz, max 0,6 A.
Lyfthastighet: 5 cm/s.
Lyftområde: 210 cm (inställbart i höjdled).
Eldata: 24 V 12 A
Mått lyftmotor: 250x125x320 mm. BxHxL.
Material: Eloxerad aluminium.
Nödsänkning: Elektrisk och mekanisk (ej mekanisk
vid R2R).
Intermittent drift: Int. Op 10/90, aktiv drift max
6 min. Av en tid på 100 får aktiv
tid vara 10, dock max 6 min.
IP klass 43
Avsedd för inomhusbruk.
Typ B, enligt skyddsgrad mot elektrisk chock.
Klass ll utrustning.
3.0

www.liko.com
252
249

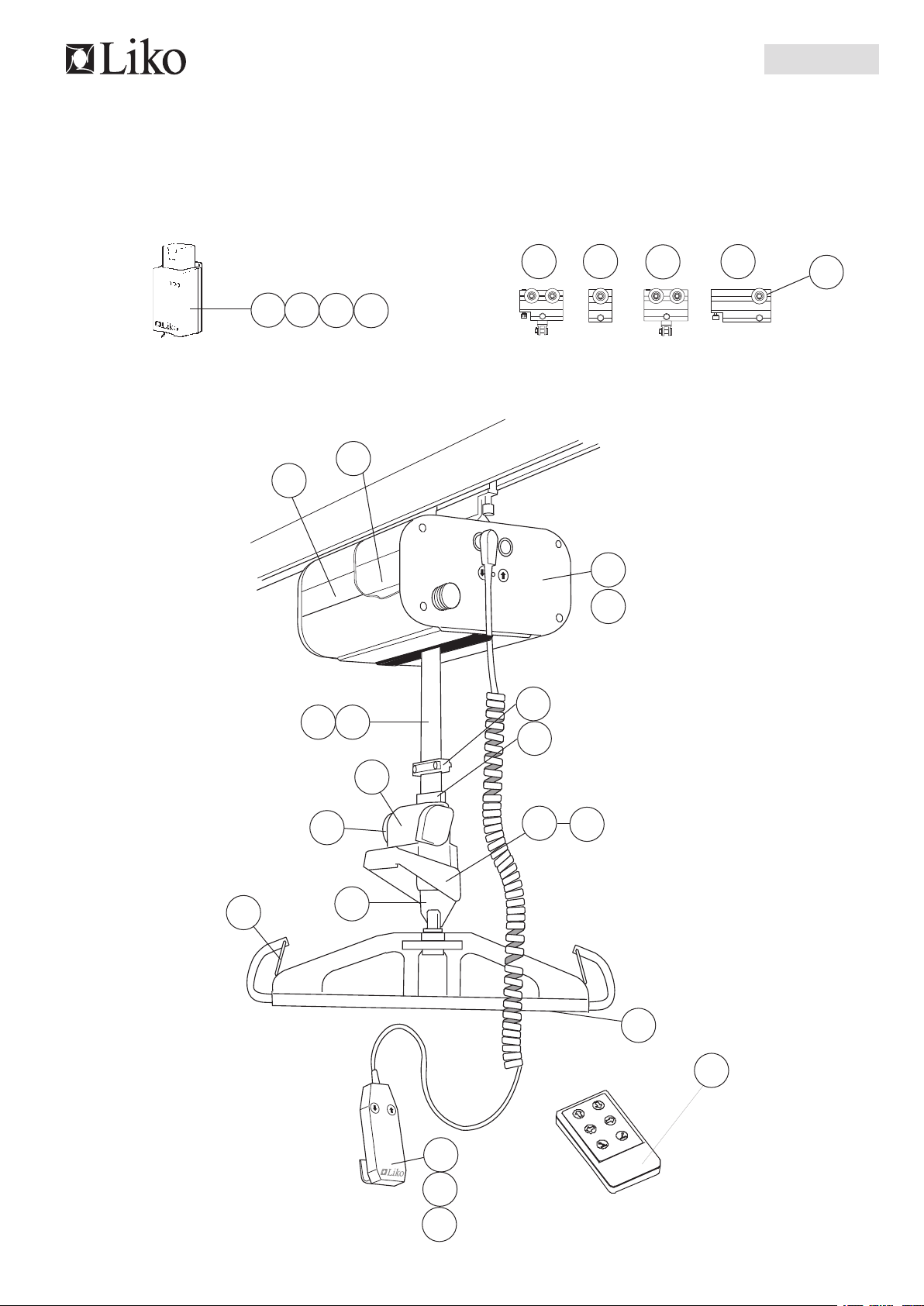

Positions Likorall
242ES/242ES R2R, 242S/242S R2R
4.0
132
131 133 134
119
118
120
90
91129
214
79
78
77
36
86
87
151
204
215
241
242
227
210
203
213

www.liko.com
5.0

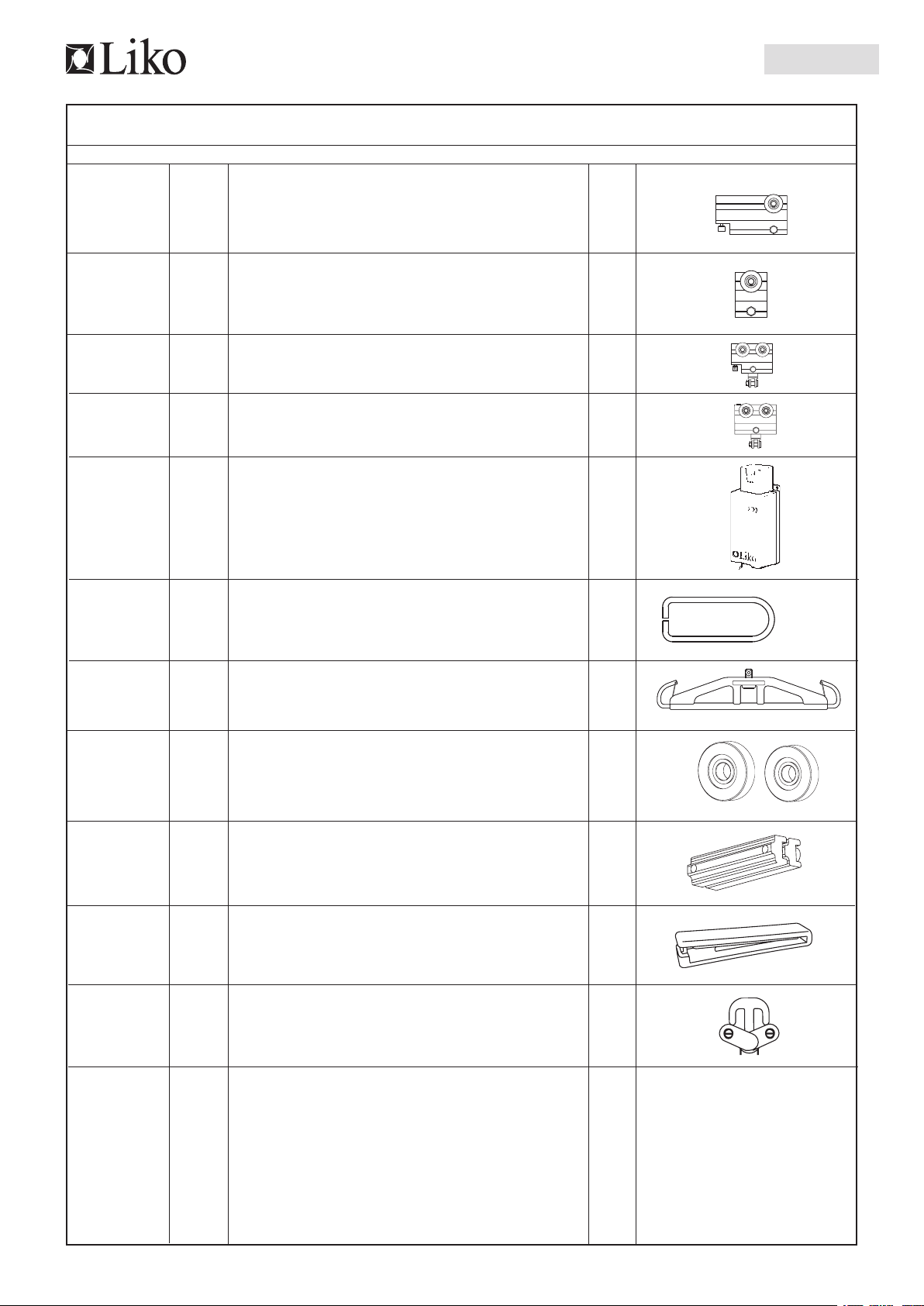

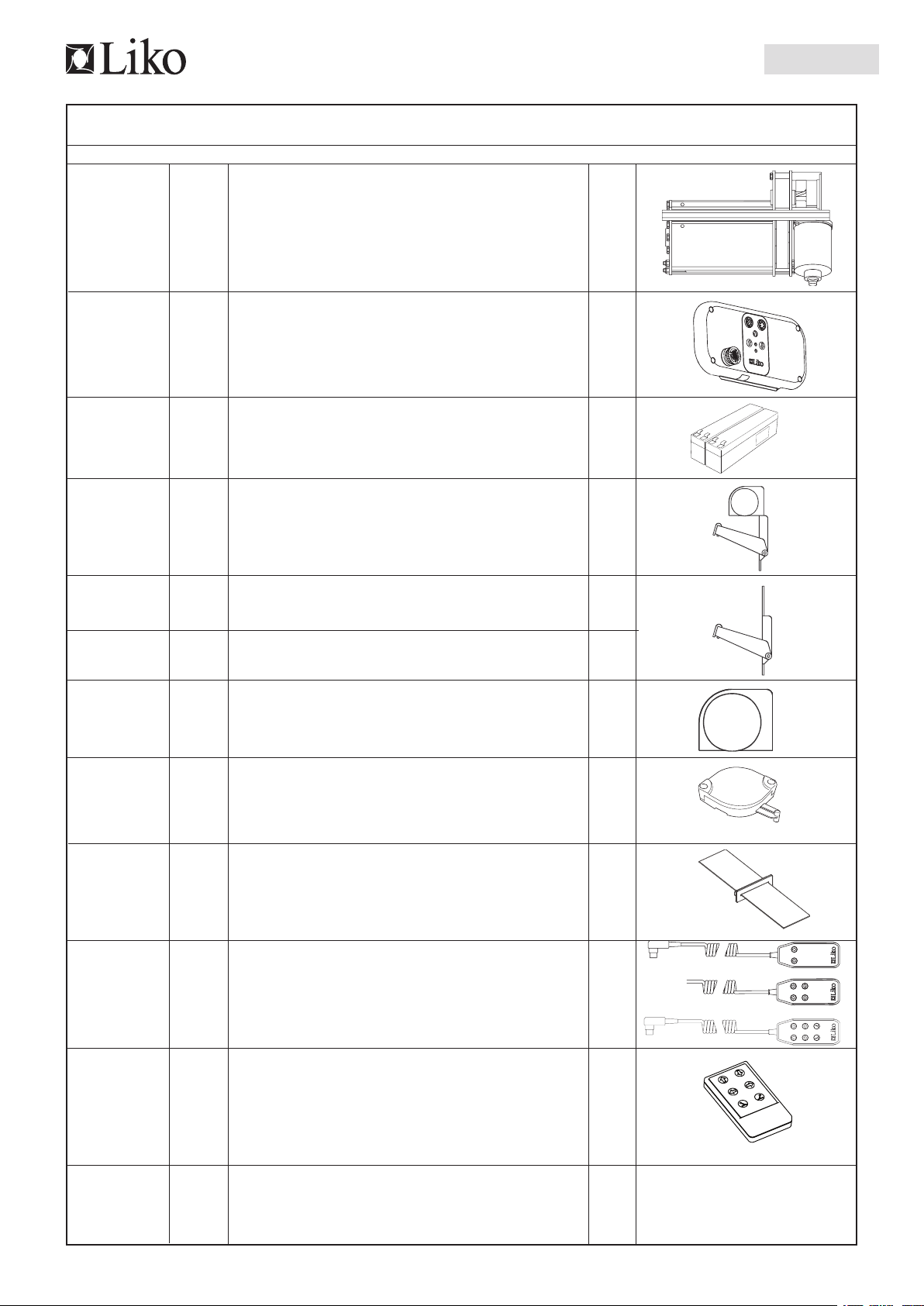

Spareparts Likorall 242ES/242ES R2R, 242S/242S R2R
PART.NO POS.NO ARTICLE UNIT
31290054 151 Actuator Restoration set LR 242 pce
31290058 204 Electronic Card with Cover ES pce
31290062 241 Electronic Card with Cover S pce
31290007 90 Battery 2,6 Ah/12 V pce
31190006 77 Emergency Lowering Device pce
31190007 78 Body/Handle set for Emergency pce
Lowering Device
31190021 252 Body/Handle set for Emergency pce
Lowering Device ( Stainless steel )
31190008 79 Plastic Housing pce
20090041 36 Spring Magazine pce
31290011 91 Lift Strap Likorall pce
31290028 129 Lift Strap Likorall R2R pce
3126034 214 Hand Control LR 242ES, 2.Button pce
3126036 215 Hand Control LR 242ES, 4.Button pce
3126038 249 Hand Control LR 242ES, 6.Button pce
3126060 242 Hand Control Remote 242ES pce

www.liko.com
5.0
Spareparts Likorall 242ES/242ES R2R, 242S/242S R2R
PART.NO POS.NO ARTICLE UNIT
X 2
3126013 134 Carriage Part with Brake pce
3126017 132 Carriage Part without Brake pce
3126015 131 Carriage for R2R, with Brake pce
3126014 133 Carriage for Likorall R2R pce
3126101 118 Battery charger EU pce
3126102 119 Battery charger UK pce
3126103 120 Battery charger US pce
3126104 227 Battery charger Au/NZ pce
31190018 87 Safety Latch pair
3156001 86 Sling Bar Universal 450 pce
31290060 213 Plastic Wheel with Bearing set
31290057 203 Strap Stop pce
31290059 210 Movable Strap Stop 10
pce
31290056 186 Hook R2R pce

www.liko.com
31290054 151 Motorpaket LR242 st
31290058 204 Gavel med kretskort 242ES st
31290062 241 Gavel med kretskort 242S st
31290007 90 Batteri 2,6 Ah/12 V st
31190006 77 Nödsänkning st
31190007 78 Stomme/Handtag st
31190021 252 Stomme/Handtag ML rostfri st
31190008 79 Bandmagasin st
20090041 36 Fjäderkassett st
31290011 91 Lyftband Likorall st
31290028 129 Lyftband Likorall R2R st
3126034 214 Handkontroll LR 242 ES, 2-knapp st
3126036 215 Handkontroll LR 242 ES, 4-knapp st
3126038 249 Handkontroll LR 242 ES, 6-knapp st
3126060 242 Fjärrkontroll 242 ES st
Reservdelar Likorall 242ES/242ES R2R, 242S/242S R2R
PRODUKT NR POS NR PRODUKTBESKRIVNING ENHET
5.0

www.liko.com
Reservdelar Likorall 242ES/242ES R2R, 242S/242S R2R
PRODUKT NR POS NR PRODUKTBESKRIVNING ENHET
3126013 134 Åkvagn med broms st
3126017 132 Åkvagnsdel utan broms st
3126015 131 Åkvagn R2R, med broms st
3126014 133 Åkvagn till Likorall R2R st
3126101 118 Laddare väggmonterad EU st
3126102 119 Laddare väggmonterad UK st
3126103 120 Laddare väggmonterad US st
3126104 227 Laddare väggmonterad Au/NZ st
31190018 87 Urkrokningsskydd par
3156001 86 Lyftbygel Universal 450 st
31290060 213 Hjulbana med lager set
31290057 203 Bandstopp kompl. st
31290059 210 Bandmarkering set
10st
31290056 186 Krok R2R st
X 2
5.0

www.liko.com
Spareparts Specication
Reservdelslista
Serial no ................................ Version ................................ Release ................................
4.36
Details Detail pos. Detail no. Unit
Spring Holder KPL 1 20090041 1
All details according to drawing no. R 3961204

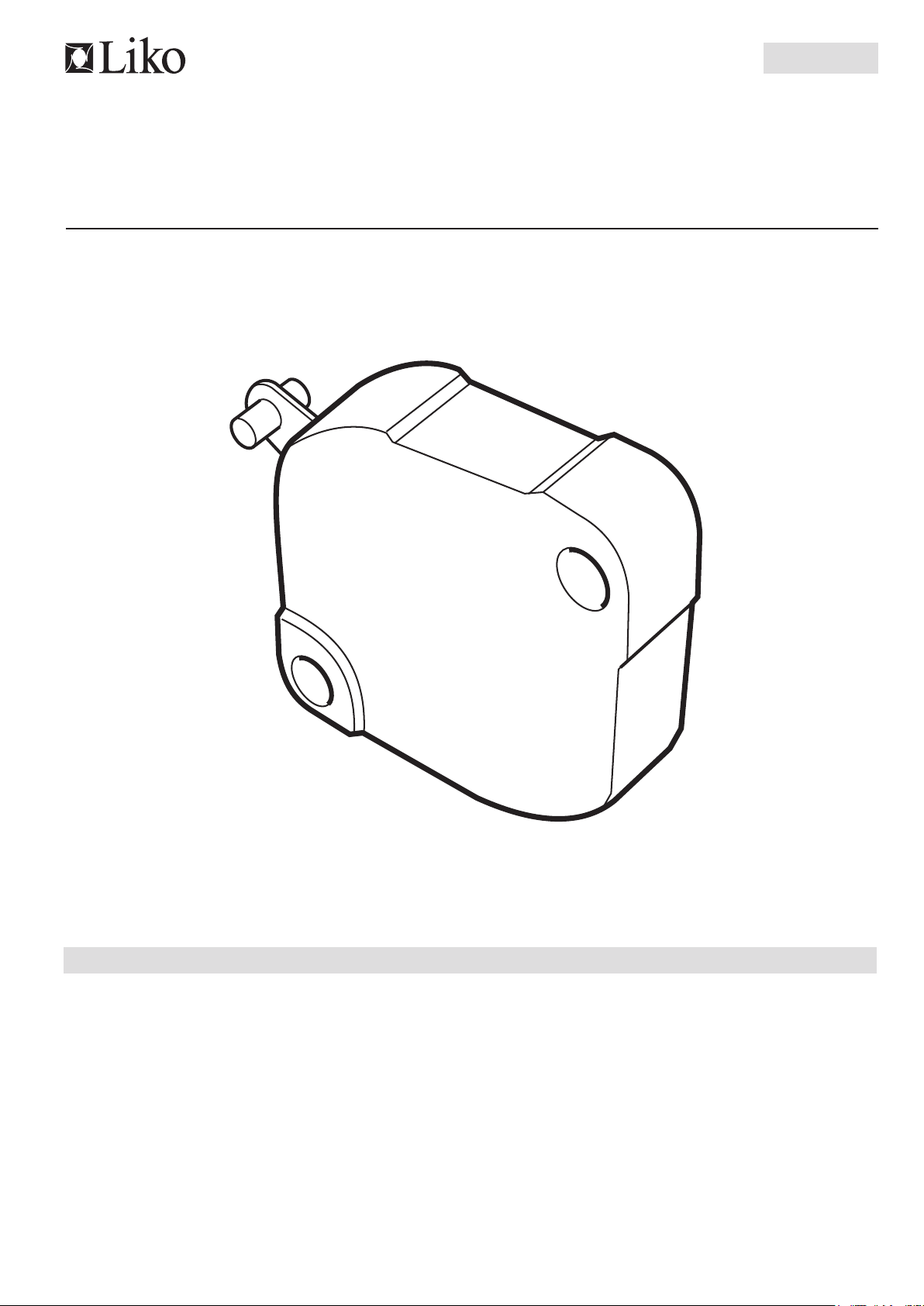

Spring Magazine
Fjäderkassett Prod.no: 20090041
2003-09-09

www.liko.com
Assembly Instruction
Monteringsanvisning
4.36.1
Tools required:
Spring Magazine
Fjäderkassett Prod.no: 20090041
Doc. no: TI 20090041
2003-09-09
Remove after assembly

www.liko.com
Spareparts Specication
Reservdelslista
Serial no ................................ Version ................................ Release ................................

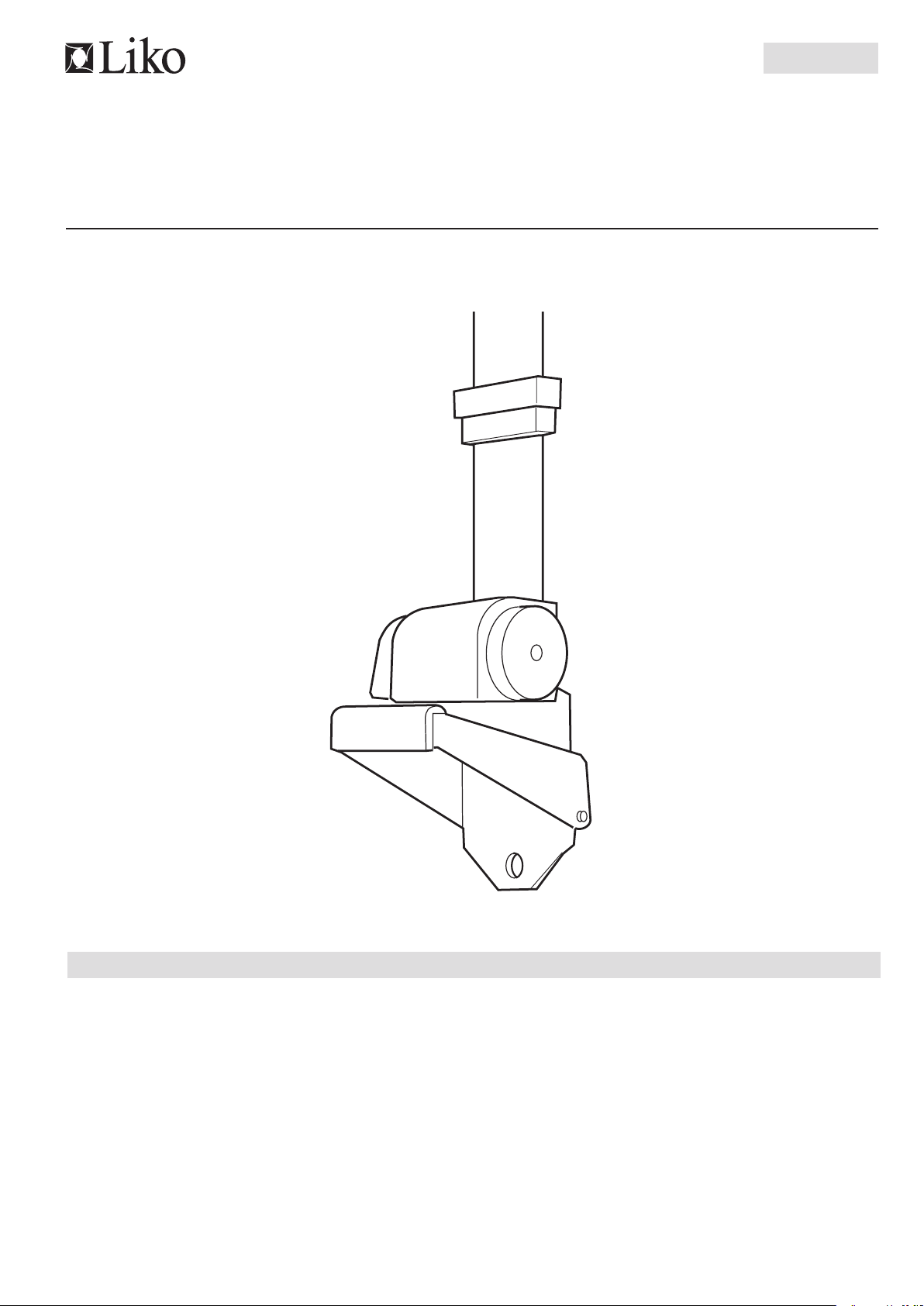

4.77
All details according to drawing no. R 3961204
Details Detail pos. Detail no. Unit.
Spring Holder KPL 1 900000106 1
Locking Pin 3*48 7 900000570 1
Friction Prole 15 900000571 1
Plastic Housing 4 901891202 1
Strap shaft 3 901901202 1
Wheel (right) 9 901912022 1
Screw K6S M5*12 10 930000082 1
Screw KXT B4x9,5 2 930000107 2
Tube 10/12 L=60mm 5 930000108 1
Details Detail pos. Detail no. Unit
Nut M6M M5 8 930000230 1
Pin D=6 L=30 13 931891206 2
Torsion spring 12 900000109H 1
Torsion spring 12 900000109V 1
Axle stop right 14 901901207H 1
Axle stop left 14 901901207V 1
Baseplate 11 90191201C 1
Baseplate 2 16 90191201D2 1
Emergency Lowering Device
Nödsänkning Prod.no: 31190006
2003-09-09

www.liko.com
Assembly Instruction
Monteringsanvisning
4.77.1
4. Use the pin to lock the axle where
the strap was mounted.
5. Push the emergency lowering
handle down and pull the strapa
way.
3. Remove the pin. Do not let
go of the springloaded wheel,
since the tension will release.
6. Pull the rest of the strap out and
remove the plastic housing.
7. Mount the new strap through
the plastic housing with the red
mark towards the plastic housing
and then as shown above.
8. Mount the strap through the slot
in the axle and the same way back.
Note! The axle has two different
sides. Place the pin as shown to
lock the strap. Do not let go of
the springloaded wheel, since the
tension will release.
10. Roll up the strap until the red
mark reaches the plastic housing.
9. Push the plastic housing on to
the strap joint.
2. Hold the springloaded wheel
and release the strap by removing
the pin.
1. Pull the strap all the way out.
Tools required:
Emergency Lowering Device
Nödsänkning Prod.no: 31190006
Doc. no: TI 31190006
2003-09-09
After changing Emergency Lowering Device the lift must be tested with
maximum load
And the emergency lowering with 50Kg

www.liko.com
Spareparts Specication
Reservdelslista
Serial no ................................ Version ................................ Release ................................

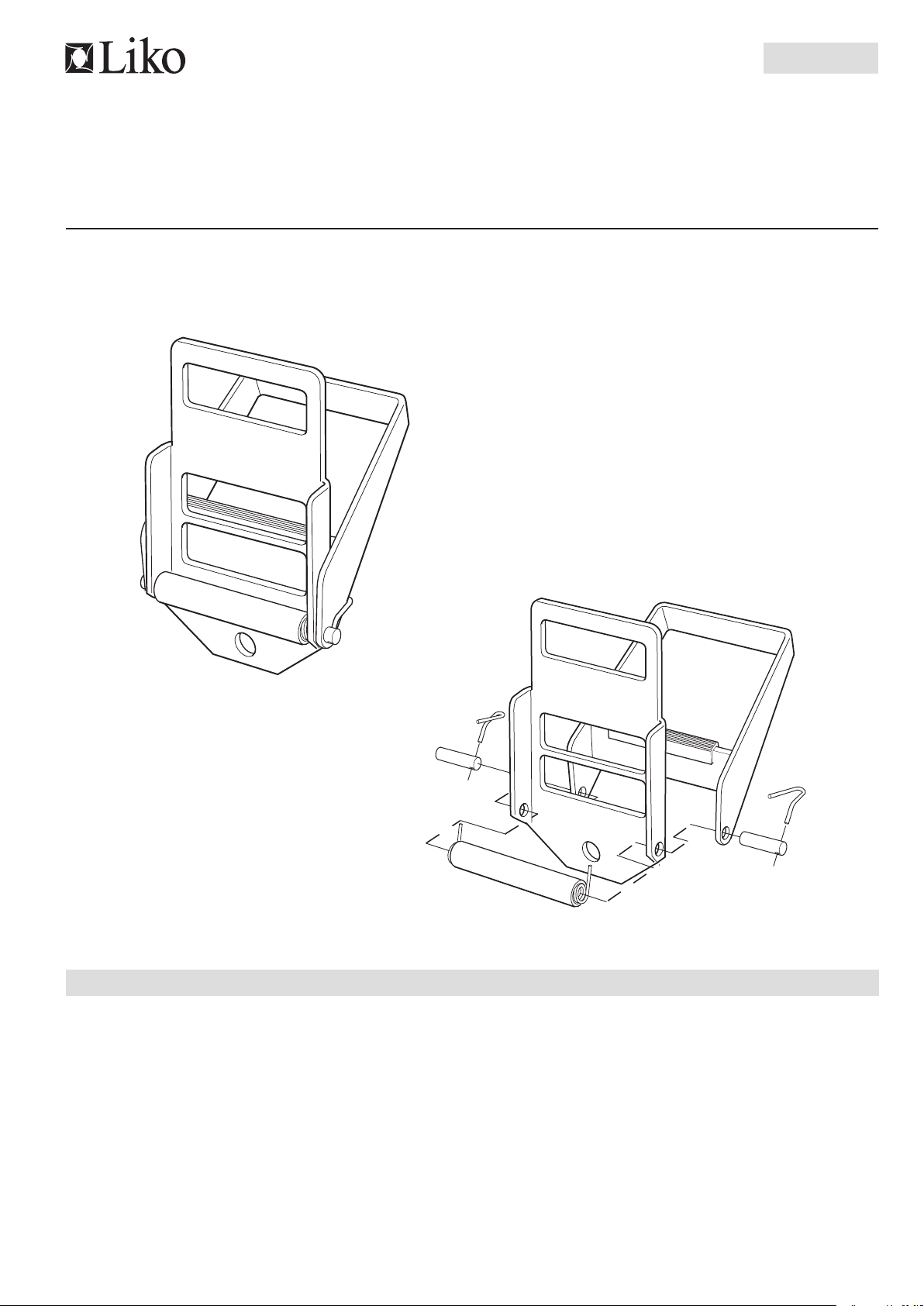

4.78
All details according to drawing no. R 3961204
Details Detail pos. Detail no. Unit
Friction Prole 15 900000571 1
Tube 10/12 L=60mm 5 930000108 1
Nut M6M M5 8 930000230 1
Pin D=6 L=30 13 931891206 2
Torsion spring l/r 12 900000109H 1
Details Detail pos. Detail no. Unit
Torsion spring l/r 12 900000109V 1
Axle stop right 14 901901207H 1
Axle stop left 14 901901207V 1
Baseplate 11 90191201C 1
Baseplate 2 16 90191201D2 1
Body/Handle set for Em. Low. Dev.
Stomme/handtag Prod.no: 31190007
2003-09-09

www.liko.com
Assembly Instruction
Monteringsanvisning
4.78.1
Tools required:
4. Use the pin to lock the axle
where the strap was mounted.
5. Push the emergency lowering
handle down and pull the strap
away.
3. Remove the pin. Do not let
go of the springloaded wheel,
since the tension will release.
6. Pull the rest of the strap out and
remove the plastic housing.
7. Mount the new strap through
the plastic housing with the red
mark towards the plastic housing
and then as shown above.
8. Mount the strap through the slot
in the axle and the same way back.
Note! The axle has two different
sides. Place the pin as shown to
lock the strap. Do not let go of
the springloaded wheel, since the
tension will release.
10. Roll up the strap until the red
mark reaches the plastic housing.
9. Push the plastic housing on to
the strap joint.
2. Hold the springloaded wheel
and release the strap by removing
the pin.
1. Pull the strap all the way out.
Body/Handle set for Em. Low. Dev.
Stomme/handtag Prod.no: 31190007
Doc. no: TI 31190007
2003-09-09
After changing Emergency Lowering Device the lift must be tested
with maximum load
And the emergency lowering with 50Kg

www.liko.com
Spareparts Specication
Reservdelslista
Serial no ................................ Version ................................ Release ................................
4.79
All details according to drawing no. R 3961204
Details Detail pos. Detail no. Unit
Spring Holder KPL 1 900000106 1
Pin 3*48 7 900000570 1
Plastic Housing 4 901891202 1
Strap shaft 3 901901202 1
Details Detail pos. Detail no. Unit
Wheel (right) 9 901912022 1
Screw K6S M5*12 10 930000082 1
Screw KXT B4x9,5 2 930000107 2
Plasic Housing
Bandmagasin Prod.no: 31190008
2003-09-09

www.liko.com
Assembly Instruction
Monteringsanvisning
4.79.1
Tools required:
4. Use the pin to lock the axle
where the strap was mounted.
5. Push the emergency lowering
handle down and pull the strap
away.
3. Remove the pin. Do not let
go of the springloaded wheel,
since the tension will release.
6. Pull the rest of the strap out and
remove the plastic housing.
7. Mount the new strap through
the plastic housing with the red
mark towards the plastic housing
and then as shown above.
8. Mount the strap through the slot
in the axle and the same way back.
Note! The axle has two different
sides. Place the pin as shown to
lock the strap. Do not let go of
the springloaded wheel, since the
tension will release.
10. Roll up the strap until the red
mark reaches the plastic housing.
9. Push the plastic housing on to
the strap joint.
2. Hold the springloaded wheel
and release the strap by removing
the pin.
1. Pull the strap all the way out .
Plasic Housing
Bandmagasin Prod.no: 31190008
Doc. no: TI 31190008
2003-09-09
After changing plastic housing the lift must be tested with maximum
loadAnd the emergency lowering with 50Kg
