Liko Likorall 200 Manual

IMPORTANT!
Read the instruction guide for both the patient lift and lifting accessories before use. Lifting and transferring
a person always involves a certain level of risk. It is important to completely understand the contents of the
instruction guides. The equipment should only be used by trained personnel. Please contact your Liko/Hill-Rom
representative in the event of any uncertainties or questions.
Product Description
is a warning triangle used for situations that demand extra care and attention.
In this document, the person being lifted is referred to as the patient, and the person helping them is referred
to as the caregiver.
Likorall 200™
Instruction Guide
English
7EN120114-02
2011-08-31
Applies to the following models:
Likorall 200 Product No. 3121001
Likorall is a stationary lift unit often called an
“overhead lift”. Likorall is mounted in Liko’s rail
system, which is adapted to suit the room/rooms
it will be operated in. The rail system can be built
straight, with or without curves, as a traverse system
and also as a room-to-room system. Liko’s rail
system is comprised of several hundred different
components, we select the specic components
needed to customize each system to suit the room
it will be mounted in. The rail system can either be
xed or freestanding, such as Liko FreeSpan and
Liko FreeStand. The system must be installed by
authorized personnel and in accordance with Liko’s
installation instructions.
Likorall is intended for use in lifting and transferring
patients, for example, from bed to a wheelchair, to or
from the oor, for visits to the toilet, for gait, standing
and balance training, when weighing the patient and
when lifting the patient with a stretcher.
Likorall 200 is adapted to Liko’s Quick-release Hook
System for safe and easy changing of lifting
accessories.
Liko’s Room-to-Room system (R2R), enables the patient
to be moved between two rail systems in separate
rooms, without connecting rails and without making
holes over doors.
A large range of accessories are available for Likorall,
including different sling models in a range of types and
sizes.

2 www.liko.com
Likorall 200 • 7EN120114-02
Table of Contents
NOTE! This instruction guide contains important information for product users.
All who use the product should review and completely understand the contents of the instruction guide.
Remember to keep the instruction guide in a place where it is always available to those using the product.
Safety Instructions
Likorall 200 has been tested by accredited testing institutes and complies with the requirements for MDD Class I
products (MDD 93/42/EEC).
Likorall 200 complies with the requirements in EN ISO 10535:2006, IEC 60601-1, IEC 60601-1-2,
ANSI/AAMI ES60601-1 and CAN/CSA C22.2 no 60601-1.
Safety Instructions ...............................................................................2
Denitions.............................................................................................3
Technical Data .....................................................................................3
Measurements......................................................................................4
Assembly..............................................................................................4
Operation..............................................................................................5
Charging the Batteries .........................................................................7
Transferring from Room to Room.........................................................8
Maximum Load.....................................................................................9

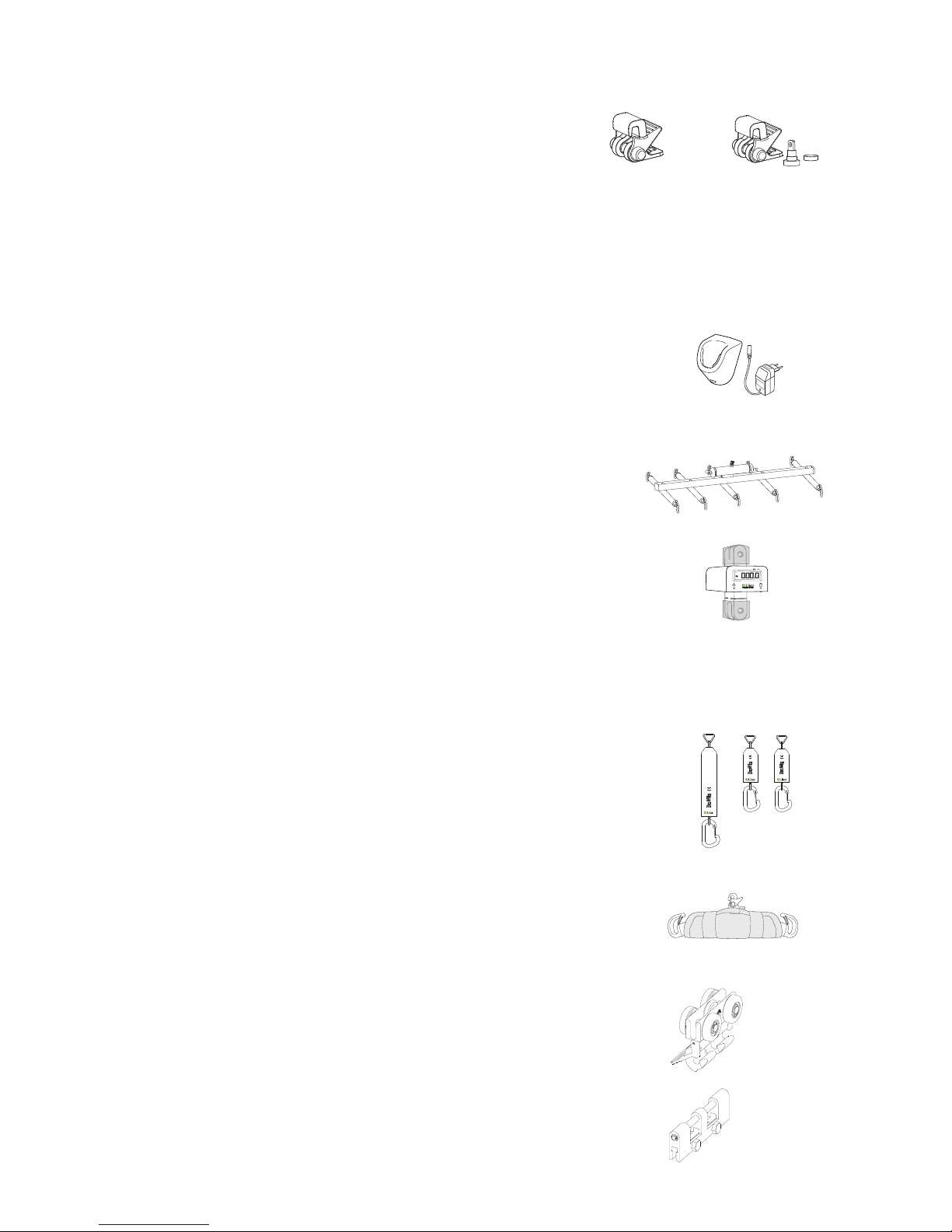

Recommended Lifting Accessories ......................................................9
Simple Troubleshooting ...................................................................... 11
Inspection and Maintenance...............................................................12
Before lifting always ensure that:
• the lift strap is not twisted or worn and can move in and
out of the lift unit freely
• the lifting accessories are not damaged
• the sling is correctly and securely applied to the patient
in order to prevent injuries from occurring
• the lifting accessory is correctly applied to the lift
• the lifting accessories hang vertically and can move
freely
• the sling bar latches are intact; missing or damaged
latches must always be replaced
• the sling strap loops are correctly connected to the
sling bar hooks when the sling´s strap is extended, but
before the patient is lifted from the underlying surface.
Before using the rst time make sure that:
• the lift is assembled in accordance with the assembly
instruction
• the lifting accessories are properly attached to the lift
•the batteries are charged for at least 8 hours
• you have read the instruction guides for the lift and
lifting accessories
•personnel using the lift are informed of the correct use
of the lift and lifting accessories
• the lifting accessory is selected appropriately, in terms
of type, size, material and design with regard to the
patient’s needs.
No modication of this product is allowed. If you have any questions, please contact Liko/Hill-Rom.
Particular care must be observed when using strong sources of electromagnetic disturbance, such as diathermy,
etc, so that diathermy cables are not positioned on or near the lift. If you have questions, please consult the
responsible assistive-device technician or the supplier.
The lift may not be used in areas where ammable mixtures may occur, for example in areas where ammable
goods are stored.
Never leave a patient unattended during a lifting situation!
Installation of Likorall to rail carriages must be made by personnel authorized by Liko and in
accordance with the current installation instructions.

3 www.liko.com
Likorall 200 • 7EN120114-02
Technical Data
Maximum load: 200 kg (440 Ibs.)
Batteries: 2 x 12 V 2,4 Ah. Valve-regulated
lead-acid gel-type batteries.
New batteries are provided by
the supplier.
Battery charger: CH01 FW7218M/24; 100-240 V
AC, 50-60 Hz, max 500 mA
Lifting speed: 50 mm/s (2 inch./s)
Lifting interval:2050 mm (80.7 inch.)
Electrical data: 24 V, 12 A
Lift unit
dimensions:
340x250x165 mm (LxWxH)
(13.4x9.8x6.5 inch. ,LxWxH)
Lift unit weight: 12.5 kg (27.5 lbs.)
Emergency
lowering device: Electrical
Likorall is equipped with a SFS (Single Fault Safety) safety drum. This patented safety design provides protection
against uncontrolled lowering. The lift strap has a tenfold safety.
Intermittent power:
Protection class
lift motor:
Sound level:
Protection class
hand control:
Operating forces
hand control:
Int. Op 10/90, active operation
max 0.5 min.
IP 33
51 dB
IP 54
3 N
Cable length
hand control: 870 mm (34 inch.)
Intended for indoor use.
Type B, in accordance with the electrical shock
protection class.
Denitions
1. Hand control with spring clamp
2. Emergency lowering device (electric)
3. Emergency stop string
4. Emergency stop
5. End cover
6. Charge indicator
7. Lift unit
8. SSP Limit Switch
9. Lift strap
10. Q-link (quick fastener)
11. Quick-release hook
12. Sling bar
13. Latches
3
6
1
8
5
2
7
10
9
11
13
12
4

4 www.liko.com
Likorall 200 • 7EN120114-02
Assembly
• the SSP Limit Switch functions properly
• the battery charger functions properly and the
indicator lamps are illuminated during charging
• the batteries are charged for at least 8 hours
before the lift is used for the rst time.
After assembly, ensure that:
• the lift’s functions correspond to the markings
of the hand control
• the electrical emergency lowering device
functions properly
Mounting lifting accessories using Quick-release Hook
Likorall 200 is equipped with Q-link (Quick-fastener), which is
combined with Liko’s Quick-release Hook´s for safe and easy
mounting of lifting accessories. Liko’s Quick-release Hooks are
protected against unintentional detachment.
Find out more about Liko’s Quick-release Hook system on page 10.
Mounting lifting accessories R2R
(Room-to-Room)
The R2R sling bar has a double hook
with Quick-release.The double hook
is protected against unintentional
detachment.
Find out more about transferring from
room to room on page 8.
CSP (Central Suspension Point)
C
A
B
H** D*
L***
Q-link

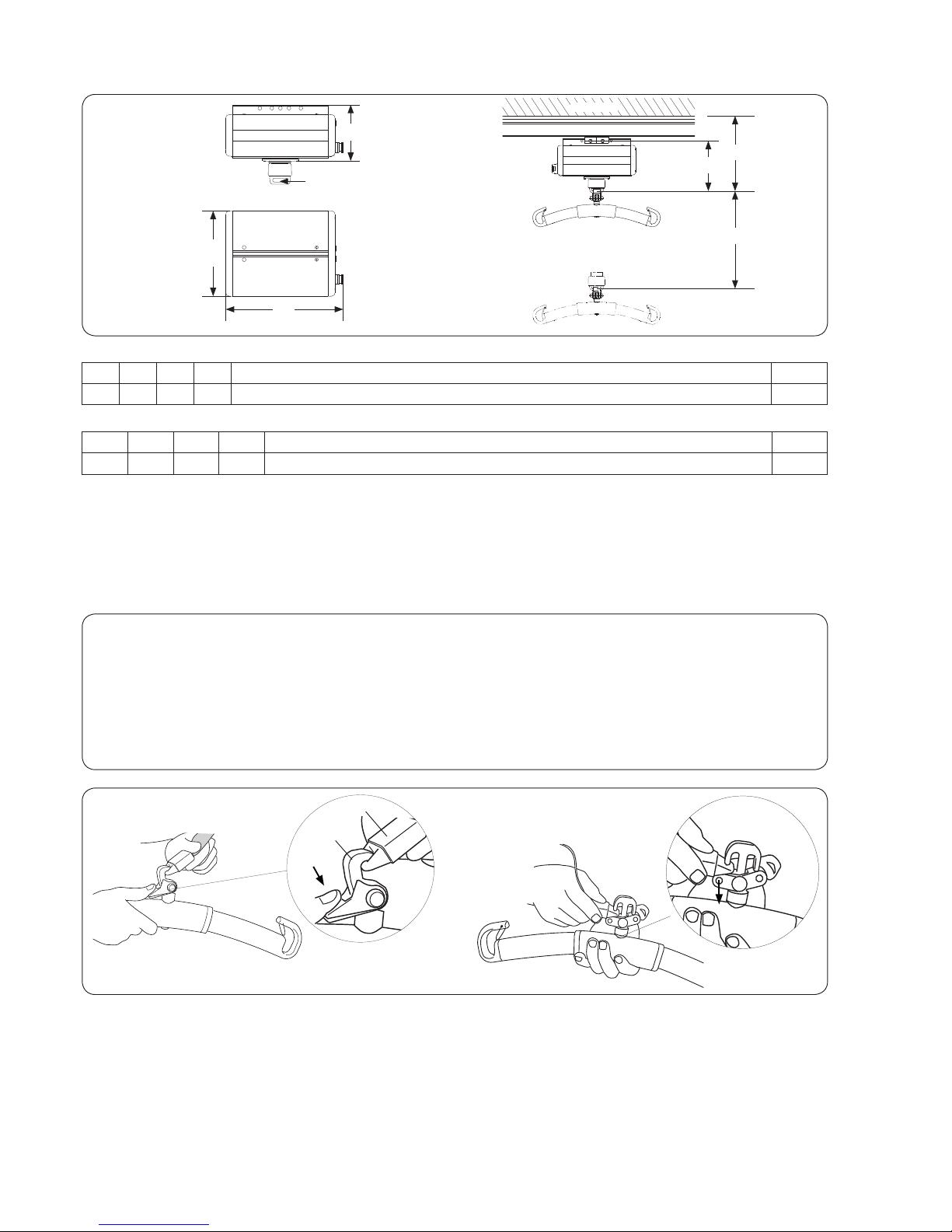

Measurements
* Minimum distance from ceiling to CSP at maximum lifting height.
** Built-in dimension: the distance between the attachment point for the lift unit on the carriage and the CSP at maximum
lifting height.
*** Lifting interval: the distance between maximum lifting height and minimum lifting height measured in CSP.
Measurements in mm.
Measurements in inch.
A B C D* H** L***
165 340 250 293 210 2050
A B C D* H** L***
6.49 13.38 9.84 11.53 210 80.7
Overhead view
Lateral view
Ceiling
Quick
Release
Hook

5www.liko.com
Likorall 200 • 7EN120114-02
Manoeuvring
The lifting motion in Likorall 200 is controlled using
an attached hand control. Likorall 200 is manoeuvered
by pressing lightly on the hand control buttons. The
arrows indicate direction. Motion ceases when the
button is released.
Electrical Emergency lowering
In the event that the hand control or electronics
malfunction, the lift can be lowered by pulling on
the emergency lowering device.
In the event of emergency lowering, always ensure
the patient is lowered into a bed, wheelchair or other
suitable place.
Emergency stop
To activate the emergency stop: pull the red emergency
stop string.
To reset the emergency stop: turn the red emergency
stop button in the direction shown by the arrows.
The red button on the lift unit end cover is intended
for use if an emergency situation occurs. When the but-
ton is pressed, contact between the motor and power
source is broken, which stops the lifting motion.
Operation
Up
Down
Hand control with spring clamp
When the lift is not in use, the hand control can be
attached to the lift strap using the spring clamp on the
back side of the hand control.

6www.liko.com
Likorall 200 • 7EN120114-02

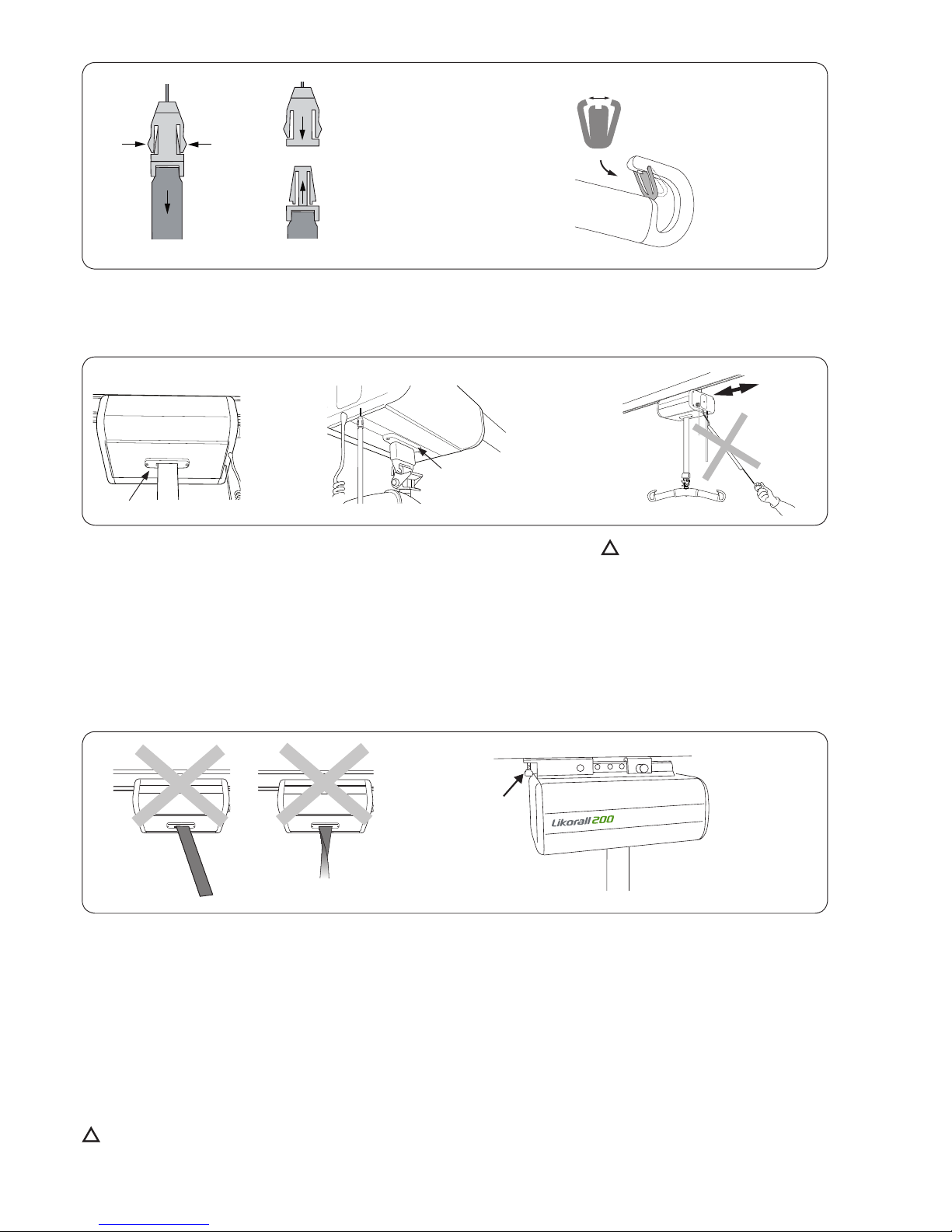

SSP Limit Switch
The lifting motion is broken
by lightly pressing on the
SSP Limit Switch on the
underside of the lift unit
(see the illustration).
SSP Limit Switch activated by the Q-link
When Likorall’s lift strap reaches its highest
position and physical contact occurs between
the SSP Limit Switch and Q-link, the SSP
Limit Switch is activated. Its function breaks
the lifting motion electrically and protects
the lift unit against mechanical load. The
SSP Limit Switch also provides squeeze
protection.
Adjustable friction brake
The amount of drag on the lift unit is adjusted with
the friction brake on the carriage. Turn the brake
clockwise for increased resistance and counter
clockwise to reduce resistance.
The following carriages have a friction brake:
prod. no. 3126011 and 3126015.
SSP Limit Switch activated by the Lift strap
It is important that the lift strap’s lifting motion is
performed as vertically as possible to ensure safe
operation. The SSP Limit Switch is intended to break
the lifting motion if the lift strap is subjected to harmful
strain, for example if it is pulled sideways or folded
over during the lifting motion. If the SSP Limit Switch
is activated so that the lifting motion stops, the lift can
once again be operated after the lift strap is straight
again (a short delay may occur when re-starting the
lifting motion is normal in these cases).
Be aware that the lift strap is kept straight and
stretched when it runs in and out of the lift unit.
1
2
A: Losen the emergancy lowering device strap.
B: Fasten the emergency lowering device strap.
Installation of Latches
After installation, check that the latch locks
and runs freely in the sling bar hook.
A B
Never move the lift by pulling
the hand control!

7 www.liko.com
Likorall 200 • 7EN120114-02

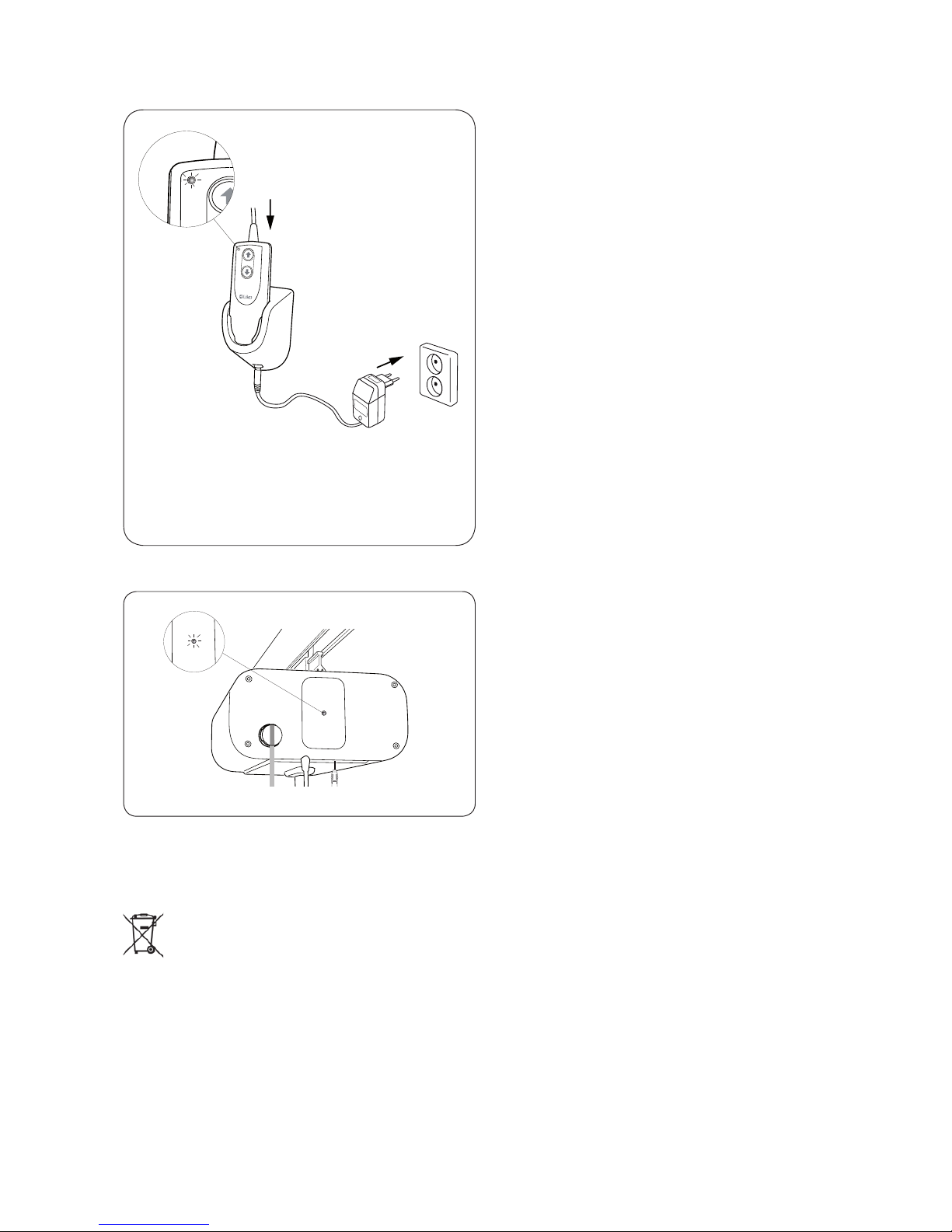

Charging the Batteries
NOTE! When the lift will not be in use for a long period
of time, place the hand control in the charger unit in
order to charge the battery.
In order to ensure maximum battery life, it is important
to charge the batteries regularly. We recommend that
you charge the batteries after use or every night.
A full charge is achieved after max. 8 hours. Fully
charged batteries will last for approx. 60 lift cycles.
1. Check to ensure that the emergency stop button is
not pressed in during charging.
2. Place the hand control in the charging station
and connect the charger.
3. Connect the charger to a 100-240 V AC electric
socket.
4. A LED on the hand control will illuminate and
indicates that the charger is connected to a power
source.
5. Charging starts automatically and a yellow LED
on the lift unit indicates that the batteries are
charging.
6. When the battery is fully charged, the charger
will shut off automatically and the yellow LED
turns off.
Charge indicator
Likorall has two indicators that warn when the battery
has a low charge:
• Buzzer that sounds when lifting
• LED that illuminates during lifting
When either of these warning signals sound or
illuminate, the unit should be charged as soon
as possible.
Likorall comply with the Directive 2002/96/EC on waste electrical and electronic equipment.
Old batteries are to be deposited at the nearest recycling facility in accordance with local regulations or
given to personnel authorized by Liko/Hill-Rom.

8 www.liko.com
Likorall 200 • 7EN120114-02
1. Move lift 1 with the patient as close to the door
opening as possible. Lower the patient as far down
as possible, with regard to patient comfort.
2.
Move Lift 2 forward as close to the door opening as
possible. Move down the lift strap from Lift 2 to a
sufcient length and connect the Q-link to the R2R
sling bar.
Check to ensure that the safety latches on the R2R
connector function properly.
Lift 2
Lift 1
3. Operate Lift 2. The patient is successively moved
to the next room and at the end they are suspended
in Lift 2 only. When the pressure is relieved from
the lift strap for Lift 1, disconnect the lift strap from
the R2R sling bar and the transfer can be carried
out in the next room.
NOTE! To free Q-link from the R2R sling bar, it may
be necessary to let out additional strap from Lift 1.
Lift 1 Lift 2
Mounting a sling bar R2R (Room-to-Room)
The R2R sling bar has a double hook with Quick-
release.The double hook is protected against
unintentional detachment.
Lift 2
Lift 1
Lift 2
Q-link
Q-link
Lift 1 R2R connector,
(double hook)
Safety latches
Liko’s Room-to-Room system (R2R) is an effective solution for safe and easy transfer of patients between two
or more rooms. The R2R system is mounted without making openings in walls over doors and full isolation is
therefore retained between the rooms supported by the system.
Transfer is performed in a safe and easy manner, with the aid of separate lift units and a rail system for each room.
Liko’s R2R sling bar makes it possible to link together two lift units when moving a patient from room to room.
The movement between two rooms is performed with a comfortable transition for the patient from one lift unit
to another.
Transferring from Room to Room

9 www.liko.com
Likorall 200 • 7EN120114-02
Recommended Lifting Accessories
Maximum Load
Different maximum loads may apply to different products on the assembled lift system: rail system, lift, sling bar,
sling and any other accessories used. For the assembled lift system, including accessories, the maximum load is
always the lowest maximum load rating for any of the components. For example: a Likorall that is approved for 200
kg (440 lbs) can be equipped with a sling bar that is approved for 300 kg (660 Ibs.). In this case, the maximum load
of 200 kg (440 lbs.) applies to the assembled lift system. Study the markings on the lift and lifting accessories or
contact your Liko/Hill-Rom representative if you have any questions.
SlingBar Mini 220 R2R Prod. No. 3156006
Max. load 205 kg (440 Ibs)
Universal SlingBar 350 R2R Prod. No. 3156094
Max. load 300 kg (660 Ibs)
Universal SlingBar 450 R2R Prod. No. 3156095
Max. load 300 kg (660 Ibs)
SlingBar Mini 220 Prod. No. 3156005
Max. load 205 kg (440 Ibs)
(Requires Quick-release Hook TDM)
Universal SlingBar 350 with Quick-release Hook Prod. No. 3156084
Max. load 300 kg (660 Ibs)
Universal SlingBar 450 with Quick-release Hook Prod. No. 3156085
Max. load 300 kg (660 Ibs)
Universal SlingBar 600 with Quick-release Hook Prod. No. 3156086
Max. load 300 kg (660 Ibs)
Universal SlingBar 670 Twin with Quick-release Hook Prod. No. 3156087
Max. load 300 kg (660 Ibs)
Universal SideBars 450 Prod. No. 3156079
including bag
Max. load 300 kg (660 Ibs)
Sling Cross-bar 450 with Quick-release Hook Prod. No. 3156022
Max. load 300 kg (660 Ibs)
Sling Cross-bar 670 with Quick-release Hook Prod. No. 3156019
Max. load 300 kg (660 Ibs)
Using other lifting accessories than those recommended below may induce risk.
Liko’s product range contains a wide assortment of sling bars, slings, stretchers, scales and other accessories
to solve most lifting needs. Below is an overview of the lifting accessories available for Likorall 200.
To select suitable slings and other lifting accessories, please see the “Lifting Accessories” brochure. For additional
guidance in selecting a sling, study the instruction guide for the respective sling models. Here, you will also
nd guidance for combining Liko’s sling bars with Liko’s slings.
Contact your Liko/Hill-Rom representative or visit www.liko.com for advice and information on Liko’s product range.

10 www.liko.com
Likorall 200 • 7EN120114-02
Stretcher
All stretchers in Liko’s product range can be used with Likorall.
Contact Liko/Hill-Rom for further information.
Scale
For weighing persons in combination with the use of Likorall,
we recommend LikoScale 350. This can easily be mounted with
the LikoScale adapter kit.
LikoScale 350 is certied according to the European Directive
NAWI 90/384 (Non Automatic Weighing Instruments).
Contact Liko/Hill-Rom for further information.
Liko Support Springs for bounce and gait training
Elastic springs are available as an accessory in order to
produce a softer, springy motion, for example, during gait training.
The springs are available in three different versions:
Long, 28 cm/11 inch., max 70 kg/154 Ibs. patient weight/pair: Prod. No. 3156511
Short, 22 cm/8.7inch., max 70 kg/154 Ibs. patient weight/pair: Prod. No. 3156512
Short, 22 cm/8.7 inch., max 100 kg/220 Ibs. patient weight/pair: Prod. No. 3156513
Also see the instruction guide for Liko MasterVest, models
60 and 64 or Liko LiftPants model 92, for more information.
LikoScale 350
Prod. No. 3156228
Quick-release Hook
Liko’s Quick-release Hooks form a system providing safe and easy
changing of lifting accessories. Liko’s Quick-release Hooks protect
against unintentional detachment. Likorall 200 is used solely with lifting
accessories equipped with Quick-release Hooks.
Quick-release Hook Universal ts Universal SlingBar 350, 450 and 600
(Prod. No. 3156074-3156076). Quick-release Hook TDM ts SlingBar
Mini 220 (Prod. No. 3156005), Sling Cross-bar 450 and 670 (Prod. No.
3156021 and 3156018) and Universal TwinBar 670 (Prod. No. 3156077).
See the “Guide to Liko’s Quick-release Hook System”, which can be
downloaded from our website www.liko.com, or contact Liko/Hill-Rom for more
information about the advantages and use of the Quick-release Hook system.
Quick-release Hook
Universal
Prod. No. 3156508
Quick-release
Hook TDM
Prod. No. 3156502
SlingBar Cover Paddy 30 Prod. No. 3607001
(ts Universal SlingBars 350, 450 and 600,
as well as SlingBar Slim 350)
Quick-Release Carriage LR Prod. no. 3126008
Fits the Quick-release Adapter LR prod. no. 3126009
Quick-Release Adapter LR Prod. no. 3126009
Fits Quick-Release Carriage LR prod. no. 3126008
Battery Charger Likorall 200
CH01 EU 24V/0.5A Prod. No. 3126131
CH01 UK 24V/0.5A Prod. No. 3126132
CH01 US/CA 24V/0.5A Prod. No. 3126133
CH01 AU/NZ 24V/0.5A Prod. No. 3126134

11 www.liko.com
Likorall 200 • 7EN120114-02
Simple Troubleshooting
The lift doesn’t work.
The lift emits a repeated audible signal.
The lift stops in elevated position.
1. Check to ensure that the emergency stop
button is not pressed in (page 5).
2. Charge the battery (page 7).
3.
If the lift still does not function properly,
please contact Liko/Hill-Rom
1. Charge the battery immediately (page 7).
2.
If the lift still does not function properly,
please contact Liko/Hill-Rom
1. Check to ensure that the emergency stop
button is not pressed in (page 5).
2. Use the selected electrical emergency
lowering device to lower the patient onto
a rm surface (page 5).
3. Charge the battery (page 7).
4.
If the lift still does not function properly,
please contact Liko/Hill-Rom
Please contact Liko/Hill-Rom.
The lift does not achieve maximum lifting
capacity.
1. Charge the battery (page 7).
2.
If the lift still does not function properly,
please contact Liko/Hill-Rom
The lift emits a repeated LED signal. 1. Charge the battery immediately (page 7).
2.
If the lift still does not function properly,
please contact Liko/Hill-Rom
Parking Panel 600, LR/MR Prod. no. 3126075
Parking Panel 1500, LR/MR Prod. no. 3126080
Can be completed with the following accessories:
Hook for SlingBar Prod. no. 3126070
Hook for Accessories Prod. no. 3126071
Quick Reference Guide (see respective product)
Likorall
Användaranvisning
Modell242,243 & 250
Svensk
In event of unusual sounds or
any leakage from the lift

© Copyright Liko AB 2011-08
Inspection and Maintenance
Care and Maintenance
For trouble-free operation, certain details should be checked each day the lift is used:
• Inspect the lift and check to make sure that there is no external damage.
• Check the sling bar attachment.
• Check the lift strap for wear and to ensure the strap is not twisted.
• Check the functionality of the latches.
• Check the operation of the lift movement.
• Check to make sure that the electrical emergency lowering functions correctly.
• Charge the batteries each day the lift is used and check to ensure that the charger works.
When necessary, clean the lift with a moist cloth, using warm water or disinfectant.
NOTE! Do not use cleaning agents that contain phenol or chlorine, since these can damage aluminium
and plastic materials.
The lift should not be exposed to running water.
Service
Likorall should be periodically inspected at least once a year.
Periodic inspection, repair and maintenance should be performed only in accordance with the Liko
Service Manual and by personnel authorized by Liko and using original Liko spare parts.
Service Agreement
Liko offers the opportunity to enter into service contracts for the maintenance and periodic inspection of your Liko
products.
Expected Life Time
The product has an expected life time of 10 years when correctly handled, serviced and periodically inspected in
accordance with Liko’s instructions.
Transport and Storage
During transportation, or when the lift is not to be used for a long time, the emergency stop should be engaged.
The environment where the lift is transported and stored should have a temperature of 10–40 °C (50–104 °F)
and a relative humidity of 30 to 75 %. The air pressure should be 700–1060 hPa.
Recycling
For instructions on how to recycle your Liko product, please visit our website: www.liko.com.
Product Changes
Liko’s products undergo continuous development, which is why we reserve the right to make product changes
without prior notice. Contact your Liko/Hill-Rom representative for advice and information about product upgrades.
Design and Quality by Liko in Sweden
Liko is quality certied in accordance with ISO 9001 and its equivalent for the medical device industry, ISO 13485.
Liko is also certied in accordance with environmental standard ISO 14001.
Manufacturer:
Liko AB
SE-975 92 Luleå
Sweden
[email protected]
www.liko.com
