LED Rope Light 5m
Introduction
We congratulate you
on the purchase of your
new product. You have
chosen a high quality product.
The instructions for use are part
of the product. They contain im-
portant information concerning
safety, use and disposal. Before
using the product, please familiar-
ise yourself with all of the safety
information and instructions for u se.
Only use the product as described
and for the specified applications.
If you pass the product on to any-
one else, please ensure that you
also pass on all the documentation
with it.
Intended use
This product is intended
for use in indoor envi-
ronments and only for
private, domestic purposes. The
product can be used on all nor-
mally flammable, smooth surfaces.
The product is not intended for
commercial use or for use in other
applications.
Not suitable for
ordinary lighting
in household room
illumination.
Parts description
1Connector
2LED Rope Light
3Power supply

7GB
4LED controller
5Double-sided adhesive strip
(for the LED controller)
6Infrared receiver
7Remote control
8Screw
9Eight-pin plug
10 Double-sided adhesive strip
(on the back of the LED strip)
11 Plastic clip
12 Battery
Technical Data
LED Rope Light + Mains
adapter
Total power
consumption: approx. 24W
LED Rope Light
Operating
voltage: 12V ,
max. 24W
Light bulb: 150 LEDs (the
LEDs are not
replaceable)
Output per LED: approx. 0.06W
Model number: HG00146
(TÜV SÜD/ GS
certified)
Chromaticity
coordinate: X < 0.27 or X >
0.530; Y <
-2.3172 X +
2.3653
X–0.2199 or Y
> -2.3172 X +
2.3653 X -
0.1595
Power supply
Input voltage: 100–240V∼
50/ 60 Hz,
1.0A
Output voltage: 12 V , 2A
Protection class: II /
Model number: GQ30-
120200-AG
LED controller
Input voltage: 12V
Model number: Y4-180-A
Remote control
Battery: 3V , lithium
battery, type
CR2025
Max. range: approx. 6–8m

8 GB
Scope of delivery
1 LED strip
1 LED controller
1 Double-sided adhesive strip
1 Power supply
4 Connectors
1 Remote control unit
1 Lithium battery, type CR2025
(installed)
8 Plastic clips
2 Screws
1 Eight-pin plug
1 Instructions for use (LED strip)
1 Instructions for use (remote
control)
Safety
notices
PLEASE READ THE INSTRUC-
TIONS FOR USE PRIOR TO USE!
PLEASE KEEP THE INSTRUC-
TIONS FOR USE IN A SAFE
PLACE!
KEEP BATTERIES
OUT OF THE
REACH OF
CHILDREN! Swallowing
batteries can cause chemical
burns, perforation of soft tiss ue,
and death. Severe burns may
occur within 2 hours of swal-
lowing batteries. Seek imme-
diate medical attention.
Check the product for dam-
age before use. Never use a
damaged product.
This product can be
used by children
aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given super-
vision or instruction concern-
ing use of the product in a
safe way and understand the
hazards involved. Children
shall not play with the prod-
uct. Cleaning and user main-
tenance shall not be made by
children without supervision.
The extremely
high speed of the colour
change could result in visual
impairment in children or pre-
disposed persons (e.g. due
to mental conditions).

9GB
Danger to life by
electric shock
Do not use the rope light when
covered or recessed into a
surface.
Interconnection shall be made
only by the use of the supplied
connectors. Any open ends
must be sealed-off before use.
The external flexible cable or
cord of this luminaire cannot
be replaced; if the cord is
damaged, the luminaire shall
be disposed of.
Do not connect this rope light
to another manufacturer’s
product.
Check the product for dam-
age before use. Never use a
damaged product.
Only use the product with
the components specified in
these instructions for use.
Verify the available mains volt-
age matches the operating
voltage required by the product
before use (100–240V∼).
The product is only suited for
use with the included mains
adapter (model no.
GQ30-120200-AG).
Please note that the power
adapter continues to draw a
small amount of power even
if the product is turned off as
long as the power adapter is
plugged into a power outlet.
To switch the product off com-
pletely, unplug the power
adapter from the socket.
Always unplug the mains plug
from the socket before instal-
lation, removal or cleaning.
Do not attach objects to the
product.
CAUTION! RISK OF
OVERHEATING! Do not
operate the product inside
the packaging or rolled up.
Protect the product from sharp
edges, mechanical loads
and hot surfaces.
Do not secure with sharp
staples or nails.
Never expose the product to
high temperatures or moisture
as this could damage the
product.
Never open any of the com-
ponents of the electrical equip-
ment or insert any objects
into the same components.

10 GB
Disconnect from the mains
when not used for extended
periods (e.g. holidays).
The illuminant is not replace-
able.
I f the illuminant fails at the en d
of its life, the entire product
must be replaced.
Safety
instructions for
batteries/
rechargeable
batteries
DANGER TO LIFE! Keep
batteries/rechargeable bat-
teries out of reach of children.
If accidentally swallowed seek
immediate medical attention.
DANGER OF
EXPLOSION!
Never recharge
n
on-rechargeable batteries. D o
not short-circuit batteries/re-
chargeable batteries and/ or
open them. Overheating, fire
or bursting can be the result.
Never throw batteries/
rechargeable batteries into
fire or water.
Do not exert mechanical lo ads
to batteries/rechargeable
batteries.
Risk of leakage of batter-
ies/rechargeable batteries
Avoid extreme environmental
conditions and temperatures,
which could affect batteries/
rechargeable batteries, e.g.
radiators/direct sunlight.
Avoid contact with the skin,
eyes and mucous membranes.
In the event of contact with
battery acid, thoroughly flush
the affected area with plenty
of clean water and seek im-
mediate medical attention.
WEAR PROTEC-
TIVE GLOVES!
Leaked or dam-
aged batteries/rechargeable
batteries can cause burns on
contact with the skin. Wear
suitable protective gloves at all
times if such an event occurs.
In the event of a leakage of
batteries/rechargeable bat-
teries, immediately remove them
from the product to prevent
damage.

11GB
Only use the same type of
batteries/rechargeable bat-
teries. Do not mix used and
new batteries/ rechargeable
batteries.
Remove batteries/ recharge-
able batteries if the product
will not be used for a longer
period.
Risk of damage of the
product
Only use the specified type
of battery/rechargeable
battery!
Insert batteries/rechargeable
batteries according to polarity
marks (+) and (-) on the bat-
tery/rechargeable battery
and the product.
Clean the contacts on the
battery/rechargeable battery
and in the battery compart-
ment before inserting!
Remove exhausted batteries/
rechargeable batteries from
the product immediately.
Mounting
(see Fig. A)
Note: Clean the surface well
onto which you wish to mount the
product. The surface must be
clean, free from grease and dry.
The adhesion of the double-sided
adhesive strip 5, 10 may other-
wise be limited.
Note: Before use, check on a hid-
den area of the surface, whether
the adhesive can cause damage.
Peel the protective film off the
adhesive strip on the back of
the LED strip 2and secure
the LED strip in the desired
location.
Secure the LED controller 4
with the included double-sided
adhesive strip 5or the in-
cluded screws 8.
Connect the power supply 3
with the LED controller 4.
Then connect the LED control-
ler 4to the LED strip.
Note: When connecting the
LED controller 4with the
LED strip, be sure to match
up the VGGD mark on the

12 GB
LED controller 4and the
VCC-GND-GND-DI mark on
the LED strip.
Be sure the power supply is
always accessible.
Plug the power supply into
the socket before switching
the product on.
Notice: If the adhesive pad
has been in place for a long
t
ime, sticky residue may rema in
on the surface when removed.
If necessary, use an adhesive
remover. Test a small area pr ior
to cleaning the respective a rea.
Follow the manufacturer in-
structions.
Connecting 2 LED
strips (see Fig. B)
Note: Up to two 5m LED strips
may be connected using the
eight-pin plug 9and operated
with the LED controller 4and a
power supply 3. Otherwise
there is a risk of overloading the
components and fire!
Note: When connecting the two
ends of the LED strip using an
eight-pin plug, be sure to match
up the VCC-GND-GND-D0 and
VCC-GND-GND-DI marks at the
ends of the LED strips.
After connecting the two LED
strips, only the first LED strip
is lighting once connected to
electricity supply.
To light up the second LED
strip, press the IC Set button and
then press the button to
switch groups of three lights
on, starting from the begin-
ning of the second LED strip.
You may repeated press the
or to adjust the ligh-
ting area of the connected
LED strips (max. 10m).
After setting the lighting area,
press w/cw button and then
press the or to adjust
the luminosity.
Shortening the LED
strip (see Fig. C)
The LED strip 2may be trimmed
to size. It can be cut with scissors
at the marked position, as shown
in Fig. C. The trimmed sections
can then be connected as shown
in figure C.

13GB
DANGER TO
LIFE BY ELECTRIC SHOCK!
Before performing any work, first
disconnect the product from the
mains power. Unplug the power
supply 3from the socket.
Connect as described below:
Remove the protective film
from the double-sided adhe-
sive strip at the ends of the LED
strip sections being connected.
Then firmly press the end of
the one LED strip onto the pins
on the connector 1so they
pierce the strip conductor of
the LED strip.
N
ote: Be sure to match up the
VGGD mark on the connector
with the VCC-GND-GND-D0
and VCC-GND-GND-DI mark
on the LED strip.
Then push a plastic clip 11
onto this new connection
from the top.
Note: Be sure the plastic
clips lock in to establish a
secure connection.
Repeat this process to estab-
lish a contact for the other end
of the connector.
Note: Unlike the LED strip,
the connector can be moved
in any direction:
The product
has delicate solder points.
Do not route the LED strip
around corners and do not
kink. The solder points may
otherwise be damaged, dis-
rupting the functionality of
the LED strip.
Start-up
Switching the pro-
duct on/ off using
the remote control
Note: The infrared receiver 6is
located on the LED controller 4.
Always aim the remote control 7
directly at the infrared receiver for
best reception. The range of the
remote control is approx. 6–8m.
Note: Remove the insulating strip
from the battery compartment be-
fore using the remote control for
the first time.
Be sure there are no obstacles
between the transmitter and
receiver.

14 GB
Press the button on the
remote control to switch the
LED strip 2on or off.
Please remember the power
supply will continue to draw
a small amount of electricity
even without the light being
operated so long as the
power supply 3is plugged
into the socket. To switch the
product off completely, unplug
the power supply 3from the
socket.
Controlling the
light effects using
the remote control
Note: Please refer to the included
instructions for use for the remote
control for a detailed description
of the remote control 7functions.

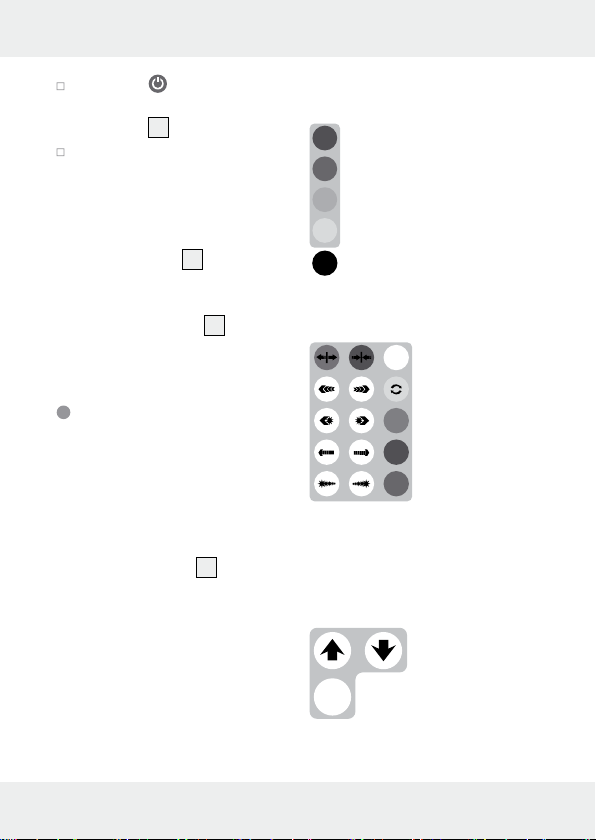

The remote control has 24 buttons.
These buttons can be divided into
the following groups:
Static colour selection
buttons
CS
C3
C7
C16
w/cw
These buttons control the
colour mode of the entire
LED strip. Combined with
the light program buttons
you can define the colour
selection of most light pro-
grams.
Light program buttons
Auto
Flash
Jump
Meteor
The LED strip
features
14 different
light programs.
Preselecting the
colour using the
colour selection
buttons will set
the colour range of these light
programs. This does not apply to
the “Auto“ program.
Parameter buttons
IC Set
Use the arrow
buttons to adjust
the brightness of
the LED strip in
static colour
mode. Whilst the colour program

15GB
is cycling, use the arrow buttons to
adjust the speed of the program
flow. Use the IC Set button to ad-
just the lighting range of the LED
strip.
Replacing the
battery (see Fig. D)
1. Turn the remote control over
and place it on a soft surface
to avoid scratching the remote
control.
2. Pull the battery compartment
out which on the bottom of
the remote control.
3. Remove the used battery, if
present.
4. Insert a new battery in the
battery compartment 11 .
Note: Make sure you insert the
battery with the correct polarity.
This is indicated in the back of
remote control.
Close the battery compartment.
Cleaning and Care
Only clean with a dry
lint-free cloth.
Disposal
The packaging is made
entirely of recyclable
materials, which you
may dispose of at local recycling
facilities. The Green Dot is not
valid for Germany.
b
a
Observe the marking of
the packaging materi-
als for waste separatio n,
which are marked with abbrevia-
tions (a) and numbers (b) with
following meaning: 1–7: plastics/
20–22: paper and fibreboard/
80–98: composite materials.
The product and pack-
aging materials are re-
cyclable, dispose of it
separately for better waste treat-
ment. The Triman logo is valid in
France only.

16 GB
Contact your local re-
fuse disposal authority
for more details of how
to dispose of your worn-out produ ct.
Never dispose of
the product and
the bulb in your
regular household
rubbish.
Dispose of the product and light
bulb through an authorised waste
management company or your
municipal disposal facilities.
Ob-
serve the applicable regulatio ns.
In case of doubt, please contact
your waste disposal centre.
Defective or used batteries must
be recycled in accordance with
Directive 2006/66/EC and its
amendments. Return batteries
and/ or the product to the pro-
vided recycling facilities.
Improper disposal
of batteries can
harm the environ-
ment!
Never dispose of batteries in your
household waste. They may con-
tain toxic heavy metals and are
subject to hazardous waste regu-
lations. The chemical symbols of
the heavy metals are: Cd = cad-
mium, Hg = mercury, Pb = lead.
Therefore dispose of used batter-
ies through your municipal collec-
tion site.
Warranty
The product has been manufactu-
red to strict quality guidelines and
meticulously examined before
delivery. In the event of product
defects you have legal rights ag ainst
the retailer of this product. Your
legal rights are not limited in any
way by our warranty detailed
below.
The warranty for this product is
3 years from the date of purchase.
Should this product show any fault
in materials or manufacture within
3 years from the date of purchase,
we will repair or replace it – at
our choice – free of charge to you.

17GB
The warranty period begins on
the date of purchase. Please keep
the original sales receipt in a safe
location. This document is required
as your proof of purchase. This
warranty becomes void if the pro-
duct has been damaged, or used
or maintained improperly.
The warranty applies to defects
in material or manufacture. This
warranty does not cover product
parts subject to normal wear, thus
possibly considered consumables
(e.g. batteries) or for damage to
fragile parts, e.g. switches, rechar-
geable batteries or glass parts.

18 CZ
Vysvětlení použitých piktogramů............... Strana 19
Úvod..................................................................................... Strana 19
Použití ke stanovenému účelu.............................................. Strana 19
Popis dílů .............................................................................. Strana 19
Technické údaje ................................................................... Strana 20
Obsah dodávky ................................................................... Strana 21
Bezpečnostní pokyny............................................ Strana 21
Bezpečnostní pokyny pro baterie a akumulátory.............. Strana 23
Montáž............................................................................... Strana 24
Spojená 2 LED pásků .......................................................... Strana 25
Zkracování LED pásku ......................................................... Strana 25
Uvedení do provozu............................................... Strana 26
Zapínání a vypínání výrobku dálkovým ovládáním........... Strana 26
Řízení světelných efektů pomocí dálkového ovládání....... Strana 27
Výměna baterií..................................................................... Strana 28
Čistění a ošetřování................................................. Strana 28
Zlikvidování................................................................... Strana 28
Záruka................................................................................ Strana 29

19CZ
Vysvětlení použitých piktogramů
Před zkratem chrá-
něný bezpečnostní
transformátor
Polarita přípojky
výstupu
Nezávislý provozní
přístroj Ochranná třída II
Stejnosměrný proud Střídavý proud
LED pásek 5m
Úvod
Blahopřejeme Vám ke
koupi nového výrobku.
Rozhodli jste se pro kva-
litní produkt. Návod kobsluze je
součástí tohoto výrobku. Obsahuje
důležité pokyny pro bezpečnost,
použití a likvidaci. Před použitím
výrobku se seznamte se všemi po-
kyny k obsluze a bezpečnostními
pokyny. Používejte výrobek jen
popsaným způsobem a na uvede-
ných místech. Při předání výrobku
třetí osobě předejte i všechny
podklady.
Použití ke
stanovenému účelu
Výrobek je vhodný jen
pro privátní používání v
uzavřených prostorech
v domácnosti. Výrobek lze nalepit
na všechny normálně vznětlivé
hladké plochy. Výrobek je určen
k použití jen v uvedených oblas-
tech, není určen ke komerčnímu
využívání.
Tento výrobek není
vhodný k osvětlení
místností v domác-
nosti.
Popis dílů
1Spojka
2LED pásek

20 CZ
3Napájecí díl
4Regulátor LED
5Oboustranně lepící páska
(pro regulátor LED)
6Přijímač infračerveného světla
7Dálkové ovládání
8Šroub
9Osmipólová zástrčka
10 Oboustranně lepící páska
(na zadní straně LED pásma)
11 Umělohmotný klip
12 Baterie
Technické údaje
LED pásek + Síťový adaptér
Celková
spotřeba: cca 24W
Světelný LED pásek
Provozní napětí: 12V , maxi-
málně 24W
Svíticí prostředky: 150 LED (LED
nelze vyměnit)
Příkon
každé LED: cca 0,06W
Model č.: HG00146
(testováno u
TÜV SÜD/
GS)
Podíl hodnoty
barvy: X < 0,27 nebo
X > 0,530; Y <
-2,3172 X +
2,3653
X–0,2199
nebo Y >
-2,3172 X +
2,3653 X -
0,1595
Síťový adaptér
Vstupní napětí: 100–240V∼
50/ 60 Hz,
1,0A
Výstupní napětí: 12V , 2A
Ochranná třída: II /
Model číslo: GQ30-
120200-AG
Regulátor LED
Vstupní napětí: 12V
Model číslo: Y4-180-A
Dálkové ovládání
Baterie: 3V , lithium
baterie, typ
CR2025
