LIVARNO LUX LED SPOTLIGHT 20W Technical specifications

LED SPOTLIGHT 20W
LED-STRAHLER 20W
Montage-, Bedienungs- und Sicherheitshinweise
LED REFLEKTOR 20W
Pokyny k montáži, obsluze a bezpečnostní pokyny
LED REFLEKTOR 20W
Pokyny pre montáž, obsluhu a
bezpečnostné pokyny
LED SPOTLIGHT 20W
Assembly, operating and safety instructions
LED REFLEKTOR 20W
Szerelési, használati és biztonsági tudnivalók
LED-REFLEKTOR 20W
Navodila za montažo, uporabo in
varnostna navodila
IAN 319420_1901

GB Assembly, operating and safety instructions Page 5
HU Szerelési, használati és biztonsági tudnivalók Oldal 20
SI Navodila za montažo, uporabo in varnostna navodila Stran 35
CZ Pokyny k montáži, obsluze a bezpečnostní pokyny Strana 51
SK Pokyny pre montáž, obsluhu a bezpečnostné pokyny Strana 65
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 80

A
8
9
10
11
65
131516 121417
1 2 3 4
18
19
7

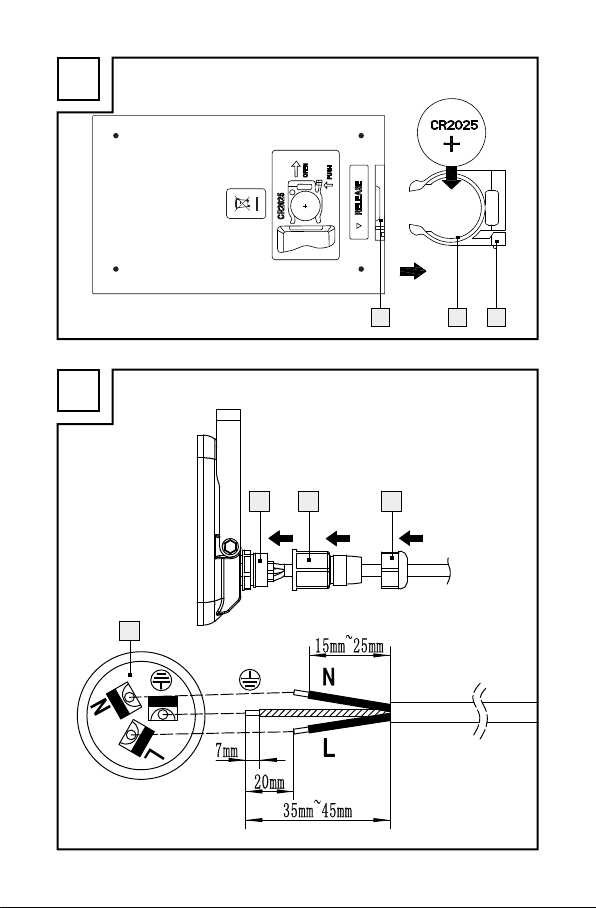

CR2025
OPEN
PUSH
RELEASE
B
C
5
5
202122
6 7

5GB
List of pictograms used..................................................Page 6
Introduction.............................................................................Page 6
Intended use..................................................................................Page 7
Parts description............................................................................Page 7
Technical data...............................................................................Page 7
Scope of delivery..........................................................................Page 8
General safety instructions........................................Page 9
Safety instructions for batteries/ rechargeable batteries ...........Page 10
Before installation.............................................................Page 11
Installation...............................................................................Page 12
Operation .................................................................................Page 13
Mode buttons................................................................................Page 14
Sensitivity buttons..........................................................................Page 15
Time buttons...................................................................................Page 15
Replacing the battery.....................................................Page 16
Cleaning and care..............................................................Page 16
Disposal......................................................................................Page 17
Warranty...................................................................................Page 18
Warranty claim procedure...........................................................Page 18
Service ...........................................................................................Page 19

6 GB

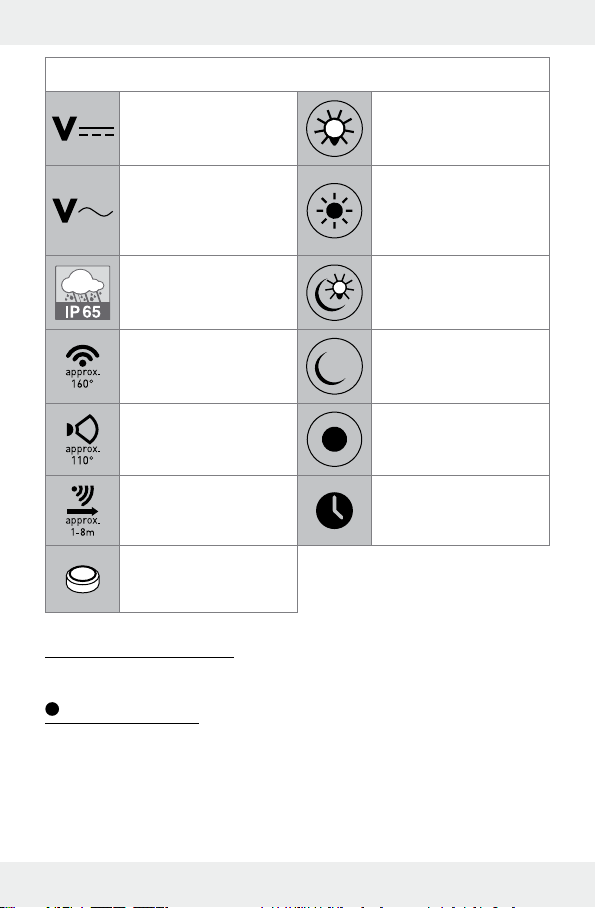

List of pictograms used
Volt (direct current) Continuous light
button: The light is
permanently on
Volt (alternating cur-
rent)
Day button: The light
signals movements
both in daylight as well
as in the dark
Dust-tight/ water jets
protected (IP65)
Photo cell button: The
light starts to light per-
manently at darkness
Detection angle of
motion detector:
approx. 160°
Night button: The light
signals movements only
in the dark
LED beam angle:
approx. 110° Space button: This button has no function.
Motion detector
detection range:
approx. 1–8m LED lifespan
Battery included for
remote control
LED Spotlight 20W
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use and
disposal. Before using the product, please familiarise yourself with all of
the safety information and instructions for use. Only use the product as

7GB
described and for the specified applications. If you pass the product on to
anyone else, please ensure that you also pass on all the documentation
with it.
Intended use
The product is intended to illuminate indoor and outdoor areas. This product
is only intended for private use and is not suitable for commercial use or
for use in other applications.

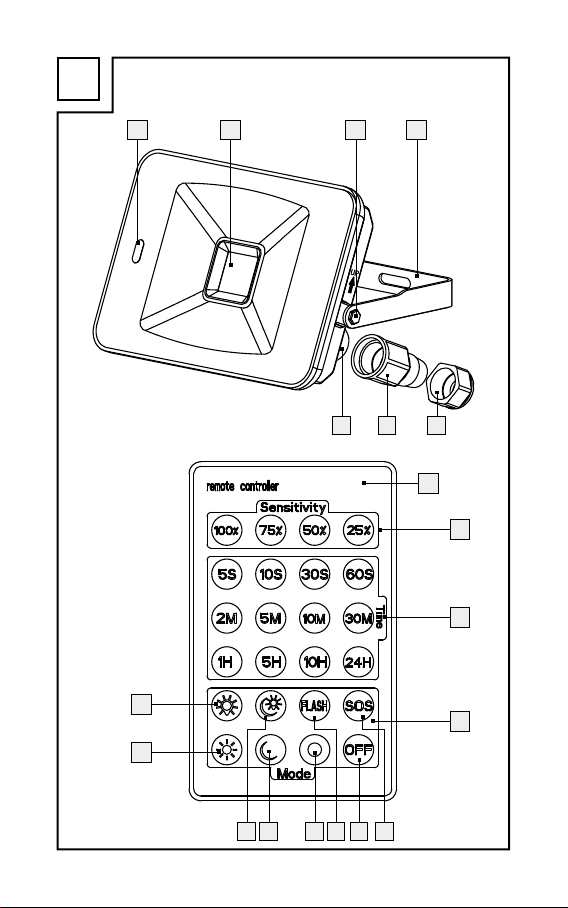

Parts description
1Motion sensor
2LED spotlight
3Locking screw
4Bracket
5Screwless connection terminal
6Terminal cover
7Cable gland
8Remote control
9Sensitivity buttons
10 Time buttons
11 Mode buttons
12 SOS button
13 OFF button
14 FLASH button
15 Space button
16 Night button
17 Photo cell button
18 Day button
19 Continuous light button
20 Spring
21 Battery sled
22 Battery compartment
23 Screws Ø 5 x 50mm
24 Wall plug Ø 8 mm
25 Tooth lock washer
26 Flat washer
27 Spring washer
Technical data
Operating voltage: 230V∼ 50 Hz
Total power consumption: 20W
Illuminant (COB LED): 20W (non-replaceable)

8 GB
Motion sensor: Range: max. 8m (adjustable), detection
angle: approx. 160° horizontal
Protection class: I
Degree of protection: IP65 (dust-tight/ water jets protected)
Weight: approx. 640g
Overall dimension: 18 x 12.5 x 8cm
Projected area: max. 18 x 12.5cm
Mounting height: approx. 1.8–2.5m
GS certified
Remote control
Power supply: 3V
Battery: 1 x 3V ; Type: CR2025 Lithium battery
Operation range: approx. 12m from the product
Scope of delivery
Check immediately after unpacking that the parts are complete and that
the product is in proper condition.
1 LED spotlight
2 Wall plugs (Ø 8 mm)
2 Screws (Ø 5 x 50mm)
1 Bracket
2 Tooth lock washers
2 Flat washers
2 Spring washers
2 Locking screws
1 Terminal cover
1 Cable gland
1 Remote control
1 Lithium battery, type CR2025
(pre-installed)
1 Instructions for use

9GB
General safety instructions
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH
ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE!
WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO
INCLUDE ALL THE DOCUMENTS!
DANGER TO LIFE AND ACCIDENT HAZARD FOR
TODDLERS AND SMALL CHILDREN! Never leave
children unattended with the packaging material. The
packaging material represents a danger of suffocation. Children fre-
quently underestimate the dangers. Please keep the product out of
the reach of children at all times.
This product may be used by children age 8 years and up, as well as
by persons with reduced physical, sensory or mental capacities, or
lacking experience and/or knowledge, so long as they are supervised
or instructed in the safe use of the product and understand the associ-
ated risks. Children should not be allowed to play with the product.
Cleaning and user maintenance should not be performed by children
without supervision.
DANGER OF SUFFOCATION! Children could swallow on small
included parts (e.g. screws). Keep children away from the work area
during assembly.
The illuminants are not replaceable.
If the illuminants fail at the end of their lives, the entire product must
be replaced.
Only to be installed outside arm reach.
Danger to life
by electric shock
Always check the product for damage before connecting it to the
mains. Never use the product if it shows any signs of damage.

10 GB
Prior to installation, verify that the mains voltage on site corresponds
with the operating voltage required for the product (230V∼ 50 Hz).
Otherwise do not install the product.
CAUTION! DANGER OF BURN INJURIES! To prevent burns,
verify the product is switched off and has cooled down for at least
15 min before touching it. The product can become very hot.
1.0 m
FIRE HAZARD! Fit the product so that it is at least
1.0m away from the material to be illuminated. Excessive
heat can result in a fire.
CAUTION! RISK OF INJURY! Broken lamp glass must
be replaced before any further use is made of the product.
The product continues to draw a small amount of power even if the
lamp is off as long as product is connected to supply mains. To switch
the product off completely, the mains switch should be switched off.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person in order to avoid a hazard.
Safety instructions for batteries/
rechargeable batteries
K EEP BATTERIES OUT OF THE REACH OF CHILDREN!
Swallowing batteries can cause chemical burns, perforation
of soft tissue, and death. Severe burns may occur within 2
hours of swallowing batteries. Seek immediate medical attention.
DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach
of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge non-
rechargeable batteries. Do not short-circuit batteries/
rechargeable batteries and/or open them. Overheating,
fire or bursting can be the result.
Never throw batteries/rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.

11GB
Risk of leakage of batteries/rechargeable batteries
Avoid extreme environmental conditions and temperatures, which
could affect batteries/rechargeable batteries, e.g. radiators/direct
sunlight.
If batteries/rechargeable batteries have leaked, avoid contact with
skin, eyes and mucous membranes with the chemicals! Flush immedi-
ately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged
batteries/rechargeable batteries can cause burns on con-
tact with the skin. Wear suitable protective gloves at all
times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries, imme-
diately remove them from the product to prevent damage.
Remove the batteries/rechargeable batteries if the product will not be
used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
Insert batteries/ rechargeable batteries according to polarity marks
(+) and (-) on the battery/rechargeable battery and the product.
Clean the contacts on the battery/rechargeable battery and in the
battery compartment before inserting!
Remove exhausted batteries/ rechargeable batteries from the product
immediately.
Before installation
Note: Remove all packaging materials from the product.
Important: The electrical connection must be established by a qualified
electrician or a person trained to perform electrical installations. This per-
son must be familiar with the properties of the product and the connection
regulations.

12 GB
Before installation ensure that the circuit, to which the product will be
connected, is not energised. To do so, remove the fuse or switch off the
circuit breaker in the fuse box (0 position).
Use a voltage tester to verify the de-energised status.
The included mounting material is suitable for ordinary solid concrete
or masonry construction. Check which mounting material
is suitable
for your chosen mounting surface. If necessary, seek expert advice.
Installation
Make sure you will not be drilling into electrical, gas or water lines inside
the wall. Use a power drill to drill the holes into the brick wall. Always ob-
serve all safety instructions for the power drill in the manual for the power
drill. Death or injury due to electric shock may otherwise result.
When selecting the mounting location, pay attention to the following:
Select a sturdy and vibration-free wall.
Keep a minimum distance of approx. 20cm to other objects to ensure
a good ventilation.
Only mount the product in one direction. The “UP” label on the
product resp. the arrow should be pointed upwards (see Fig. D).
Make sure that the LED spotlight 2illuminates the desired area.
You can move the product vertically to adjust the angle.
Make sure the motion sensor 1covers the desired area. The motion
sensor 1has a maximum coverage range of 8m, with a coverage
angle of about 160° (depending on the mounting height – a height
of 1.80–2.50m is ideal).
Make sure the motion sensor 1is not illuminated at night by street
lighting. This can influence its functioning.
Don’t adjust the motion sensor 1onto trees, bushes or locations
where animals could be easily detected. Do not adjust the motion
sensor 1to fan heaters, air conditioners, pools or other objects with
fast-changing temperatures.
Use the bracket 4as a pattern to mark the drilling holes onto the
wall. Ensure that there are no cables or wires in this area in the wall.

13GB
Drill two holes (Ø 8mm) and insert the wall plugs 24 . Screw the
bracket 4with the help of the screws 23 and check the tight fit.
Loosen the cable gland 7and terminal cover 6, then run the con-
nection cable (not include in the product), type H05RN-F 3G 1.0mm2,
through the cable gland 7and terminal cover 6to the screwless
connection terminal 5. The suitable length for the connecting wires
please refer to Fig. C.
Insert the connection cable into the holes of the screwless connection
terminal 5. Pay attention to the markings on the screwless connec-
tion terminal 5(L for live, N for neutral and for the earth wire)
(Fig. C).
Make sure each wire of the connection cable is completely insert into
the end of the holes of the terminal and further check the security fixed.
Then lock the terminal cover 6and cable gland 7again.
Now attach the LED spotlight 2to the bracket 4using the included
locking screws 3, spring washers 27 , flat washers 26 and tooth
lock washers 25 (Fig. D).
Adjust the product into the desired direction. For this, you may need
to slacken the locking screws 3between the bracket 4and the
LED spotlight 2. After adjustment, tighten the locking screws 3
again, to ensure a secure hold.
After the fuse has been inserted or the fuse panel is switched on
again, your product is ready for use.
Operation
You can operate the product by using the included remote control 8.
Note: Remove the insulating strip from the battery compartment 22
before using the remote control 8for the first time.
Note: The product is preset to continuous light mode.

14 GB
Mode buttons
You can use the Mode buttons 11 to
- switch the product on,
- select the lighting type,
- set, at which light intensity the product is being activated,
- switch the product off.
Hold the remote control 8in front of the product and press one of the
Mode buttons 11 with the desired function.
Mode button Function
SOS button 12 The light flashes SOS
(3x short, 3 x long, 3x short).
Continuous light button
19 The light is permanently on.
FLASH button 14 The light flashes.
Space button 15 This button has no function.
Photo cell button 17 The light starts to light permanently at
darkness.
Night Button 16
The light signals movements only in the dark.
Day button 18 The light signals movements both in
daylight as well as in the dark.
The product confirms the received signal from the remote control 8
by a short flashing of the LED spotlight 2. The function is now set
and the product is switched on.
To switch off the product, press the OFF button 13 . The product lights
up shortly and then switches off.

15GB
Sensitivity buttons
Use the Sensitivity buttons 9to adjust the sensitivity of the motion
sensor 1. The detection angle expands or decreases automatically
with the selected sensitivity.
Press the night button 16 or the day button 18 to activate the motion
sensor 1.
Press one of the Sensitivity buttons
9to adjust the sensitivity.
Sensitivity buttons The LED spotlight 2responds to
movements within a radius of
100% Up to 8 Meter
75% Up to 6 Meter
50% Up to 4 Meter
25% Up to 2 Meter
The product confirms the received signal from the remote control 8
by a short flashing of the LED spotlight 2. The sensitivity of the mo-
tion sensor 1is now set.
Time buttons
Use the Time buttons 10 to set the length of time that the product will
light up after being triggered by the motion sensor 1.
Press the night button 16 or the day button 18 to activate the motion
sensor 1.
Press one of the Time buttons 10 with the desired lighting duration.
Time buttons Light duration
5S, 10S, 30S, 60S 5, 10, 30 or 60 Seconds
2M, 5M, 10M, 30M 2, 5, 10 or 30 Minutes
1H, 5H, 10H, 24H 1, 5, 10 or 24 Hours

16 GB
The product confirms the received signal from the remote control 8by
a short flashing of the LED spotlight 2. The lighting duration is now set.
Replacing the battery
Improperly changing the battery can cause damage. Remove an empty
battery from the remote control.
Hold the remote control 8with the rear panel facing up (see Fig. B).
Press the spring 20 toward the battery compartment 22 and pull the
battery sled 21 out of the battery compartment 22 .
Remove the battery.
Insert a new 3V CR2025 battery into the battery sled 21 . Ensure
the correct polarity which is shown on the rear side of the remote
control 8.
Slide the battery sled 21 back into the battery compartment
22
.
Cleaning and care
CAUTION! The product becomes hot when it is switched on.
Allow the product to cool down completely before cleaning.
Before cleaning, remove the fuse or switch off the circuit breaker at
the fuse box.
Never immerse the product in water or other liquids. Otherwise the
product can be damaged.
Clean the product with a lint-free, slightly moist cloth and mild
cleaning agent.
After cleaning, replace the fuse or switch on the circuit breaker.
To clean the remote control 8, remove the battery from the battery
compartment 22 (see chapter “Replacing the battery”).
Clean the remote control 8with a soft, dry cloth.
If the dirt is stubborn, use a slightly moistened cloth. Then dry the
remote control 8well.
Reinstall the battery.

17GB
Disposal
The packaging is made entirely of recyclable materials, which you may
dispose of at local recycling facilities.
b
a
Observe the marking of the packaging materials for waste sep-
aration, which are marked with abbreviations (a) and numbers
(b) with following meaning: 1–7: plastics/20–22: paper and
fibreboard/80–98: composite materials.
The product and packaging materials are recyclable, dispose
of it separately for better waste treatment. The Triman logo is
valid in France only.
Contact your local refuse disposal authority for more details of
how to dispose of your worn-out product.
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and not
in the household waste. Information on collection points and
their opening hours can be obtained from your local authority.
Faulty or used batteries/rechargeable batteries must be recycled in ac-
cordance with Directive 2006/66/EC and its amendments. Please return
the batteries/rechargeable batteries and/or the product to the available
collection points.
Environmental damage through incorrect disposal
of the batteries / rechargeable batteries!
Batteries/rechargeable batteries may not be disposed of with the usual
domestic waste. They may contain toxic heavy metals and are subject to
hazardous waste treatment rules and regulations. The chemical symbols
for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead.
That is why you should dispose of used batteries/ rechargeable batteries
at a local collection point.

18 GB
Warranty
The product has been manufactured to strict quality guidelines and me-
ticulously examined before delivery. In the event of product defects you
have legal rights against the retailer of this product. Your legal rights are
not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should
this product show any fault in materials or manufacture within 3 years
from the date of purchase, we will repair or replace it – at our choice –
free of charge to you.
The warranty period begins on the date of purchase.
Please keep the origi-
nal sales receipt in a safe location. This document is required as your proof of
purchase. This warranty becomes void if the product has been damaged, or
used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty
does not cover product parts subject to normal wear, thus possibly consi-
dered consumables (e.g. batteries) or for damage to fragile parts, e.g.
switches, rechargeable batteries or glass parts.
Warranty claim procedure
To ensure quick processing of your case, please observe the following
instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890)
available as proof of purchase.
You will find the item number on the type plate, an engraving on the front
page of the instructions (bottom left), or as a sticker on the rear or bottom
of the appliance.
If functional or other defects occur, please contact the service department
listed either by telephone or by e-mail.

19GB
You can return a defective product to us free of charge to the service ad-
dress that will be provided to you. Ensure that you enclose the proof of pur-
chase (till receipt) and information about what the defect is and when it
occurred.
Service
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]

20 HU
Az alkalmazott piktogramok
jelmagyarázata.................................................................. Oldal 21
Bevezető.................................................................................. Oldal 21
Rendeltetésszerű használat........................................................ Oldal 22
Alkatrészleírás............................................................................. Oldal 22
Műszaki adatok .......................................................................... Oldal 22
A csomag tartalma...................................................................... Oldal 23
Általános biztonsági utasítások.......................... Oldal 24
Az elemekre/ akkukra vonatkozó biztonsági tudnivalók......... Oldal 25
A felszerelés előtt............................................................. Oldal 26
Összeszerelés...................................................................... Oldal 27
Üzembehelyezés.............................................................. Oldal 28
Üzemmódgombok ...................................................................... Oldal 29
Érzékenységállító gombok ......................................................... Oldal 30
Időgombok.................................................................................. Oldal 30
Az elem cseréje.................................................................. Oldal 31
Tisztítás és ápolás............................................................ Oldal 31
Mentesítés .............................................................................. Oldal 32
Garancia.................................................................................. Oldal 33
Garanciális ügyek lebonyolítása ............................................... Oldal 34
Szerviz ......................................................................................... Oldal 34
