Ltech LM-150-24-G2Z2 User manual

Tuya Zigbee
LM-150-24-G2Z2
Dimming Dept
0.1
Dimmable:
0.1%-100%
Intelligent Tunable White LED Driver (Constant Current)
Small size and light weight. The housing is made from V0 flame
retardant PC materials that SAMSUNG/COVESTRO uses.
The clamshell design and screwless type for strain-relief. The design
of dismountable end cap allows you to adjust the length of housing
depending on your needs.
With soft-on and fade-in dimming function, enhancing your visual comfort.
Comply with the EU’s ErP Directive, standby power consumption < 0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the
life of the LED driver.
Overheat, over voltage, overload, short circuit protection and automatic
recovery.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Dimming from 0~100%, down to 0.1%.
Use Zigbee protocol and Tuya application protocol with high networking
capability.
Flicker-free
IEEE 1789
DIM / CT
The certification icon represents on-going certification applications only, and final certification qualification is subject to actual products.
Overheat
Protection Short Circuit
Protection Overload Protection
V
Overvoltage
protection
Color temperature range: 2700-6500K.
Technical Specs
1
LM-150-24-G2Z2
24Vdc±0.5Vdc

Max. 6.25A
24Vdc
Switch ripple≤200mV, noise≤500mV

Max. 150W
0~150W
≥102%
≤3600Hz
INPUT
SAFETY
&
EMC
OTHERS
Frequency
Input Current
Power Factor
Efficiency (typ.)
Inrush Current
Anti Surge
Leakage Current
Output Voltage Range
Dimming Range 0~100%, down to 0.1%
High frequency exemption level
Ripple
THD
Output Power Range
Overload Power Limitation
OUTPUT
Model
Output Voltage
Output Power
Output Current
Strobe Level
PWM Frequency
Standby power consumption
Zigbee
Features
ENVIRONMENT
PROTECTION
Output Type
Dimming Interface
Output Feature
Protection Grade
Insulation Grade
Constant Voltage
Isolation
IP20
Class II (Suitable for class I / II / III light fixtures)
DC Voltage Range
AC Voltage Range
Rated Voltage
50/60Hz
≤0.75A/230Vac
93%
PF>0.98/230Vac (at full load)
THD<6%@230Vac (at full load)
Cold start 45A@230Vac (Test twidth=840us tested under 50% Ipeak)
L-N: 2KV
Max. 0.5mA
<0.5W
230Vac
220-240Vac
200-280Vdc
Working Temperature
Working Humidity
Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overheat Protection
Overvoltage Protection
Overload Protection
Short Circuit Protection
Withstand Voltage
Isolation Resistance
Safety Standards
EMC Emission
EMC Immunity
Strobe Test Standard
Life Time
Warranty 5 years
ta: -20~50°Ctc: 85°C
20~95%RH, non-condensing
-40~80°C, 10~95%RH
±0.03%/°C (0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Shut down the output when non-load voltage≥28V, and recover automatically
Shut down the output when current load≥102%, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
I/P-O/P: 3750Vac
GB19510.1, GB19510.14
EN61347-1, EN61347-2-13, EN62384, EN61547
KC61347-1, KC61347-2-13
IEC61347-1, IEC61347-2-13
EN61347-1, EN61347-2-13, EN62493
IEC61347-1, IEC61347-2-13
CCC
CE
KC
EAC
TUV
CB
RCM
China
European Union
Korea
Russia
Germany
CB member states
Australia AS61347-1, AS61347-2-13
EMEC Europe EN61347-1, EN61347-2-13, EN62384
CCC
CE
KC
EAC
GB/T17743, GB17625.1
EN55015, EN61000-3-2, EN61000-3-3, EN61547
KN15, KN61547
IEC62493, IEC61547, EH55015
RCM EN55015, EN61000-3-2, EN61000-3-3, EN61547
China
European Union
Russia
Korea
Australia
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
50000 hours

352
43
30
300
312
35
N
L
W
C
2

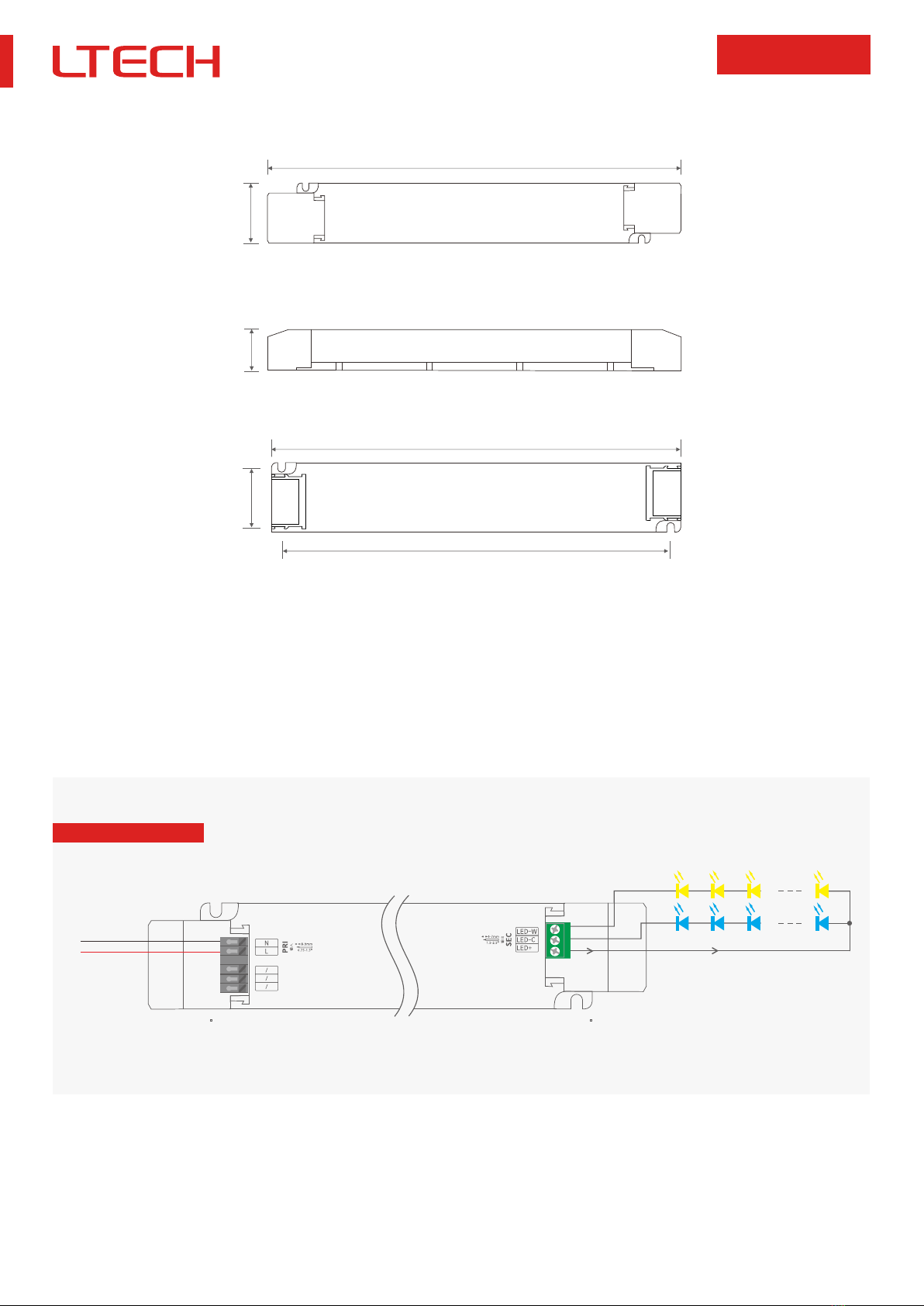

Unit: mm
Product Size
Wireless connection
Wiring Diagram
DIM: 0~100%
CCT: 2700-6500K
Wire diameter: 0.75-1.5 (20-16AWG)
Strip length: 8-9mm
Wire diameter: 1.5-2.5 (14-12AWG)
Strip length: 6-7mm
Tuya Zigbee
LM-150-24-G2Z2

3
Tension plate Remove the protective housing
1. Pry up the protecting housing
in the side plate position with a
tool.
Pull the housing left and right from the bottom to remove it.
2. Connect to electrical wires
with a screwdriver as wiring
diagram shows.
Protective Housing Application Diagram
3. Press down the tension plate to
fix the the electrical wires, then
close the protective housing.
Installation Precautions
≥15cm
≥15cm
≥15cm
≥15cm
≥15cm
≥100cm
Please do not stack the products. The distance between two products should be ≥15cm so as
not to affect heat dissipation and the lifespan of the products.
Please do not place the products on the floor. The distance between the product and the floor
should be ≥100cm so as to avoid signal interference.
Please do not place the products near a large area of metal objects (such as metal stud
ceilings). The distance between the product and the metal object should be ≥15cm so as to
avoid signal interference.
Please do not install the products on beams or near the corners. The distance between the
product and the beam or the corner should be ≥15cm so as to avoid signal interference.
Tuya Zigbee
LM-150-24-G2Z2

4
88
89
90
91
92
94
50 60 70 80 90 100 50 60 70 80 90 100
0.85
0.88
0.91
0.94
0.97
1.00
50 60 70 80 90 100
0
2
4
6
8
10
THD【%】
6.25 6.6 6.7 6.8 6.9 7
-2
2
6
10
22
26
AC240V/60Hz
AC220V/60Hz
AC240V/60Hz
AC220V/60Hz
AC240V/60Hz
AC220V/60Hz
93
14
18
AC240V/60Hz
AC220V/60Hz

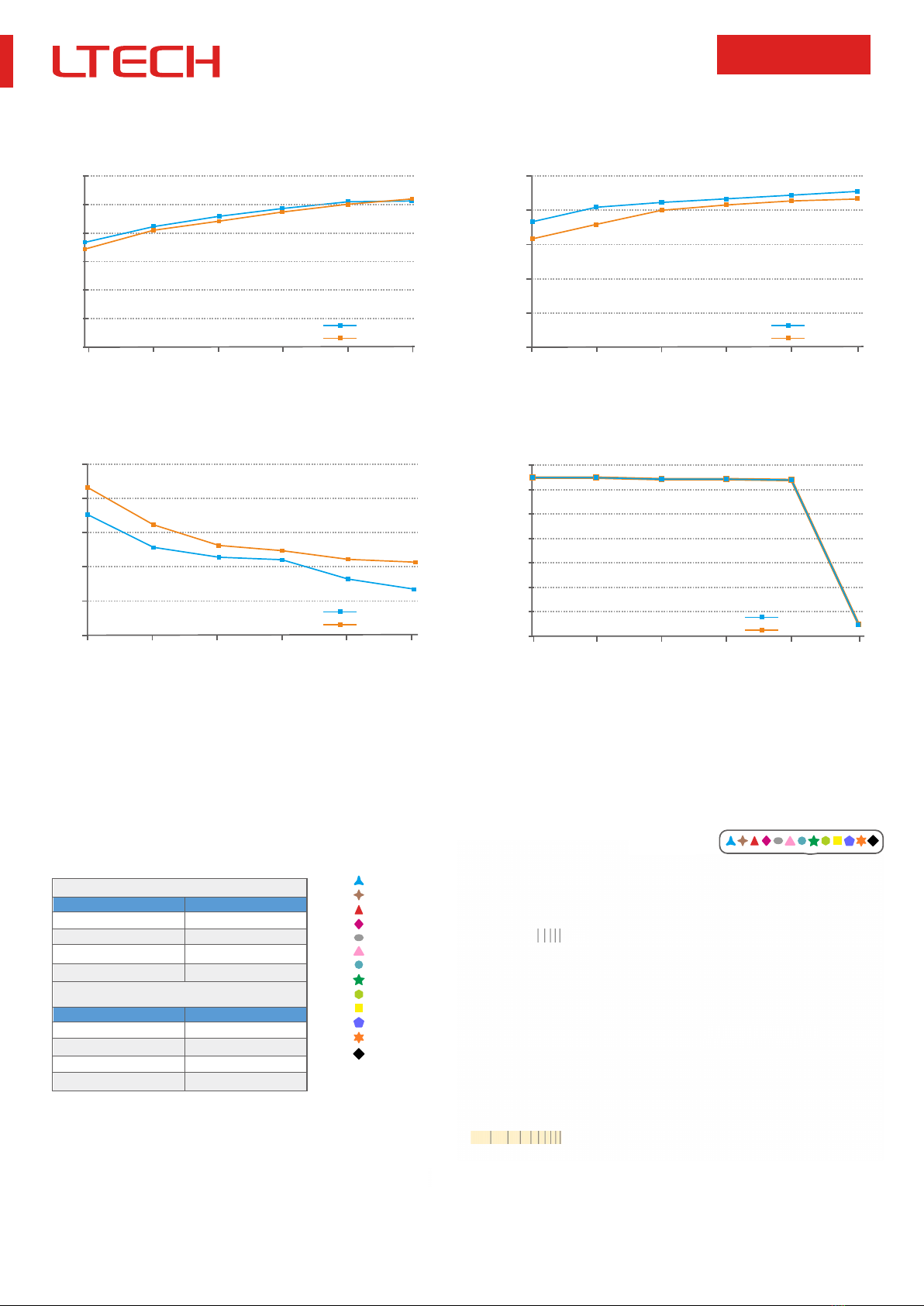

Relationship Diagrams
PF
Efficiency【%】
Efficiency vs Load Power Factor Characteristic
Load【%】 Load【%】
IO【A】
V0【V】
Over Load Diagram
THD vs Load
Load【 %】
Flicker Test Table Exemption assessment
(High frequency exemption)
f ≤ 8Hz
Waveform frequency of optical output (f)
Limit Value of Modulation in Low Risk Areas
IEEE 1789 Brightness
0.1%
1%
5%
30%
40%
70%
90%
100%
10%
20%
50%
60%
80%
Marks in the right chart are tested results of different current levels
The output frequency is 0Hz in 100% brightness and its corresponding
modulation is 0%, which could not be shown in the right chart.
IEEE 1789
100%
10%
1%
0.1%
110 100 1000 10000
3600Hz
Modulation(%)
Frequency(Hz)
High Risk
No Effect(green)
Low Risk(yellow)
Limit Value of Modulation in No Effect Areas
8Hz < f ≤ 90Hz
90Hz < f ≤ 1250Hz
f > 1250Hz
0.2
0.025 × f
0.08 × f
Limit value (%)
Exemption assessment
Waveform frequency of optical output (f)
f ≤ 10Hz
10Hz < f ≤ 90Hz
90Hz < f ≤ 3125Hz
f > 3125Hz
0.1
0.01 × f
(0.08/2.5) × f
Limit value (%)
Exemption assessment
(High frequency exemption)
Tuya Zigbee
LM-150-24-G2Z2

5

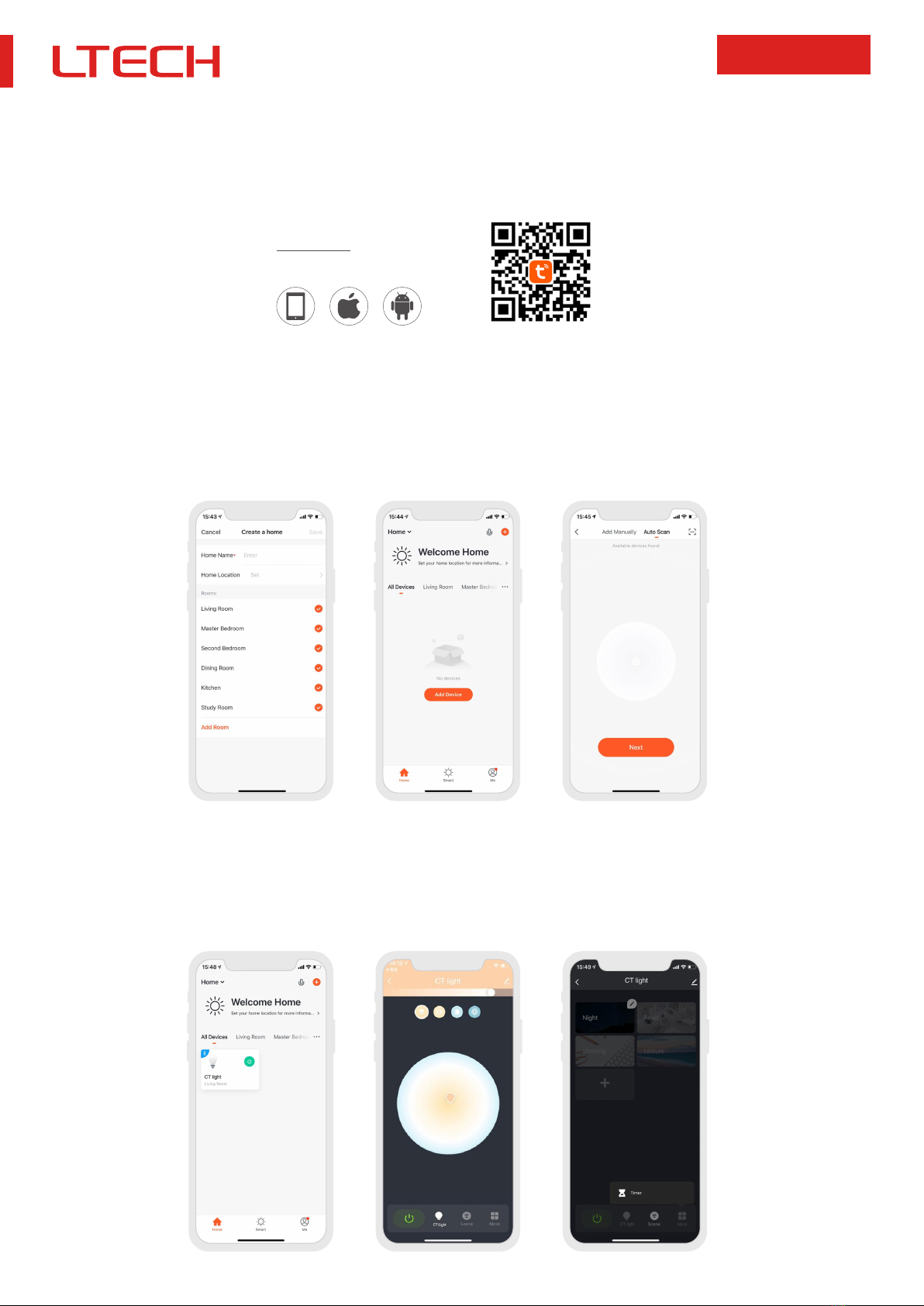

App Operating Instructions
APP support
Tuya Smart App is compatible with iOS and Android systems. Scan the QR code below with you mobile phone and follow the prompts to complete the app installation.
After installation being completed, you can log in or register an account.
App download
1. Register an account
A new user clicks "Me" → "Home Management" → "Create a Home", give a name to your home and confirm your home location, Then click “My Home” to add devices.
After you enable appropriate permissions, click “+” icon → “Auto Scan” and the available Bluetooth/Wi-Fi/Zigbee/wired devices will be automatically found. Follow the
prompts to add the device. (Please ensure that the device is ready for network connection).
2. Paring instructions
3. Lighting control settings
After paring up your device, click the device you add and adjust to your desired lighting status by changing brightness and color temperature. In “Settings”, there are
also lighting alarm clock and countdown functions (Tuya Zigbee Gateway needs to be added).
Tuya Zigbee
LM-150-24-G2Z2

6

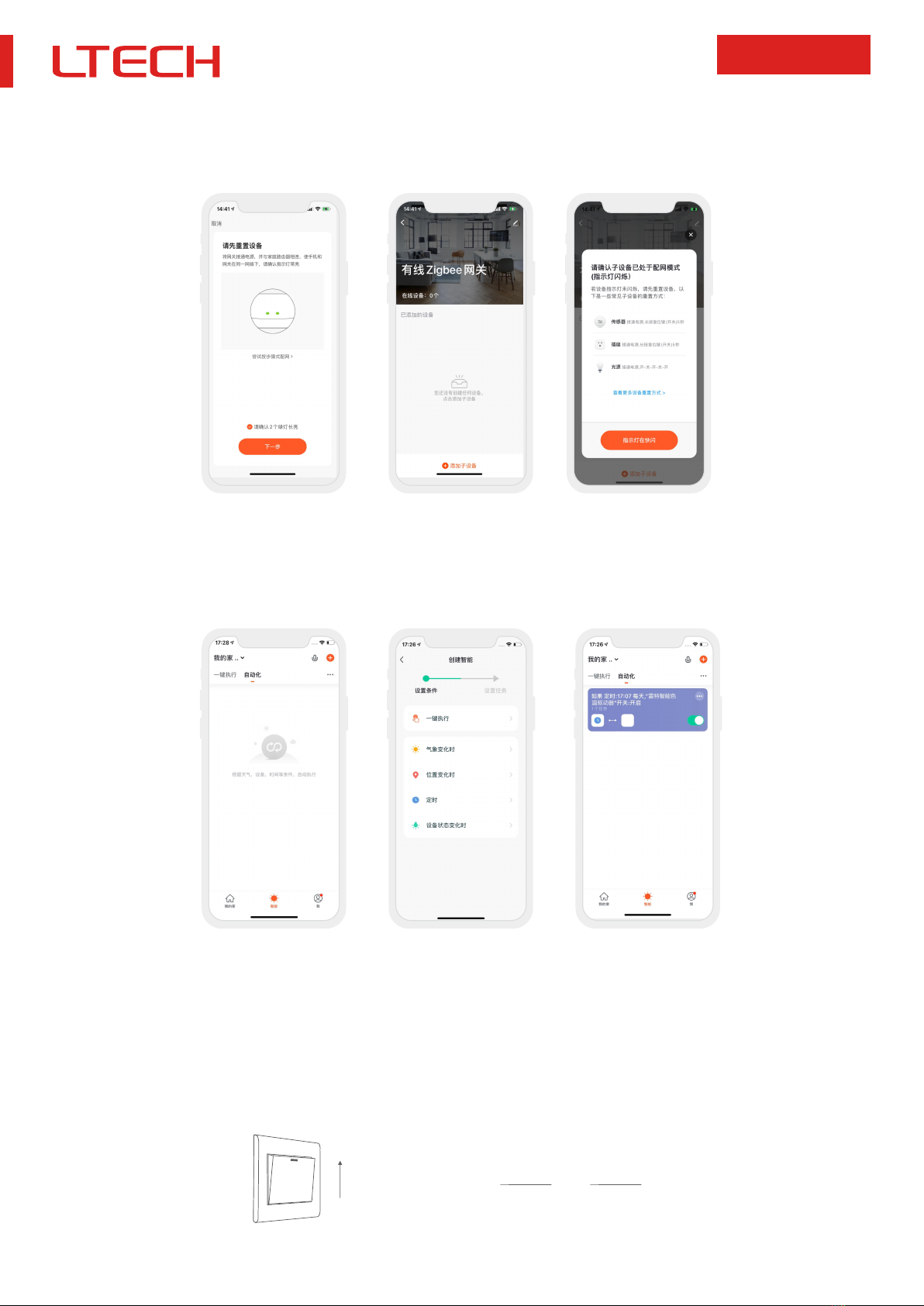

4.Remotecontrolandautomation
4.1 Remote control: Follow the prompts to add the Tuya Zigbee Gateway and go to the gateway interface after you added it. Click “Add Subdevice” and add the devices to the
gateway ,then you're able to remotely control the devices.
4.2 Automation settings: You can remotely control the light fixtures through “Automation” in “Smart” interface. Set trigger conditions like weather, location, timing and
other device status to trigger the predefined lighting effects and achieve the lighting automation.
Reset The Device
(Reset to factory defaults)
When the driver is power-on, turn it off and after 15s turn it on. After 2s, turn it off again. Repeat the same operation 5 times and then turn on the driver again.
When the lamp is flashing (2 flashes/s), reset the device successfully.
Turn it on 2s
Turn it off 15s (Repeat 5 times)
Turn it off Turn it on ......
Under the driver being power-on
2s
15s
Tuya Zigbee
LM-150-24-G2Z2

7
Model
Carton Dimensions
Quantity
Weight
Inner Packaging Box Carton Packaging
Packaging Specifications
370×340×93mm(L×W×H)
10 PCS/Layer；2 Layers/Carton；20 PCS/Carton
LM-150-24-G2Z2
0.43 kg/PC；9.4 kg/Carton
Packaging Image
1. Transportation
Products can be shipped via vehicles,boats and planes.
During transportation, products should be protected from rain and sun. Please avoid severe shock and vibration during the loading and unloading process.
2. Storage
The storage conditions should comply with the Class I Environmental Standards. The products that have been stored for more than six months are recommended to be re-inspected and can be used
only after they have been qualified.
Transportation and Storage
Tuya Zigbee
LM-150-24-G2Z2

8
This product must be installed and adjusted by a qualified professional.
This product is non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
Good heat dissipation will extend the life the product. Please install the product in a environment with good ventilation.
When you install this product, please avoid being near a large area of metal objects or stacking them to prevent signal interference.
Please keep the product away from aintensemagneticfield, a high pressure area or a place where lightning is easy to occur.
Please check whether the working voltage used complies with the parameter requirements of the product.
Before you power on the product, please make sure all the wiring is correct in case of incorrect connection that may cause a short circuit and damage the components, or trigger a accident.
If a fault occurs, please do not attempt to fix the product by yourself. If you have any question, please contact the supplier.
This manual is subject to changes without further notice. Product functions depend on the goods. Please feel free to contact our official distributors if you have any question.
Attentions
Warranty periods from the date of delivery: 5 years.
Free repair or replacement services for quality problems are provided within warranty periods.
Warranty Agreement
Warranty exclusions below:
Beyond warranty periods.
Any artificial damage caused by high voltage, overload, or improper operations.
Products with severe physical damage.
Damage caused by natural disasters and force majeure.
Warranty labels and barcodes have been damaged.
No any contract signed by LTECH.
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
Tuya Zigbee
LM-150-24-G2Z2
ZHUHAI LTECH TECHNOLOGY CO., LTD.
Website: www.ltech-led.com
Add: 15th Building, No.3, Pingdong 6th Road, Nanping Technical Industrial Park, Zhuhai, Guangdong, China

9
Tuya Zigbee
LM-150-24-G2Z2
Update Log
Version Update Content
Updated Time
A0 Original version
2023.01.14
Updated by
Liu Weili

涂鸦Zigbee
调光调⾊温
LM-150-24-G2Z2
体积⼩、重量轻;外壳采⽤科思创/三星PC阻燃V0级原料
免螺丝压线翻盖设计，可拆卸端盖,按需调节壳体⻓度
Zigbee通信协议，涂鸦应⽤协议，组⽹能⼒强
带软启动渐亮功能，让⼈眼视觉更舒服
调光范围0~100%，LED从0.1%开始调光
⾊温调节范围2700-6500K
符合欧盟能效EPR指令，待机功耗＜0.5W
信号光电隔离设计，更加安全可靠
创新的热管理技术，智能保护电源寿命
短路、过温、过载、过压保护,可⾃动恢复
⾼达50,000⼩时的额定寿命
5年保修期(采⽤红宝⽯电容)
LED智能⾊温驱动器 (恒压型)
1
高频豁免考核级别
⽆频闪
IEEE1789
过温保护 短路保护 过载保护
深度调光
0.1
V
过压保护
认证图标仅代表产品正在进⾏这⼀系列的认证申请，认证资质以产品实物为准。
Dimmable:
0.1%-100%
技术参数
输出
输入
环境
保护
50/60Hz
频率范围
输⼊电流 ≤0.75A/230Vac
93%
效率(Typ.)
⼯作温度 ta:-20~50°Ctc:85°C
⼯作湿度 20~95%RH,⽆冷凝
储存温度/湿度 -40~80°C/10~95%RH
温度系数 ±0.03%/°C(0-50°C)
耐振动 10-500HZ,2G12分钟/周期，X,Y,Z轴各72分钟
调光范围 0~100%，调光深度:0.1%
功率因数 PF>0.98/230Vac(满载)
谐波THD THD＜6%@230Vac(满载)
浪涌电流 冷启动,45A(在50%Ipeak下测twidth=840us)@230Vac
抗浪涌 L-N:2KV
漏电流 Max.0.5mA
型号 LM-150-24-G2Z2
输出电压范围 24Vdc±0.5Vdc


输出电流 Max.6.25A
输出电压 24Vdc
纹波与噪声 开关纹波≤200mV，噪声≤500mV
输出功率 Max.150W
输出功率范围 0~150W
过载功率限制 ≥102%
过压保护 空载电压≥28V,关闭输出，可⾃动恢复
过载保护 负载电流≥102%,关闭输出，可⾃动恢复
短路保护 输出线路短路进⼊打嗝模式，可⾃动恢复
⾼频豁免考核级别
频闪级别
过温保护 根据PCB温度超标情况(≥110°C)，智能调节电流输出或关闭，可⾃动恢复
PWM调光频率 ≤3600Hz
<0.5W
待机功耗
安规
和
电磁
规格
其他
输⼊对输出：100MΩ/500VDC/25℃/70%RH
绝缘阻抗
耐压 输⼊对输出：3750Vac
安全规范
电磁兼容发射
EN61000-4-2,3,4,5,6,8,11,EN61547
电磁兼容抗扰度
IEEE1789
频闪测试标准
GB19510.1，GB19510.14
EN61347-1，EN61347-2-13，EN62384
KC61347-1，KC61347-2-13
IEC61347-1，IEC61347-2-13
EN61347-1，EN61347-2-13，EN62493
IEC61347-1，IEC61347-2-13
CCC
CE
KC
EAC
TUV
CB
RCM
中国
欧盟
韩国
俄罗斯
德国
CB成员国
澳洲 AS61347-1，AS61347-2-13
ENEC 欧洲 EN61347-1，EN61347-2-13，EN62384
CCC
CE
KC
EAC
中国
欧盟
韩国
俄罗斯
GB/T17743，GB17625.1
EN55015，EN61000-3-2，EN61000-3-3，EN61547
KN15，KN61547
IEC62493，IEC61547，EH55015
RCM 澳洲 EN55015，EN61000-3-2，EN61000-3-3，EN61547
质保 5年
寿命
特征
调光类型


输出特征
输出类型
防护等级
绝缘等级
隔离
恒压
IP20
II类(适⽤于室内Ⅰ、Ⅱ、Ⅲ类灯具)
Zigbee
230Vac
额定电压
直流电压范围
交流电压范围 220-240Vac
200-280Vdc
50000⼩时
