Ltech SE-12-100-500-W2B User manual

1
Bluetooth5.0SIGMesh
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
Overheat
Protection
Short circuit
protection
Over Load
protection
V
Over voltage
protection
Multi current
setting
DIM / CT
Intelligent Tunable White LED Driver (Constant Current)
Constant power
setting
Bluetooth 5.0 SIG Mesh
Technical Specs
INPUT
ENVIRONMENT
PROTECTION
50/60Hz
Frequency
Input Current ≤0.18A/115Vac, ≤0.08A/230Vac
84%@300mA(at full load), 82%@500mA(at full load)
Efficiency (Typ.)
Working Temperature ta: -20~50°Ctc: 80°C
Working Humidity 20~95%RH,non-condensing
Storage Temperature/Humidity
-40~80°C/10~95%RH
Temperature Coefficient ±0.03%/°C(0-50°C)
Vibration 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Dimming Range 0~100%, down to 0.0001%
Power Factor PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD THD≤10%/230Vac, atfullload
Inrush Current Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
Anti Surge L-N: 2KV
Leakage Current Max. 0.5mA
Model SE-12-100-500-W2B
Maximum output voltage ≤48Vdc


Output Current Range 100-500mA
Output Voltage 9-42Vdc
Output Power Range 0.9W-12W
Current Accuracy ±5%
Overvoltage Protection Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Overload Protection Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Short Circuit Protection Enter hiccup mode if short circuit occurs, and recover automatically
Overheat Protection Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
PWM Frequency ≤3600Hz
SAFETY
&
EMC
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Insulation Resistance
Withstand Voltage I/P-O/P: 3750Vac
SafetyStandards
EMC Emission
EN61000-4-2,3,4,5,6,8,11, EN61547
EMC Immunity
China
European Union
Korea
Russia
Germany
CB Member States
Australia
Europe
OUTPUT
Dimming Interface


Output Feature
Output Type
Protection Grade
Insulation Grade
Isolation
Constant current
IP20
Class II (Suitable for class I/ II /III light fixtures)
115Vac/230Vac
Input Voltage
DC Voltage Range
AC Voltage Range 100-240Vac
120-250Vdc
LF Current Ripple
<3%(Maximum current for non dimming state)
India
Power Consumption Networked standby
ErP Flicker/Stroboscopic Effect
No-load power consumption
IEEE1789
CIE SVM
Meet IEEE 1789 standard/High frequency exemption level
Pst LM≤1.0，SVM≤0.4
OTHERS
DF Phase factor DF0.9
Dimensions
Weight(N.W.)
85g±10g
110×35×20mm(L×W×H)
Features
≤
Britain
Canada
GB19510.1, GB19510.14
EN61347-1, EN61347-2-13, EN62384
KC61347-1, KC61347-2-13
IEC61347-1, IEC61347-2-13
EN61347-1, EN61347-2-13, EN62493
IEC61347-1, IEC61347-2-13
CCC
CE
KC
EAC
TUV
CB
RCM AS61347-1, AS61347-2-13
ENEC EN61347-1, EN61347-2-13, EN62384
CCC
CE
KC
EAC
GB/T17743, GB17625.1
EN55015, EN61000-3-2, EN61000-3-3, EN61547
KSC 9815, KSC 9547
IEC62493, IEC61547, EH55015
RCM EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS IS 15885 (PART 2/SEC 13)
CUL ICES-005
CUL CSA C22.2 NO.250.13
UKCA BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
UL UL 8750
UL FCC PART 15B
China
European Union
Korea
Russia
Australia
Britain
Canada
America
America
<0.5W (After shutdown by command)
<0.5W (When the lamp is not connected)
SE-12-100-500-W2B
The housing is made from V0 flame retardant PC materials
from SAMSUNG/COVESTRO.
Ultra-small, thin and light screwless end cap.
Change the output current, fade time and other parameters on the NFC
programmer or via the App, and sync the parameters to the driver.
Set the output current down to 1mA.
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWM™ Super depth dimming technology, dimming depth can reach 0.0001%
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs
due to poor contact.
Overheat, over voltage, overload, short circuit protection and
automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor)

2
35
20
Bluetooth5.0SIGMesh
6
19
N
L
W
C
输入
0.75-1.5
N
L
/
N
L
5-6m m
输出
0.5-1.5
LEDW
LED+
LEDC
110

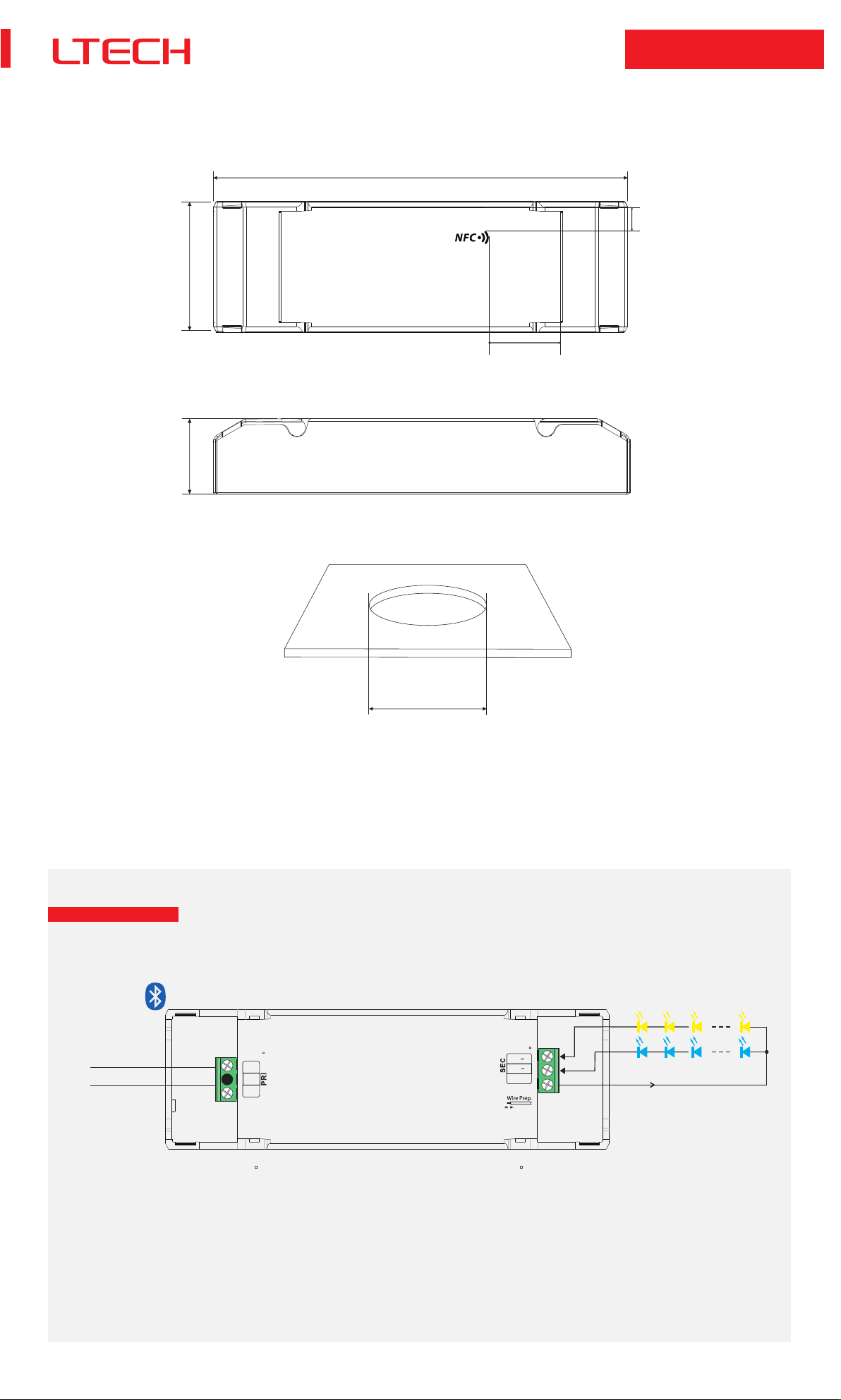

Unit：mm
Product Size
Minimum hole size: φ40mm (1,57")
Wiring Diagram
Wireless connection mode
Dimming: 0~100%
Color temperature: 1000-10000K
Access the network to control through App and Bluetooth
*
Wire diameter: 0.75-1.5 (20-16AWG)
Strip length: 5-6mm
Wire diameter: 0.5-1.5 (22-16AWG)
Strip length: 5-6mm
SE-12-100-500-W2B

3
Bluetooth5.0SIGMesh
SE-12-100-500-W2B
Table of Typical Corresponding Parameters for Current
Output Current
Output Voltage
Output Power
9-40Vdc
2.7-12W
500mA
200mA 250mA 300mA
400mA 450mA
150mA
9-30Vdc
3.6-12W
9-27Vdc
4.05-12.15W
9-24Vdc
4.5-12W
The typical 16 current data sets below are for reference when selecting LED fixture models. More current levels can be set by NFC using mobile APP with 300-1050mA adjustable in 1mA step
350mA
9-34Vdc
3.15-11.9W
100mA
9-42Vdc
0.9-4.2W
9-42Vdc
1.35-6.3W
9-42Vdc
1.8-8.4W
9-42Vdc
2.25-10.5W
/
/
/
Protective Housing Application Diagram
2. Pry up the protective housing
in the side plate position with a
tool.
5. Close the protective housing.
3. Connect to electrical wires
with a screwdriver as wiring
diagram shows.
4. Press down the tension plate
to fix the the electrical wires.
1. Use a tool to pry up the protective
housing on the side panel.
Output Current
Output Voltage
Output Power
Note: The temperature within the installation area should be within the working temperature range of the products. Please do not install products inside LED fixtures to avoid temperature exceeding
the working temperature that may affect the product lifetime.
3
Installation Precautions
≥15cm
≥15cm
≥15cm
≥15cm
≥15cm
≥100cm
Please do not stack the products. The distance between two products should be ≥15cm so as
not to affect heat dissipation and the lifespan of the products.
Please do not place the products on the floor. The distance between the product and the floor
should be ≥100cm so as to avoid signal interference.
Please do not place the products near a large area of metal objects (such as metal stud
ceilings). The distance between the product and the metal object should be ≥15cm so as to
avoid signal interference.
Please do not install the products on beams or near the corners. The distance between the
product and the beam or the corner should be ≥15cm so as to avoid signal interference.

4
Bluetooth5.0SIGMesh
SE-12-100-500-W2B

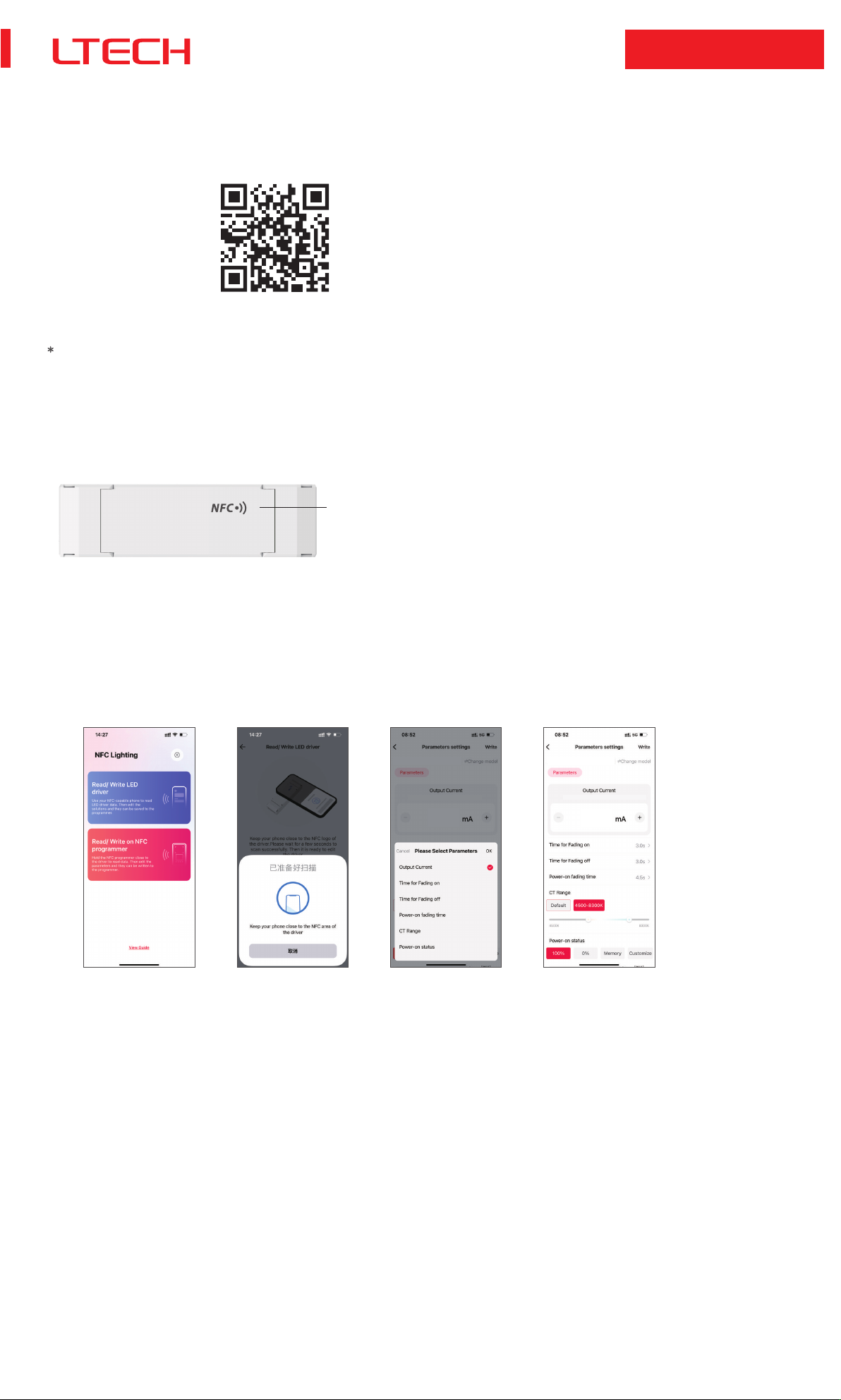

Use the NFC Lighting APP
Scan the QR code below with your mobile phone and follow the prompts to complete the APP installation (According to performance requirements, you need to use a NFC-capable Android phone, or an
iphone 8 and later that are compatible with iOS 13 or higher).
Before you begin setting the parameters of the driver on the NFC programmer or via the APP, please make sure the driver is powered off.
Use your NFC-capable phone to read the driver parameters, then set the output current, fade time, power-on status, other parameters. Save your settings and hold your phone close to the driver
again, so the parameters can be easily written to the driver.
Read/Write the LED driver
1.Read the LED driver
On the APP home page, click【 Read/Write LED driver】, then keep the programmer’s sensing area close to the NFC logo of the driver to read the driver parameters.
2.Edit the parameters
Click【Parameter settings】to edit the advanced parameters, like output current, time for fading on/off, power-on fading time, power-on status, etc.
3.Write to the driver
After completing the parameter settings, click 【Write】in the upper right corner, and keep the programmer’s sensing area close to the NFC logo of the driver, so the parameters can be written to
the driver.
500
SE-12-100-500-W2B
Uout:9.00-24Vdc Pout:4.5-12W
SE-12-100-500-W2B
500
Uout:9.00-24Vdc Pout:4.5-12W
NFC logo of the driver

Bluetooth5.0SIGMesh
5
SE-12-100-500-W2B
+
+ +

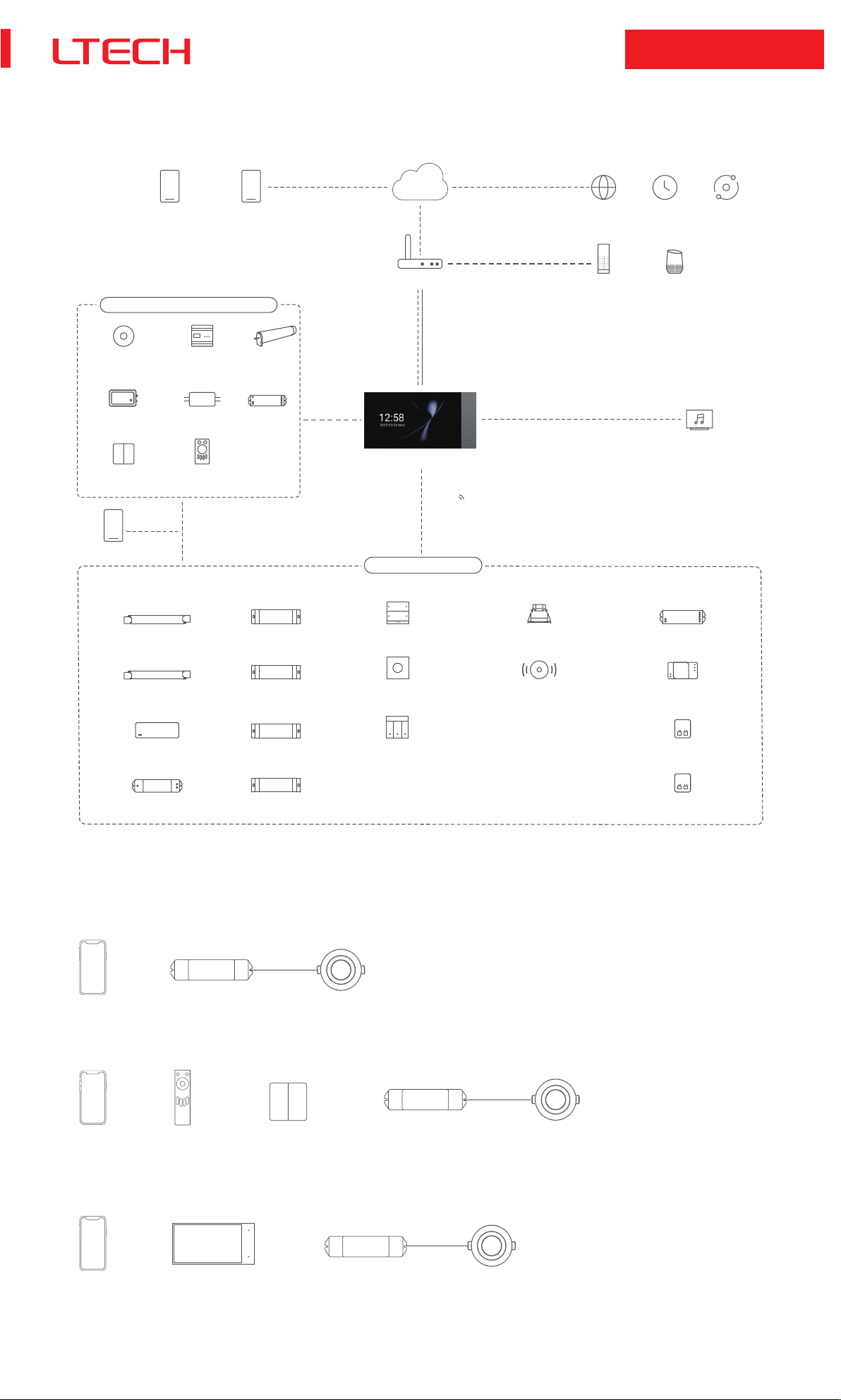

Recommend Applications
+
+ +
Bluetooth System Diagram
Wi-Fi/4G/5G
Ethernet
Wi-Fi
Super Panel 6S
Phone user 1
Phoneuser... Scene Timing Automation
CLOUD
Router Amazon Echo
Bluetooth 4.2
Google
Bluetooth Speaker
Mesh
LAN
Wireless
switch
Home appliances & accessories
Bluetooth
remote
Wireless module
Home appliance
module
More
...
Intelligent Lighting
Bluetooth
Mesh
Central air
conditioner module Curtain motor
Relay
Phone user...
Bluetooth Mesh
Constant Current
SE-12 Series
SE-20Series
SE-30Series
SE-40Series
LM-150 Series
ST-75Series
5 CH LED Driver
Constant Voltage
LM-75Series
Premium Series
Smart Switch
Creativity Series
Activated Series
...
Sensor
Motion Sensor
Microwave Motion Sensor
...
Wireless + Wired
Wireless Module
(DMX/0-10V)
Wireless Module
(DMX/DALI/0-10V)
Wireless Module
(DALI)
Wireless Module
(Triac)
Musicplayer
1. Achieve fast dimming control.
Phone Bluetooth driver Lamp
2. Both App and remote can control the driver after connecting the remote to the driver with App.
Bluetooth driver
Remote Intelligent wireless switch Lamp
3. Both App and Super Panel 6S can control the driver simultaneously after connecting the Super Panel 6S to the driver with App. By connecting the Super Panel to network, you are allowed to
control the driver, cloud scenes and automation remotely with App.
Phone Bluetooth driverSuper Panel 6S Lamp
4. ......More applications of intelligent control are waiting for you to set up.
Phone

Bluetooth5.0SIGMesh
6
SE-12-100-500-W2B

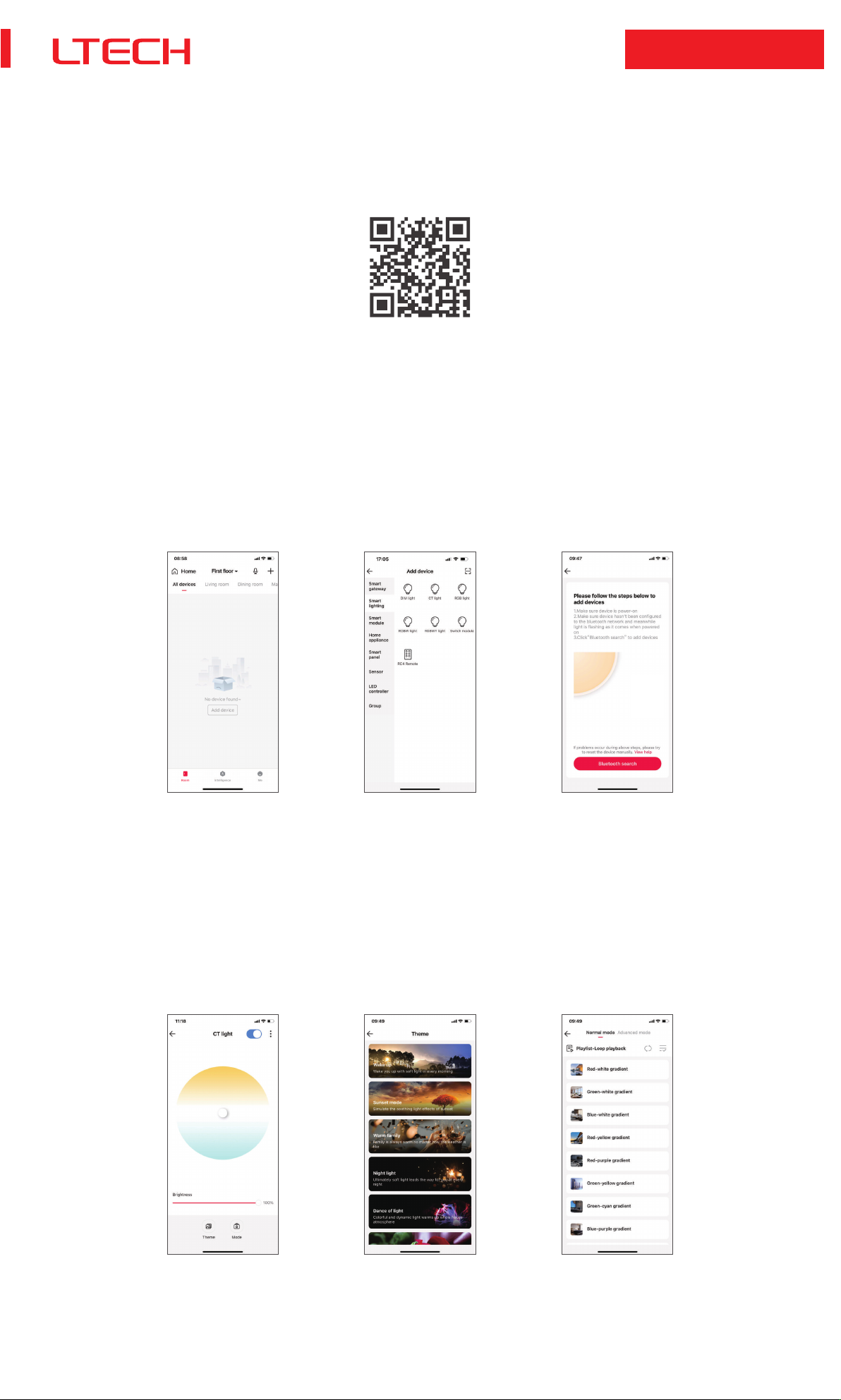

Use with Bluetooth L-Home APP
1. Register an account
The App is available on iOS or Android devices. Scan the QR code below with you mobile phone and follow the prompts to complete the App installation. Open the App to log in or register an account.
2. Paring instructions
Open the APP and create a home if you are a new user. Click “+” icon in the upper right corner and access the “Add Device” list, then follow the prompts to add the device. Pick “Smart lighting-CT
light” from the list and follow the prompts to power on the device firstly. Make sure the device is not connected to the network. Then click ”Bluetooth Search” and follow the prompts to add
the device.
After pairing up your device, go to the control interface. You'll be able to achieve your desired lighting effects by changing brightness and color temperature. Click “Theme” and you’ll easily
switch to multiple theme lighting effects with one tap. Click “Mode” and the App provides you editable advanced modes. Customize dynamic modes to put you into a more colorful life.
3. Control interface settings

Bluetooth5.0SIGMesh
7
SE-12-100-500-W2B

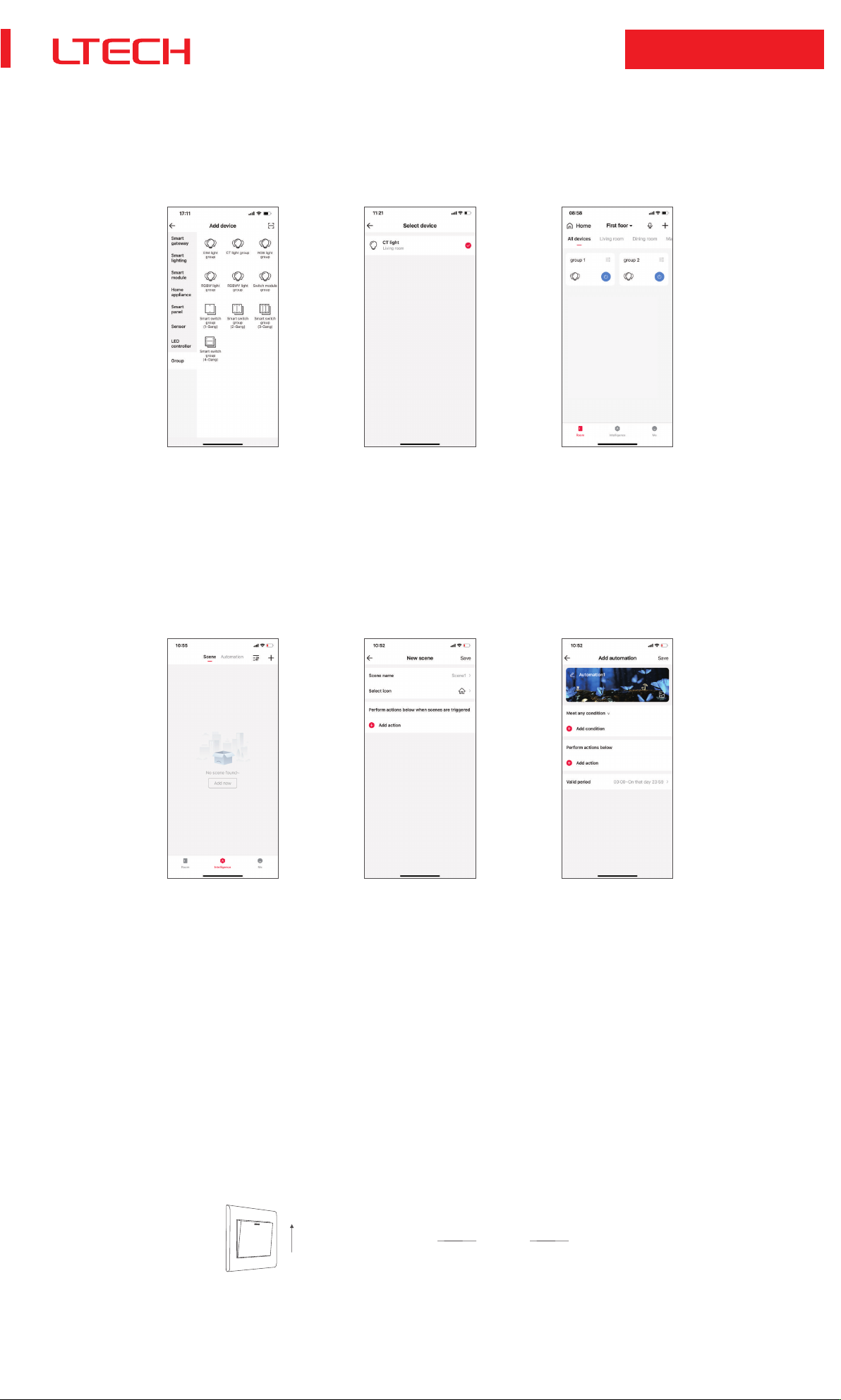

4. Light groups
5. Advanced functions
This driver can be linked up with gateway function devices (such as LTECH Super Panel) to achieve the advanced functions from cloud scenes to automation.
Users are able to combine the same type of light fixtures into a group to control them simultaneously. Once you create the group, you can set the dim level and adjust the color temperature more easily.
Pick “Group-CT light group” from the list . Follow the prompts to rename the group and click ”Next” to pick the lights you are going to group together and click “Save”.
Reset The Device
(Reset to factory defaults)
Make sure the driver is well-connected to a lamp and the lamp is on, turn it off with the switch and after 15s turn it on. After 2s, turn it off again. Repeat the same operation 6 times.
When the lamp flashes 5 times , reset the device to factory defaults successfully.
Turn it on 2s
Turn it off 15s (Repeat 6 times)
Under the driver being power-on
Turn it off Turn it on ......
2s15s

SE-12-100-500-W2D
PF
THD
8
30.0 0
40.0 0
50.0 0
60.0 0
70.0 0
80.0 0
90.0 0
1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0
1 0 0 m A 1 5 0 m A 2 0 0 m A
2 5 0 m A 3 0 0 m A 3 5 0 m A
4 0 0 m A 4 5 0 m A 5 0 0 m A 0.3 0
0.4 0
0.5 0
0.6 0
0.7 0
0.8 0
0.9 0
1.0 0
1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0
1 0 0 m A 1 5 0 m A
2 0 0 m A 2 5 0 m A
3 0 0 m A 3 5 0 m A
4 0 0 m A 4 5 0 m A
500mA
7.0 0
17.0 0
27.0 0
37.0 0
47.0 0
57.0 0
67.0 0
77.0 0
87.0 0
1 0 2 0 3 0 4 0 50 6 0 7 0 8 0 9 0 1 0 0
1 0 0 m A 15 0 m A
2 0 0 m A 25 0 m A
3 0 0 m A 35 0 m A
4 0 0 m A 45 0 m A
5 0 0 m A
2 0 ,000
3 0 ,000
4 0 ,000
5 0 ,000
6 0 ,000
7 0 ,000
8 0 ,000
9 0 ,000
100,0 0 0
110,0 0 0
3 03 0 3 5 4 0 4 5 5 0 5 5 6 0 6 56 5 7 0 7 5 8 0 8 5 9 0
Bluetooth5.0SIGMesh
SE-12-100-500-W2B
Relationship Diagrams
Efficiency VS Load Power Factor VS Load
Load[%]
Efficiency[%]
Load[%]
THD VS Load
Load[%]
Life time VS Housing temperature
Housing temperature[°C]
Life time[H]
0.1%
1%
5%
30%
40%
70%
90%
100%
10%
20%
50%
60%
80%
Frequency(Hz)
Modulation(%)
1.00%
10.00%
100.00%
0.10%
110 100 1000 100003125
Modulation Area Diagram
High Frequency Exemption Area Diagram
Marks in the right chart weretestedresults of different current ranges.
Theoutputfrequenyis0Hzin100%brightnessanditscorresponding
modulation is0%, whichcould notbeshownintherightchart.
IEEE 1789
f
f
≤ 8Hz
≤ 10Hz
limit (%)
Exemption assessment
(High frequency exemption)
f
f
f
f
f
f
f
f
f
f
≤ 90Hz
≤ 90Hz
≤ 1250Hz
≤ 3125Hz
8Hz <
10Hz <
90Hz <
90Hz <
> 1250Hz
> 3125Hz
0.2
0.1
0.025 ×
0.01 ×
0.08 ×
(0.08/2.5) ×
limit (%)
Limit of modulation in low risk area
Limit of modulation in no effect area
Waveform frequency of optical output
Waveform frequency of optical output
Exemption assessment
Brightness
Flicker Test Sheet

260 240 215××mm(L×W×H)
SE-12-100-500-W2B
Bluetooth5.0SIGMesh
9
SE-12-100-500-W2B
Packaging Specifications
Model
Carton Dimensions
Quantity
Weight
20 PCS/Layer; 5 Layers/Carton; 100 PCS/Carton
0.095 kg/PC; 9.5 kg±5%/Carton
Packaging Image
Inner Packaging Box
Carton Packaging

Bluetooth5.0SIGMesh
10
SE-12-100-500-W2B
Warranty periods from the date of delivery: 5 years.
Free repair or replacement services for quality problems are provided within warranty periods.
Warranty Agreement
Warrantyexclusionsbelow:
Beyond warranty periods.
Any artificial damage caused by high voltage, overload, or improper operations.
Products with severe physical damage.
Damage caused by natural disasters and force majeure.
Warranty labels and barcodes have been damaged.
No any contract signed by LTECH.
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
This product must be installed and adjusted by a qualified professional.
LTECH products are and not lightningproof non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure they are mounted in a
water proof enclosure or in an area equipped with lightning protection devices .
Good heat dissipation will extend the life the product. Please install the product in a environment with good ventilation.
When you install this product, please avoid being near a large area of metal objects or stacking them to prevent signal interference.
Please keep the product away from aintensemagneticfield, a high pressure area or a place where lightning is easy to occur.
Please check whether the working voltage used complies with the parameter requirements of the product.
Before you power on the product, please make sure all the wiring is correct in case of incorrect connection that may cause a short circuit and damage the components, or trigger a
accident.
If a fault occurs, please do not attempt to fix the product by yourself. If you have any question, please contact the supplier.
This manual is subject to changes without further notice. Product functions depend on the goods. Please feel free to contact our official distributors if you have any question.
Attentions
ZHUHAI LTECH TECHNOLOGY CO., LTD.
Website: www.ltech-led.com
Add: 15th Building, No.3, Pingdong 6th Road, Nanping Technical Industrial Park, Zhuhai, Guangdong, China
Transportation and Storage
1. Transportation
Products can be shipped via vehicles, boats and planes.
During transportation, products should be protected from rain and sun. Please avoid severe shock and vibration during the loading and unloading process.
2. Storage
The storage conditions should comply with the Class I Environmental Standards. The products that have been stored for more than six months are recommended to be re-inspected and can be used
only after they have been qualified.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2)this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
.Reorient or relocate the receiving antenna.
.Increase the separation between the equipment and receiver.
.Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
.Consult the dealer or an experienced radio/TV technician for
help.
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator and your body.
