52” Wet Location
Ceiling Fan Owner’s Manual
BATALIE BREEZE
CF621VNB00 - Venetian Bronze
CF621SW00 - Satin White
Model Numbers
Net Weight: 26.5 Lbs.
READ AND SAVE THESE INSTRUCTIONS
INDOOR/OUTDOOR
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service

Table of Contents
Safety Instructions
2
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring, and do not operate fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician
if in doubt.
4. The downrod furnished with the fan provides the
minimum recommended floor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All set screws must be checked and re-tightened
where necessary before installation.
NOTE: This fan is suitable for use in wet locations when
installed in a GFCI protected branch circuit.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
U.L. Model No.: CF621
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To avoid fire, shock or injury, do not use a Luminance
Brands or any other brand of control not specifically
approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use this product
by Luminance Brands Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blades during installation, balancing the blades
or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
WARNING
!
Section Page
Safety Instructions ................................ 2
1. Unpacking Instructions ..........................3-4
2. Electrical Requirements .......................... 4
3. Ceiling Fan Assembly ..........................5-11
4. How to Hang Your Ceiling Fan ..................12-13
5. How to Wire Your Ceiling Fan ..................14-15
6. Final Assembly ................................ 16
7. Using Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section Page
8. Energy Efficient Use of Ceiling Fan ............... 18
9. Maintenance ................................. 19
10. Accessories ................................. 19
11. Repair Parts ...............................20-21
12. Troubleshooting .............................. 22
Ceiling Fan Limited Warranty ....................... 23
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

1. Unpacking Instructions
3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-777-4440
WARNING
!
1.1
Open carton containing fan. Remove top half of
styrofoam unit. Remove parts and check to see that you
have received the following parts:

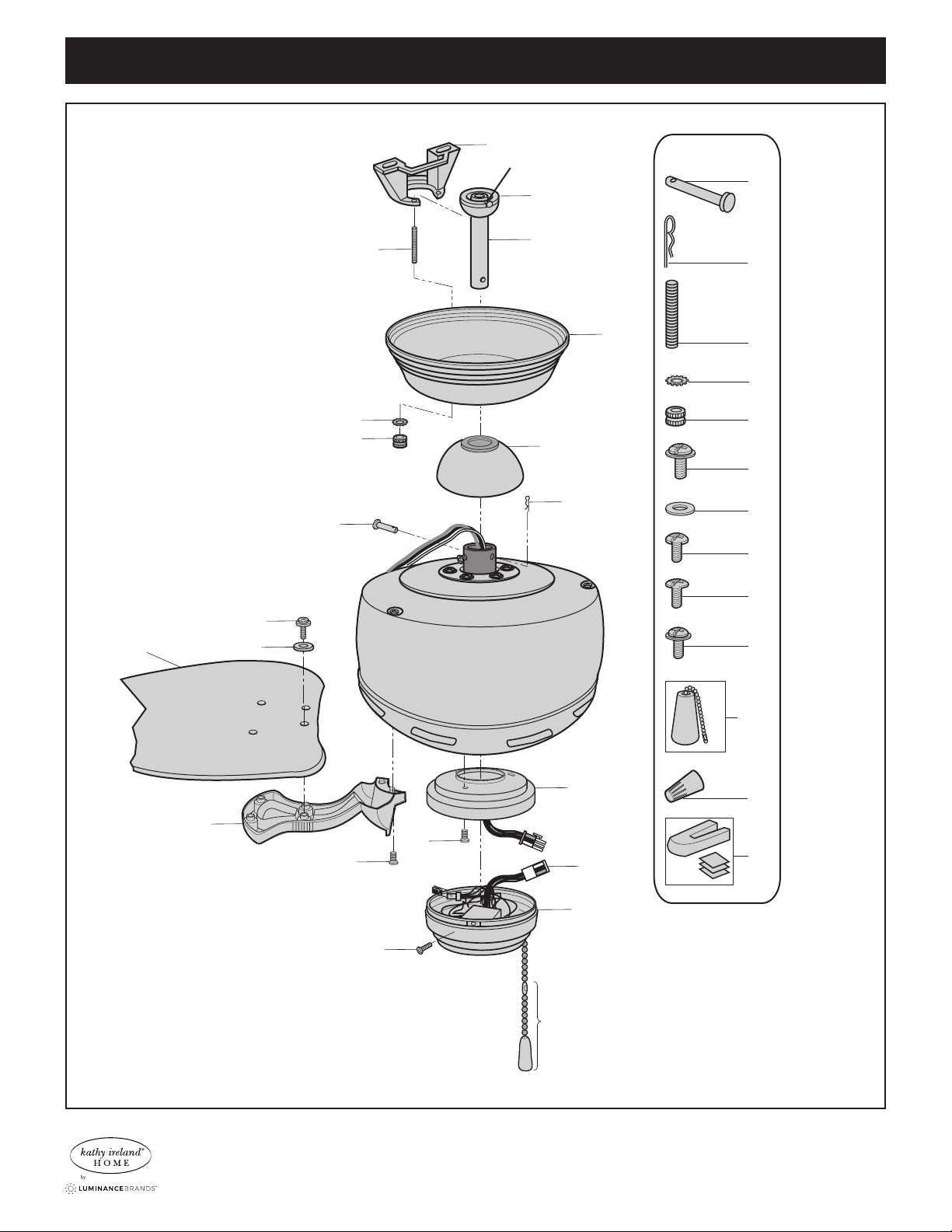

NOTE: If you are uncertain of part description, refer
to exploded view illustration.
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
1.2
Remove the Fan Motor Assembly from the protective
plastic bag.
Place all carton contents on a protective surface.
Place the Fan Motor Assembly into the upper styrofoam
with the top of the Motor facing up.
The upper styrofoam serves as a holder for the Fan
during the first stages of assembly.
7
13
9
8
12
10 11
3
6
5
4
2
1
A
B
C
D
G
E
H
I
F
PACKAGE CONTENTS
Part Description Quantity
A Fan Motor Assembly 1
B Hanger Bracket 1
C Hanger Ball/Downrod Assembly 1
D Ceiling Canopy 1
E Motor Coupler Cover 1
F Blade Flanges 5
G Fan Blades 5
H Lower Housing 1
I Switch Housing Assembly 1
HARDWARE CONTENTS
Part Description Quantity
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Knurled Knobs, #8-32 2
3 Lockwashers, External Tooth #8 2
4 Wire Connectors 3
5 Clevis Pin 1
6 Hairpin Clip 1
7 #10-24 x 12mm Washer Head Blade Screws 21
8 16mm Flat Washers 21
9 #8-32 x 8mm Pan Head Screw 1
10 #8-32 x 8mm Flat Head Screw 1
11 1/4-20 x 14mm Pan Head Screw
with Lockwasher 1
12 Pull Chain, Coupling, & Pendant 1
13 Blade Balance Kit 1

Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 14).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
Tools Needed for Assembly
One Phillips Head Screwdriver One Stepladder
One 1/4” Blade Screwdriver One Wire Stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
4
U.L. Model No.: CF621
2. Electrical Requirements
1. Unpacking Instructions (Continued)
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
Your new Ceiling Fan will require a Grounded Electrical
Supply Line of 120 Volts AC, 60 Hz, 15 Amp Circuit.
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 Pounds.
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity OFF at the Main Fuse Box
or Circuit Breaker Panel at this time and remove the
Existing Light Fixture.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
This Manual Is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
Controls (Sold Separately)
SR400 Remote Control, SW405 & SW46 Wall Controls
(all sold separately) may be used with this 52” BATALIE
BREEZE Ceiling Fan.
THIS FAN IS SUITABLE FOR WET LOCATIONS SUCH AS
PORCHES, PATIOS, AND DECKS.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
3. Ceiling Fan Assembly
PHILLIPS HEAD SET SCREW (LOOSENED)
HANGER BALL
4.5" DOWNROD
PIN
GREEN GROUND WIRE
Figure 1
3.1
Remove the Hanger Ball by loosening the Phillips Head
Set Screw in the Hanger Ball until the Ball falls freely
down the Downrod (Figure 1).
Remove the Pin from the 4.5” Downrod, then remove
the Hanger Ball (Figure 1).
Retain the Pin and Hanger Ball for reinstallation in
Step 3.8.
NOTE: Do not loosen the Screw that attaches the
Green Ground Wire to the Hanger Ball.
4.5" DOWNROD
THREE 80" MOTOR
WIRES (UNTWISTED)
Figure 2

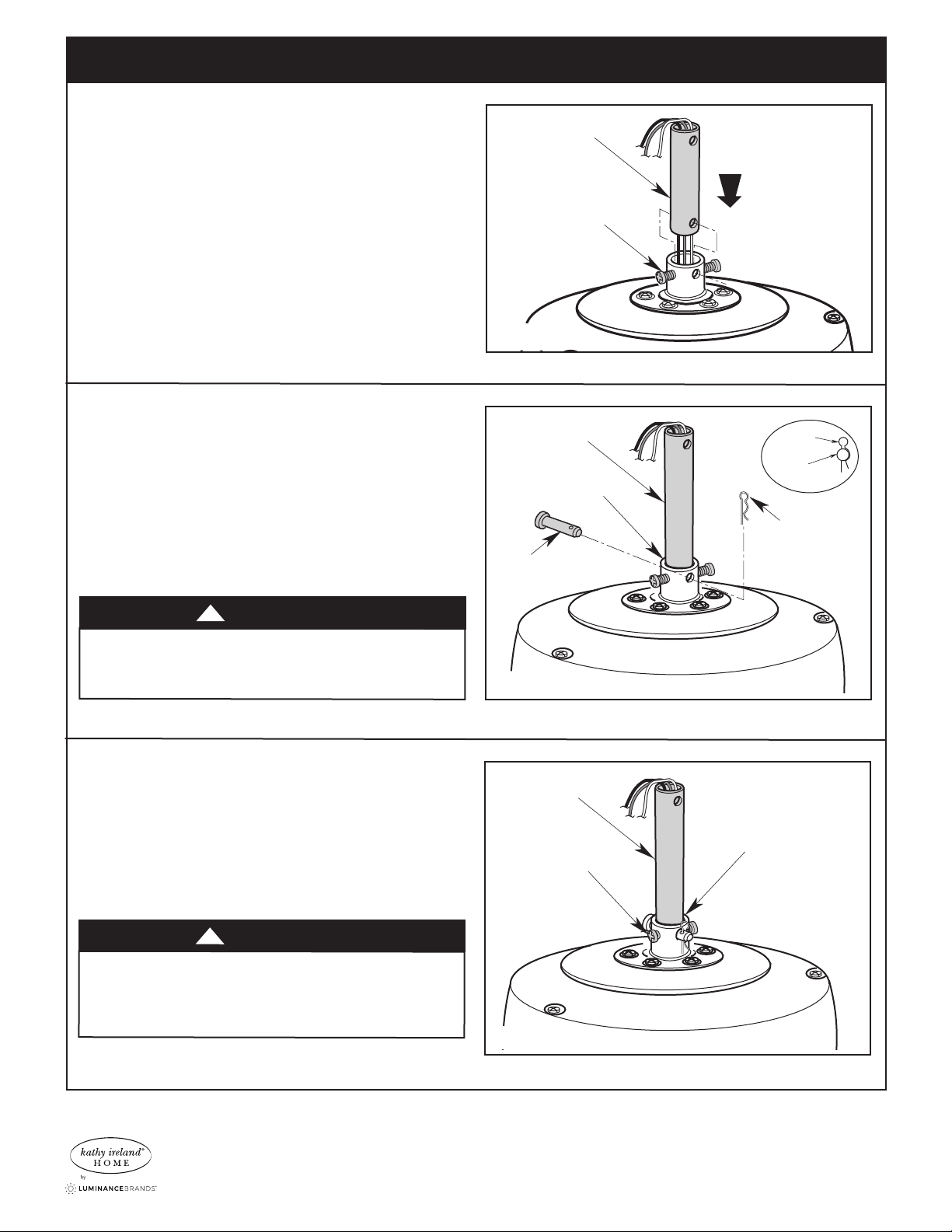

3.2
Separate, untwist and unkink the Three 80” Motor
Wires.
Route the Three 80” Black, Blue, and White Motor
Wires through the 4.5” Downrod (Figure 2).

6
U.L. Model No.: CF621
3. Ceiling Fan Assembly (Continued)
CLEVIS
PIN
4.5" DOWNROD HAIRPIN
CLIP
CLEVIS
PIN
MOTOR COUPLER
HAIRPIN CLIP
Figure 4
LOOSEN
PHILLIPS HEAD
UPPER
SET SCREWS (2)
4.5" DOWNROD
Figure 3
3.3
Loosen the Two Phillips Head Set Screws in the
Motor Coupler for installation of the Downrod
(Figure 3).
Seat the Downrod in the Motor Coupler (Figure 3).
Rotate and align the Downrod Holes with the Two
Holes in the Motor Coupler (Figure 3).
3.4
Align the Clevis Pin holes in the Downrod with the
Holes in the Motor Coupler.
Install the Clevis Pin and secure with the Hairpin Clip
(Figure 4).
The Clevis Pin must go through the holes in the Motor
Coupler. It is critical that the Clevis Pin in the Motor
Coupler is properly installed and securely tightened.
4.5" DOWNROD
MOTOR COUPLER
RETIGHTEN
PHILLIPS HEAD
SET SCREWS (2)
Figure 5
3.5
While pulling up on the Downrod, retighten the Two
Phillips Head Set Screws to secure the Downrod in the
Motor Coupler (Figure 5).
NOTE: The Set Screws must be properly installed
as described above, or fan wobble could result.
It is critical that the clevis pin in the motor coupler
is properly installed. Failure to verify that the pin is
properly installed could result in the fan falling.
WARNING
!
It is critical that the set screws in the motor coupler are
properly installed and securely tightened. Failure to
verify that the set screws are properly installed could
result in the fan falling.
WARNING
!

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
3. Ceiling Fan Assembly (Continued)
PIN
HANGER BALL
4.5" DOWNROD
Figure 8
3.8
Route the Three Motor Wires through the Hanger Ball
(Figure 8).
Reinstall the Hanger Ball on the Downrod as follows:
Position the Pin through the two holes in the Downrod
and align the Hanger Ball so the Pin is captured in the
groove in the top of the Hanger Ball (Figure 8).
Pull the Hanger Ball up tight against the Pin and
securely retighten the Phillips Head Set Screw in the
Hanger Ball (Figure 8).
A loose Phillips Head Set Screw could create fan
wobble.
MOTOR COUPLER
COUPLER COVER
DOWNROD
SET SCREW (2)
GROMMET
Figure 6
3.6
Make sure the Grommet is properly installed in the
Coupler Cover, then slide the Coupler Cover on the
Downrod until it rests on the Motor Housing (Figure 6).
CEILING
COVER
DOWNROD
Figure 7
3.7
Place the Ceiling Cover over the Downrod (Figure 7).
Be sure that the Ceiling Cover and the Coupler Cover
are both oriented correctly (Figure 7).
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened. Failure
to verify that the pin and setscrew are properly
installed could result in the fan falling.
WARNING
!

8
U.L. Model No.: CF621
PARTIALLY
ASSEMBLED FAN
SOLID
STYROFOAM
FACING OUT
6" - 8"
GAP
Figure 10
3.10
Position the top and bottom halves of the styrofoam
packaging on end, with solid styrofoam facing outward.
Set side-by-side on the floor with a six to eight-inch gap
between the halves (Figure 10).
Carefully place the Partially Assembled Ceiling Fan
on the styrofoam halves, with the hanger ball/downrod
assembly positioned in the gap and the fan motor
assembly resting on top of the styrofoam ends.
3. Ceiling Fan Assembly (Continued)
HANGER BALL
6 to 9
INCHES
1/2
INCH
3.9
The Fan comes with Blue, Black and White Wires that
are 80” long.
Measure up approximately 6 to 9-inches above top of
Hanger Ball / 4.5” Downrod Assembly (Figure 9).
Cut off excess Wires and strip back Insulation 1/2-inch
from end of Wires.
Figure 9
SPACER ATTACHMENT
SCREW
SHIPPING
SPACER
3.11
Remove the Shipping Spacers and the Spacer
Attachment Screws from the Motor Hub before
installation of Blade Assemblies (Figure 11).
Discard the Spacers and Spacer Screws.
Figure 11

9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621

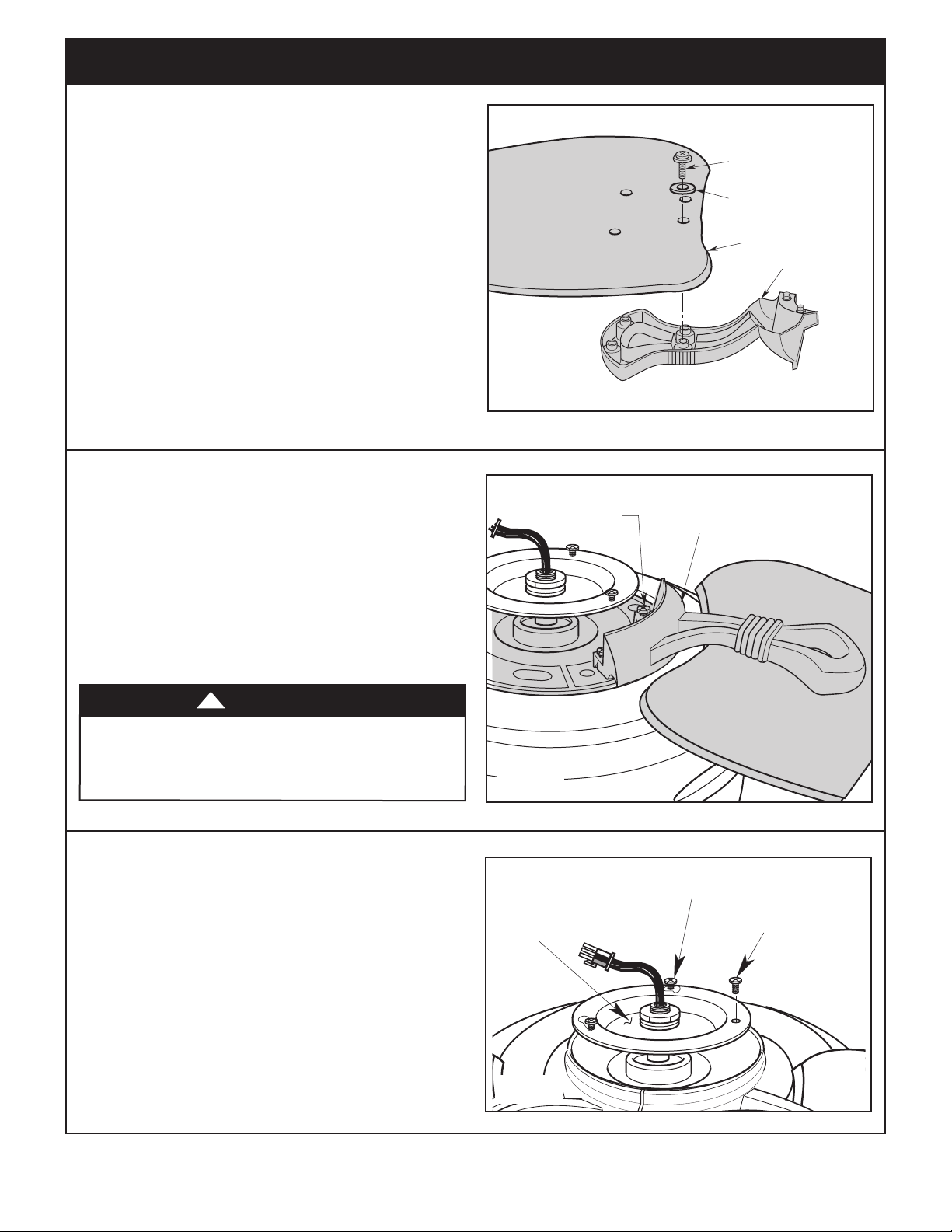

3. Ceiling Fan Assembly (Continued)
3.12
Mount Blade Flanges to Fan Blades using Four
#10 - 24 x 12mm Washer Head Screws and Four
16mm Flat Washers (supplied with fan) (Figure 12).
BLADE FLANGE
FAN BLADE
#10 - 24 x 12mm
WASHER HEAD SCREW
(4 per blade/flange)
16mm FLAT WASHER
(4 per blade/flange)
Figure 12
3.13
Loosely attach One Blade/Flange Assembly to the
Motor Hub by securing the Two 1/4 - 20 x 14mm
Captive Pan Head Screws. Make sure the screws are
NOT tightened (Figure 13). Repeat this procedure for
other Four Blade Assemblies.
Once ALL Five Blade/Flange Assemblies are secured
to the Motor Hub, proceed to tighten all the 1/4 - 20 x
14mm Captive Pan Head Screws at this time.
1/4 - 20 x 14mm CAPTIVE
PAN HEAD SCREW (2)
BLADE/FLANGE ASSEMBLY (5)
Figure 13
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
3.14
Remove One #8 - 32 x 8mm Pan Head Screw from the
Lower Housing Adapter Pplate (reserve for later use).
Loosen the other Two Screws to assemble the
Lower Housing to the Lower Housing Adapter Plate
(Figure 14).
LOWER HOUSING
ADAPTER PLATE
REMOVE ONE #8 - 32 x 8mm
PAN HEAD SCREW
LOOSEN TWO #8 - 32 x 8mm
PAN HEAD SCREWS
Figure 14

SWITCH HOUSING
ASSEMBLY
SWITCH HOUSING
ASSEMBLY CONNECTOR
MOTOR
CONNECTOR
3. Ceiling Fan Assembly (Continued)
3.15
Position the Lower Housing onto the Fan Motor
Assembly, aligning each of the the Three Holes.
Rotate the Lower Housing to engage the Two Loosened
Screws in the Two Key Hole Slots.
Replace the #8 - 32 x 8mm Pan Head Sscrew (removed
previously) and tighten ALL Three Screws to secure
the Lower Housing to the Lower Housing Adapter Plate
(Figure 15).
LOWER HOUSING
ADAPTER PLATE
LOWER HOUSING
REMOVE ONE #8 - 32 x
8mm PAN HEAD SCREW
LOOSEN TWO #8 - 32 x
8mm PAN HEAD SCREWS
Figure 15
Do not pinch wires between the lower housing
adapter plate and lower housing.
WARNING
!
10
U.L. Model No.: CF621
3.16
Engage the Switch Housing Assembly Connector with
the Motor Connector (Figure 16).
The Two Connectors are Color-Coded Keyed and must
be mated correctly (color-to-color) before they can be
engaged.
Make sure the Connector Latch closes properly
(Figure 16).
Figure 16

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
3. Ceiling Fan Assembly (Continued)
3.17
To Assemble the Switch Housing Assembly to the
Lower Housing:
Remove the Three #8 - 32 x 8mm Flat Head Screws
from the Switch Housing Assembly (retain screws for
later use) (Figure 17).
REMOVE AND RETAIN
#8-32 x 8mm FLAT
HEAD SCREWS (3)
SWITCH HOUSING
ASSEMBLY
LOWER HOUSING
Figure 17
SWITCH HOUSING
ASSEMBLY
#8 - 32 x 8mm FLAT
HEAD SCREW (3)
LOWER HOUSING
Make sure all wires and connector are tucked
under the switch housing assembly and not
pinched between the switch housing assembly
and lower housing.
WARNING
!
3.18
Position the Switch Housing Assembly onto the Lower
Housing, aligning each of the the Three Holes.
Replace the Three #8 - 32 x 8mm Flat Head Screws
(removed previously) and tighten ALL Three Screws
to secure the Switch Housing Assembly to the Lower
Housing (Figure 18).
Figure 18

12
U.L. Model No.: CF621
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
4.1
Disconnect electrical power to the Branch Circuit at
the Circuit Breaker Panel or Main Fuse Box before
attempting to install the Ceiling Fan to the Outlet Box
(Figure 20).
Figure 20
CEILING
FLOOR
AT LEAST
7'
Figure 19
4. How to Hang Your Ceiling Fan
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor (Figure 19).
CAUTION
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
MAIN FUSE BOX
OR CIRCUIT
BREAKER PANEL
On/I On/I On/I On/I
On/I On/I On/I On/I

13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
4. How to Hang Your Ceiling Fan (Continued)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
4.2
Securely attach the Hanger Bracket to the Outlet Box
using the Two Screws supplied with the Outlet Box.
(Figure 21).
TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER
BRACKET
ANTI-ROTATION TAB
OUTLET
BOX
Figure 21
4.3
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly on the Hanger Bracket that was
just attached to the Outlet Box (Figure 22).
Be sure the Groove in the Ball is engaged with the
Anti-Rotation Tab on the Hanger Bracket (Figure 22). OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: SUPPLY WIRES AND FAN WIRES OMITTED
FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION TAB
Figure 22

If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE: If you are using an Luminance Brands Light
Fixture with your fan, see Light Fixture Owner’s
Manual for wiring.
5.1
Connect the Hanger Ball Green Ground Wire and the
Hanger Bracket Green Ground Wire to the Supply
Ground Conductor (this may be a bare wire or wire with
green colored insulation). Securely connect Wires with
Wire Connectors (supplied) (Figure 23).
14
U.L. Model No.: CF621
LISTED WIRE
CONNECTOR
SUPPLY WHITE
(NEUTRAL)
FAN MOTOR
WHITE WIRE
Figure 24
5. How to Wire Your Ceiling Fan
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box or circuit breaker
panel before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
5.2
Securely connect the Fan Motor White Wire to the
Supply White (neutral) Wire using Wire Connector
(supplied) (Figure 24).
GROUND
CONDUCTOR SUPPLY
LISTED WIRE
CONNECTOR
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
Figure 23
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
5. How to Wire Your Ceiling Fan (Continued)
FAN MOTOR
BLUE WIRE
SUPPLY
BLACK
(HOT)
LISTED WIRE
CONNECTOR
FAN MOTOR
BLACK WIRE
Figure 25
5.3
Securely connect the Fan Motor Black Wire and
Blue Wires to the Supply Black (hot) Wire using Wire
Connector (supplied) (Figure 25).
BLACK &
BLUE WIRES
WHITE WIRES
GREEN
WIRES
Figure 26
5.4
After connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box
and position the Black and Blue Wires on the other side
of the Outlet Box (Figure 26).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!

6.2
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the Holes in the
Ceiling Cover (Figure 28).
Secure the Ceiling Cover in place by sliding
Lockwashers over the Threaded Studs and installing
the Two Knurled Knobs (supplied). (Figure 28).
Tighten the Knurled Knobs securely until the Ceiling
Cover fits snugly against the Ceiling and the Hole in the
Ceiling Cover is clear of the Downrod.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
16
U.L. Model No.: CF621
6. Final Assembly
KNURLED KNOBS (2)
LOCKWASHERS (2)
THREADED
STUDS (2)
CEILING
COVER
Figure 28
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
6.1
Screw the Two Threaded Studs (supplied) into the
Tapped Holes in the Hanger Bracket (Figure 27).
THREADED
STUDS (2)
Figure 27

17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
7.1
Restore Electrical Power to the Outlet Box by turning
the Electricity on at the Main Fuse Box or Circuit
Breaker Panel.
Check the operation of the Fan by gently pulling on the
Pull Chain Switch.
During Summer Months, run the Fan Counter-
Clockwise, as you look up at it, to direct airflow
downward.
During the Winter Months, run the Fan Clockwise,
as you look up at it, to direct airflow upward.
If airflow is desired in the opposite direction, turn the
Ceiling Fan OFF and wait for the Blades to stop turning.
Slide the Reverse Switch (located on the side of the
switch housing) to the opposite position, and turn the
Ceiling Fan on again (Figure 29).
The Fan Blades will turn in the opposite direction and
reverse the airflow.
7. Using Your Ceiling Fan
FAN SPEED PULL CHAIN
REVERSE
SWITCH
SWITCH
HOUSING
7.2
Cut the 3-Speed Switch Pull Chain to a desired length
(optional).
Attach the Wood Pendant Pull Chain Coupler (supplied
in parts bag) to the end of the 3-Speed Switch Pull
Chain.
Your Fan model is equipped with a 4-position,
3-Speed Pull Chain Switch (Figure 30). The operating
sequence is as follows:
Three-Speed
1st Pull—HIGH
2nd Pull—Medium
3rd Pull—Low
4th Pull—OFF
PULL CHAIN COUPLING
WOOD PENDANT
PULL CHAIN
FAN SPEED PULL CHAIN
Figure 30
Figure 29
Reverse Switch Information
Season Blade Rotation Direction
Summer Counter-Clockwise
Winter Clockwise

18
U.L. Model No.: CF621
8. Energy Efficient Use of Ceiling Fans
Ceiling fan performance and energy savings rely
heavily on the proper installation and use of the
ceiling fan. Here are a few tips to ensure quality and
product performance.
Choosing the Appropriate Mounting Location.
Ceiling fans should be installed, or mounted, in the
middle of the room and at least 7 feet above the floor
and 18 inches from the walls. If ceiling height allows,
install the fan 8 - 9 feet above the floor for optimal
airflow. Consult your Luminance Brands Retailer for
optional mounting accessories.
Using the Ceiling Fan Year Round. In the summer,
use the ceiling fan in the counter-clockwise direction.
The airflow produced by the ceiling fan creates
a wind-chill effect, making you “feel” cooler.
Select a fan speed that provides a comfortable
breeze, lower speeds consume less energy. In
the winter, reverse the motor and operate the
ceiling fan at low speed in the clockwise direction.
This produces a gentle updraft, which forces warm
air near the ceiling down into the occupied space.
Remember to adjust your thermostat when using your
ceiling fan - additional energy and dollar savings could
be realized with this simple step!
Turn Off When Not in the Room. Ceiling fans cool
people, not rooms. If the room is unoccupied, turn off
the ceiling fan to save energy.

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF621
Do not use water when cleaning your ceiling fan.
It could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth to
avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
9. Maintenance
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
See your local Luminance Brands dealer,
www.luminancebrands.com or our catalog for these
accessories:
• Ceiling Fan Light Kits
• Ceiling Fan / Light Controls
• Downrod Extension Kits
10. Accessories
The use of any other control not specifically approved
for this fan could result in fire, shock and personal
injury.
WARNING
!

20
U.L. Model No.: CF621
11. Repair Parts
6
1
2
3
4
5
8
7
17
18
19
21
20
10
14
22
23
9
PARTS BAG
5
4
7
8
6
9
10
11
12
13
11
13
12
15
16
14
